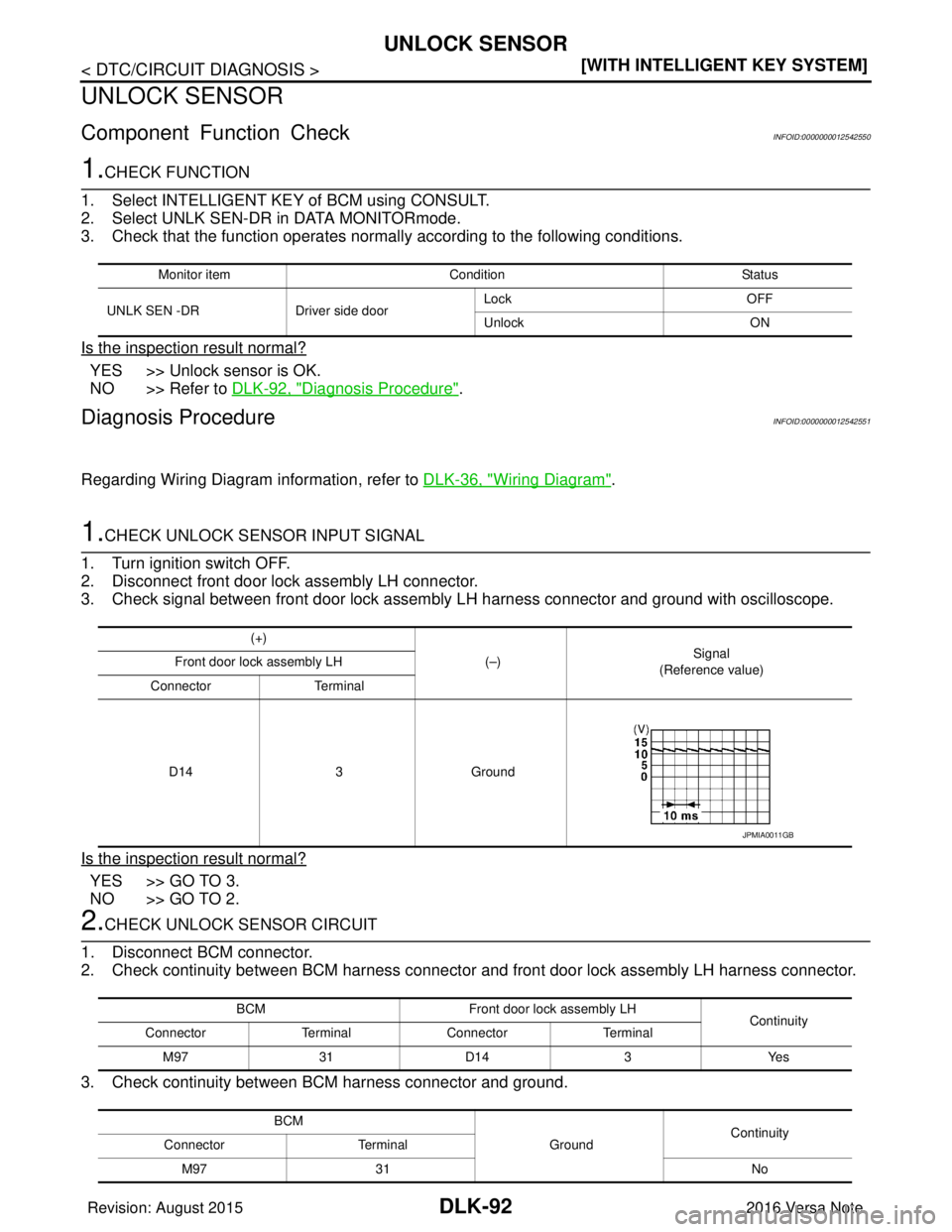

DLK-92
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
UNLOCK SENSOR
UNLOCK SENSOR
Component Function CheckINFOID:0000000012542550
1.CHECK FUNCTION
1. Select INTELLIGENT KEY of BCM using CONSULT.
2. Select UNLK SEN-DR in DATA MONITORmode.
3. Check that the function operates normall y according to the following conditions.
Is the inspection result normal?
YES >> Unlock sensor is OK.
NO >> Refer to DLK-92, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000012542551
Regarding Wiring Diagram information, refer to DLK-36, "Wiring Diagram".
1.CHECK UNLOCK SENSOR INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect front door lock assembly LH connector.
3. Check signal between front door lock assembly LH harness connector and ground with oscilloscope.
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 2.
2.CHECK UNLOCK SENSOR CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM harness connector and front door lock assembly LH harness connector.
3. Check continuity between BCM harness connector and ground.
Monitor item Condition Status
UNLK SEN -DR Driver side door Lock
OFF
Unlock ON
(+)
(–)Signal
(Reference value)
Front door lock assembly LH
Connector Terminal
D14 3Ground
JPMIA0011GB
BCM Front door lock assembly LH
Continuity
Connector TerminalConnector Terminal
M97 31D14 3Yes
BCM GroundContinuity
Connector Terminal
M97 31 No
Revision: August 2015 2016 Versa Note

cardiagn.com

UNLOCK SENSORDLK-93
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
Is the inspection result normal?
YES >> Replace BCM. Refer to BCS-74, "Removal and Installation".
NO >> Repair or replace harness.
3.CHECK UNLOCK SENSOR GROUND CIRCUIT
Check continuity between front door lo ck assembly LH harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace harness.
4.CHECK UNLOCK SENSOR
Refer to DLK-93, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 5.
NO >> Replace front door lock assembly LH. Refer to DLK-168, "
DOOR LOCK : Removal and Installa-
tion".
5.CHECK INTERMITTENT INCIDENT
Refer to GI-42, "
Intermittent Incident".
>> Inspection End.
Component InspectionINFOID:0000000012542552
1.CHECK UNLOCK SENSOR
1. Turn ignition switch OFF.
2. Disconnect front door lock assembly LH connector.
3. Check continuity between front door lock assembly LH terminals.
Is the inspection result normal?
YES >> Inspection End.
NO >> Replace front door lock assembly LH. Refer to DLK-168, "
DOOR LOCK : Removal and Installa-
tion".
Front door lock assembly LH
GroundContinuity
Connector Terminal
D14 4 Yes
Front door lock assembly LH
Condition Continuity
Te r m i n a l
3 4Driver side door Unlock
Yes
Lock No
Revision: August 2015 2016 Versa Note

cardiagn.com

DLK-94
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
DOOR REQUEST SWITCH
DOOR REQUEST SWITCH
Component Function CheckINFOID:0000000012430030
1.CHECK FUNCTION
1. Select “INTELLIGENT KEY” of “BCM” using CONSULT.
2. Select “REQ SW-DR”, “REQ SW-AS” in “Data Monitor”.
3. Check that the function operates normall y according to the following conditions:
Is the inspection result normal?
YES >> Front door request switch is OK.
NO >> Refer to DLK-94, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000012430031
Regarding Wiring Diagram information, refer to DLK-46, "Wiring Diagram".
1.CHECK DOOR REQUEST SWITCH INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect malfunctioning front door request switch connector.
3. Check voltage between malfunctioning front door request switch harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 2.
2.CHECK DOOR REQUEST SWITCH CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between malfunctioning front door request switch harness connector and BCM harness
connector.
3. Check continuity between malfunctioning front door request switch harness connector and ground.
Monitor item Condition Status
REQ SW -DR Door request switch LH Pressed
ON
Released OFF
REQ SW -AS Door request switch RH Pressed
ON
Released OFF
(+)
(–)Vo l ta g e
(Approx.)
Front door request switch
Connector Terminal
Left side D17
3Ground Battery voltage
Right side D113
Front door request switch BCM
Continuity
Connector TerminalConnector Terminal
Left side D17
3M98 75
Ye s
Right side D113 100
Revision: August 2015 2016 Versa Note

cardiagn.com

DOOR REQUEST SWITCHDLK-95
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
Is the inspection result normal?
YES >> Replace BCM. Refer to BCS-74, "Removal and Installation".
NO >> Repair or replace harness.
3.CHECK DOOR REQUEST SWITCH GROUND CIRCUIT
Check continuity between malfunctioning front door request switch harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace harness.
4.CHECK DOOR REQUEST SWITCH
Refer to DLK-95, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 5.
NO >> Replace malfunctioning front door request switch.
5.CHECK INTERMITTENT INCIDENT
Refer to GI-42, "
Intermittent Incident".
>> Inspection End.
Component InspectionINFOID:0000000012430032
1.CHECK DOOR REQUEST SWITCH
1. Turn ignition switch OFF.
2. Disconnect malfunctioning front door request switch connector.
3. Check continuity between malfunctioning front door request switch terminals.
Is the inspection result normal?
YES >> Inspection End.
NO >> Replace malfunctioning front door request switch. Refer to DLK-185, "
DRIVER SIDE : Removal
and Installation" (driver side) or DLK-185, "PASSENGER SIDE : Removal and Installation" (pas-
senger side).
Front door request switch
GroundContinuity
Connector Terminal
Left side D17
3N o
Right side D113
Front door request switch
GroundContinuity
Connector Terminal
Left side D17
4Y es
Right side D113
Front door request switch
Condition Continuity
Te r m i n a l
3 4Door request switch Pressed
Yes
Released No
Revision: August 2015 2016 Versa Note

cardiagn.com

DLK-96
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
BACK DOOR REQUEST SWITCH
BACK DOOR REQUEST SWITCH
DescriptionINFOID:0000000012430033
Transmits lock/unlock operation to BCM.
Component Function CheckINFOID:0000000012430034
1.CHECK FUNCTION
Check “REQSW-BD/TR” in “Data Monitor” using CONSULT.
Is the inspection result normal?
YES >> Back door request switch is OK.
NO >> Refer to DLK-96, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000012430035
Regarding Wiring Diagram information, refer to DLK-46, "Wiring Diagram".
1.CHECK BACK DOOR REQUEST SWITCH INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect back door request switch connector.
3. Check voltage between back door request switch harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 2.
2.CHECK BACK DOOR REQUEST SWITCH CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM harness connecto r and back door request switch harness connector.
3. Check continuity between BCM harness connector and ground.
Is the inspection result normal?
YES >> Replace BCM. Refer to BCS-74, "Removal and Installation".
NO >> Repair harness or connector.
3.CHECK BACK DOOR REQUEST SWITCH GROUND CIRCUIT
Monitor item Condition Status
REQSW-BD/TR Back door request switch Pressed
ON
Released OFF
(+)
(–)Voltage (V)
(Approx.)
Back door request switch
Connector Terminal
D506 1GroundBattery voltage
BCM Back door request switch
Continuity
Connector TerminalConnector Terminal
M100 51D506 1Yes
BCM GroundContinuity
Connector Terminal
M100 51 No
Revision: August 2015 2016 Versa Note

cardiagn.com

BACK DOOR REQUEST SWITCHDLK-97
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
Check continuity between back door request switch harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace harness.
4.CHECK BACK DOOR REQUEST SWITCH
Refer to DLK-97, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 5.
NO >> Replace back door request switch. Refer to DLK-176, "
OUTSIDE HANDLE : Removal and Instal-
lation".
5.CHECK INTERMITTENT INCIDENT
Refer to GI-42, "
Intermittent Incident".
>> Inspection End.
Component InspectionINFOID:0000000012430036
1.CHECK BACK DOOR REQUEST SWITCH
1. Turn ignition switch OFF.
2. Disconnect back door request switch connector.
3. Check continuity between back door request switch terminals.
Is the inspection result normal?
YES >> Inspection End.
NO >> Replace back door request switch. Refer to DLK-176, "
OUTSIDE HANDLE : Removal and Instal-
lation".
Back door request switch
GroundContinuity
Connector Terminal
D506 2 Yes
Back door request switch
ConditionContinuity
Te r m i n a l
1 2Back door request switch Pressed
Yes
Released No
Revision: August 2015 2016 Versa Note

cardiagn.com

DLK-98
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
DOOR SWITCH
DOOR SWITCH
Component Function CheckINFOID:0000000012430037
1.CHECK FUNCTION
1. Select “DOOR LOCK” of “BCM” using CONSULT.
2. Select “DOOR SW-DR”, “DOOR SW-AS”, “DOOR SW-RL” and “DOOR SW-RR” in “Data Monitor”.
3. Check that the function operates normall y according to the following conditions:
Is the inspection result normal?
YES >> Door switch is OK.
NO >> Refer to DLK-98, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000012430038
Regarding Wiring Diagram information, refer to DLK-36, "Wiring Diagram".
1.CHECK DOOR SWITCH INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect malfunctioning door switch connector.
3. Check signal between malfunctioning door swit ch harness connector and ground using oscilloscope.
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 2.
2.CHECK DOOR SWITCH CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between door switch harness connector and BCM harness connector.
Monitor item Condition Status
DOOR SW-DR Front door LH Open
ON
Closed OFF
DOOR SW-AS Front door RH Open
ON
Closed OFF
DOOR SW-RL Rear door LH Open
ON
Closed OFF
DOOR SW-RR Rear door RHOpen
ON
Closed OFF
(+)
(–)Signal
(Reference value)
Door switch
Connector Terminal
Front door switch
LH B8
3
Ground
7.0 - 8.0 V
Front door switch
RH
B16
3
Rear door switch
LH B6
3
Rear door switch
RH B17
3
PKIB4960J
Revision: August 2015 2016 Versa Note

cardiagn.com

DOOR SWITCHDLK-99
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
3. Check continuity between door switch harness connector and ground.
Is the inspection result normal?
YES >> Replace BCM. Refer to BCS-74, "Removal and Installation".
NO >> Repair or replace harness.
3.CHECK DOOR SWITCH
Refer to DLK-99, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 4.
NO >> Replace malfunctioning door switch.
4.CHECK INTERMITTENT INCIDENT
Refer to GI-42, "
Intermittent Incident".
>> Inspection End.
Component InspectionINFOID:0000000012430039
1.CHECK DOOR SWITCH
1. Turn ignition switch OFF.
2. Disconnect malfunctioning door switch connector.
3. Check continuity between door switch terminals.
Is the inspection result normal?
Door switch BCM
Continuity
Connector TerminalConnector Terminal
Front door switch
LH B8
3M10 0 47
Ye s
Front door switch
RH
B16
45
Rear door switch
LH B6
48
Rear door switch
RH B17
46
Door switch GroundContinuity
Connector Terminal
Front door switch LH B8
3N o
Front door switch RH
B16
Rear door switch LH B6
Rear door switch RH B17
Door switch
Condition Continuity
Te r m i n a l
Front door switch
LH
3Ground part of door
switch Door switch Pressed
No
Released Yes
Front door switch
RH Pressed
No
Released Yes
Rear door switch
LH Pressed
No
Released Yes
Rear door switch
RH Pressed
No
Released Yes
Revision: August 2015 2016 Versa Note

cardiagn.com

DLK-100
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
DOOR SWITCH
YES >> Inspection End.
NO >> Replace malfunction door switch.
Revision: August 2015
2016 Versa Note

cardiagn.com

HAZARD FUNCTIONDLK-101
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
HAZARD FUNCTION
Component Function CheckINFOID:0000000012430040
1.CHECK FUNCTION
1. Select “INTELLIGENT KEY” of “BCM” using CONSULT.
2. Select “FLASHER” in “Active Test.
3. Touch “LH” or “RH” to check that it works normally.
Is the inspection result normal?
YES >> Hazard warning lamp circuit is OK.
NO >> Refer to DLK-101, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000012430041
1.CHECK HAZARD SWITCH CIRCUIT
Refer to EXL-85, "
Component Function Check".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace harness.
2.CHECK INTERMITTENT INCIDENT
Refer to GI-42, "
Intermittent Incident".
>> Inspection End.
Revision: August 2015 2016 Versa Note

cardiagn.com
