Page 91 of 326

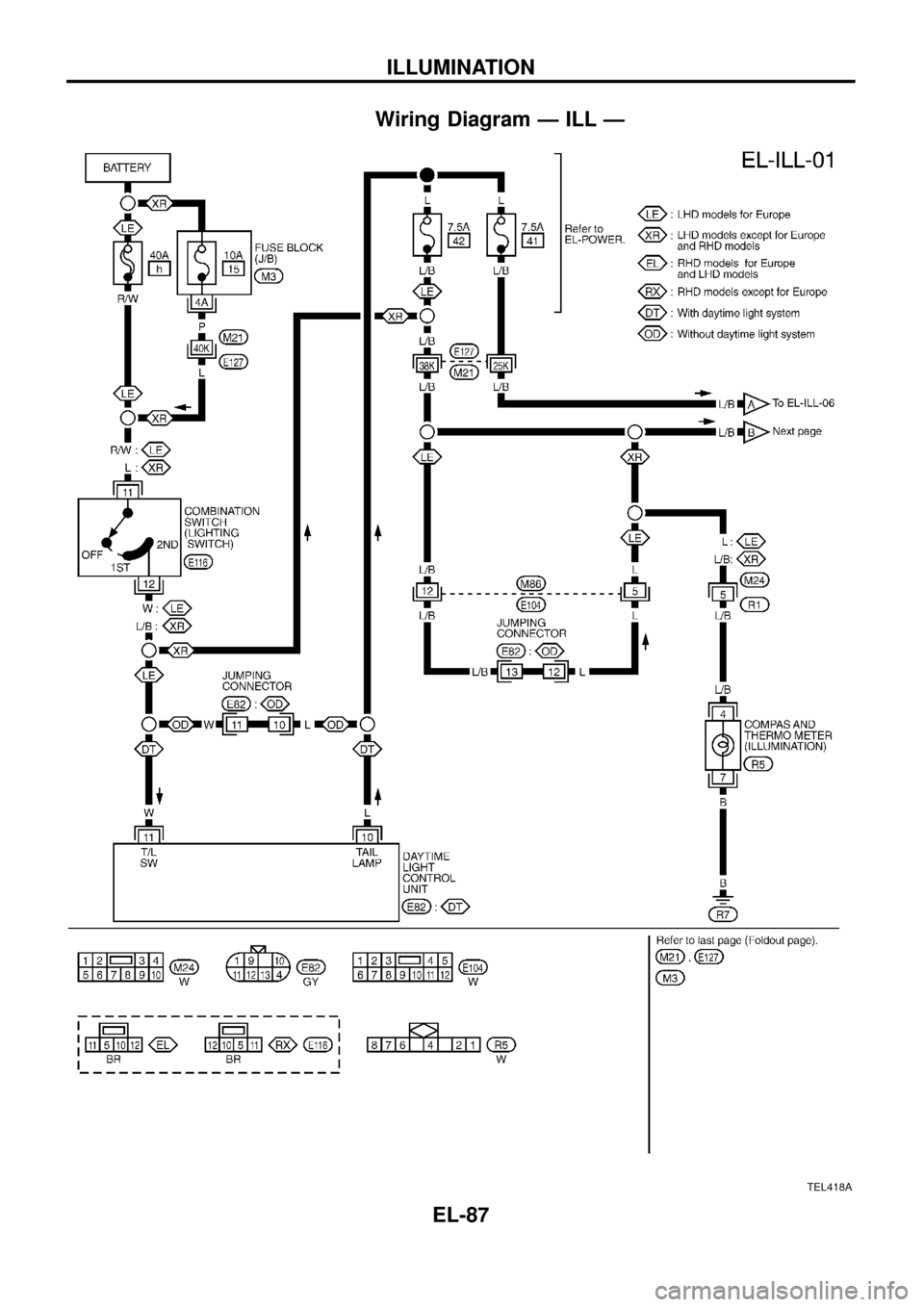

NISSAN PATROL 1998 Y61 / 5.G Electrical System Owners Manual Wiring Diagram Ð ILL Ð
TEL418A
ILLUMINATION
EL-87

Page 92 of 326

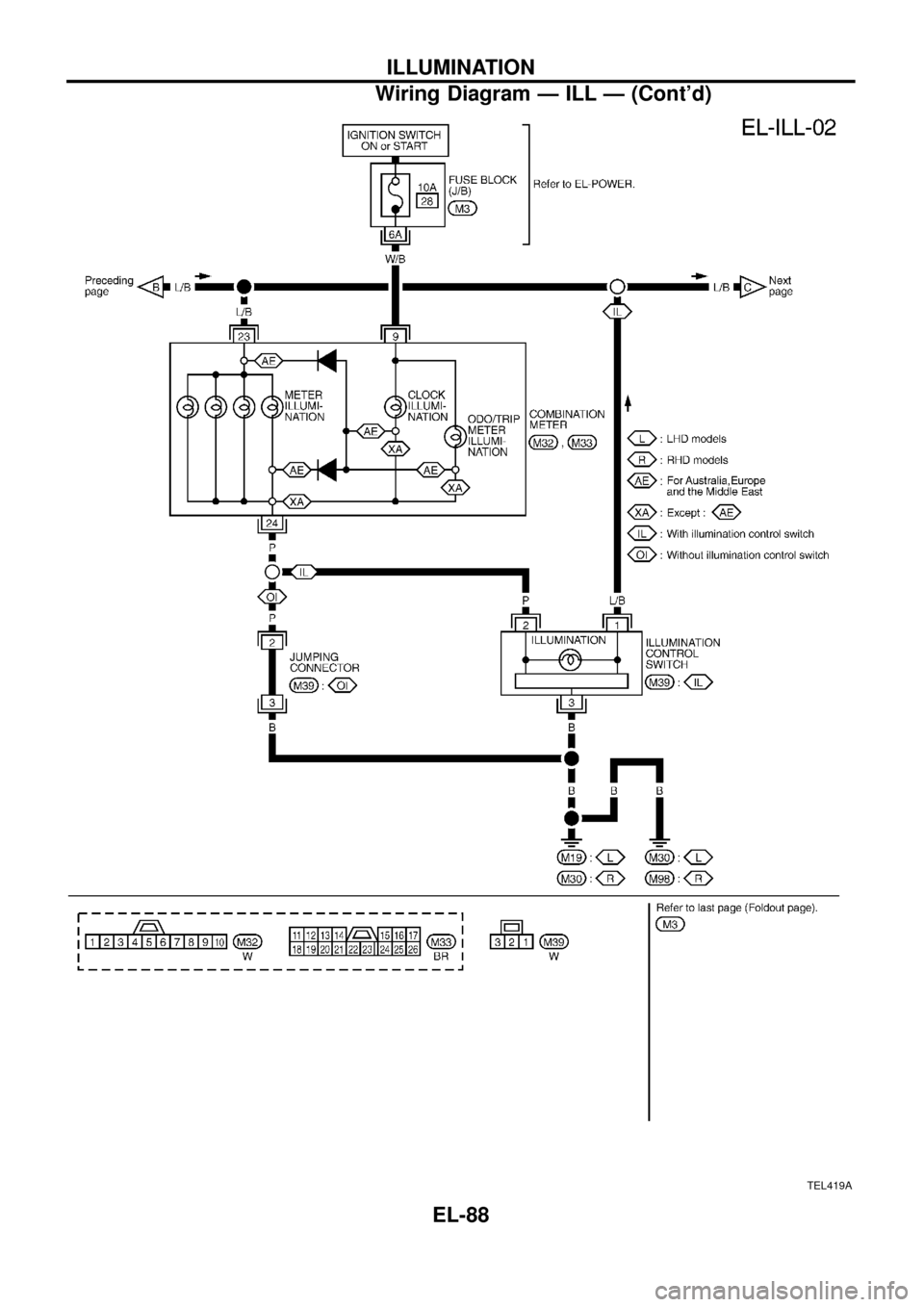

NISSAN PATROL 1998 Y61 / 5.G Electrical System Owners Manual TEL419A
ILLUMINATION
Wiring Diagram Ð ILL Ð (Contd)
EL-88

Page 93 of 326

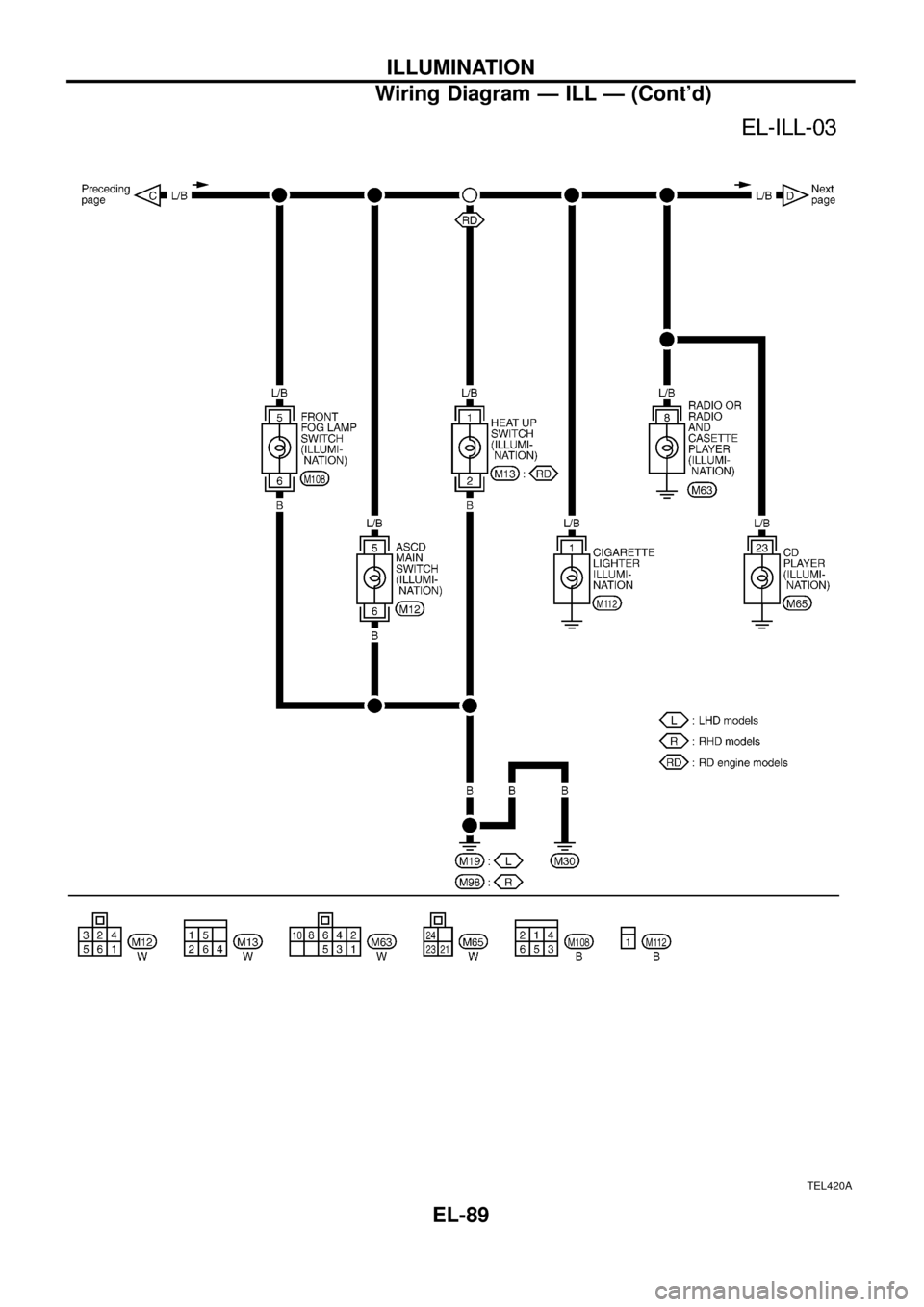

NISSAN PATROL 1998 Y61 / 5.G Electrical System Owners Manual TEL420A
ILLUMINATION
Wiring Diagram Ð ILL Ð (Contd)
EL-89

Page 94 of 326

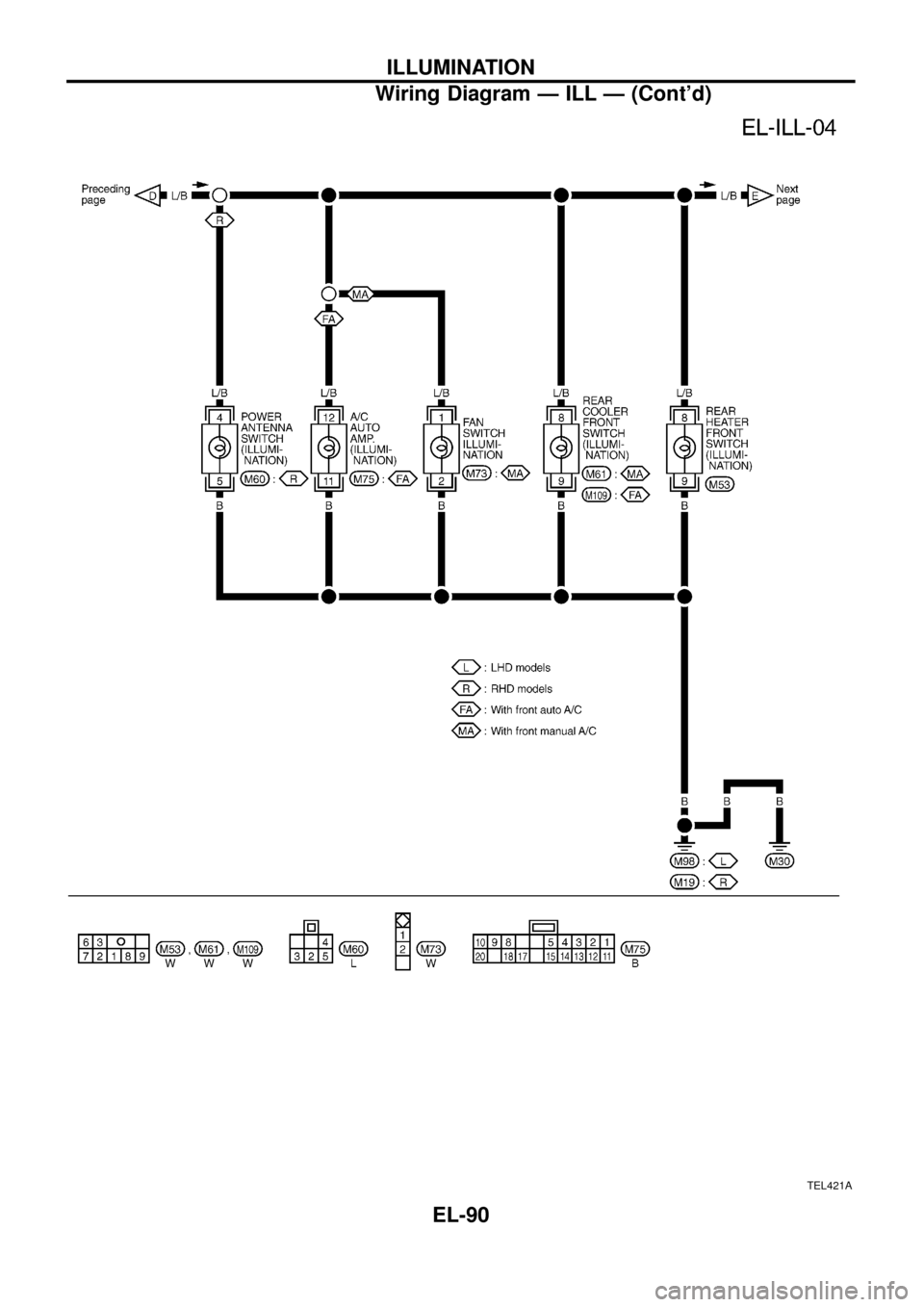

NISSAN PATROL 1998 Y61 / 5.G Electrical System Owners Manual TEL421A
ILLUMINATION
Wiring Diagram Ð ILL Ð (Contd)
EL-90

Page 95 of 326

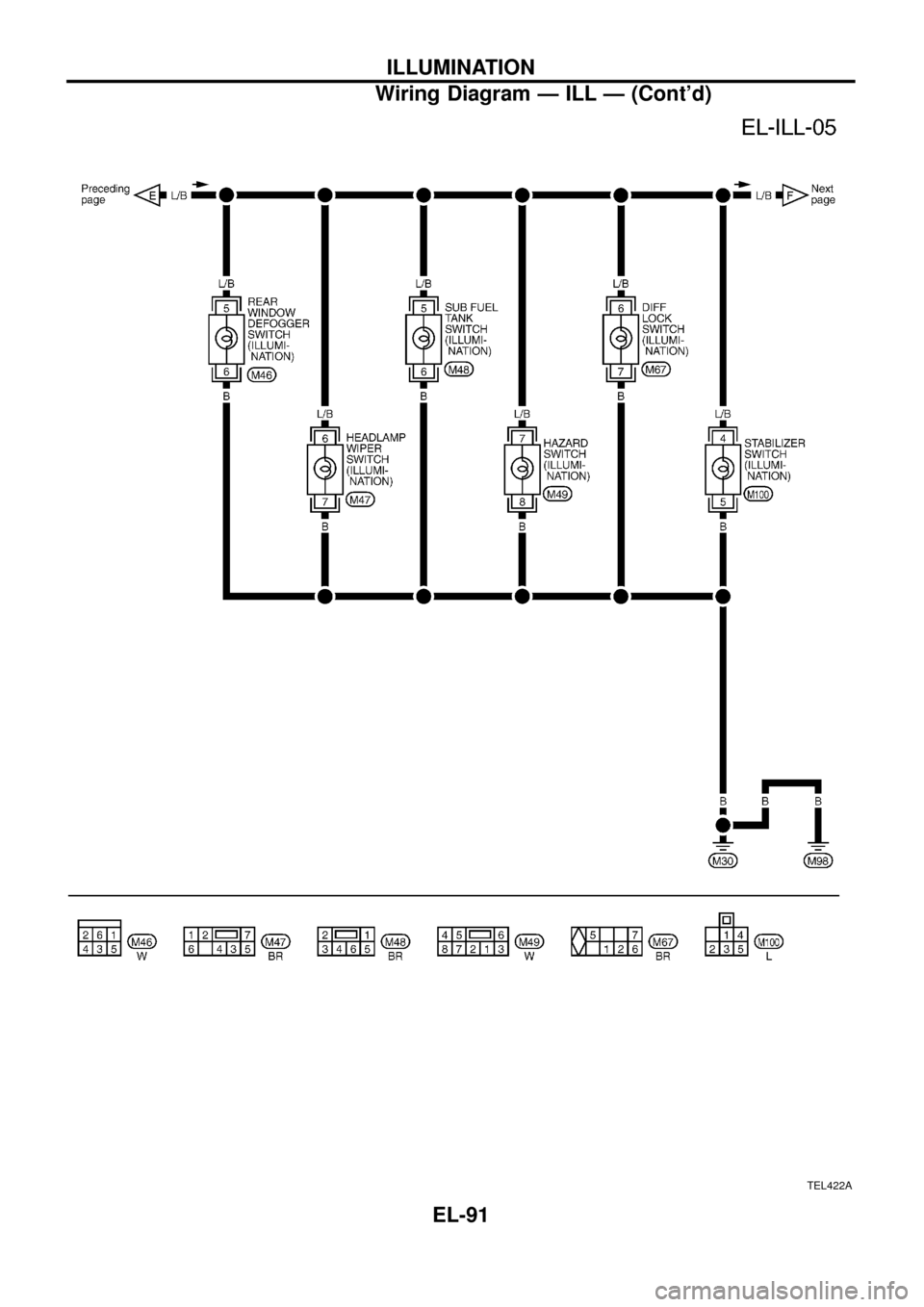

NISSAN PATROL 1998 Y61 / 5.G Electrical System Owners Manual TEL422A
ILLUMINATION
Wiring Diagram Ð ILL Ð (Contd)
EL-91

Page 96 of 326

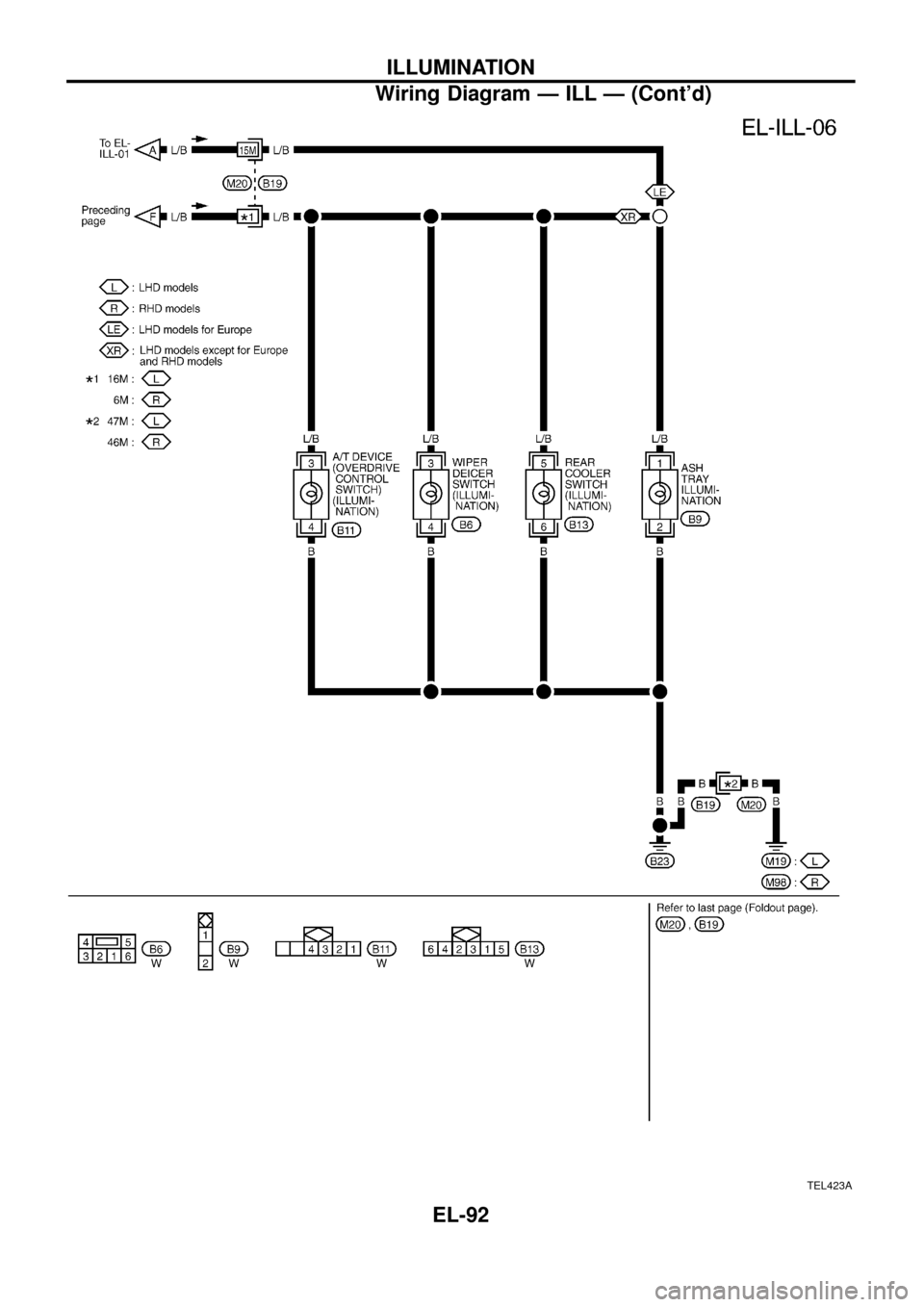

NISSAN PATROL 1998 Y61 / 5.G Electrical System Owners Manual TEL423A
ILLUMINATION
Wiring Diagram Ð ILL Ð (Contd)
EL-92

Page 97 of 326

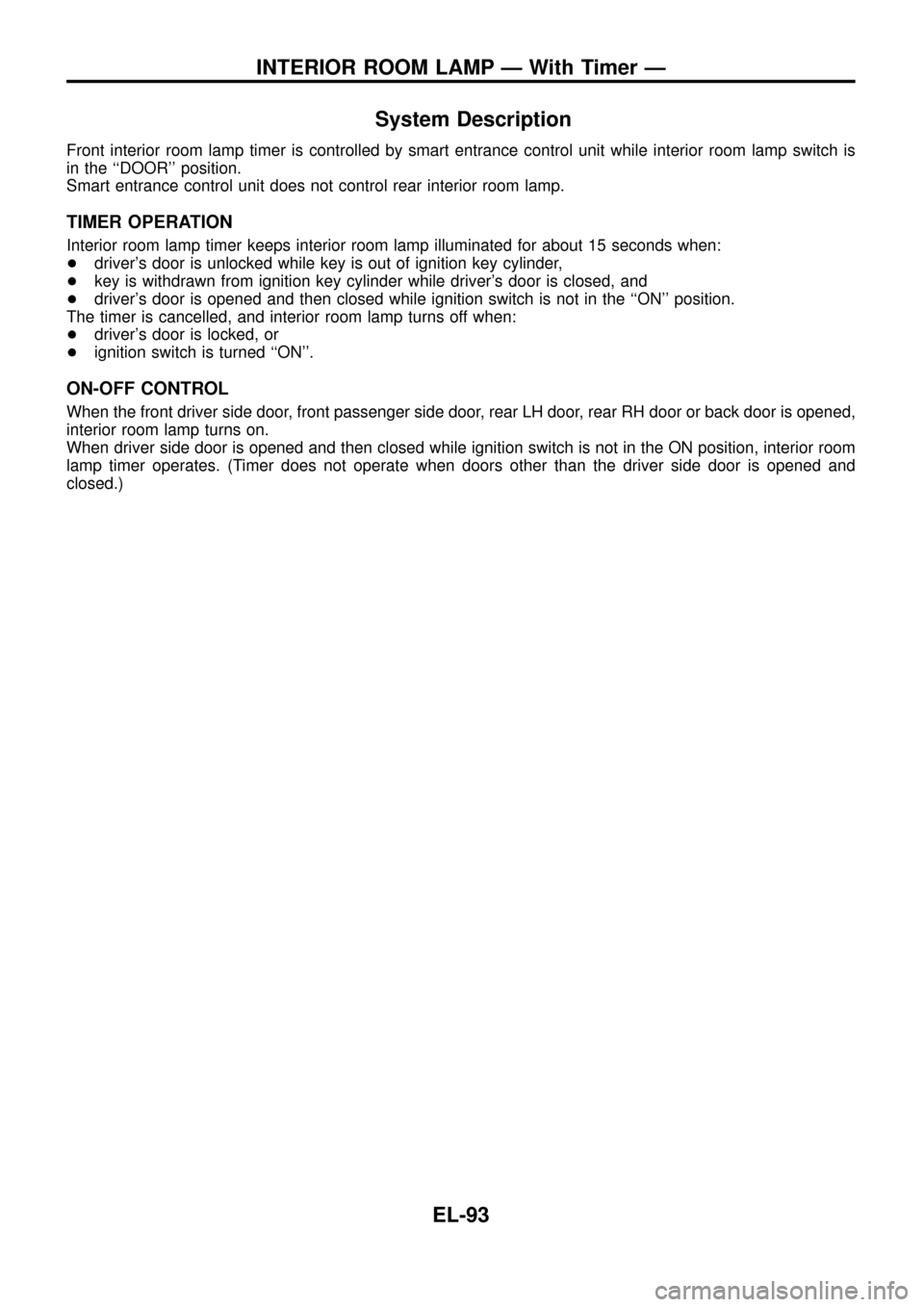

NISSAN PATROL 1998 Y61 / 5.G Electrical System Owners Manual System Description
Front interior room lamp timer is controlled by smart entrance control unit while interior room lamp switch is
in the ``DOOR position.
Smart entrance control unit does not control

Page 98 of 326

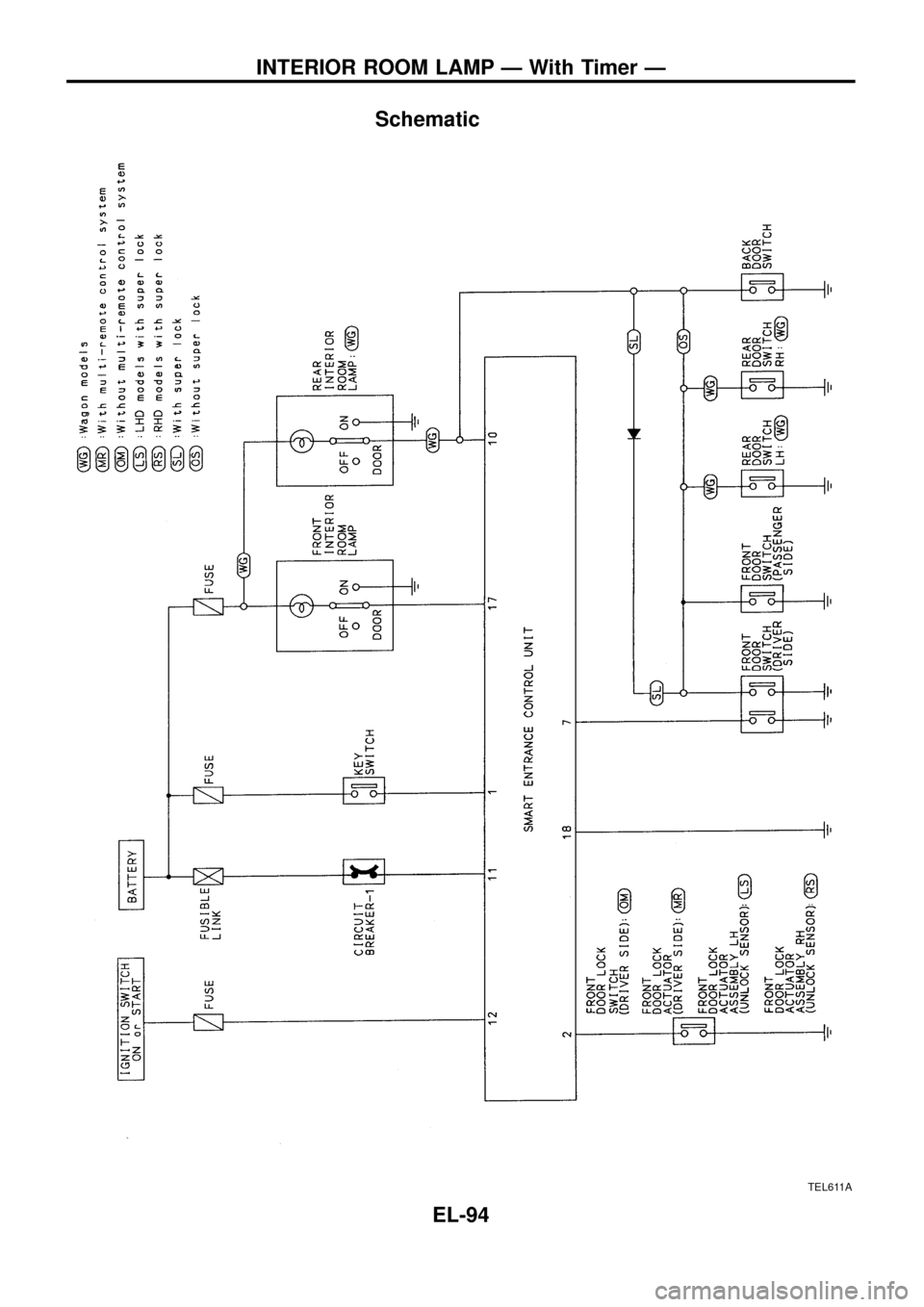

NISSAN PATROL 1998 Y61 / 5.G Electrical System Owners Manual Schematic
TEL611A
INTERIOR ROOM LAMP Ð With Timer Ð
EL-94

Page 99 of 326

NISSAN PATROL 1998 Y61 / 5.G Electrical System Owners Manual Wiring Diagram Ð ROOM/L Ð/LHD Models
TEL607A
INTERIOR ROOM LAMP Ð With Timer Ð
EL-95

Page 100 of 326

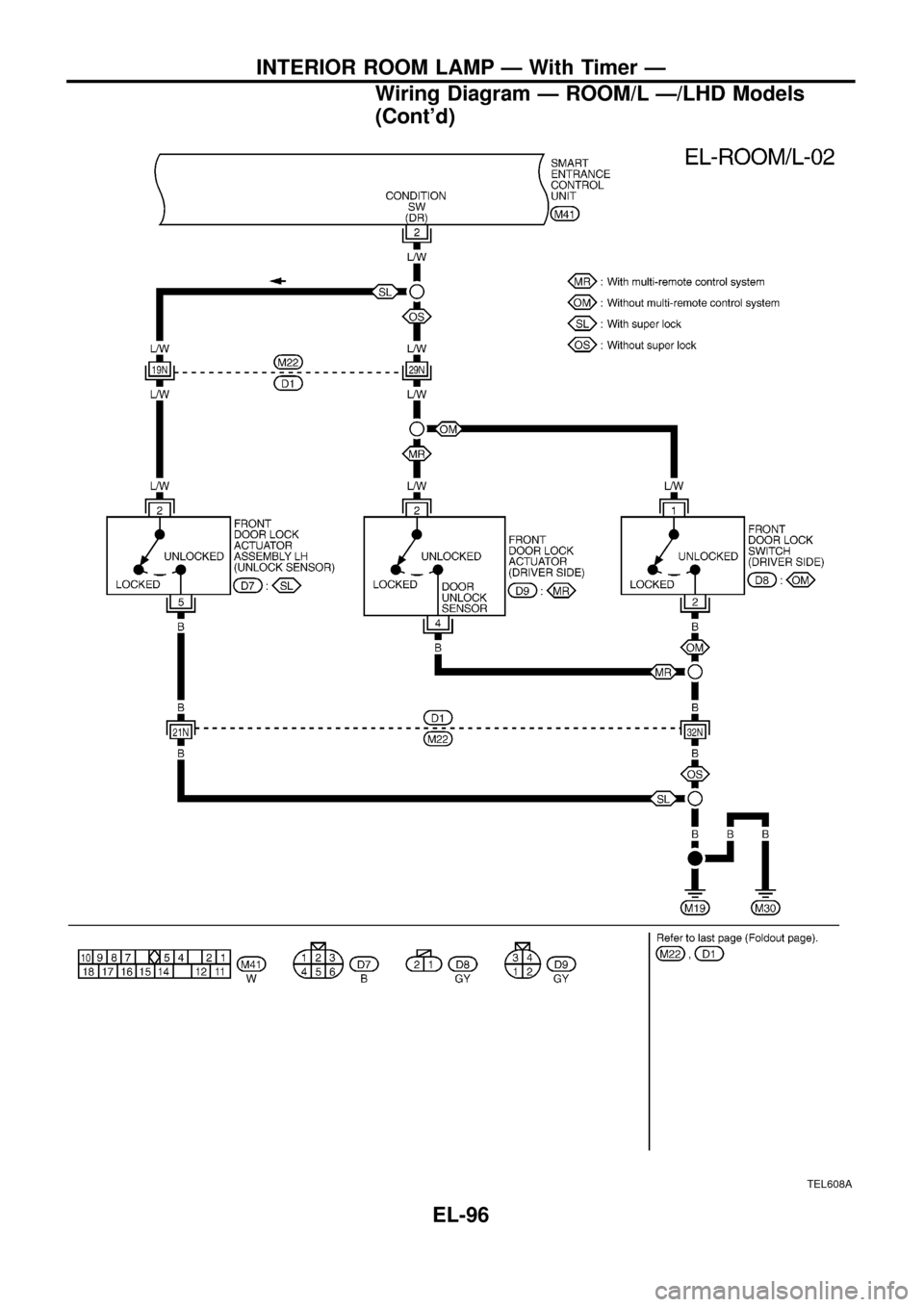

NISSAN PATROL 1998 Y61 / 5.G Electrical System Owners Manual TEL608A
INTERIOR ROOM LAMP Ð With Timer Ð
Wiring Diagram Ð ROOM/L Ð/LHD Models
(Contd)
EL-96
