NISSAN PATROL 1998 Y61 / 5.G Electrical System Workshop Manual

TEL703A
WARNING LAMPS
Wiring Diagram Ð WARN Ð (Cont'd)
EL-127

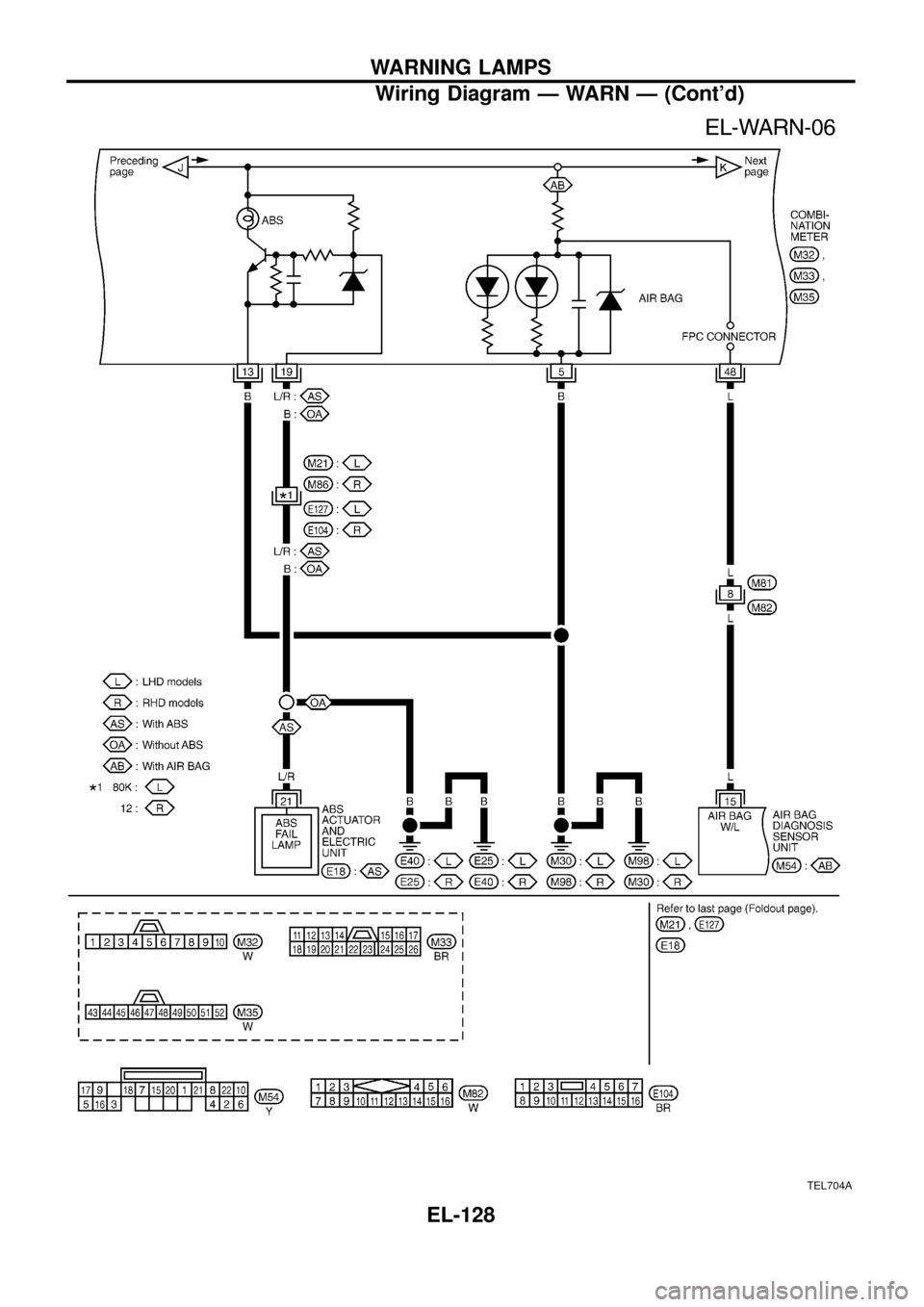

TEL704A
WARNING LAMPS
Wiring Diagram Ð WARN Ð (Cont'd)
EL-128

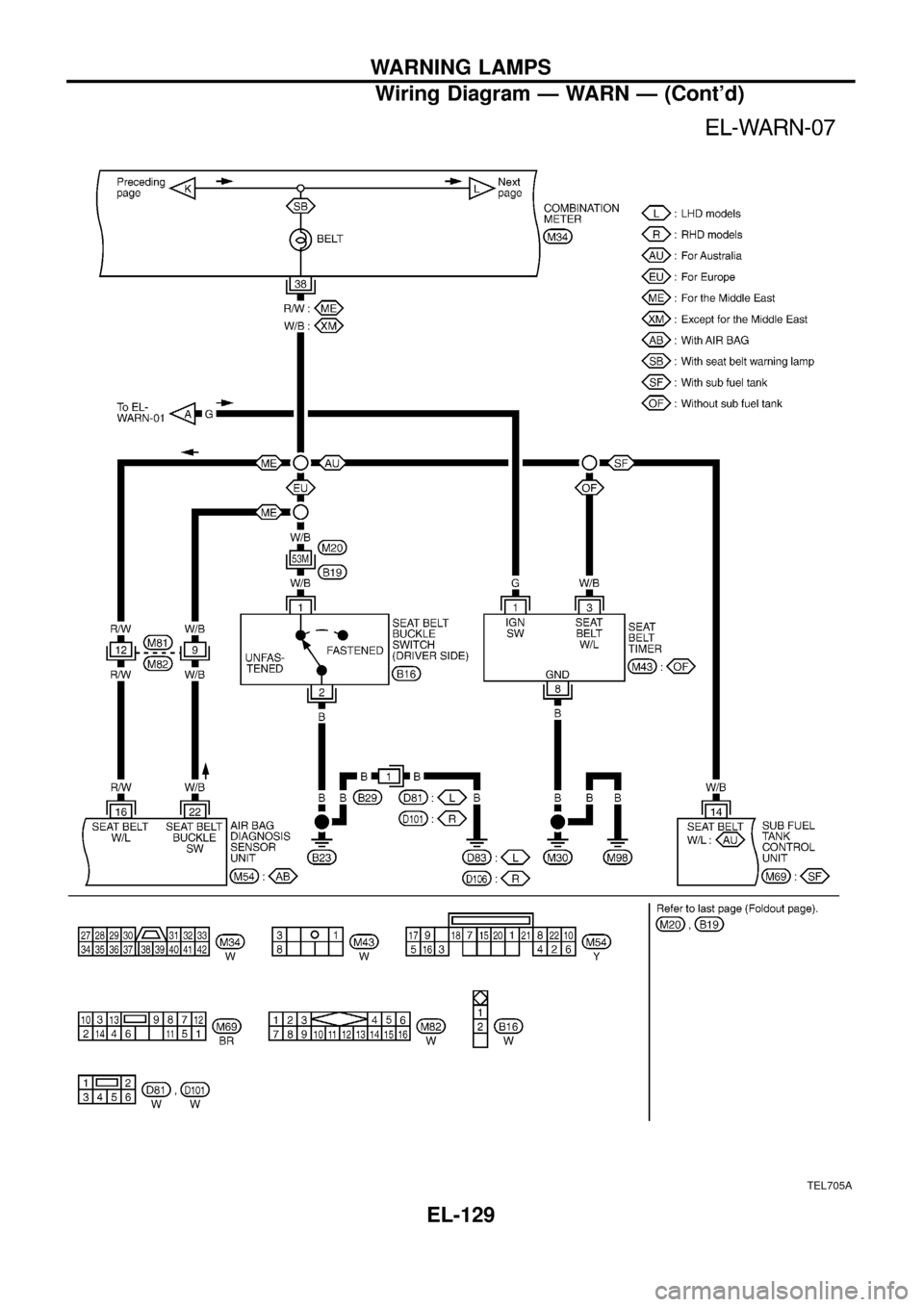

TEL705A
WARNING LAMPS
Wiring Diagram Ð WARN Ð (Cont'd)
EL-129

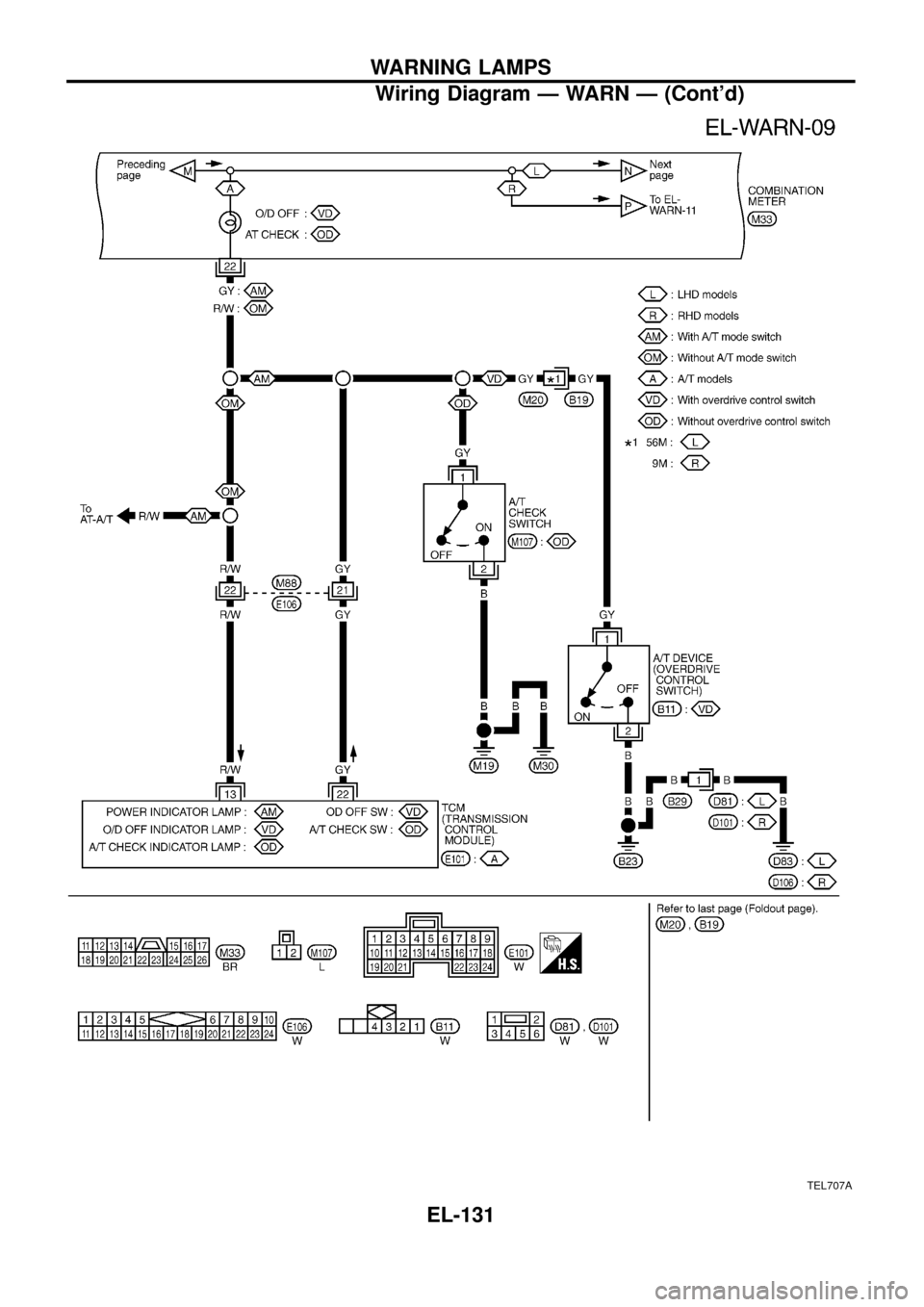

TEL706A
WARNING LAMPS
Wiring Diagram Ð WARN Ð (Cont'd)
EL-130

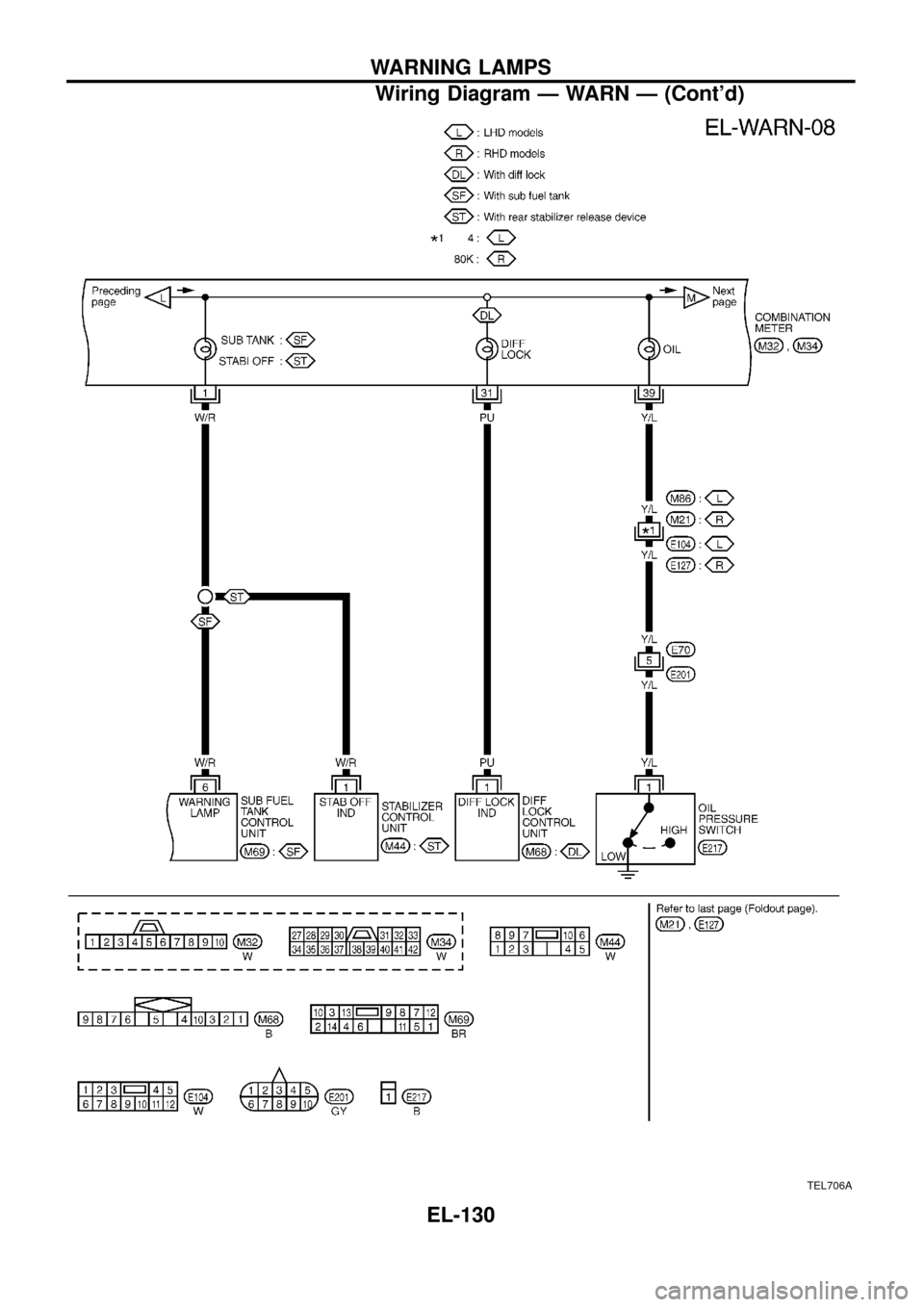

TEL707A
WARNING LAMPS
Wiring Diagram Ð WARN Ð (Cont'd)
EL-131

LHD MODELS

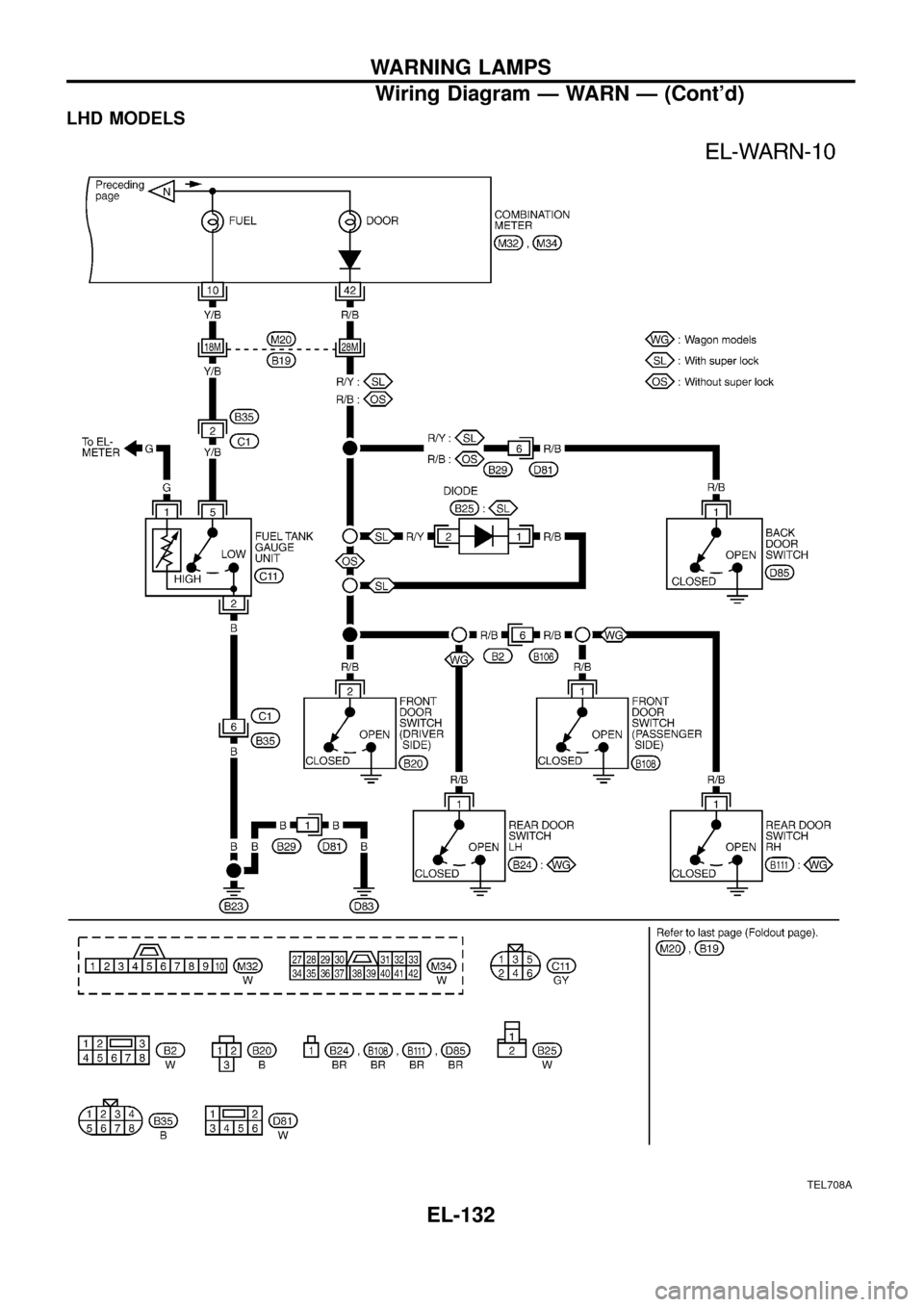

TEL708A
WARNING LAMPS
Wiring Diagram Ð WARN Ð (Cont'd)
EL-132

RHD MODELS

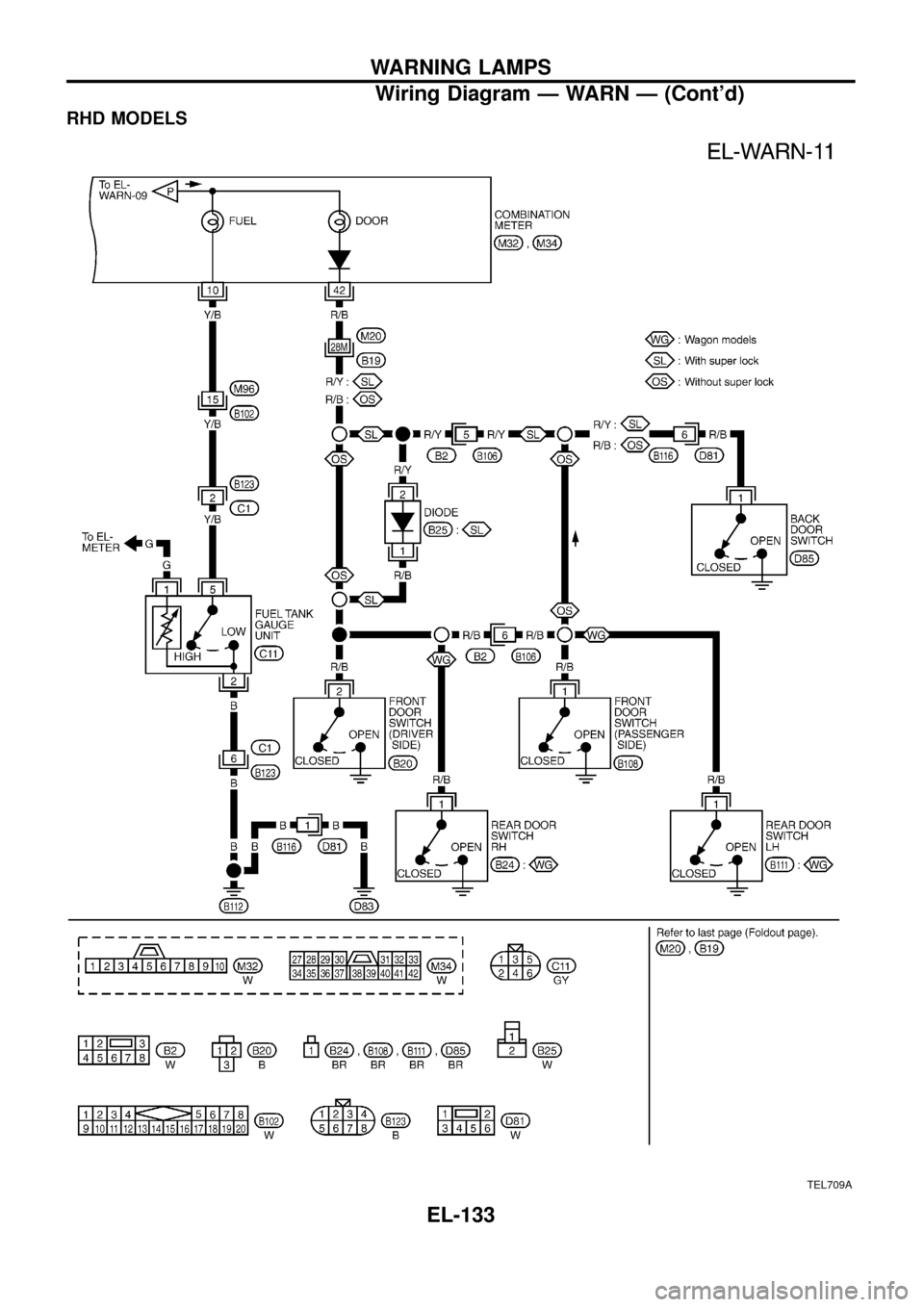

TEL709A
WARNING LAMPS
Wiring Diagram Ð WARN Ð (Cont'd)
EL-133

Electrical Components Inspection
FUEL WARNING LAMP SENSOR CHECK
+It will take a short time for the bulb to light.
NOTE: Inspection for sub fuel warning lamp sensor is the
same as for fuel warning lamp sensor.
OIL PRESSURE SWITCH CHECK
Oil pressure
kPa (bar, kg/cm2, psi)Continuity
Engine startMore than 10 - 20
(0.10 - 0.20, 0.1 - 0.2,1-3)NO
Engine stopLess than 10 - 20
(0.10 - 0.20, 0.1 - 0.2,1-3)YES
Check the continuity between the terminals of oil pressure switch
and body ground.
DIODE CHECK
+Check continuity using an ohmmeter.
+Diode is functioning properly if test results are as shown in the
®gure at left.
NOTE: Speci®cation may vary depending on the type of tester.
Before performing this inspection, be sure to refer to
the instruction manual for the tester to be used.
+Diodes for warning lamps are built into the combination meter
printed circuit.
MEL828F
MEL425F
CEL520
CEL740
WARNING LAMPS
EL-134

System Description
The warning chime is combined with the smart entrance control unit.
Both the ignition key and light warning chime will not sound, when ignition switch in the ON or START posi-
tion. (When power supply exists at smart entrance control unit terminalj
12.)
IGNITION KEY WARNING CHIME
With the key in the ignition key cylinder, the ignition switch in the OFF or ACC position, and the driver's door
open, the warning chime will sound. A battery positive voltage is supplied
+from key switch terminalj
1
+to smart entrance control unit terminalj1.
Ground is supplied
+through driver side door switch
+to smart entrance control unit terminalj
7.
LIGHT WARNING CHIME
With ignition switch in the OFF or ACC position, driver's door open, and lighting switch in 1ST or 2ND position,
warning chime will sound. A battery positive voltage is supplied
+from lighting switch terminalj
12or daytime light control unit
+to smart entrance control unit terminalj
14.
Ground is supplied
+through driver side door switch
+to smart entrance control unit terminalj
7.
WARNING CHIME
EL-135

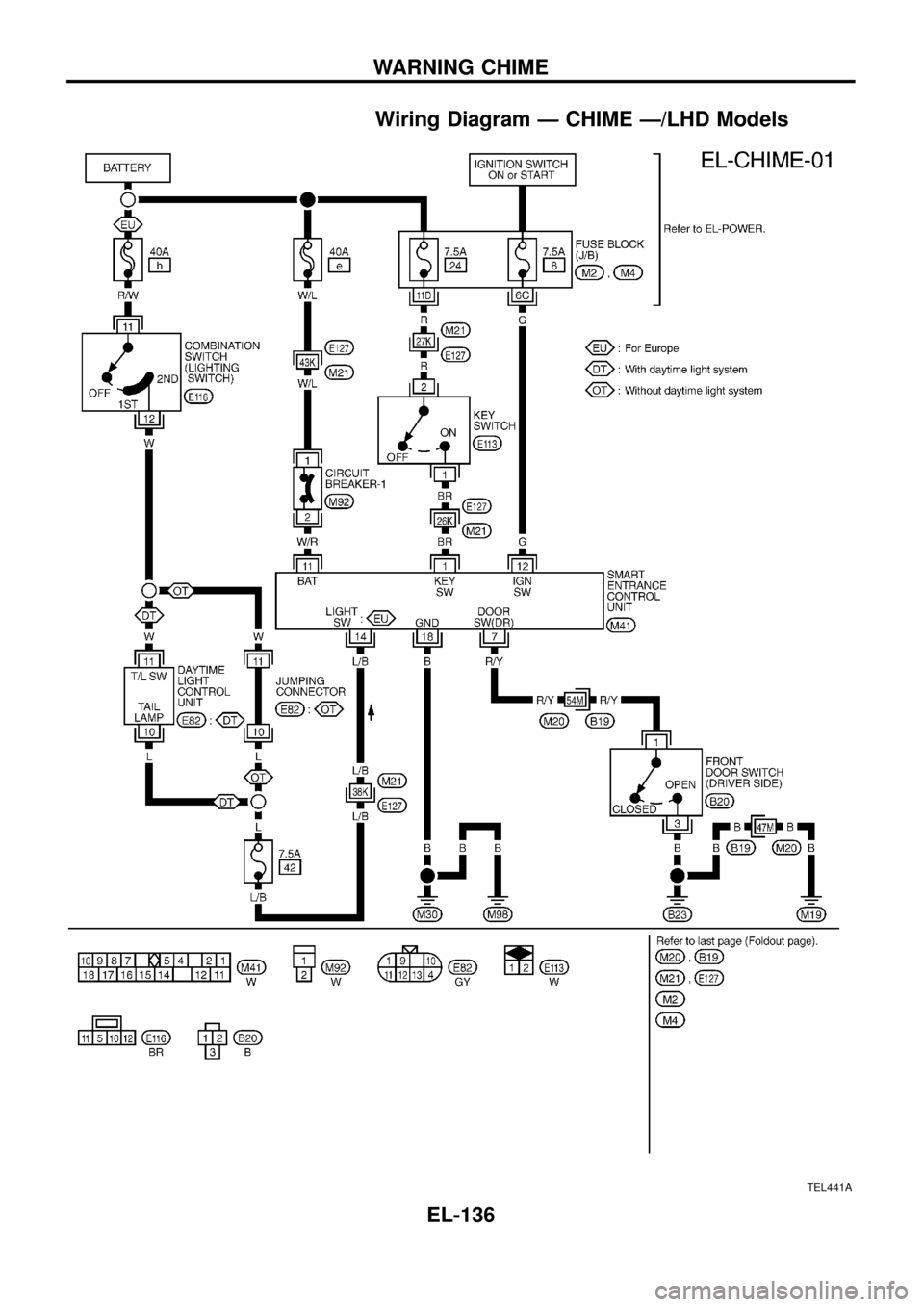

Wiring Diagram Ð CHIME Ð/LHD Models
TEL441A
WARNING CHIME
