NISSAN PICK-UP 1998 Repair Manual

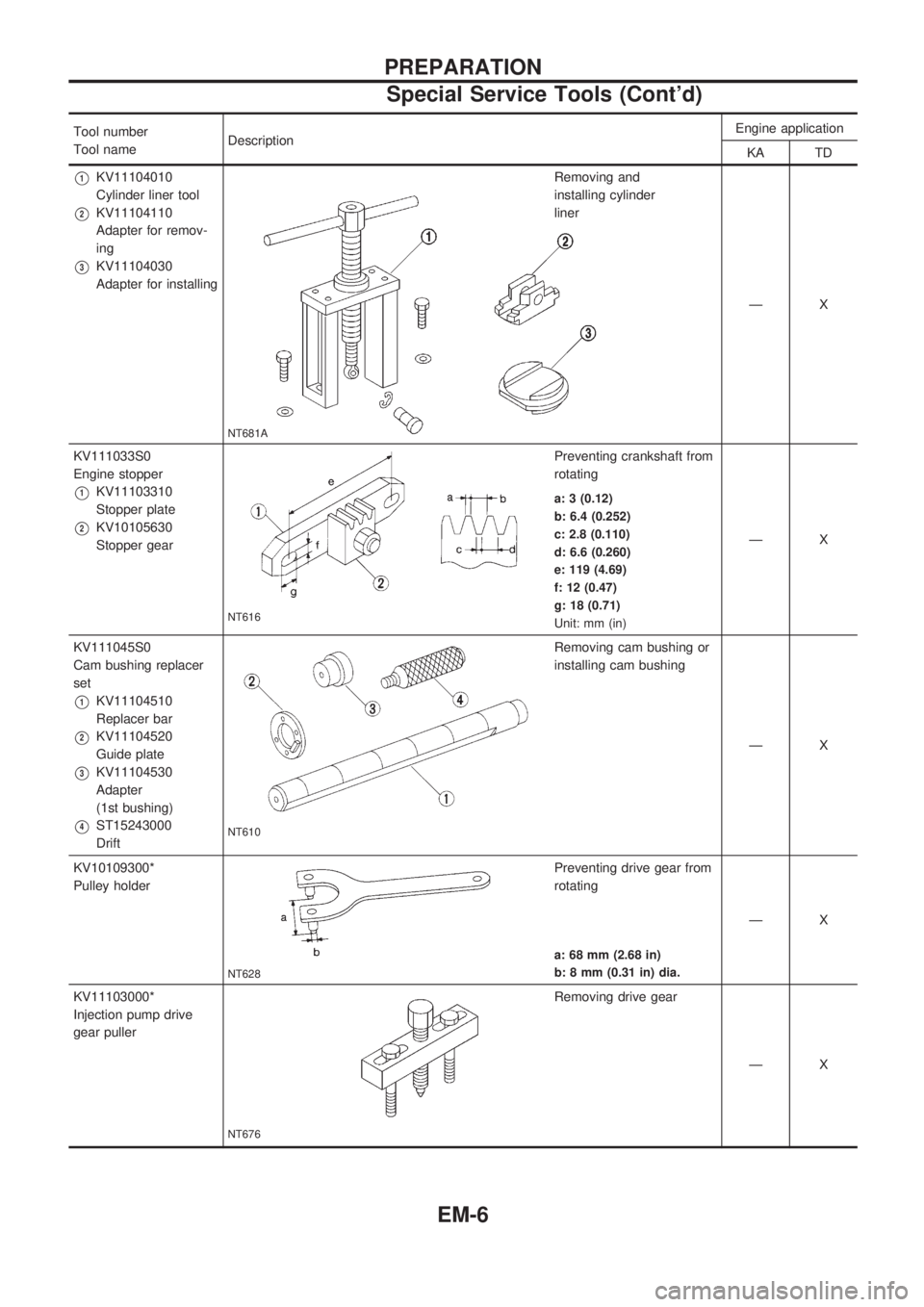

Tool number
Tool nameDescriptionEngine application
KA TD
V1KV11104010
Cylinder liner tool
V2KV11104110
Adapter for remov-
ing
V3KV11104030
Adapter for installing
NT681A
Removing and
installing cylinder
liner
ÐX
KV111033S0
Engine stopper
V1KV11103310
Stopper plate
V2KV10105630
Stopper gear
NT616
Preventing crankshaft from
rotating
ÐX
a: 3 (0.12)
b: 6.4 (0.252)
c: 2.8 (0.110)
d: 6.6 (0.260)
e: 119 (4.69)
f: 12 (0.47)
g: 18 (0.71)
Unit: mm (in)
KV111045S0
Cam bushing replacer
set
V1KV11104510
Replacer bar
V2KV11104520
Guide plate
V3KV11104530
Adapter
(1st bushing)
V4ST15243000
DriftNT610
Removing cam bushing or
installing cam bushing
ÐX
KV10109300*
Pulley holder
NT628
Preventing drive gear from
rotating
ÐX
a: 68 mm (2.68 in)
b: 8 mm (0.31 in) dia.
KV11103000*
Injection pump drive
gear puller
NT676
Removing drive gear
ÐX
PREPARATION
Special Service Tools (Cont'd)
EM-6

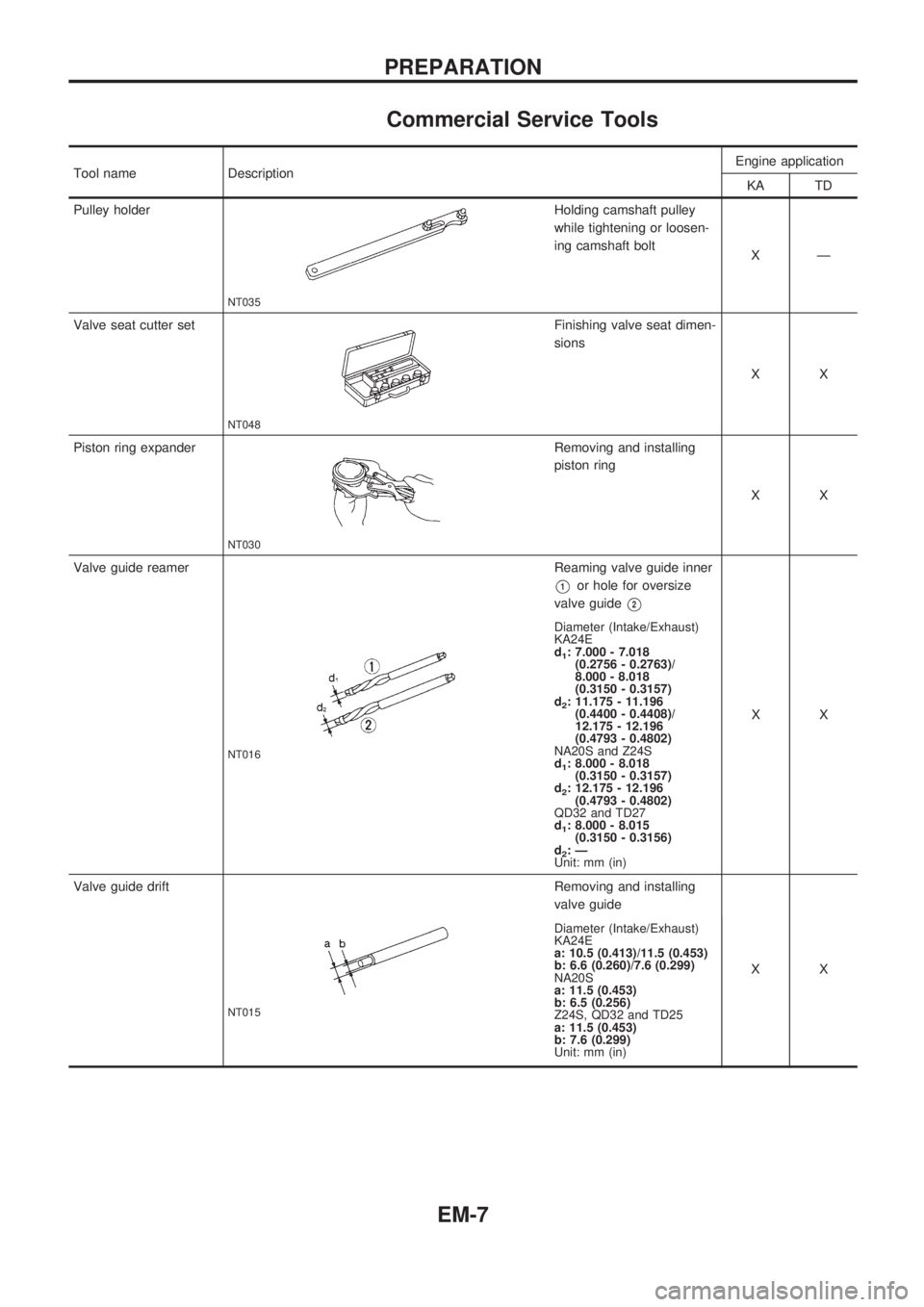

Commercial Service Tools
Tool name DescriptionEngine application
KA TD
Pulley holder
NT035
Holding camshaft pulley
while tightening or loosen-
ing camshaft bolt
XÐ
Valve seat cutter set
NT048
Finishing valve seat dimen-
sions
XX
Piston ring expander
NT030
Removing and installing
piston ring
XX
Valve guide reamer
NT016
Reaming valve guide inner
V1or hole for oversize
valve guide
V2
XX
Diameter (Intake/Exhaust)
KA24E
d
1: 7.000 - 7.018
(0.2756 - 0.2763)/
8.000 - 8.018
(0.3150 - 0.3157)
d
2: 11.175 - 11.196
(0.4400 - 0.4408)/
12.175 - 12.196
(0.4793 - 0.4802)
NA20S and Z24S
d
1: 8.000 - 8.018
(0.3150 - 0.3157)
d
2: 12.175 - 12.196
(0.4793 - 0.4802)
QD32 and TD27
d
1: 8.000 - 8.015
(0.3150 - 0.3156)
d
2:Ð
Unit: mm (in)
Valve guide drift
NT015
Removing and installing
valve guide
XX
Diameter (Intake/Exhaust)
KA24E
a: 10.5 (0.413)/11.5 (0.453)
b: 6.6 (0.260)/7.6 (0.299)
NA20S
a: 11.5 (0.453)
b: 6.5 (0.256)
Z24S, QD32 and TD25
a: 11.5 (0.453)
b: 7.6 (0.299)
Unit: mm (in)
PREPARATION
EM-7

Tool name DescriptionEngine application
KA TD

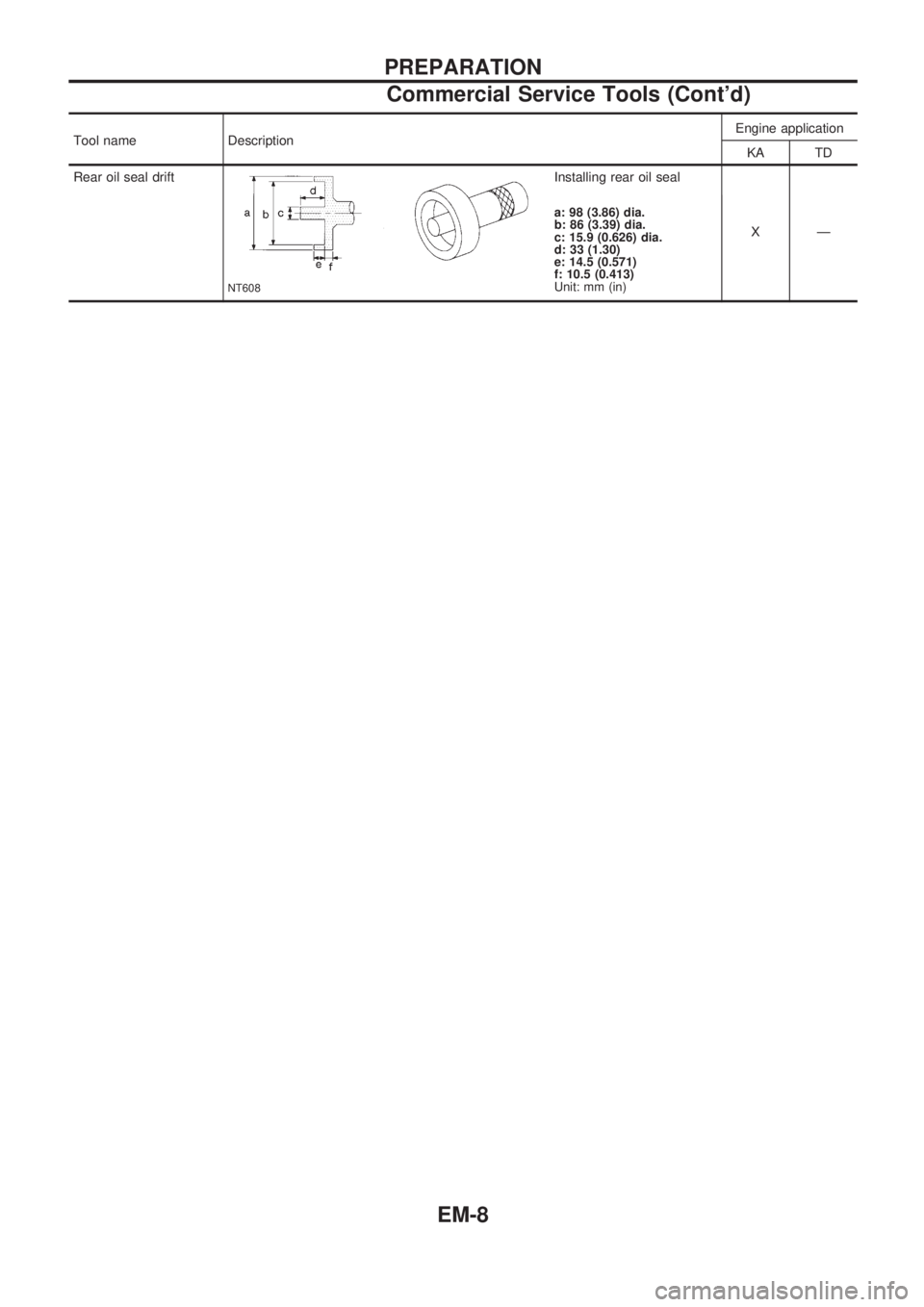

Rear oil seal drift
NT608
Installing rear oil seal
XÐ
a: 98 (3.86) dia.
b: 86 (3.39) dia.
c: 15.9 (0.626) dia.
d: 33 (1.30)
e: 14.5 (0.571)
f: 10.5 (0.413)
Unit: mm (in)
PREPARATION
Commercial Service Tools (Cont'd)
EM-8

SEM811F

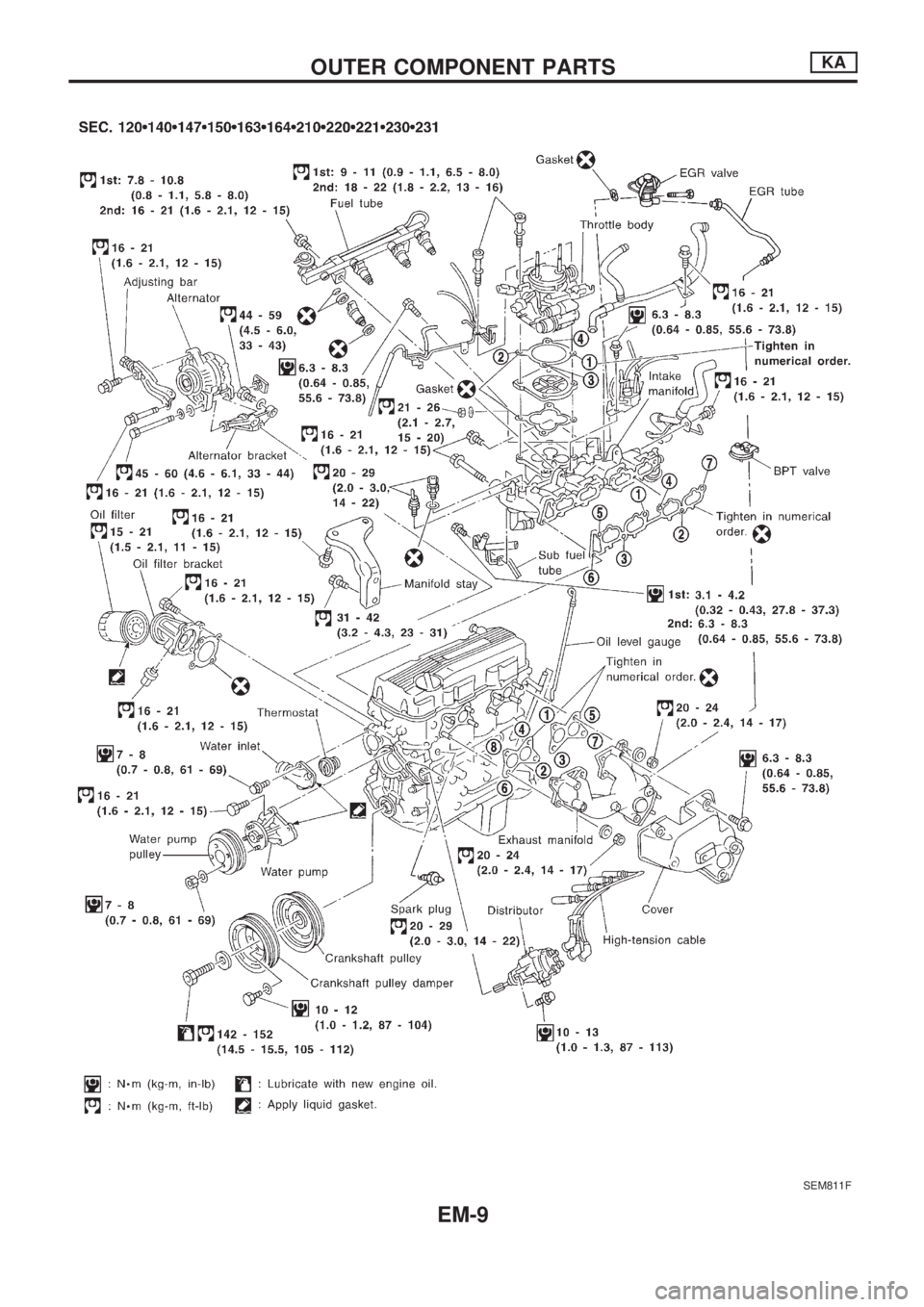

OUTER COMPONENT PARTSKA
EM-9

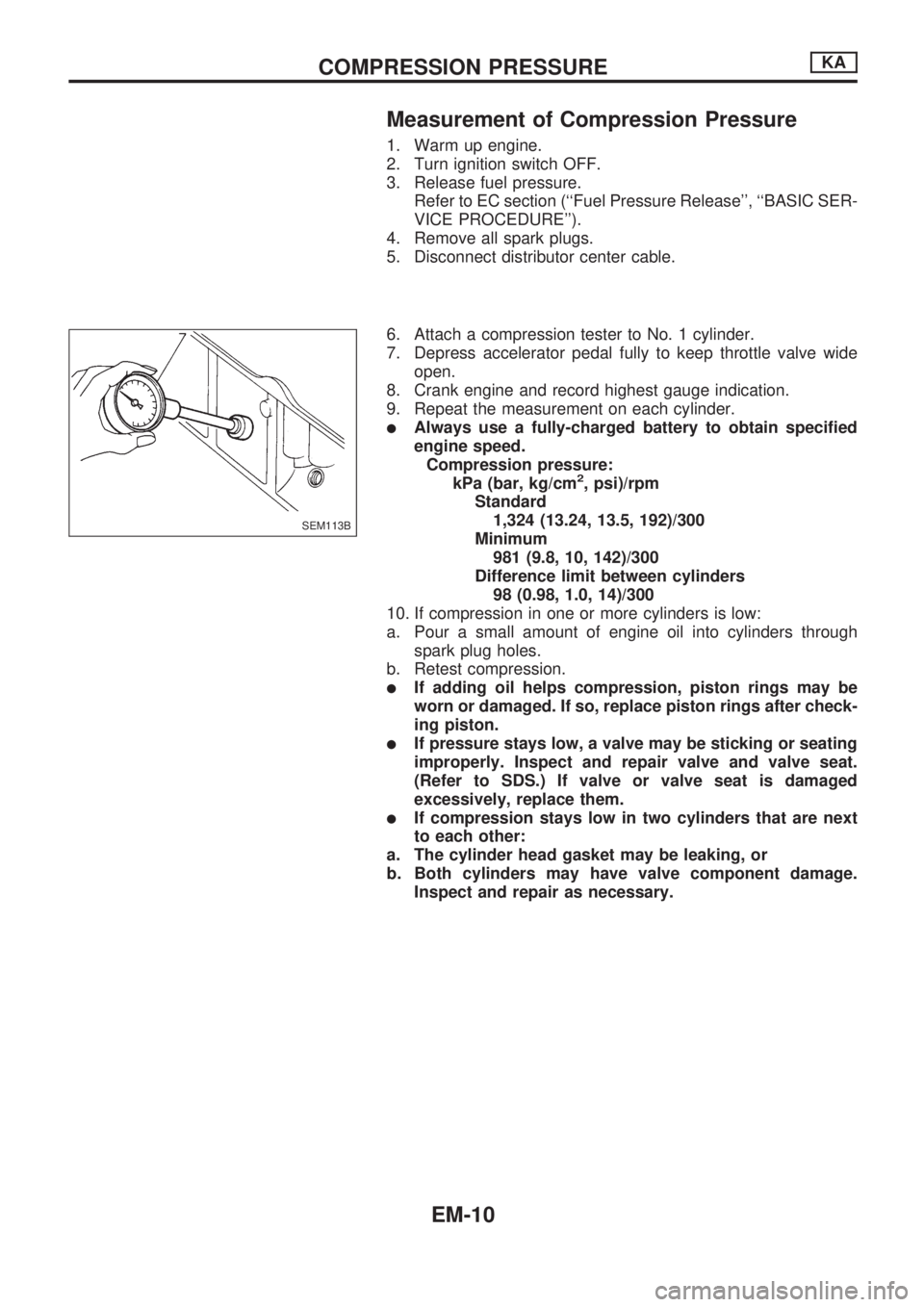

Measurement of Compression Pressure
1. Warm up engine.
2. Turn ignition switch OFF.
3. Release fuel pressure.
Refer to EC section (``Fuel Pressure Release'', ``BASIC SER-
VICE PROCEDURE'').
4. Remove all spark plugs.
5. Disconnect distributor center cable.
6. Attach a compression tester to No. 1 cylinder.
7. Depress accelerator pedal fully to keep throttle valve wide
open.
8. Crank engine and record highest gauge indication.
9. Repeat the measurement on each cylinder.
lAlways use a fully-charged battery to obtain specified
engine speed.
Compression pressure:
kPa (bar, kg/cm
2, psi)/rpm
Standard
1,324 (13.24, 13.5, 192)/300
Minimum
981 (9.8, 10, 142)/300
Difference limit between cylinders
98 (0.98, 1.0, 14)/300
10. If compression in one or more cylinders is low:
a. Pour a small amount of engine oil into cylinders through
spark plug holes.
b. Retest compression.
lIf adding oil helps compression, piston rings may be
worn or damaged. If so, replace piston rings after check-
ing piston.
lIf pressure stays low, a valve may be sticking or seating
improperly. Inspect and repair valve and valve seat.
(Refer to SDS.) If valve or valve seat is damaged
excessively, replace them.
lIf compression stays low in two cylinders that are next
to each other:
a. The cylinder head gasket may be leaking, or
b. Both cylinders may have valve component damage.
Inspect and repair as necessary.
SEM113B
COMPRESSION PRESSUREKA
EM-10

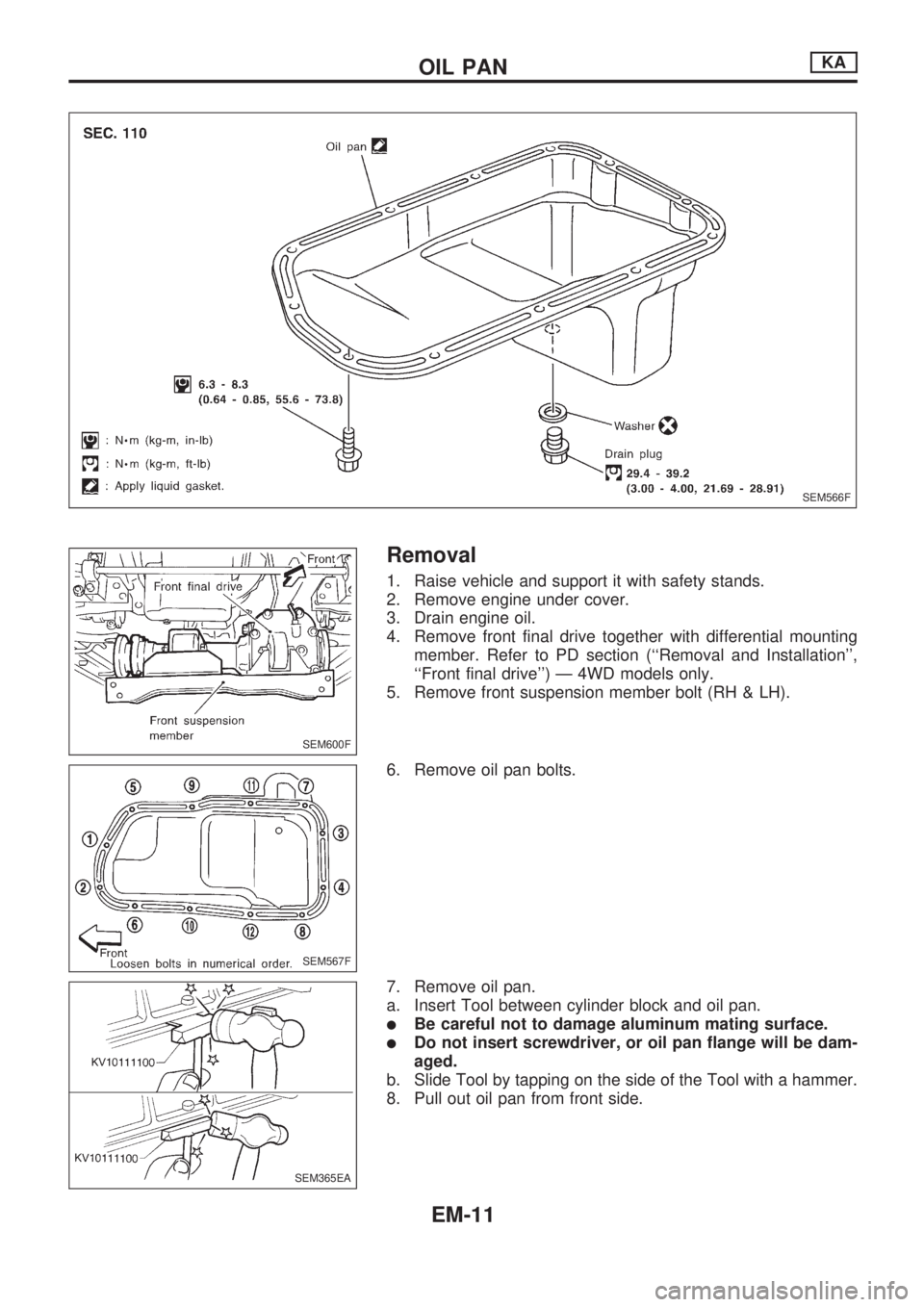

Removal
1. Raise vehicle and support it with safety stands.
2. Remove engine under cover.
3. Drain engine oil.
4. Remove front final drive together with differential mounting
member. Refer to PD section (``Removal and Installation'',
``Front final drive'') Ð 4WD models only.
5. Remove front suspension member bolt (RH & LH).
6. Remove oil pan bolts.
7. Remove oil pan.
a. Insert Tool between cylinder block and oil pan.
lBe careful not to damage aluminum mating surface.
lDo not insert screwdriver, or oil pan flange will be dam-
aged.
b. Slide Tool by tapping on the side of the Tool with a hammer.
8. Pull out oil pan from front side.
SEM566F
SEM600F
SEM567F
SEM365EA
OIL PANKA
EM-11

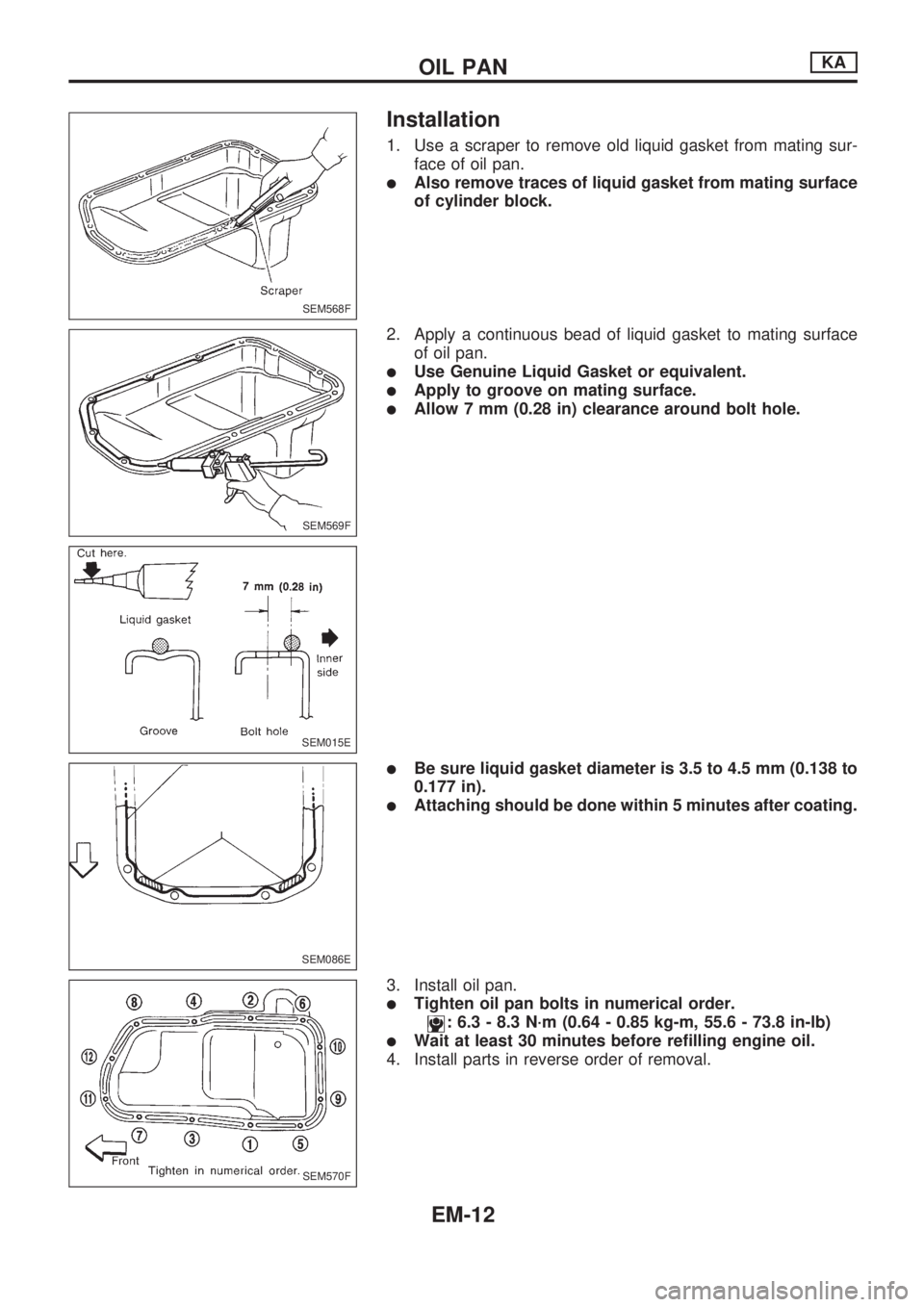

Installation
1. Use a scraper to remove old liquid gasket from mating sur-
face of oil pan.
lAlso remove traces of liquid gasket from mating surface
of cylinder block.
2. Apply a continuous bead of liquid gasket to mating surface
of oil pan.
lUse Genuine Liquid Gasket or equivalent.
lApply to groove on mating surface.
lAllow 7 mm (0.28 in) clearance around bolt hole.
lBe sure liquid gasket diameter is 3.5 to 4.5 mm (0.138 to
0.177 in).
lAttaching should be done within 5 minutes after coating.
3. Install oil pan.
lTighten oil pan bolts in numerical order.
: 6.3 - 8.3 N´m (0.64 - 0.85 kg-m, 55.6 - 73.8 in-lb)
lWait at least 30 minutes before refilling engine oil.
4. Install parts in reverse order of removal.
SEM568F
SEM569F
SEM015E
SEM086E
SEM570F
OIL PANKA
EM-12

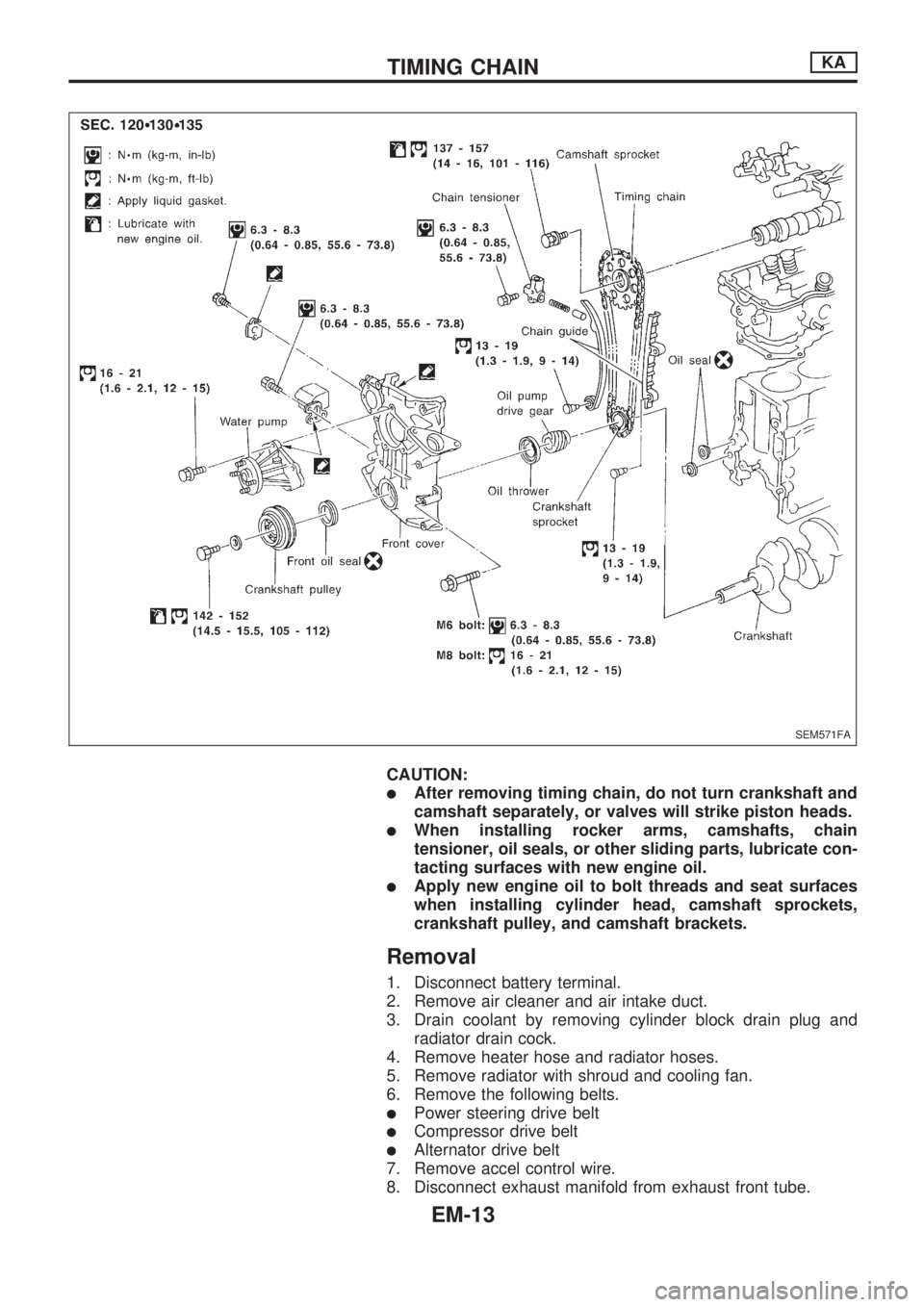

CAUTION:
lAfter removing timing chain, do not turn crankshaft and
camshaft separately, or valves will strike piston heads.
lWhen installing rocker arms, camshafts, chain
tensioner, oil seals, or other sliding parts, lubricate con-
tacting surfaces with new engine oil.
lApply new engine oil to bolt threads and seat surfaces
when installing cylinder head, camshaft sprockets,
crankshaft pulley, and camshaft brackets.
Removal
1. Disconnect battery terminal.
2. Remove air cleaner and air intake duct.
3. Drain coolant by removing cylinder block drain plug and
radiator drain cock.
4. Remove heater hose and radiator hoses.
5. Remove radiator with shroud and cooling fan.
6. Remove the following belts.
lPower steering drive belt
lCompressor drive belt
lAlternator drive belt
7. Remove accel control wire.
8. Disconnect exhaust manifold from exhaust front tube.
SEM571FA
TIMING CHAINKA
EM-13

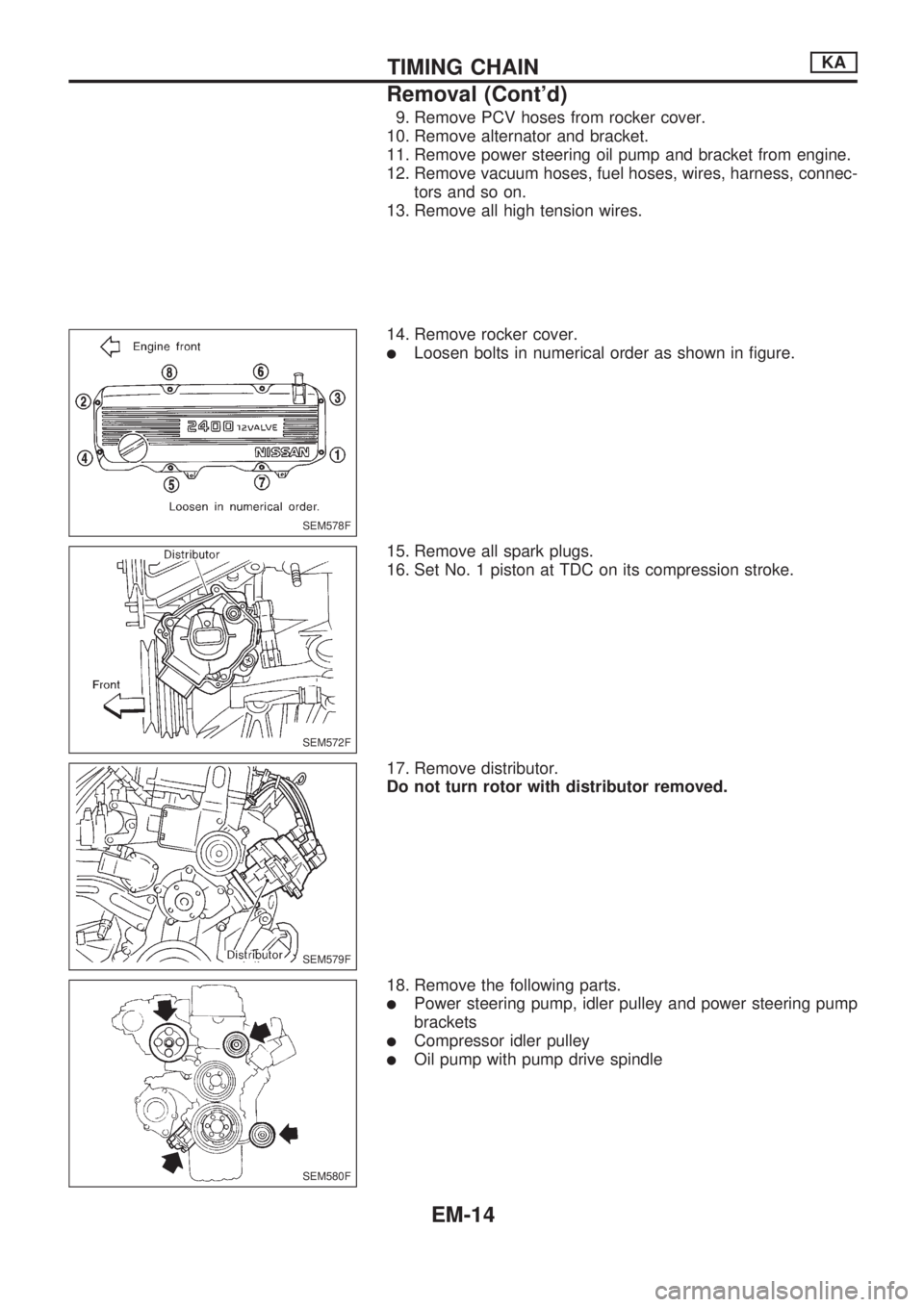

9. Remove PCV hoses from rocker cover.
10. Remove alternator and bracket.
11. Remove power steering oil pump and bracket from engine.
12. Remove vacuum hoses, fuel hoses, wires, harness, connec-
tors and so on.
13. Remove all high tension wires.
14. Remove rocker cover.
lLoosen bolts in numerical order as shown in figure.
15. Remove all spark plugs.
16. Set No. 1 piston at TDC on its compression stroke.
17. Remove distributor.
Do not turn rotor with distributor removed.
18. Remove the following parts.
lPower steering pump, idler pulley and power steering pump
brackets
lCompressor idler pulley
lOil pump with pump drive spindle
SEM578F
SEM572F
SEM579F
SEM580F
TIMING CHAINKA
Removal (Cont'd)
EM-14

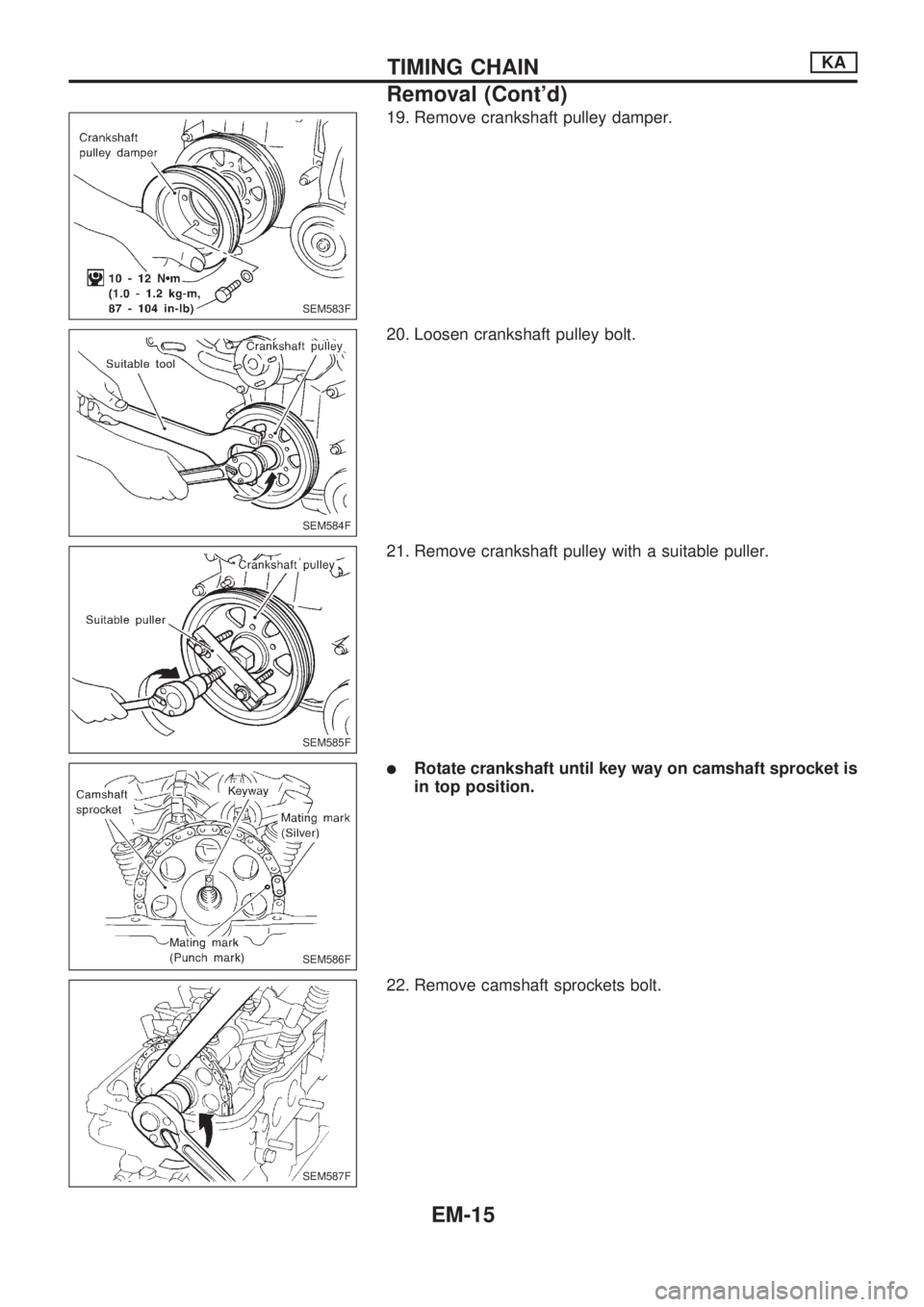

19. Remove crankshaft pulley damper.
20. Loosen crankshaft pulley bolt.
21. Remove crankshaft pulley with a suitable puller.
lRotate crankshaft until key way on camshaft sprocket is
in top position.
22. Remove camshaft sprockets bolt.
SEM583F
SEM584F
SEM585F
SEM586F
SEM587F
TIMING CHAINKA
Removal (Cont'd)
EM-15
