NISSAN PICK-UP 1998 Repair Manual

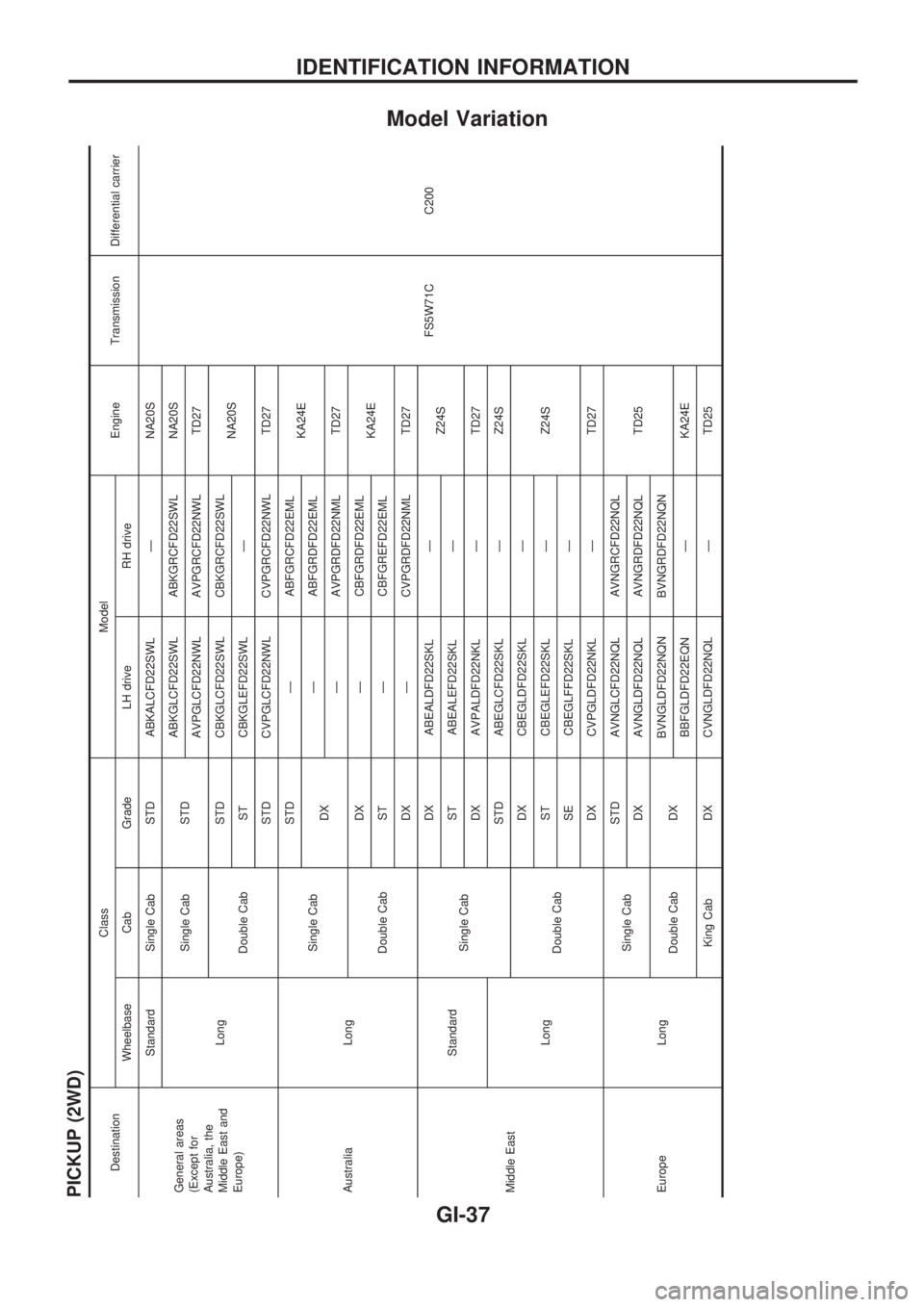

Model Variation
PICKUP (2WD)
DestinationClass Model
Engine Transmission Differential carrier
Wheelbase Cab Grade LH drive RH drive
General areas
(Except for
Australia, the
Middle East and
Europe)Standard Single Cab STD ABKALCFD22SWL Ð NA20S
FS5W71C C200 LongSingle Cab STDABKGLCFD22SWL ABKGRCFD22SWL NA20S
AVPGLCFD22NWL AVPGRCFD22NWL TD27
Double CabSTD CBKGLCFD22SWL CBKGRCFD22SWL
NA20S
ST CBKGLEFD22SWL Ð
STD CVPGLCFD22NWL CVPGRCFD22NWL TD27
Australia LongSingle CabSTD Ð ABFGRCFD22EML
KA24E
DXÐ ABFGRDFD22EML
Ð AVPGRDFD22NML TD27
Double CabDX Ð CBFGRDFD22EML
KA24E
ST Ð CBFGREFD22EML
DX Ð CVPGRDFD22NML TD27
Middle EastStandard
Single CabDX ABEALDFD22SKL Ð
Z24S
ST ABEALEFD22SKL Ð
DX AVPALDFD22NKL Ð TD27
LongSTD ABEGLCFD22SKL Ð Z24S
Double CabDX CBEGLDFD22SKL Ð
Z24S ST CBEGLEFD22SKL Ð
SE CBEGLFFD22SKL Ð
DX CVPGLDFD22NKL Ð TD27
Europe LongSingle CabSTD AVNGLCFD22NQL AVNGRCFD22NQL
TD25 DX AVNGLDFD22NQL AVNGRDFD22NQL
Double Cab DXBVNGLDFD22NQN BVNGRDFD22NQN
BBFGLDFD22EQN Ð KA24E
King Cab DX CVNGLDFD22NQL Ð TD25
IDENTIFICATION INFORMATION
GI-37

PICKUP (4WD)DestinationClass Model
Engine TransmissionDifferential carrier
Transfer
Wheelbase Cab Grade LH drive RH drive Front Rear
General areas
(Except for
Australia, the
Middle East
and Europe)
LongSingle Cab STDABEULCFD22SWL ABEURCFD22SWL Z24S FS5W71C
R180AH233B
TX10A AVRULCFD22NWL AVRURCFD22NWL QD32 FS5R30A H233B
Double CabSTDCBEULCFD22SWN CBEURCFD22SWN Z24S FS5W71C H233B
Ð CVRURCFD22NWN QD32 FS5R30A H233B
CBFULCFD22EWN Ð KA24E FS5W71C C200
CVRULCFD22NWN Ð QD32 FS5R30A H233B
SECBFULFFD22EWN Ð KA24E FS5W71C C200
CVRULFFD22NWN Ð QD32 FS5R30A H233B
AustraliaSingle CabDX Ð ABFURDFD22EML KA24E FS5W71C C200
STD Ð AVRURCFD22NML
QD32 FS5R30A H233B
DX Ð AVRURDFD22NML
Double CabDX Ð CBFURDFD22EMN KA24E FS5W71C C200
DX Ð CVRURDFD22NMN
QD32 FS5R30A H233B
ST Ð CVRUREFD22NMN
Middle EastSingle Cab
DXÐ ABEULDFD22SKL
Z24S FS5W71C H233B
Double Cab Ð CBEULDFD22SKN
Europe LongKing Cab DX BBFULDFD22EQN Ð KA24E FS5W71C C200
Double Cab DX CBFULDFD22EQN Ð KA24E FS5W71C C200
IDENTIFICATION INFORMATION
Model Variation (Cont'd)
GI-38

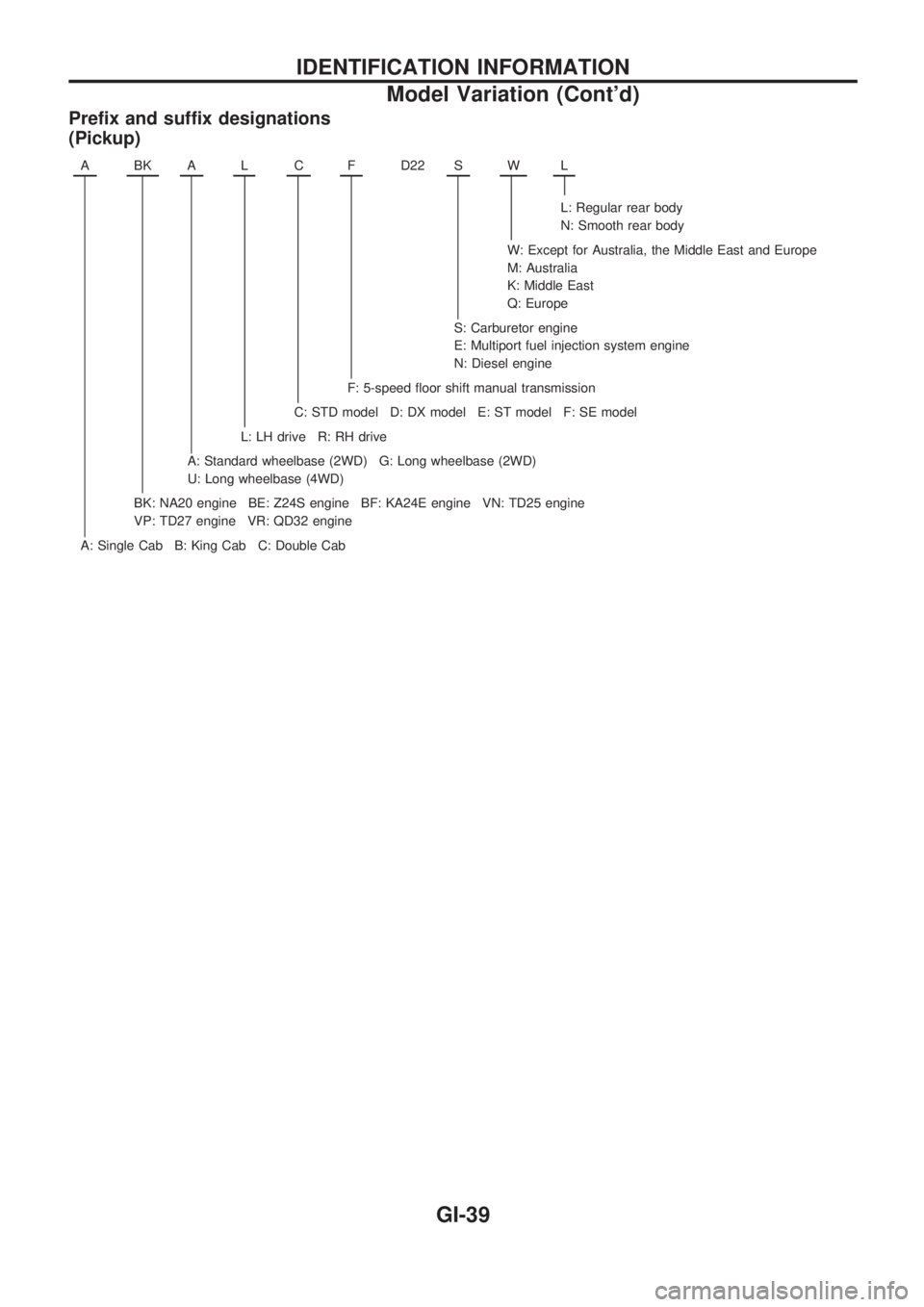

Prefix and suffix designations
(Pickup)
ABKALCFD22 SWL
L: Regular rear body
N: Smooth rear body
W: Except for Australia, the Middle East and Europe
M: Australia
K: Middle East
Q: Europe
S: Carburetor engine
E: Multiport fuel injection system engine
N: Diesel engine
F: 5-speed floor shift manual transmission
C: STD model D: DX model E: ST model F: SE model
L: LH drive R: RH drive
A: Standard wheelbase (2WD) G: Long wheelbase (2WD)
U: Long wheelbase (4WD)
BK: NA20 engine BE: Z24S engine BF: KA24E engine VN: TD25 engine
VP: TD27 engine VR: QD32 engine
A: Single Cab B: King Cab C: Double Cab
IDENTIFICATION INFORMATION
Model Variation (Cont'd)
GI-39

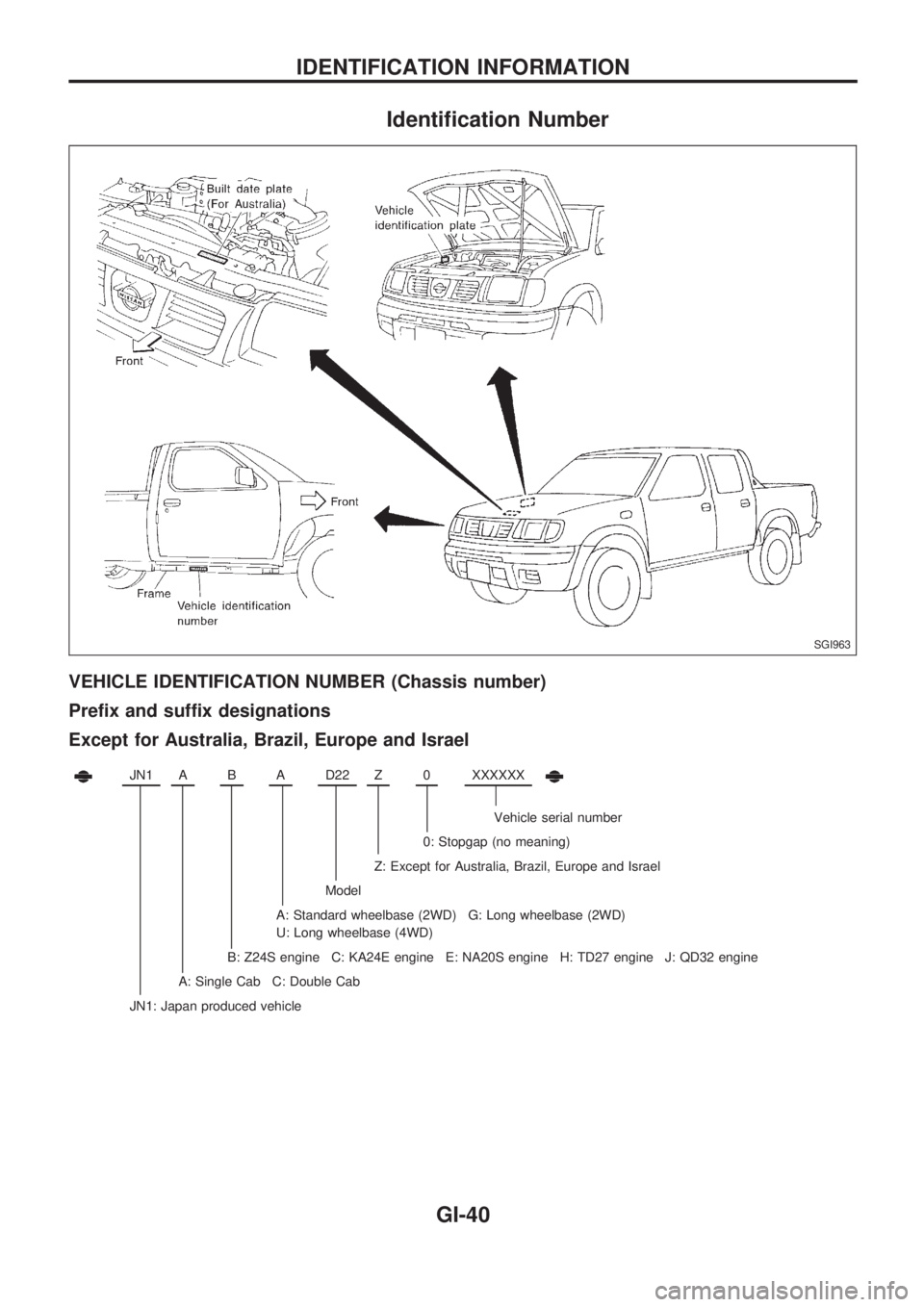

Identification Number
VEHICLE IDENTIFICATION NUMBER (Chassis number)
Prefix and suffix designations
Except for Australia, Brazil, Europe and Israel
JN1ABAD22Z0XXXXXX
Vehicle serial number
0: Stopgap (no meaning)
Z: Except for Australia, Brazil, Europe and Israel
Model
A: Standard wheelbase (2WD) G: Long wheelbase (2WD)
U: Long wheelbase (4WD)
B: Z24S engine C: KA24E engine E: NA20S engine H: TD27 engine J: QD32 engine
A: Single Cab C: Double Cab
JN1: Japan produced vehicle
SGI963
IDENTIFICATION INFORMATION
GI-40

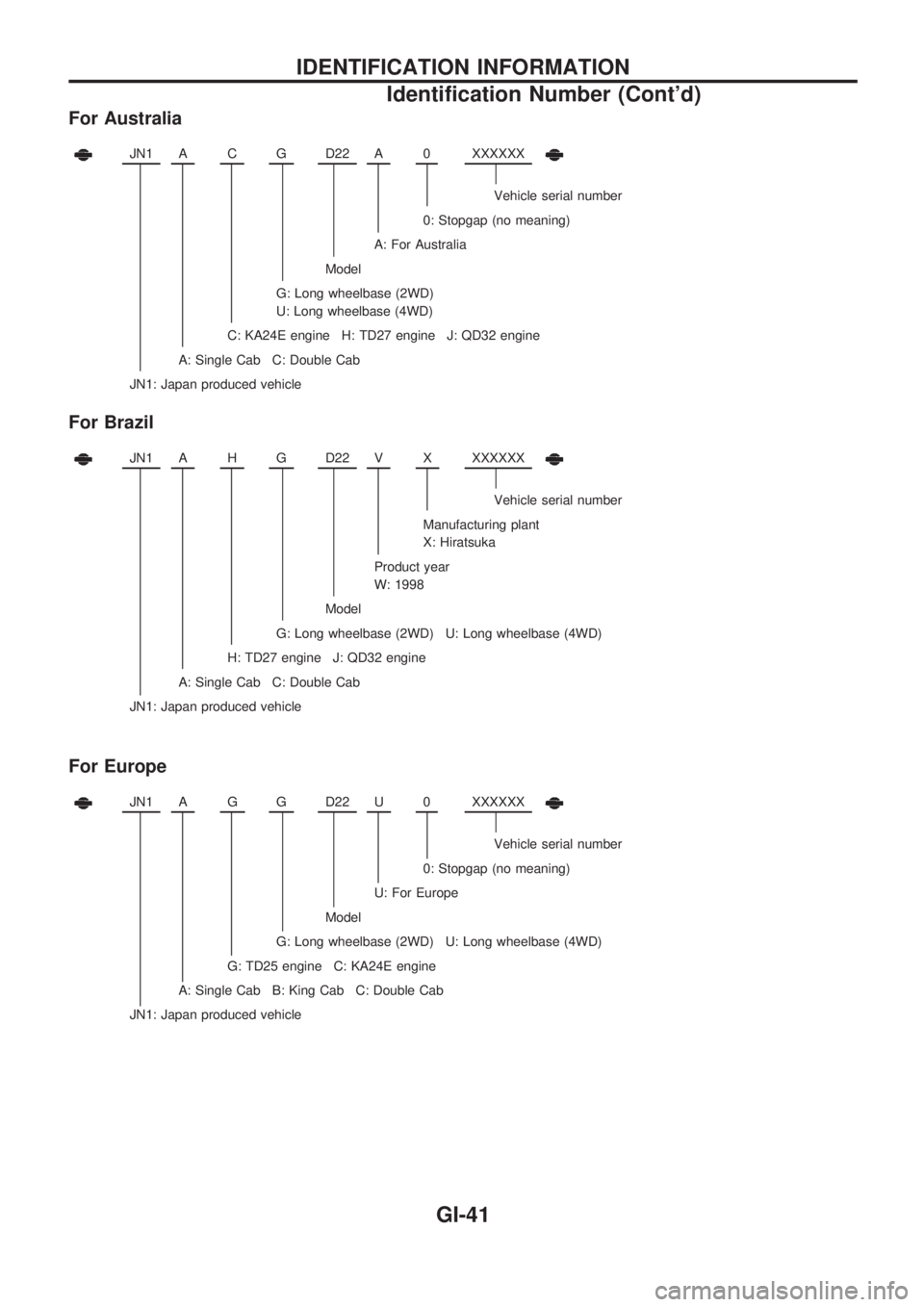

For Australia
JN1ACGD22A0XXXXXX
Vehicle serial number
0: Stopgap (no meaning)
A: For Australia
Model
G: Long wheelbase (2WD)
U: Long wheelbase (4WD)
C: KA24E engine H: TD27 engine J: QD32 engine
A: Single Cab C: Double Cab
JN1: Japan produced vehicle
For Brazil
JN1AHGD22VXXXXXXX
Vehicle serial number
Manufacturing plant
X: Hiratsuka
Product year
W: 1998
Model
G: Long wheelbase (2WD) U: Long wheelbase (4WD)
H: TD27 engine J: QD32 engine
A: Single Cab C: Double Cab
JN1: Japan produced vehicle
For Europe
JN1AGGD22U0XXXXXX
Vehicle serial number
0: Stopgap (no meaning)
U: For Europe
Model
G: Long wheelbase (2WD) U: Long wheelbase (4WD)
G: TD25 engine C: KA24E engine
A: Single Cab B: King Cab C: Double Cab
JN1: Japan produced vehicle
IDENTIFICATION INFORMATION
Identification Number (Cont'd)
GI-41

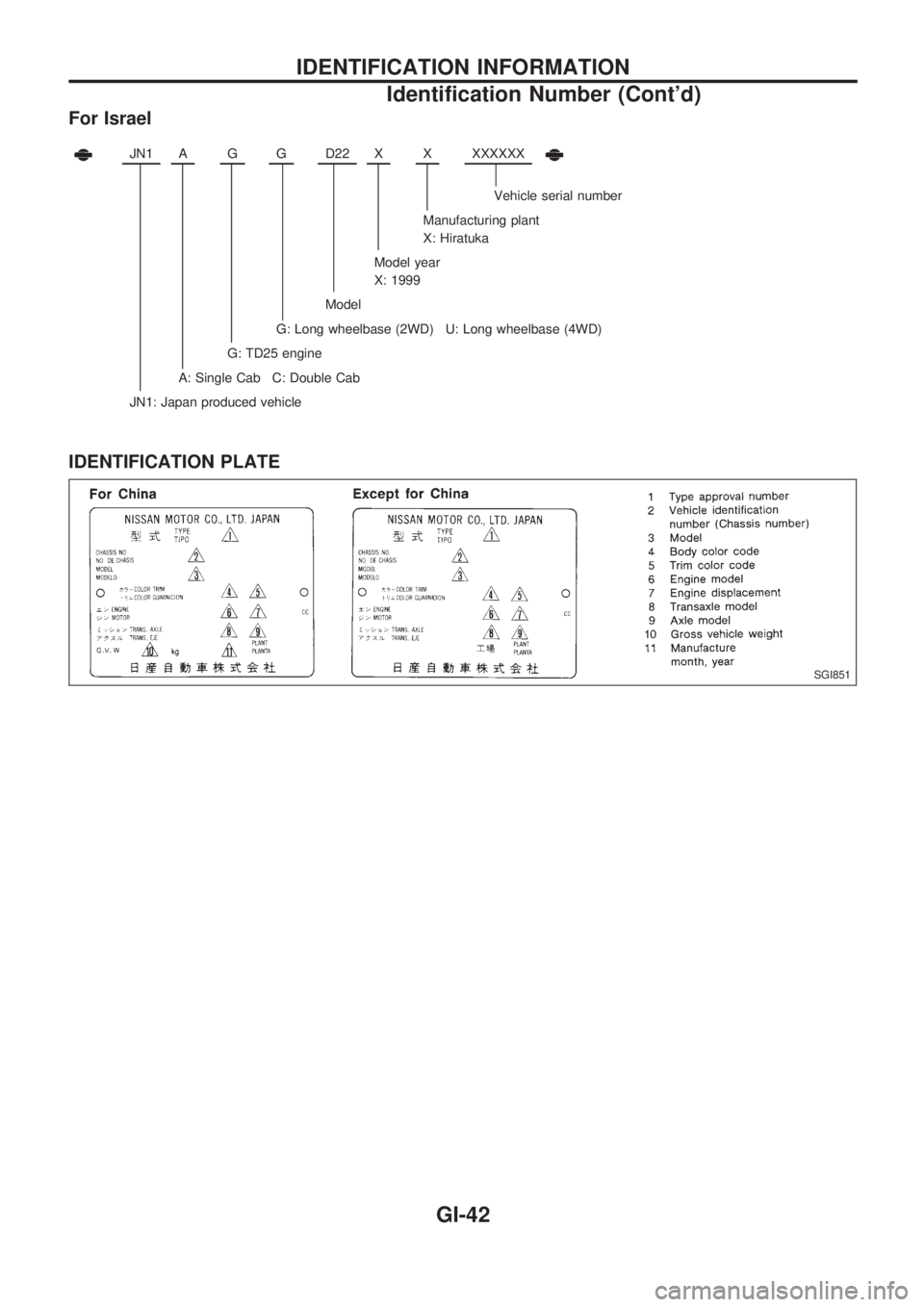

For Israel
JN1AGGD22XXXXXXXX
Vehicle serial number
Manufacturing plant
X: Hiratuka
Model year
X: 1999
Model
G: Long wheelbase (2WD) U: Long wheelbase (4WD)
G: TD25 engine
A: Single Cab C: Double Cab
JN1: Japan produced vehicle
IDENTIFICATION PLATE
SGI851
IDENTIFICATION INFORMATION
Identification Number (Cont'd)
GI-42

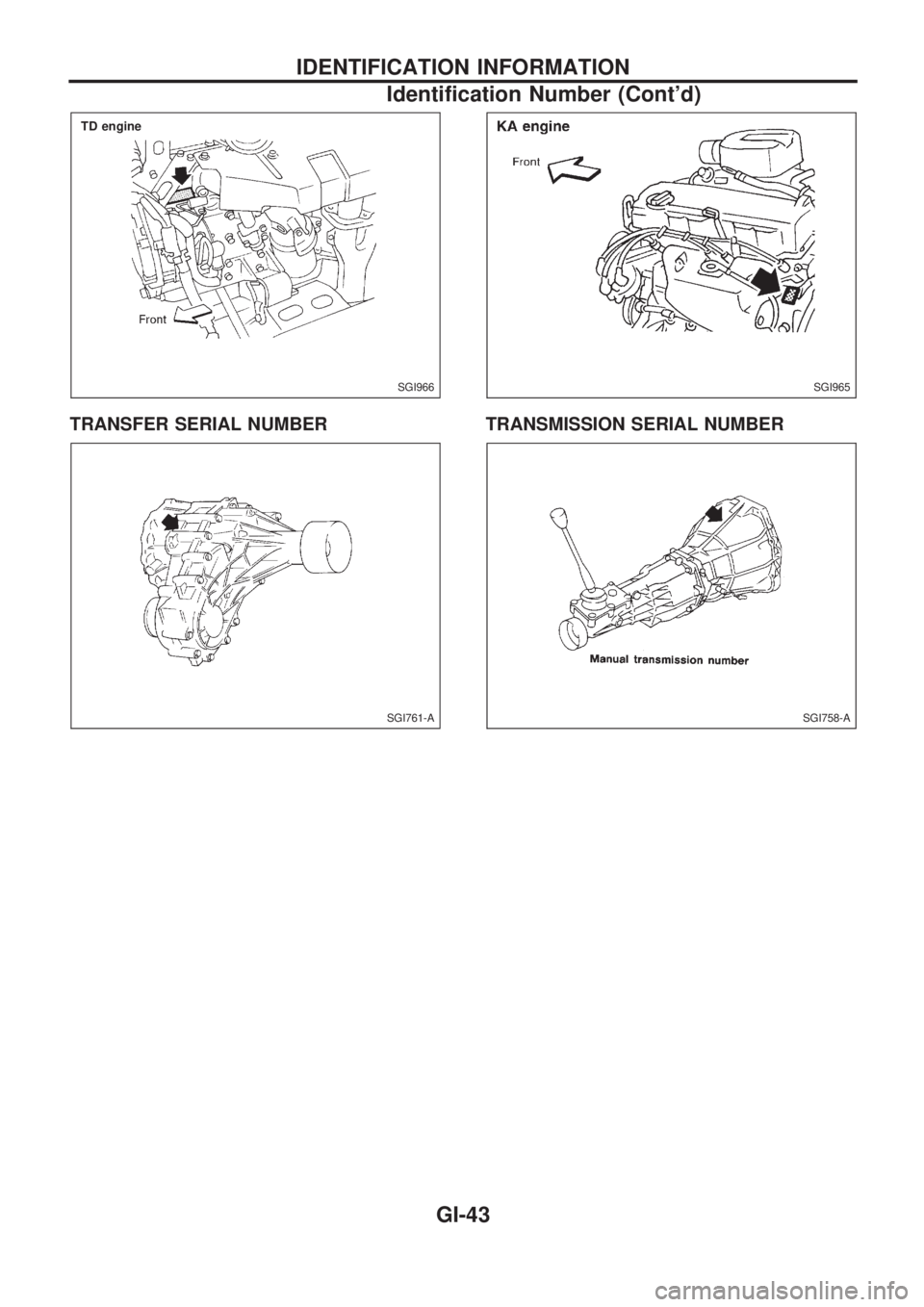

TRANSFER SERIAL NUMBER TRANSMISSION SERIAL NUMBER
SGI966
.TD engine
SGI761-A
SGI965
SGI758-A
IDENTIFICATION INFORMATION
Identification Number (Cont'd)
GI-43

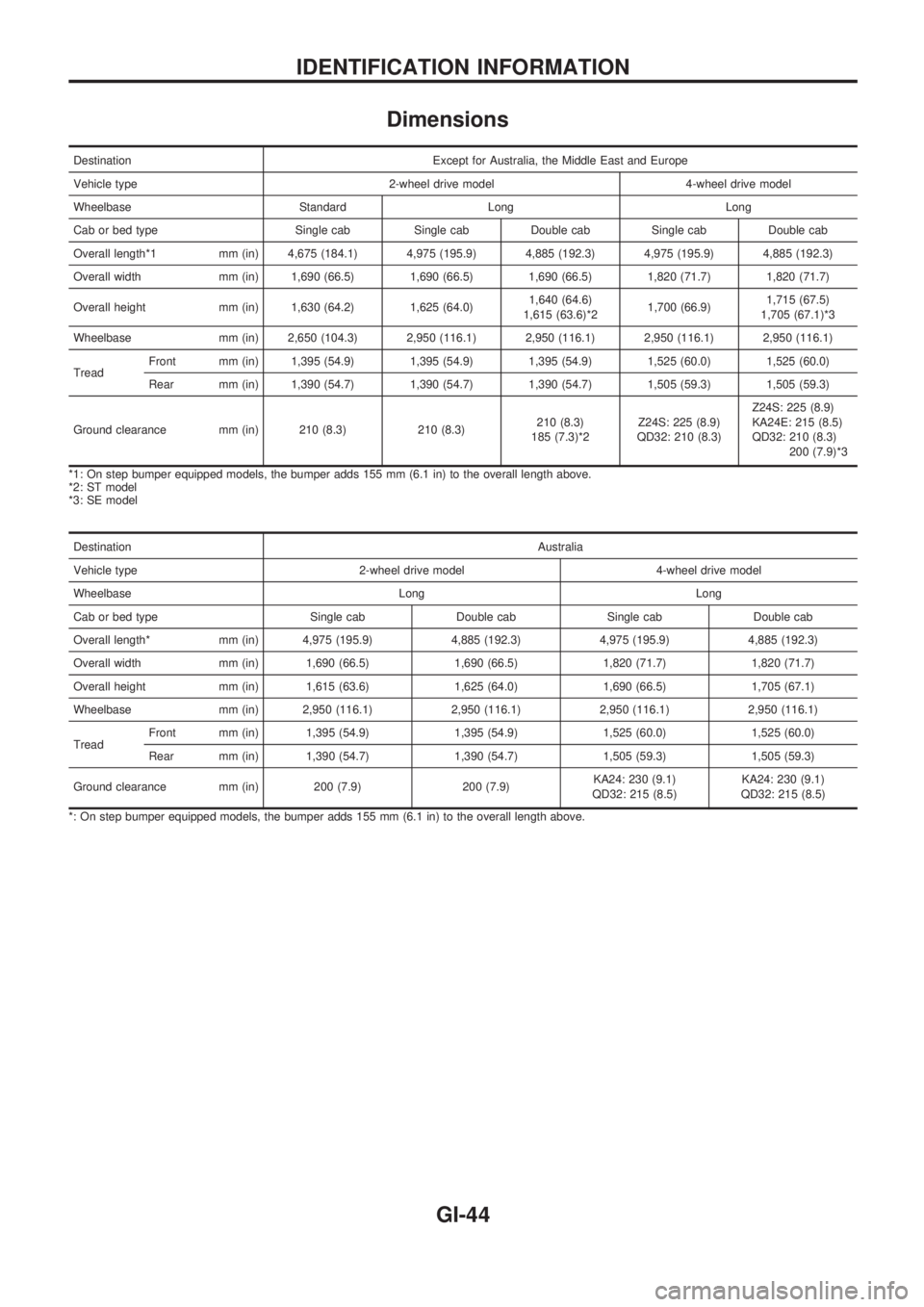

Dimensions
Destination Except for Australia, the Middle East and Europe
Vehicle type 2-wheel drive model 4-wheel drive model
Wheelbase Standard Long Long
Cab or bed type Single cab Single cab Double cab Single cab Double cab
Overall length*1 mm (in) 4,675 (184.1) 4,975 (195.9) 4,885 (192.3) 4,975 (195.9) 4,885 (192.3)
Overall width mm (in) 1,690 (66.5) 1,690 (66.5) 1,690 (66.5) 1,820 (71.7) 1,820 (71.7)
Overall height mm (in) 1,630 (64.2) 1,625 (64.0)1,640 (64.6)
1,615 (63.6)*21,700 (66.9)1,715 (67.5)
1,705 (67.1)*3
Wheelbase mm (in) 2,650 (104.3) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1)
TreadFront mm (in) 1,395 (54.9) 1,395 (54.9) 1,395 (54.9) 1,525 (60.0) 1,525 (60.0)
Rear mm (in) 1,390 (54.7) 1,390 (54.7) 1,390 (54.7) 1,505 (59.3) 1,505 (59.3)
Ground clearance mm (in) 210 (8.3) 210 (8.3)210 (8.3)
185 (7.3)*2Z24S: 225 (8.9)
QD32: 210 (8.3)Z24S: 225 (8.9)
KA24E: 215 (8.5)
QD32: 210 (8.3)
200 (7.9)*3
*1: On step bumper equipped models, the bumper adds 155 mm (6.1 in) to the overall length above.
*2: ST model
*3: SE model
DestinationAustralia
Vehicle type 2-wheel drive model 4-wheel drive model
Wheelbase Long Long
Cab or bed type Single cab Double cab Single cab Double cab
Overall length* mm (in) 4,975 (195.9) 4,885 (192.3) 4,975 (195.9) 4,885 (192.3)
Overall width mm (in) 1,690 (66.5) 1,690 (66.5) 1,820 (71.7) 1,820 (71.7)
Overall height mm (in) 1,615 (63.6) 1,625 (64.0) 1,690 (66.5) 1,705 (67.1)
Wheelbase mm (in) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1)
TreadFront mm (in) 1,395 (54.9) 1,395 (54.9) 1,525 (60.0) 1,525 (60.0)
Rear mm (in) 1,390 (54.7) 1,390 (54.7) 1,505 (59.3) 1,505 (59.3)
Ground clearance mm (in) 200 (7.9) 200 (7.9)KA24: 230 (9.1)
QD32: 215 (8.5)KA24: 230 (9.1)
QD32: 215 (8.5)
*: On step bumper equipped models, the bumper adds 155 mm (6.1 in) to the overall length above.
IDENTIFICATION INFORMATION
GI-44

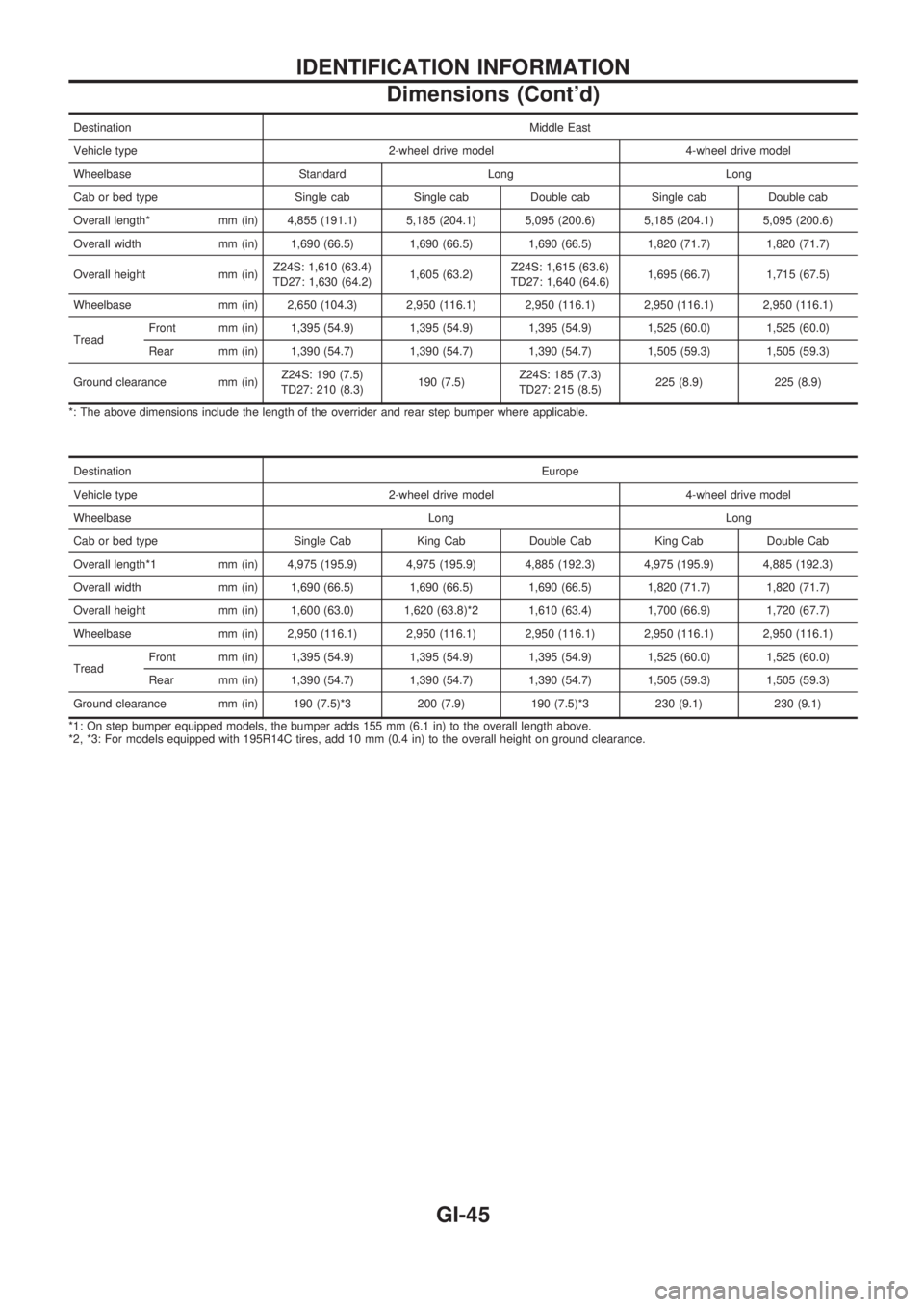

DestinationMiddle East
Vehicle type 2-wheel drive model 4-wheel drive model
Wheelbase Standard Long Long
Cab or bed type Single cab Single cab Double cab Single cab Double cab
Overall length* mm (in) 4,855 (191.1) 5,185 (204.1) 5,095 (200.6) 5,185 (204.1) 5,095 (200.6)
Overall width mm (in) 1,690 (66.5) 1,690 (66.5) 1,690 (66.5) 1,820 (71.7) 1,820 (71.7)
Overall height mm (in)Z24S: 1,610 (63.4)
TD27: 1,630 (64.2)1,605 (63.2)Z24S: 1,615 (63.6)
TD27: 1,640 (64.6)1,695 (66.7) 1,715 (67.5)
Wheelbase mm (in) 2,650 (104.3) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1)
TreadFront mm (in) 1,395 (54.9) 1,395 (54.9) 1,395 (54.9) 1,525 (60.0) 1,525 (60.0)
Rear mm (in) 1,390 (54.7) 1,390 (54.7) 1,390 (54.7) 1,505 (59.3) 1,505 (59.3)
Ground clearance mm (in)Z24S: 190 (7.5)
TD27: 210 (8.3)190 (7.5)Z24S: 185 (7.3)
TD27: 215 (8.5)225 (8.9) 225 (8.9)
*: The above dimensions include the length of the overrider and rear step bumper where applicable.
DestinationEurope
Vehicle type 2-wheel drive model 4-wheel drive model
Wheelbase Long Long
Cab or bed type Single Cab King Cab Double Cab King Cab Double Cab
Overall length*1 mm (in) 4,975 (195.9) 4,975 (195.9) 4,885 (192.3) 4,975 (195.9) 4,885 (192.3)
Overall width mm (in) 1,690 (66.5) 1,690 (66.5) 1,690 (66.5) 1,820 (71.7) 1,820 (71.7)
Overall height mm (in) 1,600 (63.0) 1,620 (63.8)*2 1,610 (63.4) 1,700 (66.9) 1,720 (67.7)
Wheelbase mm (in) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1)
TreadFront mm (in) 1,395 (54.9) 1,395 (54.9) 1,395 (54.9) 1,525 (60.0) 1,525 (60.0)
Rear mm (in) 1,390 (54.7) 1,390 (54.7) 1,390 (54.7) 1,505 (59.3) 1,505 (59.3)
Ground clearance mm (in) 190 (7.5)*3 200 (7.9) 190 (7.5)*3 230 (9.1) 230 (9.1)
*1: On step bumper equipped models, the bumper adds 155 mm (6.1 in) to the overall length above.
*2, *3: For models equipped with 195R14C tires, add 10 mm (0.4 in) to the overall height on ground clearance.
IDENTIFICATION INFORMATION
Dimensions (Cont'd)
GI-45

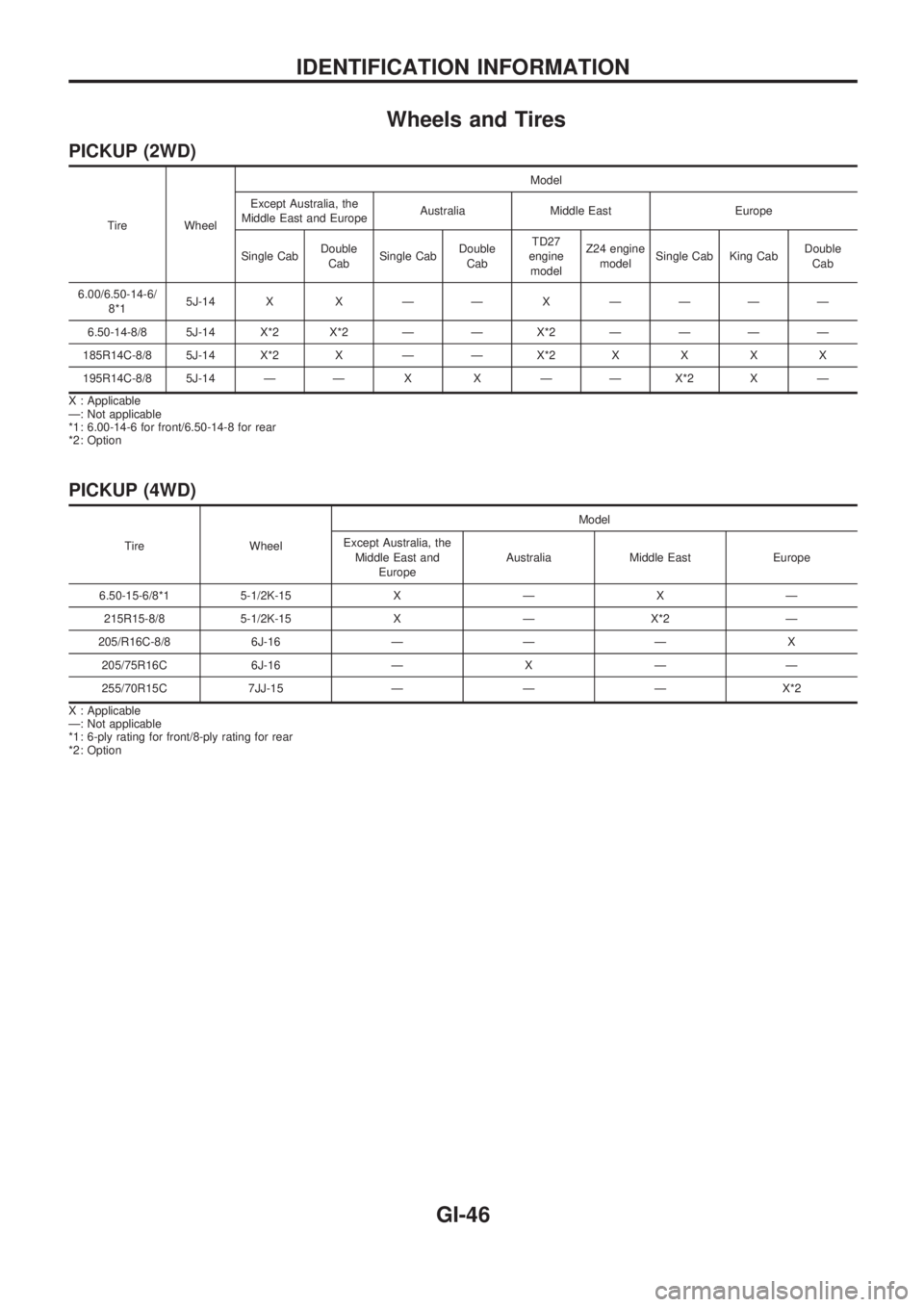

Wheels and Tires
PICKUP (2WD)
Tire WheelModel
Except Australia, the
Middle East and EuropeAustralia Middle East Europe
Single CabDouble
CabSingle CabDouble
CabTD27
engine
modelZ24 engine
modelSingle Cab King CabDouble
Cab
6.00/6.50-14-6/
8*15J-14 X X Ð Ð XÐÐÐÐ
6.50-14-8/8 5J-14 X*2 X*2 Ð Ð X*2ÐÐÐÐ
185R14C-8/8 5J-14 X*2 X Ð Ð X*2XXXX
195R14C-8/8 5J-14 Ð Ð X X Ð Ð X*2 X Ð
X : Applicable
Ð: Not applicable
*1 : 6.00-14-6 for front/6.50-14-8 for rear
*2 : Option
PICKUP (4WD)
Tire WheelModel
Except Australia, the
Middle East and
EuropeAustralia Middle East Europe
6.50-15-6/8*1 5-1/2K-15 X Ð X Ð
215R15-8/8 5-1/2K-15 X Ð X*2 Ð
205/R16C-8/8 6J-16 Ð Ð Ð X
205/75R16C 6J-16 Ð X Ð Ð
255/70R15C 7JJ-15 Ð Ð Ð X*2
X : Applicable
Ð: Not applicable
*1 : 6-ply rating for front/8-ply rating for rear
*2 : Option
IDENTIFICATION INFORMATION
GI-46
