NISSAN PRIMERA 1999 Electronic Repair Manual

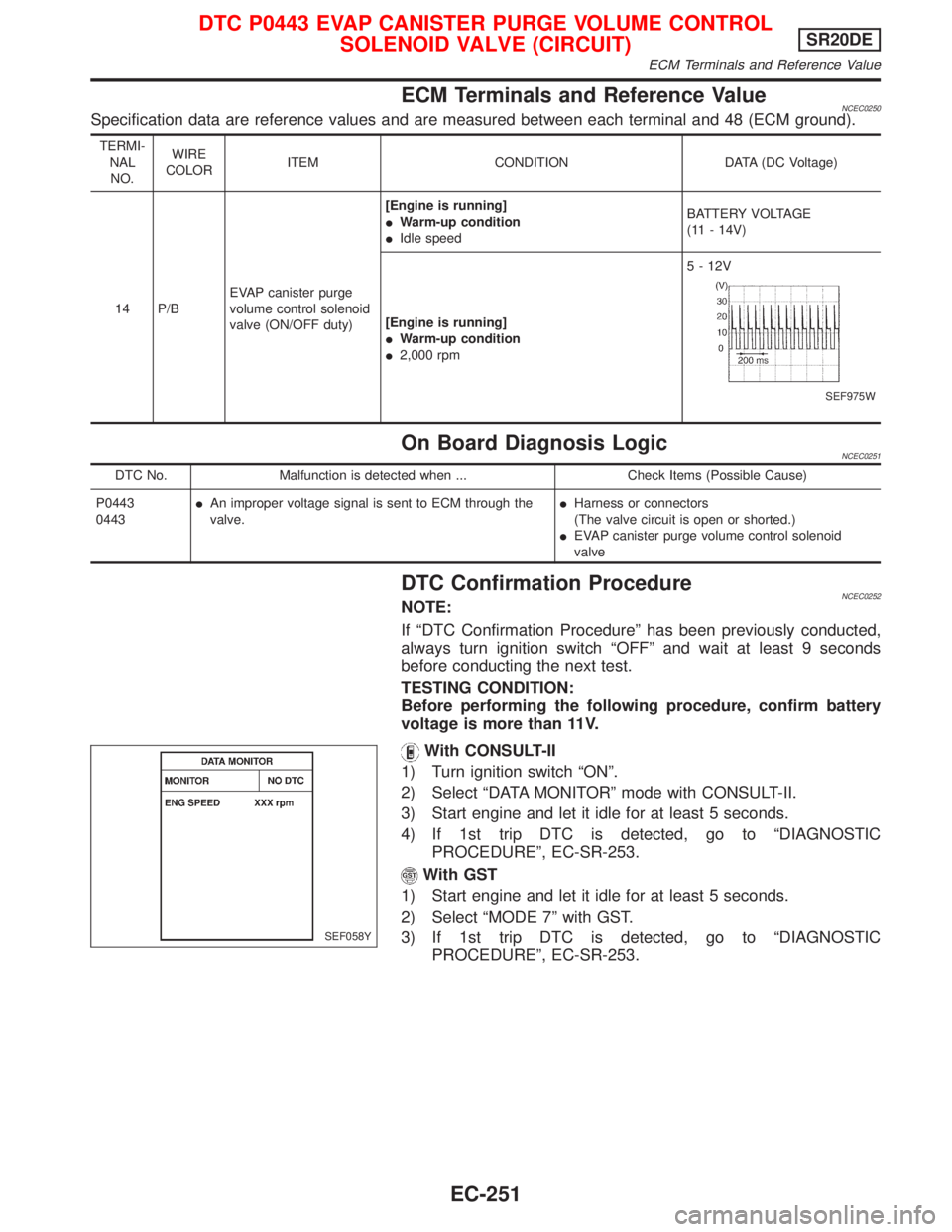

ECM Terminals and Reference ValueNCEC0250Specification data are reference values and are measured between each terminal and 48 (ECM ground).
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
14 P/BEVAP canister purge
volume control solenoid
valve (ON/OFF duty)[Engine is running]
IWarm-up condition
IIdle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
IWarm-up condition
I2,000 rpm5 - 12V
SEF975W
On Board Diagnosis LogicNCEC0251
DTC No. Malfunction is detected when ... Check Items (Possible Cause)
P0443
0443IAn improper voltage signal is sent to ECM through the
valve.IHarness or connectors
(The valve circuit is open or shorted.)
IEVAP canister purge volume control solenoid
valve
DTC Confirmation ProcedureNCEC0252NOTE:
If ªDTC Confirmation Procedureº has been previously conducted,
always turn ignition switch ªOFFº and wait at least 9 seconds
before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm battery
voltage is more than 11V.
With CONSULT-II
1) Turn ignition switch ªONº.
2) Select ªDATA MONITORº mode with CONSULT-II.
3) Start engine and let it idle for at least 5 seconds.
4) If 1st trip DTC is detected, go to ªDIAGNOSTIC
PROCEDUREº, EC-SR-253.
With GST
1) Start engine and let it idle for at least 5 seconds.
2) Select ªMODE 7º with GST.
3) If 1st trip DTC is detected, go to ªDIAGNOSTIC
PROCEDUREº, EC-SR-253.
SEF058Y
DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL
SOLENOID VALVE (CIRCUIT)SR20DE
ECM Terminals and Reference Value
EC-251

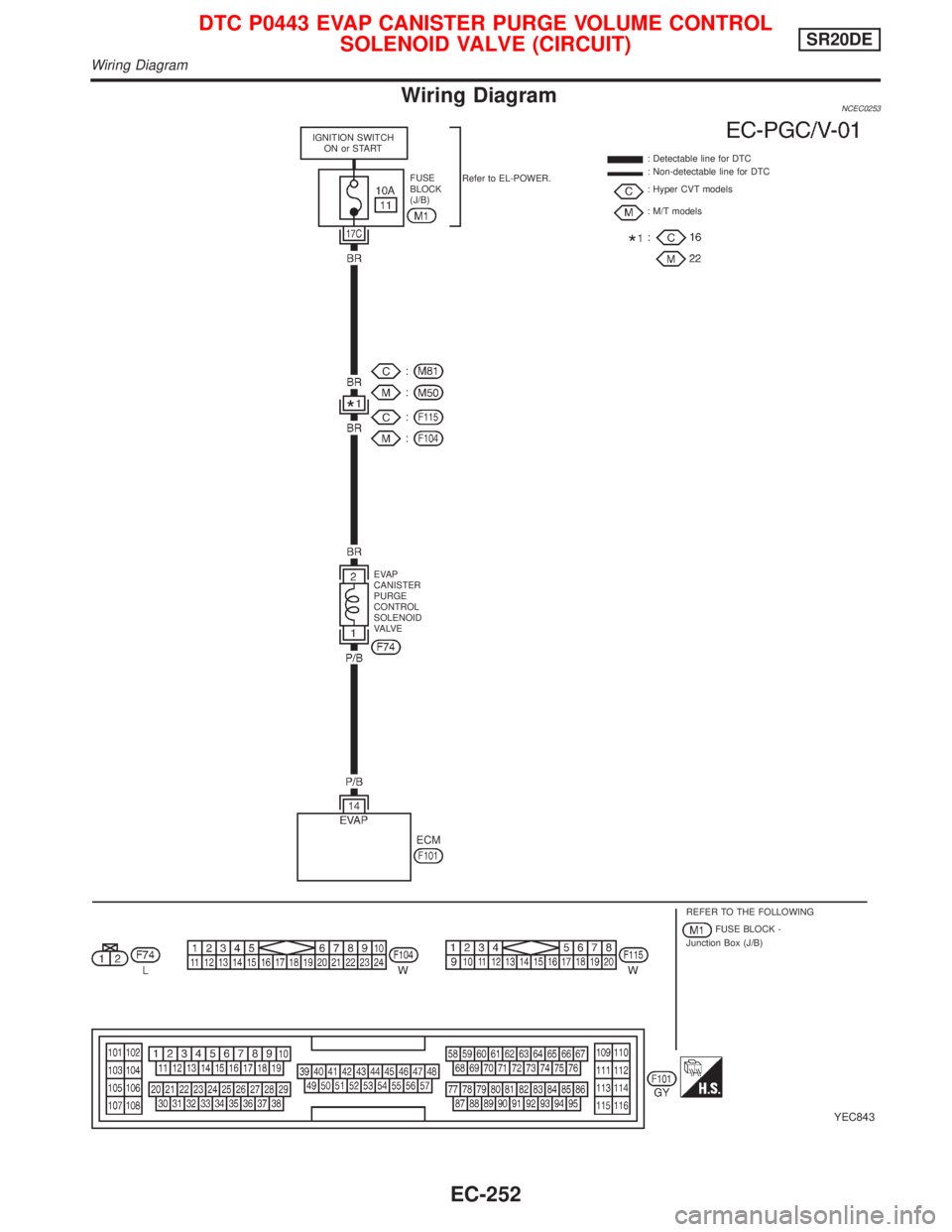

Wiring DiagramNCEC0253
YEC843
IGNITION SWITCH
ON or START
Refer to EL-POWER.: Detectable line for DTC
: Non-detectable line for DTC
: Hyper CVT models
: M/T models FUSE
BLOCK
(J/B)
EVAP
CANISTER
PURGE
CONTROL
SOLENOID
VA LV E
.ECM
REFER TO THE FOLLOWING
FUSE BLOCK -
Junction Box (J/B)
DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL
SOLENOID VALVE (CIRCUIT)SR20DE
Wiring Diagram
EC-252

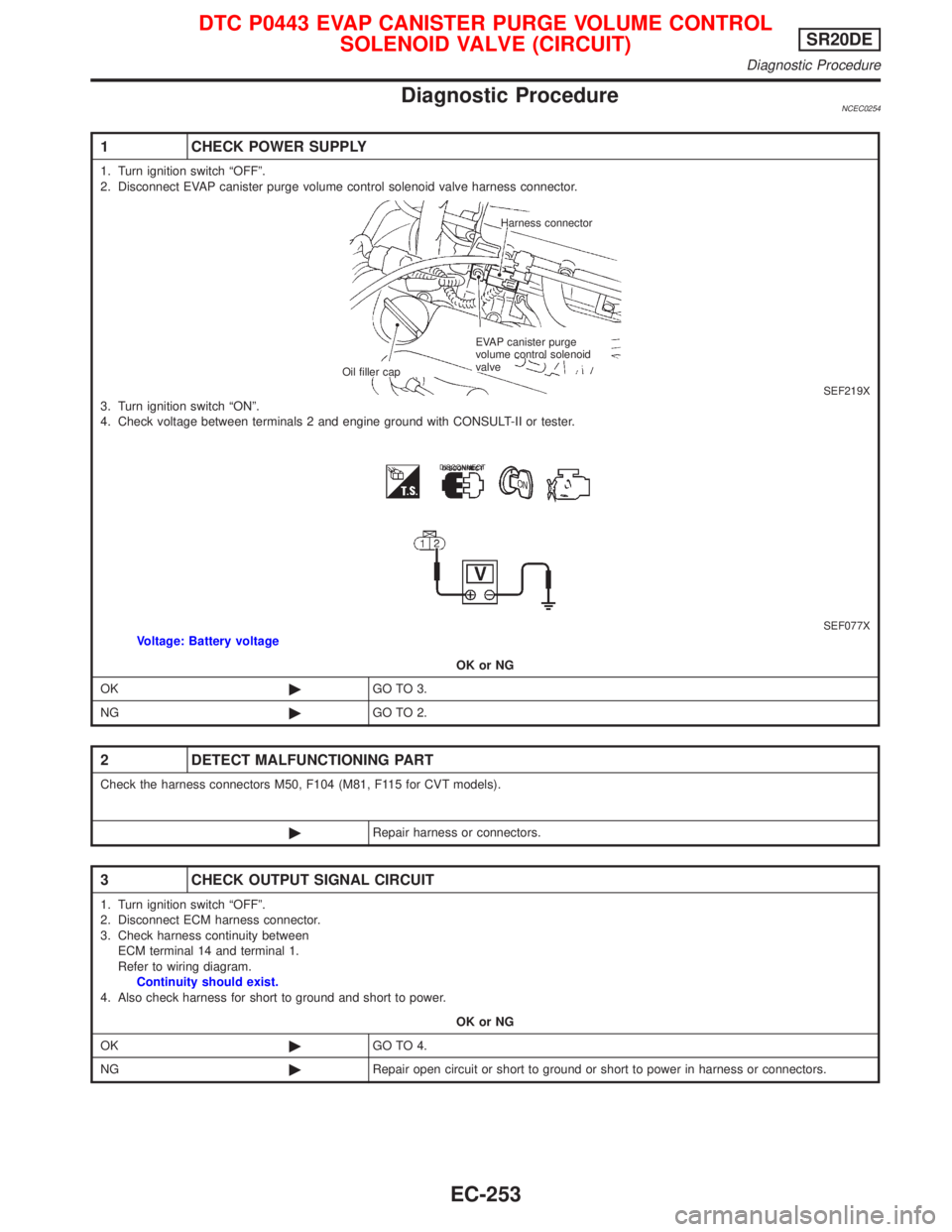

Diagnostic ProcedureNCEC0254
1 CHECK POWER SUPPLY
1. Turn ignition switch ªOFFº.
2. Disconnect EVAP canister purge volume control solenoid valve harness connector.
SEF219X3. Turn ignition switch ªONº.
4. Check voltage between terminals 2 and engine ground with CONSULT-II or tester.
SEF077XVoltage: Battery voltage
OK or NG
OK©GO TO 3.
NG©GO TO 2.
2 DETECT MALFUNCTIONING PART
Check the harness connectors M50, F104 (M81, F115 for CVT models).
©Repair harness or connectors.
3 CHECK OUTPUT SIGNAL CIRCUIT
1. Turn ignition switch ªOFFº.
2. Disconnect ECM harness connector.
3. Check harness continuity between
ECM terminal 14 and terminal 1.
Refer to wiring diagram.
Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG
OK©GO TO 4.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
Harness connector
EVAP canister purge
volume control solenoid
valve
Oil filler cap
DISCONNECT
DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL
SOLENOID VALVE (CIRCUIT)SR20DE
Diagnostic Procedure
EC-253

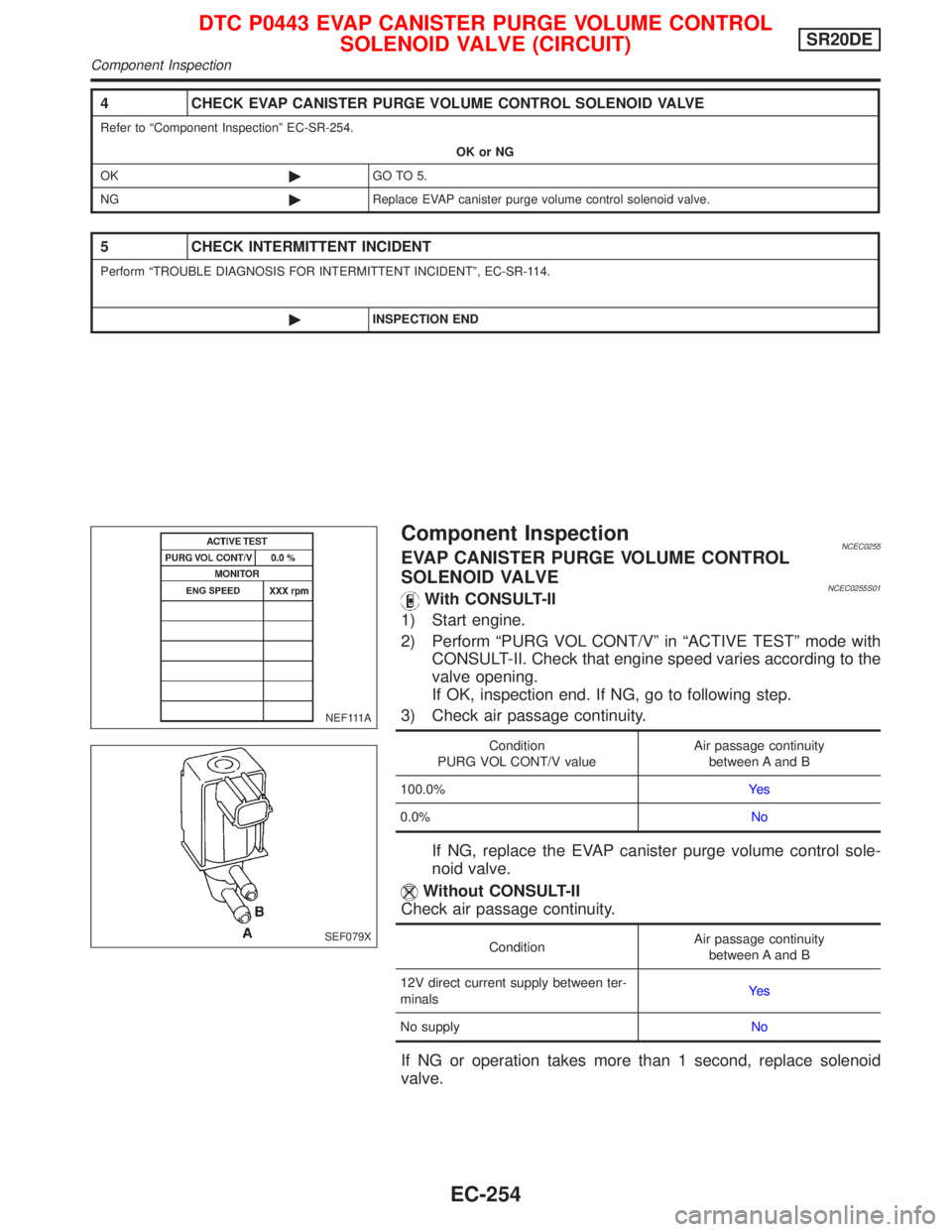

Component InspectionNCEC0255EVAP CANISTER PURGE VOLUME CONTROL
SOLENOID VALVE
NCEC0255S01With CONSULT-II
1) Start engine.
2) Perform ªPURG VOL CONT/Vº in ªACTIVE TESTº mode with
CONSULT-II. Check that engine speed varies according to the
valve opening.
If OK, inspection end. If NG, go to following step.
3) Check air passage continuity.
Condition
PURG VOL CONT/V valueAir passage continuity
between A and B
100.0%Ye s
0.0%No
If NG, replace the EVAP canister purge volume control sole-
noid valve.
Without CONSULT-II
Check air passage continuity.
ConditionAir passage continuity
between A and B
12V direct current supply between ter-
minalsYe s
No supplyNo
If NG or operation takes more than 1 second, replace solenoid
valve.
4 CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Refer to ªComponent Inspectionº EC-SR-254.
OK or NG
OK©GO TO 5.
NG©Replace EVAP canister purge volume control solenoid valve.
5 CHECK INTERMITTENT INCIDENT
Perform ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-SR-114.
©INSPECTION END
NEF111A
SEF079X
DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL
SOLENOID VALVE (CIRCUIT)SR20DE
Component Inspection
EC-254

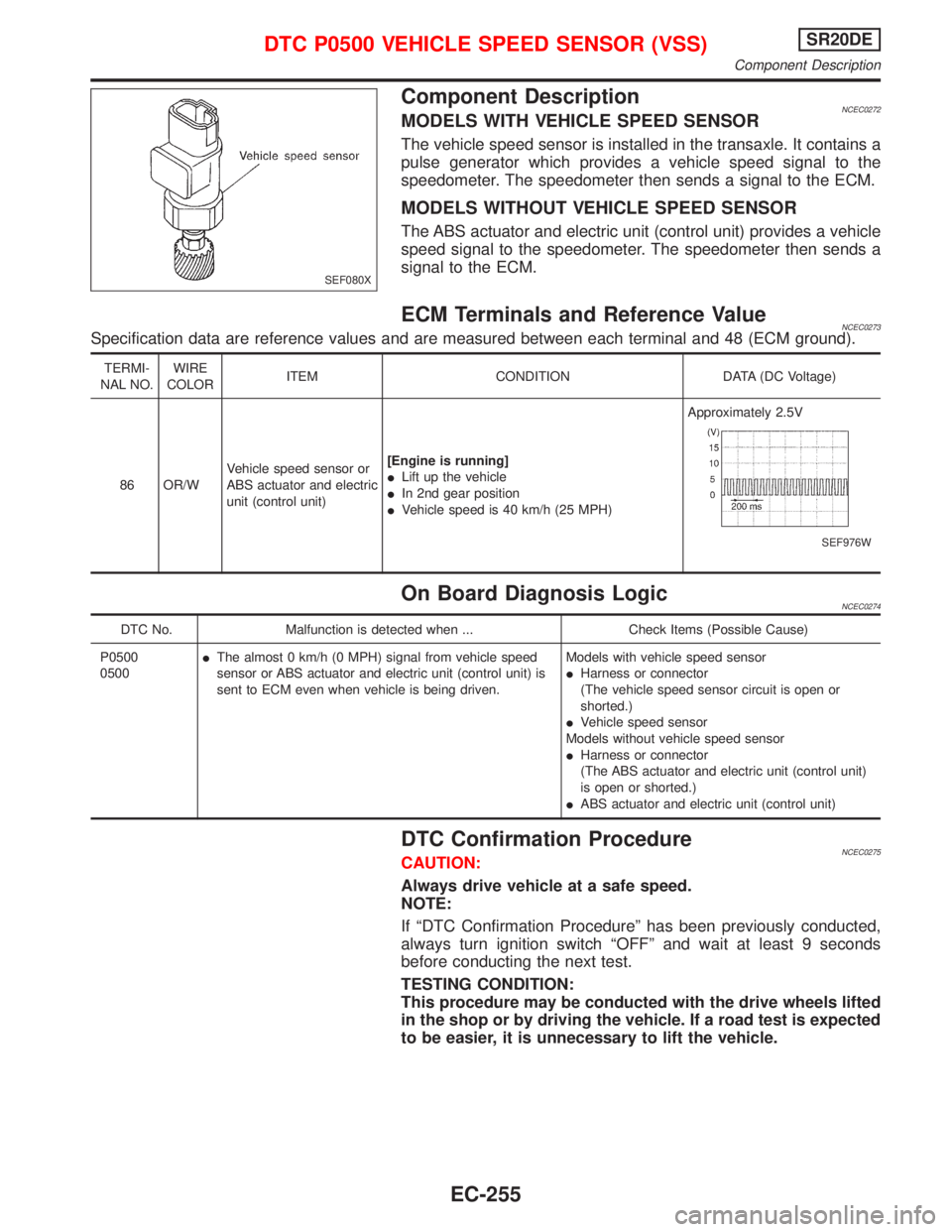

Component DescriptionNCEC0272MODELS WITH VEHICLE SPEED SENSOR
The vehicle speed sensor is installed in the transaxle. It contains a
pulse generator which provides a vehicle speed signal to the
speedometer. The speedometer then sends a signal to the ECM.
MODELS WITHOUT VEHICLE SPEED SENSOR
The ABS actuator and electric unit (control unit) provides a vehicle
speed signal to the speedometer. The speedometer then sends a
signal to the ECM.
ECM Terminals and Reference ValueNCEC0273Specification data are reference values and are measured between each terminal and 48 (ECM ground).
TERMI-
NAL NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
86 OR/WVehicle speed sensor or
ABS actuator and electric
unit (control unit)[Engine is running]
ILift up the vehicle
IIn 2nd gear position
IVehicle speed is 40 km/h (25 MPH)Approximately 2.5V
SEF976W
On Board Diagnosis LogicNCEC0274
DTC No. Malfunction is detected when ... Check Items (Possible Cause)
P0500
0500IThe almost 0 km/h (0 MPH) signal from vehicle speed
sensor or ABS actuator and electric unit (control unit) is
sent to ECM even when vehicle is being driven.Models with vehicle speed sensor
IHarness or connector
(The vehicle speed sensor circuit is open or
shorted.)
IVehicle speed sensor
Models without vehicle speed sensor
IHarness or connector
(The ABS actuator and electric unit (control unit)
is open or shorted.)
IABS actuator and electric unit (control unit)
DTC Confirmation ProcedureNCEC0275CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If ªDTC Confirmation Procedureº has been previously conducted,
always turn ignition switch ªOFFº and wait at least 9 seconds
before conducting the next test.
TESTING CONDITION:
This procedure may be conducted with the drive wheels lifted
in the shop or by driving the vehicle. If a road test is expected
to be easier, it is unnecessary to lift the vehicle.
SEF080X
DTC P0500 VEHICLE SPEED SENSOR (VSS)SR20DE
Component Description
EC-255

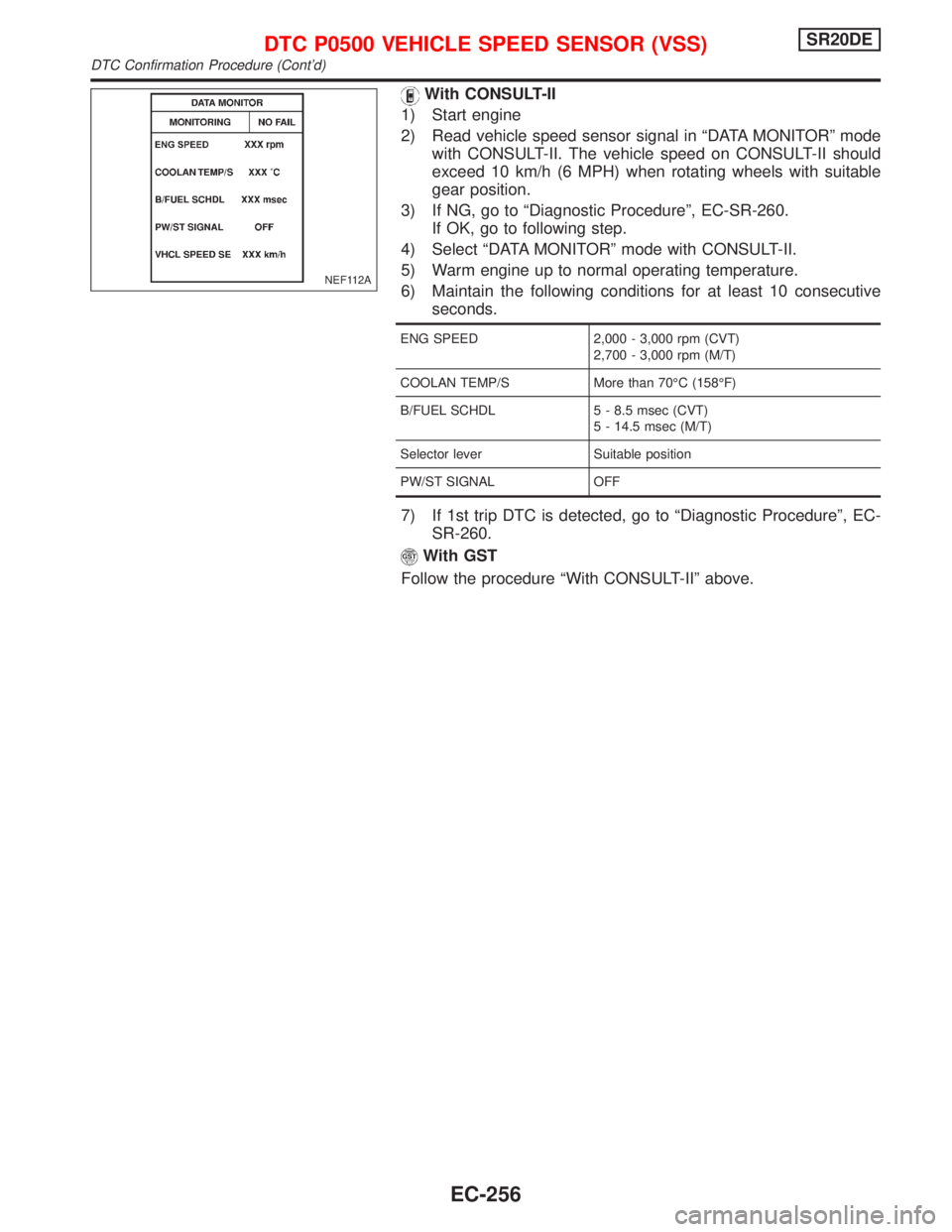

With CONSULT-II
1) Start engine
2) Read vehicle speed sensor signal in ªDATA MONITORº mode
with CONSULT-II. The vehicle speed on CONSULT-II should
exceed 10 km/h (6 MPH) when rotating wheels with suitable
gear position.
3) If NG, go to ªDiagnostic Procedureº, EC-SR-260.
If OK, go to following step.
4) Select ªDATA MONITORº mode with CONSULT-II.
5) Warm engine up to normal operating temperature.
6) Maintain the following conditions for at least 10 consecutive
seconds.
ENG SPEED 2,000 - 3,000 rpm (CVT)
2,700 - 3,000 rpm (M/T)
COOLAN TEMP/S More than 70ÉC (158ÉF)
B/FUEL SCHDL 5 - 8.5 msec (CVT)
5 - 14.5 msec (M/T)
Selector lever Suitable position
PW/ST SIGNAL OFF
7) If 1st trip DTC is detected, go to ªDiagnostic Procedureº, EC-
SR-260.
With GST
Follow the procedure ªWith CONSULT-IIº above.
NEF112A
DTC P0500 VEHICLE SPEED SENSOR (VSS)SR20DE
DTC Confirmation Procedure (Cont'd)
EC-256

Wiring DiagramNCEC0277MODELS BEFORE VIN - P11U0548750
YEC844
IGNITION SWITCH
ON or START
Refer to EL-POWER.: Detectable line for DTC
: Non-detectable line for DTC
: Hyper CVT models
: M/T models FUSE
BLOCK
(J/B)
COMBINATION
METER
(SPEEDOMETER)
ECM
REFER TO THE FOLLOWING
FUSE BLOCK -
Junction Box (J/B) VEHICLE
SPEED
SENSOR BATTERY
DTC P0500 VEHICLE SPEED SENSOR (VSS)SR20DE
Wiring Diagram
EC-257

MT MODELS WITH ABS AFTER VIN - P11U0548750
YEC091A
DTC P0500 VEHICLE SPEED SENSOR (VSS)SR20DE
Wiring Diagram (Cont'd)
EC-258

EXCEPT MT MODELS WITH ABS AFTER VIN - P11U0548750
YEC092A
DTC P0500 VEHICLE SPEED SENSOR (VSS)SR20DE
Wiring Diagram (Cont'd)
EC-259

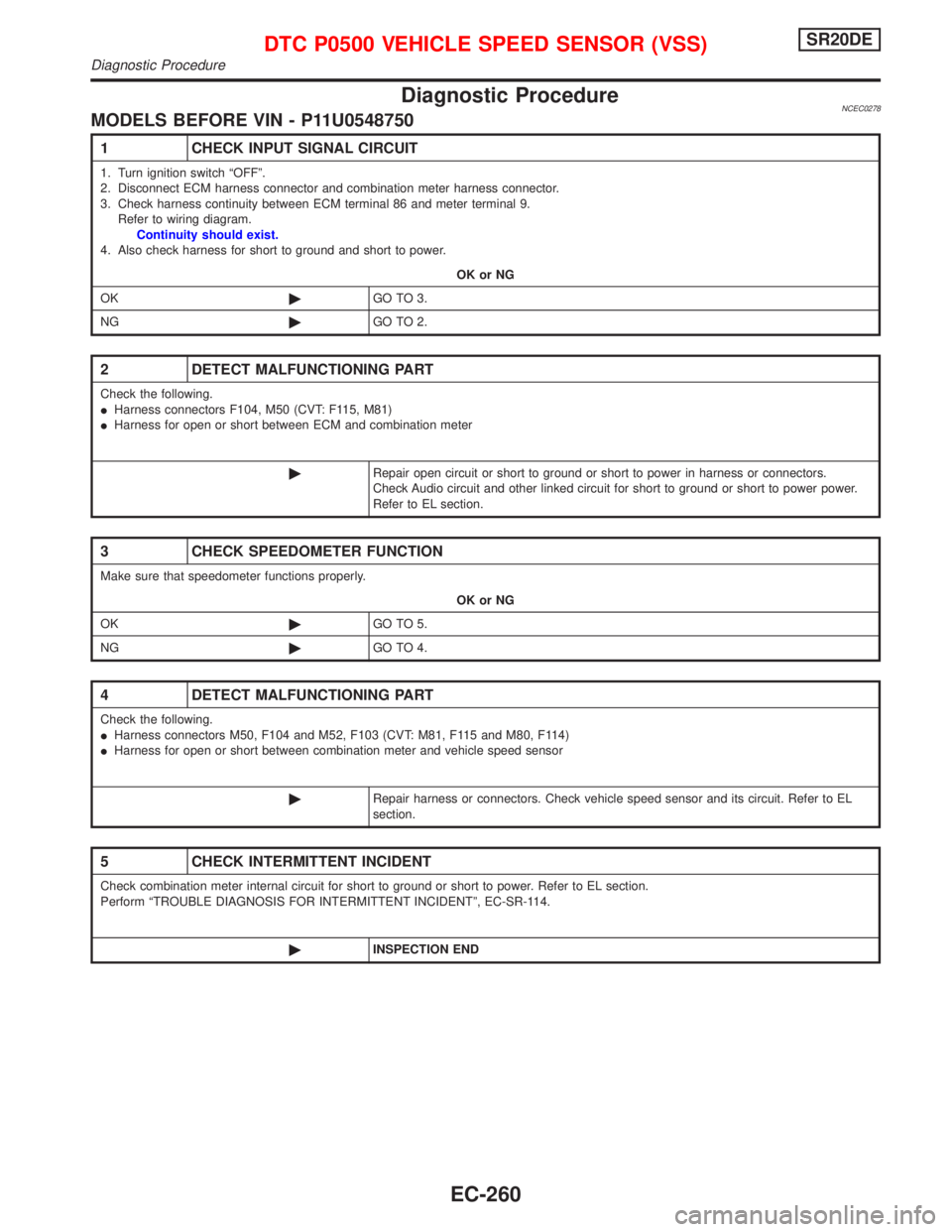

Diagnostic ProcedureNCEC0278MODELS BEFORE VIN - P11U0548750
1 CHECK INPUT SIGNAL CIRCUIT
1. Turn ignition switch ªOFFº.
2. Disconnect ECM harness connector and combination meter harness connector.
3. Check harness continuity between ECM terminal 86 and meter terminal 9.
Refer to wiring diagram.
Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG
OK©GO TO 3.
NG©GO TO 2.
2 DETECT MALFUNCTIONING PART
Check the following.
IHarness connectors F104, M50 (CVT: F115, M81)
IHarness for open or short between ECM and combination meter
©Repair open circuit or short to ground or short to power in harness or connectors.
Check Audio circuit and other linked circuit for short to ground or short to power power.
Refer to EL section.
3 CHECK SPEEDOMETER FUNCTION
Make sure that speedometer functions properly.
OK or NG
OK©GO TO 5.
NG©GO TO 4.
4 DETECT MALFUNCTIONING PART
Check the following.
IHarness connectors M50, F104 and M52, F103 (CVT: M81, F115 and M80, F114)
IHarness for open or short between combination meter and vehicle speed sensor
©Repair harness or connectors. Check vehicle speed sensor and its circuit. Refer to EL
section.
5 CHECK INTERMITTENT INCIDENT
Check combination meter internal circuit for short to ground or short to power. Refer to EL section.
Perform ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-SR-114.
©INSPECTION END
DTC P0500 VEHICLE SPEED SENSOR (VSS)SR20DE
Diagnostic Procedure
EC-260
