Page 241 of 2267

NISSAN PRIMERA 1999  Electronic Repair Manual REMOVAL Ð Headlining
Wagon
p1Remove front and rear seats. Refer to ªSEATº for details, BT-40.
p2Remove front and rear seat belts. Refer to ªSEAT BELTSº in RS section for details.
p3Remove body si

Page 242 of 2267

NISSAN PRIMERA 1999  Electronic Repair Manual Trunk Room Trim
YBT018 Metal clipFrontMetal clip
SEC. 849
INTERIOR TRIM
BT-28

Page 243 of 2267

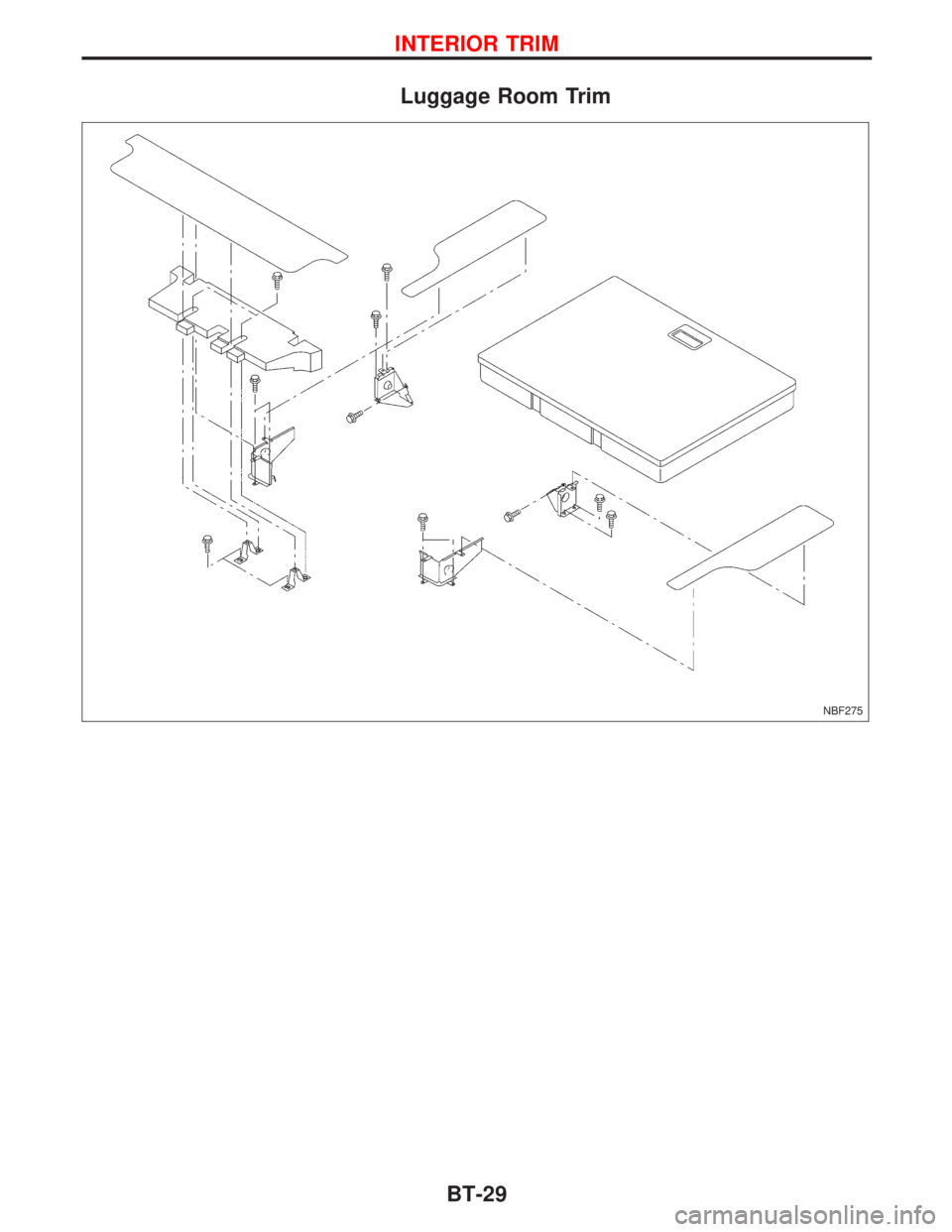

NISSAN PRIMERA 1999  Electronic Repair Manual Luggage Room Trim
NBF275
INTERIOR TRIM
BT-29

Page 244 of 2267

NISSAN PRIMERA 1999  Electronic Repair Manual Back Door Trim
REMOVAL Ð Back door trim
p1Remove back door lower finisher.
p2Remove back door upper finisher.
p3Remove back door side finisher.
p4Remove high-mounted stop lamp.
NBT054 Metal clip
Meta

Page 245 of 2267

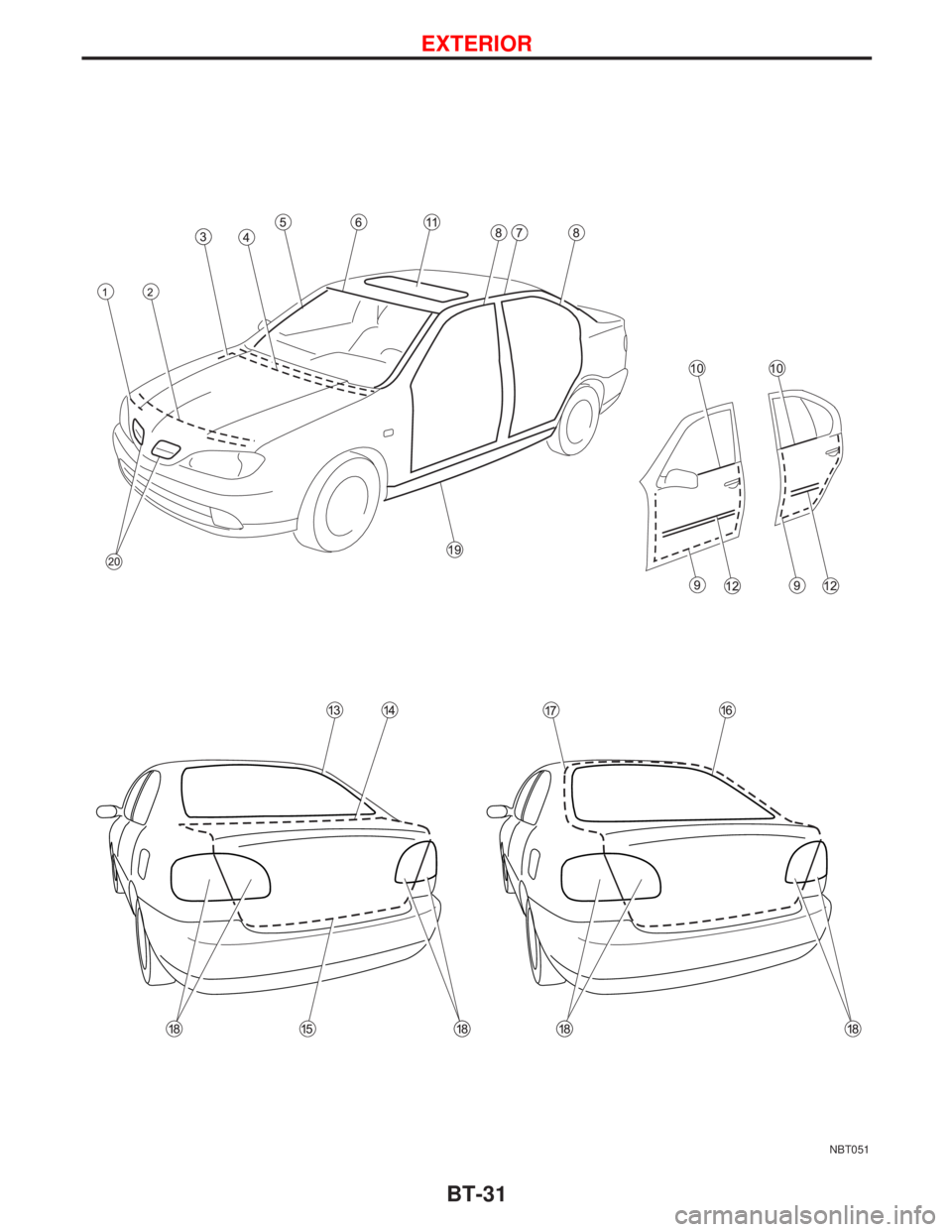

NISSAN PRIMERA 1999  Electronic Repair Manual NBT051
EXTERIOR
BT-31

Page 246 of 2267

NISSAN PRIMERA 1999  Electronic Repair Manual NBT052
EXTERIOR
BT-32

Page 247 of 2267

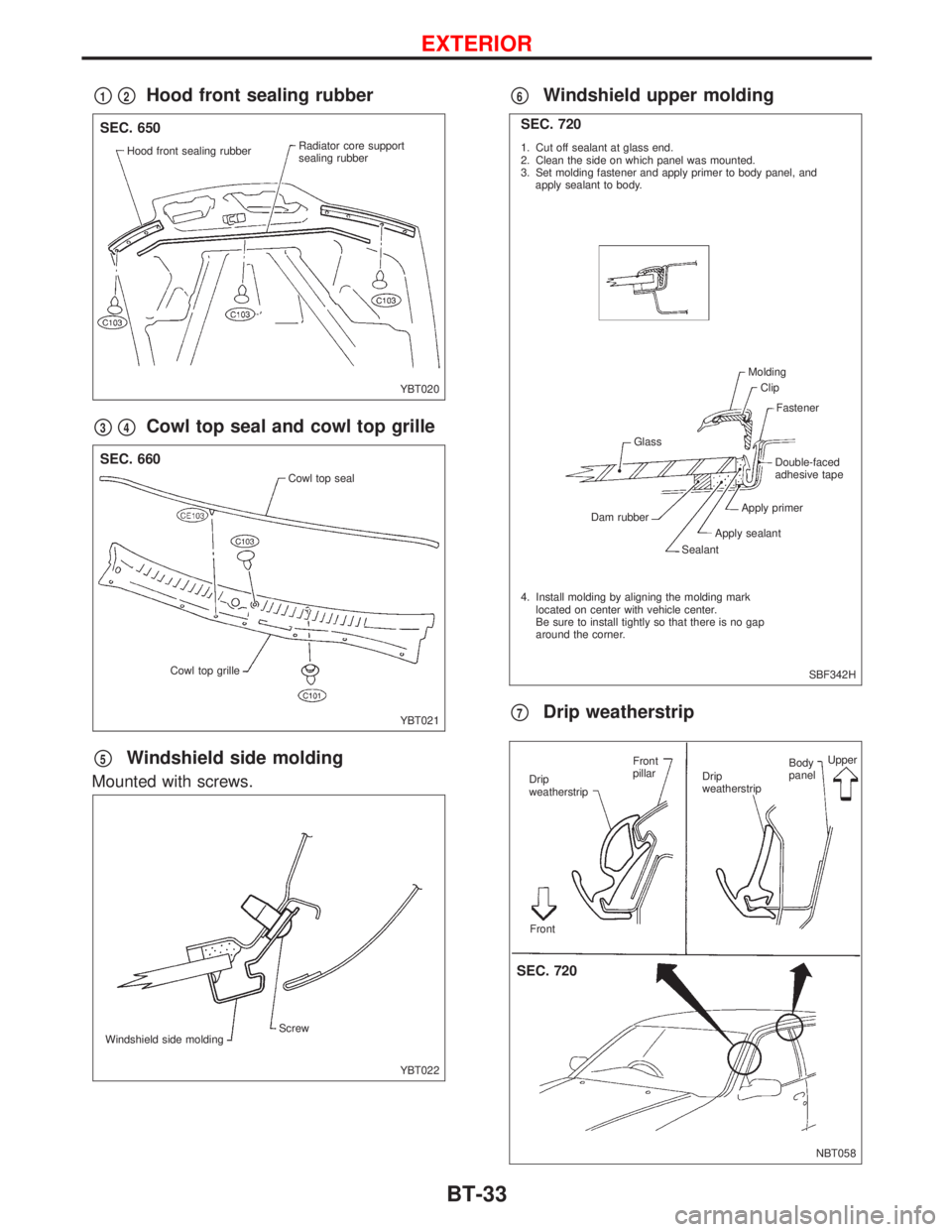

NISSAN PRIMERA 1999  Electronic Repair Manual p1p2Hood front sealing rubber
p3p4Cowl top seal and cowl top grille
p5Windshield side molding
Mounted with screws.
p6Windshield upper molding
p7Drip weatherstrip
YBT020 Hood front sealing rubber
SEC.

Page 248 of 2267

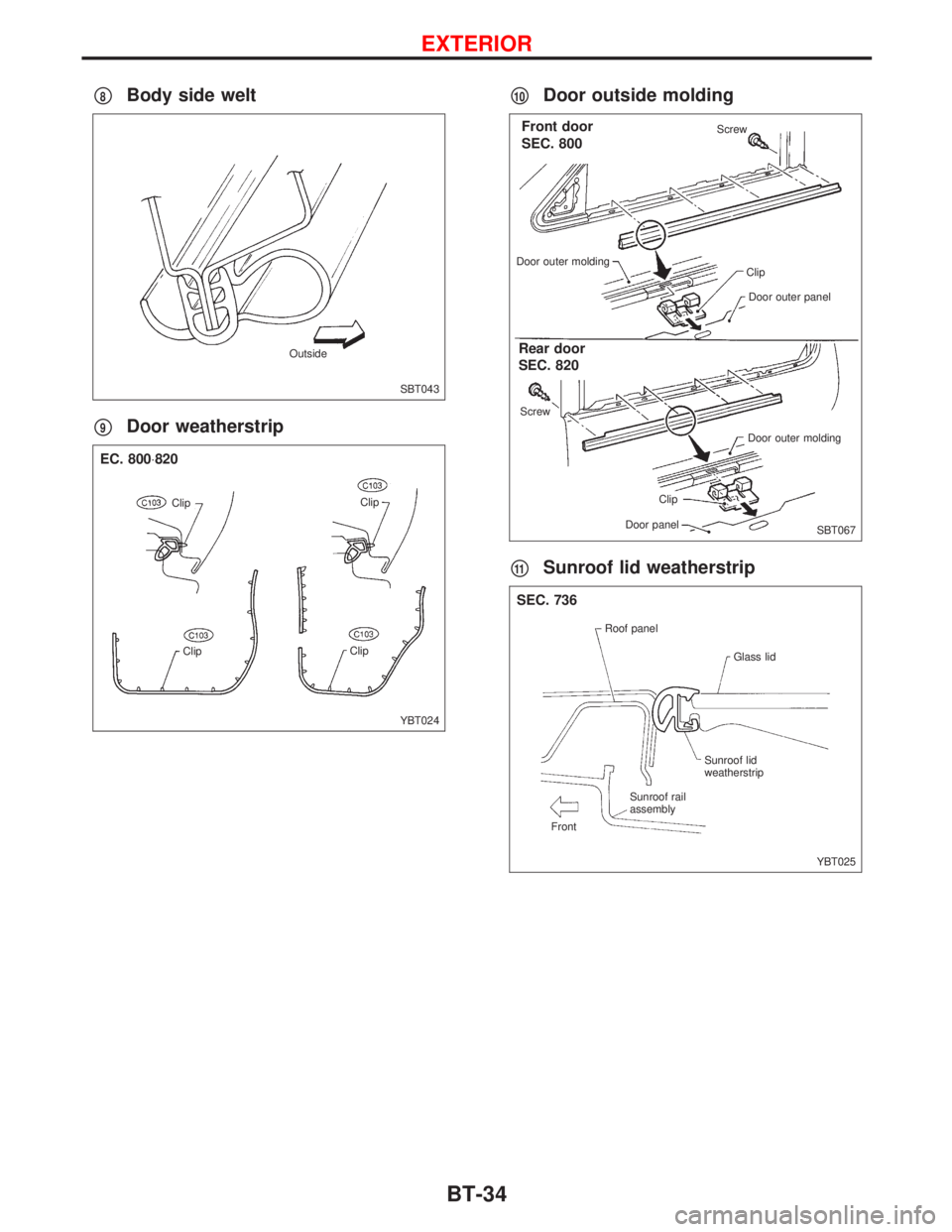

NISSAN PRIMERA 1999  Electronic Repair Manual p8Body side welt
p9Door weatherstrip
p10Door outside molding
p11Sunroof lid weatherstrip
SBT043 Outside
YBT024
EC. 800×820
ClipClip
ClipClip
SBT067
Front door
SEC. 800Screw
Clip
Door outer panel Door

Page 249 of 2267

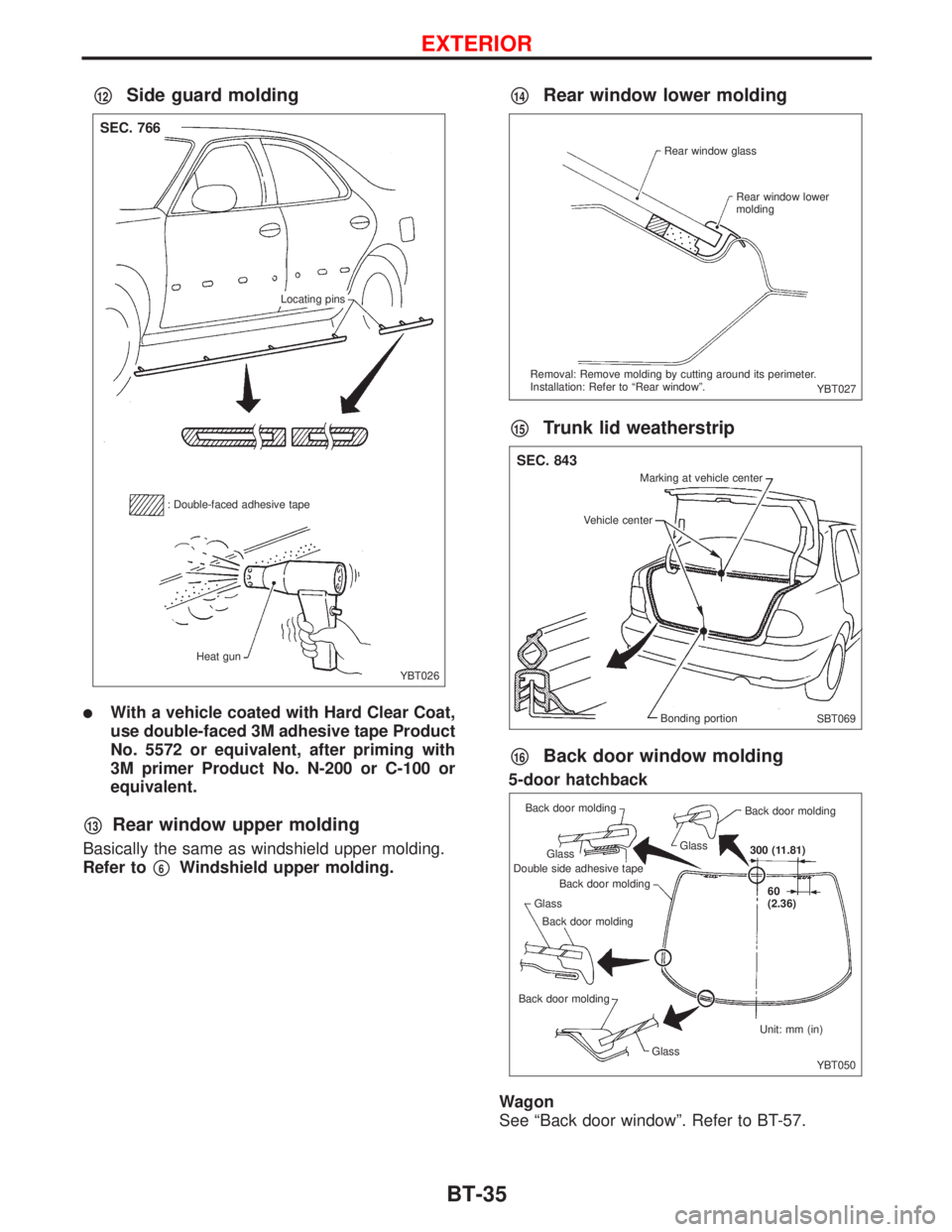

NISSAN PRIMERA 1999  Electronic Repair Manual p12Side guard molding
lWith a vehicle coated with Hard Clear Coat,
use double-faced 3M adhesive tape Product
No. 5572 or equivalent, after priming with
3M primer Product No. N-200 or C-100 or
equivale

Page 250 of 2267

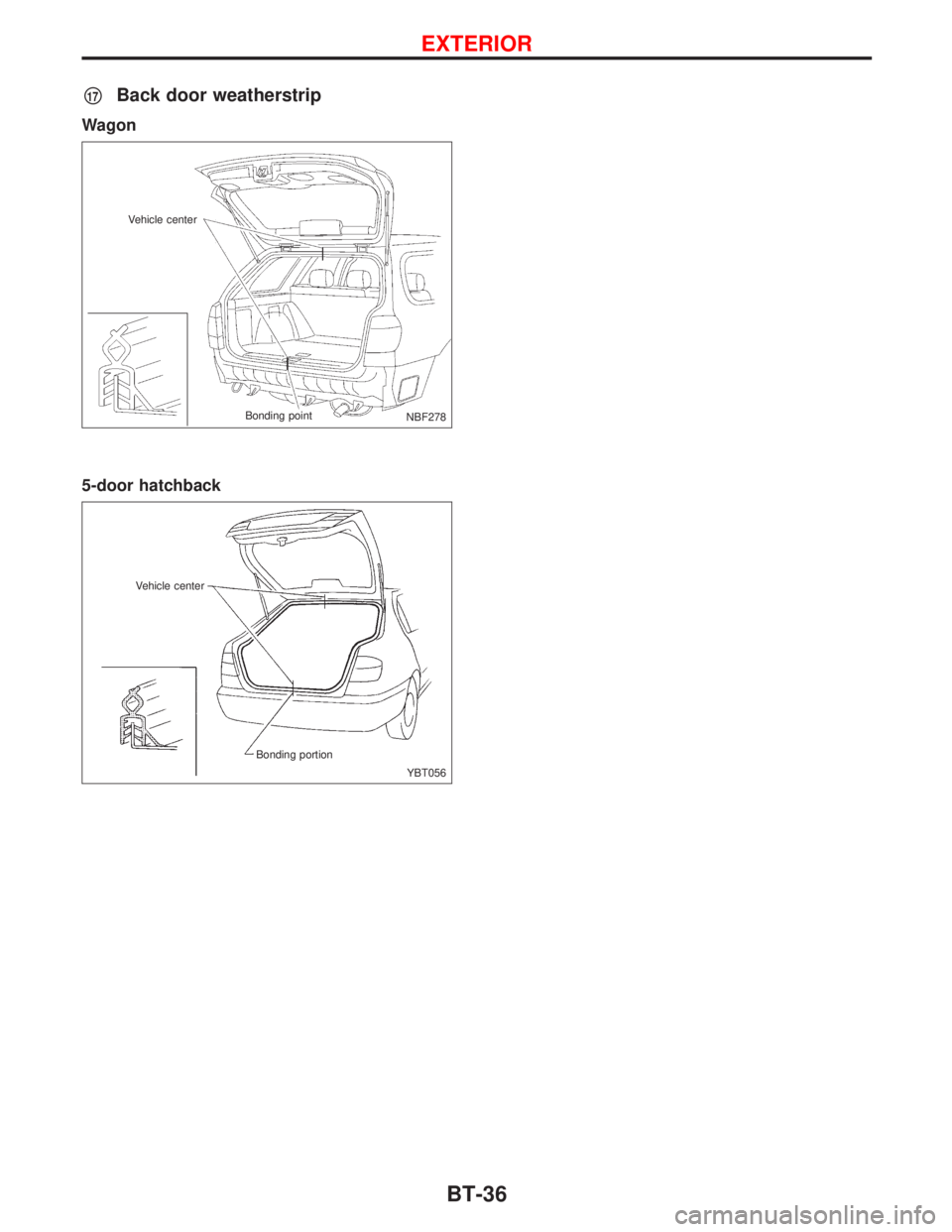

NISSAN PRIMERA 1999  Electronic Repair Manual p17Back door weatherstrip
Wagon
5-door hatchback
NBF278 Vehicle center
Bonding point
YBT056 Vehicle center
Bonding portion
EXTERIOR
BT-36
