DIAGNOSIS AND REPAIR WORKFLOW
DLK-7
< BASIC INSPECTION >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000003794729
OVERALL SEQUENCE

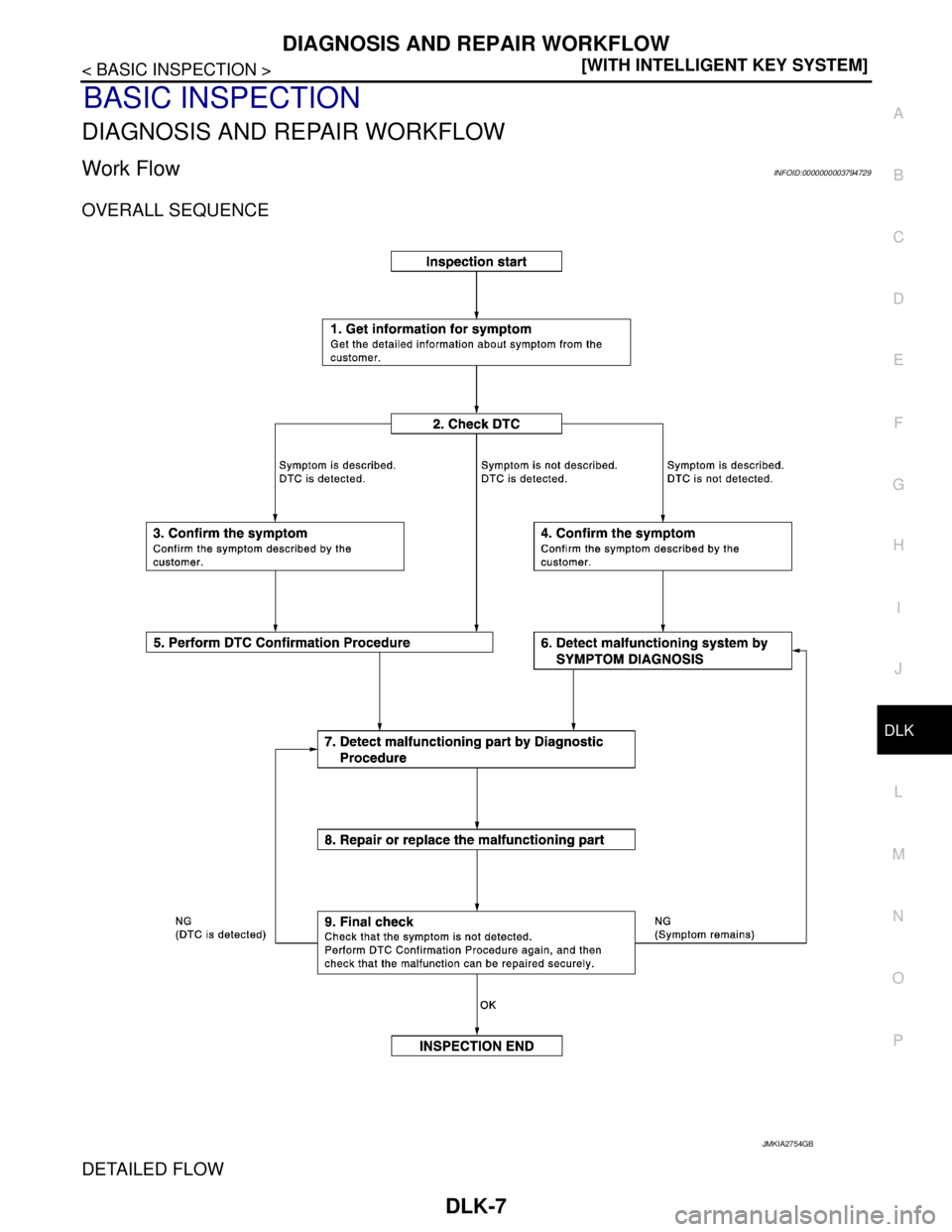

DETAILED FLOW
JMKIA2754GB

DLK-8
< BASIC INSPECTION >[WITH INTELLIGENT KEY SYSTEM]
DIAGNOSIS AND REPAIR WORKFLOW
1.GET INFORMATION FOR SYMPTOM
Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred).
>> GO TO 2.
2.CHECK DTC
1. Check DTC for BCM.
2. Perform the following procedure if DTC is displayed.
- Record DTC and freeze frame data (print them out with CONSULT-III).
- Erase DTC.
- Study the relationship between the cause detected by DTC and the symptom described by the customer.
3. Check related service bulletins for information.
Is any symptom described and any DTC detected?
Symptom is described, DTC is displayed>>GO TO 3.
Symptom is described, DTC is not displayed>>GO TO 4.
Symptom is not described, DTC is displayed>>GO TO 5.
3.CONFIRM THE SYMPTOM
Confirm the symptom described by the customer.
Connect CONSULT-III to the vehicle in “DATA MONITOR” mode and check real time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 5.
4.CONFIRM THE SYMPTOM
Confirm the symptom described by the customer.
Connect CONSULT-III to the vehicle in “DATA MONITOR” mode and check real time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 6.
5.PERFORM DTC CONFIRMATION PROCEDURE
Perform DTC Confirmation Procedure for the displayed DTC, and then check that DTC is detected again.
At this time, always connect CONSULT-III to the vehicle, and check diagnostic results in real time.
If two or more DTCs are detected, refer to DLK-152, "
DTCInspectionPriorityChart" (BCM) determine trou-
ble diagnosis order.
NOTE:
Perform Component Function Check if DTC Confirmation Procedure is not included in Service Manual. This
simplified check procedure is an effective alternative though DTC cannot be detected during this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC Confirmation
Procedure.
Is DTC detected?
YES >> GO TO 7.
NO >> Refer to GI-35, "
Intermittent Incident".
6.DETECT MALFUNCTIONING SYSTEM BY SYMPTOM DIAGNOSIS
Detect malfunctioning system according to SYMPTOM DIAGNOSIS based on the confirmed symptom in step
4, and determine the trouble diagnosis order based on possible causes and symptom.
>> GO TO 7.
7.DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE
Inspect according to Diagnostic Procedure of the system.
NOTE:
The Diagnostic Procedure described based on open circuit inspection. A short circuit inspection is also
required for the circuit check in the Diagnostic Procedure.

DIAGNOSIS AND REPAIR WORKFLOW
DLK-9
< BASIC INSPECTION >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
Is malfunctioning part detected?
YES >> GO TO 8.
NO >> Check voltage of related BCM terminals using CONSULT-III.
8.REPAIR OR REPLACE THE MALFUNCTIONING PART
1. Repair or replace the malfunctioning part.
2. Reconnect parts or connectors disconnected during Diagnostic Procedure again after repair and replace-
ment.
3. Check DTC. If DTC is displayed, erase it.
>> GO TO 9.
9.FINAL CHECK
When DTC was detected in step 2, perform DTC Confirmation Procedure or Component Function Check
again, and then check that the malfunction has been repaired securely.
When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and check that
the symptom is not detected.
Does the symptom reappear?
YES (DTC is detected)>>GO TO 7.
YES (Symptom remains)>>GO TO 6.
NO >>INSPECTION END

DLK-10
< BASIC INSPECTION >[WITH INTELLIGENT KEY SYSTEM]
INSPECTION AND ADJUSTMENT
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description
INFOID:0000000003794732
Perform the system initialization when replacing BCM, replacing Intelligent Key or registering an additional
Intelligent Key.
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement
INFOID:0000000003794733
Refer to the CONSULT-III operation manual for the initialization procedure.

POWER DOOR LOCK SYSTEM
DLK-11
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
FUNCTION DIAGNOSIS
POWER DOOR LOCK SYSTEM
System DiagramINFOID:0000000003794734
System DescriptionINFOID:0000000003794735
DOOR LOCK FUNCTION
 The door lock and unlock switch (driver side) are build into power window main switch.
 Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are
locked.
 Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors and
are unlocked.
 When ignition switch is ON and BCM receives air bag deployment signal, it operates automatically to unlock
all doors. Air bag diagnosis sensor unit sends the air bag deployment signal to BCM.
Door Key Cylinder
 With the door key inserted in the door key cylinder on driver side, turning the door key cylinder to “LOCK”,
locks door lock actuator of driver side door.
 With the door key inserted in the door key cylinder on driver side, turning the door key cylinder to “UNLOCK”,
unlocks door lock actuator of driver side door.

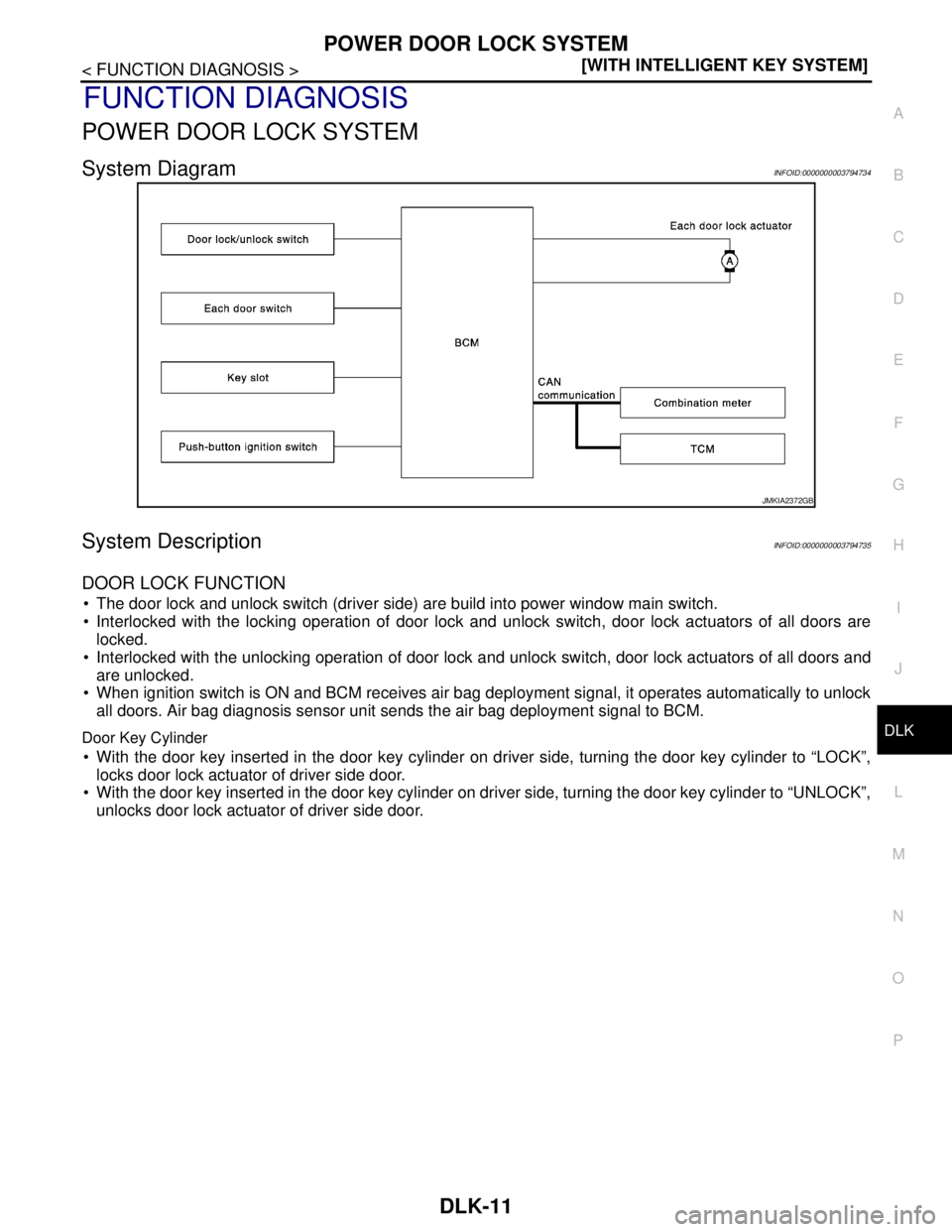

JMKIA2372GB

DLK-12
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
POWER DOOR LOCK SYSTEM
Component Parts Location
INFOID:0000000003794736
Component DescriptionINFOID:0000000003794737

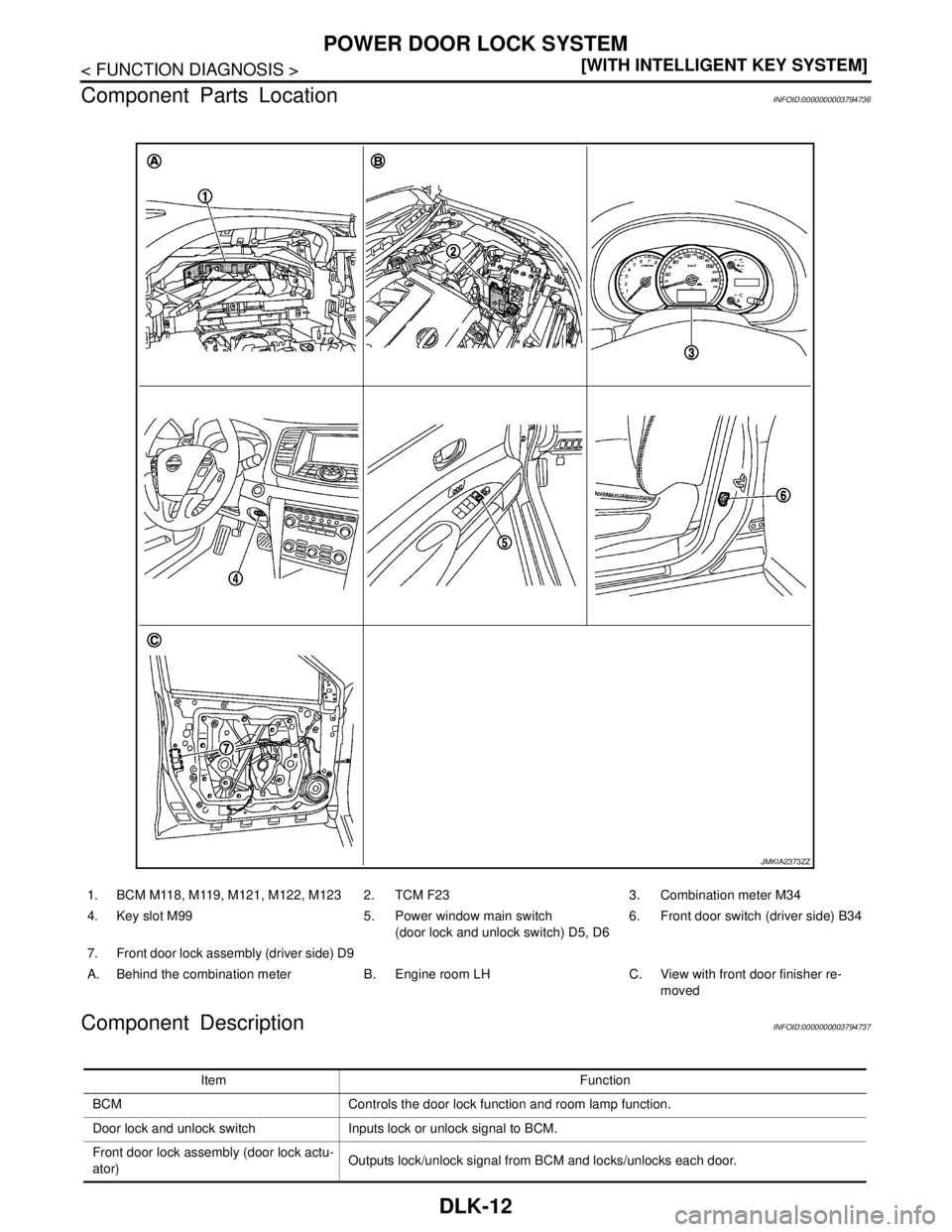

1. BCM M118, M119, M121, M122, M123 2. TCM F23 3. Combination meter M34
4. Key slot M99 5. Power window main switch
(door lock and unlock switch) D5, D66. Front door switch (driver side) B34
7. Front door lock assembly (driver side) D9
A. Behind the combination meter B. Engine room LH C. View with front door finisher re-
moved
JMKIA2373ZZ
Item Function
BCM Controls the door lock function and room lamp function.
Door lock and unlock switch Inputs lock or unlock signal to BCM.
Front door lock assembly (door lock actu-
ator)Outputs lock/unlock signal from BCM and locks/unlocks each door.

POWER DOOR LOCK SYSTEM
DLK-13
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
Front door lock assembly (unlock sensor) Detects door lock condition of driver door.
Door switch Inputs door open/close condition to BCM.
Key slot Inputs key insert/remove signal to BCM.
Combination meter Receives buzzer signal from BCM via CAN communication line, and sounds the buzzer.
 Transmits vehicle speed signal to CAN communication line.
TCM Transmits shift position signal to BCM via CAN communication line.Item Function

DLK-14
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM
INTELLIGENT KEY SYSTEM
INTELLIGENT KEY SYSTEM
INTELLIGENT KEY SYSTEM : System DiagramINFOID:0000000003794738
INTELLIGENT KEY SYSTEM : System DescriptionINFOID:0000000003794739
 The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/
unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-
tion using two-way communications between the Intelligent Key and the vehicle (BCM).
CAUTION:
The driver should always carry the Intelligent Key
 The settings for each function can be changed with the CONSULT-III.
 If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be
registered.
 It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT-III.

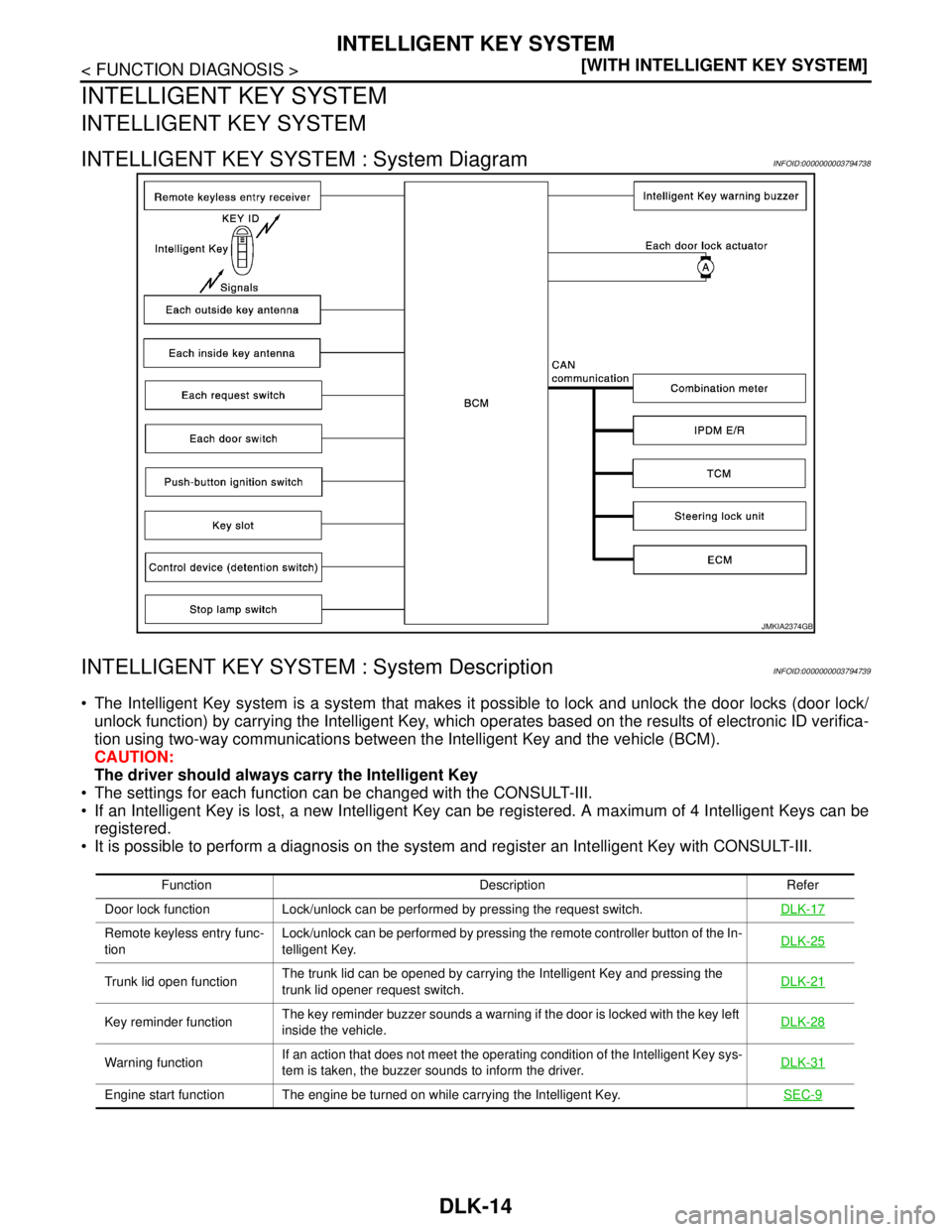

JMKIA2374GB
Function Description Refer
Door lock function Lock/unlock can be performed by pressing the request switch. DLK-17
Remote keyless entry func-
tionLock/unlock can be performed by pressing the remote controller button of the In-
telligent Key. DLK-25
Trunk lid open functionThe trunk lid can be opened by carrying the Intelligent Key and pressing the
trunk lid opener request switch. DLK-21
Key reminder functionThe key reminder buzzer sounds a warning if the door is locked with the key left
inside the vehicle. DLK-28
Warning functionIf an action that does not meet the operating condition of the Intelligent Key sys-
tem is taken, the buzzer sounds to inform the driver.DLK-31
Engine start function The engine be turned on while carrying the Intelligent Key. SEC-9
