REMOTE KEYLESS ENTRY FUNCTION : System DiagramINFOID:0000000003794750
REMOTE KEYLESS ENTRY FUNCTION : System DescriptionINFOID:0000000003794751
The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the
same manner as the remote controller by operating the door lock/unlock button.
OPERATION
Remote keyless entry system controls operation of the following items
 Door lock/unlock
 Trunk lid open
 Hazard and horn reminder
 Auto door lock
OPERATION AREA
To ensure the Intelligent Key works effectively, use within 1 m (3 ft) range of each door, however the operable
range may differ according to surroundings.
DOOR LOCK/UNLOCK FUNCTION
 When door lock/unlock button of the Intelligent Key is pressed, lock signal or unlock signal is transmitted
from Intelligent Key to BCM via remote keyless entry receiver.
 When BCM receives the door lock/unlock signal, it operates door lock actuator, blinks the hazard lamp (lock:
2 time, unlock: 1 times) and inputs horn chirp signal to IPDM E/R at the same time as a reminder.
 IPDM E/R honks horn (lock: 2 time) as a reminder
OPERATION CONDITION
TRUNK LID OPENER FUNCTION
When trunk lid button of Intelligent Key is pressed for more than 1 second, trunk lid open. For a detailed
description, refer to DLK-21, "
TRUNK OPEN FUNCTION : System Description".
HAZARD AND HORN REMINDER FUNCTION
When doors are locked or unlocked by Intelligent Key, BCM blinks hazard warning lamps as a reminder.
The hazard and horn reminder has a horn chirp mode (C mode) and a non-horn chirp mode (S mode).
Operating Function of Hazard and Horn Reminder
JMKIA2480GB
Remote controller operation Operation condition Operation
Lock All doors closed All doors lock
Unlock Intelligent Key is out of key slot All doors unlock

DLK-26
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM
Hazard and horn reminder does not operate if any door switch is ON (any door is OPEN).
How to Change Hazard and Horn Reminder Mode
With CONSULT-III
Refer to SEC-22, "
INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)".
Without CONSULT-III
When LOCK and UNLOCK signals are sent from the Intelligent Key for more than 2 seconds at the same time,
the hazard and horn reminder mode is changed and hazard warning lamp blinks and horn sounds as follows:
AUTO DOOR LOCK FUNCTION
When all doors are locked, ignition switch is OFF (ignition switch is not pressed) and key switch is OFF (Intel-
ligent Key is not inserted in key slot), doors are unlocked with Intelligent Key button. When BCM does not
receive the following signals within 30 seconds, all doors are locked.
 Door switch is ON (door is opened)
 Door is locked
 Ignition switch is ON
 Key switch is ON (Intelligent Key is inserted in key slot)
Auto door lock mode can be changed by “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to SEC-22,
"INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)".
LIST OF OPERATION RELATED PARTS
The operation related parts are marked with ×.
C mode S mode
Intelligent Key operation Lock Unlock Lock Unlock
Hazard warning lamp flash Twice Once Twice —
Horn sound Once — — —
JMKIA2755GB
Remote keyless entry functions
Intelligent Key
Key slot
Door request switch
Door switch
Door lock actuator
CAN communication system
BCM
Combination meter
Hazard warning lamp
Horn
IPDM E/R
Door lock/unlock function by remote control button×× ×× × ×
Hazard and horn reminder function× ××××××
Auto door lock function×× × ×

INTELLIGENT KEY SYSTEM
DLK-27
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
REMOTE KEYLESS ENTRY FUNCTION : Component Parts LocationINFOID:0000000003841722
1. BCM M118, M119, M120, M121,
M122, M1232. TCM F23 3. IPDM E/R E10, E11
4. Intelligent Key warning buzzer E25 5. Remote keyless entry receiver M78 6. Combination meter M34
7. Key slot M99 8. Control device (detention switch)
M579. Inside key antenna (console) M262
JMKIA2375ZZ

DLK-28
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM
REMOTE KEYLESS ENTRY FUNCTION : Component Description
INFOID:0000000003794753
KEY REMINDER FUNCTION
KEY REMINDER FUNCTION : System DescriptionINFOID:0000000003794754
Key reminder is the function that prevents the key from being left in the vehicle.
10. Inside key antenna (instrument cen-
ter) M10511. Inside key antenna (trunk room) B86 12. Outside key antenna (rear bumper)
D85
13. Front outside handle LH (request
switch) D1114. Front outside handle LH
(outside key antenna) D1215. Trunk lid lock assembly
(trunk lid opener actuator) T5
16. Front door switch (driver side) B34
A. Behind the combination meter B. Engine room (LH) C. Behind the instrument lower panel
RH
D. Behind the center console E. Behind the audio unit F. View with rear bumper removed
1. Front door lock assembly (driver
side) D92. Rear door lock assembly LH D85 3. Trunk lid opener request switch T6
A. View with front door finisher removed B. View with rear door finisher removed C. View with trunk lid
JMKIA2376ZZ
Item Function
BCM Controls the door lock function and room lamp function.
Door lock actuator Outputs lock/unlock signal from BCM and locks/unlocks each door.
Remote keyless entry receiver Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM.
Intelligent Key Transmits button operation to remote keyless entry receiver.
JMKIA1996GB

INTELLIGENT KEY SYSTEM
DLK-29
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
Key reminder has the following 3 functions.
*:If the door closing impact shocks the door lock knob or makes contact with baggage comma the door lock knob might activate the door
locks accidentally comma but unlock operation will be perform in these cases.
CAUTION:
• The above function operates when the Intelligent Key is inside the vehicle. However, there may be
times when the Intelligent Key cannot be detected, and this function will not operate when the Intelli-
gent Key is on the instrument panel, or in the glove box. Also, this system sometimes does not oper-
ate if the Intelligent Key is in the door pocket of an open door.
 Key reminder function is operated when the trunk lid is open/closed and the buzzers sound. If the
following operations are performed, the key reminder function is cleared and buzzer sounds are
stopped.
- Remote controller door lock button operation of Intelligent Key
- Remote controller door unlock button operation of Intelligent Key
- When the trunk lid is closed, the Intelligent Key is not inside the vehicle
- When any door is open
Key remainder function Operation condition Operation
Driver door closed*Right after driver side door is closed under the following conditions
 Door lock operation is performed
 Driver side door is opened
 Driver side door is in lock stateAll doors unlock
Door is open or closedRight after all doors are closed under the following conditions
 Intelligent Key is inside the vehicle
 Any door is opened
 All doors are locked by door lock and unlock switch or door lock knob All doors unlock
 Sound Intelligent Key warn-
ing buzzer
Trunk lid is closedRight after trunk lid is closed under the following conditions
 Intelligent Key is inside vehicle
 All doors are closed
 All doors are locked All doors unlock
 Trunk lid can open with trunk
lid opener switch
 Sound Intelligent Key warn-
ing buzzer

DLK-30
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM
KEY REMINDER FUNCTION : Component Parts Location
INFOID:0000000003841723
1. BCM M118, M119, M120, M121,
M122, M1232. TCM F23 3. IPDM E/R E10, E11
4. Intelligent Key warning buzzer E25 5. Remote keyless entry receiver M78 6. Combination meter M34
7. Key slot M99 8. Control device (detention switch)
M579. Inside key antenna (console) M262
JMKIA2375ZZ

INTELLIGENT KEY SYSTEM
DLK-31
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
WARNING FUNCTION
WARNING FUNCTION : System DescriptionINFOID:0000000003794756
OPERATION DESCRIPTION
The warning function are as per the following and are given to the user as warning information and warnings
using combinations of Intelligent Key warning buzzer, KEY warning lamp, key slot illumination and information
display in combination meter.
 Intelligent Key system malfunction
 OFF position warning
 P position warning
 ACC warning
 Take away warning
 Door lock operation warning
 Key warning
 Intelligent Key insert information
 Engine start information
 Steering lock information
 Intelligent key low battery warning
 Key ID warning
OPERATION CONDITION
Once one of the following conditions below is established, alert or warning will be executed.
10. Inside key antenna (instrument cen-
ter) M10511. Inside key antenna (trunk room) B86 12. Outside key antenna (rear bumper)
D85
13. Front outside handle LH (request
switch) D1114. Front outside handle LH
(outside key antenna) D1215. Trunk lid lock assembly
(trunk lid opener actuator) T5
16. Front door switch (driver side) B34
A. Behind the combination meter B. Engine room (LH) C. Behind the instrument lower panel
RH
D. Behind the center console E. Behind the audio unit F. View with rear bumper removed
1. Front door lock assembly (driver
side) D92. Rear door lock assembly LH D85 3. Trunk lid opener request switch T6
A. View with front door finisher removed B. View with rear door finisher removed C. View with trunk lid
JMKIA2376ZZ
Warning/Information functions Operation procedure
Intelligent Key system malfunction When a malfunction is detected in BCM, “KEY” warning lamp will illuminate.

DLK-32
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM
WARNING METHOD
The following table shows the alarm or warning methods with chime.
Information display (combination meter), “KEY” indicator or key slot illumination when the warning conditions
are met.
OFF position warning For internal Ignition switch: ACC position.
 Door switch (driver side): ON (Door is open).
For externalOFF position warning (for internal) is in active mode, driver side door is closed.
NOTE:
OFF position (for external) active only when each of the sequence has oc-
curred as per the following: P position warning → ACC warning → OFF posi-
tion warning (for internal) → OFF position warning (for internal)
P position warning Shift position: Any position except the P position.
 Engine is running to stopped (ignition switch is ON to OFF).
ACC warning When P position warning is in active mode, shift position changes from the
P position.
 Ignition switch: ACC position.
Ta k e a w a y w a r n i n gDoor is open to close Ignition switch: Any position except the LOCK position.
 Door switch: ON to OFF (door is open to close).
 Intelligent Key can not be detected inside the vehicle.
Door is open Door switch: ON (door is open).
 Key ID verification every 5 seconds when registered Intelligent Key can not
be detected inside the vehicle.
Push button-ignition
switch operation Ignition switch: Any position except the LOCK position.
 Press push-button ignition switch.
 Intelligent Key can not be detected inside the vehicle.
Intelligent Key is removed
from key slotWhen Intelligent Key is removed from key slot, Intelligent Key can not be de-
tected inside the vehicle.
Door lock operation warn-
ingRequest switch operationWhen request switch is pushed (lock operation) under the following conditions.
 All doors are closed.
 All doors are unlocked.
 Intelligent Key is inside vehicle.
Intelligent Key button op-
erationWhen Intelligent Key button is pushed (lock operation) under the following con-
ditions.
 Door switch: ON (any door is open).
 For 3 seconds after Intelligent Key is removed from key slot.
Key warning Ignition switch is in the OFF position.
 Driver side door switch: ON (driver side door is open).
 Intelligent Key is inserted in key slot.
Intelligent Key insert information Door switch: ON to OFF (door is open to close).
 Ignition switch: OFF to ON position.
 Intelligent Key is out of key slot.
 Intelligent Key can not be detected inside the vehicle.
Engine start informationIgnition switch is in the
ON position Ignition switch: ON position.
 Shift position: P position.
 Engine is stopped.
Ignition switch is in any
position except the ON
position Ignition switch: Any position except the ON position.
 Shift position: P position.
 Intelligent Key is inserted in key slot or Intelligent Key can be detected inside
the vehicle.
Steering lock information When steering lock can not be released after ignition switch is turned ON.
Intelligent Key low battery warningWhen Intelligent Key is battery low, BCM is detected after ignition switch is
turned ON.
Key ID warningWhen registered Intelligent Key can not be detected inside the vehicle after ig-
nition switch is turned ON. Warning/Information functions Operation procedure

INTELLIGENT KEY SYSTEM
DLK-33
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P

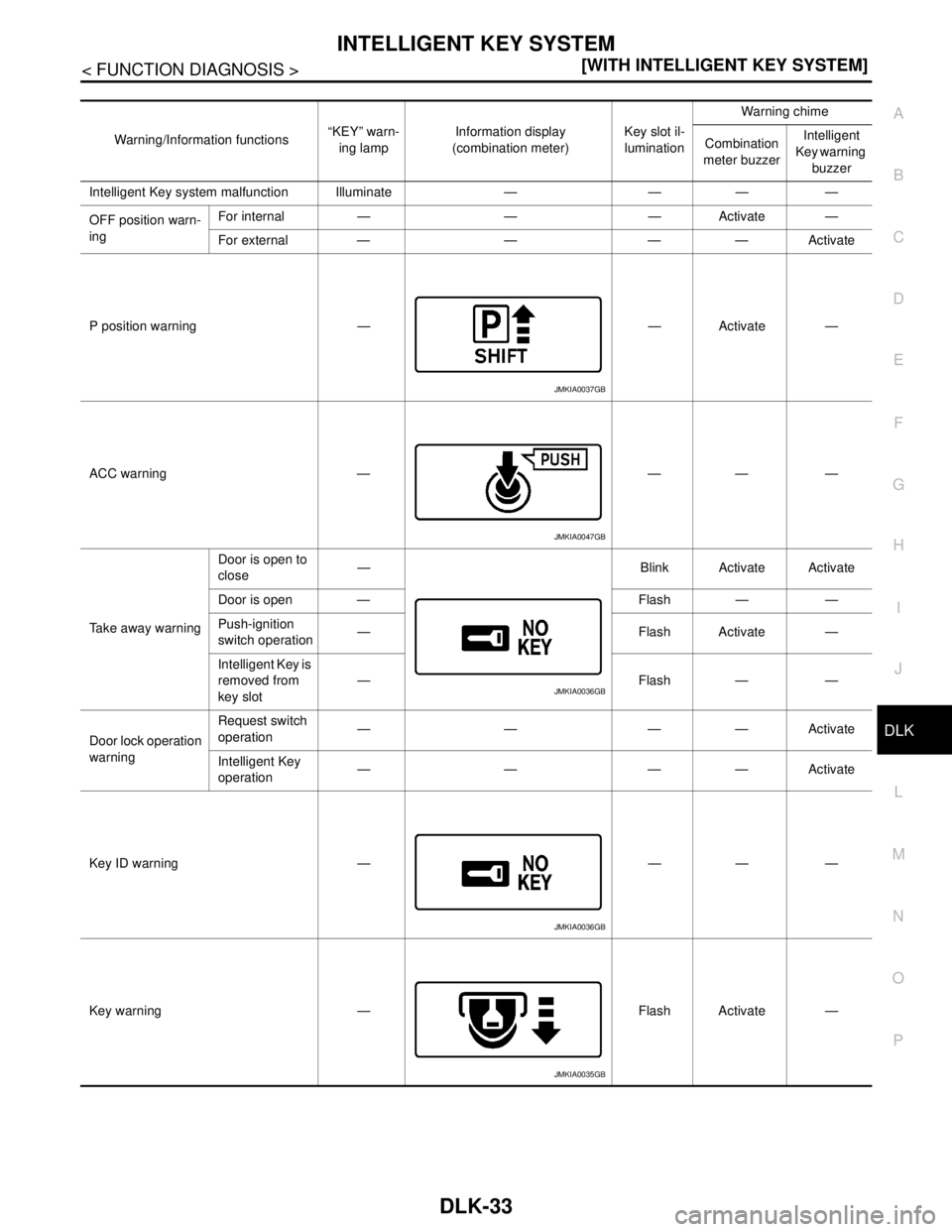

Warning/Information functions“KEY” warn-
ing lampInformation display
(combination meter)Key slot il-
luminationWarning chime
Combination
meter buzzerIntelligent
Key warning
buzzer
Intelligent Key system malfunction Illuminate — — — —
OFF position warn-
ing For internal — — — Activate —
For external — — — — Activate
P position warning — — Activate —
ACC warning — — — —
Ta k e a w a y w a r n i n gDoor is open to
close— Blink Activate Activate
Door is open — Flash — —
Push-ignition
switch operation—FlashActivate—
Intelligent Key is
removed from
key slot—Flash——
Door lock operation
warningRequest switch
operation————Activate
Intelligent Key
operation————Activate
Key ID warning — — — —
Key warning — Flash Activate —
JMKIA0037GB
JMKIA0047GB
JMKIA0036GB
JMKIA0036GB
JMKIA0035GB

DLK-34
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM
LIST OF OPERATION RELATED PARTS
Parts marked with × are the parts related to operation.

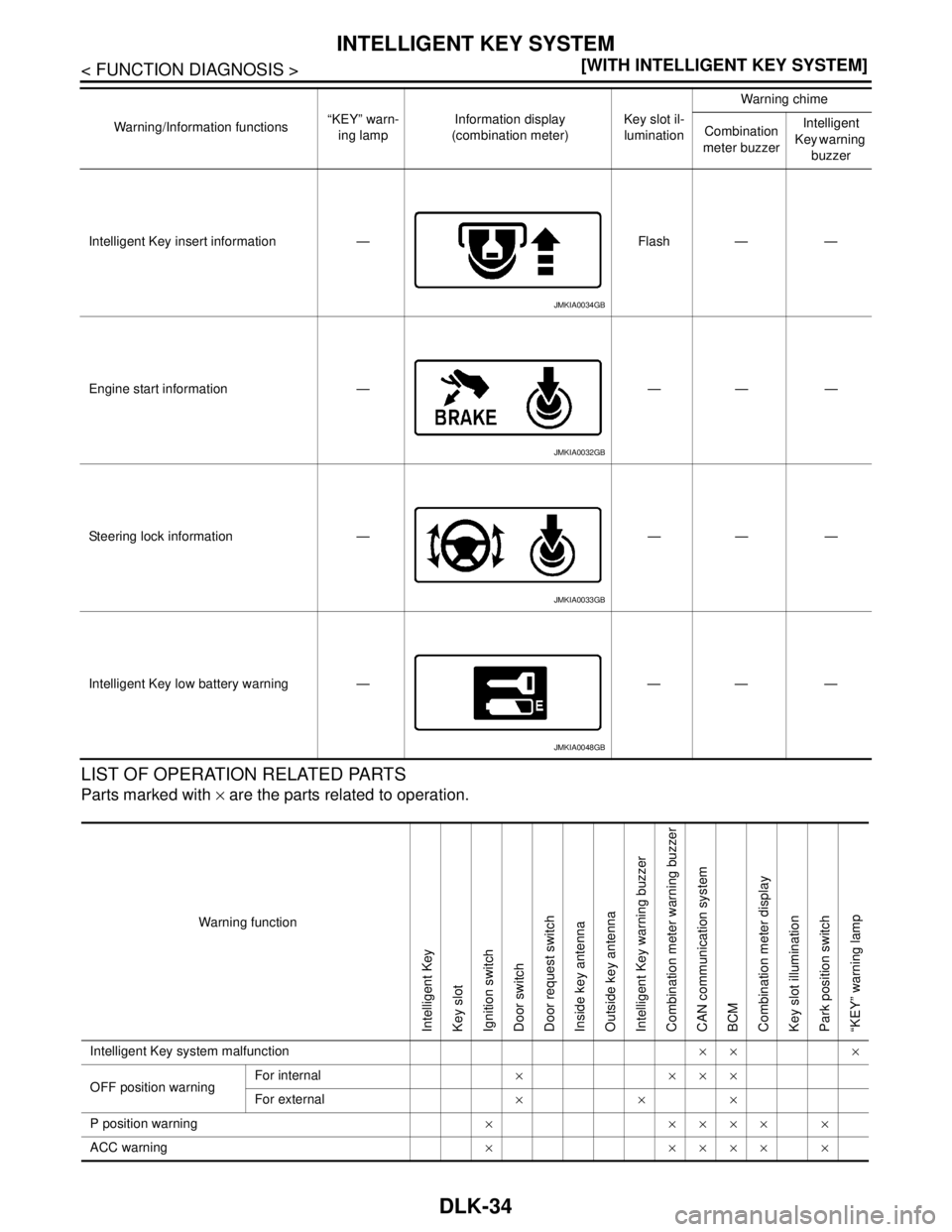

Intelligent Key insert information — Flash — —
Engine start information — — — —
Steering lock information — — — —
Intelligent Key low battery warning — — — —Warning/Information functions“KEY” warn-
ing lampInformation display
(combination meter)Key slot il-
luminationWarning chime
Combination
meter buzzerIntelligent
Key warning
buzzer
JMKIA0034GB
JMKIA0032GB
JMKIA0033GB
JMKIA0048GB
Warning function
Intelligent Key
Key slot
Ignition switch
Door switch
Door request switch
Inside key antenna
Outside key antenna
Intelligent Key warning buzzer
Combination meter warning buzzer
CAN communication system
BCM
Combination meter display
Key slot illumination
Park position switch
“KEY” warning lamp
Intelligent Key system malfunction×× ×
OFF position warningFor internal× ×××
For external×××
P position warning× ×××× ×
ACC warning× ×××× ×
