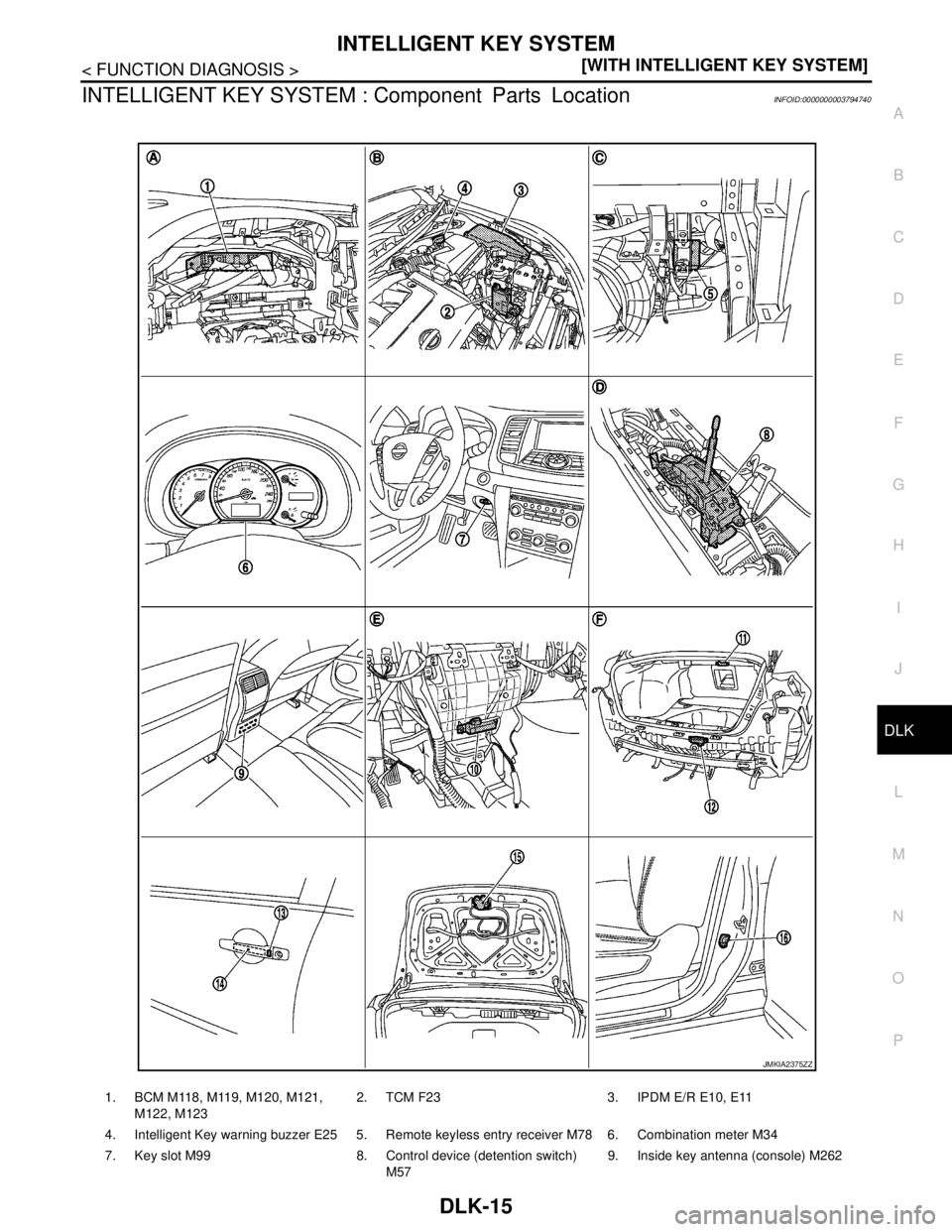

INTELLIGENT KEY SYSTEM : Component Parts LocationINFOID:0000000003794740
1. BCM M118, M119, M120, M121,
M122, M1232. TCM F23 3. IPDM E/R E10, E11
4. Intelligent Key warning buzzer E25 5. Remote keyless entry receiver M78 6. Combination meter M34
7. Key slot M99 8. Control device (detention switch)
M579. Inside key antenna (console) M262
JMKIA2375ZZ

DLK-16
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM

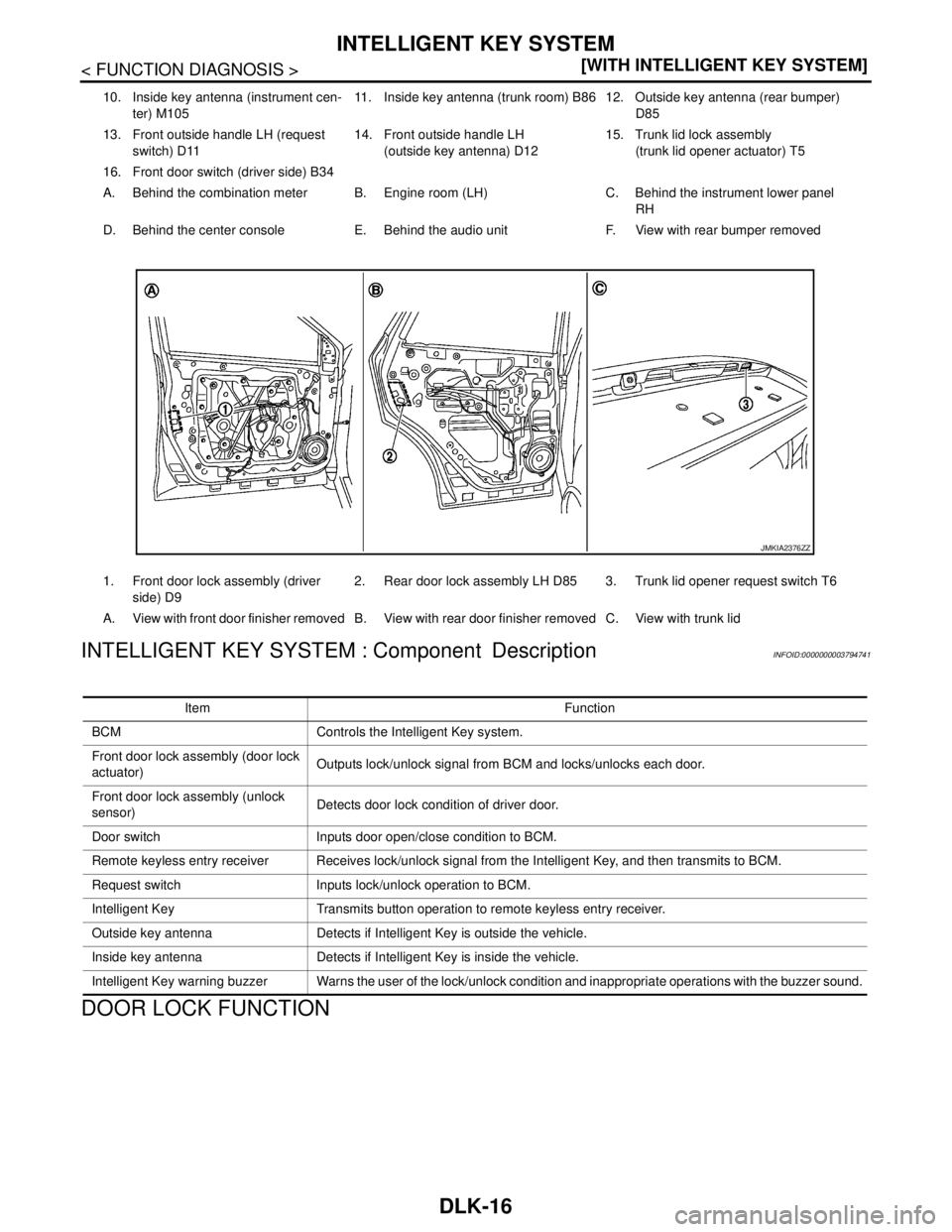

INTELLIGENT KEY SYSTEM : Component Description
INFOID:0000000003794741
DOOR LOCK FUNCTION
10. Inside key antenna (instrument cen-
ter) M10511. Inside key antenna (trunk room) B86 12. Outside key antenna (rear bumper)
D85
13. Front outside handle LH (request
switch) D1114. Front outside handle LH
(outside key antenna) D1215. Trunk lid lock assembly
(trunk lid opener actuator) T5
16. Front door switch (driver side) B34
A. Behind the combination meter B. Engine room (LH) C. Behind the instrument lower panel
RH
D. Behind the center console E. Behind the audio unit F. View with rear bumper removed
1. Front door lock assembly (driver
side) D92. Rear door lock assembly LH D85 3. Trunk lid opener request switch T6
A. View with front door finisher removed B. View with rear door finisher removed C. View with trunk lid
JMKIA2376ZZ
Item Function
BCM Controls the Intelligent Key system.
Front door lock assembly (door lock
actuator)Outputs lock/unlock signal from BCM and locks/unlocks each door.
Front door lock assembly (unlock
sensor)Detects door lock condition of driver door.
Door switch Inputs door open/close condition to BCM.
Remote keyless entry receiver Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM.
Request switch Inputs lock/unlock operation to BCM.
Intelligent Key Transmits button operation to remote keyless entry receiver.
Outside key antenna Detects if Intelligent Key is outside the vehicle.
Inside key antenna Detects if Intelligent Key is inside the vehicle.
Intelligent Key warning buzzer Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound.

INTELLIGENT KEY SYSTEM
DLK-17
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P

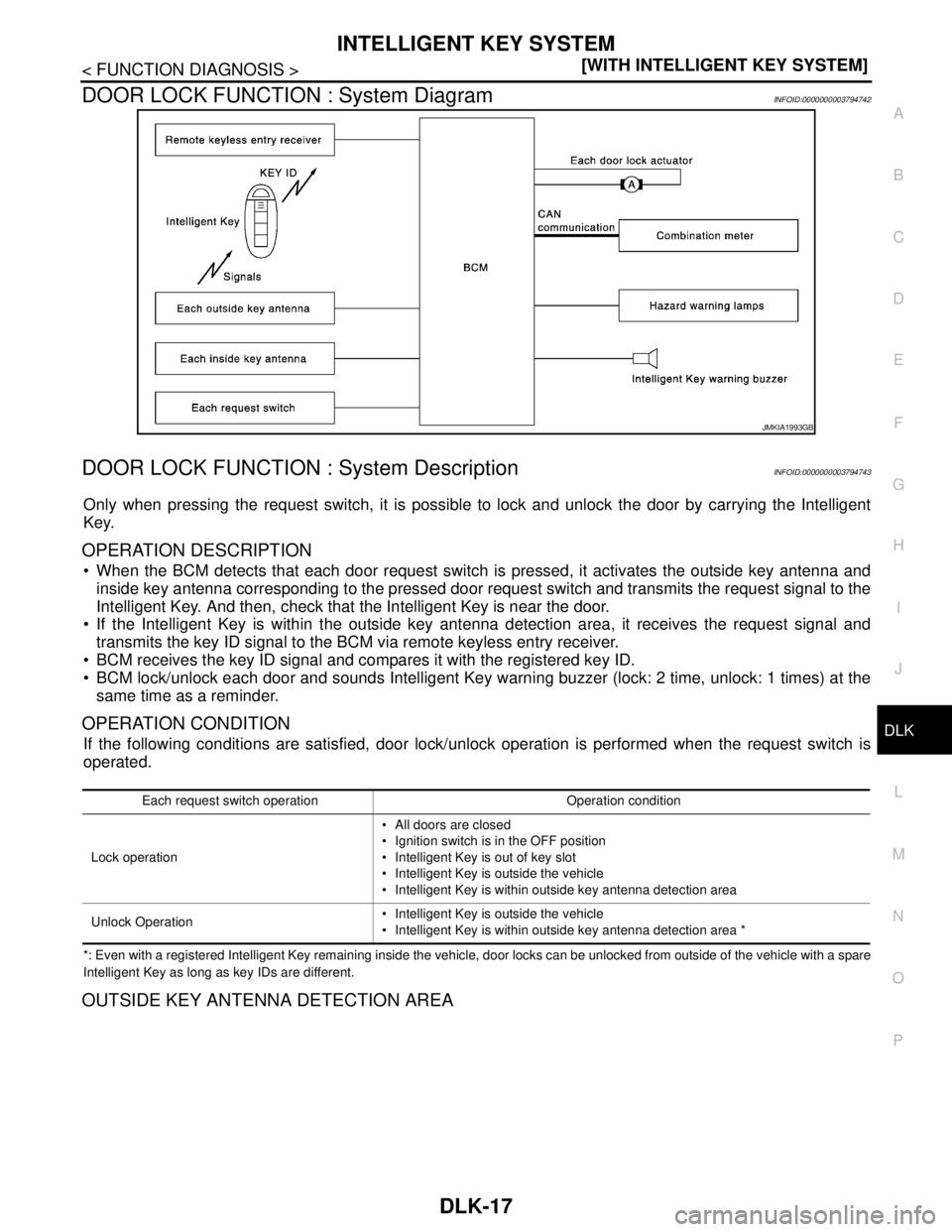

DOOR LOCK FUNCTION : System DiagramINFOID:0000000003794742
DOOR LOCK FUNCTION : System DescriptionINFOID:0000000003794743
Only when pressing the request switch, it is possible to lock and unlock the door by carrying the Intelligent
Key.
OPERATION DESCRIPTION
 When the BCM detects that each door request switch is pressed, it activates the outside key antenna and
inside key antenna corresponding to the pressed door request switch and transmits the request signal to the
Intelligent Key. And then, check that the Intelligent Key is near the door.
 If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and
transmits the key ID signal to the BCM via remote keyless entry receiver.
 BCM receives the key ID signal and compares it with the registered key ID.
 BCM lock/unlock each door and sounds Intelligent Key warning buzzer (lock: 2 time, unlock: 1 times) at the
same time as a reminder.
OPERATION CONDITION
If the following conditions are satisfied, door lock/unlock operation is performed when the request switch is
operated.
*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.
OUTSIDE KEY ANTENNA DETECTION AREA
JMKIA1993GB
Each request switch operation Operation condition
Lock operation All doors are closed
 Ignition switch is in the OFF position
 Intelligent Key is out of key slot
 Intelligent Key is outside the vehicle
 Intelligent Key is within outside key antenna detection area
Unlock Operation Intelligent Key is outside the vehicle
 Intelligent Key is within outside key antenna detection area *

DLK-18
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM
The outside key antenna detection area of door lock/unlock function
is in the range of approximately 80 cm (31.50 in) surrounding the
driver and passenger door handles and (1) and trunk lid opener
request switch (2). However, this operating range depends on the
ambient conditions.
HAZARD AND BUZZER REMINDER FUNCTION
During lock, unlock, operation by each request switch, the hazard warning lamps and Intelligent Key warning
buzzer will blink or honk as a reminder.
When doors are locked, unlocked by each request switch, BCM honks Intelligent Key warning buzzer as a
reminder and blinks.
Operating Function of Hazard and Buzzer Reminder
How to Change Hazard and Buzzer Reminder Mode
Refer to SEC-22, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)".
AUTO DOOR LOCK FUNCTION
When all doors are locked, ignition switch is in OFF position and key switch is OFF (Intelligent Key is not
inserted in key slot). Doors are unlocked with door request switch.
When BCM does not receive the following signals within 60 seconds, all doors are locked.
 Door switch is ON (door is opened)
 Door is locked
 Ignition switch is ON (ignition switch is pressed)
 Key switch is ON (Intelligent Key is inserted in key slot)
Auto door lock mode can be changed by “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to SEC-22,
"INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)".
LIST OF OPERATION RELATED PARTS
The operation related parts are marked with ×.
JMKIA2511ZZ
Operation Hazard warning lamp flash Intelligent Key warning buzzer honk
Unlock Once Once
Lock Twice Twice
Door lock function
Intelligent Key
Key slot
Remote keyless entry receiver
Door switch
Door request switch
Door lock actuator
Inside key antenna
Outside key antenna
Intelligent Key warning buzzer
CAN communication system
BCM
Hazard warning lamp
Push-button ignition switch
Combination meter
Door lock/unlock function by request switch×××××××× ×
Hazard and buzzer reminder function for door lock/un-
lock operation×××× ×
Key reminder function××××××××× ××
Auto door lock function×× ××× × ×

INTELLIGENT KEY SYSTEM
DLK-19
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
DOOR LOCK FUNCTION : Component Parts LocationINFOID:0000000003841720
1. BCM M118, M119, M120, M121,
M122, M1232. TCM F23 3. IPDM E/R E10, E11
4. Intelligent Key warning buzzer E25 5. Remote keyless entry receiver M78 6. Combination meter M34
7. Key slot M99 8. Control device (detention switch)
M579. Inside key antenna (console) M262
JMKIA2375ZZ

DLK-20
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM
DOOR LOCK FUNCTION : Component Description
INFOID:0000000003794745
TRUNK OPEN FUNCTION
10. Inside key antenna (instrument cen-
ter) M10511. Inside key antenna (trunk room) B86 12. Outside key antenna (rear bumper)
D85
13. Front outside handle LH (request
switch) D1114. Front outside handle LH
(outside key antenna) D1215. Trunk lid lock assembly
(trunk lid opener actuator) T5
16. Front door switch (driver side) B34
A. Behind the combination meter B. Engine room (LH) C. Behind the instrument lower panel
RH
D. Behind the center console E. Behind the audio unit F. View with rear bumper removed
1. Front door lock assembly (driver
side) D92. Rear door lock assembly LH D85 3. Trunk lid opener request switch T6
A. View with front door finisher removed B. View with rear door finisher removed C. View with trunk lid
JMKIA2376ZZ
Item Function
BCM Controls the door lock function.
Front door lock assembly (door lock
actuator)Output lock/unlock signal from BCM and locks/unlocks each door.
Front door lock assembly (unlock
sensor)Detects door lock condition of driver door.
Door switch Input door open/close condition to BCM.
Remote keyless entry receiver Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM.
Request switch Input lock/unlock operation to BCM.
Intelligent Key Transmits button operation to remote keyless entry receiver.
Outside key antenna Detects if Intelligent Key is outside the vehicle.
Inside key antenna Detects if Intelligent Key is inside the vehicle.
Combination meter Receives hazard warning lamp signal from BCM and blinks turn signal indicators.
Intelligent Key warning buzzer Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound.

INTELLIGENT KEY SYSTEM
DLK-21
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P

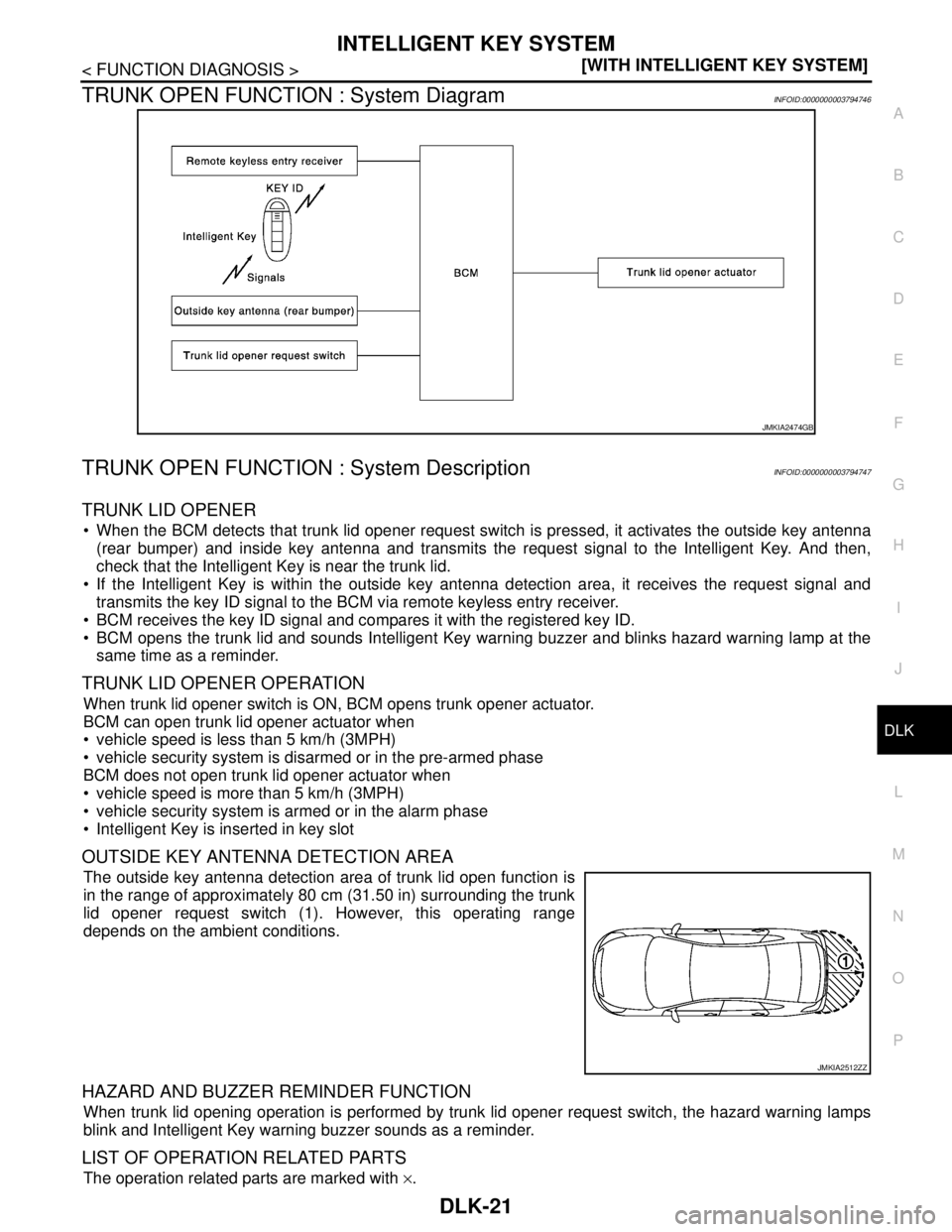

TRUNK OPEN FUNCTION : System DiagramINFOID:0000000003794746
TRUNK OPEN FUNCTION : System DescriptionINFOID:0000000003794747
TRUNK LID OPENER
 When the BCM detects that trunk lid opener request switch is pressed, it activates the outside key antenna
(rear bumper) and inside key antenna and transmits the request signal to the Intelligent Key. And then,
check that the Intelligent Key is near the trunk lid.
 If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and
transmits the key ID signal to the BCM via remote keyless entry receiver.
 BCM receives the key ID signal and compares it with the registered key ID.
 BCM opens the trunk lid and sounds Intelligent Key warning buzzer and blinks hazard warning lamp at the
same time as a reminder.
TRUNK LID OPENER OPERATION
When trunk lid opener switch is ON, BCM opens trunk opener actuator.
BCM can open trunk lid opener actuator when
 vehicle speed is less than 5 km/h (3MPH)
 vehicle security system is disarmed or in the pre-armed phase
BCM does not open trunk lid opener actuator when
 vehicle speed is more than 5 km/h (3MPH)
 vehicle security system is armed or in the alarm phase
 Intelligent Key is inserted in key slot
OUTSIDE KEY ANTENNA DETECTION AREA
The outside key antenna detection area of trunk lid open function is
in the range of approximately 80 cm (31.50 in) surrounding the trunk
lid opener request switch (1). However, this operating range
depends on the ambient conditions.
HAZARD AND BUZZER REMINDER FUNCTION
When trunk lid opening operation is performed by trunk lid opener request switch, the hazard warning lamps
blink and Intelligent Key warning buzzer sounds as a reminder.
LIST OF OPERATION RELATED PARTS
The operation related parts are marked with ×.
JMKIA2474GB
JMKIA2512ZZ

DLK-22
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM
Door lock function
Intelligent Key
Key slot
Remote keyless entry receiver
Door switch
Door request switch
Door lock actuator
Inside key antenna
Outside key antenna (Rear bumper)
Intelligent Key warning buzzer
CAN communication system
BCM
Hazard warning lamp
Trunk lid opener request switch
Trunk lid opener function by trunk lid opener switch
(Carrying Intelligent Key)×××××××× ×× ×
Hazard and buzzer reminder function for door lock/unlock
operation××××

INTELLIGENT KEY SYSTEM
DLK-23
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
TRUNK OPEN FUNCTION : Component Parts LocationINFOID:0000000003841721
1. BCM M118, M119, M120, M121,
M122, M1232. TCM F23 3. IPDM E/R E10, E11
4. Intelligent Key warning buzzer E25 5. Remote keyless entry receiver M78 6. Combination meter M34
7. Key slot M99 8. Control device (detention switch)
M579. Inside key antenna (console) M262
JMKIA2375ZZ

DLK-24
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM
TRUNK OPEN FUNCTION : Component Description
INFOID:0000000003794749
REMOTE KEYLESS ENTRY FUNCTION
10. Inside key antenna (instrument cen-
ter) M10511. Inside key antenna (trunk room) B86 12. Outside key antenna (rear bumper)
D85
13. Front outside handle LH (request
switch) D1114. Front outside handle LH
(outside key antenna) D1215. Trunk lid lock assembly
(trunk lid opener actuator) T5
16. Front door switch (driver side) B34
A. Behind the combination meter B. Engine room (LH) C. Behind the instrument lower panel
RH
D. Behind the center console E. Behind the audio unit F. View with rear bumper removed
1. Front door lock assembly (driver
side) D92. Rear door lock assembly LH D85 3. Trunk lid opener request switch T6
A. View with front door finisher removed B. View with rear door finisher removed C. View with trunk lid
JMKIA2376ZZ
Item Function
BCM Controls the trunk lid opener function and room lamp function.
Trunk lid opener switch Inputs press/degrees signal to BCM.
Door lock actuator Receives lock/unlock signal from BCM and locks/unlocks each door.
Door switch Inputs door open/close condition to BCM.
Remote keyless entry receiver Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM.
Trunk lid opener request switch Inputs lock/unlock operation to BCM.
Intelligent Key Transmits button operation to remote keyless entry receiver.
Outside key antenna (rear bumper) Detects if Intelligent Key is outside the vehicle.
Inside key antenna Detects if Intelligent Key is inside the vehicle.
Intelligent Key warning buzzerWarns the user of the trunk lid opener/close condition and inappropriate operations with the
buzzer sound.
