SQUEAK AND RATTLE TROUBLE DIAGNOSES
DLK-185
< SYMPTOM DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
SEATS
When isolating seat noise it is important to note the position the seat is in and the load placed on the seat
when the noise occurs. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. Rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.

DLK-186
< SYMPTOM DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
SQUEAK AND RATTLE TROUBLE DIAGNOSES

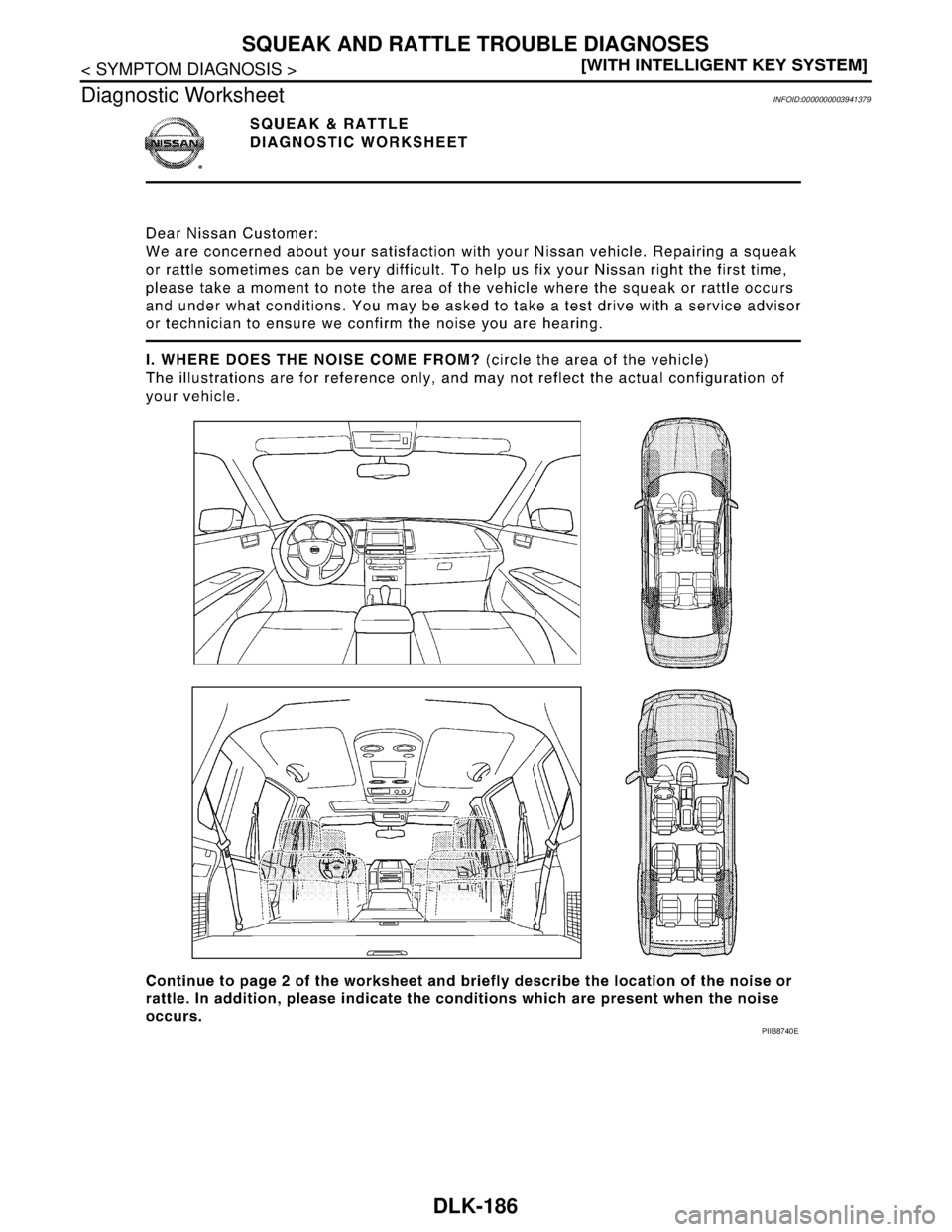

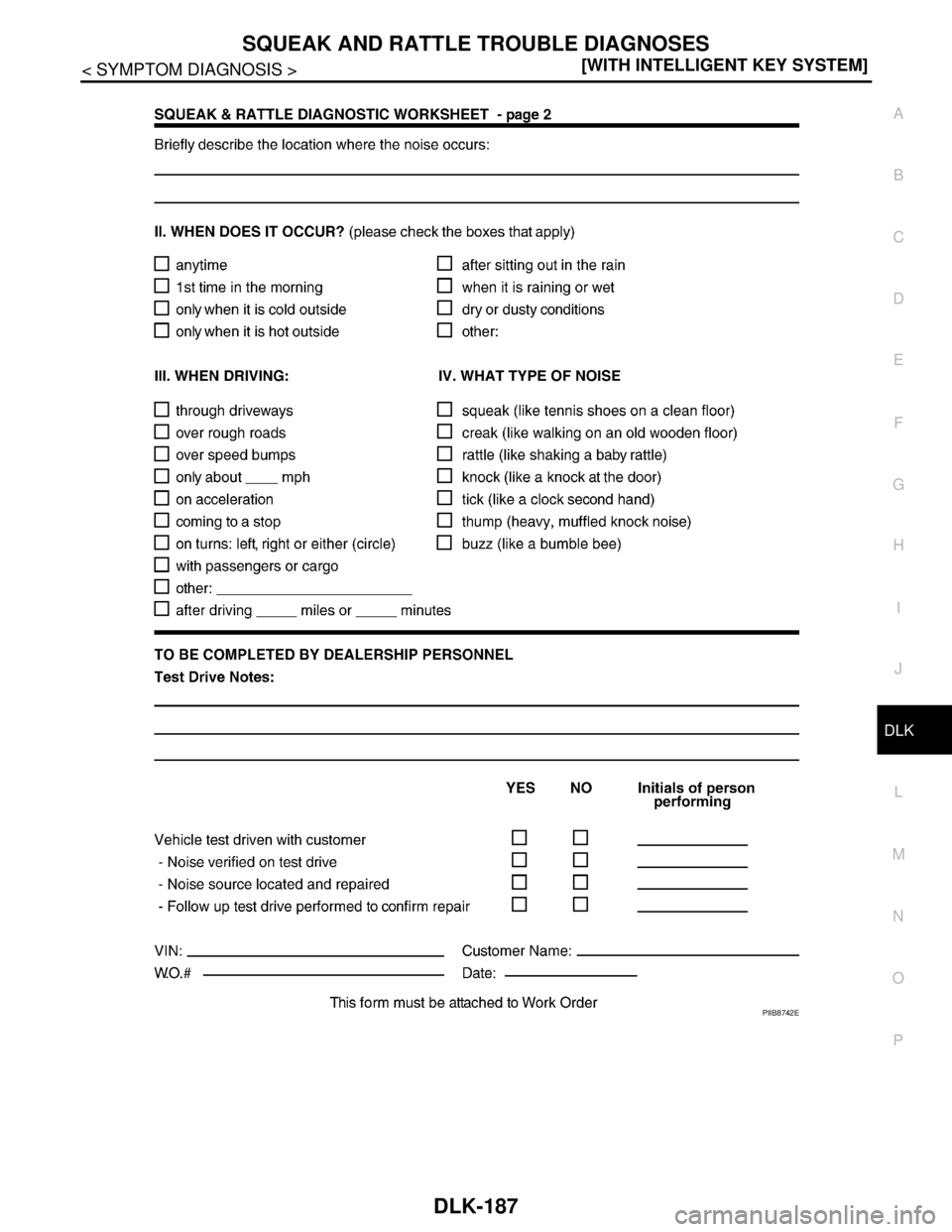

Diagnostic Worksheet
INFOID:0000000003941379
PIIB8740E

SQUEAK AND RATTLE TROUBLE DIAGNOSES
DLK-187
< SYMPTOM DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
PIIB8742E

DLK-188
< PRECAUTION >[WITH INTELLIGENT KEY SYSTEM]
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000003941991
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIRBAG” and
“SEAT BELT” of this Service Manual.
WARNING:
 To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
 Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.
 Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-
vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.
Precaution for Procedure without Cowl Top CoverINFOID:0000000003795058
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
Precaution Necessary for Steering Wheel Rotation after Battery Disconnect
INFOID:0000000003845516
NOTE:
 Before removing and installing any control units, first turn the push-button ignition switch to the LOCK posi-
tion, then disconnect both battery cables.
 After finishing work, confirm that all control unit connectors are connected properly, then re-connect both
battery cables.
 Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.
If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.
This vehicle is equipped with a push-button ignition switch and a steering lock unit.
If the battery is disconnected or discharged, the steering wheel will lock and cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the procedure
below before starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Turn the push-button ignition switch to ACC position.
(At this time, the steering lock will be released.)
3. Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.
4. Perform the necessary repair operation.
PIIB3706J

PRECAUTIONS
DLK-189
< PRECAUTION >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
5. When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the push-button ignition switch from ACC position to ON position, then to LOCK position. (The steering
wheel will lock when the push-button ignition switch is turned to LOCK position.)
6. Perform self-diagnosis check of all control units using CONSULT-III.
WorkINFOID:0000000003795060
 After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check their
operational.
 Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.

DLK-190
< PREPARATION >[WITH INTELLIGENT KEY SYSTEM]
PREPARATION
PREPARATION
PREPARATION
Commercial Service ToolsINFOID:0000000003795062
Tool name Description
Engine ear Locating the noise
Remover tool Removes the clips, pawls, and metal clips
Power tool
SIIA0995E
PIIB7923J
PIIB1407E

HOOD
DLK-191
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
ON-VEHICLE REPAIR
HOOD
HOOD ASSEMBLY
HOOD ASSEMBLY : Exploded ViewINFOID:0000000003813383
REMOVAL
ADJUSTMENT

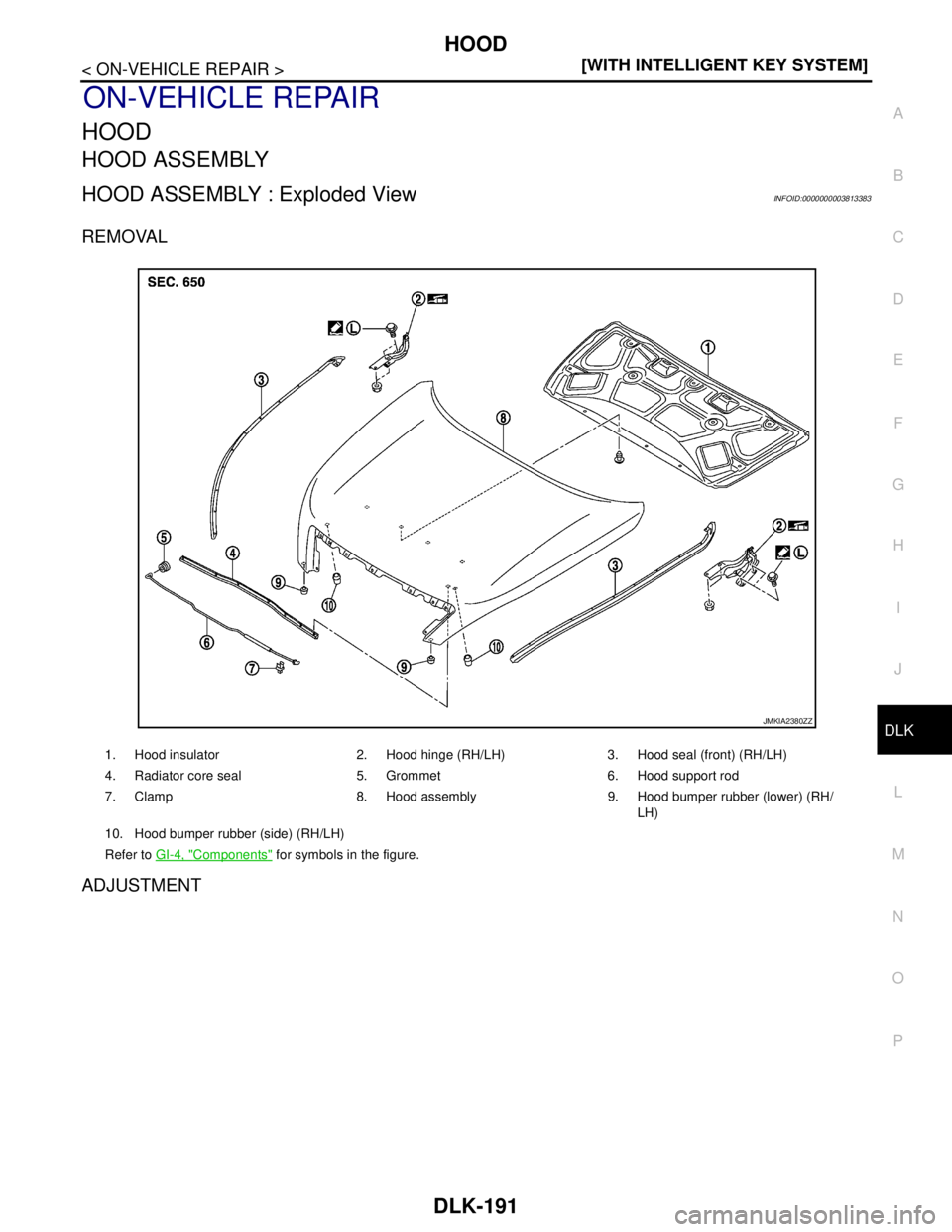

1. Hood insulator 2. Hood hinge (RH/LH) 3. Hood seal (front) (RH/LH)
4. Radiator core seal 5. Grommet 6. Hood support rod
7. Clamp 8. Hood assembly 9. Hood bumper rubber (lower) (RH/
LH)
10. Hood bumper rubber (side) (RH/LH)
Refer to GI-4, "
Components" for symbols in the figure.
JMKIA2380ZZ

DLK-192
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
HOOD
HOOD ASSEMBLY : Removal and Installation
INFOID:0000000003813384
CAUTION:
Operate with two workers, because of its heavy weight.
REMOVAL
1. Remove hood insulator.
2. Remove washer nozzle and washer tube. Refer to WW-102, "
Removal and Installation".
3. Support hood assembly with a proper material to prevent it from falling.
WARNING:
Bodily injury may occur if no supporting rod is holding the hood open when removing the hood
stay.
4. Remove hood hinge mounting nuts on the hood to remove the hood assembly.
5. Remove the following parts after removing the hood assembly.
 Radiator core seal
 Hood bumper rubber (lower, side)
 Hood seal (front)
1. Hood assembly 2. Hood bumper rubber 3. Hood lock assembly
4. Hood hinge 5. Front bumper fascia 6. Front combination lamp
7. Front fender
Refer to GI-4, "
Components" for symbols in the figure.
JMKIA2391GB

HOOD
DLK-193
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
 Front grille: Refer to EXT-18, "Removal and Installation".
INSTALLATION
Install in the reverse order of removal.
CAUTION:
 After installing, perform hood fitting adjustment. Refer to DLK-193, "
HOOD ASSEMBLY : Adjust-
ment".
 After installing, perform front washer nozzle and tube inspection and adjustment. Refer to WW-102,
"Inspection and Adjustment".
HOOD ASSEMBLY : AdjustmentINFOID:0000000003813385
Check the clearance and the surface height between hood and each part visually and by touching. (Fitting
standard dimension in the table below should be satisfied.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.
Unit: mm (in)
1. Remove hood lock and adjust the height by rotating hood bumper rubber (side, lower) until hood becomes
1 to1.5 mm (0.039 to 0.059 in) lower than fender.
2. Temporarily tighten hood lock assembly, and position by engaging it with hood striker. Check hood lock
and striker for looseness and adjust the clearance and evenness with striker to satisfy the specification.
3. Adjust A and B shown in the figure to the following value with hood's own weight by dropping it from
approximately 200 mm (7.874 in) height or by pressing hood lightly [approximately 29 N (3.0 kg, 6.5 lb)].
4. After adjustment, tighten lock bolts to the specified torque.
HOOD HINGE
Portion StandardDifference
(RH/LH, MAX)
Hood – Front bumper
fasciaA – A D Clearance3.7 – 8.3
(0.146 – 0.315)2.0
(0.079)
Hood – Front combina-
tion lampB – B E Clearance2.4 – 6.8
(0.094 – 0.268)2.5
(0.098)
Hood – Front fender C – CF Clearance3.1 – 6.1
(0.122 – 0.240)2.0
(0.079)
G Surface height−1.5 – 1.5
(−0.059 – 0.059)—
1. Hood striker 2. Primary latch 3. Secondary striker
4. Secondary latch
A : 20.0 mm (0.787 in)
B : 6.8 mm (0.268 in)
JMKIA2399ZZ

DLK-194
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
HOOD
HOOD HINGE : Exploded View
INFOID:0000000003819555
HOOD HINGE : Removal and InstallationINFOID:0000000003813387
REMOVAL
1. Remove hood assembly. Refer to DLK-192, "HOOD ASSEMBLY : Removal and Installation".
2. Remove front fender. Refer to DLK-199, "
Removal and Installation".
3. Remove hood hinge mounting bolts, and then remove hood hinge.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
 After installation, apply touch-up paint (the body color) onto the head of the hinge mounting bolts
and nuts.
 After installation, perform hood fitting adjustment. Refer to DLK-193, "
HOOD ASSEMBLY : Adjust-
ment".
HOOD SUPPORT ROD
1. Hood insulator 2. Hood hinge (RH/LH) 3. Hood seal (front) (RH/LH)
4. Radiator core seal 5. Grommet 6. Hood support rod
7. Clamp 8. Hood assembly 9. Hood bumper rubber (lower) (RH/
LH)
10. Hood bumper rubber (side) (RH/LH)
Refer to GI-4, "
Components" for symbols in the figure.
JMKIA2380ZZ
