HOOD
DLK-195
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
HOOD SUPPORT ROD : Exploded ViewINFOID:0000000003819556
HOOD SUPPORT ROD : Removal and InstallationINFOID:0000000003813389
REMOVAL
1. Support hood assembly with a proper material to prevent it from falling.
WARNING:
Bodily injury may occur if no supporting rod is holding the hood open when removing the hood
support rod.
2. Pull hood support rod from grommet and remove.
INSTALLATION
Install in the reverse order of removal.

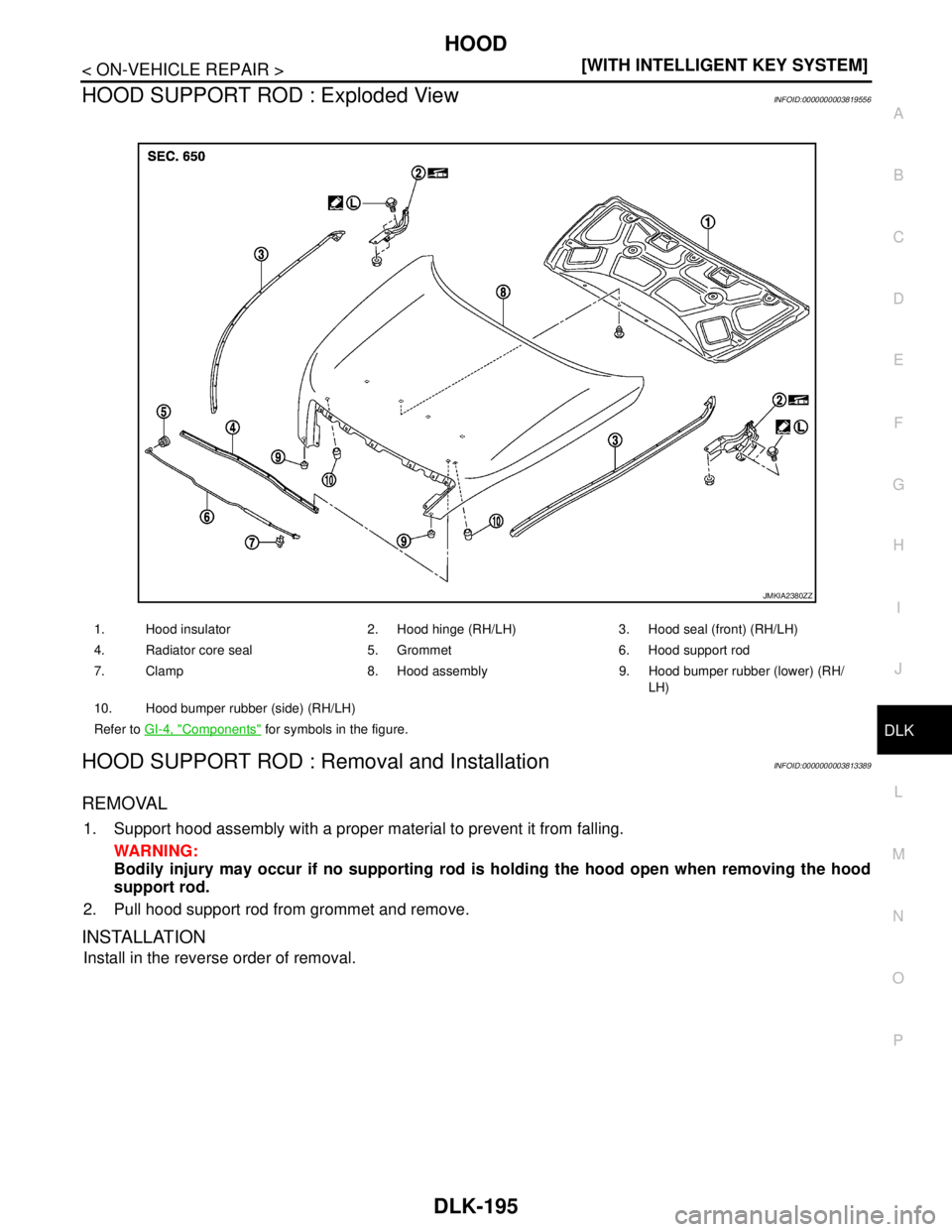

1. Hood insulator 2. Hood hinge (RH/LH) 3. Hood seal (front) (RH/LH)
4. Radiator core seal 5. Grommet 6. Hood support rod
7. Clamp 8. Hood assembly 9. Hood bumper rubber (lower) (RH/
LH)
10. Hood bumper rubber (side) (RH/LH)
Refer to GI-4, "
Components" for symbols in the figure.
JMKIA2380ZZ

DLK-196
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
RADIATOR CORE SUPPORT
RADIATOR CORE SUPPORT
Exploded ViewINFOID:0000000003795070
Removal and InstallationINFOID:0000000003795071
REMOVAL
1. Use refrigerant collecting equipment to discharge the refrigerant. Refer to HA-24, "Collection and
Charge".
2. Remove front under cover. Refer to EXT-28, "
Removal and Installation".
3. Drain engine coolant from radiator. Refer to CO-8, "
Draining".
4. Remove front bumper fascia, energy absorber and bumper reinforcement. Refer to EXT-12, "
Removal
and Installation".
5. Remove mounting clips and remove air duct cover.
6. Remove hood lock opener and hood lock. Refer to DLK-220, "
Removal and Installation".
7. Disconnect connector of horn (HIGH/LOW), and then remove horn (HIGH/LOW). Refer to HRN-6,
"Removal and Installation".
8. Disconnect connector of gas sensor, and then remove gas sensor (with intelligent air conditioner system).
Refer to VTL-82, "
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Removal and Installation".
9. Remove bumper retainer assembly. Refer to EXT-12, "
Removal and Installation".
10. Remove air guide (RH/LH).
11. Remove front combination lamp (RH/LH). Refer to EXL-181, "
Removal and Installation" (XENON TYPE)
or EXL-343, "
Removal and Installation" (HALOGEN TYPE).
12. Disconnect connector of ambient sensor. Refer to VTL-24, "
Removal and Installation" (WITHOUT 7 INCH
DISPLAY) or VTL-81, "
Removal and Installation" (WITH 7 INCH DISPLAY).

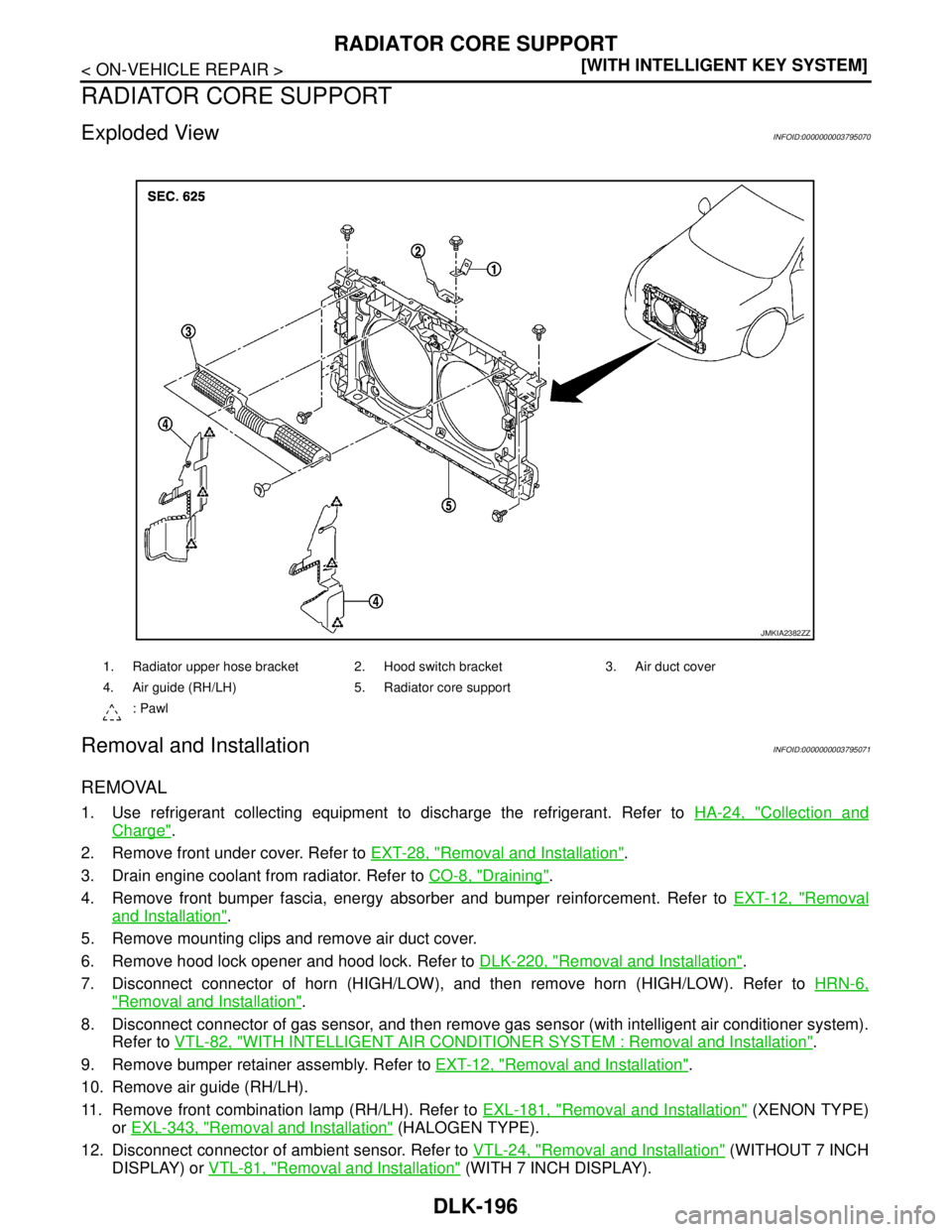

1. Radiator upper hose bracket 2. Hood switch bracket 3. Air duct cover
4. Air guide (RH/LH) 5. Radiator core support
: Pawl
JMKIA2382ZZ

RADIATOR CORE SUPPORT
DLK-197
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
13. Disconnect connector of refrigerant pressure sensor. Refer to HA-50, "Exploded View".
14. Remove mounting bolt, and then remove engine coolant reservoir tank. Refer to CO-13, "
Exploded View".
15. Remove mounting bolts, and then disconnect condenser pipe assembly. Refer to HA-48, "
Exploded
View".
16. Remove condenser. Refer to HA-46, "
Removal and Installation".
17. Remove mounting nut of radiator upper hose from radiator core support, and then remove radiator upper
hose and hood switch bracket. Refer to CO-25, "
Exploded View".
18. Disconnect radiator upper hose from radiator pipe (upper). Refer to CO-25, "
Exploded View".
19. Disconnect radiator lower hose (3). Refer to CO-25, "
Exploded View".
20. Disconnect CVT fluid cooler hose on radiator side. Refer to TM-165, "
Exploded View" (CVT: RE0F09B) or
TM-329, "
Exploded View" (CVT: RE0F10A).

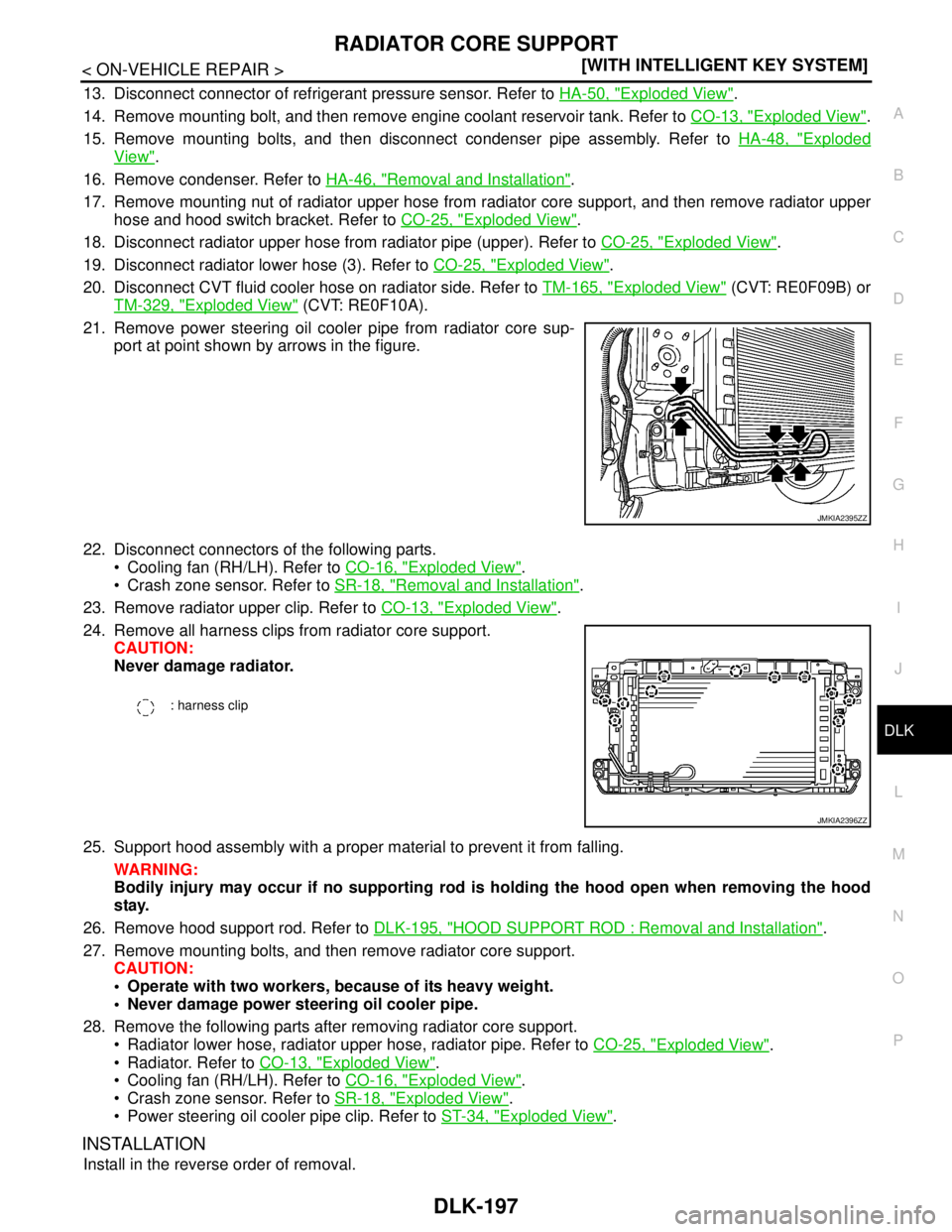

21. Remove power steering oil cooler pipe from radiator core sup-
port at point shown by arrows in the figure.
22. Disconnect connectors of the following parts.
 Cooling fan (RH/LH). Refer to CO-16, "
Exploded View".
 Crash zone sensor. Refer to SR-18, "
Removal and Installation".
23. Remove radiator upper clip. Refer to CO-13, "
Exploded View".
24. Remove all harness clips from radiator core support.
CAUTION:
Never damage radiator.
25. Support hood assembly with a proper material to prevent it from falling.
WARNING:
Bodily injury may occur if no supporting rod is holding the hood open when removing the hood
stay.
26. Remove hood support rod. Refer to DLK-195, "
HOOD SUPPORT ROD : Removal and Installation".
27. Remove mounting bolts, and then remove radiator core support.
CAUTION:
 Operate with two workers, because of its heavy weight.
 Never damage power steering oil cooler pipe.
28. Remove the following parts after removing radiator core support.
 Radiator lower hose, radiator upper hose, radiator pipe. Refer to CO-25, "
Exploded View".
 Radiator. Refer to CO-13, "
Exploded View".
 Cooling fan (RH/LH). Refer to CO-16, "
Exploded View".
 Crash zone sensor. Refer to SR-18, "
Exploded View".
 Power steering oil cooler pipe clip. Refer to ST-34, "
Exploded View".
INSTALLATION
Install in the reverse order of removal.
JMKIA2395ZZ
: harness clip
JMKIA2396ZZ

DLK-198
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
RADIATOR CORE SUPPORT
CAUTION:
 After installation, inspection and replenish the following.
- Engine coolant. Refer to CO-8, "
Inspection", CO-9, "Refilling".
- CVT fluid. Refer to TM-142, "
Inspection", TM-143, "Changing" (CVT: RE0F09B) or TM-304, "Inspec-
tion", TM-305, "Changing" (CVT: RE0F10A).
 After installation, adjust the following parts.
- Front combination lamp. EXL-174, "
Aiming Adjustment Procedure (Low Beam)", EXL-175, "Aiming
Adjustment Procedure (High Beam)" (XENON TYPE) or EXL-337, "Aiming Adjustment Procedure
(Low Beam)", EXL-338, "Aiming Adjustment Procedure (High Beam)" (HALOGEN TYPE).

FRONT FENDER
DLK-199
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
FRONT FENDER
Exploded ViewINFOID:0000000003813392
Removal and InstallationINFOID:0000000003813393
CAUTION:
Use a shop cloth to protect the body from being damaged during removal and installation.
REMOVAL
1. Remove clips (A) of hood seal assembly (side) (1).
2. Remove fender protector. Refer to EXT-22, "
FENDER PROTECTOR : Removal and Installation".
3. Remove front bumper fascia. Refer to EXT-12, "
Removal and Installation".
4. Remove front combination lamp. Refer to EXL-181, "
Removal and Installation" (XENON TYPE) or EXL-
343, "Removal and Installation" (HALOGEN TYPE).
5. Remove front fender cover.
6. Remove center mud guard. Refer to EXT-26, "
Removal and Installation".

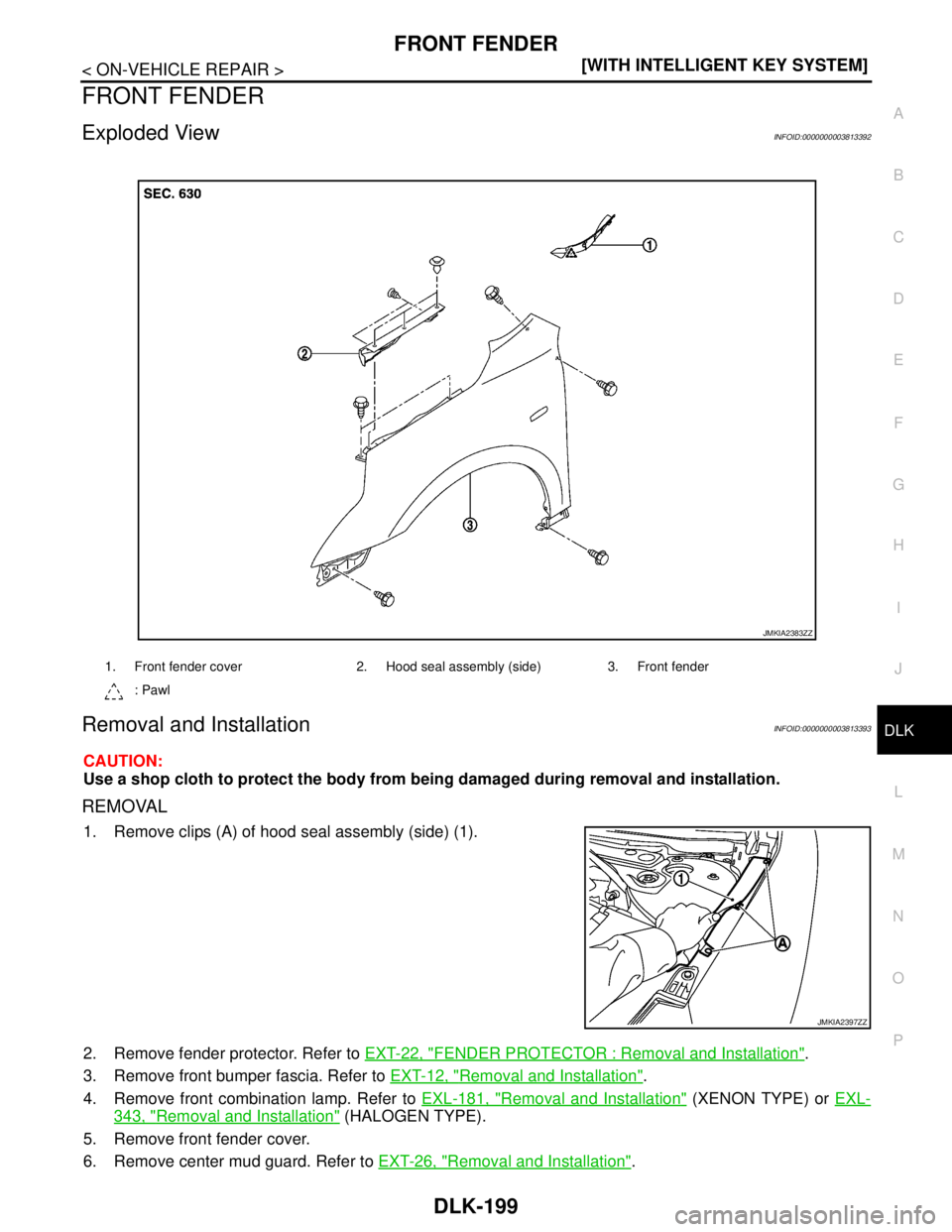

1. Front fender cover 2. Hood seal assembly (side) 3. Front fender
: Pawl
JMKIA2383ZZ
JMKIA2397ZZ

DLK-200
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
FRONT FENDER
7. Remove mounting bolts and remove front fender.
CAUTION:
A viscous urethane foam is installed on the back surface of front fender. When removing the front
fender, peel of the urethane foam bit at a time, and carefully to remove it.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
 After installation, check front fender adjustment. Refer to DLK-193, "
HOOD ASSEMBLY : Adjust-
ment" and DLK-203, "DOOR ASSEMBLY : Adjustment".
 After installation, apply the touch-up paint (the body color) onto the head of front fender mounting
bolts.
 Adjust the following part.
- Front combination lamp: Refer to EXL-174, "
Aiming Adjustment Procedure (Low Beam)", EXL-175,
"Aiming Adjustment Procedure (High Beam)" (XENON TYPE) or EXL-337, "Aiming Adjustment Pro-
cedure (Low Beam)", EXL-338, "Aiming Adjustment Procedure (High Beam)" (HALOGEN TYPE).

FRONT DOOR
DLK-201
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
FRONT DOOR
DOOR ASSEMBLY
DOOR ASSEMBLY : Exploded ViewINFOID:0000000003813394
REMOVAL
ADJUSTMENT

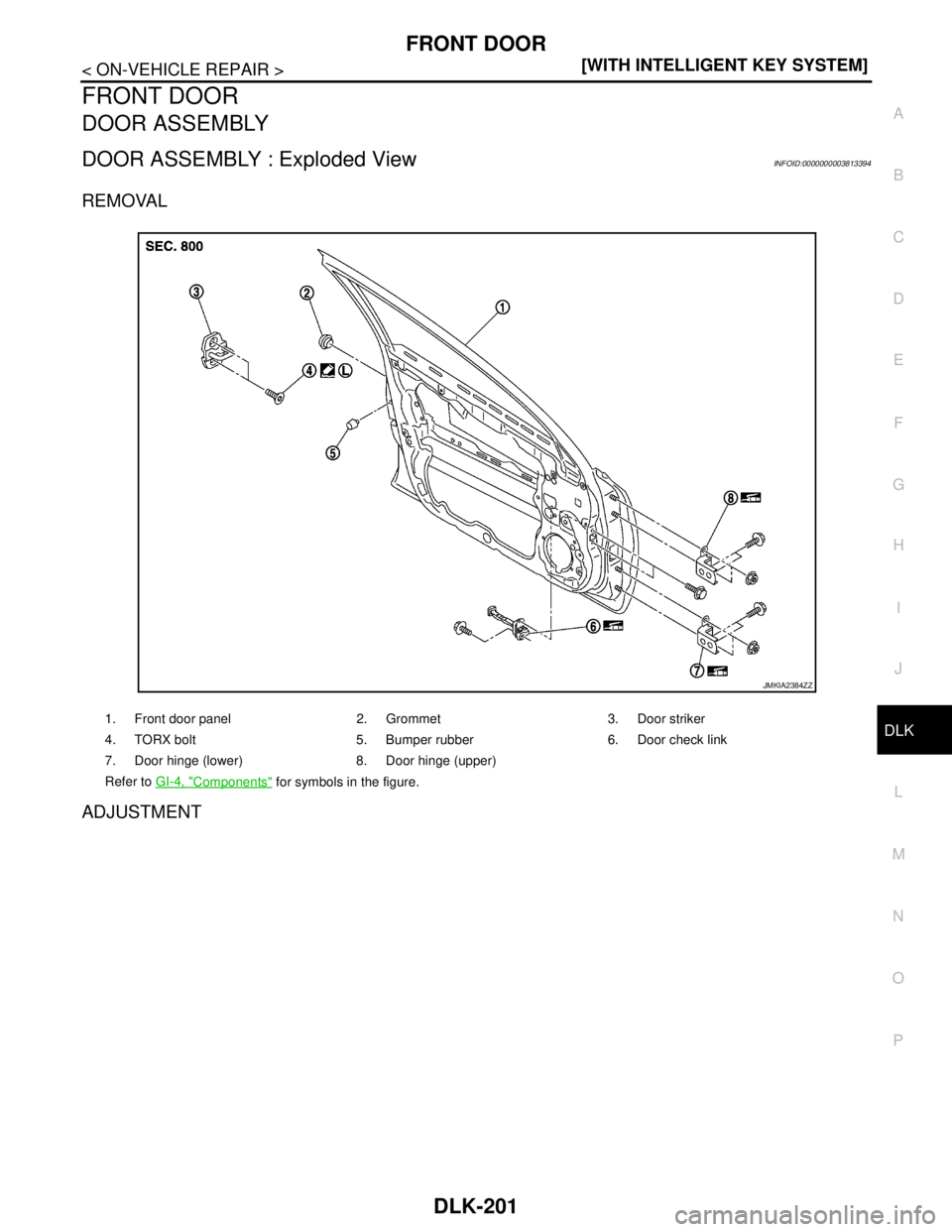

1. Front door panel 2. Grommet 3. Door striker
4. TORX bolt 5. Bumper rubber 6. Door check link
7. Door hinge (lower) 8. Door hinge (upper)
Refer to GI-4, "
Components" for symbols in the figure.
JMKIA2384ZZ

DLK-202
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
FRONT DOOR
DOOR ASSEMBLY : Removal and Installation
INFOID:0000000003813395
CAUTION:
 Perform work with 2 workers, because of its heavy weight.
 When removing and installing front door assembly, support door with a jack and cloth to protect
door and body.
REMOVAL
1. Remove mounting bolts of door check link on the vehicle.
2. Remove front door harness grommet, and then pull out the harness from the vehicle.
3. Disconnect front door harness connector.
4. Remove door hinge mounting nuts (door side), and then remove front door assembly.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
 Check front door open/close, lock/unlock operation after installation.

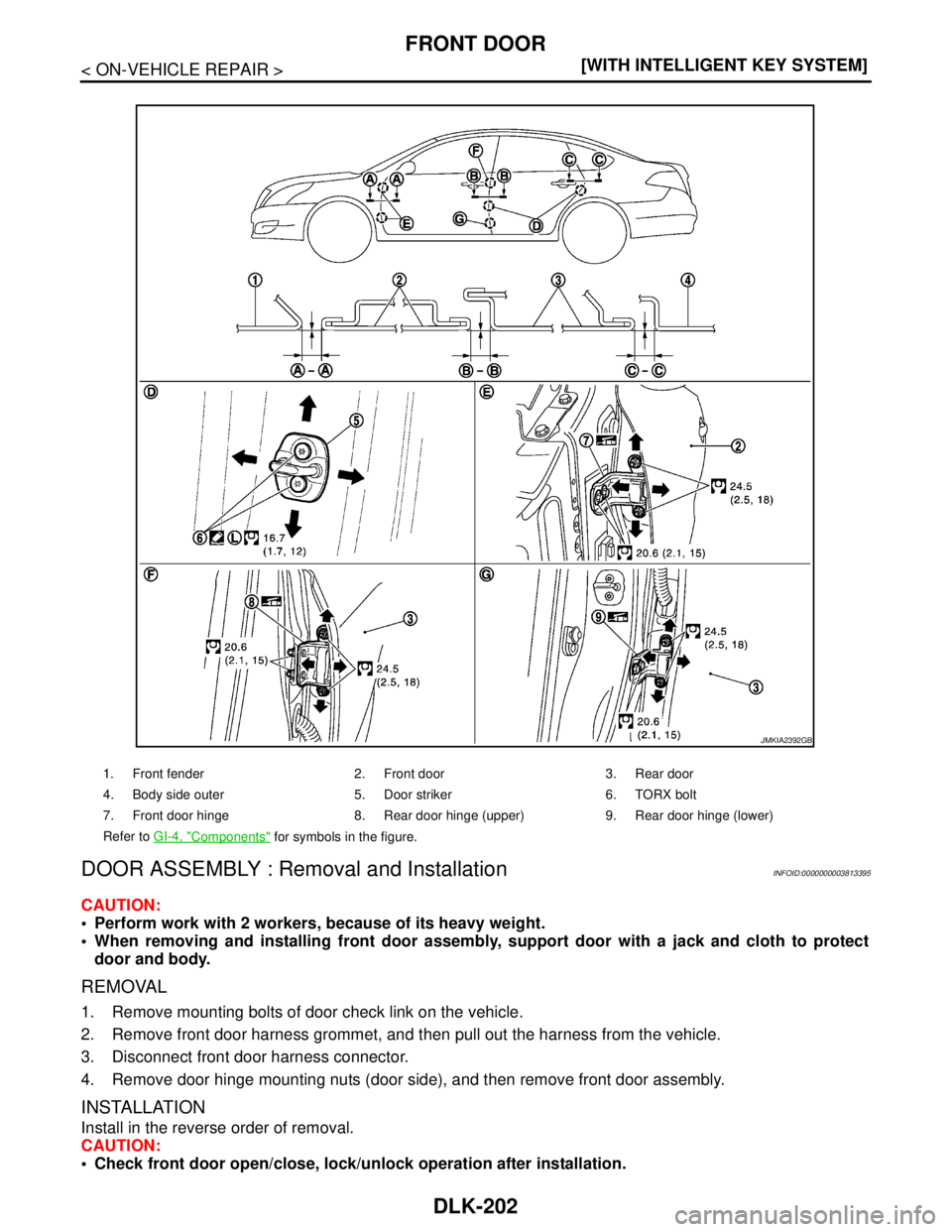

1. Front fender 2. Front door 3. Rear door
4. Body side outer 5. Door striker 6. TORX bolt
7. Front door hinge 8. Rear door hinge (upper) 9. Rear door hinge (lower)
Refer to GI-4, "
Components" for symbols in the figure.
JMKIA2392GB

FRONT DOOR
DLK-203
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
 Check door hinge rotating part for poor lubrication. If necessary, apply body grease.
 After installation, perform the fitting adjustment. Refer to DLK-203, "
DOOR ASSEMBLY : Adjust-
ment".
 After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
DOOR ASSEMBLY : AdjustmentINFOID:0000000003813396
Check the clearance and surface height between front door and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.
Unit: mm (in)
1. Remove front fender. Refer to DLK-199, "Removal and Installation".
2. Loosen door hinge mounting nuts on door side.
3. Adjust the surface height of front door according to the fitting standard dimension.
4. Temporarily tighten door hinge mounting nuts on door side.
5. Loosen door hinge mounting bolts on body side.
6. Raise front door at rear end to adjust clearance of the front door according to the fitting standard dimen-
sion.
7. After adjustment tighten bolts and nuts to the specified torque.
8. Install front fender. Refer to DLK-199, "
Removal and Installation".
DOOR STRIKER ADJUSTMENT
Adjust door striker so that it becomes parallel with door lock insertion direction.
DOOR STRIKER
DOOR STRIKER : Exploded ViewINFOID:0000000003819380
Portion Clearance Surface height
Front fender – Front door A – A 2.6 – 4.6 (0.102 – 0.181)−1.0 – 1.0 (−0.039 – 0.039)
Front door – Rear door B – B 3.6 – 5.6 (0.142 – 0.220)−1.0 – 1.0 (−0.039 – 0.039)
JMKIA2384ZZ

DLK-204
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
FRONT DOOR
DOOR STRIKER : Removal and Installation
INFOID:0000000003813398
REMOVAL
Remove TORX bolts, and then remove door striker.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
 Check front door open/close, lock/unlock operation after installation.
 After installation, perform the fitting adjustment. Refer to DLK-203, "
DOOR ASSEMBLY : Adjust-
ment".
DOOR HINGE
DOOR HINGE : Exploded ViewINFOID:0000000003819407
DOOR HINGE : Removal and InstallationINFOID:0000000003813400
REMOVAL
1. Remove front fender. Refer to DLK-199, "Removal and Installation"
2. Remove front door assembly. Refer to DLK-202, "DOOR ASSEMBLY : Removal and Installation".
1. Front door panel 2. Grommet 3. Door striker
4. TORX bolt 5. Bumper rubber 6. Door check link
7. Door hinge (lower) 8. Door hinge (upper)
Refer to GI-4, "
Components" for symbols in the figure.
1. Front door panel 2. Grommet 3. Door striker
4. TORX bolt 5. Bumper rubber 6. Door check link
7. Door hinge (lower) 8. Door hinge (upper)
Refer to GI-4, "
Components" for symbols in the figure.
JMKIA2384ZZ
