NISSAN TEANA 2008 Service Manual

EM-36
< ON-VEHICLE REPAIR >
EXHAUST MANIFOLD AND THREE WAY CATALYST
Cover engine openings to avoid entry of foreign materials.
INSTALLATION
Note the following, and install in the reverse order of removal.
Exhaust Manifold Gasket
Install in the direction indicated in the figure.
Exhaust Manifold
 If stud bolts were removed, install them and tighten to the torque specified below.
 Tighten mounting nuts in numerical order as shown in the figure.
NOTE:
No. 7 and 8 mean double tightening of nuts No. 1 and 2.
Three Way Catalyst Supports
1. Temporarily tighten three way catalyst support mounting bolts.
2. Tighten three way catalyst support mounting bolts to oil pan (upper).
3. Tighten three way catalyst support mounting bolts to three way catalyst.
Air Fuel Ratio Sensor 1 and Heated Oxygen Sensor 2
 Install air fuel ratio sensor 1 and heated oxygen sensor 2 in the original position.
A: Bank 1
B : Triangle press
C: Bank 2
: Engine front
PBIC4954E
: 15.4 N·m (1.6 kg-m, 11 ft-lb)
A: Bank 1
B: Bank 2
: Engine front
JPBIA1633ZZ

EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-37
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
 Install referring the following if the installation positions cannot be
identified.
CAUTION:
 Before installing a new air fuel ratio sensor and a new heated
oxygen sensor, clean exhaust system threads using oxygen
sensor thread cleaner (commercial service tool: J-43897-18 or
J43897-12) and apply anti-seize lubricant (commercial service
tool).
 Never over torque air fuel ratio sensor 1 and heated oxygen sensor 2. Doing so may cause damage
to air fuel ratio sensor and heated oxygen sensor, resulting in “MI” coming on.
InspectionINFOID:0000000003802260
INSPECTION AFTER REMOVAL
Surface Distortion
 Check the surface distortion of the exhaust manifold mating sur-
face with a straightedge and a feeler gauge.
 If it exceeds the limit, replace exhaust manifold.Glass tube color
Air fuel ratio sensor 1 : Gray
Heated oxygen sensor 2 : White
PBIC2652E
Limit : Refer to EM-136, "ExhaustManifold".
PBIC1173E

EM-38
< ON-VEHICLE REPAIR >
OIL PAN AND OIL STRAINER
OIL PAN AND OIL STRAINER
Exploded ViewINFOID:0000000003802261
Removal and InstallationINFOID:0000000003802262
REMOVAL
CAUTION:
To avoid the danger of being scalded, never drain engine oil when the engine is hot.
NOTE:
When removing oil pan (lower) or oil strainer only, take step 1 then step 18 and 19.
1. Drain engine oil. Refer to LU-8, "
Draining".
CAUTION:
Never spill engine oil on drive belt.
2. Drain engine coolant. Refer to CO-8, "
Draining".
CAUTION:
Never spill engine coolant on drive belt.
3. Remove following parts:
 Front road wheel and tires (RH and LH)
1. Oil pan (upper) 2. O-ring 3. Oil pan gasket (front)
4. Relief valve 5. Oil pressure switch 6. Oil cooler
7. Connector bolt 8. Oil filter 9. Oil strainer
10. Drain plug 11. Drain plug washer 12. Oil pan (lower)
13. Rear plate cover 14. Crankshaft position sensor (POS) 15. Oil pan gasket (rear)
A. Refer to LU-10
B. To oil pump C. Oil pan side
Refer to GI-4, "
Components" for symbols in the figure.
JPBIA1636GB

OIL PAN AND OIL STRAINER

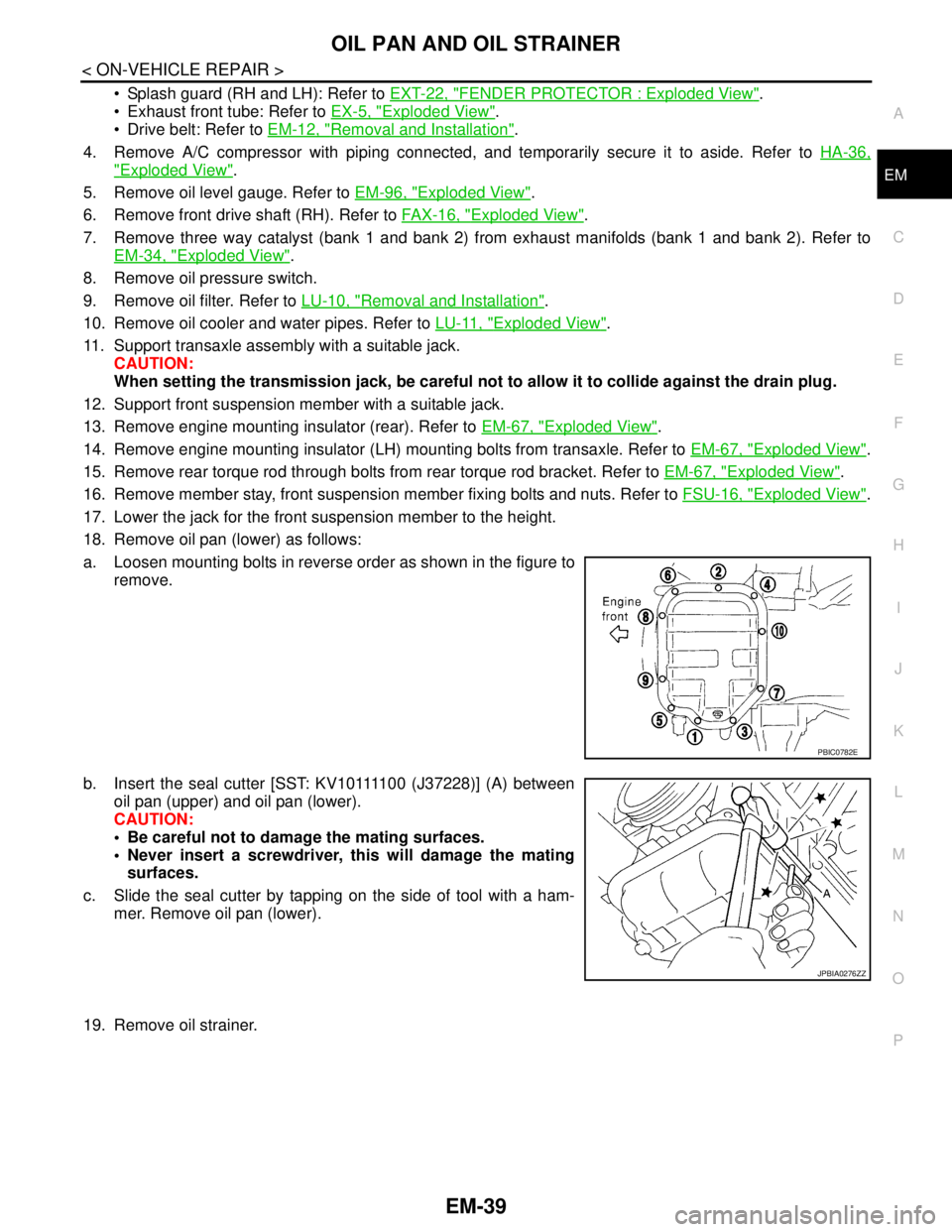

EM-39
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
 Splash guard (RH and LH): Refer to EXT-22, "FENDER PROTECTOR : Exploded View".
 Exhaust front tube: Refer to EX-5, "
Exploded View".
 Drive belt: Refer to EM-12, "
Removal and Installation".
4. Remove A/C compressor with piping connected, and temporarily secure it to aside. Refer to HA-36,
"Exploded View".
5. Remove oil level gauge. Refer to EM-96, "
Exploded View".
6. Remove front drive shaft (RH). Refer to FAX-16, "
Exploded View".
7. Remove three way catalyst (bank 1 and bank 2) from exhaust manifolds (bank 1 and bank 2). Refer to
EM-34, "
Exploded View".
8. Remove oil pressure switch.
9. Remove oil filter. Refer to LU-10, "
Removal and Installation".
10. Remove oil cooler and water pipes. Refer to LU-11, "
Exploded View".
11. Support transaxle assembly with a suitable jack.
CAUTION:
When setting the transmission jack, be careful not to allow it to collide against the drain plug.
12. Support front suspension member with a suitable jack.
13. Remove engine mounting insulator (rear). Refer to EM-67, "
Exploded View".
14. Remove engine mounting insulator (LH) mounting bolts from transaxle. Refer to EM-67, "
Exploded View".
15. Remove rear torque rod through bolts from rear torque rod bracket. Refer to EM-67, "
Exploded View".
16. Remove member stay, front suspension member fixing bolts and nuts. Refer to FSU-16, "
Exploded View".
17. Lower the jack for the front suspension member to the height.
18. Remove oil pan (lower) as follows:
a. Loosen mounting bolts in reverse order as shown in the figure to
remove.
b. Insert the seal cutter [SST: KV10111100 (J37228)] (A) between
oil pan (upper) and oil pan (lower).
CAUTION:
 Be careful not to damage the mating surfaces.
 Never insert a screwdriver, this will damage the mating
surfaces.
c. Slide the seal cutter by tapping on the side of tool with a ham-
mer. Remove oil pan (lower).
19. Remove oil strainer.
PBIC0782E
JPBIA0276ZZ

EM-40
< ON-VEHICLE REPAIR >
OIL PAN AND OIL STRAINER
20. Loosen mounting bolts in the reverse order as shown in the fig-
ure to remove.
 Insert the seal cutter [SST: KV10111100 (J37228)] between oil
pan (upper) and cylinder block. Slide seal cutter by tapping on
the side of tool with a hammer. Remove oil pan (upper).
CAUTION:
 Be careful not to damage the mating surfaces.
 Never insert a screwdriver, this will damage the mating
surfaces.
21. Remove O-rings (2) from bottom of cylinder block (1) and oil
pump (3).
22. Remove oil pan gaskets (1).
INSTALLATION
1. Install oil pan (upper) as follows:
a. Use a scraper to remove old liquid gasket from mating surfaces.
CAUTION:
Never scratch or damage the mating surfaces when clean-
ing off old liquid gasket.
 Also remove old liquid gasket from mating surface of cylinder
block.
 Remove old liquid gasket from the bolt holes and threads.
b. Install new oil pan gaskets.
PBIC1636E
: Engine front
JPBIA1379ZZ
A : Notch
B : Protrusion
: Engine front
JPBIA0433ZZ
MEM108A

OIL PAN AND OIL STRAINER
EM-41
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
 Apply liquid gasket to new oil pan gaskets as shown in the fig-
ure.
Use Genuine Liquid Gasket or equivalent.
 To install, align protrusion (B) of oil pan gasket with notches
(A) of front timing chain case and rear oil seal retainer.
 Install oil pan gasket (1) with smaller arc to front timing chain
case side.
c. Install new O-rings (2) on the bottom of cylinder block (1) and oil
pump (3).
d. Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) to the cylinder block mating surface of
oil pan (upper) to a limited portion as shown in the figure.
Use Genuine Liquid Gasket or equivalent.
CAUTION:
 For bolt holes with marks (5 locations), apply liquid
gasket outside the holes.
 Apply a bead of 4.5 to 5.5 mm (0.177 to 0.217 in) diameter to area (a).
 Attaching should be done within 5 minutes after coating.
e. Install oil pan (upper).
CAUTION:
Install avoiding misalignment of both O-rings.
C : Sealing point
a : 15 mm (0.59 in)
b : 5 mm (0.20 in)
JPBIA0432ZZ
: Engine front
JPBIA0433ZZ
: Engine front
JPBIA1379ZZ
b : 35 mm (1.38 in)
c: φ3.5 - 4.5 mm (0.138 - 0.177 in)
: Engine front
JPBIA0434ZZ

EM-42
< ON-VEHICLE REPAIR >
OIL PAN AND OIL STRAINER
 Tighten mounting bolts in numerical order as shown in the fig-
ure.
 There are two types of mounting bolts. Refer to the following
for locating bolts.
2. Install oil strainer to oil pump.
3. Install oil pan (lower) as follows:
a. Use scraper (A) to remove old liquid gasket from mating sur-
faces.
 Remove old liquid gasket from the bolt holes and thread.
CAUTION:
Never scratch or damage the mating surfaces when clean-
ing off old liquid gasket.
b. Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) (A) to the oil pan (lower) as shown in
the figure.
Use Genuine Liquid Gasket or equivalent.
CAUTION:
Attaching should be done within 5 minutes after coating.
c. Install oil pan (lower).
 Tighten mounting bolts in numerical order as shown in the fig-
ure.
4. Install oil pan drain plug.
 Refer to the figure of components of former page for installa-
tion direction of drain plug washer. Refer to EM-38, "
Exploded
View".
5. Install in the reverse order of removal after this step.
NOTE:
At least 30 minutes after oil pan is installed, pour engine oil.
InspectionINFOID:0000000003802263
INSPECTION AFTER REMOVAL
Clean oil strainer if any object attached.
INSPECTION AFTER INSTALLATION
1. Check the engine oil level and adjust engine oil. Refer to LU-7, "Inspection".
2. Start engine, and check there is no leakage of engine oil.M8 × 135 mm (5.31 in) : 11
M8 × 92 mm (3.62 in) : 5, 7, 8
M8 × 25 mm (0.98 in) : Except the above
PBIC1636E
JPBIA0025ZZ
b: φ4.0 - 5.0 mm (0.157 - 0.197 in)
JPBIA0026ZZ
PBIC0782E

OIL PAN AND OIL STRAINER
EM-43
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
3. Stop engine and wait for 10 minutes.
4. Check the engine oil level again. Refer to LU-7, "
Inspection".

EM-44
< ON-VEHICLE REPAIR >
FUEL INJECTOR AND FUEL TUBE
FUEL INJECTOR AND FUEL TUBE
Exploded ViewINFOID:0000000003802264
CAUTION:
Never remove or disassemble parts unless instructed as shown in the figure.
Removal and InstallationINFOID:0000000003802265
REMOVAL
WARNING:
 Put a “CAUTION: FLAMMABLE” sign in the workshop.
 Be sure to work in a well ventilated area and furnish workshop with a CO
2 fire extinguisher.
 Never smoke while servicing fuel system. Keep open flames and sparks away from the work area.
 To avoid the danger of being scalded, never drain engine coolant when engine is hot.
1. Remove air duct (inlet), air cleaner cases (upper and lower) with mass air flow sensor and air duct assem-
bly. Refer to EM-26, "
Exploded View".
2. Remove engine cover. Refer to EM-24, "
Exploded View".
3. Release the fuel pressure. Refer to EC-411, "
Inspection".
4. Remove front wiper arm and extension cowl top. Refer to WW-105, "
Exploded View" and EXT-20,
"Exploded View".
1. Fuel feed hose 2. Quick connector cap 3. Fuel tube
4. O-ring 5. Fuel damper 6. Fuel damper cap
7. Clip 8. O-ring (black) 9. Fuel injector
10. O-ring (green)
A. Refer to EM-44
Refer to GI-4, "Components" for symbols in the figure.
JPBIA1714GB

FUEL INJECTOR AND FUEL TUBE

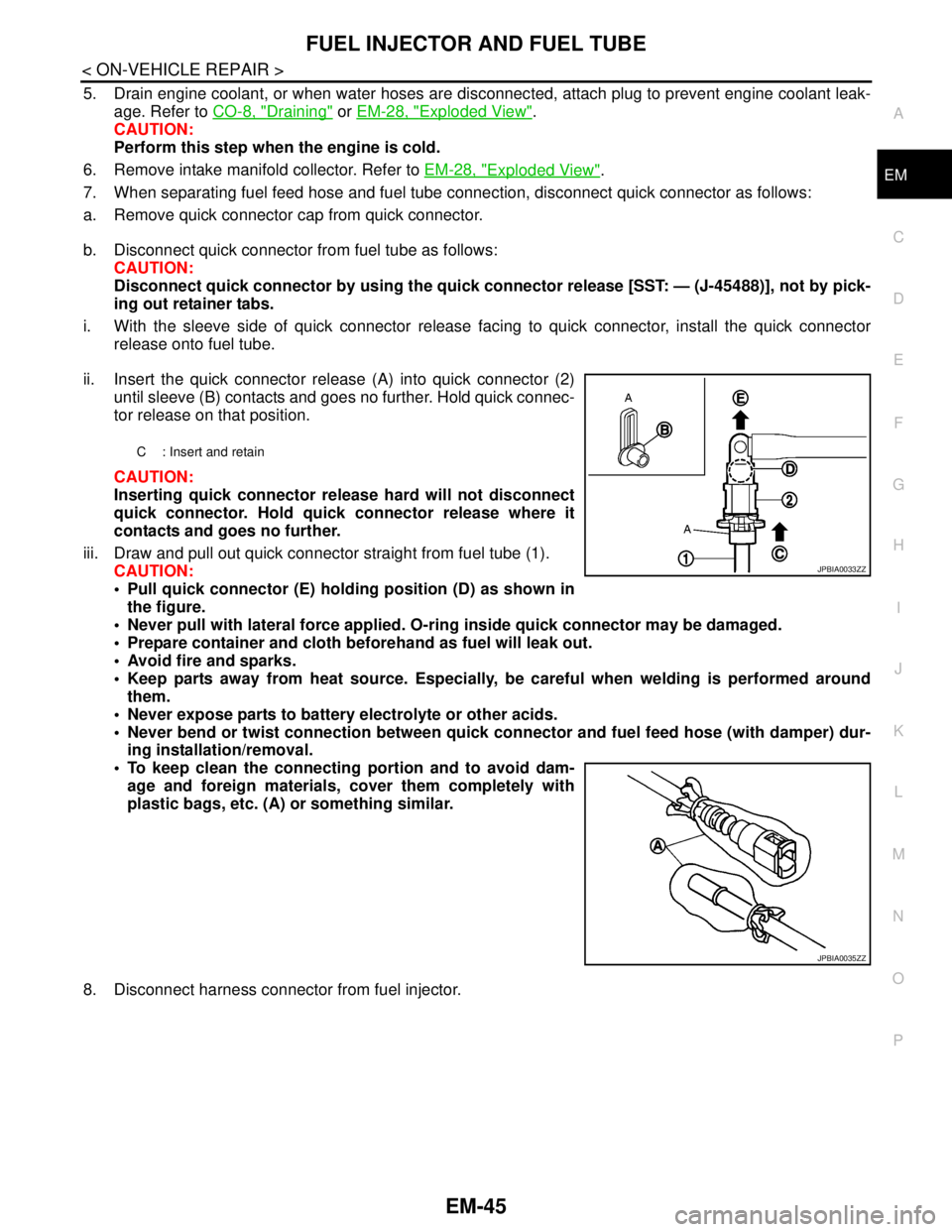

EM-45
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
5. Drain engine coolant, or when water hoses are disconnected, attach plug to prevent engine coolant leak-
age. Refer to CO-8, "
Draining" or EM-28, "Exploded View".
CAUTION:
Perform this step when the engine is cold.
6. Remove intake manifold collector. Refer to EM-28, "
Exploded View".
7. When separating fuel feed hose and fuel tube connection, disconnect quick connector as follows:
a. Remove quick connector cap from quick connector.
b. Disconnect quick connector from fuel tube as follows:
CAUTION:
Disconnect quick connector by using the quick connector release [SST: — (J-45488)], not by pick-
ing out retainer tabs.
i. With the sleeve side of quick connector release facing to quick connector, install the quick connector
release onto fuel tube.
ii. Insert the quick connector release (A) into quick connector (2)
until sleeve (B) contacts and goes no further. Hold quick connec-
tor release on that position.
CAUTION:
Inserting quick connector release hard will not disconnect
quick connector. Hold quick connector release where it
contacts and goes no further.
iii. Draw and pull out quick connector straight from fuel tube (1).
CAUTION:
 Pull quick connector (E) holding position (D) as shown in
the figure.
 Never pull with lateral force applied. O-ring inside quick connector may be damaged.
 Prepare container and cloth beforehand as fuel will leak out.
 Avoid fire and sparks.
 Keep parts away from heat source. Especially, be careful when welding is performed around
them.
 Never expose parts to battery electrolyte or other acids.
 Never bend or twist connection between quick connector and fuel feed hose (with damper) dur-
ing installation/removal.
 To keep clean the connecting portion and to avoid dam-
age and foreign materials, cover them completely with
plastic bags, etc. (A) or something similar.
8. Disconnect harness connector from fuel injector.
C : Insert and retain
JPBIA0033ZZ
JPBIA0035ZZ
