NISSAN TEANA 2008 Service Manual

EM-46
< ON-VEHICLE REPAIR >
FUEL INJECTOR AND FUEL TUBE
9. Loosen mounting bolts in reverse order as shown in the figure,
and remove fuel tube and fuel injector assembly.
CAUTION:
Never tilt fuel tube, or remaining fuel in pipes may flow out
from pipes.
10. Remove fuel injector from fuel tube as follows:
a. Open and remove clip (1).
b. Remove fuel injector (2) from fuel tube (5) by pulling straight.
CAUTION:
 Be careful with remaining fuel that may go out from fuel
tube.
 Be careful not to damage injector nozzle during removal.
 Never bump or drop fuel injector.
 Never disassemble fuel injector.
11. Remove fuel damper from fuel tube.
INSTALLATION
1. Install fuel damper as follows:
a. Install new O-ring (2) to fuel tube (1) as shown. When handling
new O-ring, be careful of the following caution:
CAUTION:
 Handle O-ring with bare hands. Never wear gloves.
 Lubricate O-ring with new engine oil.
 Never clean O-ring with solvent.
 Check that O-ring and its mating part are free of foreign
material.
 When installing O-ring, be careful not to scratch it with
tool or fingernails. Also be careful not to twist or stretch
O-ring. If O-ring was stretched while it was being
attached, never insert it quickly into fuel tube.
 Insert new O-ring straight into fuel tube. Never twist it.
b. Install spacer (3) to fuel damper (4).
c. Insert fuel damper straight into fuel tube.
CAUTION:
 Insert straight, making sure that the axis is lined up.
 Never pressure-fit with excessive force.
 Insert fuel damper until (B) is touching (A) of fuel tube.
d. Tighten bolts evenly in turn.
 After tightening bolts, check that there is no gap between fuel
damper cap (5) and fuel tube.
2. Install new O-rings to fuel injector paying attention to the following.
CAUTION:
: Engine front
JPBIA1715ZZ
3 : O-ring (green)
4 : O-ring (black)
A : Installed condition
B : Clip mounting groove
JPBIA1958ZZ
Reference value : 130 N (13.3 kg, 29.2 lb)
JPBIA0316ZZ

FUEL INJECTOR AND FUEL TUBE
EM-47
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
 Upper and lower O-ring are different. Be careful not to confuse them.
 Handle O-ring with bare hands. Never wear gloves.
 Lubricate O-ring with new engine oil.
 Never clean O-ring with solvent.
 Check that O-ring and its mating part are free of foreign material.
 When installing O-ring, be careful not to scratch it with tool or fingernails. Also be careful not to
twist or stretch O-ring. If O-ring was stretched while it was being attached, never insert it quickly
into fuel tube.
 Insert O-ring straight into fuel injector. Never decenter or twist it.
3. Install fuel injector to fuel tube as follows:
a. Insert clip (3) into clip mounting groove (F) on fuel injector (5).
 Insert clip so that protrusion (E) of fuel injector matches cutout
(C) of clip.
CAUTION:
 Never reuse clip. Replace it with new one.
 Be careful to keep clip from interfering with O-ring. If
interference occurs, replace O-ring.
b. Insert fuel injector into fuel tube (1) with clip attached.
 Insert it while matching it to the axial center.
 Insert fuel injector so that protrusion (A) of fuel tube matches
cutout (B) of clip.
 Check that fuel tube flange (G) is securely fixed in flange fixing
groove (D) on clip.
c. Check that installation is complete by checking that fuel injector
does not rotate or come off.
 Check that protrusions of fuel injectors and fuel tubes are
aligned with cutouts of clips after installation.
4. Install fuel tube and fuel injector assembly to intake manifold.
CAUTION:
Be careful not to let tip of injector nozzle come in contact with other parts.
 Tighten mounting bolts in two steps in numerical order as
shown in the figure.
5. Connect fuel injector harness.
6. Install intake manifold collector. Refer to EM-28, "
Exploded View".
7. Connect quick connector between fuel feed hose and fuel tube connection with the following procedure:
a. Check no foreign substances are deposited in and around fuel tube and quick connector, and no damage
on them.
b. Thinly apply new engine oil around fuel tube from tip end to spool end.Fuel tube side : Black
Nozzle side : Green
2 : O-ring (black)
4 : O-ring (green)
JPBIA1959ZZ
: Engine front
1st step: 10.1 N·m (1.0 kg-m, 7 ft-lb)
2nd step: 22.0 N·m (2.2 kg-m, 16 ft-lb)
JPBIA1715ZZ

EM-48
< ON-VEHICLE REPAIR >
FUEL INJECTOR AND FUEL TUBE
c. Align center to insert quick connector straightly into fuel tube.
 Insert quick connector (1) to fuel tube until top spool (2) is
completely inside quick connector, and 2nd level spool (3)
exposes right below quick connector.
CAUTION:
 Hold (A) position as shown in the figure when inserting
fuel tube into quick connector.
 Carefully align center to avoid inclined insertion to pre-
vent damage to O-ring inside quick connector.
 Insert until you hear a “click” sound and actually feel the engagement.
 To avoid misidentification of engagement with a similar sound, be sure to perform the next step.
d. Pull quick connector by hand holding (A) position. Check it is
completely engaged (connected) so that it does not come out
from fuel tube (2).
e. Install quick connector cap (3) to quick connector.
 Install quick connector cap with arrow on surface facing in
direction of quick connector (fuel feed hose side).
CAUTION:
If quick connector cap cannot be installed smoothly, quick
connector may have not been installed correctly. Check connection again.
f. Secure fuel feed hose to clamp of quick connector cap.
8. Install in the reverse order of removal after this step.
InspectionINFOID:0000000003802266
INSPECTION AFTER INSTALLATION
Check on Fuel Leakage
1. Turn ignition switch “ON” (with the engine stopped). With fuel pressure applied to fuel piping, check there
are no fuel leakage at connection points.
NOTE:
Use mirrors for checking at points out of clear sight.
2. Start the engine. With engine speed increased, check again that there are no fuel leakage at connection
points.
CAUTION:
Never touch the engine immediately after stopped, as the engine becomes extremely hot.
B : Fitted condition
: Upright insertion
1 : Fuel feed hose
B : Upper view
JPBIA0275ZZ
JPBIA0039ZZ

IGNITION COIL, SPARK PLUG AND ROCKER COVER
EM-49
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
IGNITION COIL, SPARK PLUG AND ROCKER COVER
Exploded ViewINFOID:0000000003802267
Removal and InstallationINFOID:0000000003802268
REMOVAL
1. Remove the following parts:
 Engine cover: Refer to EM-24, "
Exploded View".
 Air cleaner cases (upper and lower) and air duct assembly: Refer to EM-26, "
Exploded View".
 Intake manifold collector: Refer to EM-28, "
Exploded View".
2. Disconnect PCV hose from rocker cover.
1. Ignition coil 2. Spark plug 3. PCV hose
4. Clamp 5. PCV valve 6. O-ring
7. Rocker cover (bank 1) 8. PCV hose 9. Rocker cover gasket (bank 1)
10. O-ring 11.Camshaft position sensor (PHASE)
(bank 1)12. Oil filler cap
13. Rocker cover (bank 2) 14. Rocker cover gasket (bank 2) 15.Camshaft position sensor (PHASE)
(bank 2)
16. PCV hose 17. Clamp
A. To intake manifold collector B. Refer to EM-49
C. Camshaft bracket side
D. To air duct assembly
Refer to GI-4, "
Components" for symbols in the figure.
JPBIA1637GB

EM-50
< ON-VEHICLE REPAIR >
IGNITION COIL, SPARK PLUG AND ROCKER COVER
3. Remove camshaft position sensor (PHASE) (bank 1 and bank
2).
CAUTION:
 Handle carefully to avoid dropping and shocks.
 Never disassemble
 Never allow metal powder to adhere to magnetic part at
sensor tip.
 Never place sensors in a location where they are exposed
to magnetism.
4. Remove PCV valve and O-ring from rocker cover, if necessary.
5. Remove oil filler cap from rocker cover, if necessary.
6. Remove ignition coil.
CAUTION:
Never shock ignition coil.
7. Remove harness clips on the rocker cover.
8. Loosen bolts in reverse order shown in the figure.
9. Remove rocker cover gasket from rocker cover.
10. Use scraper to remove all traces of liquid gasket from cylinder head and camshaft bracket (No. 1).
CAUTION:
Never scratch or damage the mating surface when cleaning off old liquid gasket.
INSTALLATION
A : Keep off any magnetic materials
: Engine front
JPBIA0454ZZ
JPBIA1634ZZ

IGNITION COIL, SPARK PLUG AND ROCKER COVER
EM-51
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
1. Apply liquid gasket to the position shown in the figure with the
following procedure:
Use Genuine Liquid Gasket or equivalent.
a. Refer to figure (E) to apply liquid gasket to joint part of camshaft
bracket (No. 1) (1) and cylinder head.
b. Refer to figure (H) to apply liquid gasket in 90 degrees to figure.
2. Install rocker cover gasket to rocker cover.
3. Install rocker cover.
 Check if rocker cover gasket is not dropped from the installation groove of rocker cover.
4. Tighten bolts in two steps separately in numerical order as
shown in the figure.
5. Install in the reverse order of removal after this step.
A : Liquid gasket application point
F: View F
b: 4 mm (0.16 in)
c: φ2.5 - 3.5 mm (0.098 - 0.138 in)
d: 5 mm (0.20 in)
g : 10 mm (0.39 in)
I : End surface of camshaft bracket (No. 1)
: Engine front
JPBIA0274ZZ
: Engine front
1st step: 1.96 N·m (0.2 kg-m, 17 in-lb)
2nd step: 8.33 N·m (0.85 kg-m, 74 in-lb)
JPBIA1634ZZ

EM-52
< ON-VEHICLE REPAIR >
TIMING CHAIN
TIMING CHAIN
Exploded ViewINFOID:0000000003802269
1.Timing chain tensioner (secondary)
(bank 2)2. Internal chain guide 3.Timing chain tensioner (secondary)
(bank 1)
4. Camshaft sprocket (EXH) 5. O-ring 6. Timing chain (secondary)
7. Timing chain (primary) 8. Camshaft sprocket (INT) 9. Slack guide
10. Timing chain tensioner (primary) 11. Crankshaft sprocket 12. Rear timing chain case
13. Tension guide 14. O-ring 15. O-ring
16. O-ring 17. Front timing chain case 18. Valve timing control cover gasket (bank 1)
JPBIA1638GB

TIMING CHAIN
EM-53
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
Removal and InstallationINFOID:0000000003802270
REMOVAL
1. Drain engine oil. Refer to LU-8, "Draining".
2. Drain engine coolant from inside engine. Refer to EM-76, "
Setting".
3. Remove intake manifold collector. Refer to EM-28, "
Exploded View".
4. Remove rocker covers (bank 1 and bank 2). Refer to EM-49, "
Exploded View".
5. Remove oil pans (lower and upper) and oil strainer. Refer to EM-38, "
Exploded View".
6. Remove drive belt, idler pulleys and bracket. Refer to EM-12, "
Removal and Installation" and EM-25,
"Exploded View".
7. Separate engine harness removing their brackets from front timing chain case.
8. Remove valve timing control covers.
 Loosen mounting bolts in reverse order as shown in the figure.
CAUTION:
Shaft is internally jointed with camshaft sprocket (INT) cen-
ter hole. When removing, keep it horizontal until it is com-
pletely disconnected.
9. Obtain No. 1 cylinder at TDC of its compression stroke as follows:
a. Rotate crankshaft pulley clockwise to align timing mark (grooved
line without color) ( ) with timing indicator.
19. Valve timing control cover (bank 1) 20.Intake valve timing control sole-
noid valve (bank 1)21. Seal ring
22. Water pump cover 23. Front oil seal 24. Crankshaft pulley
25. Crankshaft pulley bolt 26.Intake valve timing control sole-
noid valve (bank 2)27. Valve timing control cover (bank 2)
28.Valve timing control cover gasket
(bank 2)
A. Refer to EM-53
Refer to GI-4, "Components" for symbols in the figure.
A: Bank 1
B: Bank 2
C : Dowel pin hole
JPBIA1639ZZ
SEM727G

EM-54
< ON-VEHICLE REPAIR >
TIMING CHAIN
b. Check that intake and exhaust cam noses on No. 1 cylinder
(engine front side of bank 1) are located as shown in the figure.
 If not, turn crankshaft one revolution (360 degrees) and align
as shown in the figure.
10. Remove crankshaft pulley as follows:
a. Fix crankshaft with the pulley holder (commercial service tool)
(A).
b. Loosen crankshaft pulley bolt and locate bolt seating surface at
10 mm (0.39 in) from its original position.
CAUTION:
Never remove crankshaft pulley bolt as it will be used as a
supporting point for suitable puller.
c. Place suitable puller tab on holes of crankshaft pulley, and pull
crankshaft pulley through.
CAUTION:
Never put suitable puller tab on crankshaft pulley periphery,
as this will damage internal damper.
11. Remove front timing chain case as follows:
a. Loosen mounting bolts in reverse order as shown in the figure.
: Engine front
JPBIA0044ZZ
1 : Crankshaft pulley
PBIC3961E
SEM915E
JPBIA1640ZZ

TIMING CHAIN
EM-55
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O

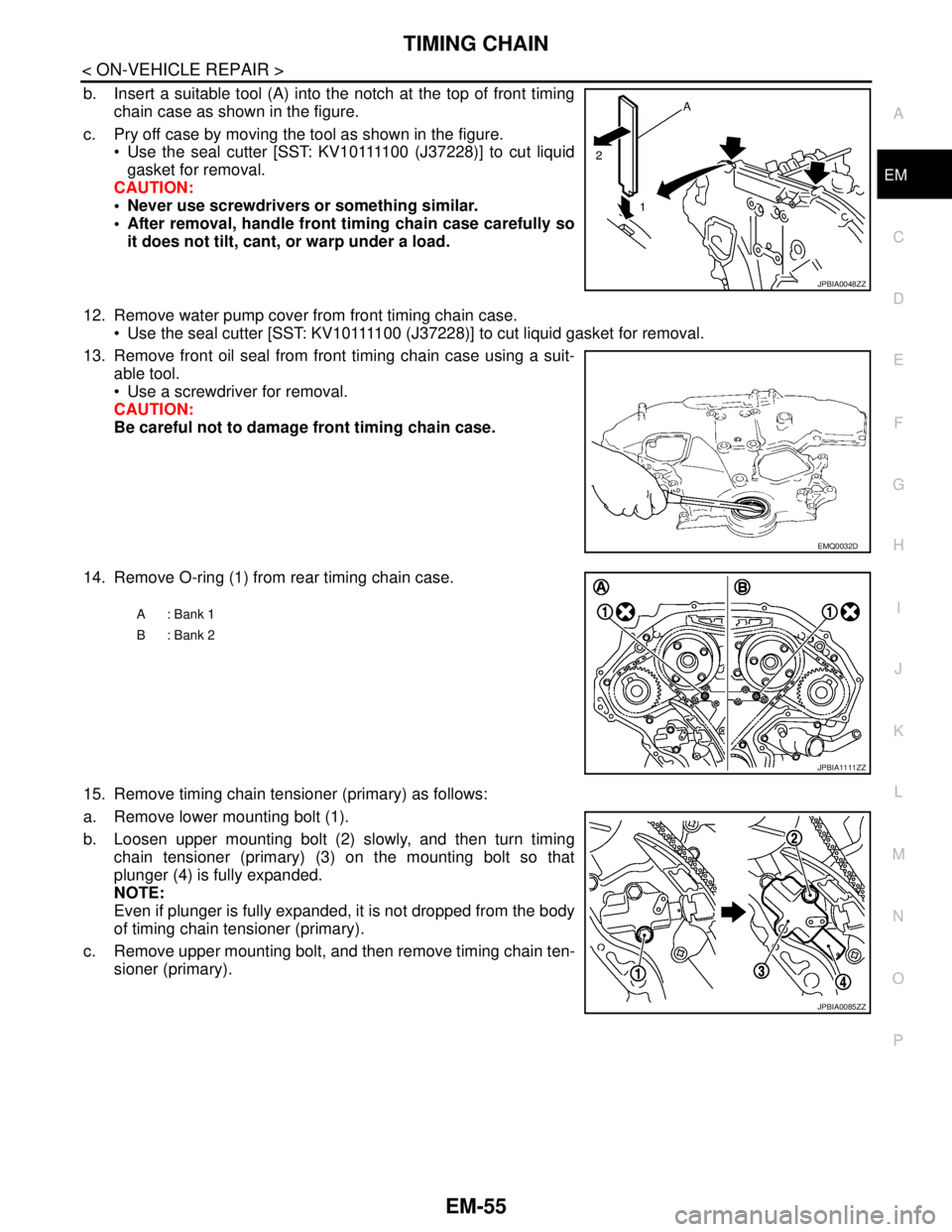

b. Insert a suitable tool (A) into the notch at the top of front timing
chain case as shown in the figure.
c. Pry off case by moving the tool as shown in the figure.
 Use the seal cutter [SST: KV10111100 (J37228)] to cut liquid
gasket for removal.
CAUTION:
 Never use screwdrivers or something similar.
 After removal, handle front timing chain case carefully so
it does not tilt, cant, or warp under a load.
12. Remove water pump cover from front timing chain case.
 Use the seal cutter [SST: KV10111100 (J37228)] to cut liquid gasket for removal.
13. Remove front oil seal from front timing chain case using a suit-
able tool.
 Use a screwdriver for removal.
CAUTION:
Be careful not to damage front timing chain case.
14. Remove O-ring (1) from rear timing chain case.
15. Remove timing chain tensioner (primary) as follows:
a. Remove lower mounting bolt (1).
b. Loosen upper mounting bolt (2) slowly, and then turn timing
chain tensioner (primary) (3) on the mounting bolt so that
plunger (4) is fully expanded.
NOTE:
Even if plunger is fully expanded, it is not dropped from the body
of timing chain tensioner (primary).
c. Remove upper mounting bolt, and then remove timing chain ten-
sioner (primary).
JPBIA0048ZZ
EMQ0032D
A: Bank 1
B: Bank 2
JPBIA1111ZZ
JPBIA0085ZZ
