NISSAN TEANA 2008 Service Manual

VTL-100
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
AIR MIX DOOR MOTOR
2. Remove mounting screws (A), and then move foot duct (passen-
ger side) (1) to a position where it does not inhibit work.
3. Remove mounting screws (B), and then remove air mix door
motor (passenger side) (2).
4. Disconnect air mix door motor connector (passenger side).
INSTALLATION
Installation is basically the reverse order of removal.
JPIIA0924ZZ

HEATER CORE
VTL-101
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
HEATER CORE

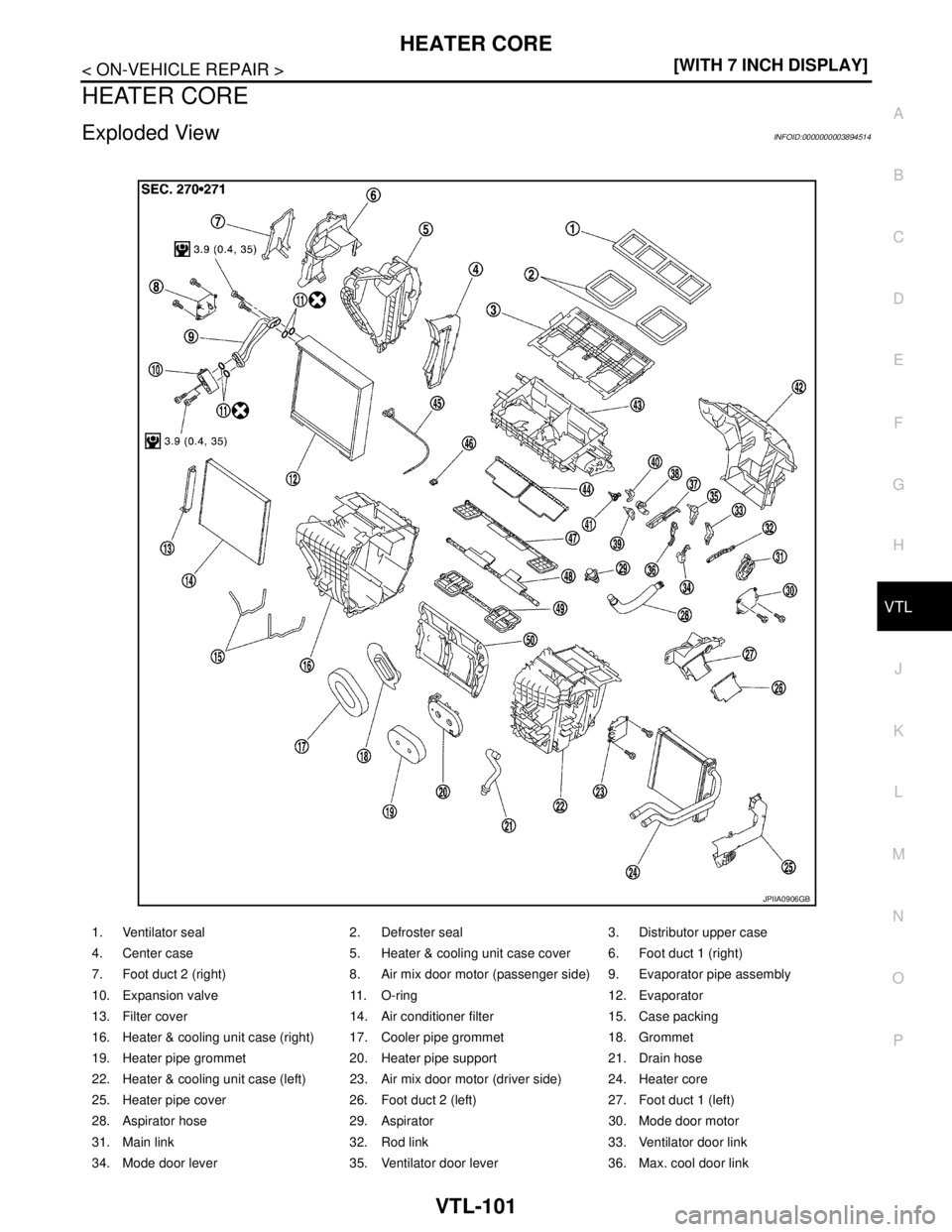

Exploded ViewINFOID:0000000003894514
1. Ventilator seal 2. Defroster seal 3. Distributor upper case
4. Center case 5. Heater & cooling unit case cover 6. Foot duct 1 (right)
7. Foot duct 2 (right) 8. Air mix door motor (passenger side) 9. Evaporator pipe assembly
10. Expansion valve 11. O-ring 12. Evaporator
13. Filter cover 14. Air conditioner filter 15. Case packing
16. Heater & cooling unit case (right) 17. Cooler pipe grommet 18. Grommet
19. Heater pipe grommet 20. Heater pipe support 21. Drain hose
22. Heater & cooling unit case (left) 23. Air mix door motor (driver side) 24. Heater core
25. Heater pipe cover 26. Foot duct 2 (left) 27. Foot duct 1 (left)
28. Aspirator hose 29. Aspirator 30. Mode door motor
31. Main link 32. Rod link 33. Ventilator door link
34. Mode door lever 35. Ventilator door lever 36. Max. cool door link
JPIIA0906GB

VTL-102
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
HEATER CORE
Removal and Installation
INFOID:0000000003894516
REMOVAL
1. Remove heater & cooling unit assembly. Refer to VTL-93, "Exploded View".
2. Remove mounting screws (A), and then remove foot duct (left)
(1).
3. Remove heater pipe grommet (1).
4. Remove mounting screw (A), and then remove heater pipe sup-
port (2).
5. Remove mounting screws (B), and then remove heater pipe
cover (3).
6. Slide heater core (1) to leftward (as shown in the figure).
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION:
 Replace O-rings with new ones. Then apply compressor oil to them when installing.
 Check for refrigerant leakage when charging refrigerant.
NOTE:
 Refer to CO-9, "
Refilling" when filling radiator with engine coolant.
 Charge the refrigerant.
37. Defroster door link 38. Foot door link 39. Max. cool door lever
40. Foot door lever 41. Defroster door lever 42. Adapter case
43. Distributor lower case 44. Ventilator door 45. Intake sensor
46. Intake sensor bracket 47. Foot door 48. Max. cool door
49. Defroster door 50. Air mix door (Slide door)
Refer to GI-4, "
Components" for symbols in the figure.
JPIIA0925ZZ
JPIIA0926ZZ
JPIIA0927ZZ

DUCT AND GRILLE
VTL-103
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P

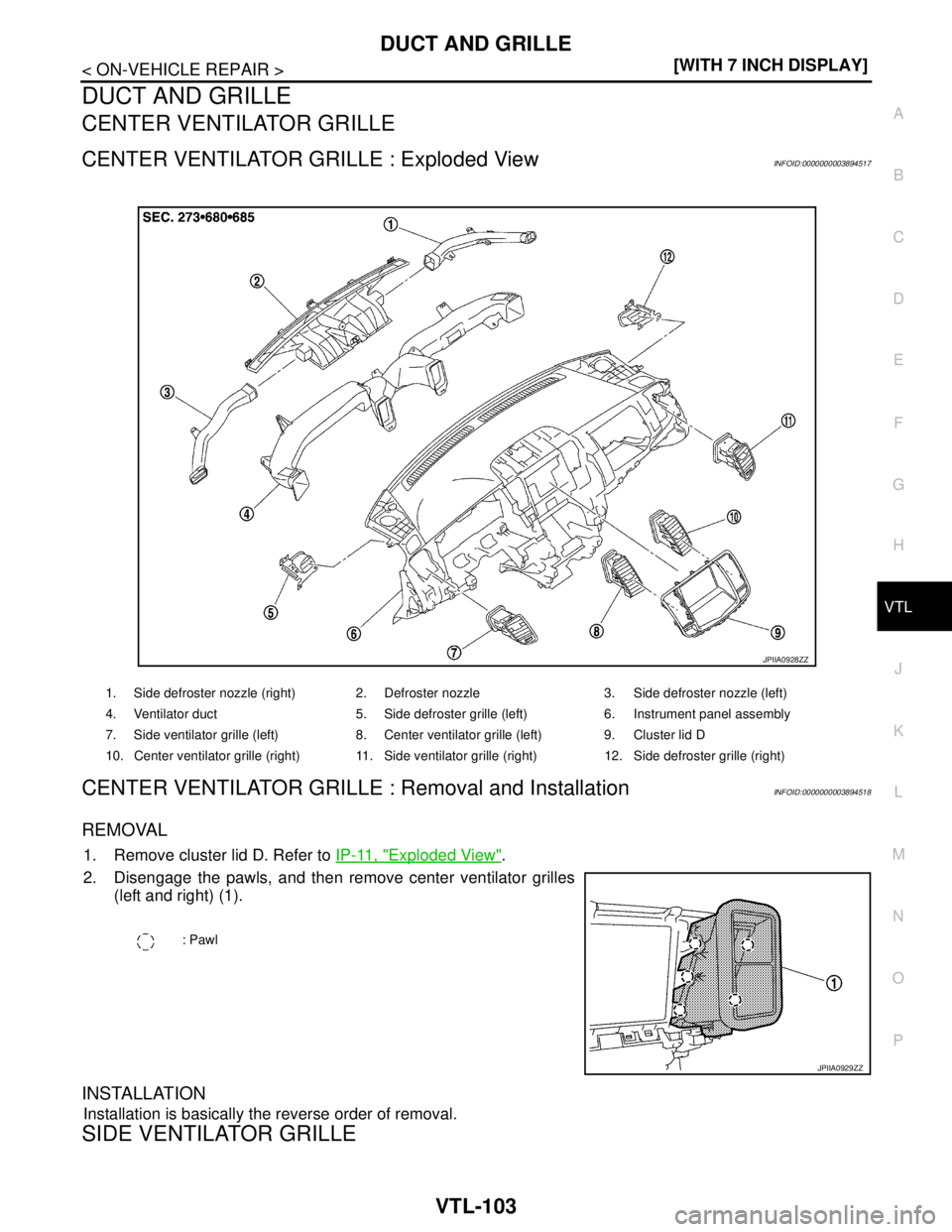

DUCT AND GRILLE
CENTER VENTILATOR GRILLE
CENTER VENTILATOR GRILLE : Exploded ViewINFOID:0000000003894517
CENTER VENTILATOR GRILLE : Removal and InstallationINFOID:0000000003894518
REMOVAL
1. Remove cluster lid D. Refer to IP-11, "Exploded View".
2. Disengage the pawls, and then remove center ventilator grilles
(left and right) (1).
INSTALLATION
Installation is basically the reverse order of removal.
SIDE VENTILATOR GRILLE
1. Side defroster nozzle (right) 2. Defroster nozzle 3. Side defroster nozzle (left)
4. Ventilator duct 5. Side defroster grille (left) 6. Instrument panel assembly
7. Side ventilator grille (left) 8. Center ventilator grille (left) 9. Cluster lid D
10. Center ventilator grille (right) 11. Side ventilator grille (right) 12. Side defroster grille (right)
JPIIA0928ZZ
: Pawl
JPIIA0929ZZ

VTL-104
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
DUCT AND GRILLE
SIDE VENTILATOR GRILLE : Exploded View
INFOID:0000000003894519
SIDE VENTILATOR GRILLE : Removal and InstallationINFOID:0000000003894520
REMOVAL
1. Remove ventilator duct. Refer to VTL-106, "VENTILATOR DUCT : Exploded View".
2. Disengage the pawls, and then remove side ventilator grilles
(left and right) (1).
INSTALLATION
Installation is basically the reverse order of removal.
SIDE DEFROSTER GRILLE
1. Side defroster nozzle (right) 2. Defroster nozzle 3. Side defroster nozzle (left)
4. Ventilator duct 5. Side defroster grille (left) 6. Instrument panel assembly
7. Side ventilator grille (left) 8. Center ventilator grille (left) 9. Cluster lid D
10. Center ventilator grille (right) 11. Side ventilator grille (right) 12. Side defroster grille (right)
JPIIA0928ZZ
: Pawl
JPIIA0930ZZ

DUCT AND GRILLE
VTL-105
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P

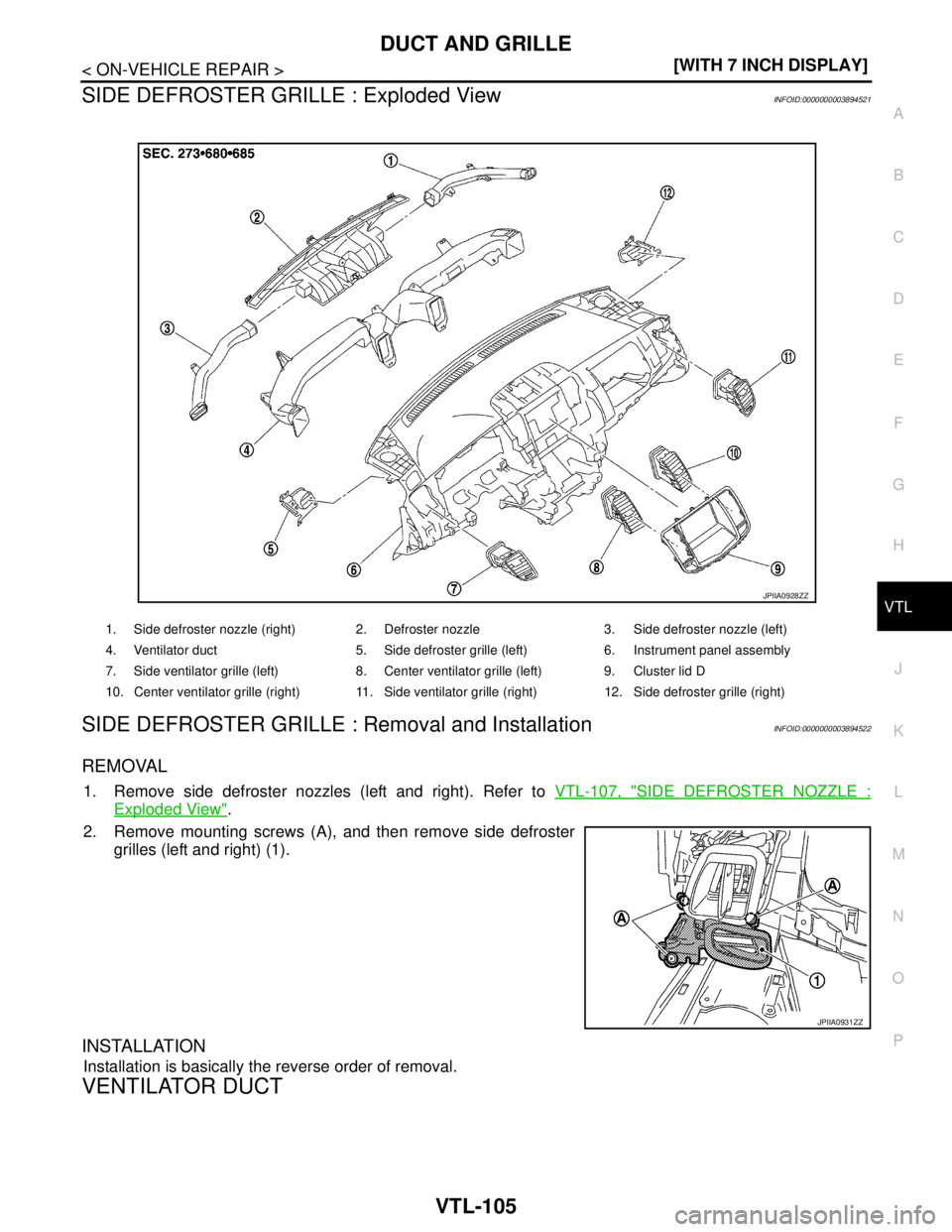

SIDE DEFROSTER GRILLE : Exploded ViewINFOID:0000000003894521
SIDE DEFROSTER GRILLE : Removal and InstallationINFOID:0000000003894522
REMOVAL
1. Remove side defroster nozzles (left and right). Refer to VTL-107, "SIDE DEFROSTER NOZZLE :
Exploded View".
2. Remove mounting screws (A), and then remove side defroster
grilles (left and right) (1).
INSTALLATION
Installation is basically the reverse order of removal.
VENTILATOR DUCT
1. Side defroster nozzle (right) 2. Defroster nozzle 3. Side defroster nozzle (left)
4. Ventilator duct 5. Side defroster grille (left) 6. Instrument panel assembly
7. Side ventilator grille (left) 8. Center ventilator grille (left) 9. Cluster lid D
10. Center ventilator grille (right) 11. Side ventilator grille (right) 12. Side defroster grille (right)
JPIIA0928ZZ
JPIIA0931ZZ

VTL-106
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
DUCT AND GRILLE

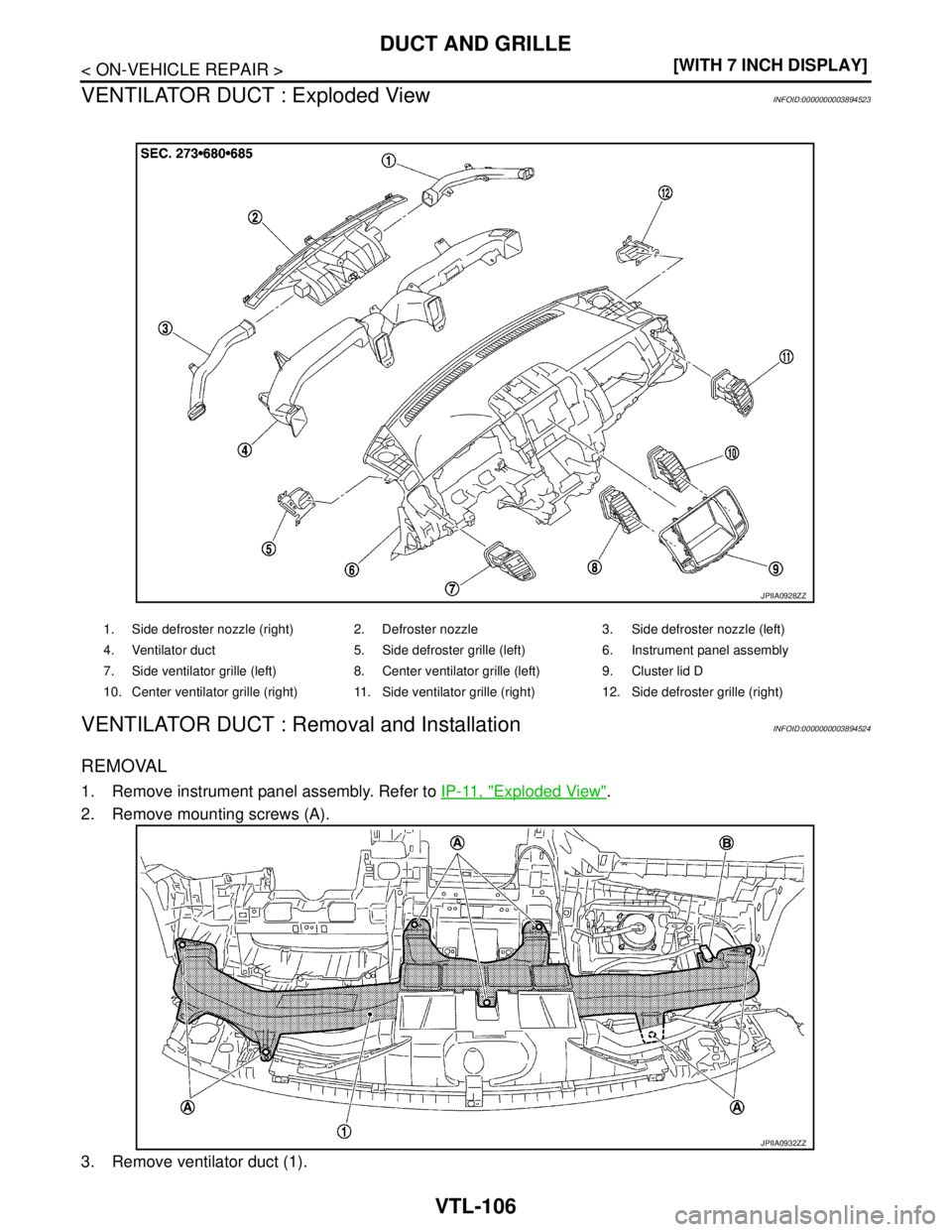

VENTILATOR DUCT : Exploded View
INFOID:0000000003894523
VENTILATOR DUCT : Removal and InstallationINFOID:0000000003894524
REMOVAL
1. Remove instrument panel assembly. Refer to IP-11, "Exploded View".
2. Remove mounting screws (A).
3. Remove ventilator duct (1).
1. Side defroster nozzle (right) 2. Defroster nozzle 3. Side defroster nozzle (left)
4. Ventilator duct 5. Side defroster grille (left) 6. Instrument panel assembly
7. Side ventilator grille (left) 8. Center ventilator grille (left) 9. Cluster lid D
10. Center ventilator grille (right) 11. Side ventilator grille (right) 12. Side defroster grille (right)
JPIIA0928ZZ
JPIIA0932ZZ

DUCT AND GRILLE
VTL-107
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
INSTALLATION
Installation is basically the reverse order of removal.
SIDE DEFROSTER NOZZLE

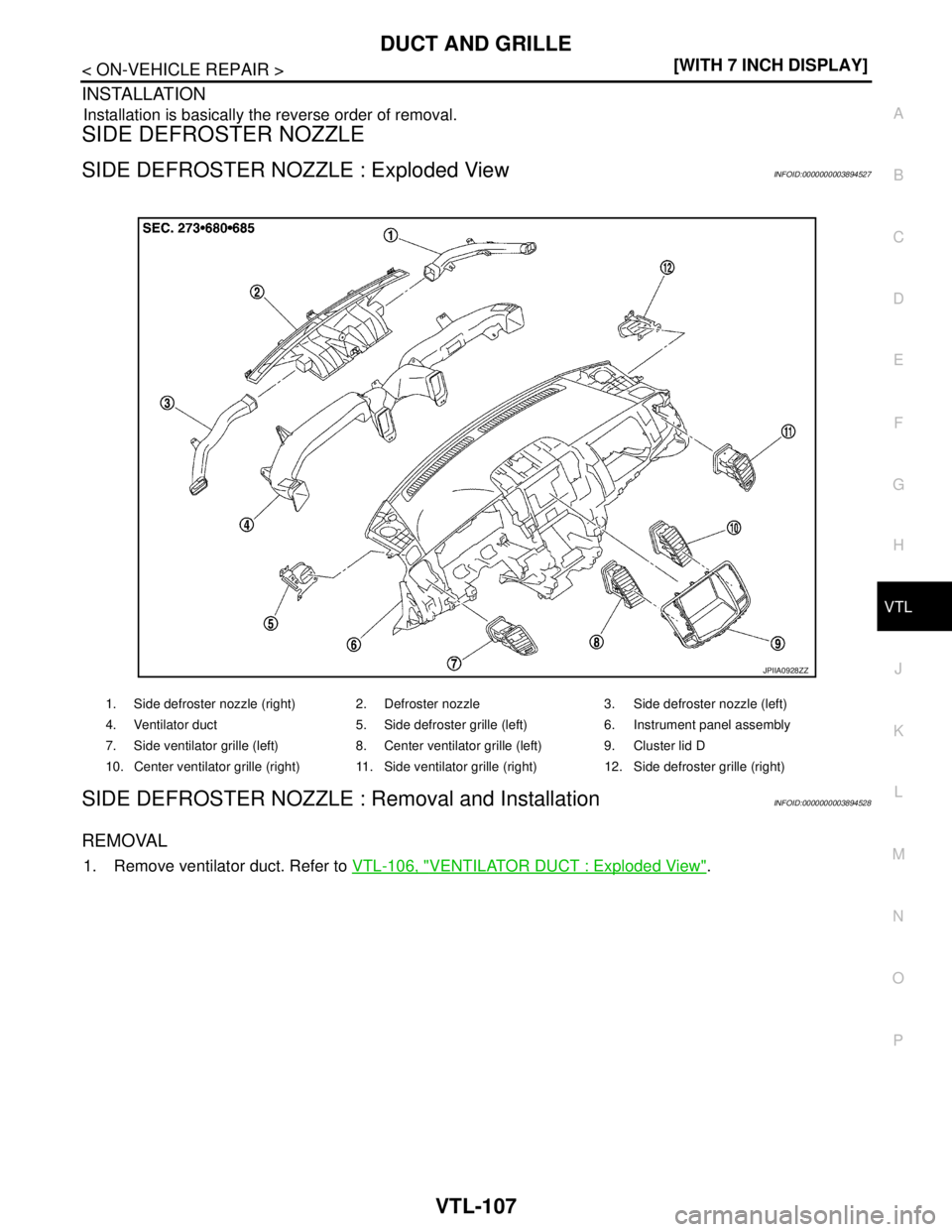

SIDE DEFROSTER NOZZLE : Exploded ViewINFOID:0000000003894527
SIDE DEFROSTER NOZZLE : Removal and InstallationINFOID:0000000003894528
REMOVAL
1. Remove ventilator duct. Refer to VTL-106, "VENTILATOR DUCT : Exploded View".
1. Side defroster nozzle (right) 2. Defroster nozzle 3. Side defroster nozzle (left)
4. Ventilator duct 5. Side defroster grille (left) 6. Instrument panel assembly
7. Side ventilator grille (left) 8. Center ventilator grille (left) 9. Cluster lid D
10. Center ventilator grille (right) 11. Side ventilator grille (right) 12. Side defroster grille (right)
JPIIA0928ZZ

VTL-108
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
DUCT AND GRILLE
2. Remove mounting screws (A), and then remove side defroster nozzle (left) (1).
3. Remove mounting screw (B) and harness clip (C), and then remove side defroster nozzle (right) (2).
INSTALLATION
Installation is basically the reverse order of removal.
DEFROSTER NOZZLE
DEFROSTER NOZZLE : Exploded ViewINFOID:0000000003894529
JPIIA0933ZZ
1. Side defroster nozzle (right) 2. Defroster nozzle 3. Side defroster nozzle (left)
4. Ventilator duct 5. Side defroster grille (left) 6. Instrument panel assembly
7. Side ventilator grille (left) 8. Center ventilator grille (left) 9. Cluster lid D
10. Center ventilator grille (right) 11. Side ventilator grille (right) 12. Side defroster grille (right)
JPIIA0928ZZ

DUCT AND GRILLE
VTL-109
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P

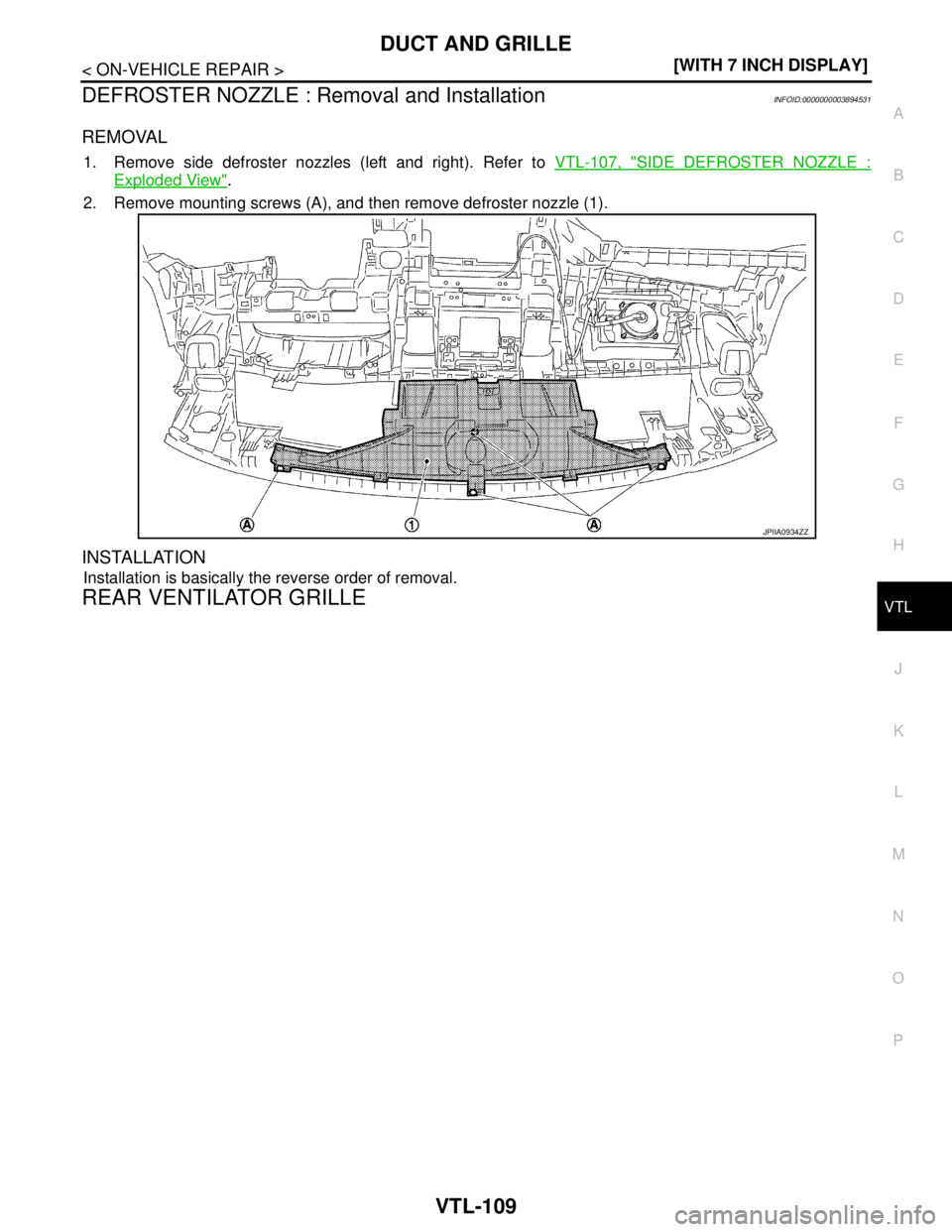

DEFROSTER NOZZLE : Removal and InstallationINFOID:0000000003894531
REMOVAL
1. Remove side defroster nozzles (left and right). Refer to VTL-107, "SIDE DEFROSTER NOZZLE :
Exploded View".
2. Remove mounting screws (A), and then remove defroster nozzle (1).
INSTALLATION
Installation is basically the reverse order of removal.
REAR VENTILATOR GRILLE
JPIIA0934ZZ
