NISSAN TEANA 2008 Service Manual

VTL-80
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]

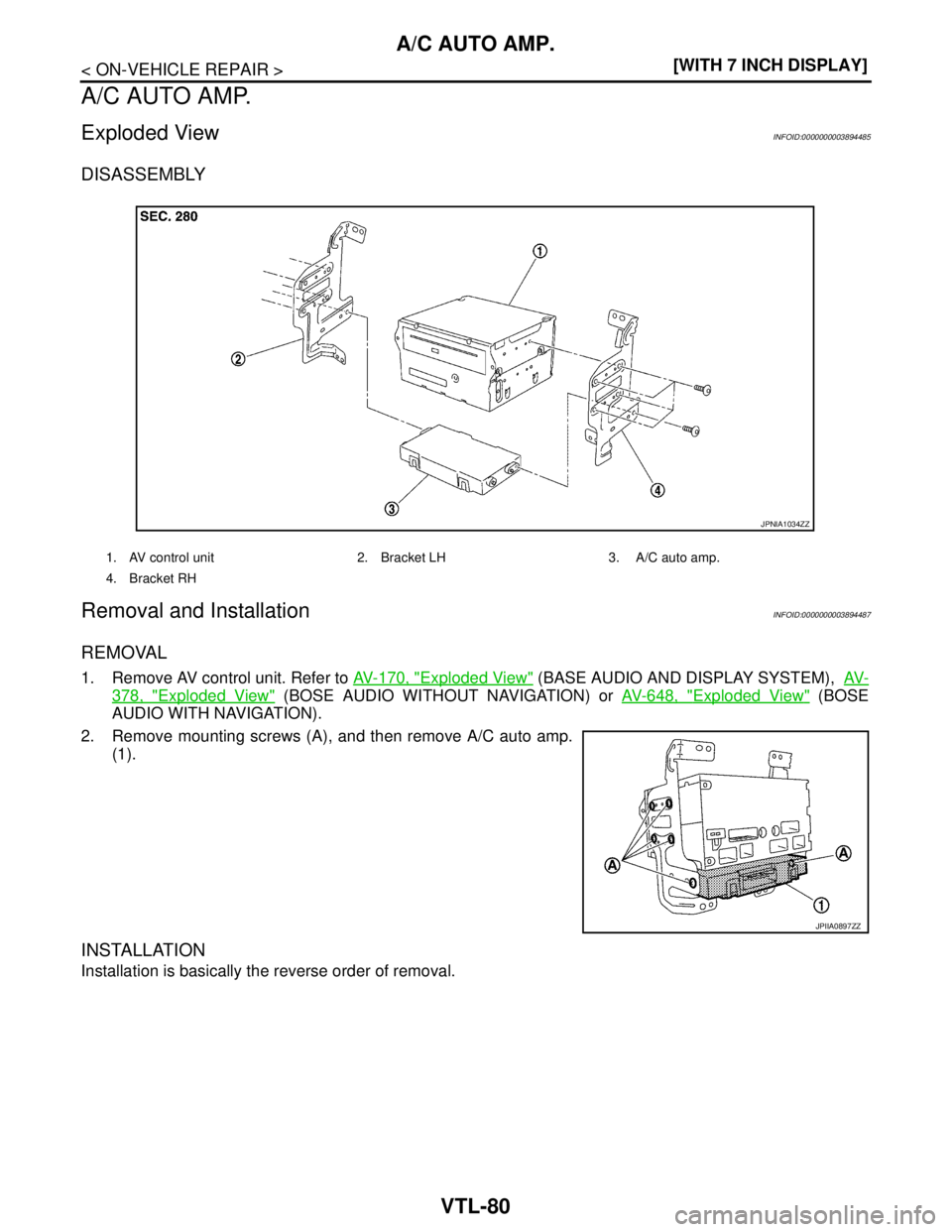

A/C AUTO AMP.
A/C AUTO AMP.
Exploded ViewINFOID:0000000003894485
DISASSEMBLY
Removal and InstallationINFOID:0000000003894487
REMOVAL
1. Remove AV control unit. Refer to AV-170, "Exploded View" (BASE AUDIO AND DISPLAY SYSTEM), AV-
378, "Exploded View" (BOSE AUDIO WITHOUT NAVIGATION) or AV-648, "Exploded View" (BOSE
AUDIO WITH NAVIGATION).
2. Remove mounting screws (A), and then remove A/C auto amp.
(1).
INSTALLATION
Installation is basically the reverse order of removal.
1. AV control unit 2. Bracket LH 3. A/C auto amp.
4. Bracket RH
JPNIA1034ZZ
JPIIA0897ZZ

AMBIENT SENSOR
VTL-81
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P

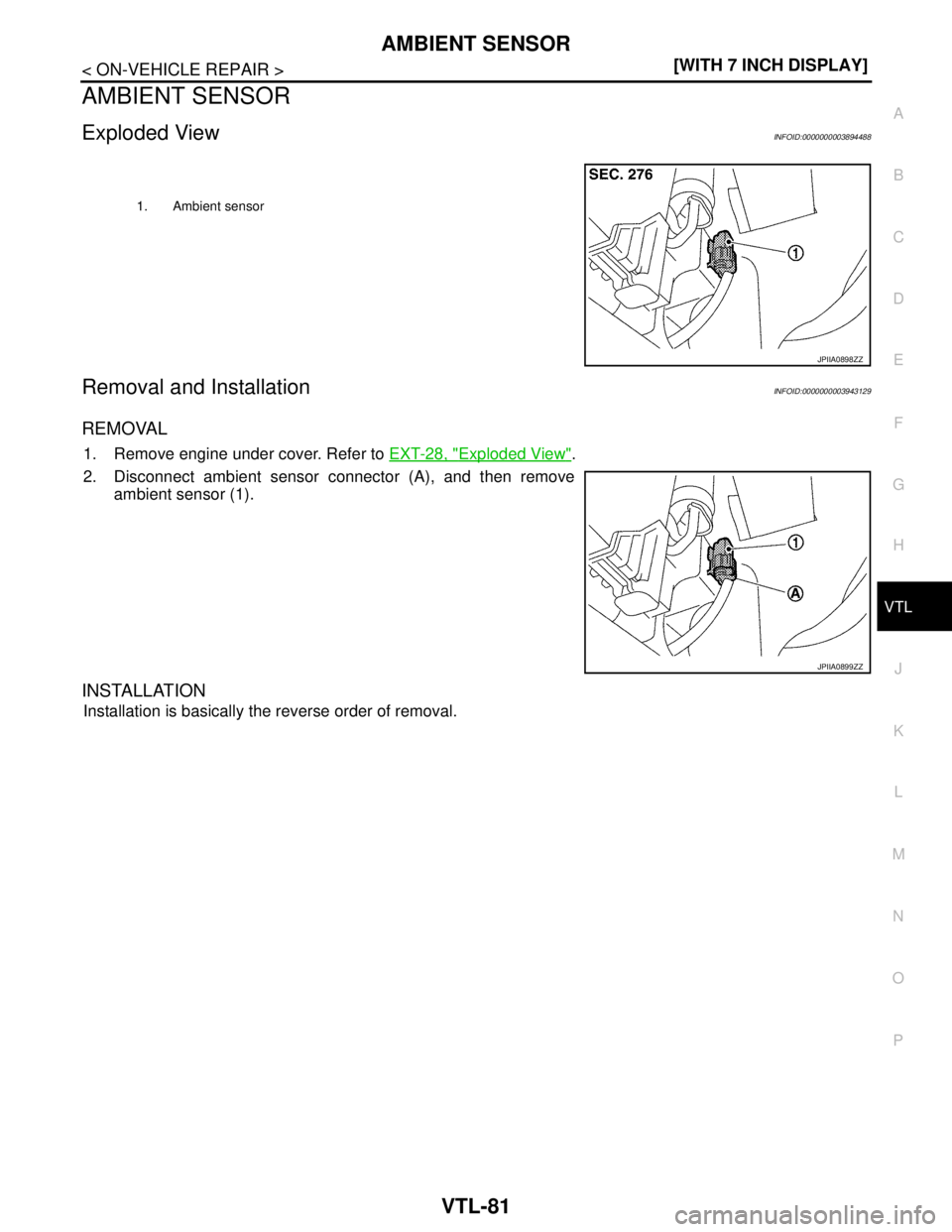

AMBIENT SENSOR
Exploded ViewINFOID:0000000003894488
Removal and InstallationINFOID:0000000003943129
REMOVAL
1. Remove engine under cover. Refer to EXT-28, "Exploded View".
2. Disconnect ambient sensor connector (A), and then remove
ambient sensor (1).
INSTALLATION
Installation is basically the reverse order of removal.
1. Ambient sensor
JPIIA0898ZZ
JPIIA0899ZZ

VTL-82
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]

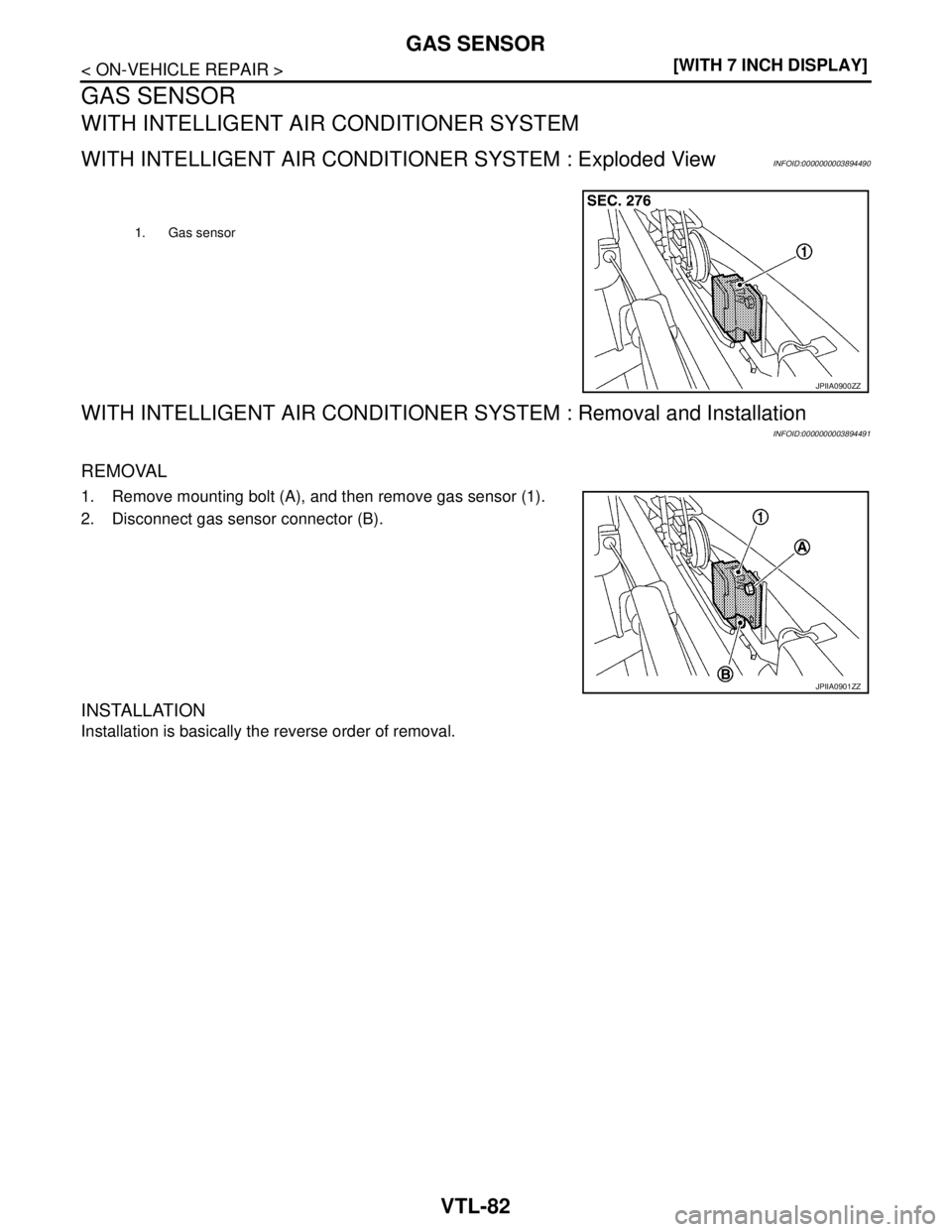

GAS SENSOR
GAS SENSOR
WITH INTELLIGENT AIR CONDITIONER SYSTEM
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Exploded ViewINFOID:0000000003894490
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Removal and Installation
INFOID:0000000003894491
REMOVAL
1. Remove mounting bolt (A), and then remove gas sensor (1).
2. Disconnect gas sensor connector (B).
INSTALLATION
Installation is basically the reverse order of removal.
1. Gas sensor
JPIIA0900ZZ
JPIIA0901ZZ

IN-VEHICLE SENSOR
VTL-83
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P

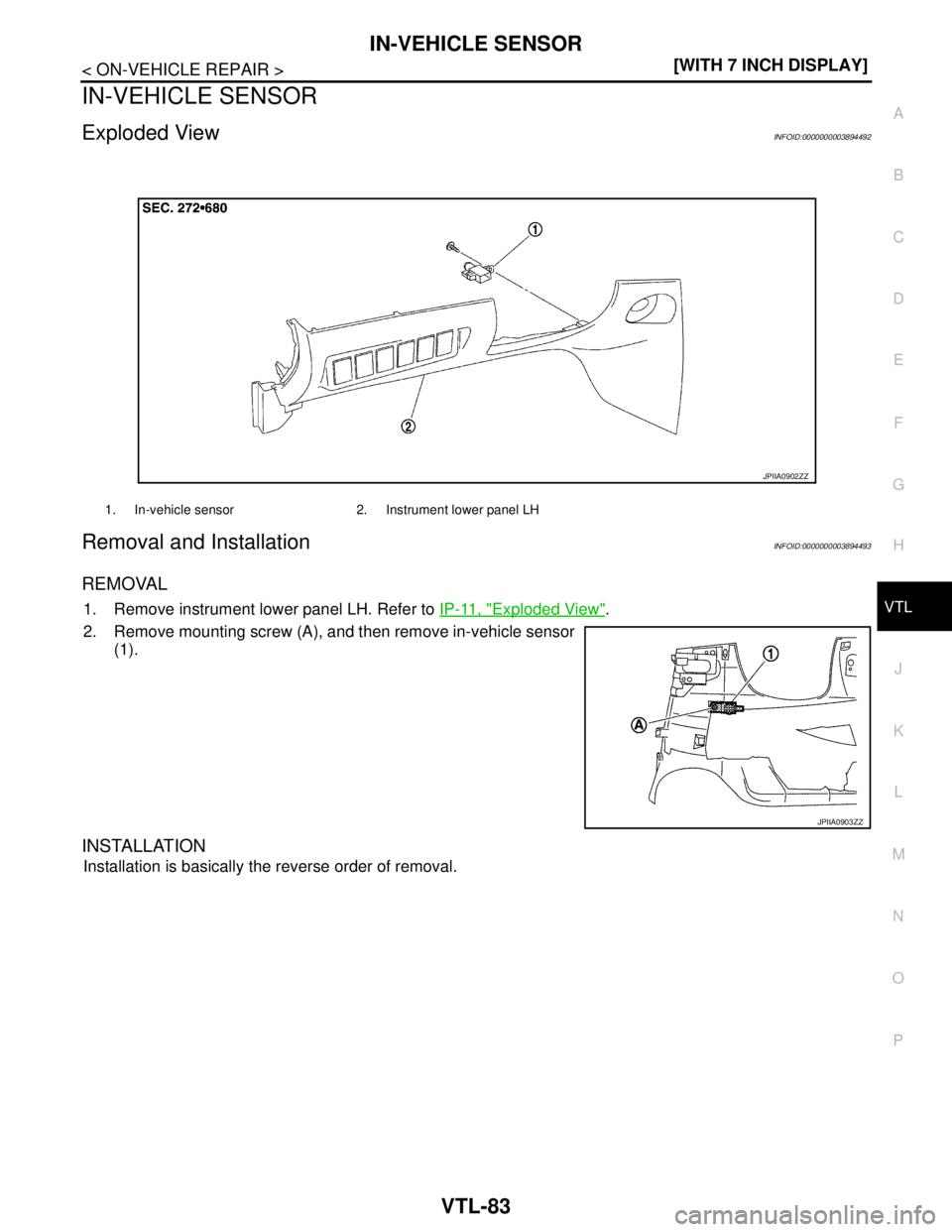

IN-VEHICLE SENSOR
Exploded ViewINFOID:0000000003894492
Removal and InstallationINFOID:0000000003894493
REMOVAL
1. Remove instrument lower panel LH. Refer to IP-11, "Exploded View".
2. Remove mounting screw (A), and then remove in-vehicle sensor
(1).
INSTALLATION
Installation is basically the reverse order of removal.
1. In-vehicle sensor 2. Instrument lower panel LH
JPIIA0902ZZ
JPIIA0903ZZ

VTL-84
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]

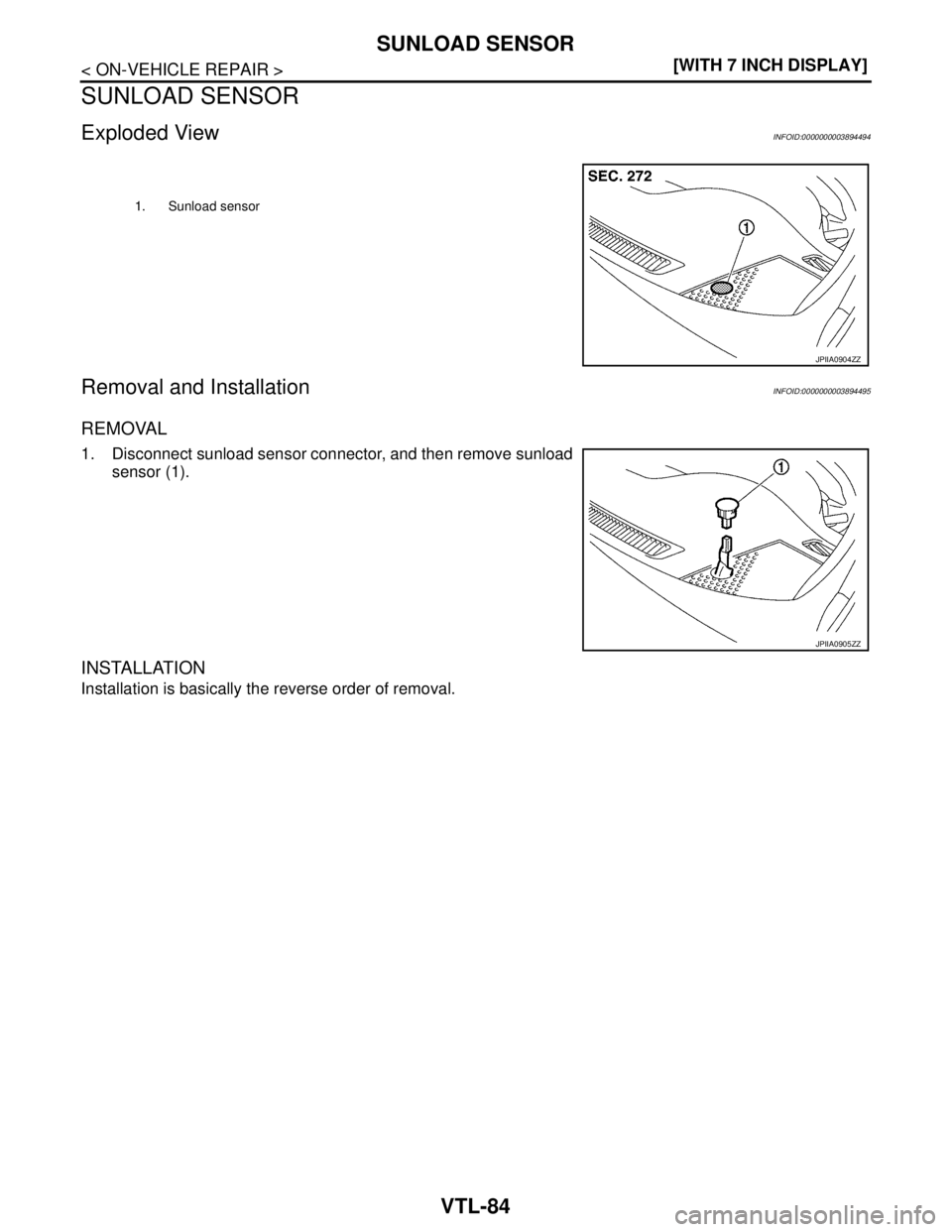

SUNLOAD SENSOR
SUNLOAD SENSOR
Exploded ViewINFOID:0000000003894494
Removal and InstallationINFOID:0000000003894495
REMOVAL
1. Disconnect sunload sensor connector, and then remove sunload
sensor (1).
INSTALLATION
Installation is basically the reverse order of removal.
1. Sunload sensor
JPIIA0904ZZ
JPIIA0905ZZ

INTAKE SENSOR
VTL-85
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P

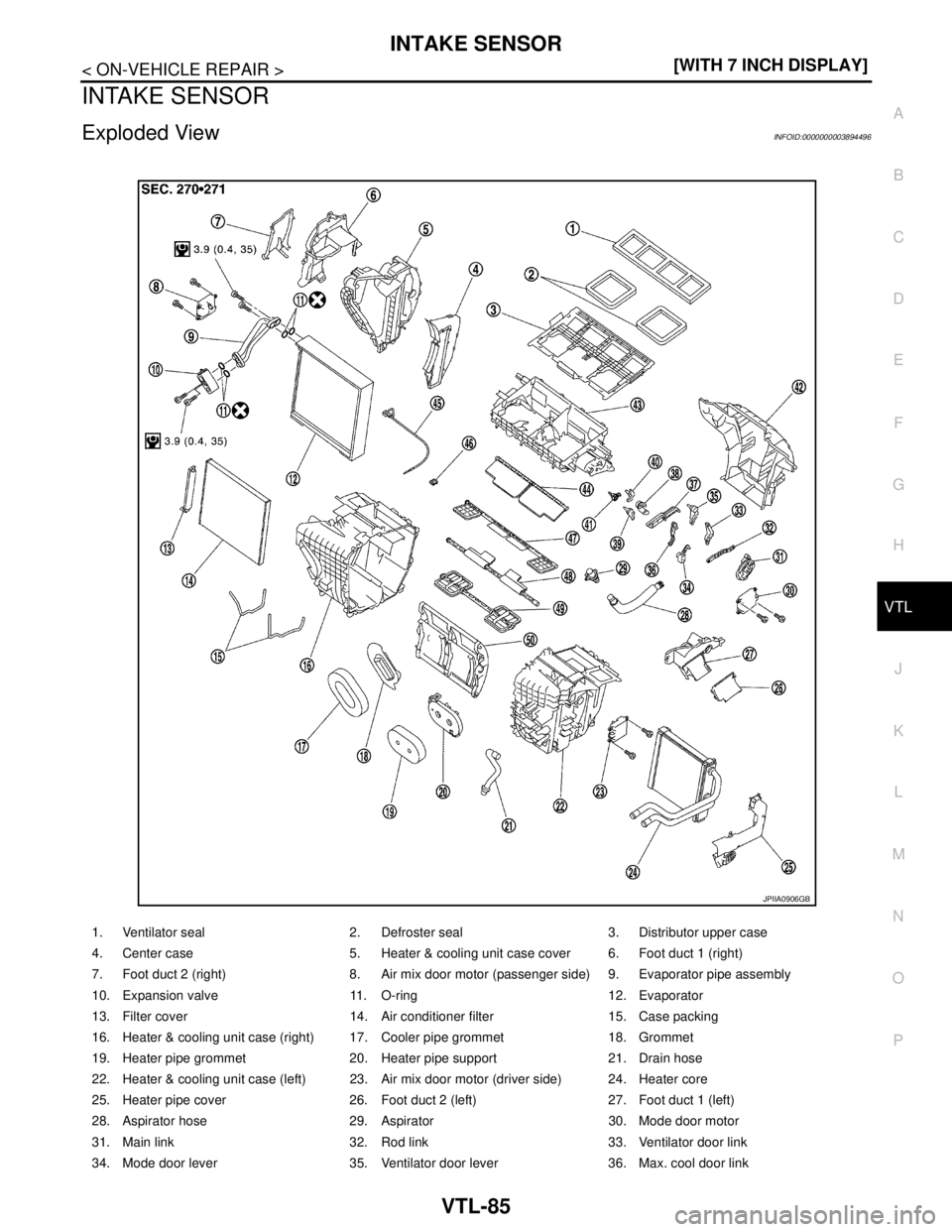

INTAKE SENSOR
Exploded ViewINFOID:0000000003894496
1. Ventilator seal 2. Defroster seal 3. Distributor upper case
4. Center case 5. Heater & cooling unit case cover 6. Foot duct 1 (right)
7. Foot duct 2 (right) 8. Air mix door motor (passenger side) 9. Evaporator pipe assembly
10. Expansion valve 11. O-ring 12. Evaporator
13. Filter cover 14. Air conditioner filter 15. Case packing
16. Heater & cooling unit case (right) 17. Cooler pipe grommet 18. Grommet
19. Heater pipe grommet 20. Heater pipe support 21. Drain hose
22. Heater & cooling unit case (left) 23. Air mix door motor (driver side) 24. Heater core
25. Heater pipe cover 26. Foot duct 2 (left) 27. Foot duct 1 (left)
28. Aspirator hose 29. Aspirator 30. Mode door motor
31. Main link 32. Rod link 33. Ventilator door link
34. Mode door lever 35. Ventilator door lever 36. Max. cool door link
JPIIA0906GB

VTL-86
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]

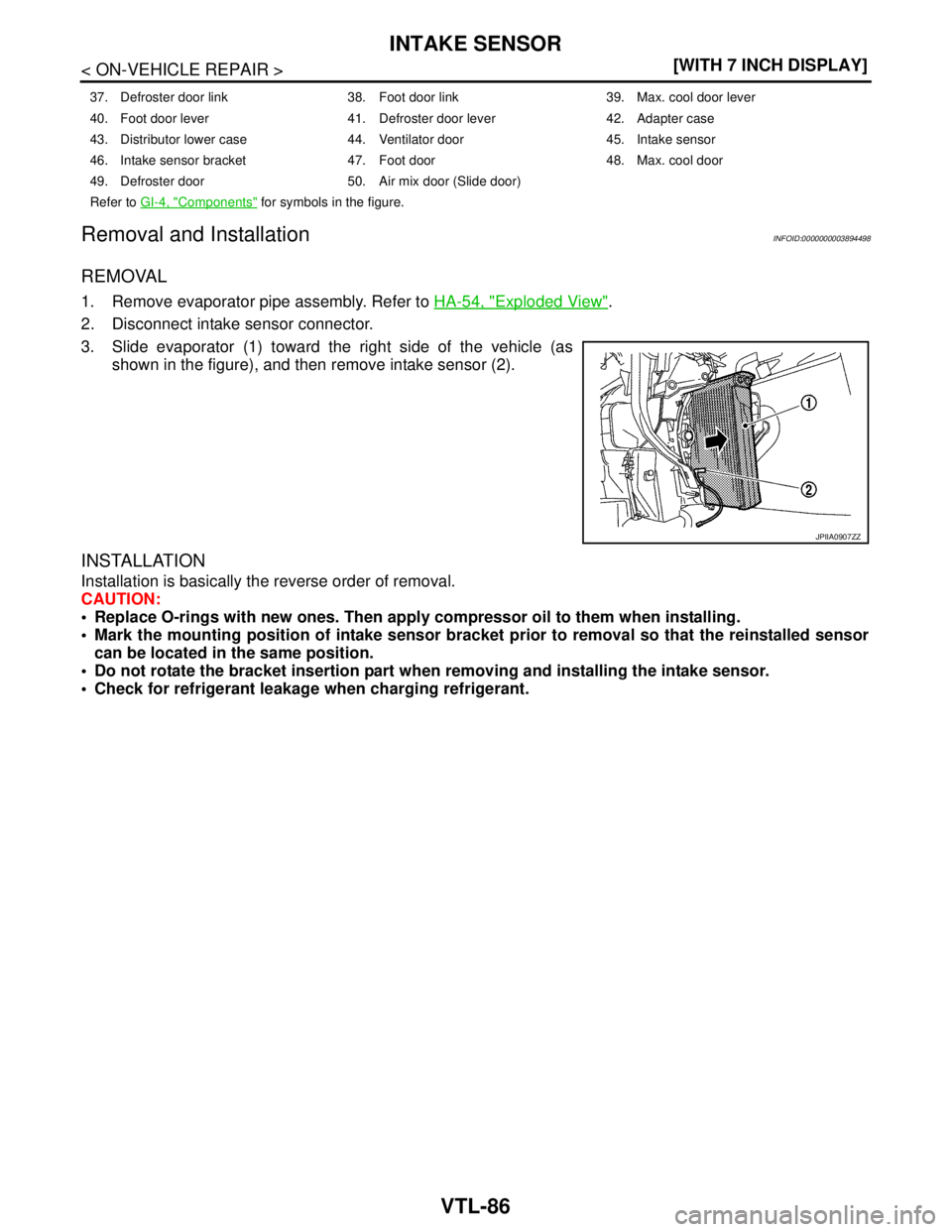

INTAKE SENSOR
Removal and Installation
INFOID:0000000003894498
REMOVAL
1. Remove evaporator pipe assembly. Refer to HA-54, "Exploded View".
2. Disconnect intake sensor connector.
3. Slide evaporator (1) toward the right side of the vehicle (as
shown in the figure), and then remove intake sensor (2).
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION:
 Replace O-rings with new ones. Then apply compressor oil to them when installing.
 Mark the mounting position of intake sensor bracket prior to removal so that the reinstalled sensor
can be located in the same position.
 Do not rotate the bracket insertion part when removing and installing the intake sensor.
 Check for refrigerant leakage when charging refrigerant.
37. Defroster door link 38. Foot door link 39. Max. cool door lever
40. Foot door lever 41. Defroster door lever 42. Adapter case
43. Distributor lower case 44. Ventilator door 45. Intake sensor
46. Intake sensor bracket 47. Foot door 48. Max. cool door
49. Defroster door 50. Air mix door (Slide door)
Refer to GI-4, "
Components" for symbols in the figure.
JPIIA0907ZZ

BLOWER UNIT
VTL-87
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P

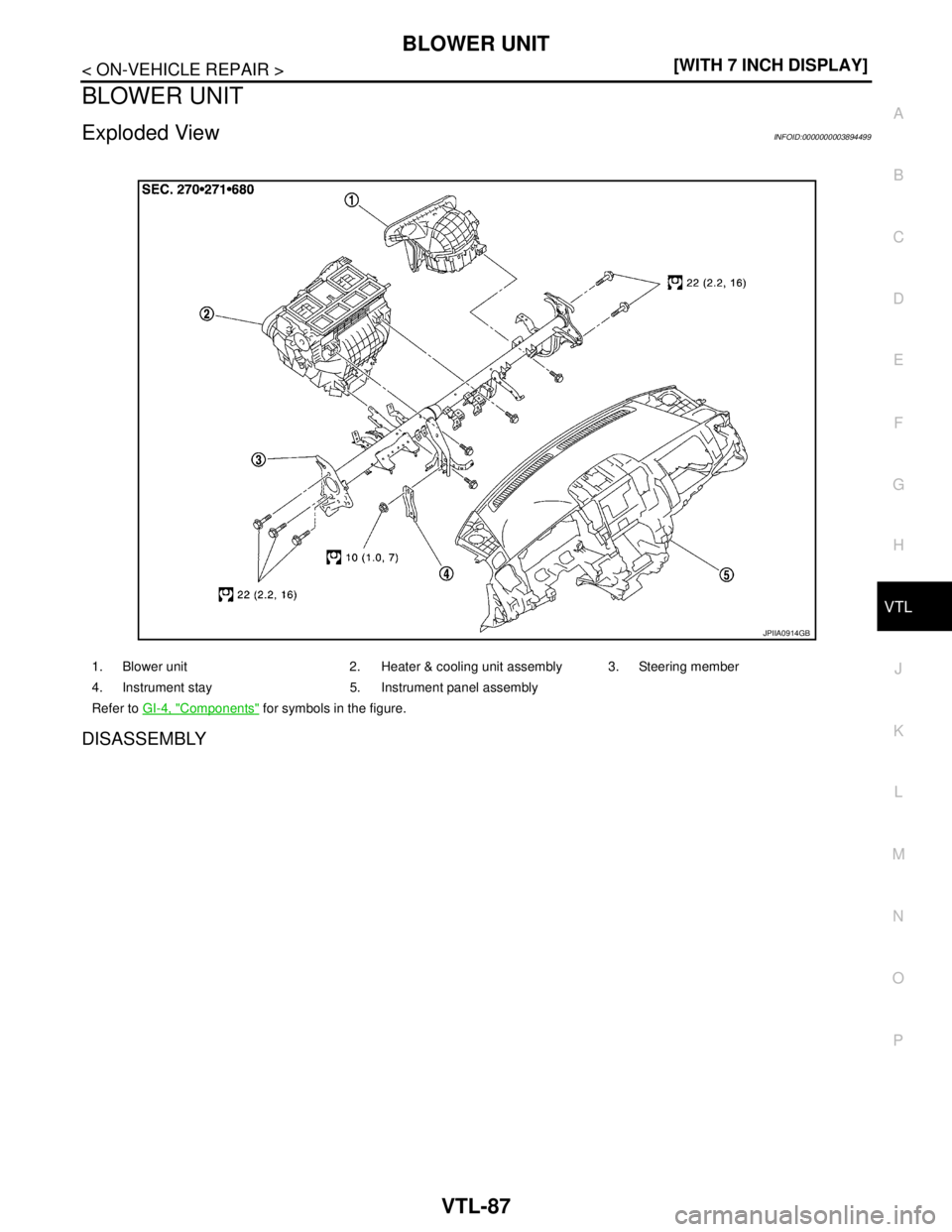

BLOWER UNIT
Exploded ViewINFOID:0000000003894499
DISASSEMBLY
1. Blower unit 2. Heater & cooling unit assembly 3. Steering member
4. Instrument stay 5. Instrument panel assembly
Refer to GI-4, "
Components" for symbols in the figure.
JPIIA0914GB

VTL-88
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
BLOWER UNIT

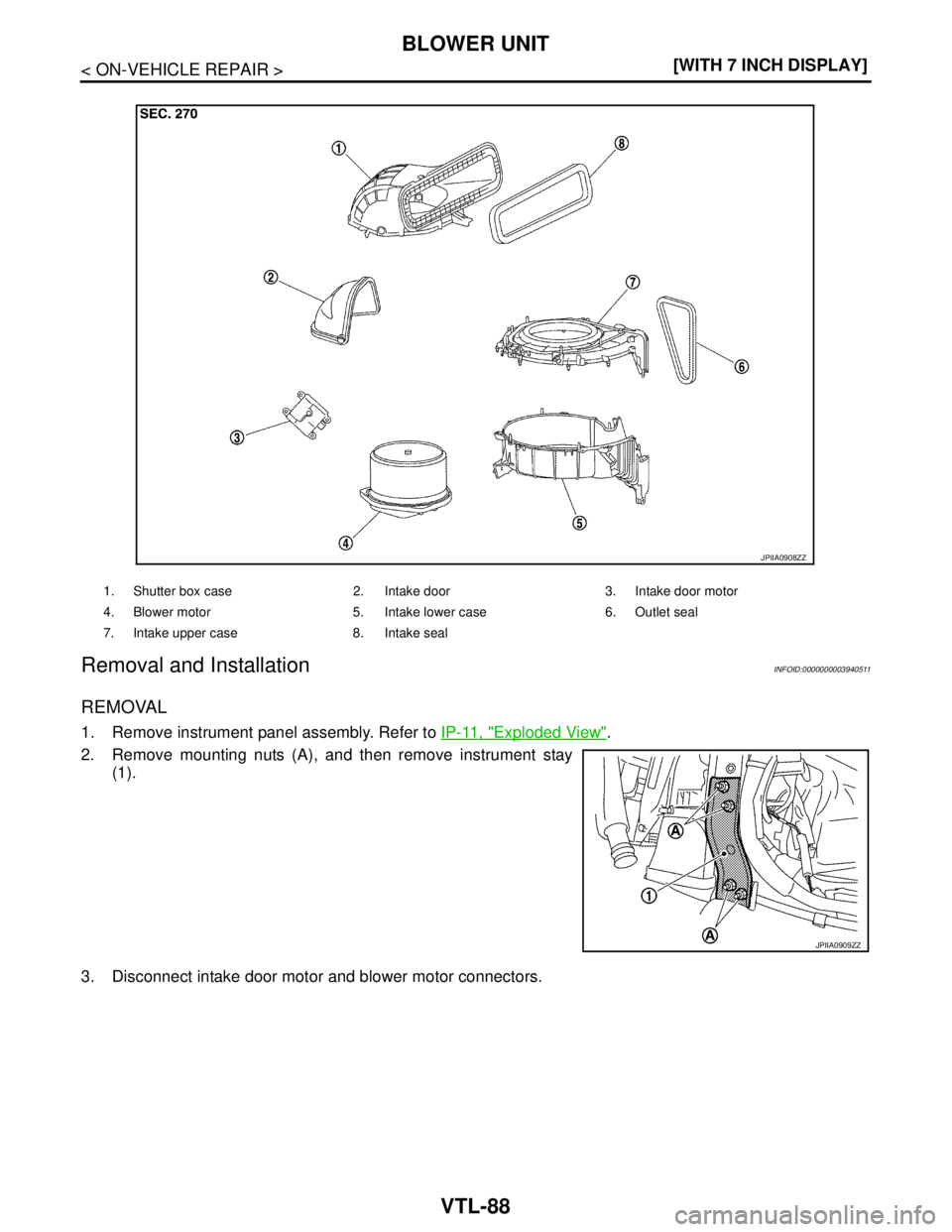

Removal and Installation
INFOID:0000000003940511
REMOVAL
1. Remove instrument panel assembly. Refer to IP-11, "Exploded View".
2. Remove mounting nuts (A), and then remove instrument stay
(1).
3. Disconnect intake door motor and blower motor connectors.
1. Shutter box case 2. Intake door 3. Intake door motor
4. Blower motor 5. Intake lower case 6. Outlet seal
7. Intake upper case 8. Intake seal
JPIIA0908ZZ
JPIIA0909ZZ

BLOWER UNIT
VTL-89
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P

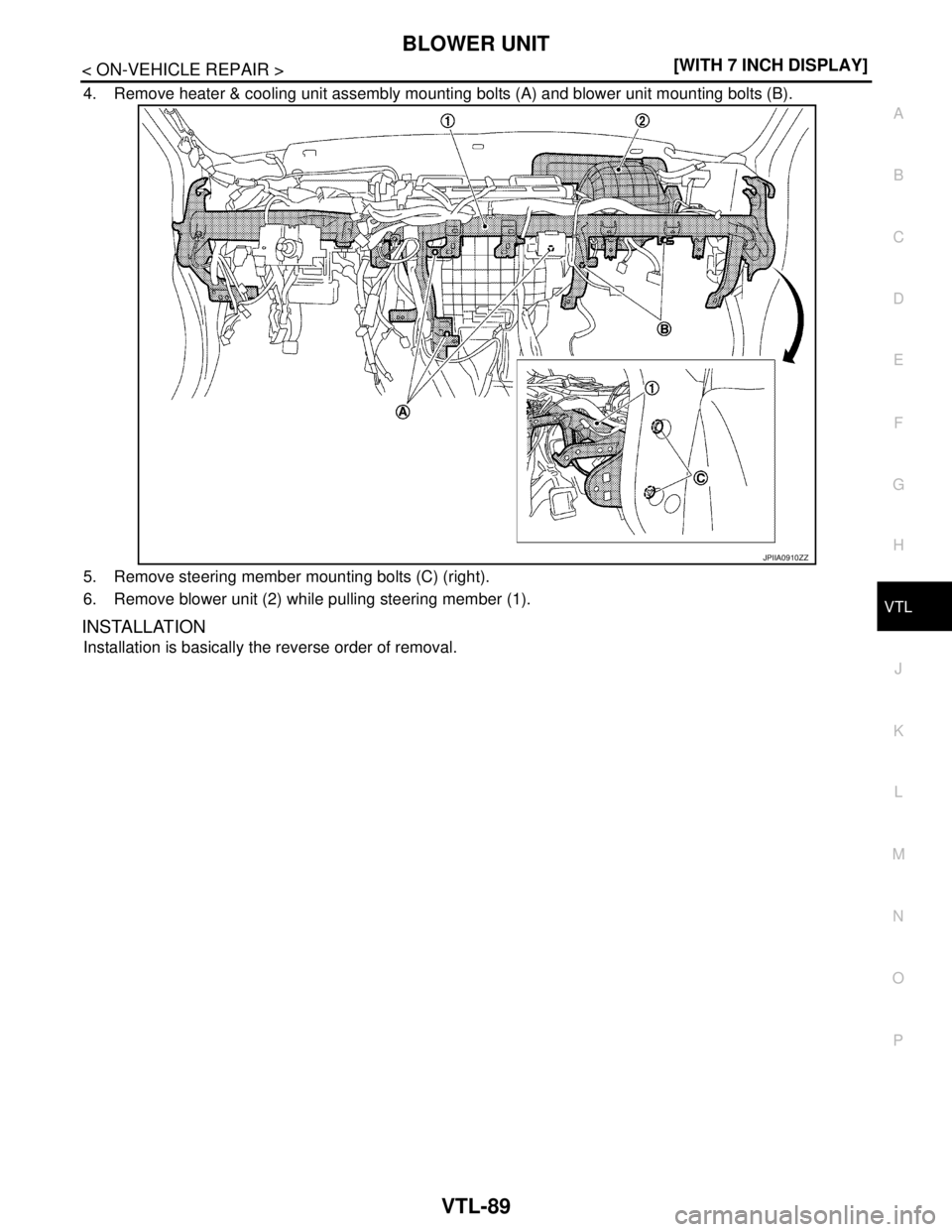

4. Remove heater & cooling unit assembly mounting bolts (A) and blower unit mounting bolts (B).
5. Remove steering member mounting bolts (C) (right).
6. Remove blower unit (2) while pulling steering member (1).
INSTALLATION
Installation is basically the reverse order of removal.
JPIIA0910ZZ
