VTL-90
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
BLOWER MOTOR
BLOWER MOTOR
Exploded ViewINFOID:0000000003894501
Removal and InstallationINFOID:0000000003894502
REMOVAL
1. Remove globe box assembly. Refer to IP-11, "Exploded View".
2. Disconnect blower motor connector.
3. Remove mounting screws (A), and then remove blower motor
(1).
INSTALLATION
Installation is basically the reverse order of removal.
1. Shutter box case 2. Intake door 3. Intake door motor
4. Blower motor 5. Intake lower case 6. Outlet seal
7. Intake upper case 8. Intake seal
JPIIA0908ZZ
JPIIA0911ZZ
Page 4902 of 5121
INTAKE DOOR MOTOR
VTL-91
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
INTAKE DOOR MOTOR
Exploded ViewINFOID:0000000003894503
Removal and InstallationINFOID:0000000003894504
REMOVAL
1. Remove globe box assembly. Refer to IP-11, "Exploded View".
2. Remove mounting screw (A), and then move remote keyless
entry receiver (1) to a position where it does not inhibit work.
1. Shutter box case 2. Intake door 3. Intake door motor
4. Blower motor 5. Intake lower case 6. Outlet seal
7. Intake upper case 8. Intake seal
JPIIA0908ZZ
JPIIA0912ZZ
Page 4903 of 5121
VTL-92
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
INTAKE DOOR MOTOR
3. Remove mounting screw (A), and then remove intake door
motor (1).
4. Disconnect intake door motor connector.
INSTALLATION
Installation is basically the reverse order of removal.
JPIIA0913ZZ
Page 4904 of 5121
HEATER & COOLING UNIT ASSEMBLY
VTL-93
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
HEATER & COOLING UNIT ASSEMBLY
Exploded ViewINFOID:0000000003894505
DISASSEMBLY

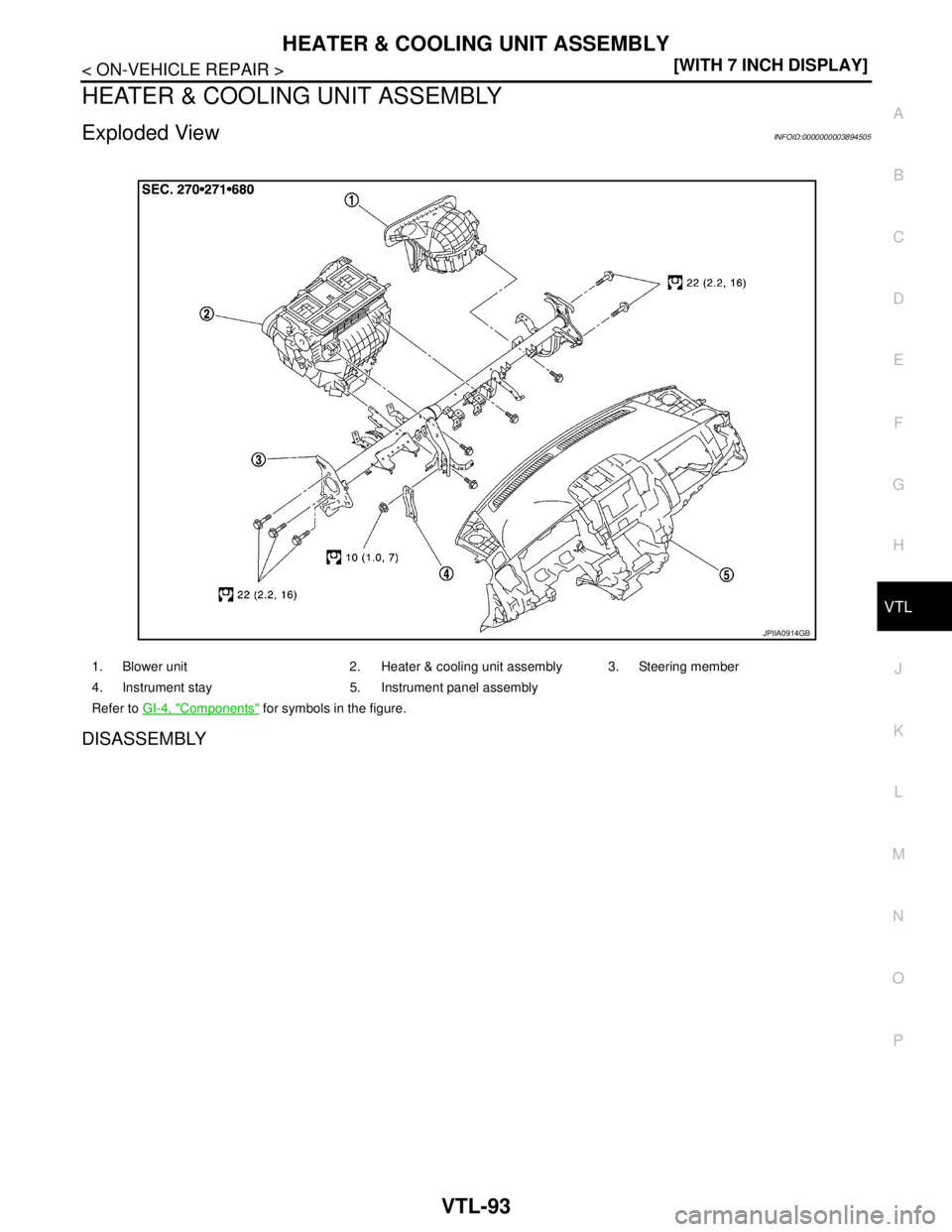

1. Blower unit 2. Heater & cooling unit assembly 3. Steering member
4. Instrument stay 5. Instrument panel assembly
Refer to GI-4, "
Components" for symbols in the figure.
JPIIA0914GB
Page 4905 of 5121
![NISSAN TEANA 2008 Service Manual VTL-94
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
HEATER & COOLING UNIT ASSEMBLY
1. Ventilator seal 2. Defroster seal 3. Distributor upper case
4. Center case 5. Heater & cooling unit case cover 6. Fo NISSAN TEANA 2008 Service Manual VTL-94
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
HEATER & COOLING UNIT ASSEMBLY
1. Ventilator seal 2. Defroster seal 3. Distributor upper case
4. Center case 5. Heater & cooling unit case cover 6. Fo](/img/5/57391/w960_57391-4904.png)
VTL-94
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
HEATER & COOLING UNIT ASSEMBLY

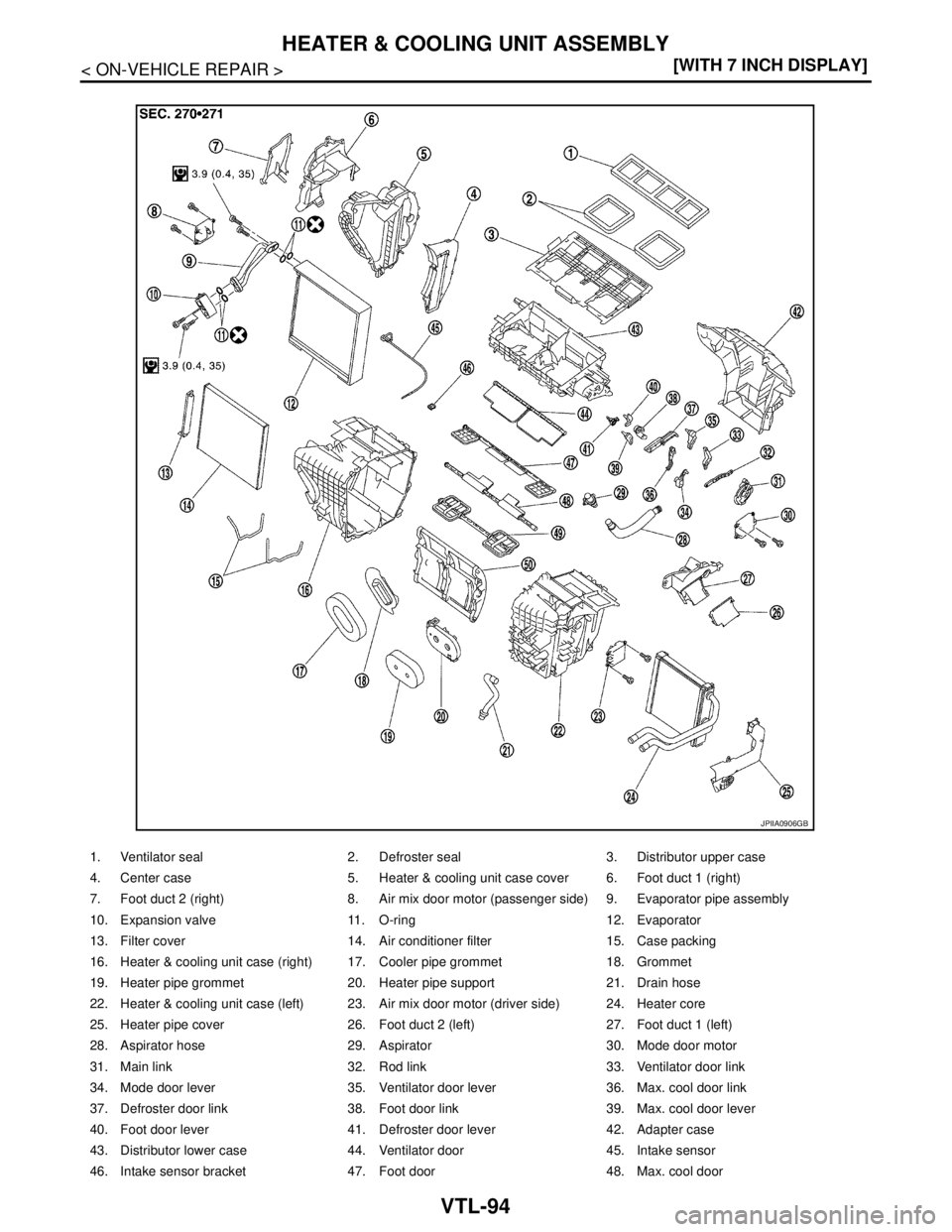

1. Ventilator seal 2. Defroster seal 3. Distributor upper case
4. Center case 5. Heater & cooling unit case cover 6. Foot duct 1 (right)
7. Foot duct 2 (right) 8. Air mix door motor (passenger side) 9. Evaporator pipe assembly
10. Expansion valve 11. O-ring 12. Evaporator
13. Filter cover 14. Air conditioner filter 15. Case packing
16. Heater & cooling unit case (right) 17. Cooler pipe grommet 18. Grommet
19. Heater pipe grommet 20. Heater pipe support 21. Drain hose
22. Heater & cooling unit case (left) 23. Air mix door motor (driver side) 24. Heater core
25. Heater pipe cover 26. Foot duct 2 (left) 27. Foot duct 1 (left)
28. Aspirator hose 29. Aspirator 30. Mode door motor
31. Main link 32. Rod link 33. Ventilator door link
34. Mode door lever 35. Ventilator door lever 36. Max. cool door link
37. Defroster door link 38. Foot door link 39. Max. cool door lever
40. Foot door lever 41. Defroster door lever 42. Adapter case
43. Distributor lower case 44. Ventilator door 45. Intake sensor
46. Intake sensor bracket 47. Foot door 48. Max. cool door
JPIIA0906GB
Page 4906 of 5121
![NISSAN TEANA 2008 Service Manual HEATER & COOLING UNIT ASSEMBLY
VTL-95
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
Removal and InstallationINFOID:0000000003940515
REMOVAL
1. Collect the refrigerant wit NISSAN TEANA 2008 Service Manual HEATER & COOLING UNIT ASSEMBLY
VTL-95
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
Removal and InstallationINFOID:0000000003940515
REMOVAL
1. Collect the refrigerant wit](/img/5/57391/w960_57391-4905.png)
HEATER & COOLING UNIT ASSEMBLY
VTL-95
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
Removal and InstallationINFOID:0000000003940515
REMOVAL
1. Collect the refrigerant with refrigerant collecting equipment (for HFC134a).
2. Drain engine coolant from cooling system. Refer to CO-8, "
Draining".

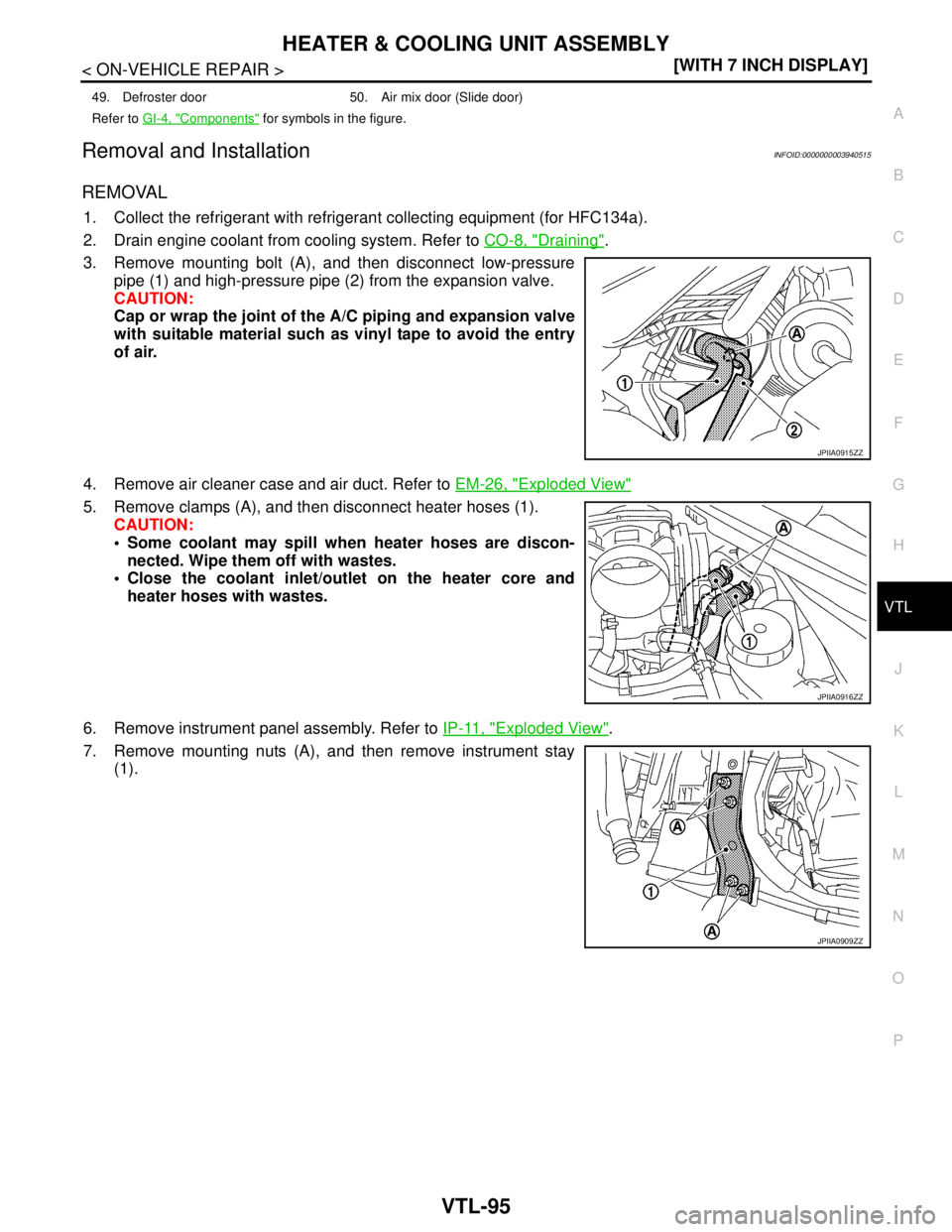

3. Remove mounting bolt (A), and then disconnect low-pressure
pipe (1) and high-pressure pipe (2) from the expansion valve.
CAUTION:
Cap or wrap the joint of the A/C piping and expansion valve
with suitable material such as vinyl tape to avoid the entry
of air.
4. Remove air cleaner case and air duct. Refer to EM-26, "
Exploded View"
5. Remove clamps (A), and then disconnect heater hoses (1).
CAUTION:
Some coolant may spill when heater hoses are discon-
nected. Wipe them off with wastes.
Close the coolant inlet/outlet on the heater core and
heater hoses with wastes.
6. Remove instrument panel assembly. Refer to IP-11, "
Exploded View".
7. Remove mounting nuts (A), and then remove instrument stay
(1).
49. Defroster door 50. Air mix door (Slide door)
Refer to GI-4, "
Components" for symbols in the figure.
JPIIA0915ZZ
JPIIA0916ZZ
JPIIA0909ZZ
Page 4907 of 5121
VTL-96
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
HEATER & COOLING UNIT ASSEMBLY
8. Remove mounting bolts (A) from heater & cooling unit assembly and blower unit.
9. Remove steering column mounting nuts (B). Refer to ST-13, "
Exploded View".
10. Remove ground bolts (C) from steering member (1).

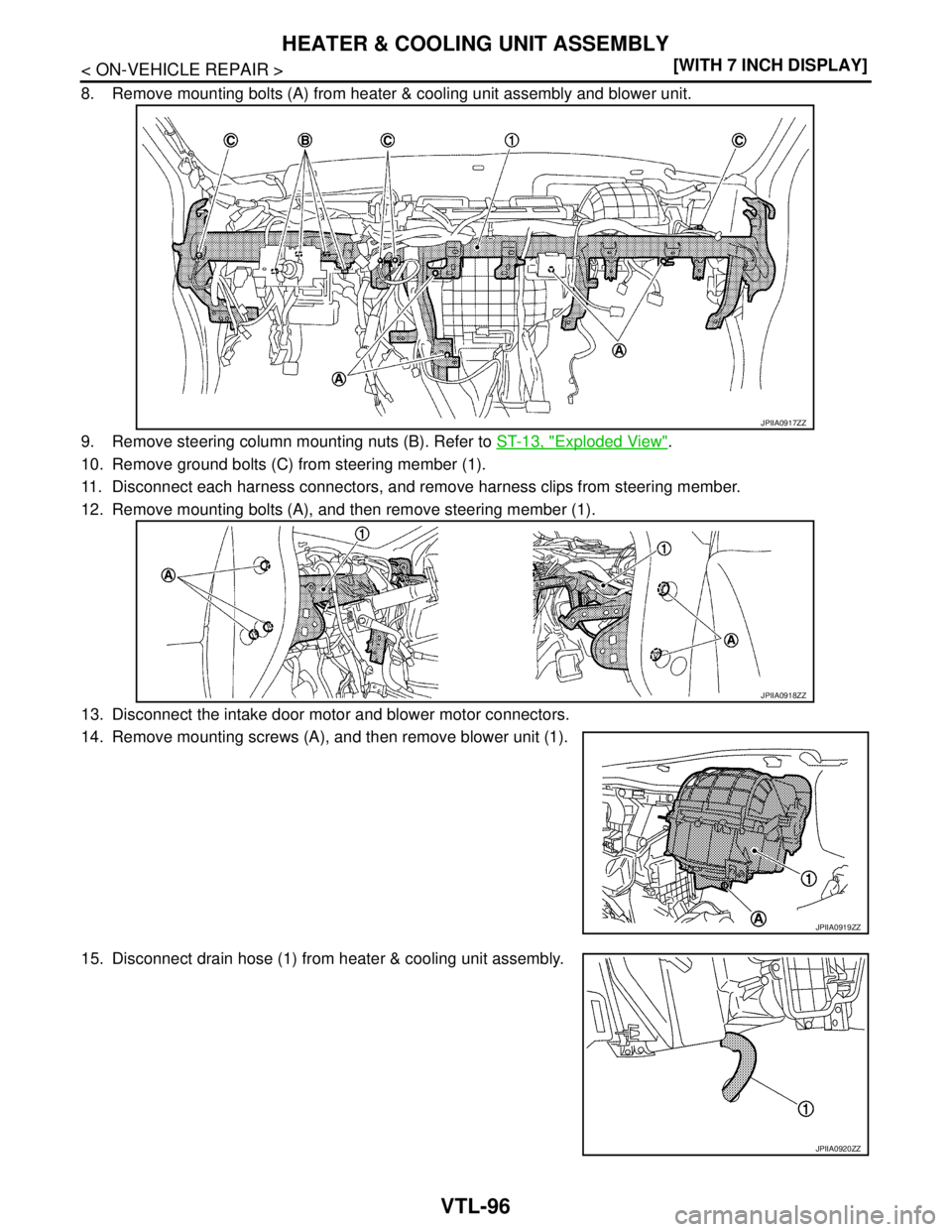

11. Disconnect each harness connectors, and remove harness clips from steering member.
12. Remove mounting bolts (A), and then remove steering member (1).
13. Disconnect the intake door motor and blower motor connectors.
14. Remove mounting screws (A), and then remove blower unit (1).
15. Disconnect drain hose (1) from heater & cooling unit assembly.
JPIIA0917ZZ
JPIIA0918ZZ
JPIIA0919ZZ
JPIIA0920ZZ
Page 4908 of 5121
HEATER & COOLING UNIT ASSEMBLY
VTL-97
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P

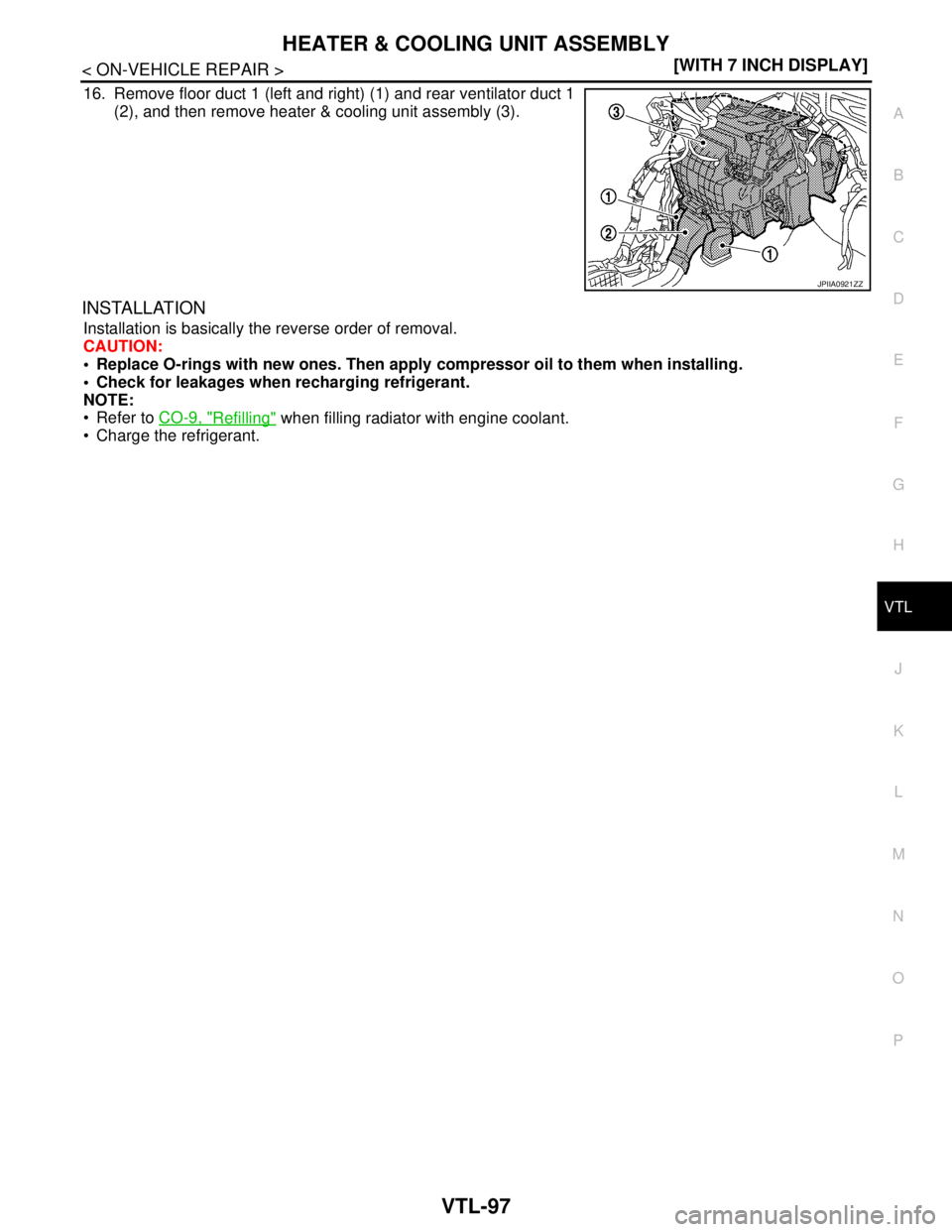

16. Remove floor duct 1 (left and right) (1) and rear ventilator duct 1
(2), and then remove heater & cooling unit assembly (3).
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION:
Replace O-rings with new ones. Then apply compressor oil to them when installing.
Check for leakages when recharging refrigerant.
NOTE:
Refer to CO-9, "
Refilling" when filling radiator with engine coolant.
Charge the refrigerant.
JPIIA0921ZZ
Page 4909 of 5121
VTL-98
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
MODE DOOR MOTOR
MODE DOOR MOTOR
Exploded ViewINFOID:0000000003894509
Removal and InstallationINFOID:0000000003894510
REMOVAL
1. Remove BCM. Refer to BCS-78, "Exploded View".
2. Remove mounting screws (A), and then remove mode door
motor (1).
3. Disconnect mode door motor connector.
INSTALLATION
Installation is basically the reverse order of removal.

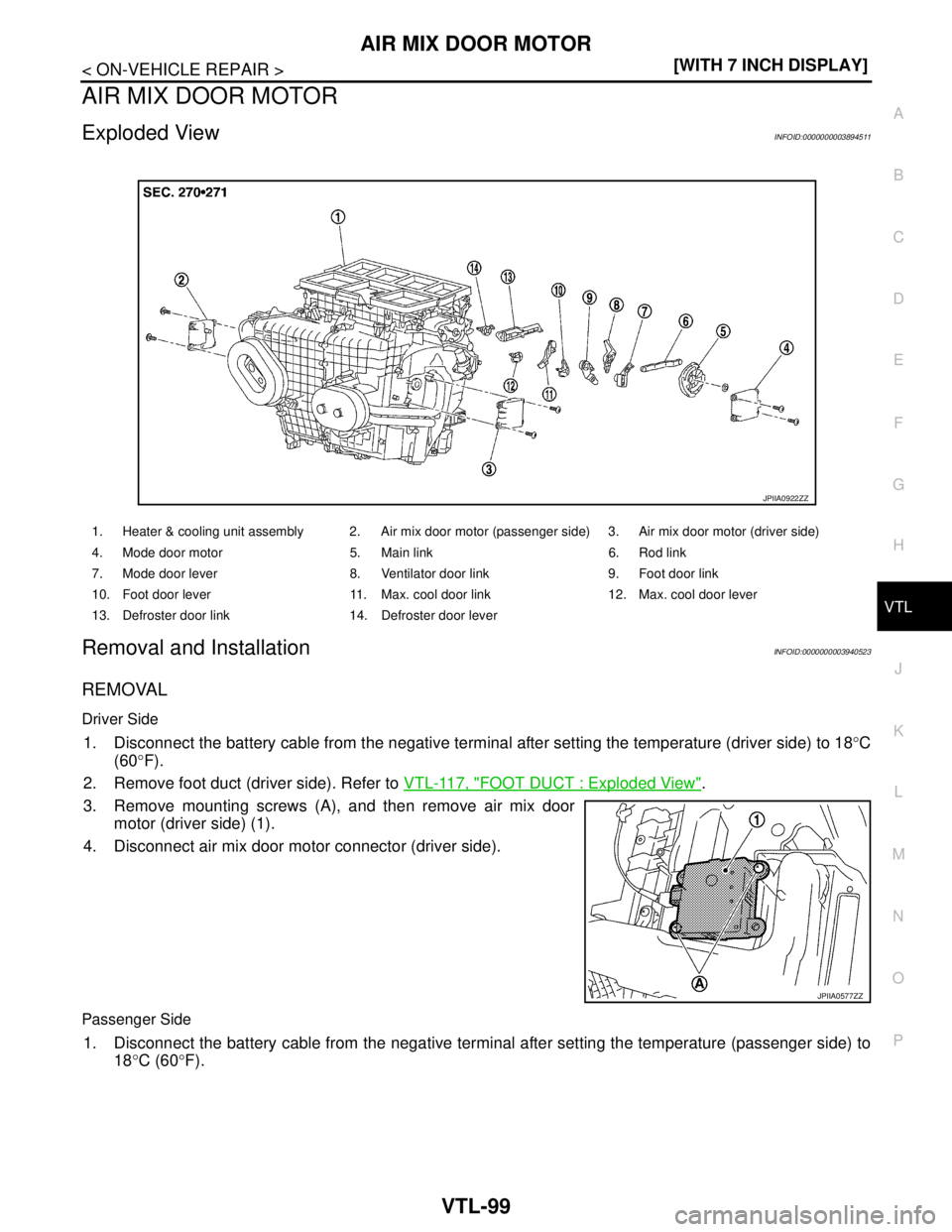

1. Heater & cooling unit assembly 2. Air mix door motor (passenger side) 3. Air mix door motor (driver side)
4. Mode door motor 5. Main link 6. Rod link
7. Mode door lever 8. Ventilator door link 9. Foot door link
10. Foot door lever 11. Max. cool door link 12. Max. cool door lever
13. Defroster door link 14. Defroster door lever
JPIIA0922ZZ
JPIIA0923ZZ
Page 4910 of 5121
![NISSAN TEANA 2008 Service Manual AIR MIX DOOR MOTOR
VTL-99
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
AIR MIX DOOR MOTOR
Exploded ViewINFOID:0000000003894511
Removal and InstallationINFOID:00000000039 NISSAN TEANA 2008 Service Manual AIR MIX DOOR MOTOR
VTL-99
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
AIR MIX DOOR MOTOR
Exploded ViewINFOID:0000000003894511
Removal and InstallationINFOID:00000000039](/img/5/57391/w960_57391-4909.png)
AIR MIX DOOR MOTOR
VTL-99
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
AIR MIX DOOR MOTOR
Exploded ViewINFOID:0000000003894511
Removal and InstallationINFOID:0000000003940523
REMOVAL
Driver Side
1. Disconnect the battery cable from the negative terminal after setting the temperature (driver side) to 18°C
(60°F).
2. Remove foot duct (driver side). Refer to VTL-117, "
FOOT DUCT : Exploded View".
3. Remove mounting screws (A), and then remove air mix door
motor (driver side) (1).
4. Disconnect air mix door motor connector (driver side).
Passenger Side
1. Disconnect the battery cable from the negative terminal after setting the temperature (passenger side) to
18°C (60°F).
1. Heater & cooling unit assembly 2. Air mix door motor (passenger side) 3. Air mix door motor (driver side)
4. Mode door motor 5. Main link 6. Rod link
7. Mode door lever 8. Ventilator door link 9. Foot door link
10. Foot door lever 11. Max. cool door link 12. Max. cool door lever
13. Defroster door link 14. Defroster door lever
JPIIA0922ZZ
JPIIA0577ZZ
