METER BUZZER CIRCUIT
DescriptionINFOID:0000000003838708
 The buzzer for warning chime system is installed in the combination meter.
 The combination meter sounds the alarm buzzer based on the signals transmitted from various units.
Component Function CheckINFOID:0000000003838709
1.CHECK OPERATION OF METER BUZZER
1. Select “BUZZER” of “BCM” on CONSULT-III.
2. Perform “LIGHT WARN ALM” of “Active Test”.
Does meter buzzer beep?
YES >> INSPECTION END
NO >> GO TO 2.
2.CHECK COMBINATION METER INPUT SIGNAL
Select the “Data Monitor” for the “METER/M&A” and check the “BUZZER” monitor value.
Is the inspection result normal?
YES >> Replace combination meter.
NO >> Replace BCM. Refer to BCS-78, "
Removal and Installation".
Diagnosis ProcedureINFOID:0000000003838710
1.CHECK POWER SUPPLY OF COMBINATION METER
Check power supply of combination meter. Refer to WCS-19, "
COMBINATION METER : Diagnosis Proce-
dure".
Is the inspection result normal?
YES >> INSPECTION END
NO >> Repair power supply circuit of combination meter. Refer to WCS-19, "
COMBINATION METER :
Diagnosis Procedure".
BUZZER
Under the condition of buzzer input : On
Except above : Off

WCS-22
< COMPONENT DIAGNOSIS >
WARNING CHIME SYSTEM
WARNING CHIME SYSTEM

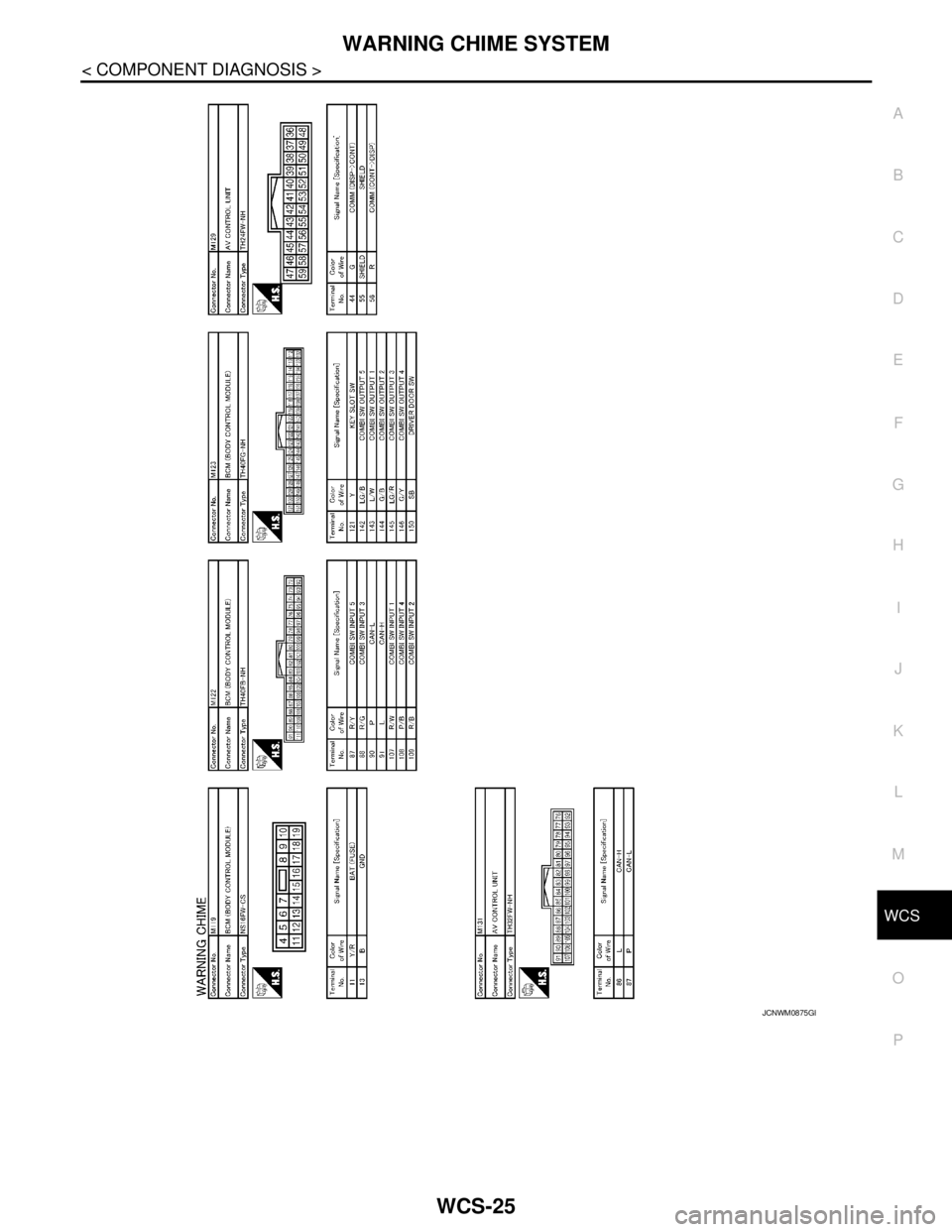

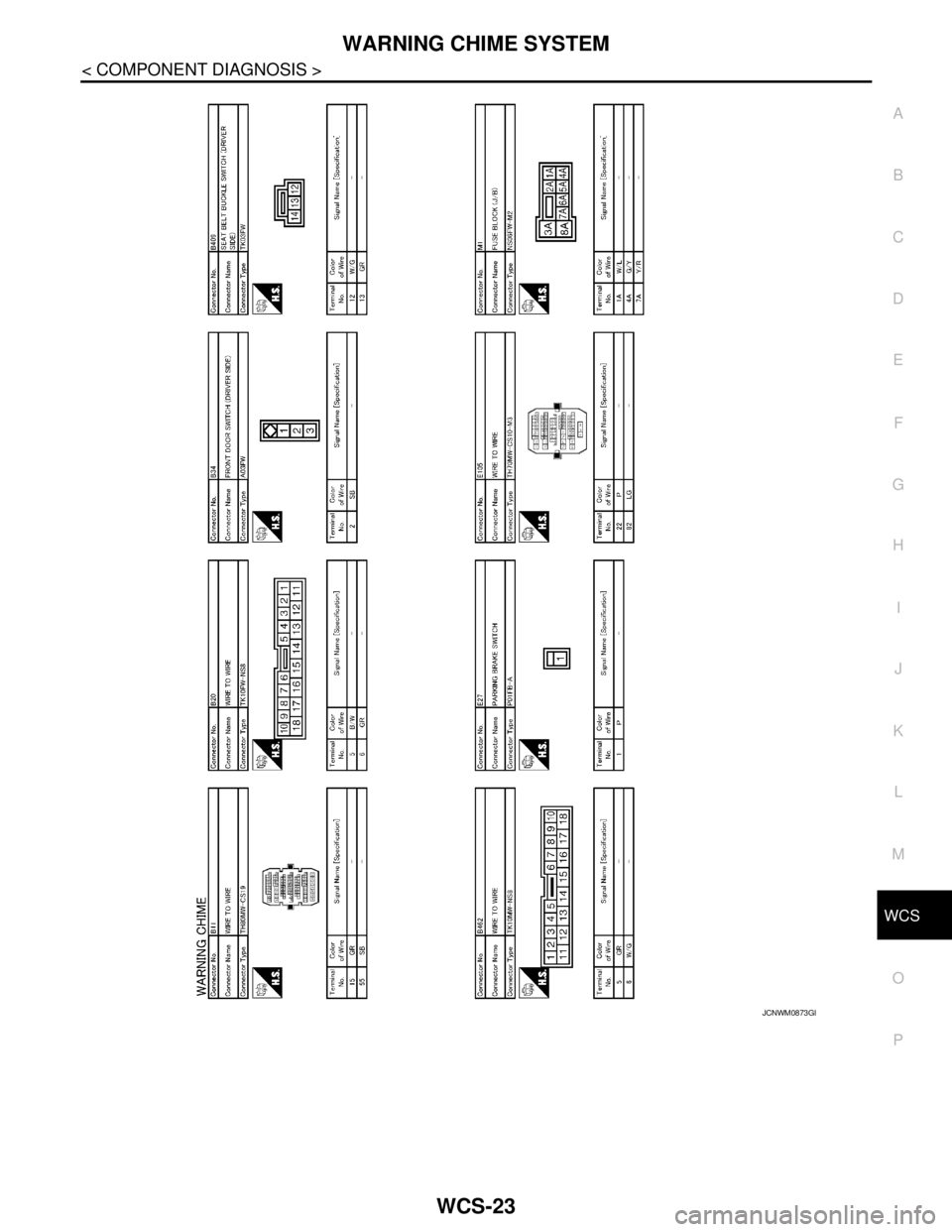

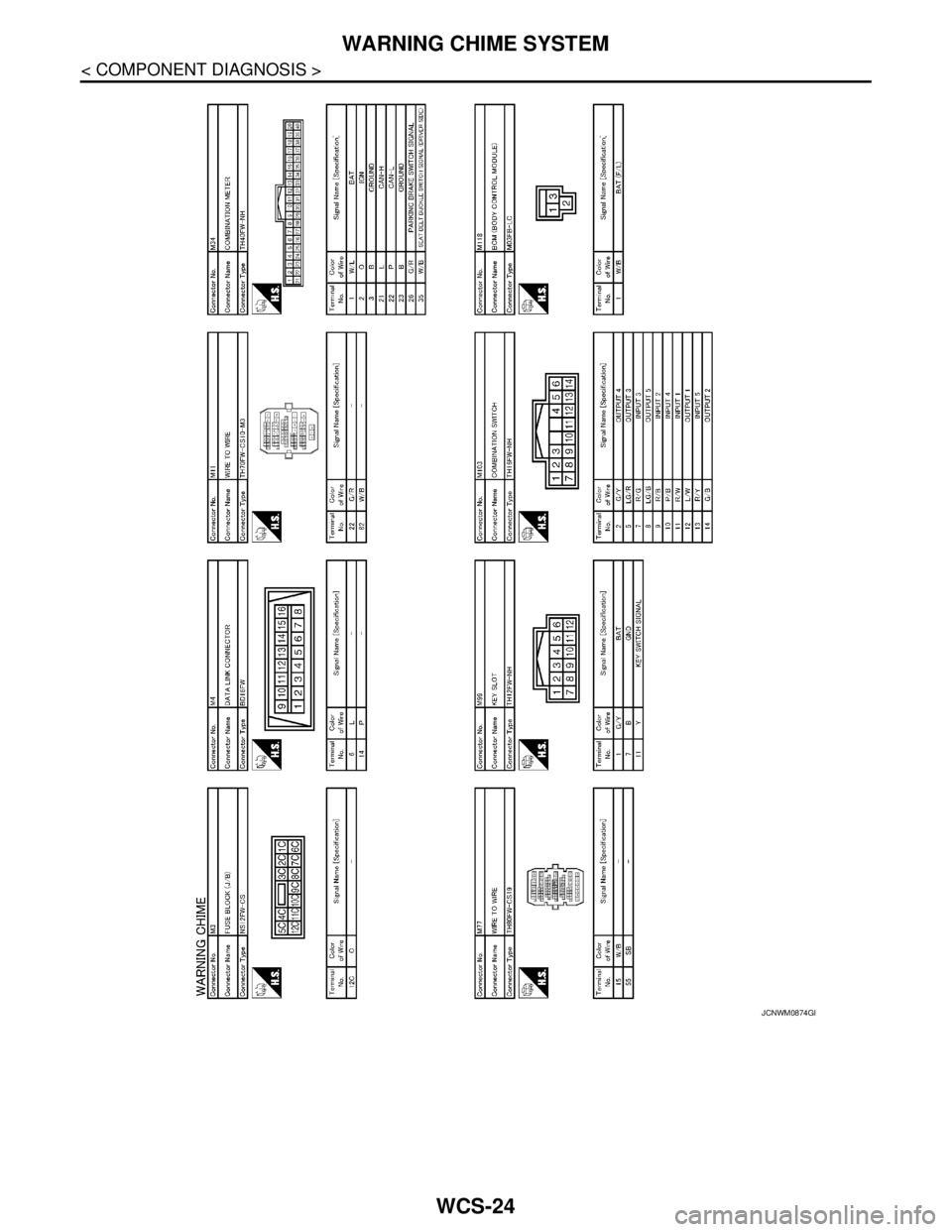

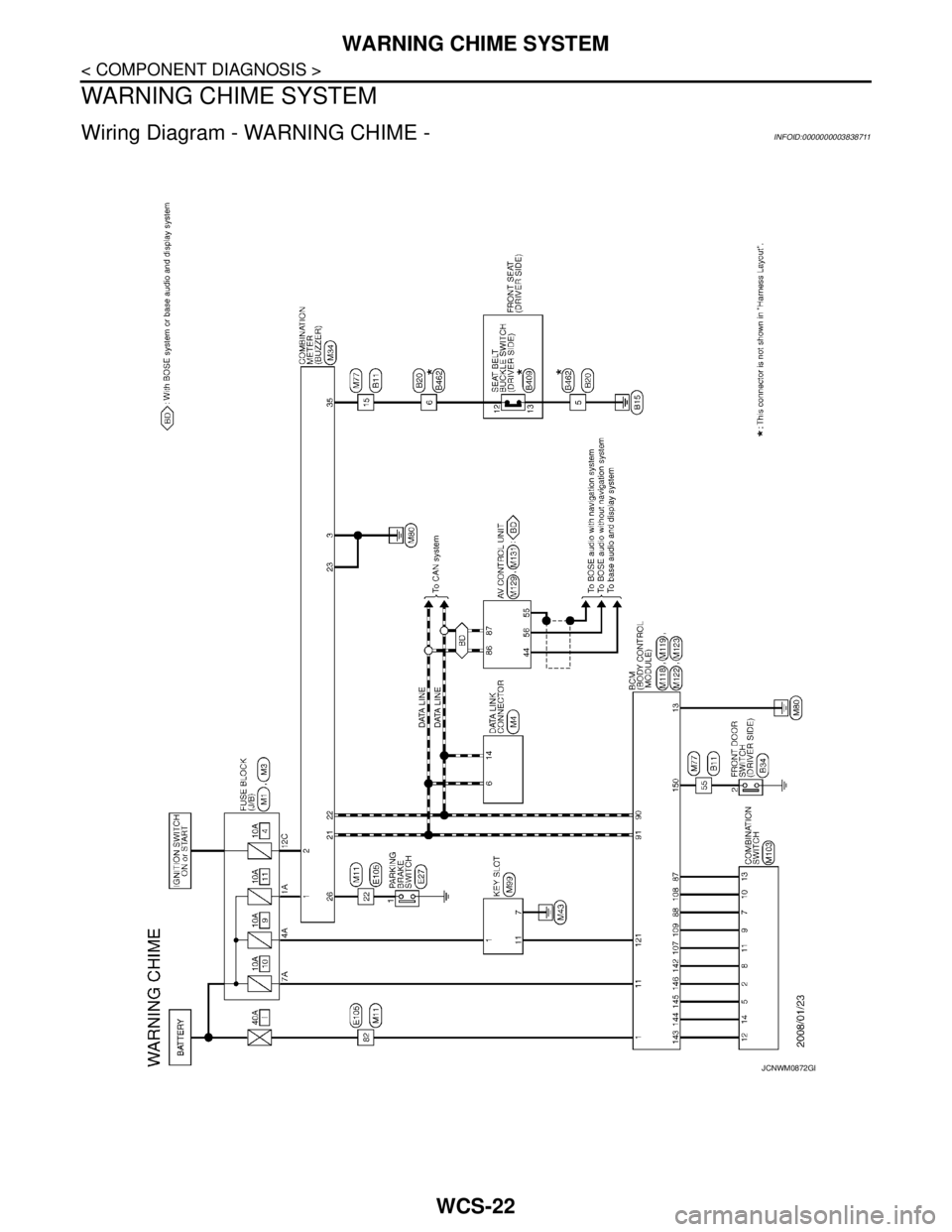

Wiring Diagram - WARNING CHIME -INFOID:0000000003838711
JCNWM0872GB

WCS
WARNING CHIME SYSTEM
WCS-23
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
JCNWM0873GB

WCS-24
< COMPONENT DIAGNOSIS >
WARNING CHIME SYSTEM
JCNWM0874GB

WCS
WARNING CHIME SYSTEM
WCS-25
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
JCNWM0875GB

WCS-26
< ECU DIAGNOSIS >
COMBINATION METER
ECU DIAGNOSIS
COMBINATION METER
Reference ValueINFOID:0000000003838730
VALUES ON THE DIAGNOSIS TOOL
Monitor Item Condition Value/Status
SPEED METER
[km/h]Ignition switch
ONWhile drivingEquivalent to speedometer reading
NOTE:
655.35 is displayed when the malfunc-
tion signal is received
SPEED OUTPUT
[km/h]Ignition switch
ONWhile drivingEquivalent to speedometer reading
NOTE:
655.35 is displayed when the malfunc-
tion signal is received
ODO OUTPUT
[km/h or mph]Ignition switch
ON—Equivalent to odometer reading in
combination meter
TACHO METER
[rpm]Ignition switch
ONWhile drivingEquivalent to tachometer reading
NOTE:
8191.875 is displayed when the mal-
function signal is received
FUEL METER
[lit]Ignition switch
ON— Values according to fuel level
W TEMP METER
[°C]Ignition switch
ON—Values according to engine coolant
temperature
NOTE:
215 is displayed when the malfunction
signal is input
ABS W/LIgnition switch
ONABS warning lamp ON On
ABS warning lamp OFF Off
VDC/TCS INDIgnition switch
ONVDC OFF indicator lamp ON On
VDC OFF indicator lamp OFF Off
SLIP INDIgnition switch
ONSLIP Indicator lamp ON On
SLIP indicator lamp OFF Off
BRAKE W/LIgnition switch
ONBrake warning lamp ON On
Brake warning lamp OFF Off
DOOR W/LIgnition switch
ONDoor warning ON On
Door warning OFF Off
TRUNK/GLAS-HIgnition switch
ONTrunk warning ON On
Trunk warning OFF Off
HI-BEAM INDIgnition switch
ONHigh-beam indicator lamp ON On
High-beam indicator lamp OFF Off
TURN INDIgnition switch
ONTurn signal indicator lamp ON On
Turn signal indicator lamp OFF Off
FR FOG INDIgnition switch
ONFront fog light indicator lamp ON On
Front fog light indicator lamp OFF Off
RR FOG INDIgnition switch
ONRear fog light indicator lamp ON On
Rear fog light indicator lamp OFF Off
LIGHT IND
Ignition switch
ONTail lamp indicator lamp ON On
Tail lamp indicator lamp OFF Off

WCS
COMBINATION METER
WCS-27
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
OIL W/L Ignition switch
ONOil pressure warning lamp ON On
Oil pressure warning lamp OFF Off
MILIgnition switch
ONMalfunction indicator lamp ON On
Malfunction indicator lamp OFF Off
CRUISE INDIgnition switch
ONCruise indicator lamp ON On
Cruise indicator lamp OFF Off
SPORT INDIgnition switch
ONSPORT indicator lamp ON On
SPORT indicator lamp OFF Off
4WD W/LIgnition switch
ONNOTE:
This item is displayed, but cannot be moni-
tored.Off
4WD LOCK INDIgnition switch
ONNOTE:
This item is displayed, but cannot be moni-
tored.Off
FUEL W/LIgnition switch
ONLow-fuel warning lamp ON On
Low-fuel warning lamp OFF Off
WASHER W/LIgnition switch
ONNOTE:
This item is displayed, but cannot be moni-
tored.Off
KEY G/Y W/L Ignition switch
ONKEY warning lamp (green/yellow) ON On
KEY warning lamp (green/yellow) OFF Off
LCDIgnition switch
ONEngine start information display B&P I
Ignition switch
ACCEngine start information display B&P N
Ignition switch
LOCKKey ID warning display ID NG
Ignition switch
LOCKSteering lock information display ROTAT
Ignition switch
LOCKP position warning display SFT P
Ignition switch
LOCKIntelligent Key insert information display INSRT
Ignition switch
LOCKIntelligent Key low battery warning display BATT
Ignition switch
ONTake away warning display NO KY
Ignition switch
LOCKKey warning display OUTKY
Ignition switch
ONACC warning display LK WN
SHIFT INDIgnition switch
ONShift position indicator P display P
Shift position indicator R display R
Shift position indicator N display N
Shift position indicator D display D
Shift position indicator L display L
O/D OFF SWIgnition switch
ONSport mode switch pressed On
Other than the above Off Monitor Item Condition Value/Status

WCS-28
< ECU DIAGNOSIS >
COMBINATION METER
NOTE:
Some items are not available according to vehicle specification.M RANGE SWIgnition switch
ONNOTE:
This item is displayed, but cannot be moni-
tored.On
NM RANGE SWIgnition switch
ONNOTE:
This item is displayed, but cannot be moni-
tored.Off
AT SFT UP SWIgnition switch
ONNOTE:
This item is displayed, but cannot be moni-
tored.On
AT SFT DWN SWIgnition switch
ONNOTE:
This item is displayed, but cannot be moni-
tored.On
ST SFT UP SWIgnition switch
ONNOTE:
This item is displayed, but cannot be moni-
tored.Off
ST SFT DWN SWIgnition switch
ONNOTE:
This item is displayed, but cannot be moni-
tored.Off
PKB SWIgnition switch
ONParking brake switch ON On
Parking brake switch OFF Off
BUCKLE SWIgnition switch
ONSeat belt not fastened On
Seat belt fastened Off
BRAKE OIL SWIgnition switch
ONBrake fluid level switch ON On
Brake fluid level switch OFF Off
DISTANCE
[km]Ignition switch
ON—Possible driving distance calculated by
combination meter
A/C AMP CONNIgnition switch
ONReceives A/C auto amp. connection recog-
nition signalOn
Other than the above Off
ENTER SWIgnition switch
ONWhen is pressedOn
Other than the above Off
SELECT SWIgnition switch
ONWhen is pressedOn
Other than the above Off
OUTSIDE TEMP
[°C] or [°F]Ignition switch
ON—Equivalent to ambient temperature
NOTE:
This may not match the indicated value
on the information display.
FUEL LOW SIGIgnition switch
ONLow fuel warning signal output On
Low fuel warning signal not output Off
BUZZERIgnition switch
ONBuzzer ON On
Buzzer OFF Off Monitor Item Condition Value/Status

WCS
COMBINATION METER
WCS-29
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
TERMINAL LAYOUT
PHYSICAL VALUES
JPNIA0968GB
Te r m i n a l N o .
(Wire color)Description
ConditionVa l u e
(Approx.)
+ – Signal nameInput/
Output
1
(W/L)Ground Battery power supply InputIgnition
switch
OFF— Battery voltage
2
(O)Ground IGN signal InputIgnition
switch
ON— Battery voltage
3
(B)Ground Ground —Ignition
switch
ON—0 V
10
(O/L)Ground Meter control switch ground —Ignition
switch
ON—0 V
11
(L/R)10
(O/L)Enter switch signal InputIgnition
switch
ONWhen is pressed.0 V
Other than the above 5 V
12
(B/R)10
(O/L)Select switch signal InputIgnition
switch
ONWhen is pressed.0 V
Other than the above 5 V
15
(BR/W)Ground Air bag signal InputIgnition
switch
ONAir bag warning lamp
ON4 V
Air bag warning lamp
OFF0 V
18
(O/B)Ground Ambient sensor signal InputIgnition
switch
ONChanges depending to am-
bient temperature.
19
(P)GroundA/C auto amp. connection
recognition signalInputIgnition
switch
ON—5 V
20
(B/Y)Ground Ambient sensor ground InputIgnition
switch
ON—0 V
21
(L)—CAN-H — — — —
22
(P)—CAN-L — — — —
JSNIA0014GB

WCS-30
< ECU DIAGNOSIS >
COMBINATION METER
23
(B)Ground Ground —Ignition
switch
ON—0 V
24
(B/W)GroundFuel level sensor signal
ground—Ignition
switch
ON—0 V
25
(BR)Ground Alternator signal InputIgnition
switch
ONCharge warning lamp ON 2 V
Charge warning lamp OFF 12 V
26
(G/R)Ground Parking brake switch signal InputIgnition
switch
ONWhen parking brake is ap-
plied0 V
When parking brake is re-
leased5 V
27
(V)GroundBrake fluid level switch sig-
nalInputIgnition
switch
ONBrake fluid level is normal 12 V
Brake fluid level is less than
low level0 V
28
(L/O)Ground Security signal InputIgnition
switch
ONSecurity warning lamp OFF 12 V
Security warning lamp ON 0 V
30
(L/B)GroundVehicle speed signal output
(2-pulse)OutputIgnition
switch
ONSpeedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).
31
(V/W)GroundVehicle speed signal output
(8-pulse)OutputIgnition
switch
ONSpeedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).
32
(LG/R)Ground Sport mode switch signal InputIgnition
switch
ONSport mode switch pressed. 0 V
Sport mode switch not
pressed.5 V
34
(G/B)Ground Fuel level sensor signal InputIgnition
switch
ON— Te r m i n a l N o .
(Wire color)Description
ConditionVa l u e
(Approx.)
+ – Signal nameInput/
Output
JSNIA0015GB
JSNIA0012GB
