NISSAN TEANA 2008 Service Manual

AV
AV CONTROL UNIT
AV-497
< ECU DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P40
(W)Ground RGB image signal (R: red) OutputIgnition
switch
ONStart confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.
41
(G)Ground RGB synchronizing signal OutputIgnition
switch
ON—
42 Ground RGB synchronizing ground ——Igni-
tion
switch
ON—0 V
43
(B)Ground RGB area (YS) signal OutputIgnition
switch
ONWhen RGB image is dis-
played.5.0 V
When camera image or
AUX image is displayed.
44
(G)GroundCommunication signal
(DISP→CONT)InputIgnition
switch
ONWhen adjusting display
brightness.
45
(W)GroundHorizontal synchronizing
(HP) signalInputIgnition
switch
ON—
49 — Shield — — — —
50 Ground RGB ground ——Igni-
tion
switch
ON—0 V
55 Ground Shield — — — —Te r m i n a l
(Wire color)Description
ConditionReference value
(Approx.)
+ – Signal nameInput/
Output
SKIB2238J
SKIB3603E
PKIB4948J
PKIB5039J
SKIB3601E

AV-498
< ECU DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
AV CONTROL UNIT
56
(R)GroundCommunication signal
(CONT→DISP)OutputIgnition
switch
ONWhen adjusting display
brightness.
57
(R)GroundVertical synchronizing (VP)
signalInputIgnition
switch
ON—
60
(O)Ground RGB synchronizing signal InputIgnition
switch
ON—
61 GroundRGB synchronizing signal
ground—Ignition
switch
ON—0 V
62
(W)Ground RGB image signal (B: blue) InputIgnition
switch
ONStart confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
Navigation/Phone screen.
63
(R)Ground RGB image signal (R: red) InputIgnition
switch
ONStart confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
Navigation/Phone screen.
64 Ground camera image ground —Ignition
switch
ON—0 V
65
(Y)Ground Camera image signal InputIgnition
switch
ONWhen camera image is dis-
played. Terminal
(Wire color)Description
ConditionReference value
(Approx.)
+ – Signal nameInput/
Output
PKIB5039J
SKIB3598E
SKIB3603E
SKIB2237J
SKIB2238J
SKIB2251J

AV
AV CONTROL UNIT
AV-499
< ECU DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P66
(V)GroundComposite (DVD and AUX)
image signalInputIgnition
switch
ONWhen AUX image is dis-
played.
68
(W)GroundCamera connection recog-
nition signalInputIgnition
switch
ONConnected to camera con-
trol unit connector 0 V
Not connected to camera
control unit connector5 V
70
(B)Ground RGB ground —Ignition
switch
ON—0 V
71
(G)GroundRGB image signal (G:
green)InputIgnition
switch
ONStart confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
Navigation/Phone screen.
73 —Composite image signal
ground—— — —
74
(G)GroundComposite (DVD and AUX)
image signal ground—Ignition
switch
ON—0 V
78
(BR)Ground Switch ground —Ignition
switch
ON—0 V
80
(B)79
(W)TEL voice signal InputIgnition
switch
ONTEL voice output.
81 — Tel voice shield — — — —
83
(R)82
(W)Stereo (DVD and AUX)
sound signal RHInputIgnition
switch
ONDVD sound signal or AUX
sound signal input
84 — Voice guidance shield — — — —
85
(B/W)Ground Ground —Ignition
switch
ON —0 V Te r m i n a l
(Wire color)Description
Condition
Reference value
(Approx.)
+ – Signal nameInput/
Output
SKIB2251J
SKIB2236J
SKIB1990E
SKIB3609E

AV-500
< ECU DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
AV CONTROL UNIT
86
(L)—CAN–HInput/
Output—— —
87
(P)—CAN–LInput/
Output—— —
88
(W)—AV communication signal
(H)Input/
Output—— —
89
(B)—AV communication signal
(L)Input/
Output—— —
90
(L)—AV communication signal
(H)Input/
Output—— —
91
(R)—AV communication signal
(L)Input/
Output—— —
99
(B)98
(G)Stereo (DVD and AUX)
sound signal LHInputIgnition
switch
ONDVD sound signal or AUX
sound input.
100 —Stereo (DVD and AUX)
sound signal shield——— —
102
(L)101
(P)Voice guidance signal InputIgnition
switch
ONVoice guidance output.
103
(SB)Ground Disk eject signal InputIgnition
switch
ONPressing the eject switch. 0 V
Except for above. 3.3 V
104
(O)Ground Ignition signal InputIgnition
switch
ON— Battery voltage
105
(P/B)Ground Reverse signal InputIgnition
switch
ONR position. 12.0 V
Other than R position. 0 V
106
(G/R)Ground Parking brake signal InputIgnition
switch
ONParking brake ON. 0 V
Parking brake OFF. 5 V
107
(V/W)GroundVehicle speed signal
(8-pulse)InputIgnition
switch
ONWhen vehicle speed is ap-
prox. 40 km/h (25MPH).NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit). Terminal
(Wire color)Description
ConditionReference value
(Approx.)
+ – Signal nameInput/
Output
SKIB3609E
SKIB1990E
JSNIA0012GB

AV
AV CONTROL UNIT
AV-501
< ECU DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P109
(W)11 5
(B)Stereo sound signal front
RHOutputIgnition
switch
ONSound output.
111 — S h i e l d — — — —
11 2
(BR)11 8
(Y)Voice guidance signal OutputIgnition
switch
ONVoice guidance output.
11 3
(W)11 9
(B)Stereo sound signal front
LHOutputIgnition
switch
ONSound output. Te r m i n a l
(Wire color)Description
ConditionReference value
(Approx.)
+ – Signal nameInput/
Output
SKIB3609E
SKIB1990E
SKIB3609E

AV-502
< ECU DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
AV CONTROL UNIT

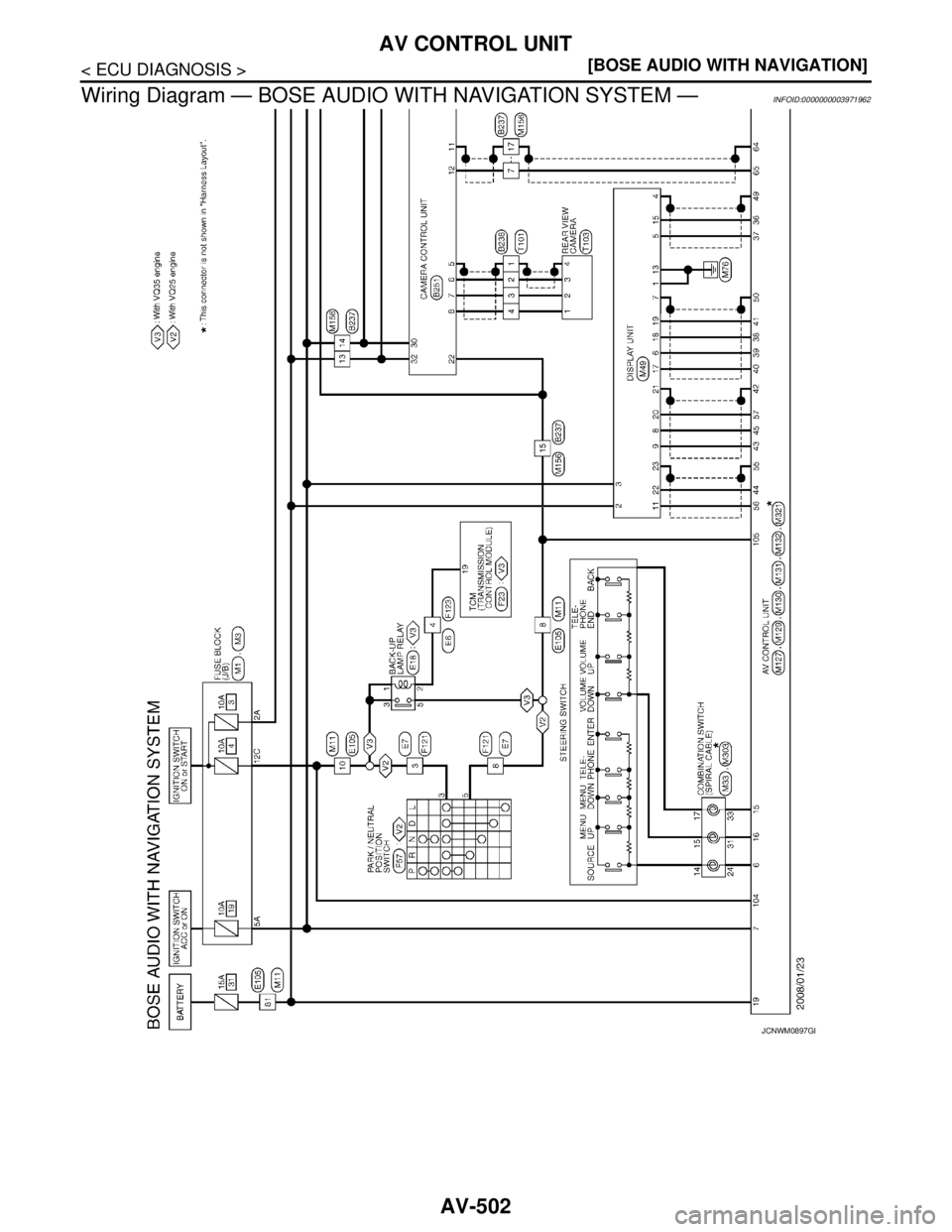

Wiring Diagram — BOSE AUDIO WITH NAVIGATION SYSTEM —
INFOID:0000000003971962
JCNWM0897GB

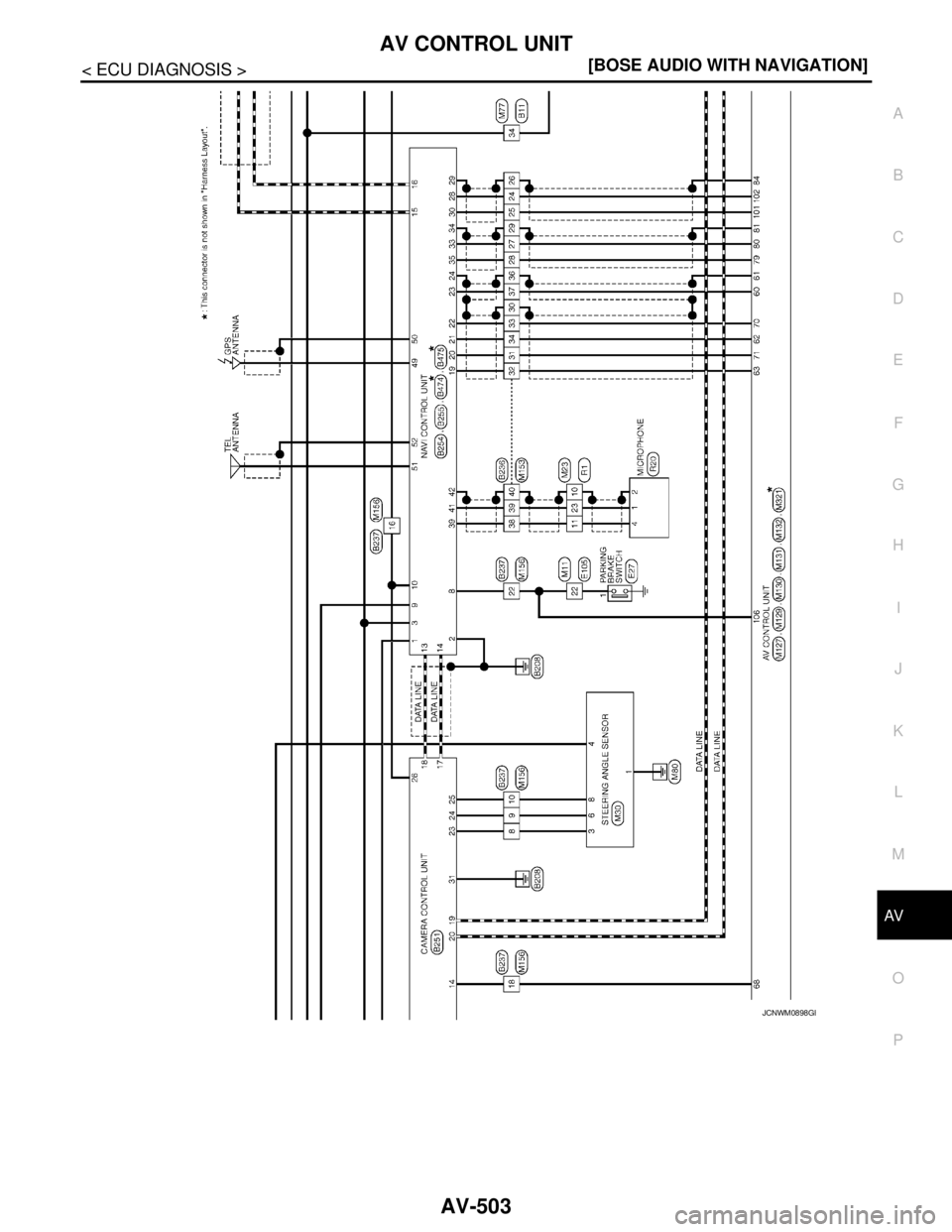

AV
AV CONTROL UNIT
AV-503
< ECU DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
JCNWM0898GB

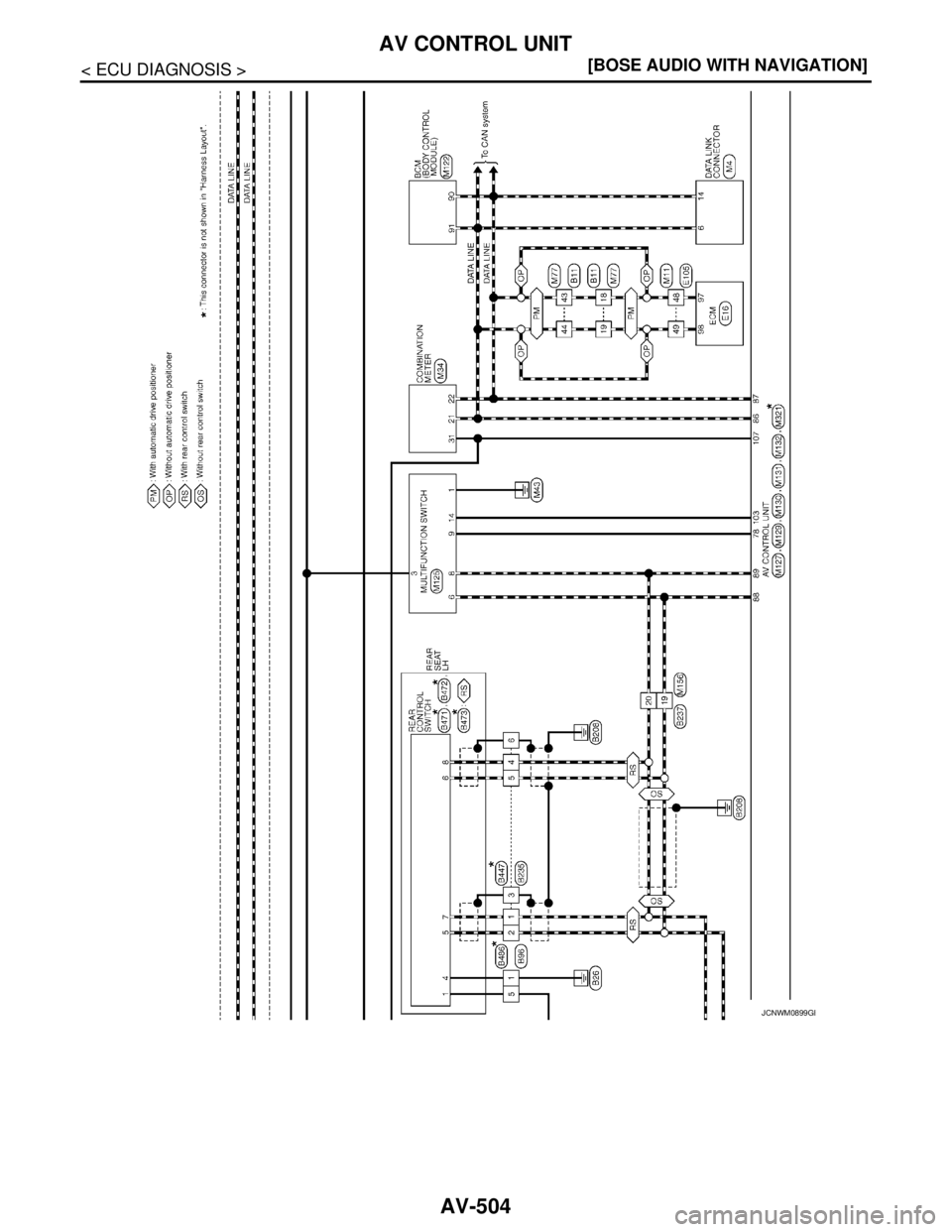

AV-504
< ECU DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
AV CONTROL UNIT
JCNWM0899GB

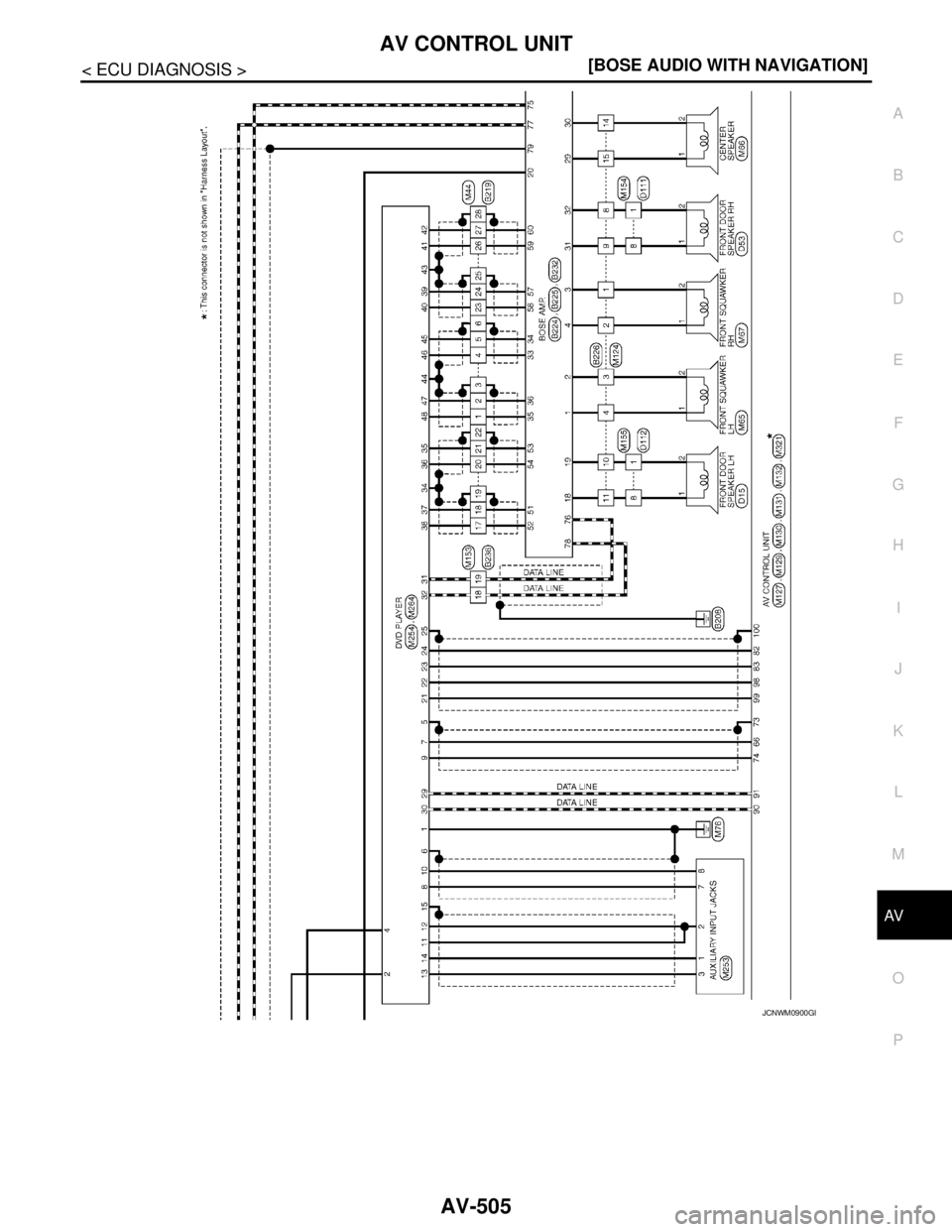

AV
AV CONTROL UNIT
AV-505
< ECU DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
JCNWM0900GB

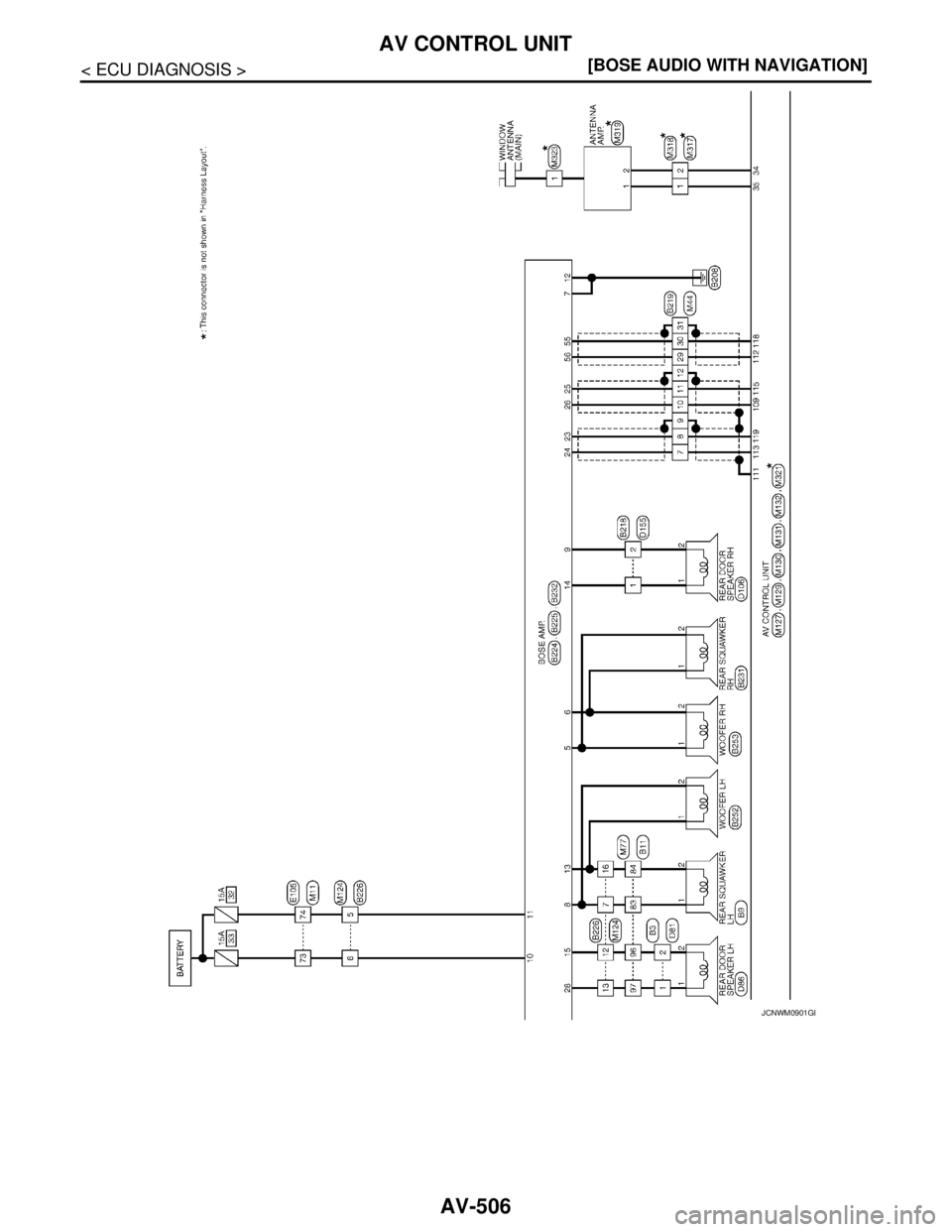

AV-506
< ECU DIAGNOSIS >[BOSE AUDIO WITH NAVIGATION]
AV CONTROL UNIT
JCNWM0901GB
