NISSAN TERRANO 2004 Service Repair Manual

LHD MODELS
YEL163D
MULTI-REMOTE CONTROL SYSTEM
Wiring Diagram Ð MULTI Ð (Cont'd)EL-208
http://vnx.su/

RHD MODELS
YEL749E
MULTI-REMOTE CONTROL SYSTEM
Wiring Diagram Ð MULTI Ð (Cont'd)EL-209
http://vnx.su/

RHD MODELS
YEL165D
MULTI-REMOTE CONTROL SYSTEM
Wiring Diagram Ð MULTI Ð (Cont'd)EL-210
http://vnx.su/

RHD MODELS
YEL750E
MULTI-REMOTE CONTROL SYSTEM
Wiring Diagram Ð MULTI Ð (Cont'd)EL-211
http://vnx.su/

RHD MODELS
YEL751E
MULTI-REMOTE CONTROL SYSTEM
Wiring Diagram Ð MULTI Ð (Cont'd)EL-212
http://vnx.su/

Trouble Diagnoses
If doors can not be unlocked by remote controller operation then the following procedure is required.
A) Unlock the vehicle by a mechanical key in the drivers door key cylinder.Note: this may cause the alarm to sound.
B) Put the key in ignition, turn to ON position for at least five seconds. Assuming the ignition key contains a valid transponder then a signal will be generated by the immobilizer which will disarm the alarm and allow
key learn mode to be entered.
C) Turn ignition OFF and wait for ten seconds.
SYMPTOM CHART
Symptom Possible cause Diagnoses/service order
No doors can be locked or
unlocked by remote control opera-
tion. 1. Remote controller battery
2. Power door lock system
3. Key switch (insert)
4. Door switch
5. Power supply circuit for time
control unit
6. Ground circuit for time control unit
7. Remote controller 1. Check remote controller battery. Refer to EL-214.
2. Check that power door lock operates properly. If
NG, check power door lock.
3. Check key switch (insert) signal at terminal
U22of
time control unit.
4. Check door switch signal at terminals
B01and
B07of time control unit (Fuse block).
5. Make sure battery voltage is present at terminal
U09of time control unit.
6. Check continuity between terminal
MM2of time con-
trol unit (Fuse block) and ground.
7. Replace remote controller. Refer to EL-215.
The new ID of remote controller
cannot be entered. 1. Remote controller battery
2. Key switch (insert)
3. Door switch
4. Driver's door unlock sensor
5. Ignition ON power supply
circuit for time control unit
6. Remote controller 1. Check remote controller battery. Refer to EL-214.
2. Check key switch (insert) signal at terminal
U22of
time control unit.
3. Check door switch signal at terminals
B01and
B07of time control unit (Fuse block).
4. Check driver's door unlock sensor signal at terminal
U35of time control unit.
5. Make sure battery voltage is present at terminal
U01of time control unit while ignition switch is in
ON position.
6. Replace remote controller. Refer to EL-215.
Refer to ªTIME CONTROL UNIT INSPECTION TABLEº on EL-214 to check the control unit signals.
NOTE:
I The unlock operation of multi-remote control system does not activate with key inserted in the ignition key
cylinder.
I The lock operation of multi-remote controller does not activate with the key inserted in the ignition key cyl-
inder or if one of the doors is opened.
MULTI-REMOTE CONTROL SYSTEM
EL-213
http://vnx.su/

TIME CONTROL UNIT INSPECTION TABLE
TerminalNo. Wire
color Connections Operated condition Voltage (V)
(approximate values)
U01 Ð Ignition switch (via ignition relay) Ignition key ªONº position 12
U06
(B07) Ð Driver door switch OFF (Closed)
,ON (Open) 12 ,0
U07
(B01) Ð All door switches OFF (Closed)
,ON (Open) 12 ,0
U08 Ð Power source (C/B) Ð 12
U09 Ð Power source (Fuse) Ð 12
U16 Ð Ground Ð 0
U22 BR Ignition key switch
(Insert) Key inserted
,key removed from ignition key cylinder 12 ,0
U25 Y/L Rear door unlock
sensors Rear doors: Locked
,Unlocked 12 ,0
U35 Y/B Driver door unlock sensor Driver door: Locked ,Unlocked 12 ,0
U36 Y/L Passenger door unlock sensor Passenger door: Locked ,Unlocked 12 ,0
REMOTE CONTROLLER BATTERY CHECK
Remove battery and measure voltage between battery positive and
negative terminals, !and @.
Then, use the 300W resistor as shown in figure.
Measuring terminal
Standard
value
!@
Battery positive terminal !Battery negative terminal @2.5 - 3.0V
Note:
Remote controller does not function if battery is not set cor-
rectly.
SEL672U
MULTI-REMOTE CONTROL SYSTEM
Trouble Diagnoses (Cont'd)
EL-214
http://vnx.su/

ID Code Entry Procedure
Enter the identity (ID) code manually when:
Iremote controller or TCU is replaced.
I an additional remote controller is activated.
Activation of the registration mode:
The vehicle must have been unlocked by either the multi-remote controller or a transponder OK signal (TPOK) from the vehicle's
immobilizer.
Preparation: - Make sure all doors unlock.
- Make sure all multi-remote controllers to be registered are available.
- Make sure the batteries of all multi-remote controllers are in a good condition.
- Make sure all transmitting sources are out of the neighbourhood of the vehicle.
- Make sure the battery of the vehicle is in a good condition.F
Switch ignition-switch exactly six times from the ªLOCKº to the ªONº position within 10 seconds and return the ignition switch to
the ªLOCKº position (leaving the key in the ignition switch).F
After 2 seconds the registration mode is activated. The turn signal lamps will flash twice.
OK NG
Proceed with the registration mode.
NOTE
The registration mode is exited when: IThe ignition-switch is turned to the ªONº position.
I a multi-remote controller ID code had registered after 4 ID codes have been registered (then, all
of the registered ID codes are erased).
I No multi-remote controller or ignition switch input is received within 120 seconds.
Registration mode
G
Press and hold the ªUNLOCKº button of the multi-remote controller.F
NEL569
Press the ªLOCKº button 3 times.
Release the ªUNLOCKº button.
(At this time, the original (previous) ID code(s) are erased.)EIf the multi-remote controller code
is registered correctly, the turn
signal lamp will flash once.
(If 4 ID codes have been
registered, the turn signal lamp
will flash 3 times.)ENG
Do you want to register another multi-remote controller? (max. 4)
(If 4 controllers have been registered, you should turn the ignition switch to the
ON position.)
NoYe s
FOK
Turn the ignition switch to the ON position.
EIf the multi-remote controller reg-
istration is performed correctly,
the turn signal lamp will flash
twice.
(If 4 ID codes have been
registered, the turn signal lamp
will not flash.)
Take the ignition key out of the ignition switch and confirm the functioning of all
multi-remote controllers by locking and unlocking the vehicle with each of the
multi-remote controllers.OK NGF
End
H
H
H
H
H
H
H
H
MULTI-REMOTE CONTROL SYSTEM
EL-215
http://vnx.su/

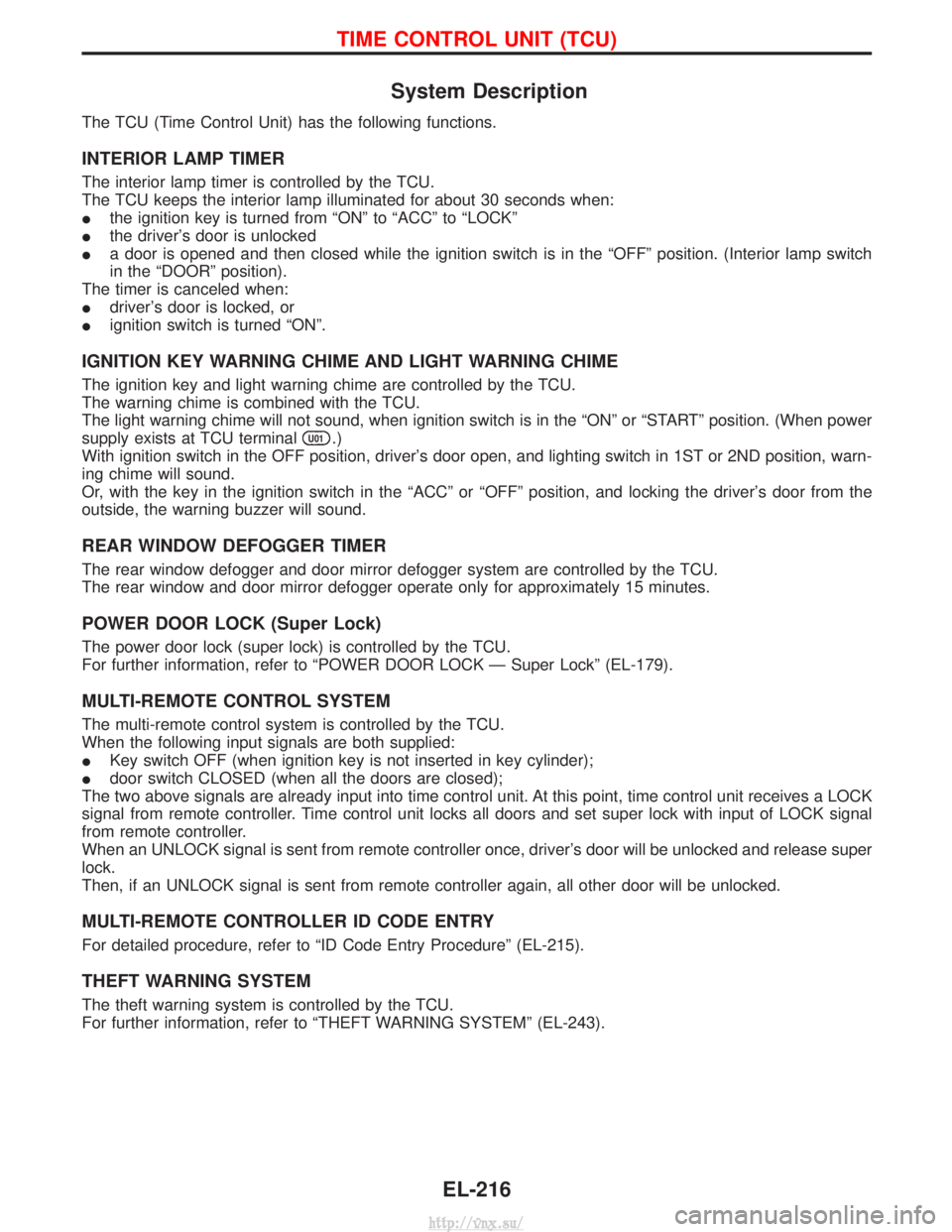

System Description
The TCU (Time Control Unit) has the following functions.
INTERIOR LAMP TIMER
The interior lamp timer is controlled by the TCU.
The TCU keeps the interior lamp illuminated for about 30 seconds when:
Ithe ignition key is turned from ªONº to ªACCº to ªLOCKº
I the driver's door is unlocked
I a door is opened and then closed while the ignition switch is in the ªOFFº position. (Interior lamp switch
in the ªDOORº position).
The timer is canceled when:
I driver's door is locked, or
I ignition switch is turned ªONº.
IGNITION KEY WARNING CHIME AND LIGHT WARNING CHIME
The ignition key and light warning chime are controlled by the TCU.
The warning chime is combined with the TCU.
The light warning chime will not sound, when ignition switch is in the ªONº or ªSTARTº position. (When power
supply exists at TCU terminal
U01.)
With ignition switch in the OFF position, driver's door open, and lighting switch in 1ST or 2ND position, warn-
ing chime will sound.
Or, with the key in the ignition switch in the ªACCº or ªOFFº position, and locking the driver's door from the
outside, the warning buzzer will sound.
REAR WINDOW DEFOGGER TIMER
The rear window defogger and door mirror defogger system are controlled by the TCU.
The rear window and door mirror defogger operate only for approximately 15 minutes.
POWER DOOR LOCK (Super Lock)
The power door lock (super lock) is controlled by the TCU.
For further information, refer to ªPOWER DOOR LOCK Ð Super Lockº (EL-179).
MULTI-REMOTE CONTROL SYSTEM
The multi-remote control system is controlled by the TCU.
When the following input signals are both supplied:
I Key switch OFF (when ignition key is not inserted in key cylinder);
I door switch CLOSED (when all the doors are closed);
The two above signals are already input into time control unit. At this point, time control unit receives a LOCK
signal from remote controller. Time control unit locks all doors and set super lock with input of LOCK signal
from remote controller.
When an UNLOCK signal is sent from remote controller once, driver's door will be unlocked and release super
lock.
Then, if an UNLOCK signal is sent from remote controller again, all other door will be unlocked.
MULTI-REMOTE CONTROLLER ID CODE ENTRY
For detailed procedure, refer to ªID Code Entry Procedureº (EL-215).
THEFT WARNING SYSTEM
The theft warning system is controlled by the TCU.
For further information, refer to ªTHEFT WARNING SYSTEMº (EL-243).
TIME CONTROL UNIT (TCU)
EL-216
http://vnx.su/

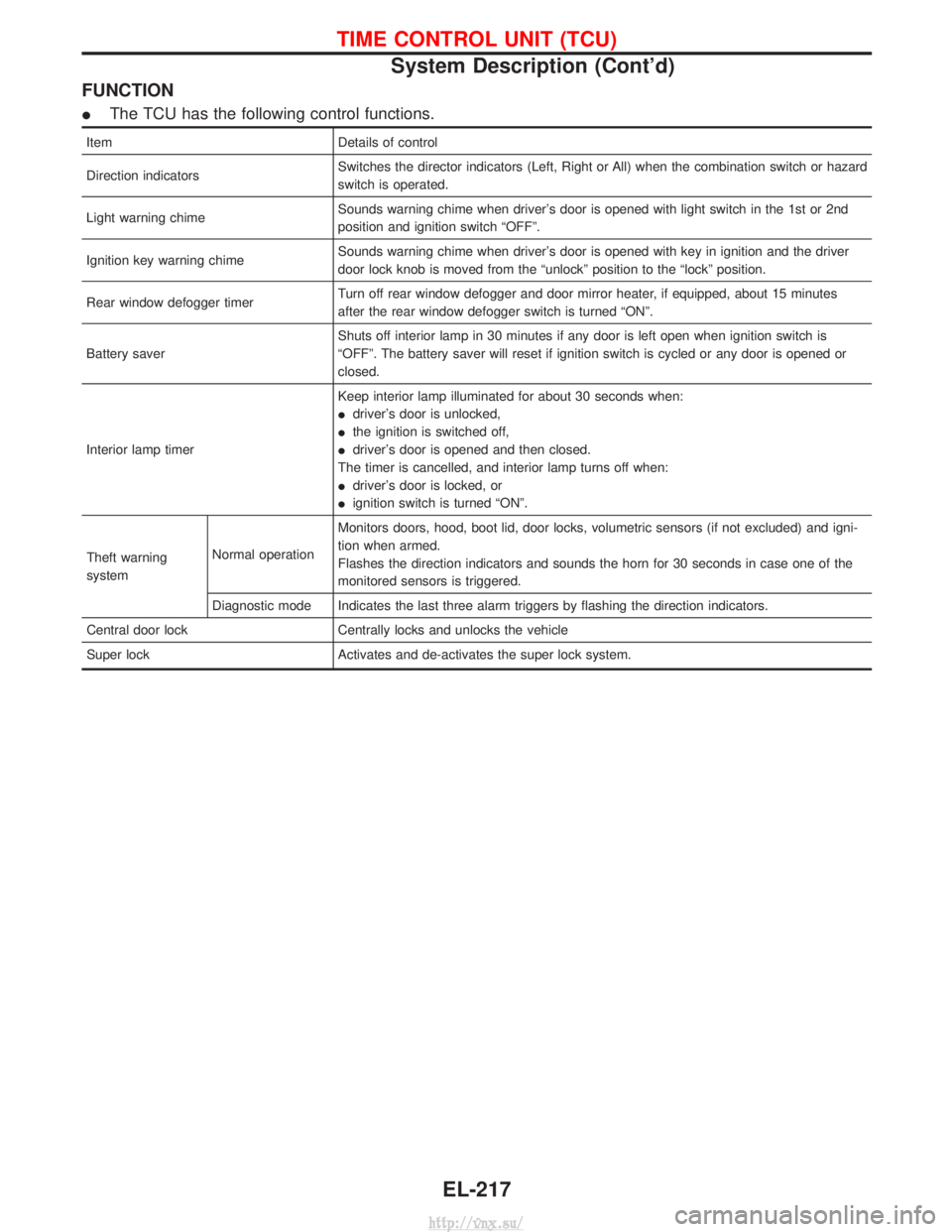

FUNCTION
IThe TCU has the following control functions.
Item Details of control
Direction indicators Switches the director indicators (Left, Right or All) when the combination switch or hazard
switch is operated.
Light warning chime Sounds warning chime when driver's door is opened with light switch in the 1st or 2nd
position and ignition switch ªOFFº.
Ignition key warning chime Sounds warning chime when driver's door is opened with key in ignition and the driver
door lock knob is moved from the ªunlockº position to the ªlockº position.
Rear window defogger timer Turn off rear window defogger and door mirror heater, if equipped, about 15 minutes
after the rear window defogger switch is turned ªONº.
Battery saver Shuts off interior lamp in 30 minutes if any door is left open when ignition switch is
ªOFFº. The battery saver will reset if ignition switch is cycled or any door is opened or
closed.
Interior lamp timer Keep interior lamp illuminated for about 30 seconds when:
I
driver's door is unlocked,
I the ignition is switched off,
I driver's door is opened and then closed.
The timer is cancelled, and interior lamp turns off when:
I driver's door is locked, or
I ignition switch is turned ªONº.
Theft warning
system Normal operationMonitors doors, hood, boot lid, door locks, volumetric sensors (if not excluded) and igni-
tion when armed.
Flashes the direction indicators and sounds the horn for 30 seconds in case one of the
monitored sensors is triggered.
Diagnostic mode Indicates the last three alarm triggers by flashing the direction indicators.
Central door lock Centrally locks and unlocks the vehicle
Super lock Activates and de-activates the super lock system.
TIME CONTROL UNIT (TCU)
System Description (Cont'd)
EL-217
