DLK-542
< COMPONENT DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
VEHICLE SPEED SIGNAL CIRCUIT
VEHICLE SPEED SIGNAL CIRCUIT
DescriptionINFOID:0000000001397094
Displays the vehicle speed signal received from combination meter as a numerical value (km/h).
Component Function CheckINFOID:0000000001397095
1.CHECK FUNCTION
Check that all doors are automatically locked at the vehicle speed of more than 12 km/h (7 MPH).
Is the inspection result normal?
YES >> Vehicle speed signal circuit is OK.
NO >> Refer to DLK-542, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001397096
1.CHECK VEHICLE SPEED SIGNAL CIRCUIT
Check vehicle speed signal “VEHICLE SPEED” in “Data Monitor” mode.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace vehicle speed signal circuit.
2.CHECK INTERMITTENT INCIDENT
Refer to @@@.
>> INSPECTION END

KEYFOB BATTERY AND FUNCTION
DLK-543
< COMPONENT DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
KEYFOB BATTERY AND FUNCTION
DescriptionINFOID:0000000001530682
The following functions are available when having and carrying the keyfob.
 Door lock/unlock
 Back door unlock (hatchback)
 Trunk lid unlock (sedan)
Remote control entry function is available when operating the remote buttons.
Component Function CheckINFOID:0000000001530683
1.CHECK FUNCTION
With CONSULT-III
Check BCM "RKE OPE COUN1" in DATA MONITOR mode with CONSULT-III.
Is the inspection result normal?
YES >> Keyfob is OK.
NO >> Refer to DLK-543, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001530684
1.CHECK KEYFOB FUNCTION
Do doors lock and unlock when using the keyfob buttons?
YES or NO?
YES >> Keyfob is OK.
NO >> GO TO 2.
2.CHECK KEYFOB BATTERY
Check by connecting a resistance (approximately 300Ω) so that the
current value becomes about 10 mA.
Is the measurement value within specification?
YES >> Key fob battery is OK.
NO >> Replace keyfob battery.
Component InspectionINFOID:0000000001530685
For battery removal and installation, refer to XX-XX, "*****".
Special Repair RequirementINFOID:0000000001530686
Refer to CONSULT-III Operation Manual.
Monitor item Condition
RKE OPE COUN1 Check that the numerical value is changing while operating the keyfob.
Standard : Approx. 2.5 - 3.0V
OCC0607D

DLK-544
< ECU DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
BCM (BODY CONTROL MODULE)
ECU DIAGNOSIS
BCM (BODY CONTROL MODULE)
Reference ValueINFOID:0000000001397100
Refer to BCS-35, "Reference Value".

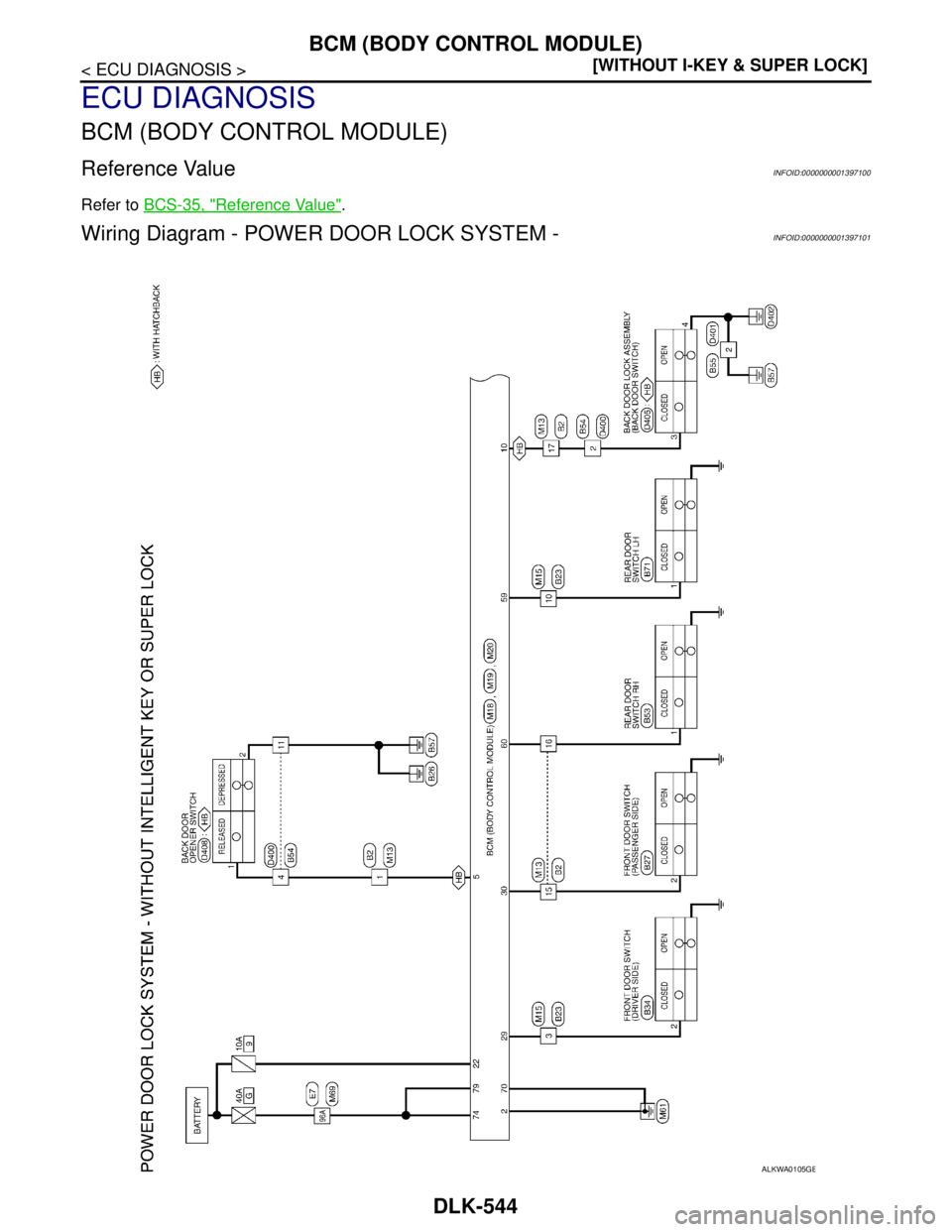

Wiring Diagram - POWER DOOR LOCK SYSTEM -INFOID:0000000001397101
ALKWA0105GB

BCM (BODY CONTROL MODULE)
DLK-545
< ECU DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P

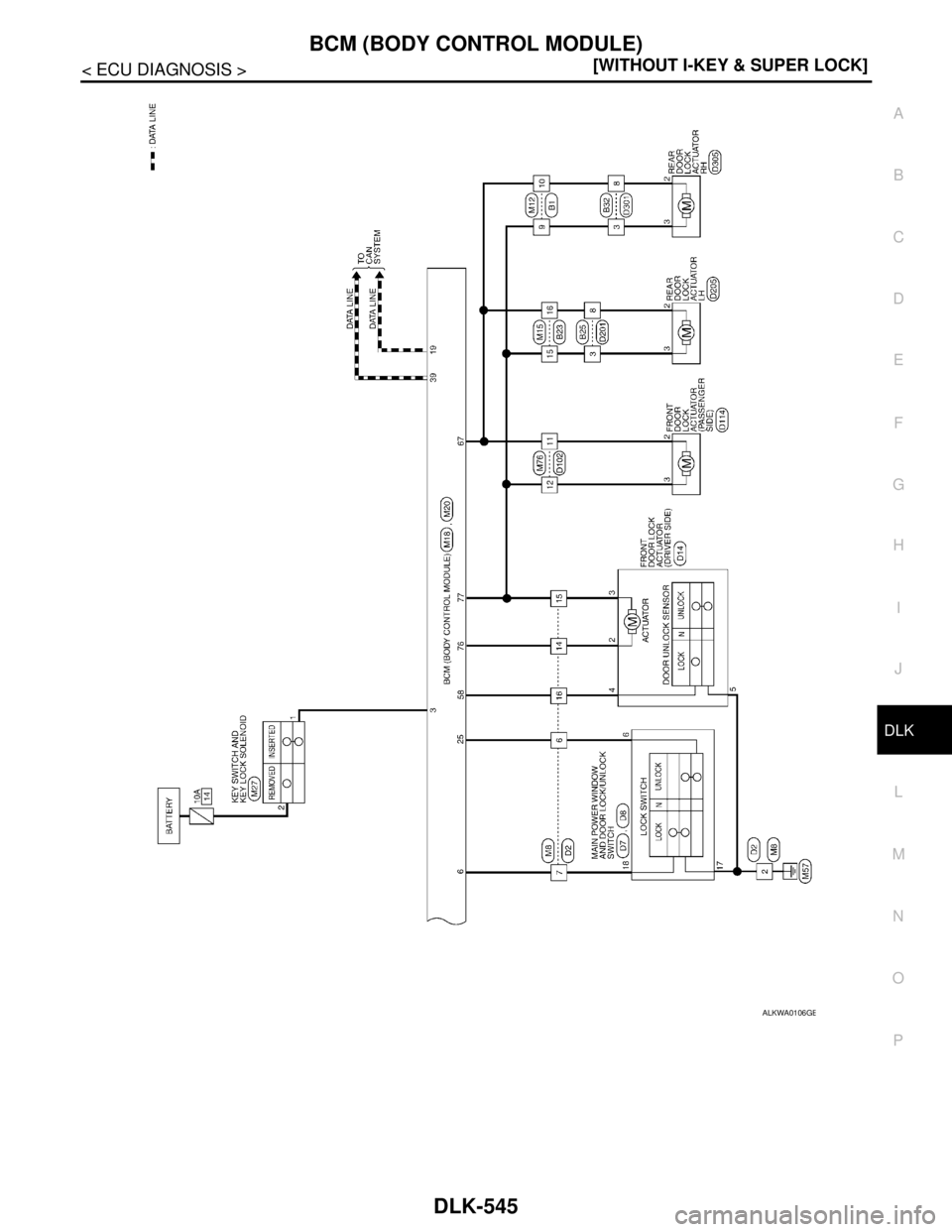

ALKWA0106GB

DLK-546
< ECU DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
BCM (BODY CONTROL MODULE)
ALKIA1122GB

BCM (BODY CONTROL MODULE)
DLK-547
< ECU DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P

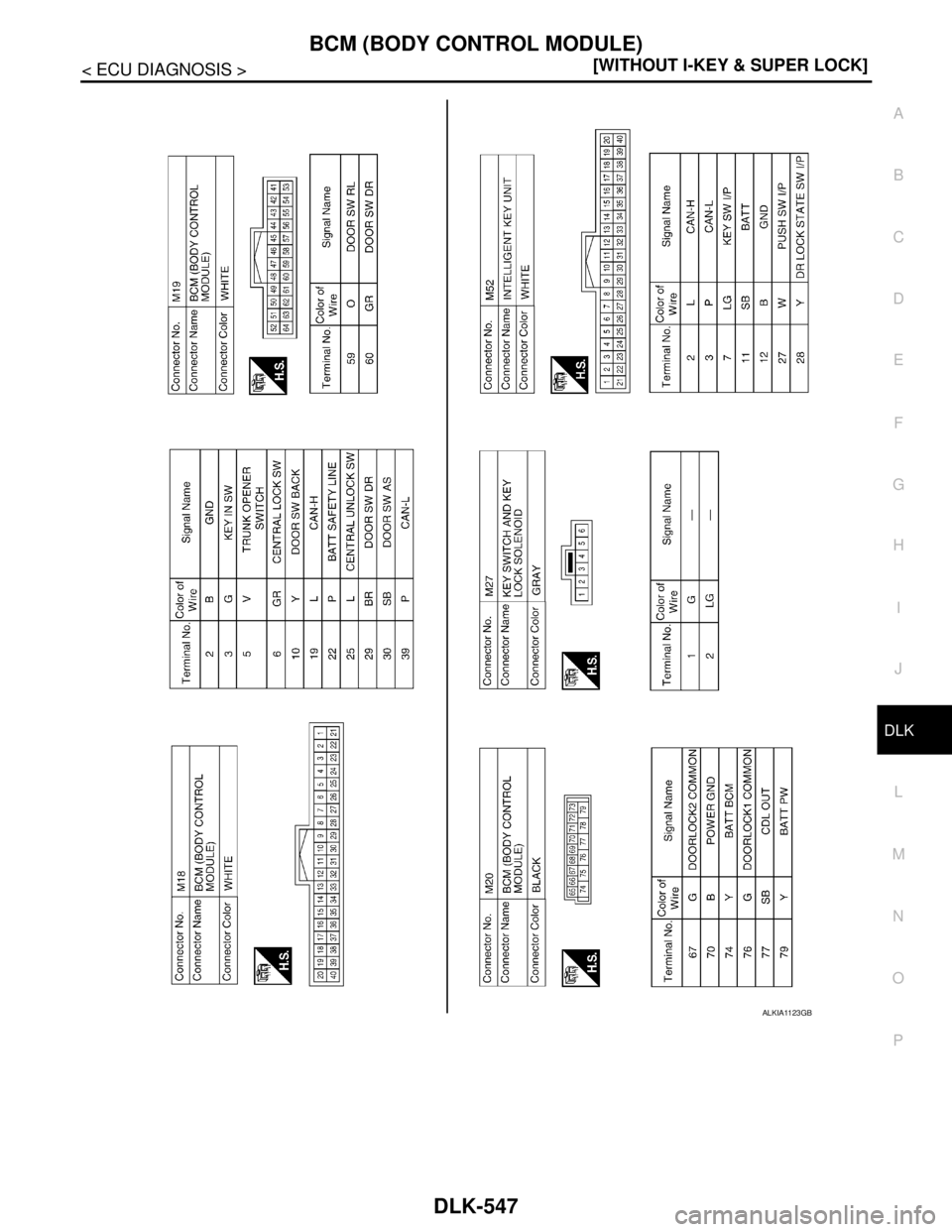

ALKIA1123GB

DLK-548
< ECU DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
BCM (BODY CONTROL MODULE)
ALKIA1124GB

BCM (BODY CONTROL MODULE)
DLK-549
< ECU DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P

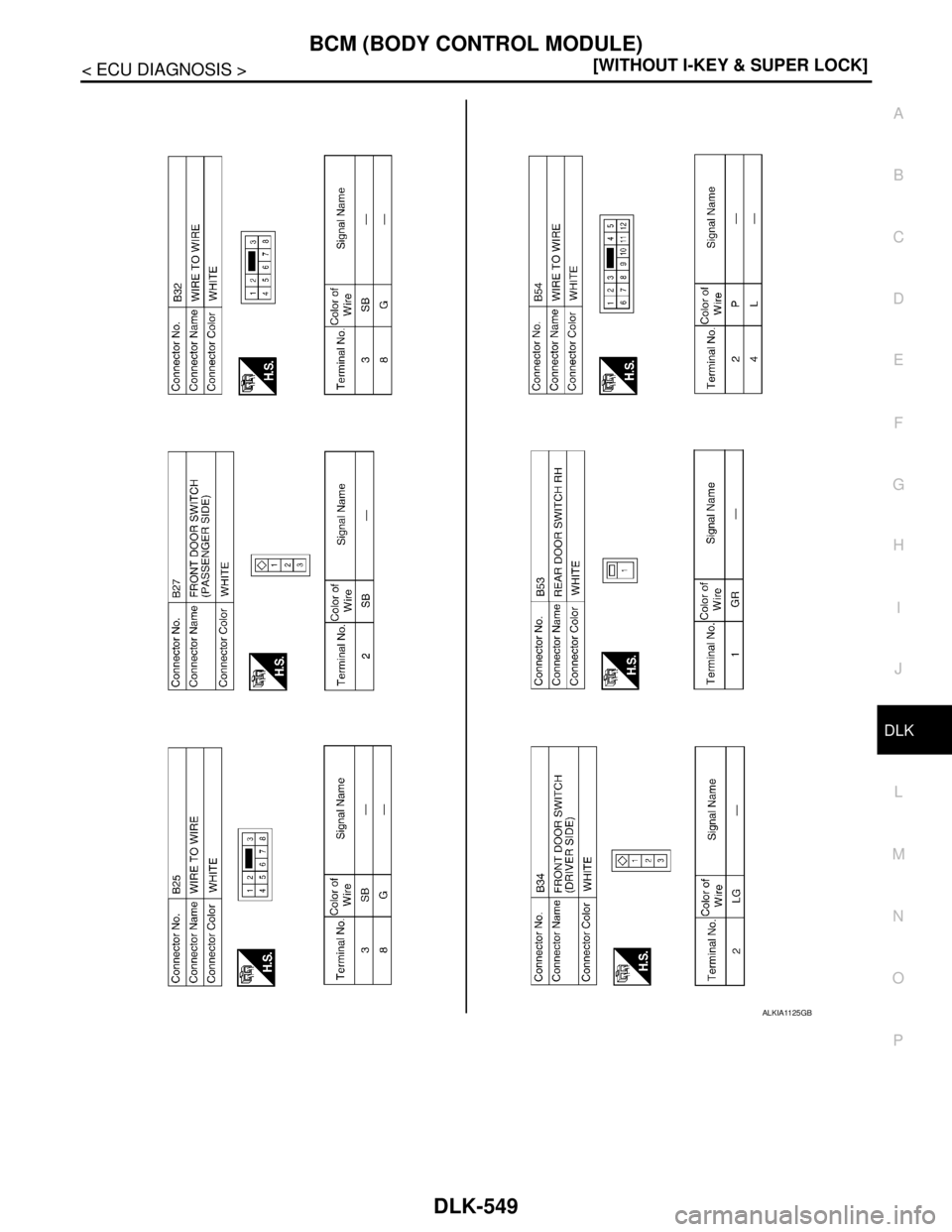

ALKIA1125GB

DLK-550
< ECU DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
BCM (BODY CONTROL MODULE)

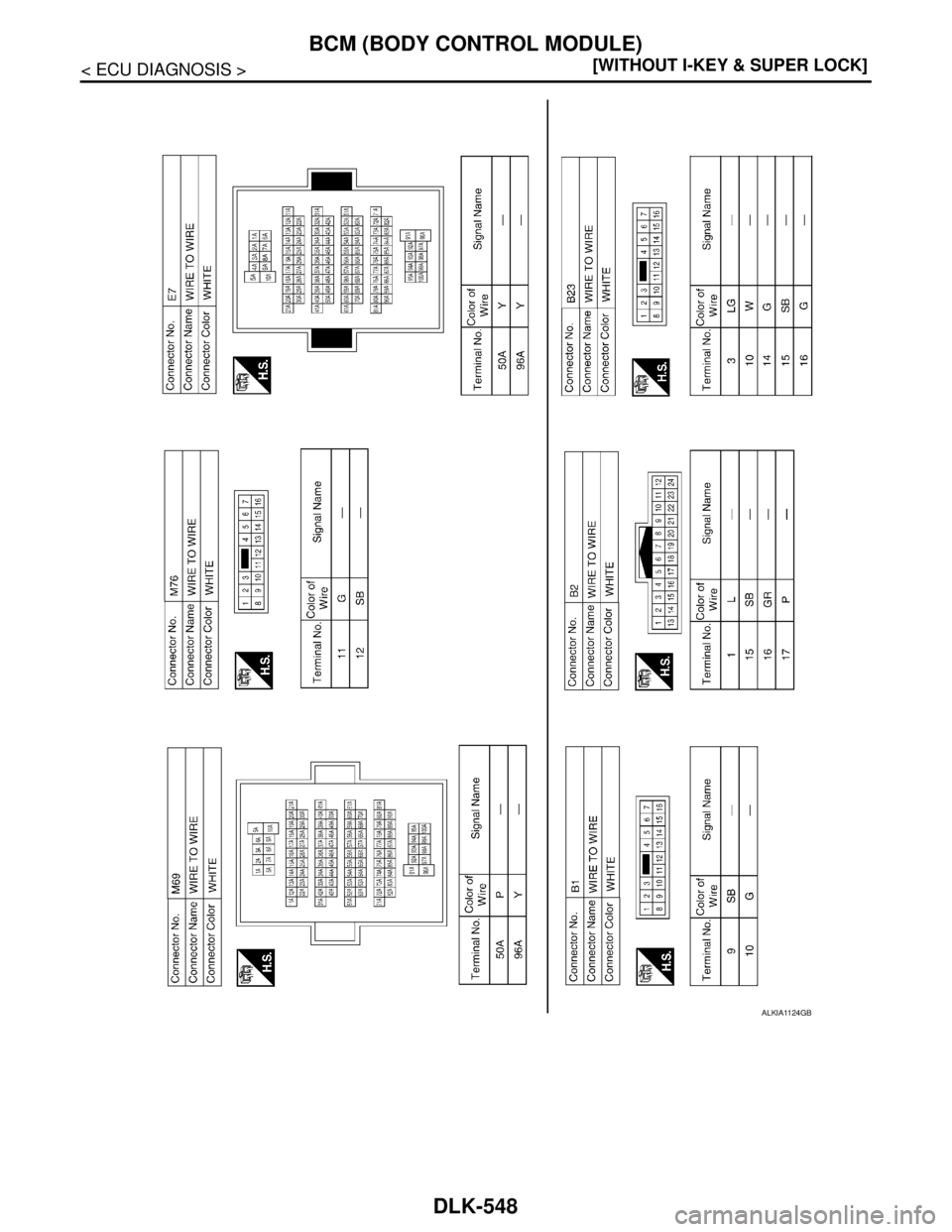

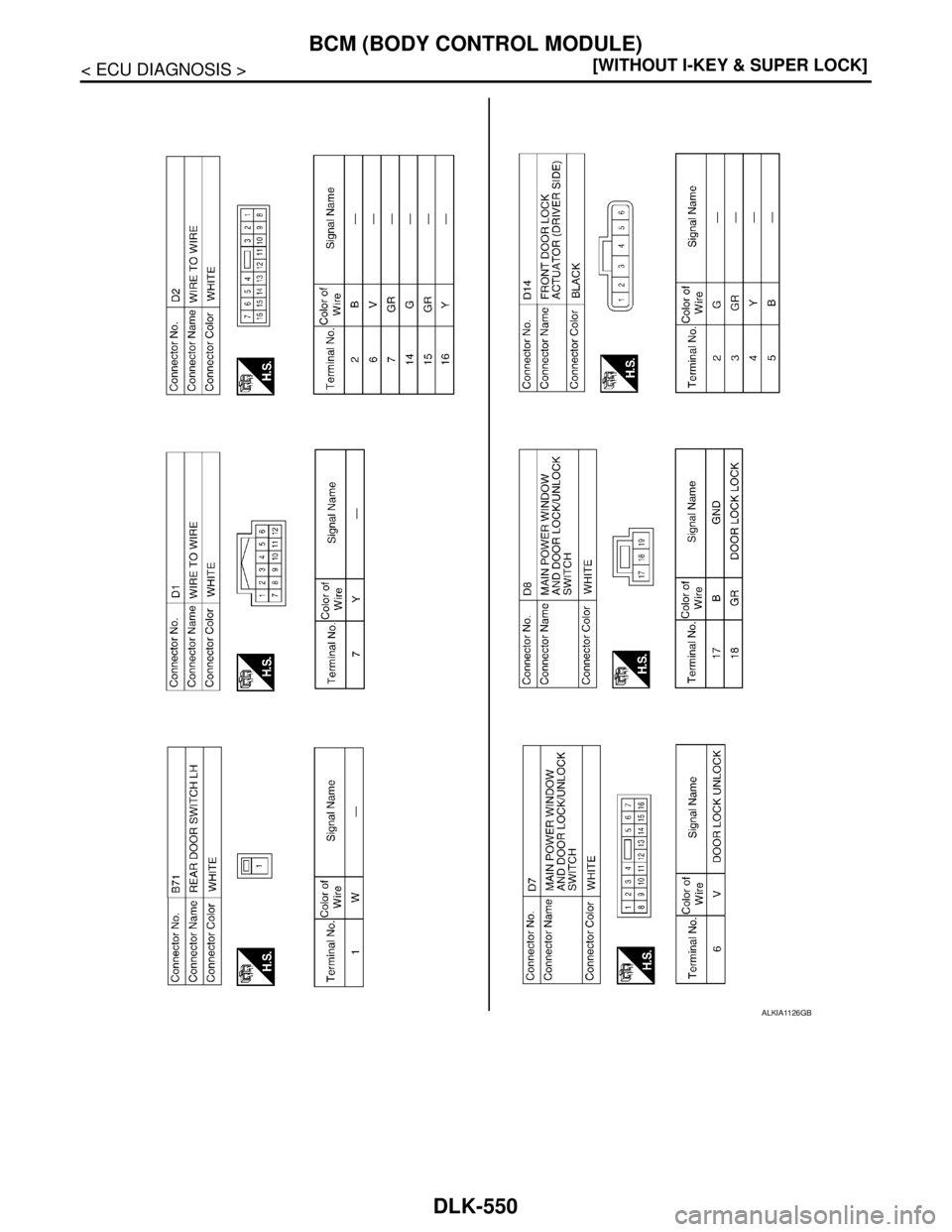

ALKIA1126GB

BCM (BODY CONTROL MODULE)
DLK-551
< ECU DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P

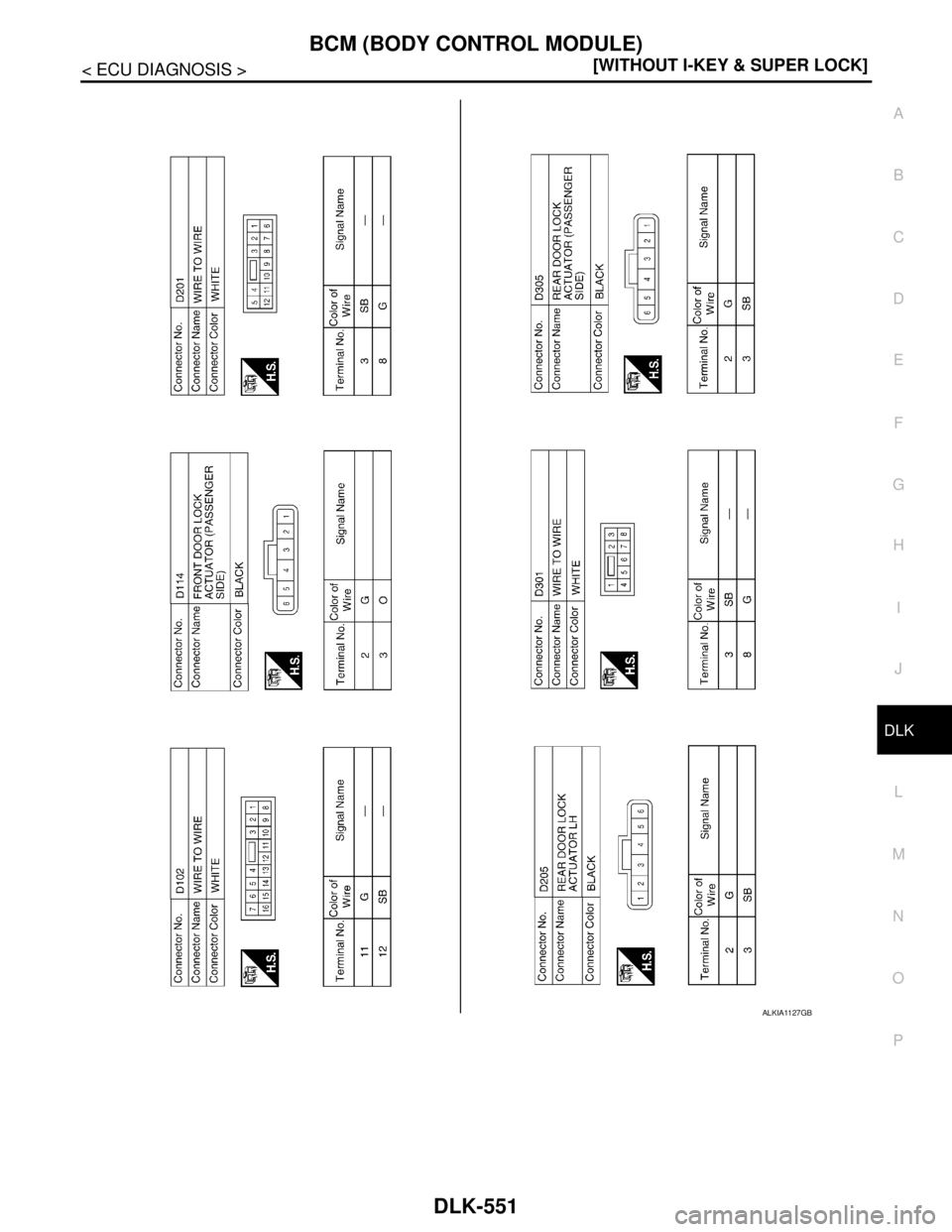

ALKIA1127GB
