NISSAN TIIDA 2007 Service Repair Manual

EC-992
< ECU DIAGNOSIS >[MR18DE]
ECM
*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they differ from
ECM terminals voltage signal.HO2S2 HTR (B1) Engine speed: Below 3,600 rpm after the following conditions are met.
- Engine: After warming up
- Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at
idle for 1 minute under no loadON
 Engine speed: Above 3,600 rpm OFF
VEHICLE SPEED Turn drive wheels and compare CONSULT-III value with the speedometer in-
dication.Almost the same speed as
the speedometer indication
IDL A/V LEARN  Engine: runningIdle air volume learning has not been per-
formed yet.YET
Idle air volume learning has already been
performed successfully.CMPLT
O2SEN HTR DTY Engine coolant temperature when engine started: More than 80°C (176°F)
 Engine speed: below 3,600 rpmApprox. 30%
AC PRESS SEN Engine: Idle
 Both A/C switch and blower fan switch: ON (Compressor operates)1.0 - 4.0V
VHCL SPEED SE Turn drive wheels and compare CONSULT-III value with the speedometer in-
dication.Almost the same speed as
the speedometer indication
SET VHCL SPD  Engine: Running ASCD: OperatingThe preset vehicle speed is
displayed
MAIN SW  Ignition switch: ONMAIN switch: Pressed ON
MAIN switch: Released OFF
CANCEL SW  Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW  Ignition switch: ONRESUME/ACCELERATE switch:
PressedON
RESUME/ACCELERATE switch: Re-
leasedOFF
SET SW  Ignition switch: ONSET/COAST switch: Pressed ON
SET/COAST switch: Released OFF
BRAKE SW1
(ASCD brake switch) Ignition switch: ONBrake pedal and clutch pedal: Fully re-
leasedON
Brake pedal and/or clutch pedal: Slightly
depressedOFF
BRAKE SW2
(Stop lamp switch) Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
VHCL SPD CUT  Ignition switch: ON NON
LO SPEED CUT  Ignition switch: ON NON
AT OD MONITOR  Ignition switch: ON OFF
AT OD CANCEL  Ignition switch: ON OFF
CRUISE LAMP  Ignition switch: ONMAIN switch: Pressed at the 1st time →
at the 2nd timeON → OFF
SET LAMP MAIN switch: ON
 When vehicle speed: Between 40
km/h (25 MPH) and 180 km/h
(112 MPH)ASCD: Operating ON
ASCD: Not operating OFF Monitor Item Condition Values/Status

ECM
EC-993
< ECU DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
TERMINAL LAYOUT
PHYSICAL VALUES
NOTE:
 ECM is located in the engine room left side near battery.
- Use extreme care not to 2 pins at one time.
- Data is for comparison and may not be exact.
 Specification data are reference values and are measured between each terminal and ground.
 Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.
PBIA9221J
Terminal No. Description
ConditionVa l u e
(Approx.)
+ -– Signal nameInput/
Output
1
(L)108
(B)Throttle control motor
(Open)Output[Ignition switch: ON]
 Engine stopped
 Shift lever: 1st
 Accelerator pedal: Fully depressed3.2V
2
(SB)108
(B)Throttle control motor re-
lay power supplyInput [Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
3
(G)56
(B)Heated oxygen sensor 1
heaterOutput[Engine is running]
 Warm-up condition
 Engine speed: Below 3,600 rpm2.9 - 8.8V
[Ignition switch: ON]
 Engine stopped
[Engine is running]
 Engine speed: below 3,600 rpmBATTERY VOLTAGE
(11-14V)
4
(P)108
(B)Throttle control motor
(Close)Output[Ignition switch: ON]
 Engine stopped
 Shift lever:1st
 Accelerator pedal: Fully released1.8V
JMBIA0324GB
JMBIA0325GB
JMBIA0326GB

EC-994
< ECU DIAGNOSIS >[MR18DE]
ECM
5
(G)59
(O)Heated oxygen sensor 2
heaterOutput[Engine is running]
 Engine speed: Below 3,600 rpm af-
ter the following conditions are met
- Engine: after warming up
- Keeping the engine speed between
3,500 and 4,000 rpm for 1 minute
and at idle for 1 minute under no
load10V
[Ignition switch: ON]
 Engine stopped
[Engine is running]
 Engine speed: Above 3,600 rpmBATTERY VOLTAGE
(11 - 14V)
9
(P)108
(B)EVAP canister purge vol-
ume control solenoid
valveOutput[Engine is running]
 Idle speed
 Accelerator pedal: Not depressed
even slightly, after engine startingBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
 Engine speed: About 2,000 rpm
(More than 100 seconds after start-
ing engine.)10V
10
(B)
11
(B)— ECM ground — — —
15
(Y)108
(B)Throttle control motor re-
layOutput[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON] 0 - 1.0V
17
(R)
108
(B)Ignition signal No. 1
Output[Engine is running]
 Warm-up condition
 Idle speed
NOTE:
The pulse cycle changes depending
on rpm at idle0 - 0.3V
18
(LG)Ignition signal No. 2
21
(G)Ignition signal No. 4
[Engine is running]
 Warm-up condition
 Engine speed: 2,000 rpm0.2 - 0.5V
22
(SB)Ignition signal No. 3 Terminal No. Description
ConditionVa l u e
(Approx.)
+-– Signal nameInput/
Output
JMBIA0325GB
JMBIA0327GB
JMBIA0328GB
JMBIA0329GB
JMBIA0330GB

ECM
EC-995
< ECU DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O23
(GR)108
(B)Fuel pump relay Output[Ignition switch: ON]
 For 1 second after turning ignition
switch ON
[Engine is running]0 - 1.0V
25
(V)
108
(B)Fuel injector No. 4
Output[Engine is running]
 Warm-up condition
 Idle speed
NOTE:
The pulse cycle changes depending
on rpm at idleBATTERY VOLTAGE
(11 - 14V)
29
(Y)Fuel injector No. 3
30
(O)Fuel injector No. 2
[Engine is running]
 Warm-up condition
 Engine speed: 2,000 rpmBATTERY VOLTAGE
(11 - 14V)
31
(L)Fuel injector No. 1
32
(P)108
(B)ECM relay
(Self shut-off)Output[Engine is running]
[Ignition switch: OFF]
 A few seconds after turning ignition
switch OFF0 - 1.0V
[Ignition switch: OFF]
 More than a few seconds after turn-
ing ignition switch OFFBATTERY VOLTAGE
(11 - 14V)
33
(LG)36
(Y)Throttle position sensor 1 Input[Ignition switch: ON]
 Engine stopped
 Shift lever: 1st
 Accelerator pedal: Fully releasedMore than 0.36V
[Ignition switch: ON]
 Engine stopped
Shift lever:1st
 Accelerator pedal: Fully depressedLess than 4.75V
34
(O)36
(Y)Throttle position sensor 2 Input[Ignition switch: ON]
 Engine stopped
Shift lever:1st
 Accelerator pedal: Fully releasedLess than 4.75V
[Ignition switch: ON]
 Engine stopped
Shift lever:1st
 Accelerator pedal: Fully depressedMore than 0.36V
36
(Y)—Sensor ground
(Throttle position sensor)—— —
37
(W)40
—Knock sensor Input[Engine is running]
 Idle speed2.5V
38
(P)44
(B)Engine coolant tempera-
ture sensorInput [Engine is running]0 - 4.8V
Output voltage varies with engine
coolant temperature.
40
(B)—Sensor ground
(Knock sensor)—— — Terminal No. Description
ConditionVa l u e
(Approx.)
+ -– Signal nameInput/
Output
JMBIA0331GB
JMBIA0332GB

E C -996
< ECU DIAGNOSIS >[MR18DE]
ECM
41
(GR)48
(BR)Refrigerant pressure sen-
sorInput[Engine is running]
 Warm-up condition
 Both A/C switch and blower fan mo-
tor switch: ON (Compressor oper-
ates)1.0 - 4.0V
44
(B)—Sensor ground
(Engine coolant tempera-
ture sensor)—— —
45
(G)52
(LG)Mass air flow sensor Input[Ignition switch: ON]
 Engine stopped0.4V
[Engine is running]
 Warm-up condition
 Idle speed0.9 - 1.2V
[Engine is running]
 Warm-up condition
 Engine is revving from idle to about
4,000 rpm0.9 - 1.2 to 2.4V (Check for linear
voltage rise in response to en-
gine being increased to about
4,000 rpm.)
46
(V)55
(O)Intake air temperature
sensorInput [Engine is running]0 - 4.8V
Output voltage varies with intake
air temperature.
48
(BR)—Sensor ground
(Refrigerant pressure
sensor)—— —
49
(W)56
(B)Heated oxygen sensor 1 Input[Engine is running]
 Warm-up condition
 Engine speed: 2,000 rpm0 - 1.0V
50
(W)59
(O)Heated oxygen sensor 2 Input[Engine is running]
 Revving engine from idle to 3,000
rpm quickly after the following condi-
tions are met
- Engine: after warming up
- Keeping the engine speed between
3,500 and 4,000 rpm for 1 minute
and at idle for 1 minute under no
load0 - 1.0V
52
(LG)—Sensor ground
(Mass air flow sensor)—— —
55
(O)—Sensor ground
(Intake air temperature
sensor)—— —
56
(B)—Sensor ground
(Heated oxygen sensor 1)—— —
59
(O)—Sensor ground
(Heated oxygen sensor 2)—— — Terminal No. Description
ConditionVa l u e
(Approx.)
+-– Signal nameInput/
Output

ECM
EC-997
< ECU DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
61
(W)62
(R)Crankshaft position sen-
sor (POS)Input[Engine is running]
 Warm-up condition
 Idle speed
NOTE:
The pulse cycle changes depending
on rpm at idle4.0V
[Engine is running]
 Engine speed: 2,000 rpm4.0V
62
(R)—Sensor ground
[Crankshaft position sen-
sor (POS)]—— —
63
(L)—Sensor ground
[Camshaft position sen-
sor (PHASE)]—— —
65
(G)63
(BR)Camshaft position sensor
(PHASE)Input[Engine is running]
 Warm-up condition
 Idle speed
NOTE:
The pulse cycle changes depending
on rpm at idle1.0 - 2.0
[Engine is running]
 Engine speed is 2,000 rpm1.0 - 2.0
69
(L)108
(B)PNP switch Input[Ignition switch: ON]
 Shift lever: NeutralBATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]
 Shift lever: Except above0V
72
(V)36
(Y)Sensor power supply
(Throttle position sensor)— [Ignition switch: ON] 5V Terminal No. Description
ConditionVa l u e
(Approx.)
+ -– Signal nameInput/
OutputJMBIA0333GB
JMBIA0334GB
JMBIA0335GB
JMBIA0336GB

EC-998
< ECU DIAGNOSIS >[MR18DE]
ECM
73
(P)108
(B)Intake valve timing control
solenoid valveOutput[Engine is running]
 Warm-up condition
 Idle speed0V
[Engine is running]
 Warm-up condition
 When revving engine up to
2,000rpm Quickly7 - 10V
74
(W)108
(B)Sensor power supply
(Refrigerant pressure
sensor)Input [Ignition switch: ON] 5V
75
(BR)62
(R)Sensor power supply
[Crankshaft position sen-
sor (POS)]— [Ignition switch: ON] 5V
78
(O)63
(BR)Sensor power supply
[Camshaft position sen-
sor (PHASE)]— [Ignition switch: ON] 5V
83
(P)108
(B)CAN communication lineInput/
Output——
84
(L)108
(B)CAN communication lineInput/
Output——
88
(LG)108
(B)Data link connectorInput/
Output[Ignition switch: ON]
 CONSULT-III or GST: Disconnected10.5V
93
(O)108
(B)Ignition switch Input[Ignition switch: OFF] 0V
[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
94
(R)95
(B)ASCD steering switch Input[Ignition switch: ON]
 ASCD steering switch: OFF4V
[Ignition switch: ON]
 MAIN switch: Pressed0V
[Ignition switch: ON]
 CANCEL switch: Pressed1V
[Ignition switch: ON]
 RESUME/ACCELERATE switch:
Pressed3V
[Ignition switch: ON]
 SET/COAST switch: Pressed2V
95
(B)—Sensor ground
(ASCD steering switch)—— —
99
(R)
108
(B)Stop lamp switch Input[Ignition switch: OFF]
 Brake pedal: Fully released0V
[Ignition switch: OFF]
 Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V)
100
(G)108
(B)ASCD brake switch Input[Ignition switch: ON]
 Brake pedal and clutch pedal:
Slightly depressed0V
[Ignition switch: ON]
 Brake pedal and/or clutch pedal:
Fully releasedBATTERY VOLTAGE
(11 - 14V) Terminal No. Description
ConditionVa l u e
(Approx.)
+-– Signal nameInput/
Output
PBIA4937J

ECM
EC-999
< ECU DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)102
(SB)108
(B)Sensor power supply
(Accelerator pedal posi-
tion sensor 2)— [Ignition switch: ON] 5V
103
(GR)104
(Y)Accelerator pedal posi-
tion sensor 2Input[Ignition switch: ON]
 Engine stopped
 Accelerator pedal: Fully released0.3 - 0.6V
[Ignition switch: ON]
 Engine stopped
 Accelerator pedal: Fully depressed1.95 - 2.4V
104
(Y)—Sensor ground
(Accelerator pedal posi-
tion sensor 2)—— —
105
(G)108
(B)Power supply for ECM Input [Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
106
(P)111
(R)Sensor power supply
(Accelerator pedal posi-
tion sensor 1)— [Ignition switch: ON] 5V
108
(B)— ECM ground — — —
11 0
(G)111
(R)Accelerator pedal posi-
tion sensor 1Input[Ignition switch: ON]
 Engine stopped
 Accelerator pedal: Fully released0.6 - 0.9V
[Ignition switch: ON]
 Engine stopped
 Accelerator pedal: Fully depressed3.9 - 4.7V
111
(R)—Sensor ground
(Accelerator pedal posi-
tion sensor 1)—— — Terminal No. Description
ConditionVa l u e
(Approx.)
+ -– Signal nameInput/
Output

EC-1000
< ECU DIAGNOSIS >[MR18DE]
ECM

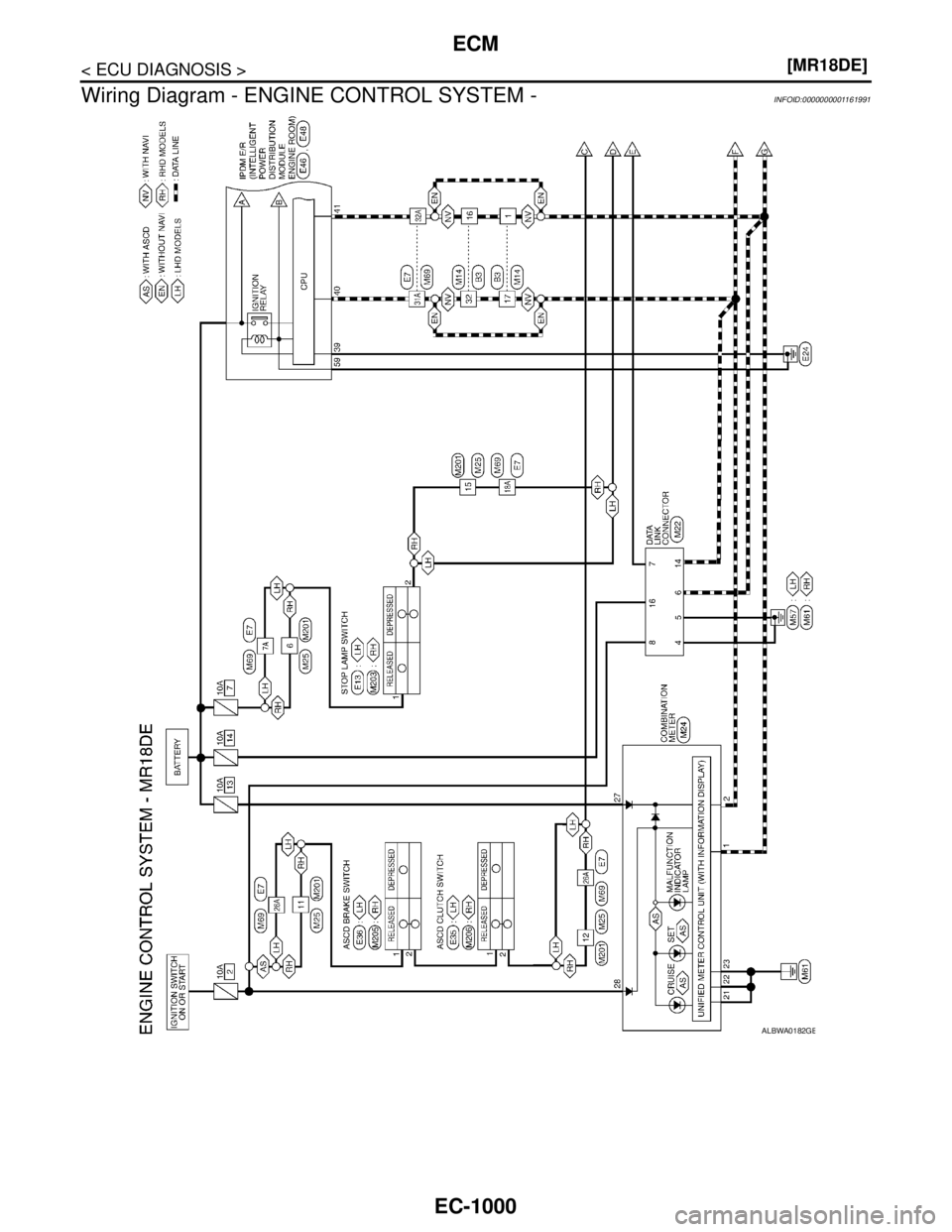

Wiring Diagram - ENGINE CONTROL SYSTEM -
INFOID:0000000001161991
ALBWA0182GB

ECM
EC-1001
< ECU DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O

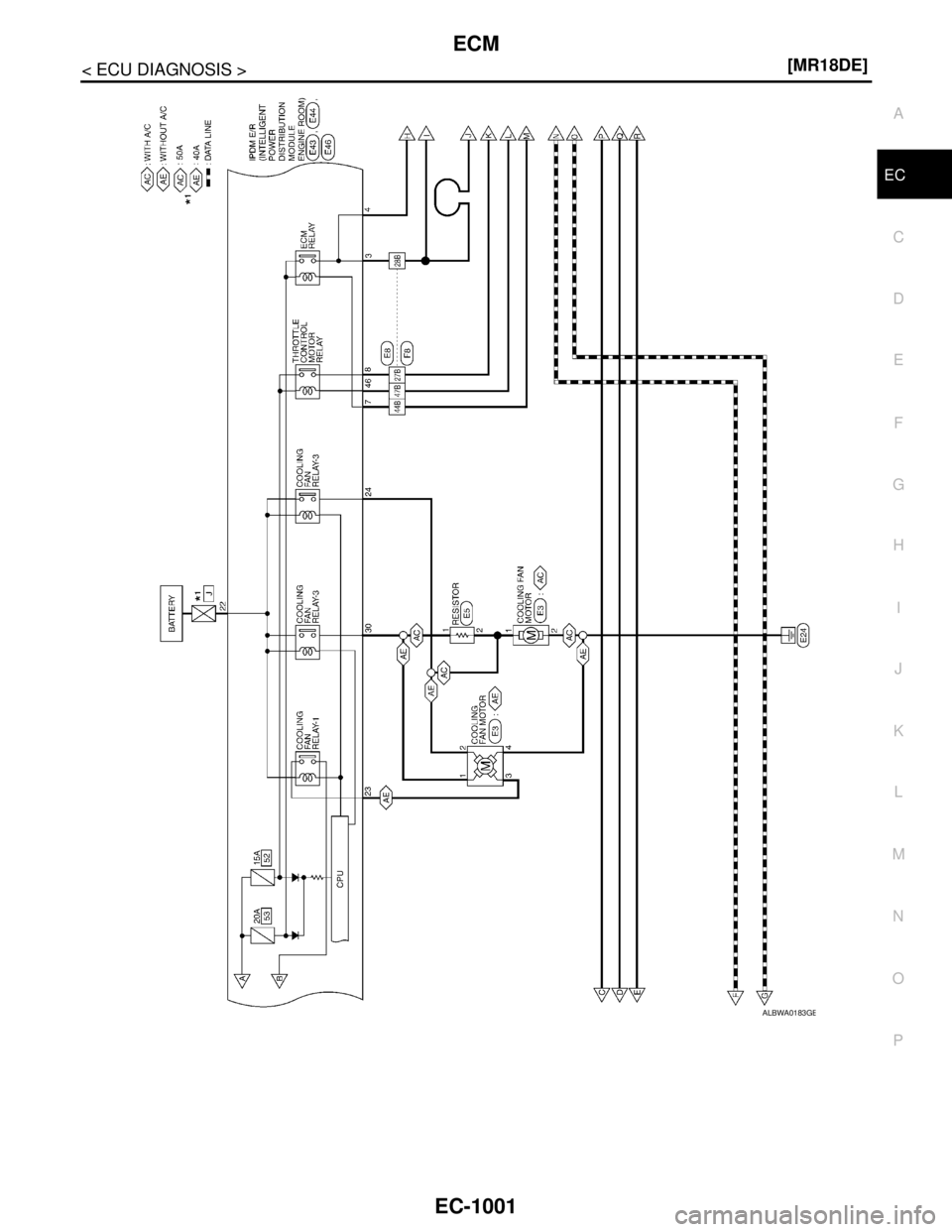

ALBWA0183GB
