NISSAN TIIDA 2007 Service Repair Manual

TURBINE REVOLUTION SENSOR
TM-385
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

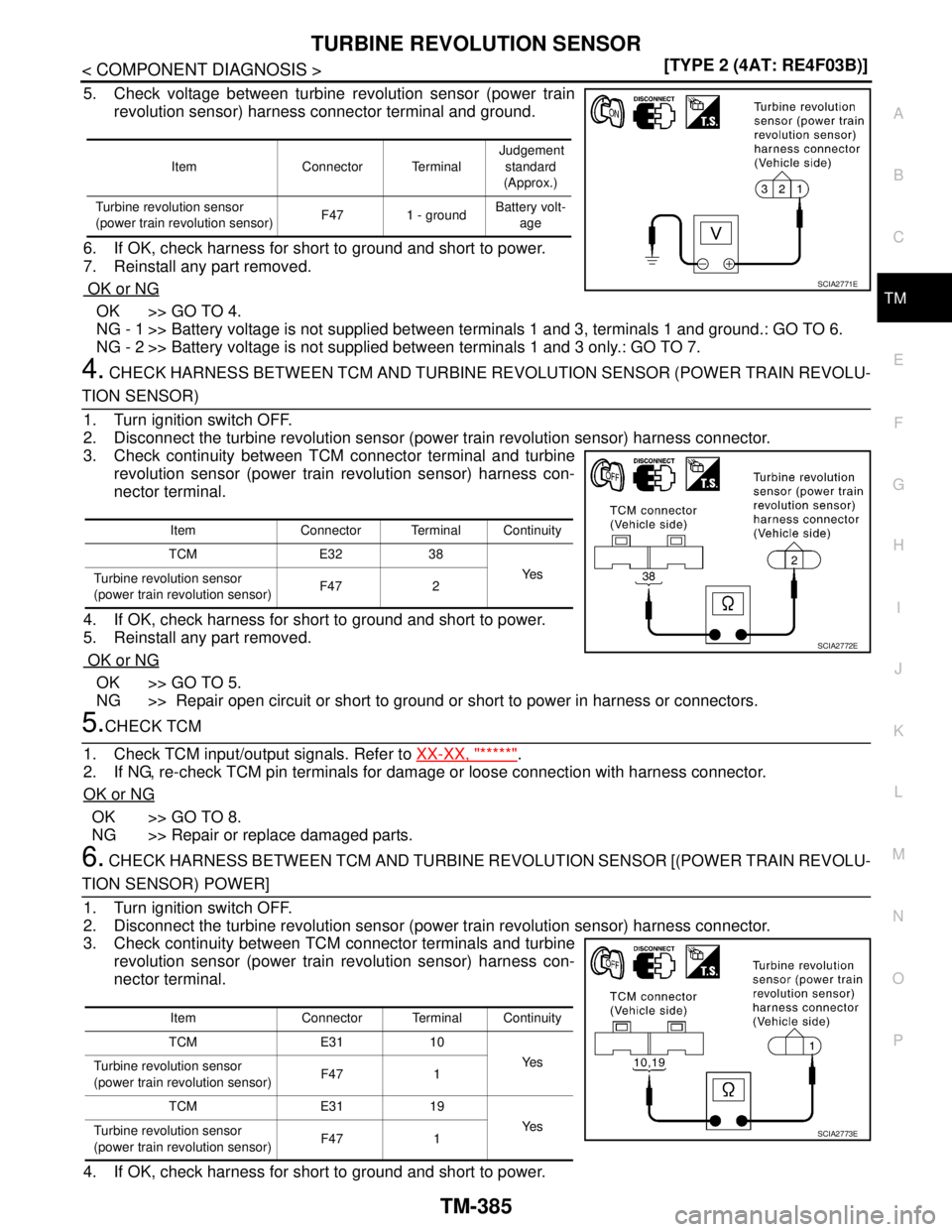

5. Check voltage between turbine revolution sensor (power train
revolution sensor) harness connector terminal and ground.
6. If OK, check harness for short to ground and short to power.
7. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG - 1 >> Battery voltage is not supplied between terminals 1 and 3, terminals 1 and ground.: GO TO 6.
NG - 2 >> Battery voltage is not supplied between terminals 1 and 3 only.: GO TO 7.
4. CHECK HARNESS BETWEEN TCM AND TURBINE REVOLUTION SENSOR (POWER TRAIN REVOLU-
TION SENSOR)
1. Turn ignition switch OFF.
2. Disconnect the turbine revolution sensor (power train revolution sensor) harness connector.
3. Check continuity between TCM connector terminal and turbine
revolution sensor (power train revolution sensor) harness con-
nector terminal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK TCM
1. Check TCM input/output signals. Refer to XX-XX, "*****"
.
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
6. CHECK HARNESS BETWEEN TCM AND TURBINE REVOLUTION SENSOR [(POWER TRAIN REVOLU-
TION SENSOR) POWER]
1. Turn ignition switch OFF.
2. Disconnect the turbine revolution sensor (power train revolution sensor) harness connector.
3. Check continuity between TCM connector terminals and turbine
revolution sensor (power train revolution sensor) harness con-
nector terminal.
4. If OK, check harness for short to ground and short to power.
Item Connector Terminal Judgement
standard
(Approx.)
Turbine revolution sensor
(power train revolution sensor)F47 1 - groundBattery volt-
age
SCIA2771E
Item Connector Terminal Continuity
TCM E32 38
Ye s
Turbine revolution sensor
(power train revolution sensor)F47 2
SCIA2772E
Item Connector Terminal Continuity
TCM E31 10
Ye s
Turbine revolution sensor
(power train revolution sensor)F47 1
TCM E31 19
Ye s
Turbine revolution sensor
(power train revolution sensor)F47 1
SCIA2773E

TM-386
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
TURBINE REVOLUTION SENSOR
5. Reinstall any part removed.
OK or NG
OK >> 10A fuse (No.49, located in the IPDM E/R) or ignition switch are malfunctioning.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.

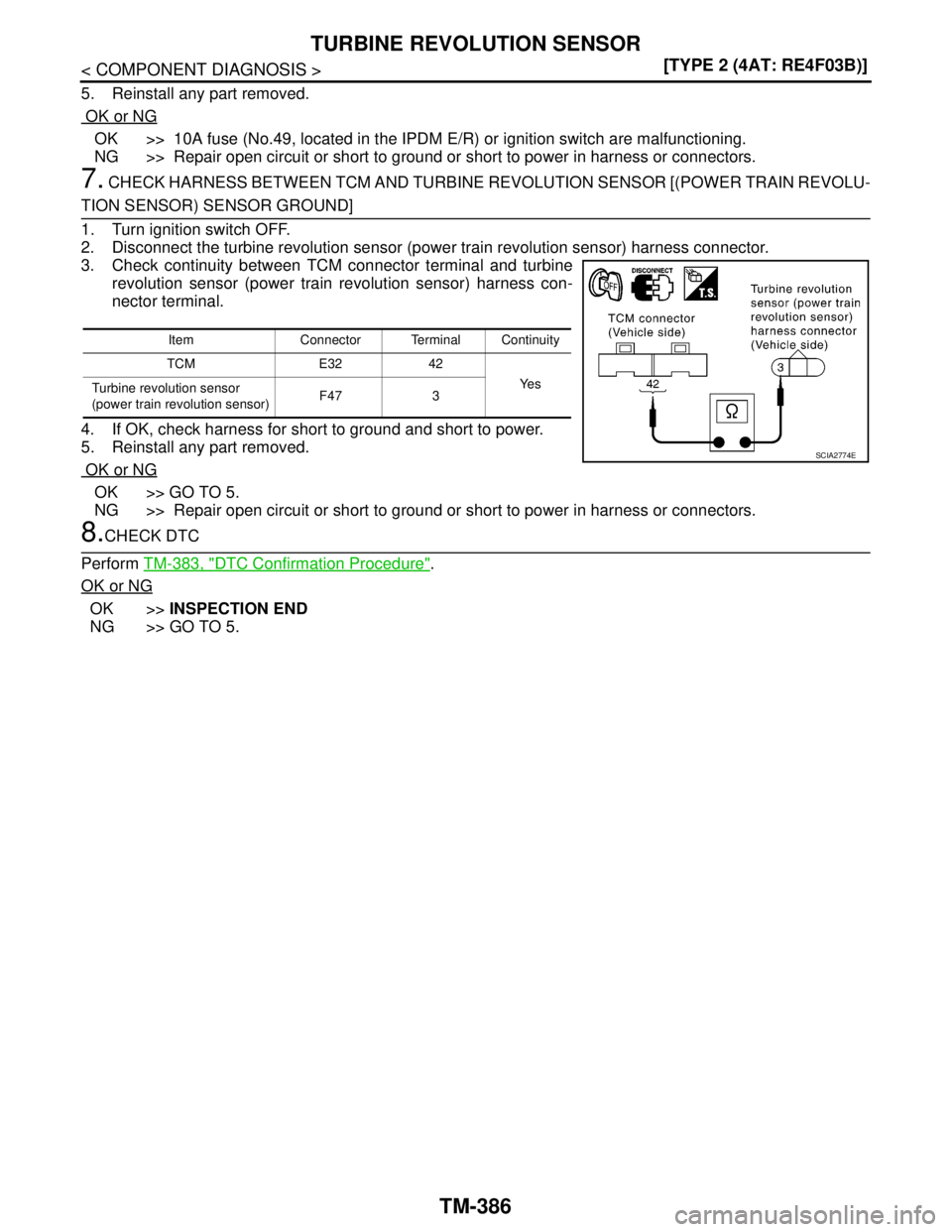

7. CHECK HARNESS BETWEEN TCM AND TURBINE REVOLUTION SENSOR [(POWER TRAIN REVOLU-
TION SENSOR) SENSOR GROUND]
1. Turn ignition switch OFF.
2. Disconnect the turbine revolution sensor (power train revolution sensor) harness connector.
3. Check continuity between TCM connector terminal and turbine
revolution sensor (power train revolution sensor) harness con-
nector terminal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK DTC
Perform TM-383, "
DTC Confirmation Procedure".
OK or NG
OK >>INSPECTION END
NG >> GO TO 5.
Item Connector Terminal Continuity
TCM E32 42
Ye s
Turbine revolution sensor
(power train revolution sensor)F47 3
SCIA2774E

LINE PRESSURE SOLENOID VALVE
TM-387
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
LINE PRESSURE SOLENOID VALVE
DescriptionINFOID:0000000001713056
The line pressure solenoid valve regulates the oil pump discharge pressure to suit the driving condition in
response to signals sent from the TCM.
The line pressure duty cycle value is not constant when the closed throttle position switch is ON. To
confirm the line pressure duty cycle at low-pressure, the accelerator (throttle) should be open until the
closed throttle position switch is OFF.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001713057
Remarks: Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000001713058
Diagnostic trouble code “LINE PRESSURE S/V” with CONSULT-III or 11th judgement flicker without CON-
SULT-III is detected when TCM detects an improper voltage drop while it tries to operate the solenoid valve.
Possible CauseINFOID:0000000001713059
 Harness or connector
(Solenoid circuit is open or shorted.)
 Line pressure solenoid valve
DTC Confirmation ProcedureINFOID:0000000001713060
CAUTION:
 Always drive vehicle at a safe speed.
 If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at
least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
2. Touch “START”.
3. Depress accelerator pedal completely and wait at least 1 second.
4. If the check result is NG, go to TM-387, "
Diagnosis Procedure".
WITHOUT CONSULT-III
1. Start engine.
2. With brake pedal depressed, shift the lever from “P”→“N”→“D”→“N”→“P” positions.
3. Perform self-diagnosis. Refer to TM-350, "
Diagnosis Procedure without CONSULT-III".
4. If the check result is NG, go to TM-387, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001713062
1.CHECK INPUT SIGNAL
With CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
3. Read out the value of “LINE PRES DTY” while driving. Check the value changes according to driving
speed.
Item name Condition Display value (Approx.)
LINE PRES DTYSmall throttle opening (Low line pressure) ⇔ Large
throttle opening (High line pressure)0% ⇔ 94%

TM-388
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
LINE PRESSURE SOLENOID VALVE
Without CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector terminals and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2.CHECK DROPPING RESISTOR
1. Turn ignition switch OFF.
2. Disconnect dropping resistor harness connector in engine room.
3. Check resistance between terminals.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3.CHECK VALVE RESISTANCE
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly connector in engine room.
Item name ConditionDisplay value
(Approx.)
LINE PRES DTYSmall throttle opening (Low line pressure)
⇔ Large throttle opening (High line pres-
sure)0% ⇔ 94%
ItemConnec-
torTerminal ConditionJudge-
ment stan-
dard
(Approx.)
Line pres-
sure sole-
noid valveE31 1 - GroundWhen releasing accelera-
tor pedal after warming
up engine.1.5 - 3.0V
When depressing accel-
erator pedal fully after
warming up engine.0V
Line pres-
sure sole-
noid valve
(with drop-
ping resis-
tor)E31 2 - GroundWhen releasing accelera-
tor pedal after warming
up engine.4 - 14V
When depressing accel-
erator pedal fully after
warming up engine.0V
SCIA3267E
Item Connector Terminal Resistance (Approx.)
Dropping resistor E49 1 - 2 12 Ω
SCIA4950E

LINE PRESSURE SOLENOID VALVE
TM-389
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

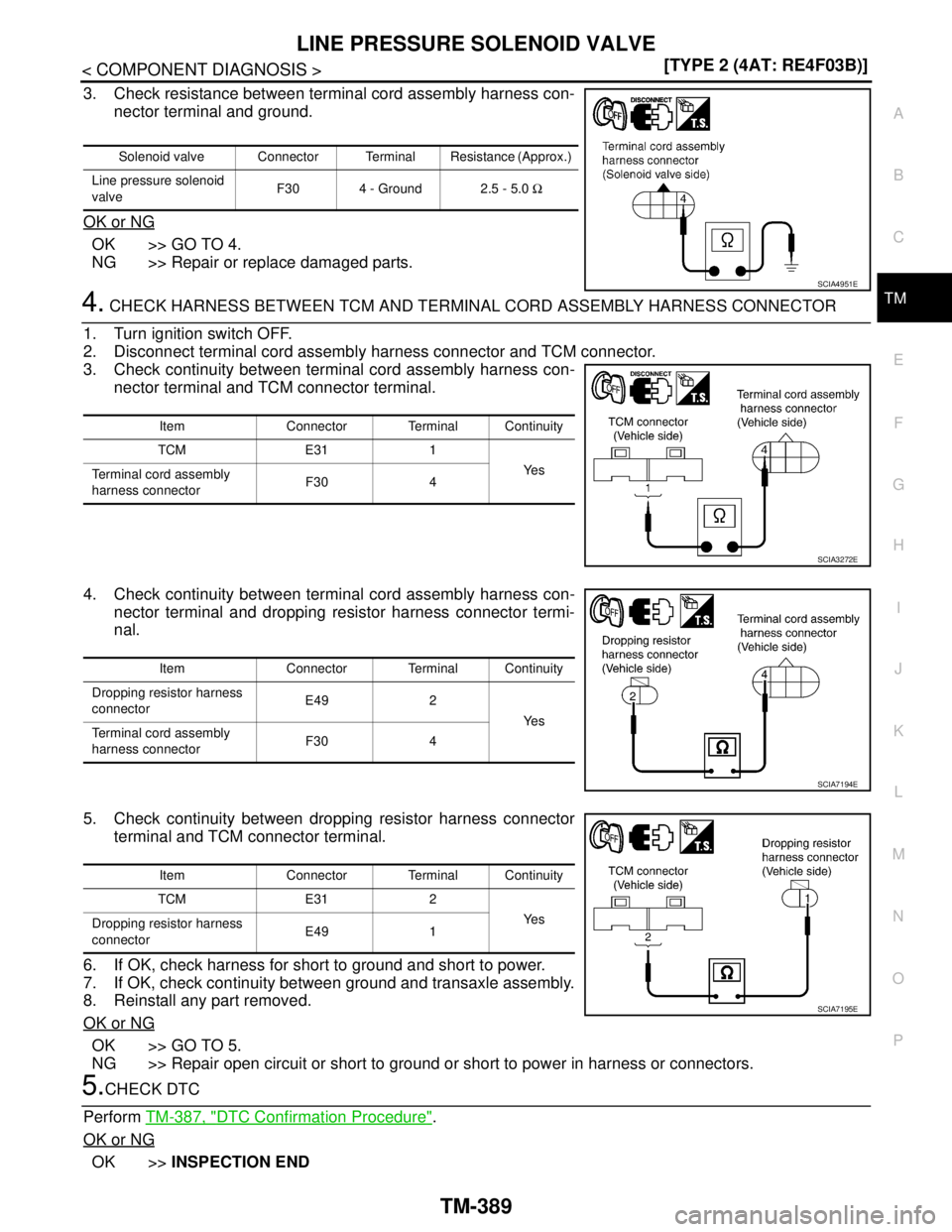

3. Check resistance between terminal cord assembly harness con-
nector terminal and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly harness connector and TCM connector.
3. Check continuity between terminal cord assembly harness con-
nector terminal and TCM connector terminal.
4. Check continuity between terminal cord assembly harness con-
nector terminal and dropping resistor harness connector termi-
nal.
5. Check continuity between dropping resistor harness connector
terminal and TCM connector terminal.
6. If OK, check harness for short to ground and short to power.
7. If OK, check continuity between ground and transaxle assembly.
8. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK DTC
Perform TM-387, "
DTC Confirmation Procedure".
OK or NG
OK >>INSPECTION END
Solenoid valve Connector Terminal Resistance (Approx.)
Line pressure solenoid
valveF30 4 - Ground 2.5 - 5.0 Ω
SCIA4951E
Item Connector Terminal Continuity
TCM E31 1
Ye s
Terminal cord assembly
harness connectorF30 4
SCIA3272E
Item Connector Terminal Continuity
Dropping resistor harness
connectorE49 2
Ye s
Terminal cord assembly
harness connectorF30 4
SCIA7194E
Item Connector Terminal Continuity
TCM E31 2
Ye s
Dropping resistor harness
connectorE49 1
SCIA7195E

TM-390
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
LINE PRESSURE SOLENOID VALVE
NG >> GO TO 6.
6.CHECK TCM
1. Check TCM input/output signals. Refer to XX-XX, "*****"
.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.

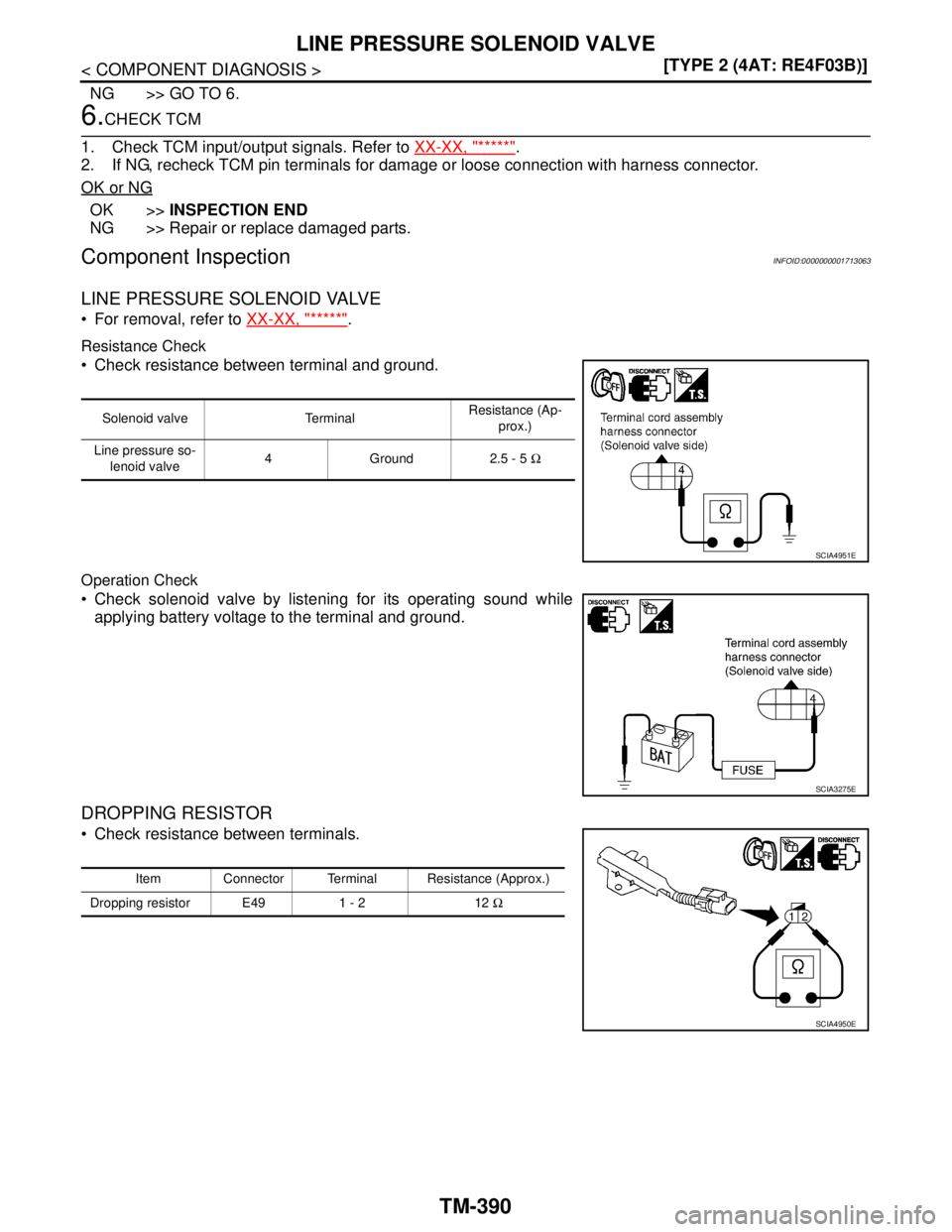

Component InspectionINFOID:0000000001713063
LINE PRESSURE SOLENOID VALVE
 For removal, refer to XX-XX, "*****".
Resistance Check
 Check resistance between terminal and ground.
Operation Check
 Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
DROPPING RESISTOR
 Check resistance between terminals.
Solenoid valve TerminalResistance (Ap-
prox.)
Line pressure so-
lenoid valve4 Ground 2.5 - 5 Ω
SCIA4951E
SCIA3275E
Item Connector Terminal Resistance (Approx.)
Dropping resistor E49 1 - 2 12 Ω
SCIA4950E

CAN COMMUNICATION LINE
TM-391
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
CAN COMMUNICATION LINE
DescriptionINFOID:0000000001713064
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent malfunction detection ability.
Many electronic control units are equipped onto a vehicle, and each control unit shares information and links
with other control units during operation (not independent). In CAN communication, control units are con-
nected with 2 communication lines (CAN H line, CAN L line) allowing a high rate of information transmission
with less wiring. Each control unit transmits/receives data but selectively reads required data only.
On Board Diagnosis LogicINFOID:0000000001713065
Diagnostic trouble code “U1000 CAN COMM CIRCUIT” with CONSULT-III or 12th judgement flicker without
CONSULT-III is detected when TCM cannot communicate to other control units.
Possible CauseINFOID:0000000001713066
Harness or connector
(CAN communication line is open or shorted.)
DTC Confirmation ProcedureINFOID:0000000001713067
CAUTION:
 Always drive vehicle at a safe speed.
 If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at
least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
3. Touch “START”.
4. Wait at least 6 seconds or start engine and wait for at least 6 seconds.
5. If DTC is detected, go to TM-391, "
Diagnosis Procedure".
WITHOUT CONSULT-III
1. Turn ignition switch ON.
2. Wait at least 6 seconds or start engine and wait at least 6 seconds.
3. Perform self-diagnosis. Refer to TM-350, "
Diagnosis Procedure without CONSULT-III".
4. If DTC is detected, go to TM-391, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001713069
1.CHECK CAN COMMUNICATION CIRCUIT
With CONSULT-III
1. Turn ignition switch ON and start engine.
2. Select “SELF-DIAGNOSTIC RESULTS” mode for “TRANSMISSION” with CONSULT-III.
Is any malfunction of the
“CAN COMM CIRCUIT” indicated?
YES >> Print out CONSULT-III screen, GO TO LAN section. Refer to XX-XX, "*****"
NO >>INSPECTION END

TM-392
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]

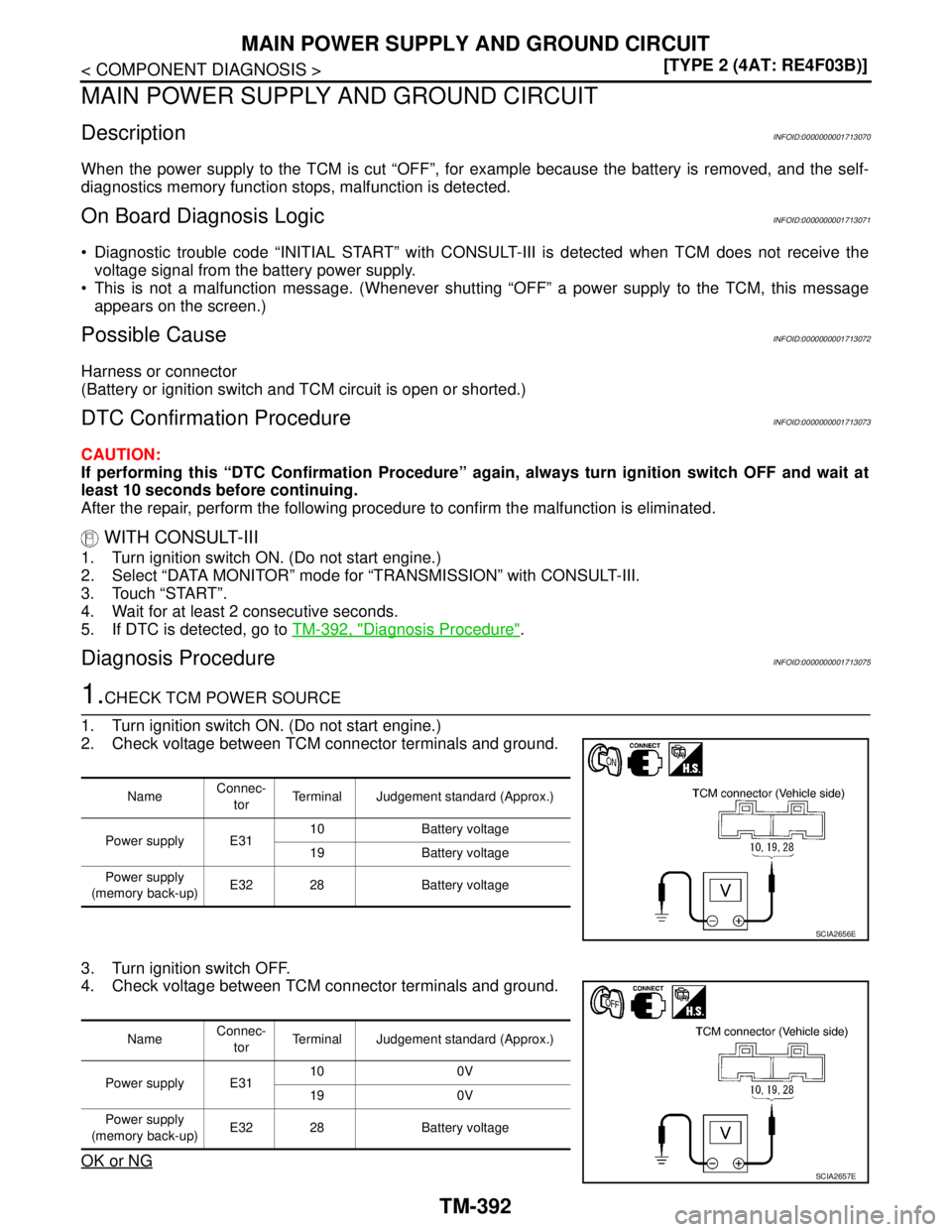

MAIN POWER SUPPLY AND GROUND CIRCUIT
MAIN POWER SUPPLY AND GROUND CIRCUIT
DescriptionINFOID:0000000001713070
When the power supply to the TCM is cut “OFF”, for example because the battery is removed, and the self-
diagnostics memory function stops, malfunction is detected.
On Board Diagnosis LogicINFOID:0000000001713071
 Diagnostic trouble code “INITIAL START” with CONSULT-III is detected when TCM does not receive the
voltage signal from the battery power supply.
 This is not a malfunction message. (Whenever shutting “OFF” a power supply to the TCM, this message
appears on the screen.)
Possible CauseINFOID:0000000001713072
Harness or connector
(Battery or ignition switch and TCM circuit is open or shorted.)
DTC Confirmation ProcedureINFOID:0000000001713073
CAUTION:
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at
least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
3. Touch “START”.
4. Wait for at least 2 consecutive seconds.
5. If DTC is detected, go to TM-392, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001713075
1.CHECK TCM POWER SOURCE
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector terminals and ground.
3. Turn ignition switch OFF.
4. Check voltage between TCM connector terminals and ground.
OK or NG
NameConnec-
torTerminal Judgement standard (Approx.)
Power supply E3110 Battery voltage
19 Battery voltage
Power supply
(memory back-up)E32 28 Battery voltage
SCIA2656E
NameConnec-
torTerminal Judgement standard (Approx.)
Power supply E3110 0V
19 0V
Power supply
(memory back-up)E32 28 Battery voltage
SCIA2657E

MAIN POWER SUPPLY AND GROUND CIRCUIT
TM-393
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
OK >> GO TO 3.
NG >> GO TO 2.
2.DETECT MALFUNCTIONING ITEM
Check the following items:
 Harness for short or open between ignition switch and TCM terminals 10, 19
 Harness for short or open between battery and TCM terminal 28
 10A fuse (No.13, located in the fuse block) and 10A fuse (No. 49, located in the IPDM E/R)
 Ignition switch. Refer to XX.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.

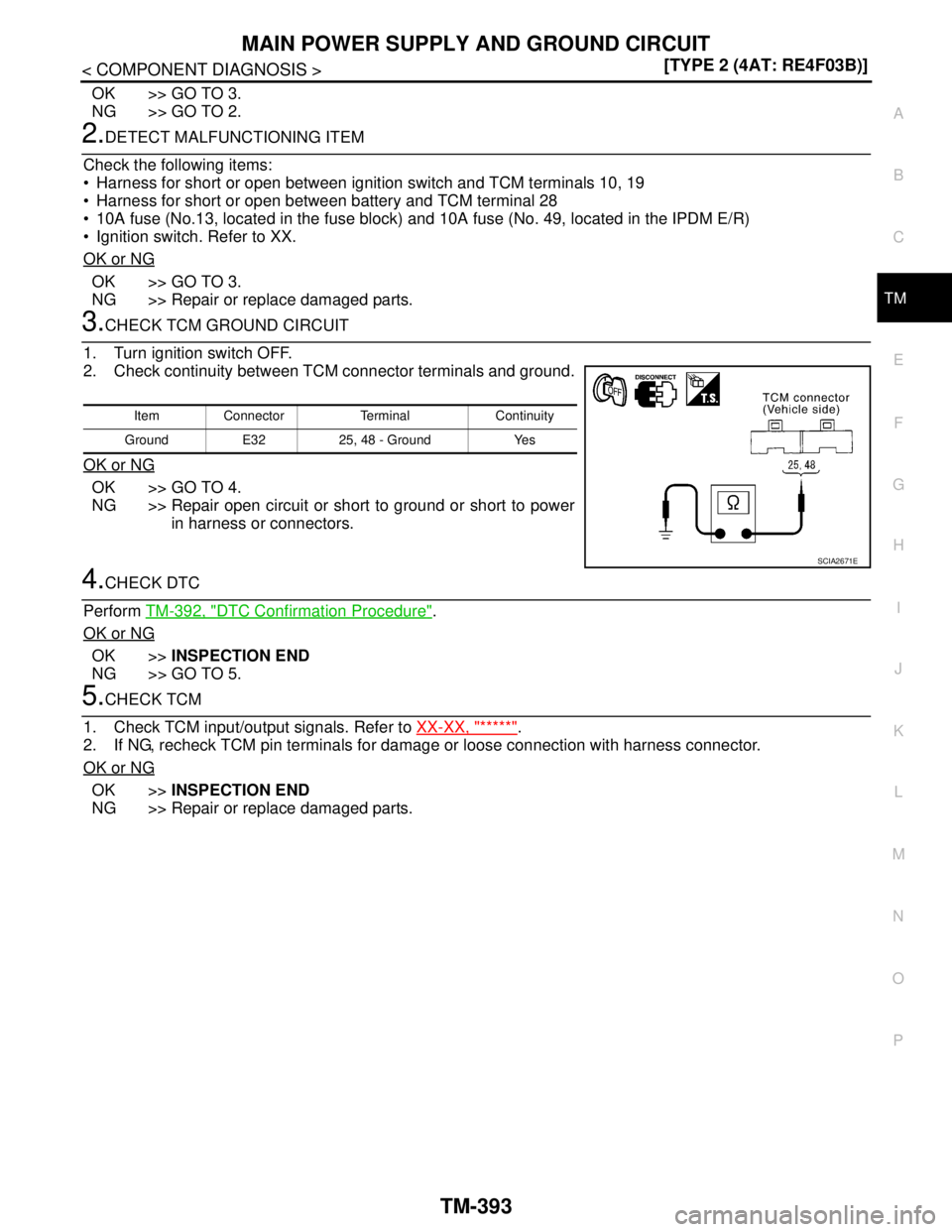

3.CHECK TCM GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between TCM connector terminals and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
4.CHECK DTC
Perform TM-392, "
DTC Confirmation Procedure".
OK or NG
OK >>INSPECTION END
NG >> GO TO 5.
5.CHECK TCM
1. Check TCM input/output signals. Refer to XX-XX, "*****"
.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Item Connector Terminal Continuity
Ground E32 25, 48 - Ground Yes
SCIA2671E

TM-394
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
A/T 1ST GEAR FUNCTION
A/T 1ST GEAR FUNCTION
DescriptionINFOID:0000000001713076
 This malfunction will not be detected while the OD OFF indicator lamp is indicating another self-diagnosis
malfunction.
 This malfunction is detected when the A/T does not shift into first gear position as instructed by the TCM.
This is not caused by electrical malfunction (circuits open or shorted) but by mechanical malfunction such as
control valve sticking, improper solenoid valve operation, etc.
On Board Diagnosis LogicINFOID:0000000001713077
 Diagnostic trouble code “A/T 1ST GR FNCTN” with CONSULT-III is detected when A/T cannot be shifted to
the 1st gear position even if electrical circuit is good.
 This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM
as follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is higher than the position (1st) supposed by TCM, the slip ratio will be more than
normal. In case the ratio exceeds the specified value, TCM judges this diagnosis malfunction.
This malfunction will be caused when either shift solenoid valve A is stuck open or shift solenoid valve B is
stuck open.
 Gear positions supposed by TCM are as follows:
In case of gear position with no malfunctions: 1, 2, 3 and 4 positions
In case of gear position with shift solenoid valve A stuck open: 2*, 2, 3 and 3 positions
In case of gear position with shift solenoid valve B stuck open: 4*, 3, 3 and 4 positions to each gear position
above
*: “A/T 1ST GR FNCTN” is detected.
Possible CauseINFOID:0000000001713078
 Shift solenoid valve A
 Shift solenoid valve B
 Each clutch
 Hydraulic control circuit
DTC Confirmation ProcedureINFOID:0000000001713079
CAUTION:
 Always drive vehicle at a safe speed.
 If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at
least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Start engine and select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
2. Touch “START”.
3. Make sure that output voltage of A/T fluid temperature sensor is within the range below.
FLUID TEMP SE: 0.4 - 1.5V
If out of range, drive the vehicle to decrease the voltage (warm up the fluid) or stop engine to increase the
voltage (cool down the fluid).
4. Select “1ST GR FNCTN P0731” of “DTC WORK SUPPORT” mode for “TRANSMISSION” with CON-
SULT-III and touch “START”.
5. Accelerate vehicle to 20 to 25 km/h (12 to 16 MPH) under the following conditions and release the accel-
erator pedal completely.
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed)ON (Closed) OFF (Open) OFF (Open)
