NISSAN X-TRAIL 2001 Service Repair Manual

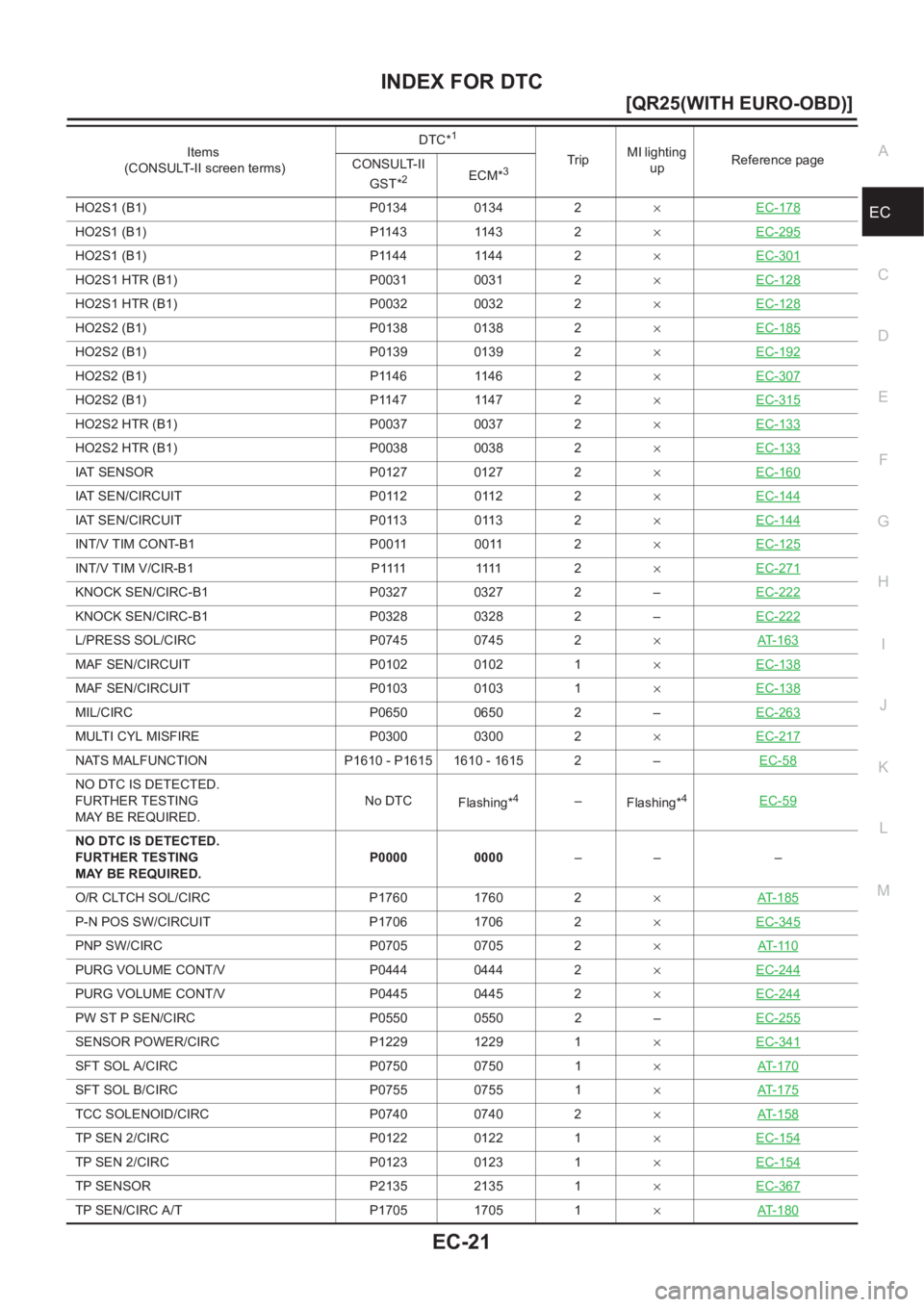

INDEX FOR DTC
EC-21
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
ECHO2S1 (B1) P0134 0134 2×EC-178
HO2S1 (B1) P1143 1143 2×EC-295
HO2S1 (B1) P1144 1144 2×EC-301
HO2S1 HTR (B1) P0031 0031 2×EC-128
HO2S1 HTR (B1) P0032 0032 2×EC-128
HO2S2 (B1) P0138 0138 2×EC-185
HO2S2 (B1) P0139 0139 2×EC-192
HO2S2 (B1) P1146 1146 2×EC-307
HO2S2 (B1) P1147 1147 2×EC-315
HO2S2 HTR (B1) P0037 0037 2×EC-133
HO2S2 HTR (B1) P0038 0038 2×EC-133
IAT SENSOR P0127 0127 2×EC-160
IAT SEN/CIRCUIT P0112 0112 2×EC-144
IAT SEN/CIRCUIT P0113 0113 2×EC-144
INT/V TIM CONT-B1 P0011 0011 2×EC-125
INT/V TIM V/CIR-B1 P1111 1111 2×EC-271
KNOCK SEN/CIRC-B1 P0327 0327 2 –EC-222
KNOCK SEN/CIRC-B1 P0328 0328 2 –EC-222
L/PRESS SOL/CIRC P0745 0745 2×AT-163
MAF SEN/CIRCUIT P0102 0102 1×EC-138
MAF SEN/CIRCUIT P0103 0103 1×EC-138
MIL/CIRC P0650 0650 2 –EC-263
MULTI CYL MISFIRE P0300 0300 2×EC-217
NATS MALFUNCTION P1610 - P1615 1610 - 1615 2 –EC-58
NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.No DTC
Flashing*4–
Flashing*4EC-59
NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.P0000 0000–– –
O/R CLTCH SOL/CIRC P1760 1760 2×AT-185
P-N POS SW/CIRCUIT P1706 1706 2×EC-345
PNP SW/CIRC P0705 0705 2×AT- 11 0
PURG VOLUME CONT/V P0444 0444 2×EC-244
PURG VOLUME CONT/V P0445 0445 2×EC-244
PW ST P SEN/CIRC P0550 0550 2 –EC-255
SENSOR POWER/CIRC P1229 1229 1×EC-341
SFT SOL A/CIRC P0750 0750 1×AT-170
SFT SOL B/CIRC P0755 0755 1×AT-175
TCC SOLENOID/CIRC P0740 0740 2×AT-158
TP SEN 2/CIRC P0122 0122 1×EC-154
TP SEN 2/CIRC P0123 0123 1×EC-154
TP SENSOR P2135 2135 1×EC-367
TP SEN/CIRC A/T P1705 1705 1×AT-180
Items
(CONSULT-II screen terms)DTC*
1
TripMI lighting
upReference page
CONSULT-II
GST*
2ECM*3

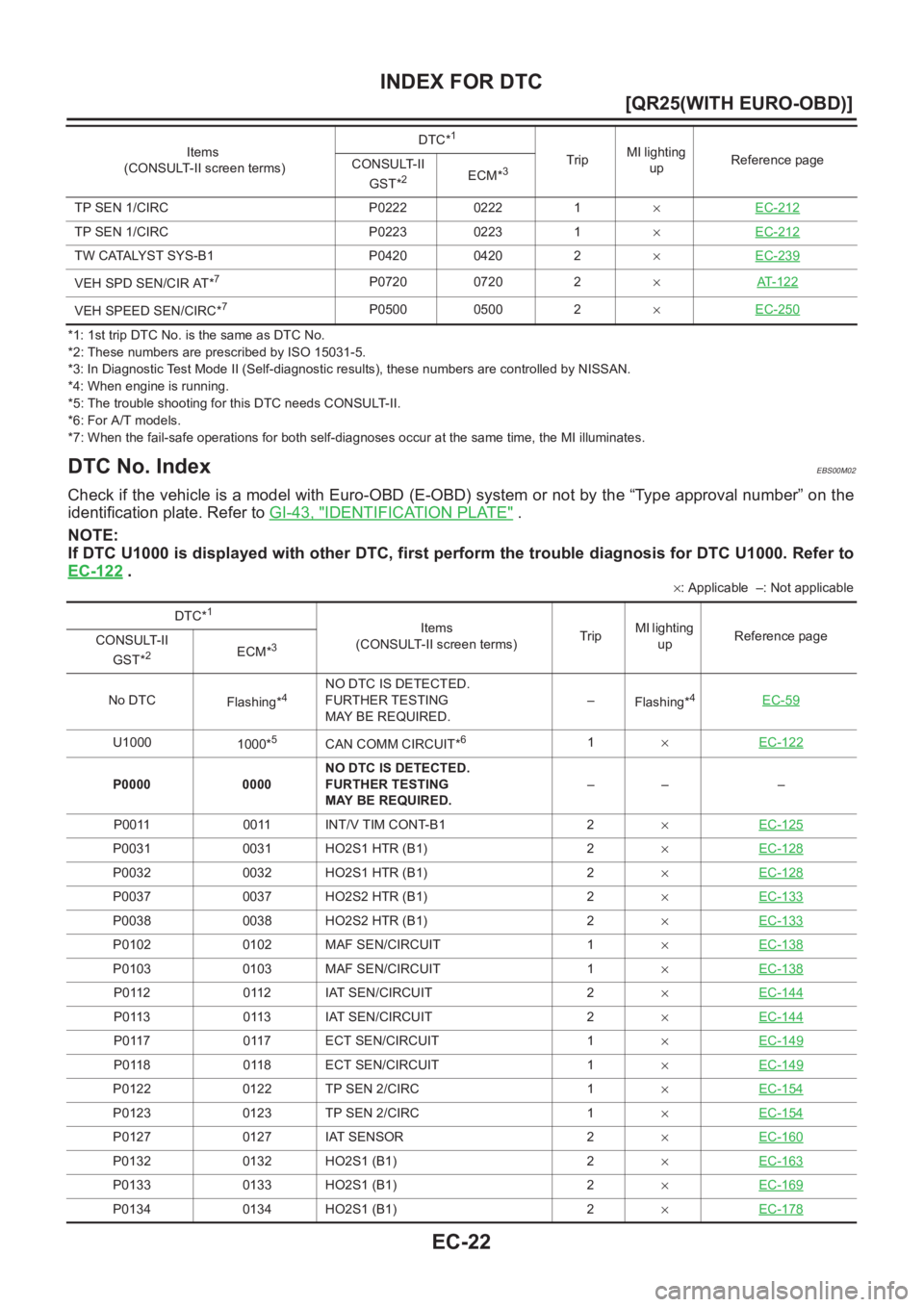

EC-22
[QR25(WITH EURO-OBD)]
INDEX FOR DTC
*1: 1st trip DTC No. is the same as DTC No.
*2: These numbers are prescribed by ISO 15031-5.
*3: In Diagnostic Test Mode II (Self-diagnostic results), these numbers are controlled by NISSAN.
*4: When engine is running.
*5: The trouble shooting for this DTC needs CONSULT-II.
*6: For A/T models.
*7: When the fail-safe operations for both self-diagnoses occur at the same time, the MI illuminates.
DTC No. IndexEBS00M02
Check if the vehicle is a model with Euro-OBD (E-OBD) system or not by the “Type approval number” on the
identification plate. Refer to GI-43, "
IDENTIFICATION PLATE" .
NOTE:
If DTC U1000 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000. Refer to
EC-122
.
×: Applicable –: Not applicable TP SEN 1/CIRC P0222 0222 1×EC-212
TP SEN 1/CIRC P0223 0223 1×EC-212
TW CATALYST SYS-B1 P0420 0420 2×EC-239
VEH SPD SEN/CIR AT*7P0720 0720 2×AT- 1 2 2
VEH SPEED SEN/CIRC*7P0500 0500 2×EC-250
Items
(CONSULT-II screen terms)DTC*
1
TripMI lighting
upReference page
CONSULT-II
GST*
2ECM*3
DTC*1
Items
(CONSULT-II screen terms)TripMI lighting
upReference page
CONSULT-II
GST*
2ECM*3
No DTC
Flashing*4NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.–
Flashing*4EC-59
U1000
1000*5CAN COMM CIRCUIT*61×EC-122
P0000 0000NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.–– –
P0011 0011 INT/V TIM CONT-B1 2×EC-125
P0031 0031 HO2S1 HTR (B1) 2×EC-128
P0032 0032 HO2S1 HTR (B1) 2×EC-128
P0037 0037 HO2S2 HTR (B1) 2×EC-133
P0038 0038 HO2S2 HTR (B1) 2×EC-133
P0102 0102 MAF SEN/CIRCUIT 1×EC-138
P0103 0103 MAF SEN/CIRCUIT 1×EC-138
P0112 0112 IAT SEN/CIRCUIT 2×EC-144
P0113 0113 IAT SEN/CIRCUIT 2×EC-144
P0117 0117 ECT SEN/CIRCUIT 1×EC-149
P0118 0118 ECT SEN/CIRCUIT 1×EC-149
P0122 0122 TP SEN 2/CIRC 1×EC-154
P0123 0123 TP SEN 2/CIRC 1×EC-154
P0127 0127 IAT SENSOR 2×EC-160
P0132 0132 HO2S1 (B1) 2×EC-163
P0133 0133 HO2S1 (B1) 2×EC-169
P0134 0134 HO2S1 (B1) 2×EC-178

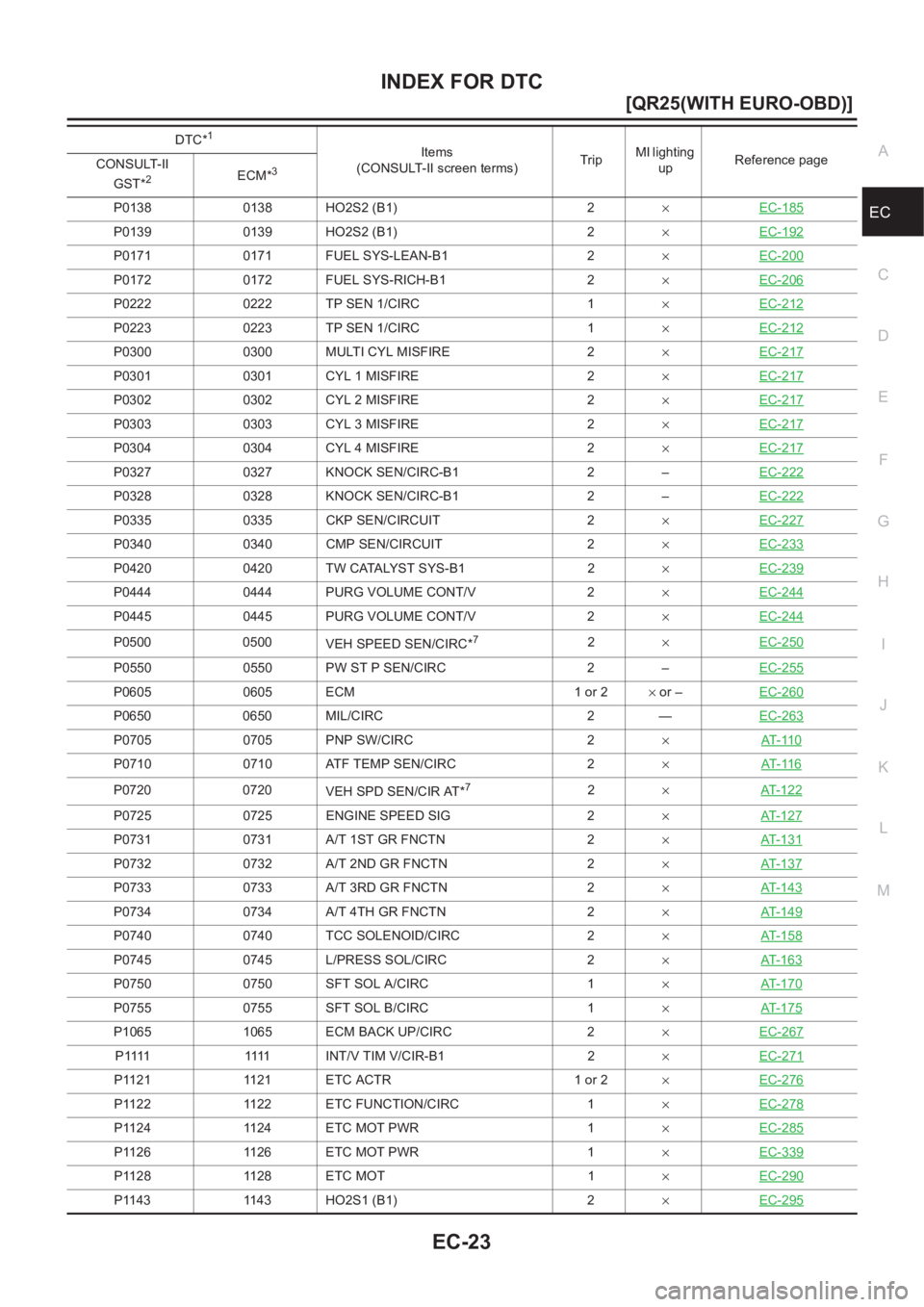

INDEX FOR DTC
EC-23
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
ECP0138 0138 HO2S2 (B1) 2×EC-185
P0139 0139 HO2S2 (B1) 2×EC-192
P0171 0171 FUEL SYS-LEAN-B1 2×EC-200
P0172 0172 FUEL SYS-RICH-B1 2×EC-206
P0222 0222 TP SEN 1/CIRC 1×EC-212
P0223 0223 TP SEN 1/CIRC 1×EC-212
P0300 0300 MULTI CYL MISFIRE 2×EC-217
P0301 0301 CYL 1 MISFIRE 2×EC-217
P0302 0302 CYL 2 MISFIRE 2×EC-217
P0303 0303 CYL 3 MISFIRE 2×EC-217
P0304 0304 CYL 4 MISFIRE 2×EC-217
P0327 0327 KNOCK SEN/CIRC-B1 2 –EC-222
P0328 0328 KNOCK SEN/CIRC-B1 2 –EC-222
P0335 0335 CKP SEN/CIRCUIT 2×EC-227
P0340 0340 CMP SEN/CIRCUIT 2×EC-233
P0420 0420 TW CATALYST SYS-B1 2×EC-239
P0444 0444 PURG VOLUME CONT/V 2×EC-244
P0445 0445 PURG VOLUME CONT/V 2×EC-244
P0500 0500
VEH SPEED SEN/CIRC*72×EC-250
P0550 0550 PW ST P SEN/CIRC 2 –EC-255
P0605 0605 ECM 1 or 2× or –EC-260
P0650 0650 MIL/CIRC 2 —EC-263
P0705 0705 PNP SW/CIRC 2×AT- 11 0
P0710 0710 ATF TEMP SEN/CIRC 2×AT- 11 6
P0720 0720
VEH SPD SEN/CIR AT*72×AT- 1 2 2
P0725 0725 ENGINE SPEED SIG 2×AT- 1 2 7
P0731 0731 A/T 1ST GR FNCTN 2×AT- 1 3 1
P0732 0732 A/T 2ND GR FNCTN 2×AT- 1 3 7
P0733 0733 A/T 3RD GR FNCTN 2×AT- 1 4 3
P0734 0734 A/T 4TH GR FNCTN 2×AT- 1 4 9
P0740 0740 TCC SOLENOID/CIRC 2×AT- 1 5 8
P0745 0745 L/PRESS SOL/CIRC 2×AT- 1 6 3
P0750 0750 SFT SOL A/CIRC 1×AT- 1 7 0
P0755 0755 SFT SOL B/CIRC 1×AT- 1 7 5
P1065 1065 ECM BACK UP/CIRC 2×EC-267
P 1111 1111 I N T / V T I M V / C I R - B 1 2×EC-271
P1121 1121 ETC ACTR 1 or 2×EC-276
P1122 1122 ETC FUNCTION/CIRC 1×EC-278
P1124 1124 ETC MOT PWR 1×EC-285
P1126 1126 ETC MOT PWR 1×EC-339
P1128 1128 ETC MOT 1×EC-290
P1143 1143 HO2S1 (B1) 2×EC-295
DTC*1
Items
(CONSULT-II screen terms)TripMI lighting
upReference page
CONSULT-II
GST*
2ECM*3

EC-24
[QR25(WITH EURO-OBD)]

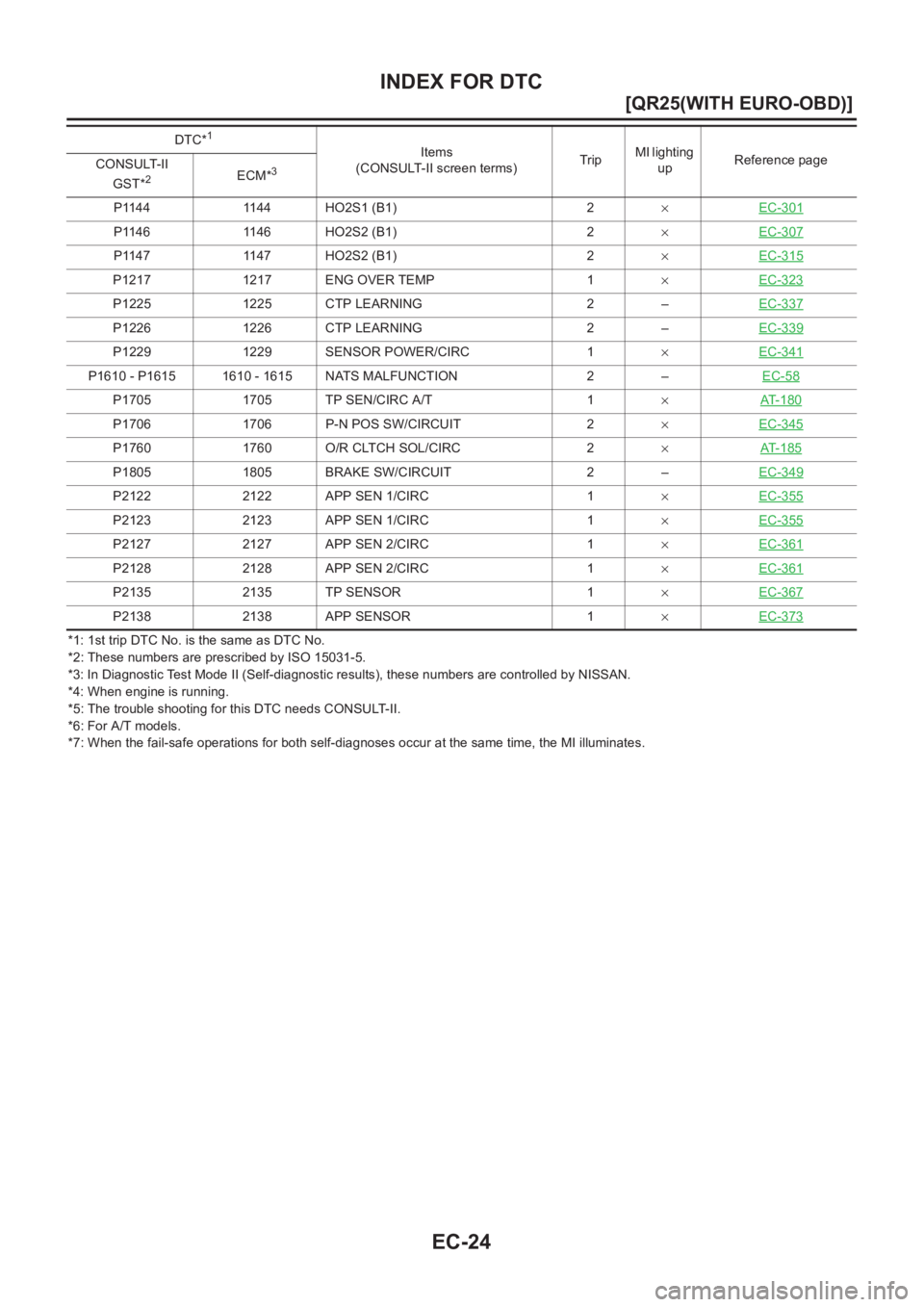

INDEX FOR DTC
*1: 1st trip DTC No. is the same as DTC No.
*2: These numbers are prescribed by ISO 15031-5.
*3: In Diagnostic Test Mode II (Self-diagnostic results), these numbers are controlled by NISSAN.
*4: When engine is running.
*5: The trouble shooting for this DTC needs CONSULT-II.
*6: For A/T models.
*7: When the fail-safe operations for both self-diagnoses occur at the same time, the MI illuminates. P1144 1144 HO2S1 (B1) 2×EC-301
P1146 1146 HO2S2 (B1) 2×EC-307
P1147 1147 HO2S2 (B1) 2×EC-315
P1217 1217 ENG OVER TEMP 1×EC-323
P1225 1225 CTP LEARNING 2 –EC-337
P1226 1226 CTP LEARNING 2 –EC-339
P1229 1229 SENSOR POWER/CIRC 1×EC-341
P1610 - P1615 1610 - 1615 NATS MALFUNCTION 2 –EC-58
P1705 1705 TP SEN/CIRC A/T 1×AT-180
P1706 1706 P-N POS SW/CIRCUIT 2×EC-345
P1760 1760 O/R CLTCH SOL/CIRC 2×AT-185
P1805 1805 BRAKE SW/CIRCUIT 2 –EC-349
P2122 2122 APP SEN 1/CIRC 1×EC-355
P2123 2123 APP SEN 1/CIRC 1×EC-355
P2127 2127 APP SEN 2/CIRC 1×EC-361
P2128 2128 APP SEN 2/CIRC 1×EC-361
P2135 2135 TP SENSOR 1×EC-367
P2138 2138 APP SENSOR 1×EC-373
DTC*1
Items
(CONSULT-II screen terms)TripMI lighting
upReference page
CONSULT-II
GST*
2ECM*3

PRECAUTIONS
EC-25
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

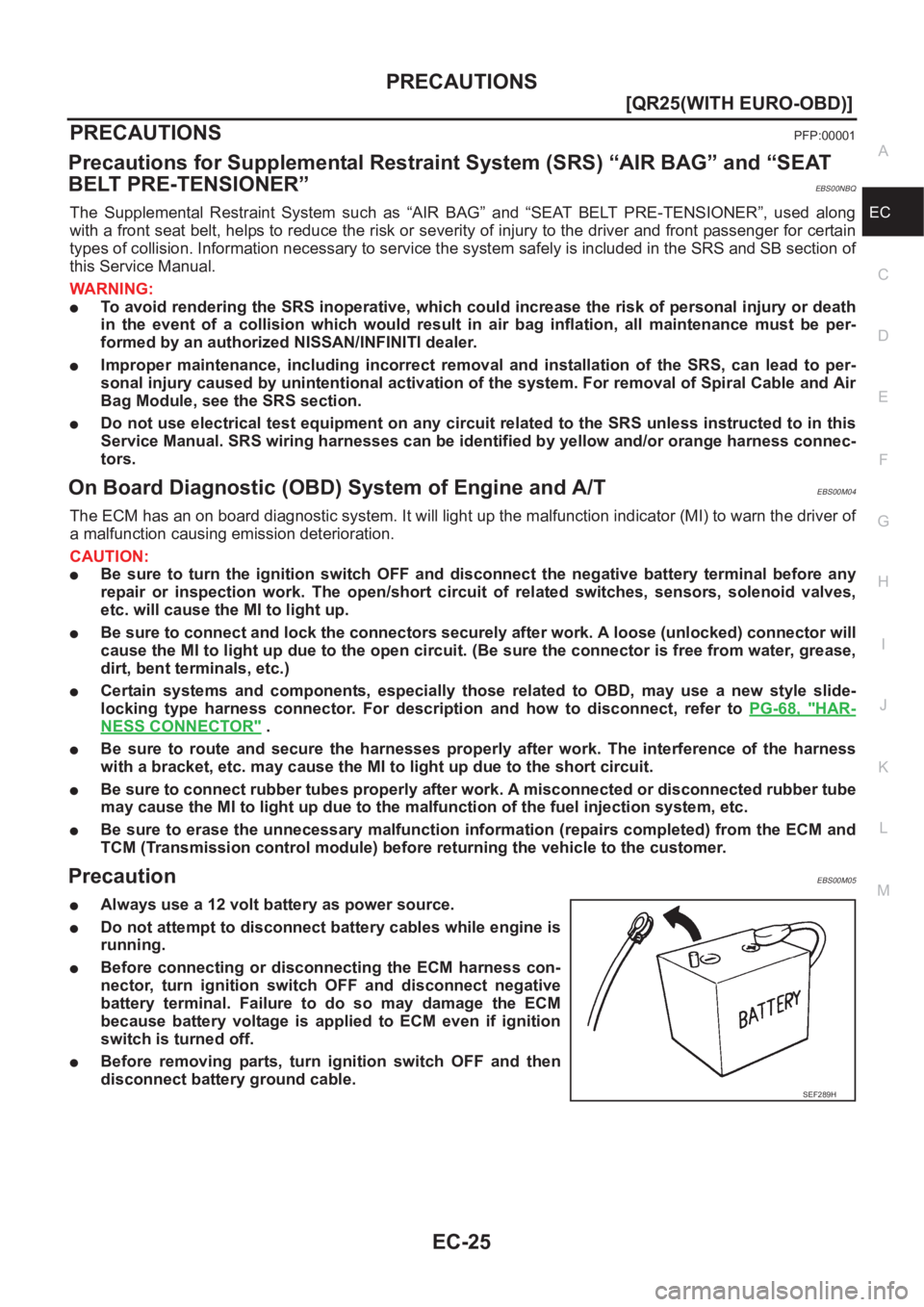

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EBS00NBQ
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
●To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
●Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
●Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harness connec-
tors.
On Board Diagnostic (OBD) System of Engine and A/TEBS00M04
The ECM has an on board diagnostic system. It will light up the malfunction indicator (MI) to warn the driver of
a malfunction causing emission deterioration.
CAUTION:
●Be sure to turn the ignition switch OFF and disconnect the negative battery terminal before any
repair or inspection work. The open/short circuit of related switches, sensors, solenoid valves,
etc. will cause the MI to light up.
●Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MI to light up due to the open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)
●Certain systems and components, especially those related to OBD, may use a new style slide-
locking type harness connector. For description and how to disconnect, refer to PG-68, "
HAR-
NESS CONNECTOR" .
●Be sure to route and secure the harnesses properly after work. The interference of the harness
with a bracket, etc. may cause the MI to light up due to the short circuit.
●Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MI to light up due to the malfunction of the fuel injection system, etc.
●Be sure to erase the unnecessary malfunction information (repairs completed) from the ECM and
TCM (Transmission control module) before returning the vehicle to the customer.
PrecautionEBS00M05
●Always use a 12 volt battery as power source.
●Do not attempt to disconnect battery cables while engine is
running.
●Before connecting or disconnecting the ECM harness con-
nector, turn ignition switch OFF and disconnect negative
battery terminal. Failure to do so may damage the ECM
because battery voltage is applied to ECM even if ignition
switch is turned off.
●Before removing parts, turn ignition switch OFF and then
disconnect battery ground cable.
SEF289H

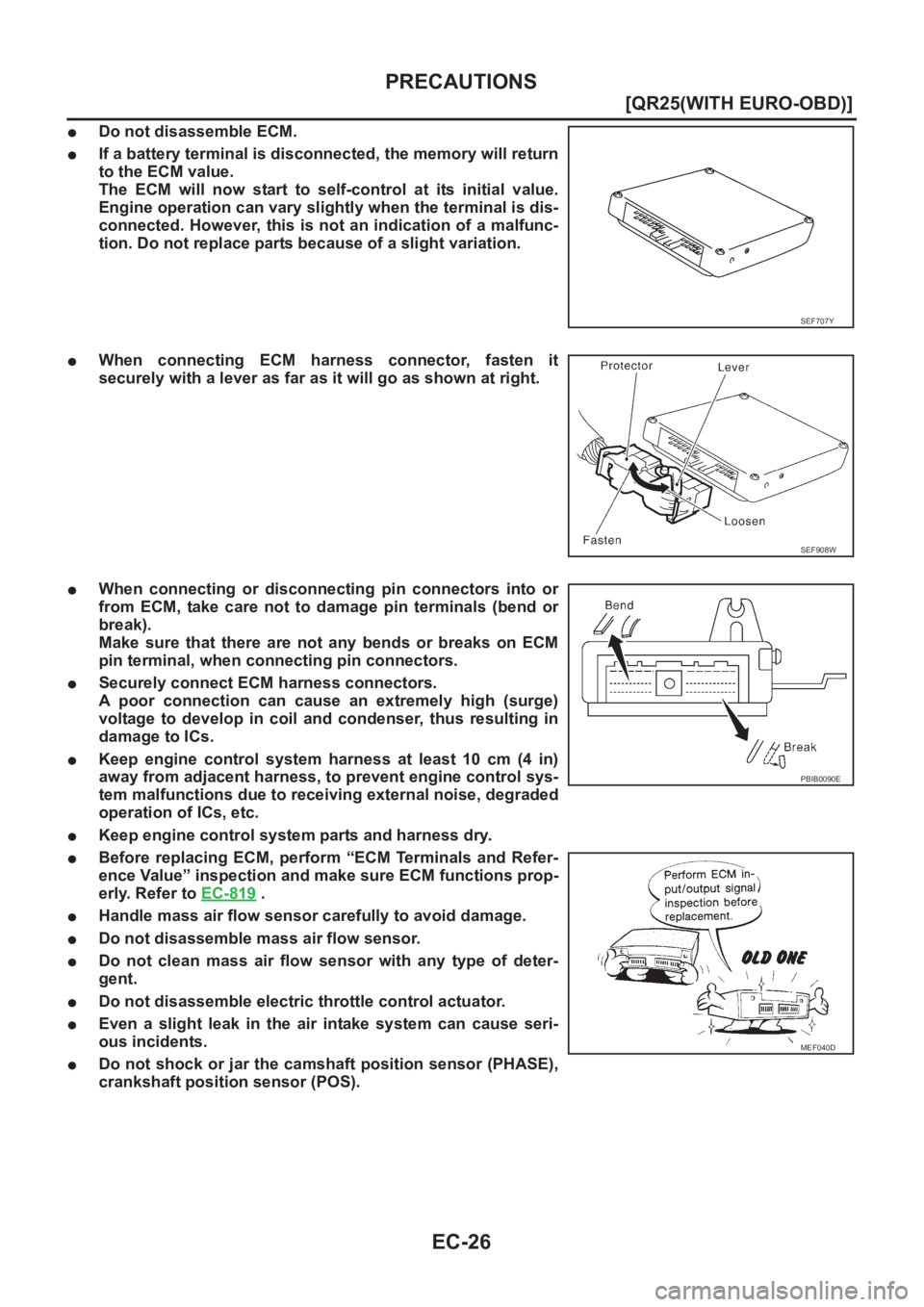

EC-26
[QR25(WITH EURO-OBD)]
PRECAUTIONS
●Do not disassemble ECM.
●If a battery terminal is disconnected, the memory will return
to the ECM value.
The ECM will now start to self-control at its initial value.
Engine operation can vary slightly when the terminal is dis-
connected. However, this is not an indication of a malfunc-
tion. Do not replace parts because of a slight variation.
●When connecting ECM harness connector, fasten it
securely with a lever as far as it will go as shown at right.
●When connecting or disconnecting pin connectors into or
from ECM, take care not to damage pin terminals (bend or
break).
Make sure that there are not any bends or breaks on ECM
pin terminal, when connecting pin connectors.
●Securely connect ECM harness connectors.
A poor connection can cause an extremely high (surge)
voltage to develop in coil and condenser, thus resulting in
damage to ICs.
●Keep engine control system harness at least 10 cm (4 in)
away from adjacent harness, to prevent engine control sys-
tem malfunctions due to receiving external noise, degraded
operation of ICs, etc.
●Keep engine control system parts and harness dry.
●Before replacing ECM, perform “ECM Terminals and Refer-
ence Value” inspection and make sure ECM functions prop-
erly. Refer to EC-819
.
●Handle mass air flow sensor carefully to avoid damage.
●Do not disassemble mass air flow sensor.
●Do not clean mass air flow sensor with any type of deter-
gent.
●Do not disassemble electric throttle control actuator.
●Even a slight leak in the air intake system can cause seri-
ous incidents.
●Do not shock or jar the camshaft position sensor (PHASE),
crankshaft position sensor (POS).
SEF707Y
SEF908W
PBIB0090E
MEF040D

PRECAUTIONS
EC-27
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

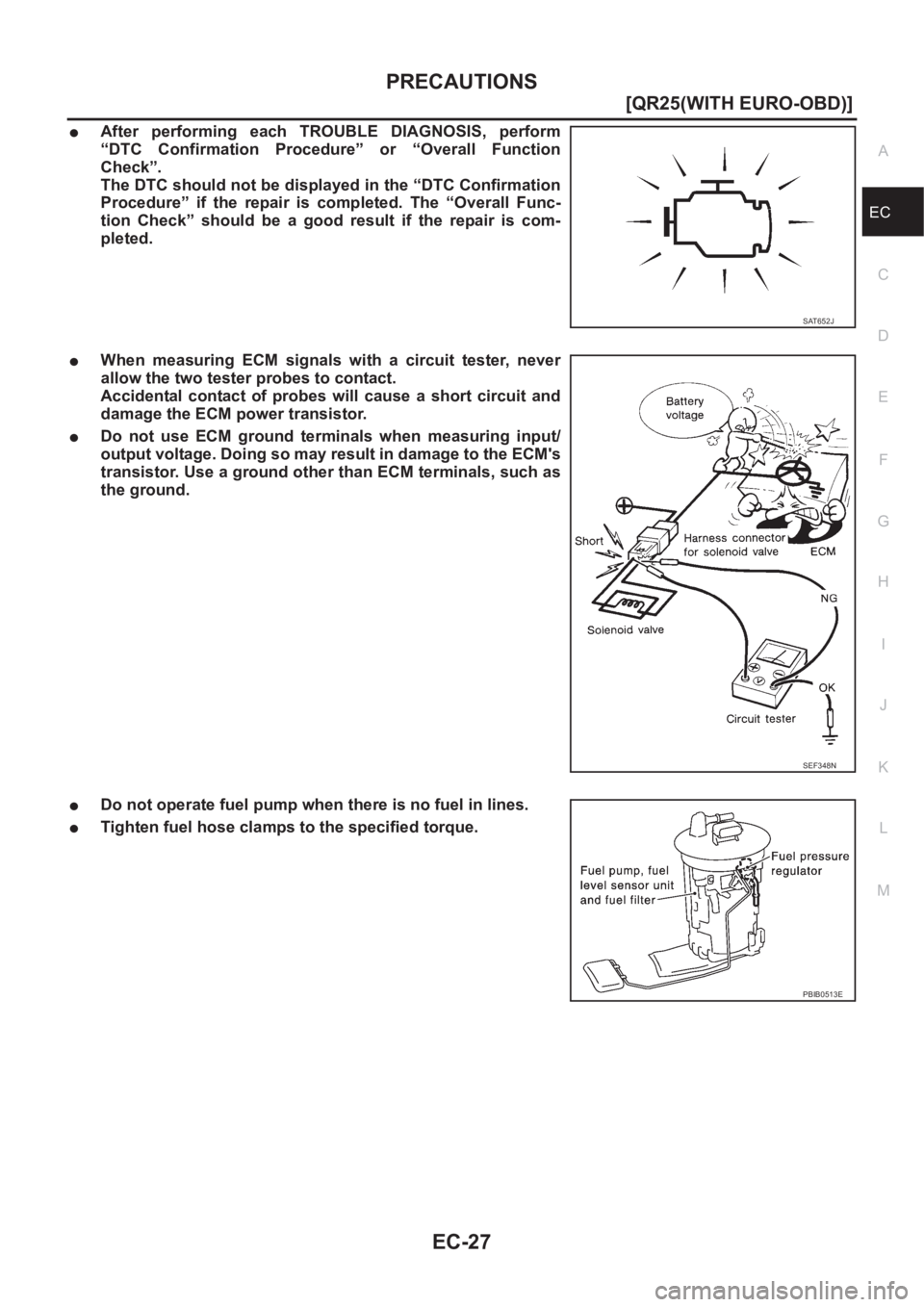

●After performing each TROUBLE DIAGNOSIS, perform
“DTC Confirmation Procedure” or “Overall Function
Check”.
The DTC should not be displayed in the “DTC Confirmation
Procedure” if the repair is completed. The “Overall Func-
tion Check” should be a good result if the repair is com-
pleted.
●When measuring ECM signals with a circuit tester, never
allow the two tester probes to contact.
Accidental contact of probes will cause a short circuit and
damage the ECM power transistor.
●Do not use ECM ground terminals when measuring input/
output voltage. Doing so may result in damage to the ECM's
transistor. Use a ground other than ECM terminals, such as
the ground.
●Do not operate fuel pump when there is no fuel in lines.
●Tighten fuel hose clamps to the specified torque.
SAT652J
SEF348N
PBIB0513E

EC-28
[QR25(WITH EURO-OBD)]
PRECAUTIONS

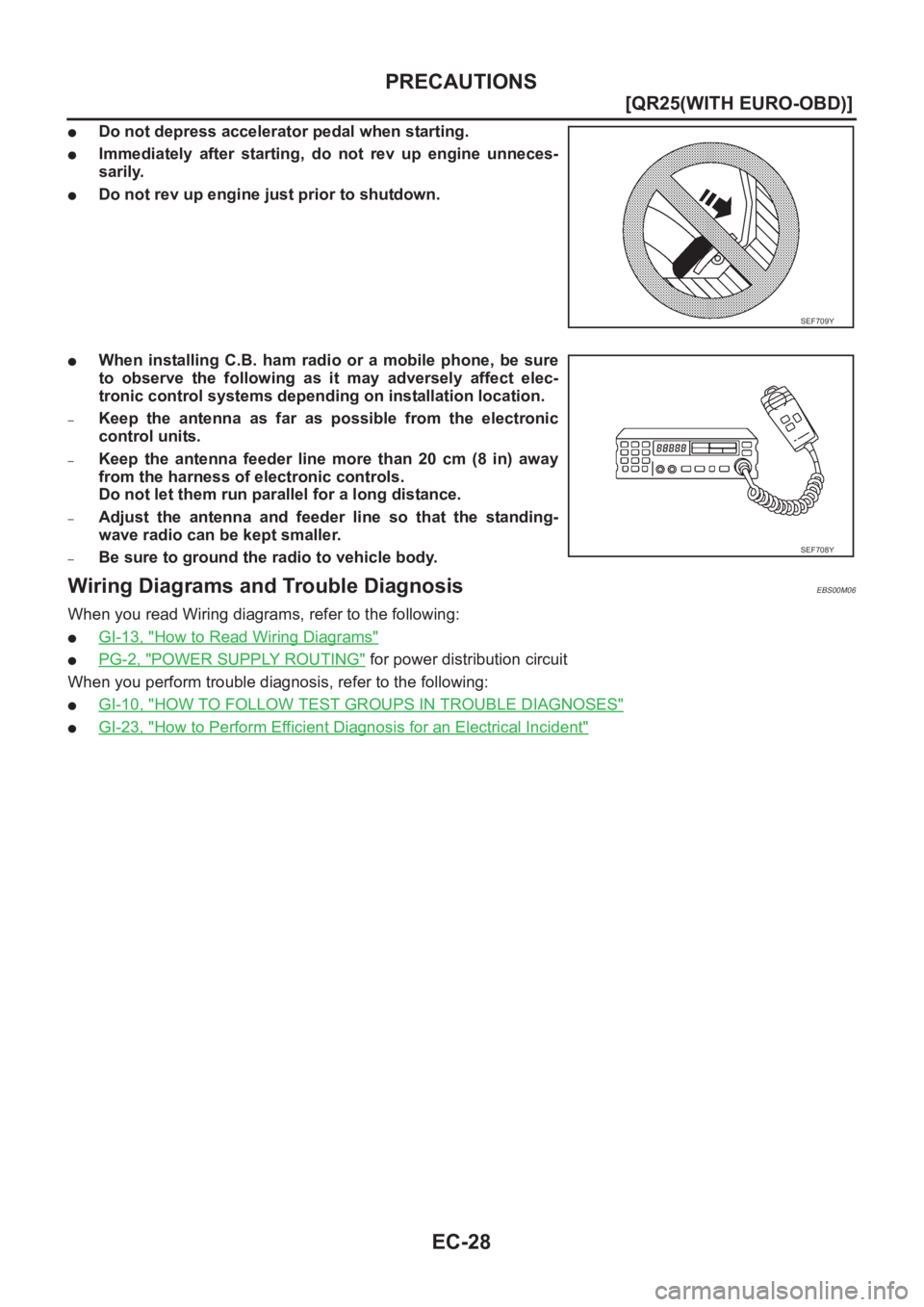

●Do not depress accelerator pedal when starting.
●Immediately after starting, do not rev up engine unneces-
sarily.
●Do not rev up engine just prior to shutdown.
●When installing C.B. ham radio or a mobile phone, be sure
to observe the following as it may adversely affect elec-
tronic control systems depending on installation location.
–Keep the antenna as far as possible from the electronic
control units.
–Keep the antenna feeder line more than 20 cm (8 in) away
from the harness of electronic controls.
Do not let them run parallel for a long distance.
–Adjust the antenna and feeder line so that the standing-
wave radio can be kept smaller.
–Be sure to ground the radio to vehicle body.
Wiring Diagrams and Trouble DiagnosisEBS00M06
When you read Wiring diagrams, refer to the following:
●GI-13, "How to Read Wiring Diagrams"
●PG-2, "POWER SUPPLY ROUTING" for power distribution circuit
When you perform trouble diagnosis, refer to the following:
●GI-10, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES"
●GI-23, "How to Perform Efficient Diagnosis for an Electrical Incident"
SEF709Y
SEF708Y

PREPARATION
EC-29
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

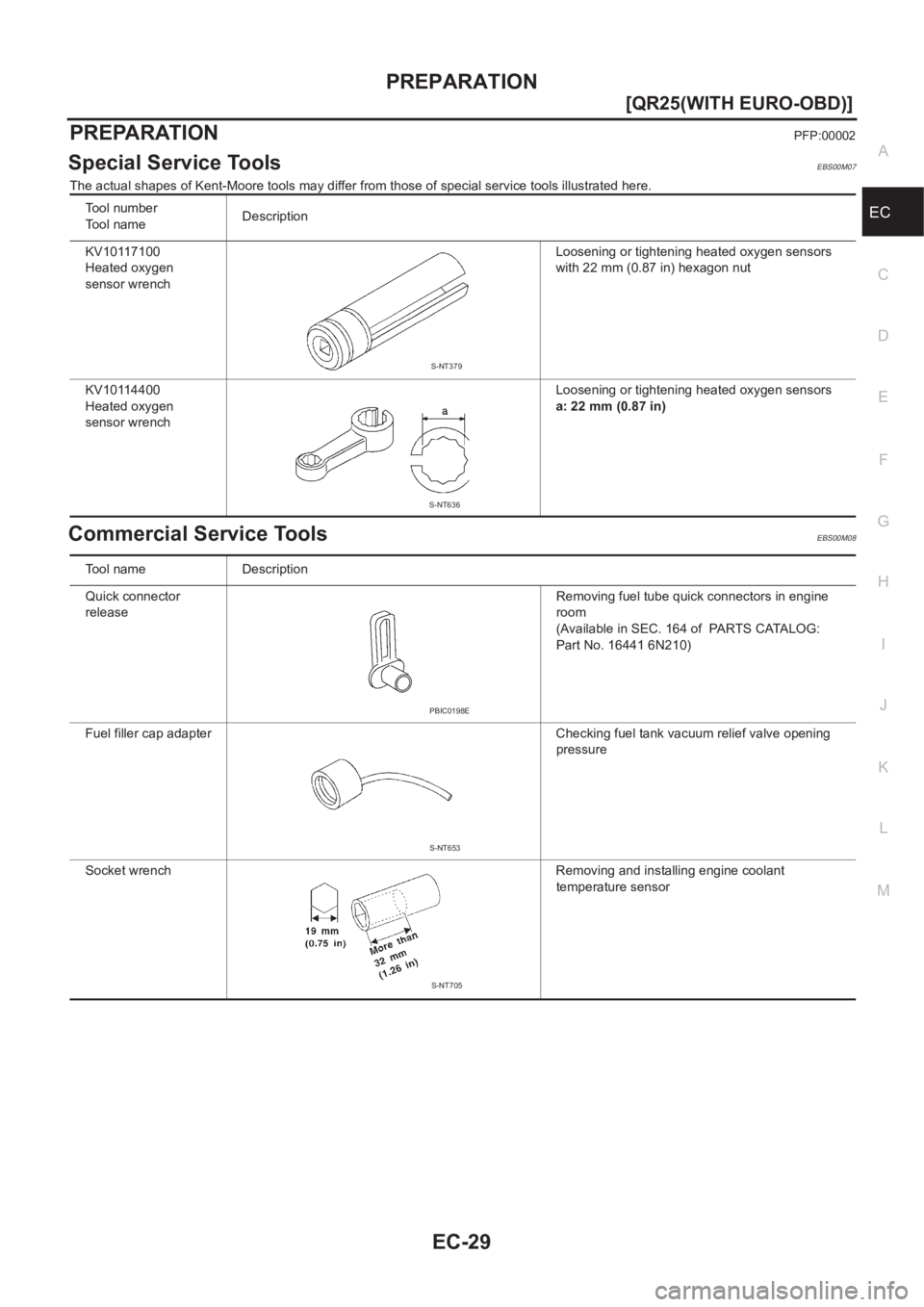

PREPARATIONPFP:00002
Special Service ToolsEBS00M07
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsEBS00M08
Tool number
Tool nameDescription
KV10117100
Heated oxygen
sensor wrenchLoosening or tightening heated oxygen sensors
with 22 mm (0.87 in) hexagon nut
KV10114400
Heated oxygen
sensor wrenchLoosening or tightening heated oxygen sensors
a: 22 mm (0.87 in)
S-NT379
S-NT636
Tool name Description
Quick connector
releaseRemoving fuel tube quick connectors in engine
room
(Available in SEC. 164 of PARTS CATALOG:
Part No. 16441 6N210)
Fuel filler cap adapter Checking fuel tank vacuum relief valve opening
pressure
Socket wrench Removing and installing engine coolant
temperature sensor
PBIC0198E
S-NT653
S-NT705

EC-30
[QR25(WITH EURO-OBD)]
PREPARATION

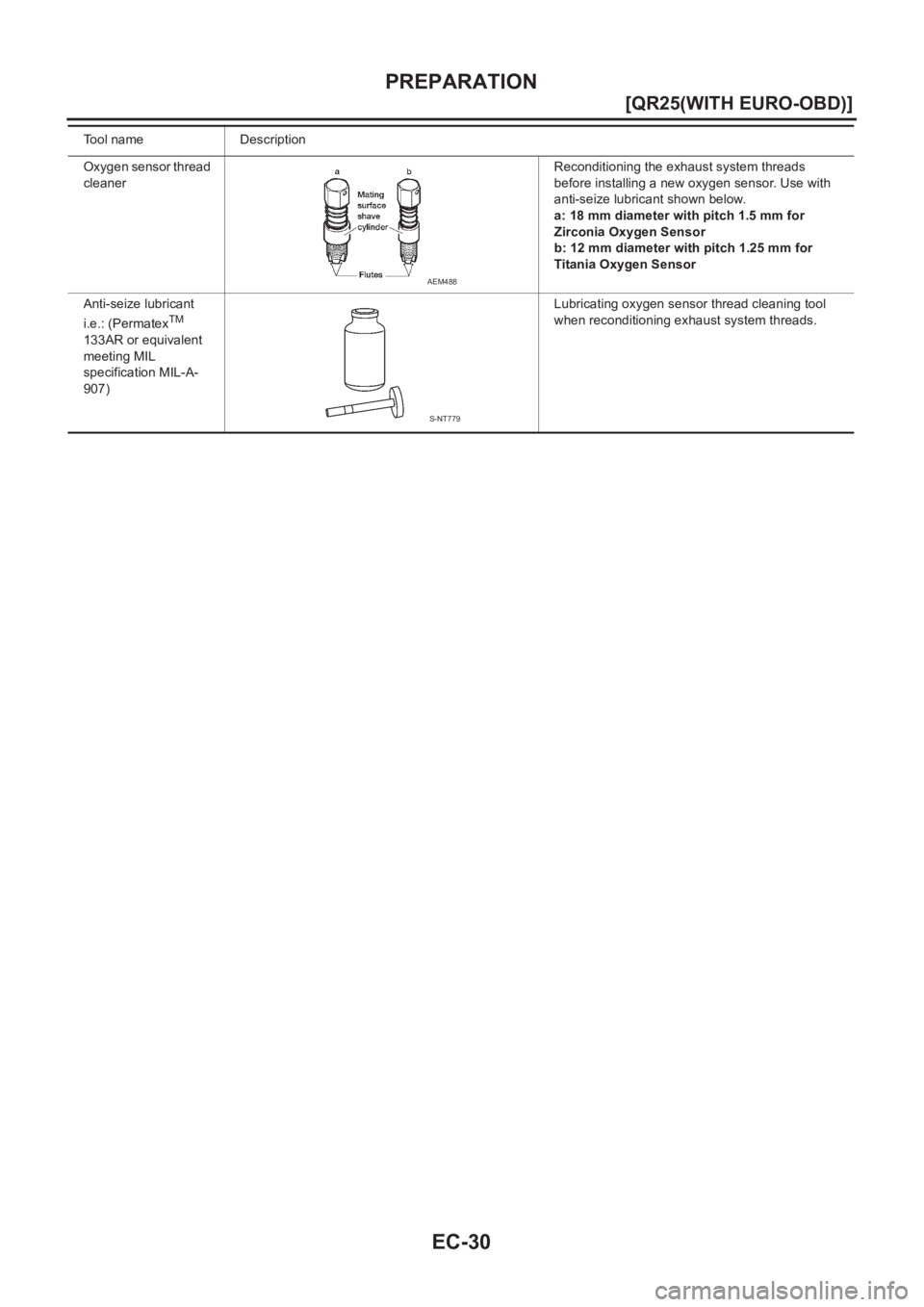

Oxygen sensor thread
cleanerReconditioning the exhaust system threads
before installing a new oxygen sensor. Use with
anti-seize lubricant shown below.
a: 18 mm diameter with pitch 1.5 mm for
Zirconia Oxygen Sensor
b: 12 mm diameter with pitch 1.25 mm for
Titania Oxygen Sensor
Anti-seize lubricant
i.e.: (Permatex
TM
133AR or equivalent
meeting MIL
specification MIL-A-
907)Lubricating oxygen sensor thread cleaning tool
when reconditioning exhaust system threads. Tool name Description
AEM488
S-NT779
