NISSAN X-TRAIL 2001 Service Repair Manual

RADIATOR (ALUMINUM TYPE)
CO-35
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
CO

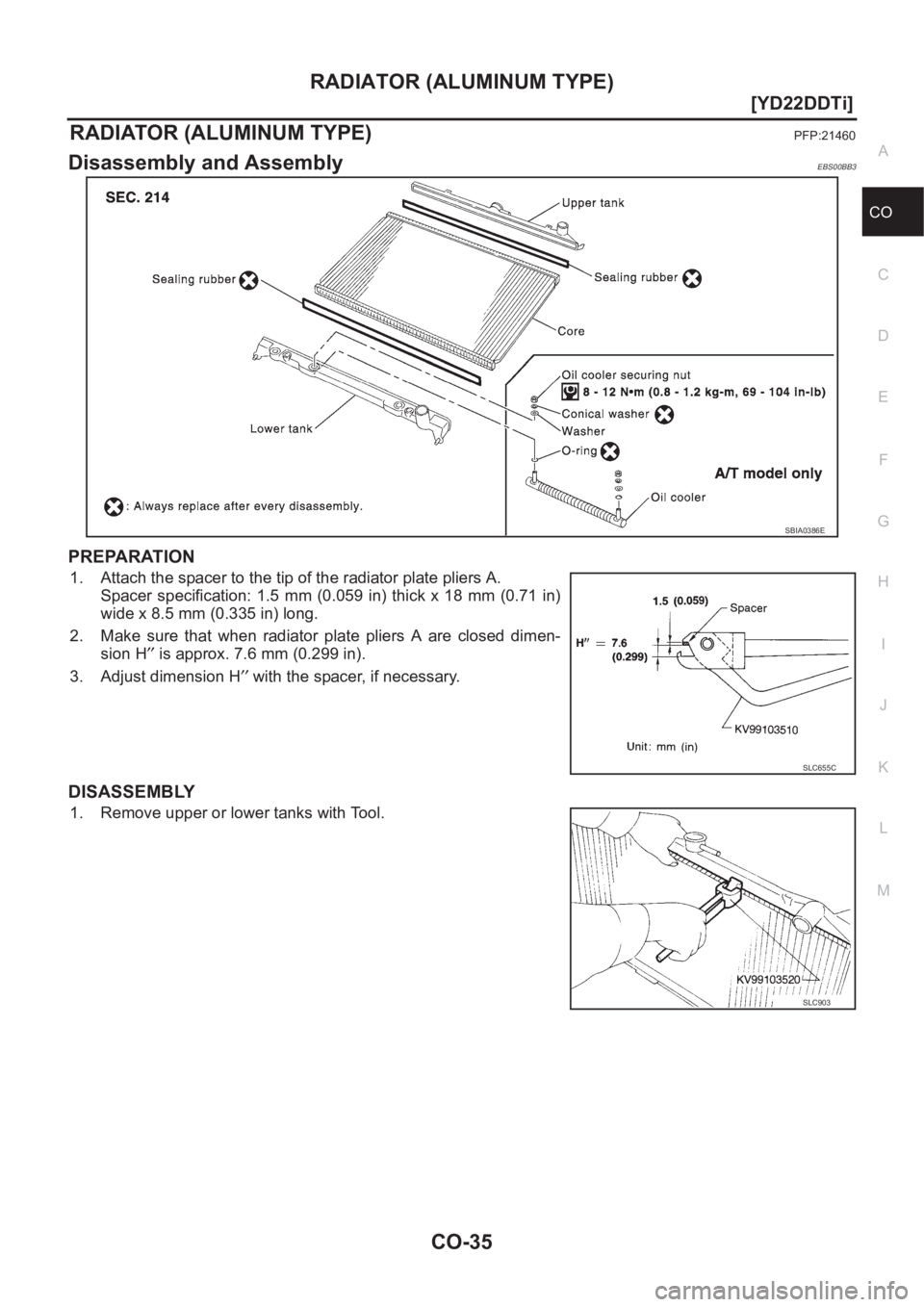

RADIATOR (ALUMINUM TYPE)PFP:21460
Disassembly and AssemblyEBS00BB3
PREPARATION
1. Attach the spacer to the tip of the radiator plate pliers A.
Spacer specification: 1.5 mm (0.059 in) thick x 18 mm (0.71 in)
wide x 8.5 mm (0.335 in) long.
2. Make sure that when radiator plate pliers A are closed dimen-
sion H′′ is approx. 7.6 mm (0.299 in).
3. Adjust dimension H′′ with the spacer, if necessary.
DISASSEMBLY
1. Remove upper or lower tanks with Tool.
SBIA0386E
SLC655C
SLC903

CO-36
[YD22DDTi]
RADIATOR (ALUMINUM TYPE)
●Grip the crimped edge and bend it upwards so that Tool slips
off.
Do not bend excessively.
●In areas where Tool cannot be used, use a screwdriver to
bend the edge up.
Be careful not to damage tank.
2. Remove sealing rubber.
3. Make sure the edge stands straight up.
4. Remove oil cooler from tank. (A/T model only)
ASSEMBLY
1. Install oil cooler. (A/T model only)
Pay attention to direction of conical washer.
SLC893
SLC930
SLC931
SBIA0419E

RADIATOR (ALUMINUM TYPE)
CO-37
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
CO
2. Clean contact portion of tank.
3. Install sealing rubber.
Push it in with fingers.
Be careful not to twist sealing rubber.
4. Caulk tank in specified sequence with Tool.
SLC932
SLC917A
SLC904
SLC896

CO-38
[YD22DDTi]
RADIATOR (ALUMINUM TYPE)

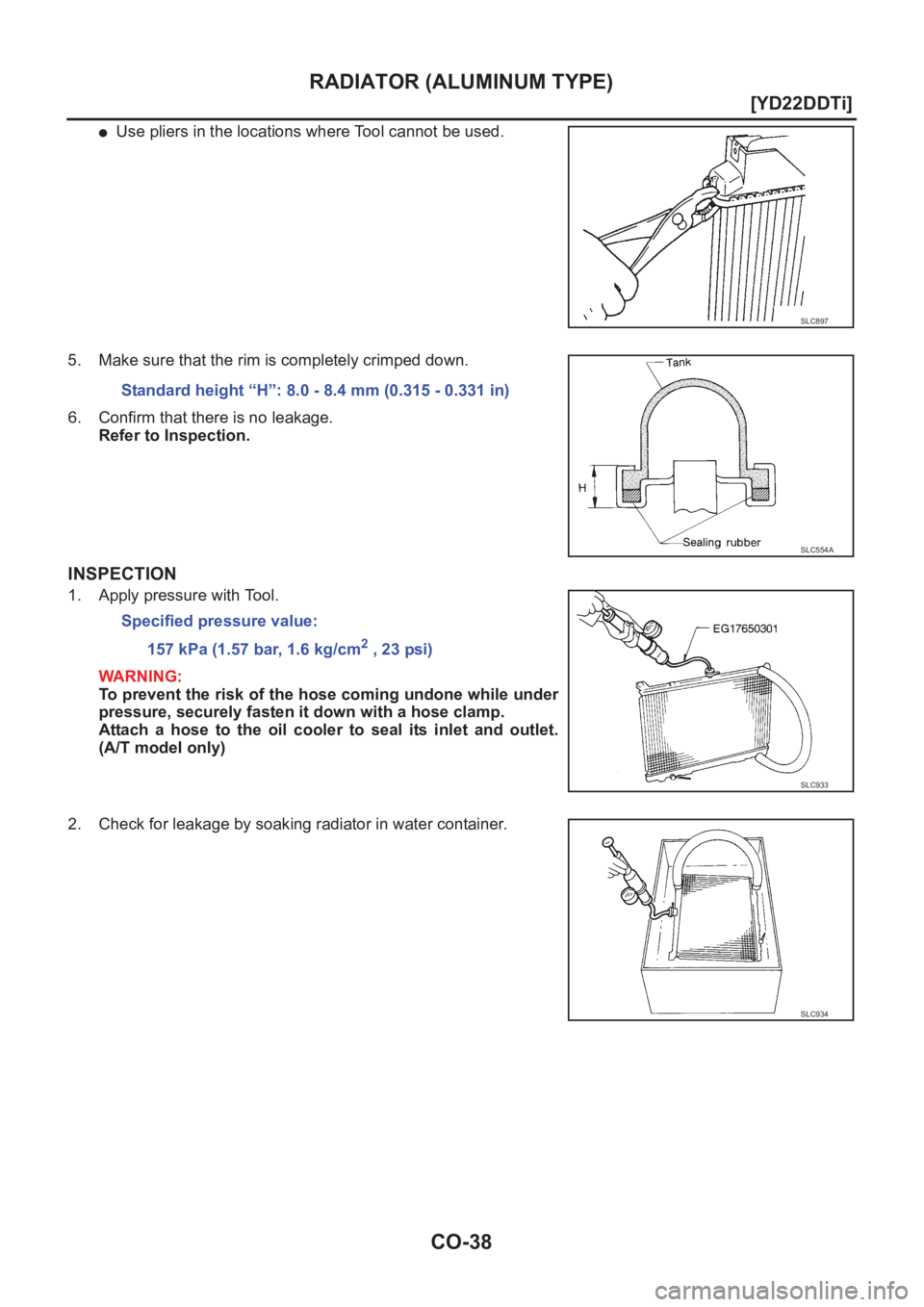

●Use pliers in the locations where Tool cannot be used.
5. Make sure that the rim is completely crimped down.
6. Confirm that there is no leakage.
Refer to Inspection.
INSPECTION
1. Apply pressure with Tool.
WARNING:
To prevent the risk of the hose coming undone while under
pressure, securely fasten it down with a hose clamp.
Attach a hose to the oil cooler to seal its inlet and outlet.
(A/T model only)
2. Check for leakage by soaking radiator in water container.
SLC897
Standard height “H”: 8.0 - 8.4 mm (0.315 - 0.331 in)
SLC554A
Specified pressure value:
157 kPa (1.57 bar, 1.6 kg/cm
2 , 23 psi)
SLC933
SLC934

WATER PUMP
CO-39
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
CO

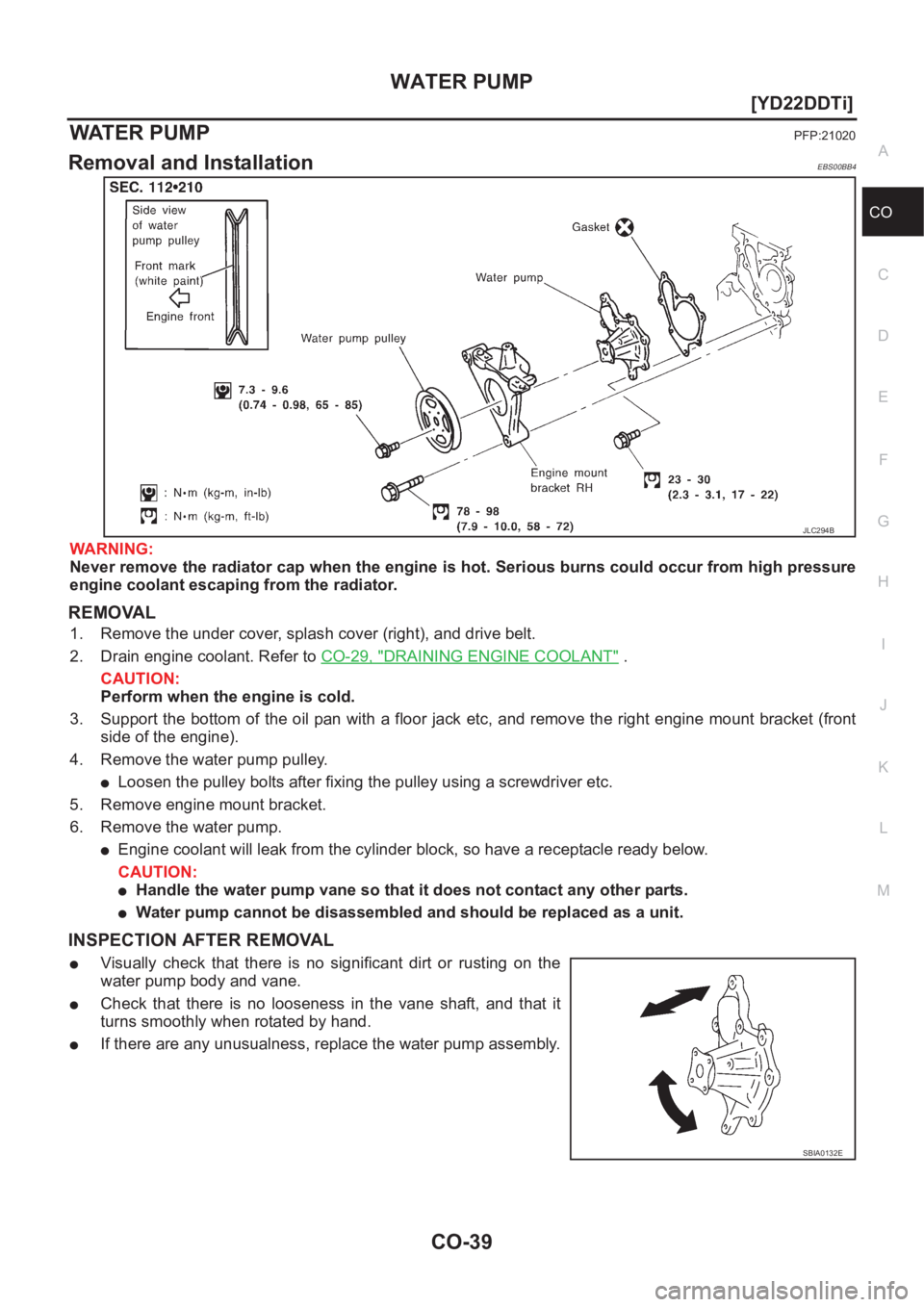

WAT E R P U MPPFP:21020
Removal and InstallationEBS00BB4
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
engine coolant escaping from the radiator.
REMOVAL
1. Remove the under cover, splash cover (right), and drive belt.
2. Drain engine coolant. Refer to CO-29, "
DRAINING ENGINE COOLANT" .
CAUTION:
Perform when the engine is cold.
3. Support the bottom of the oil pan with a floor jack etc, and remove the right engine mount bracket (front
side of the engine).
4. Remove the water pump pulley.
●Loosen the pulley bolts after fixing the pulley using a screwdriver etc.
5. Remove engine mount bracket.
6. Remove the water pump.
●Engine coolant will leak from the cylinder block, so have a receptacle ready below.
CAUTION:
●Handle the water pump vane so that it does not contact any other parts.
●Water pump cannot be disassembled and should be replaced as a unit.
INSPECTION AFTER REMOVAL
●Visually check that there is no significant dirt or rusting on the
water pump body and vane.
●Check that there is no looseness in the vane shaft, and that it
turns smoothly when rotated by hand.
●If there are any unusualness, replace the water pump assembly.
JLC294B
SBIA0132E

CO-40
[YD22DDTi]
WATER PUMP

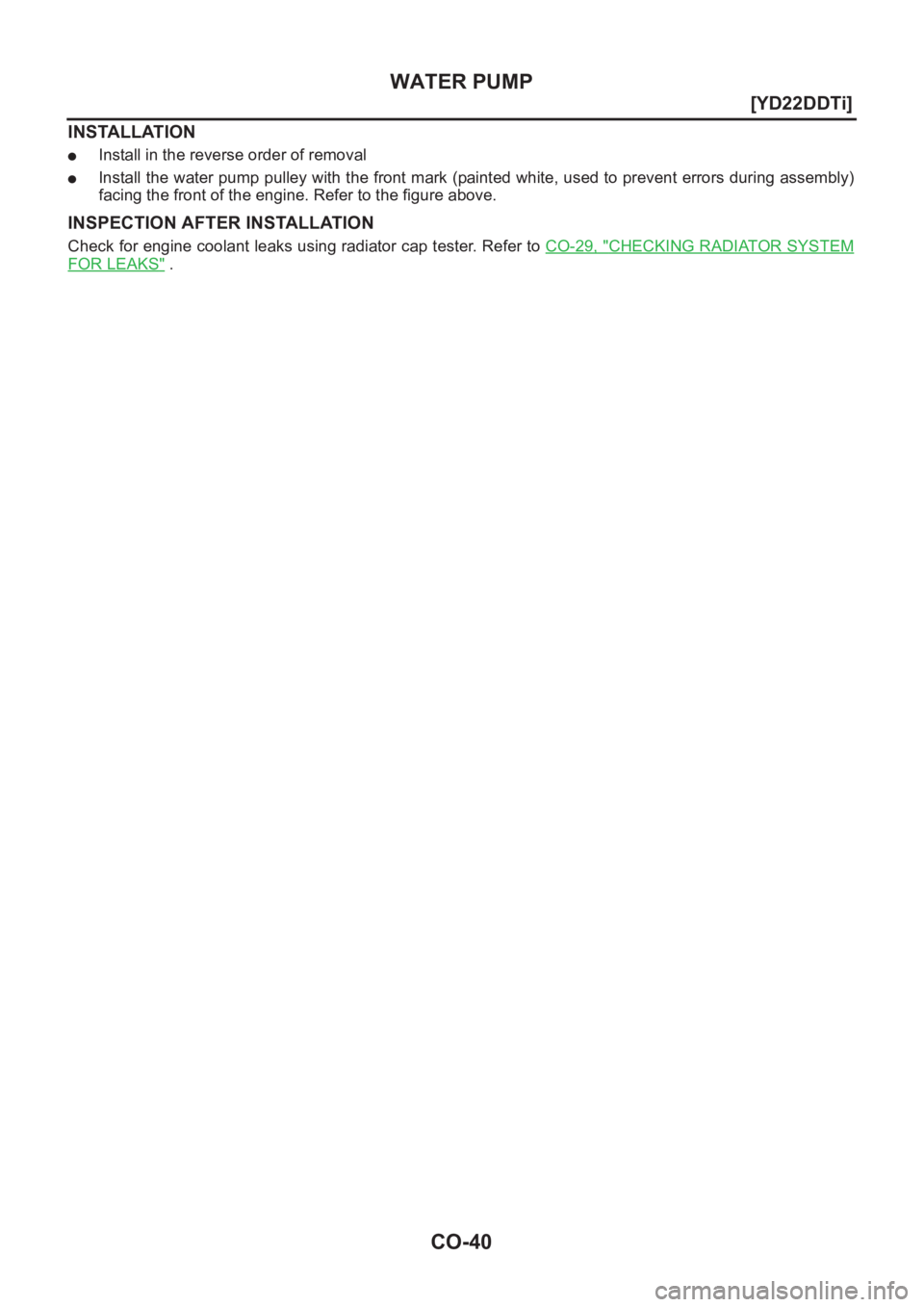

INSTALLATION
●Install in the reverse order of removal
●Install the water pump pulley with the front mark (painted white, used to prevent errors during assembly)
facing the front of the engine. Refer to the figure above.
INSPECTION AFTER INSTALLATION
Check for engine coolant leaks using radiator cap tester. Refer to CO-29, "CHECKING RADIATOR SYSTEM
FOR LEAKS" .

THERMOSTAT AND WATER PIPING
CO-41
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
CO

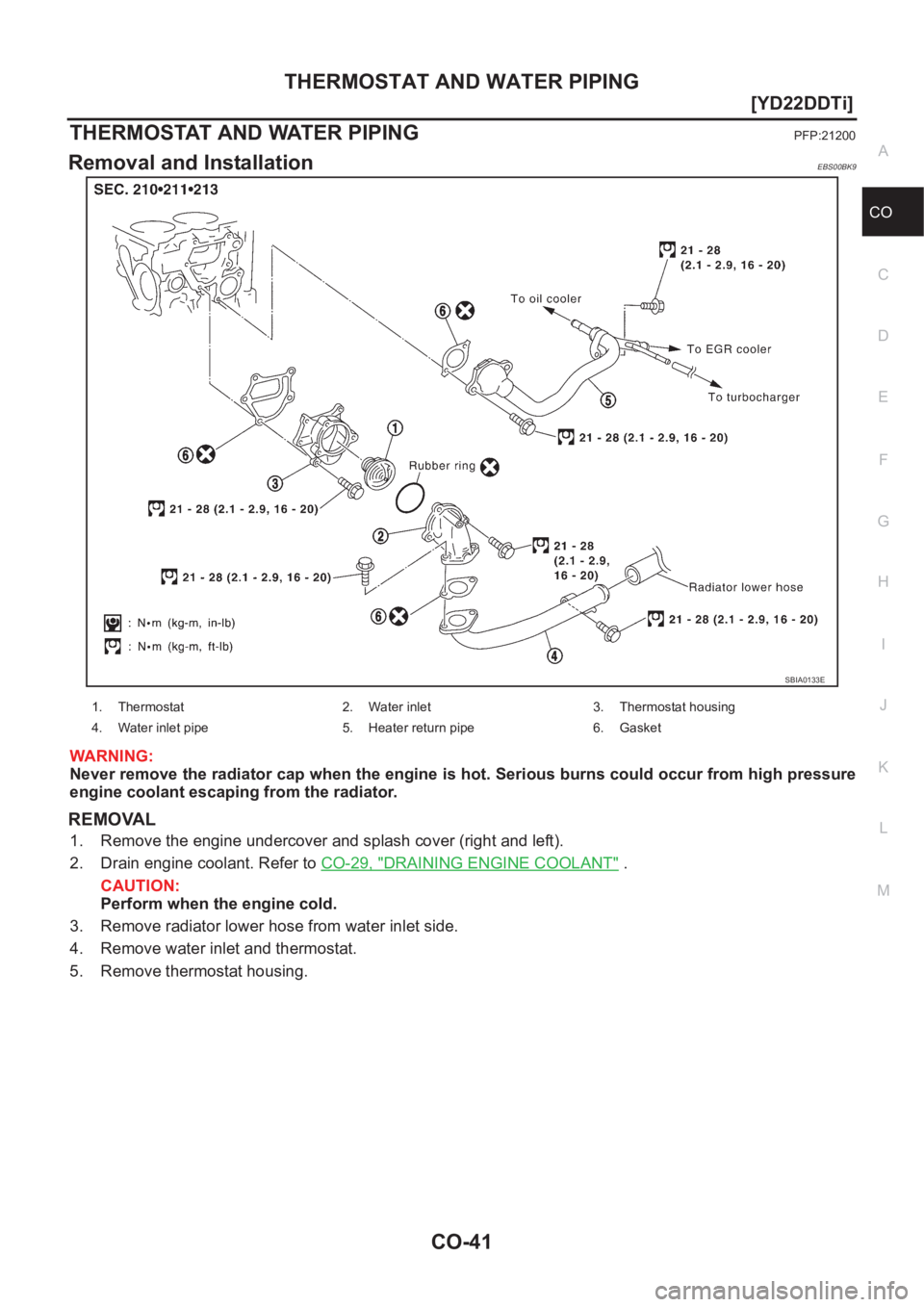

THERMOSTAT AND WATER PIPINGPFP:21200
Removal and InstallationEBS00BK9
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
engine coolant escaping from the radiator.
REMOVAL
1. Remove the engine undercover and splash cover (right and left).
2. Drain engine coolant. Refer to CO-29, "
DRAINING ENGINE COOLANT" .
CAUTION:
Perform when the engine cold.
3. Remove radiator lower hose from water inlet side.
4. Remove water inlet and thermostat.
5. Remove thermostat housing.
SBIA0133E
1. Thermostat 2. Water inlet 3. Thermostat housing
4. Water inlet pipe 5. Heater return pipe 6. Gasket

CO-42
[YD22DDTi]
THERMOSTAT AND WATER PIPING

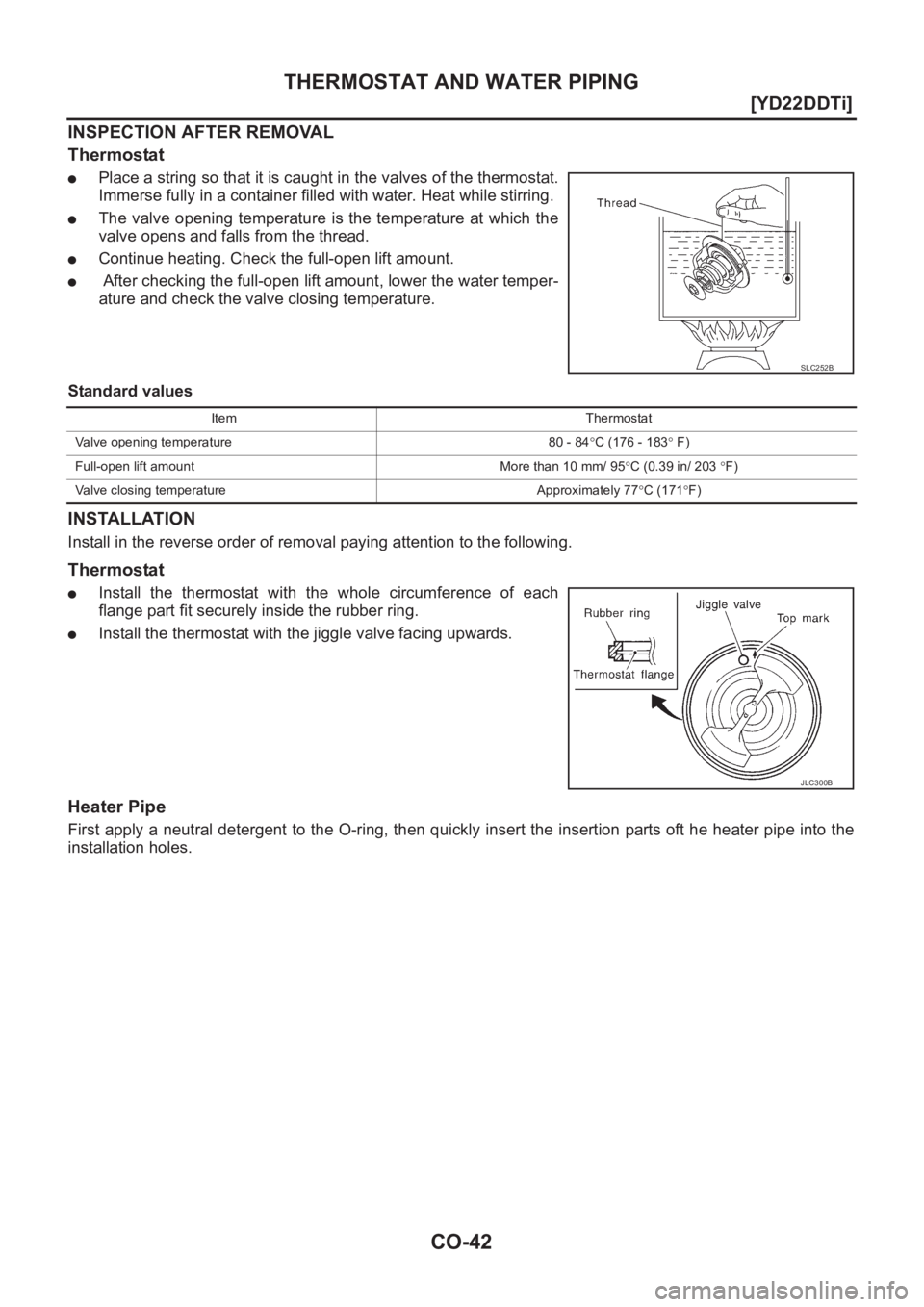

INSPECTION AFTER REMOVAL
Thermostat
●Place a string so that it is caught in the valves of the thermostat.
Immerse fully in a container filled with water. Heat while stirring.
●The valve opening temperature is the temperature at which the
valve opens and falls from the thread.
●Continue heating. Check the full-open lift amount.
● After checking the full-open lift amount, lower the water temper-
ature and check the valve closing temperature.
Standard values
INSTALLATION
Install in the reverse order of removal paying attention to the following.
Thermostat
●Install the thermostat with the whole circumference of each
flange part fit securely inside the rubber ring.
●Install the thermostat with the jiggle valve facing upwards.
Heater Pipe
First apply a neutral detergent to the O-ring, then quickly insert the insertion parts oft he heater pipe into the
installation holes.
SLC252B
Item Thermostat
Valve opening temperature 80 - 84°C (176 - 183° F)
Full-open lift amount More than 10 mm/ 95°C (0.39 in/ 203 °F)
Valve closing temperature Approximately 77°C (171°F)
JLC300B

SERVICE DATA AND SPECIFICATIONS (SDS)
CO-43
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
CO

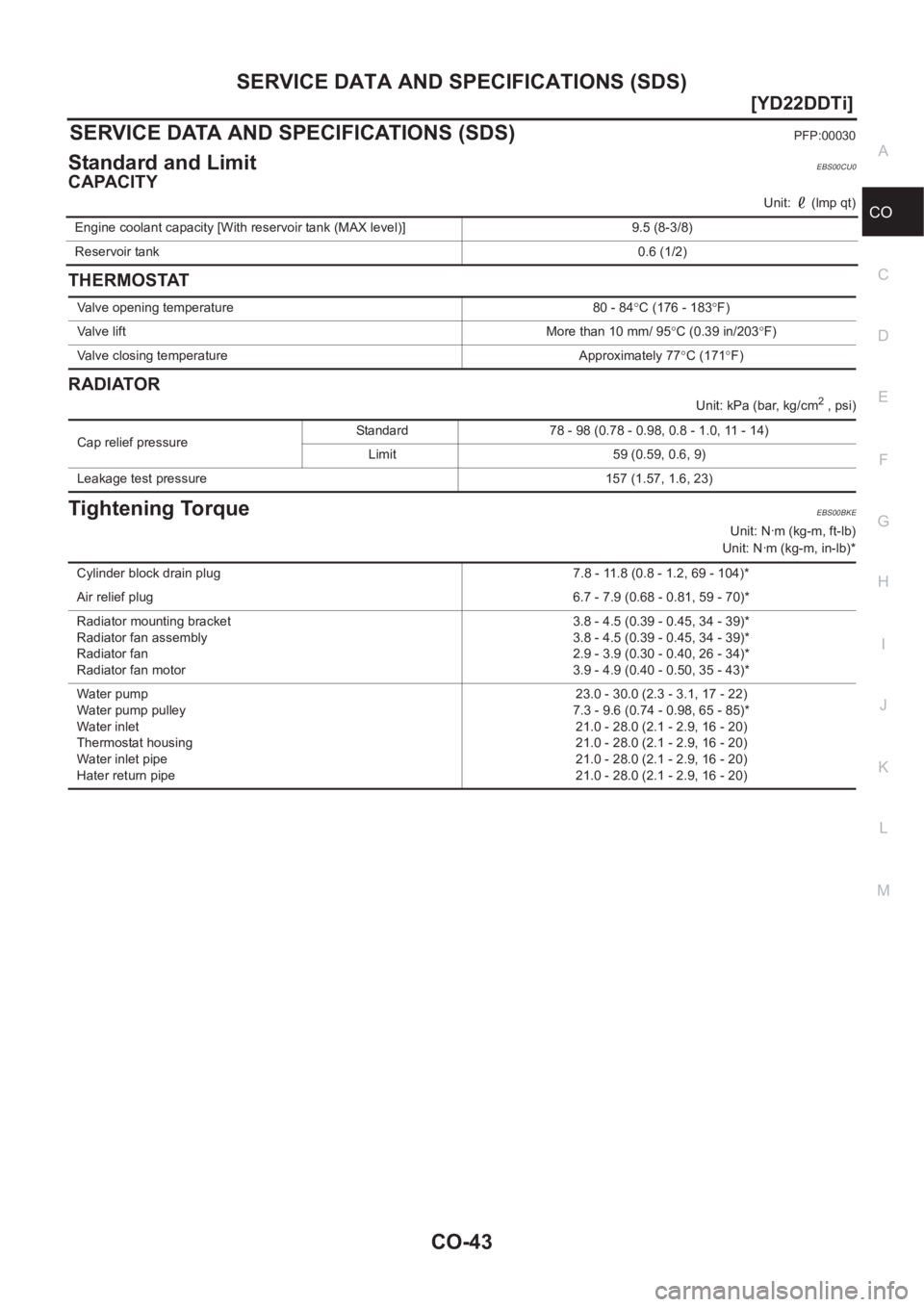

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitEBS00CU0
CAPACITY
Unit: (lmp qt)
THERMOSTAT
RADIATOR
Unit: kPa (bar, kg/cm2 , psi)
Tightening TorqueEBS00BKE
Unit: N·m (kg-m, ft-lb)
Unit: N·m (kg-m, in-lb)*
Engine coolant capacity [With reservoir tank (MAX level)] 9.5 (8-3/8)
Reservoir tank0.6 (1/2)
Valve opening temperature 80 - 84°C (176 - 183°F)
Va l v e l i f tMore than 10 mm/ 95°C (0.39 in/203°F)
Valve closing temperature Approximately 77°C (171°F)
Cap relief pressureStandard 78 - 98 (0.78 - 0.98, 0.8 - 1.0, 11 - 14)
Limit 59 (0.59, 0.6, 9)
Leakage test pressure 157 (1.57, 1.6, 23)
Cylinder block drain plug 7.8 - 11.8 (0.8 - 1.2, 69 - 104)*
Air relief plug6.7 - 7.9 (0.68 - 0.81, 59 - 70)*
Radiator mounting bracket
Radiator fan assembly
Radiator fan
Radiator fan motor3.8 - 4.5 (0.39 - 0.45, 34 - 39)*
3.8 - 4.5 (0.39 - 0.45, 34 - 39)*
2.9 - 3.9 (0.30 - 0.40, 26 - 34)*
3.9 - 4.9 (0.40 - 0.50, 35 - 43)*
Water pump
Water pump pulley
Water inlet
Thermostat housing
Water inlet pipe
Hater return pipe23.0 - 30.0 (2.3 - 3.1, 17 - 22)
7.3 - 9.6 (0.74 - 0.98, 65 - 85)*
21.0 - 28.0 (2.1 - 2.9, 16 - 20)
21.0 - 28.0 (2.1 - 2.9, 16 - 20)
21.0 - 28.0 (2.1 - 2.9, 16 - 20)
21.0 - 28.0 (2.1 - 2.9, 16 - 20)
