NISSAN X-TRAIL 2003 Electronic Repair Manual

PREPARATION
FAX-5
C
E
F
G
H
I
J
K
L
MA
B
FA X

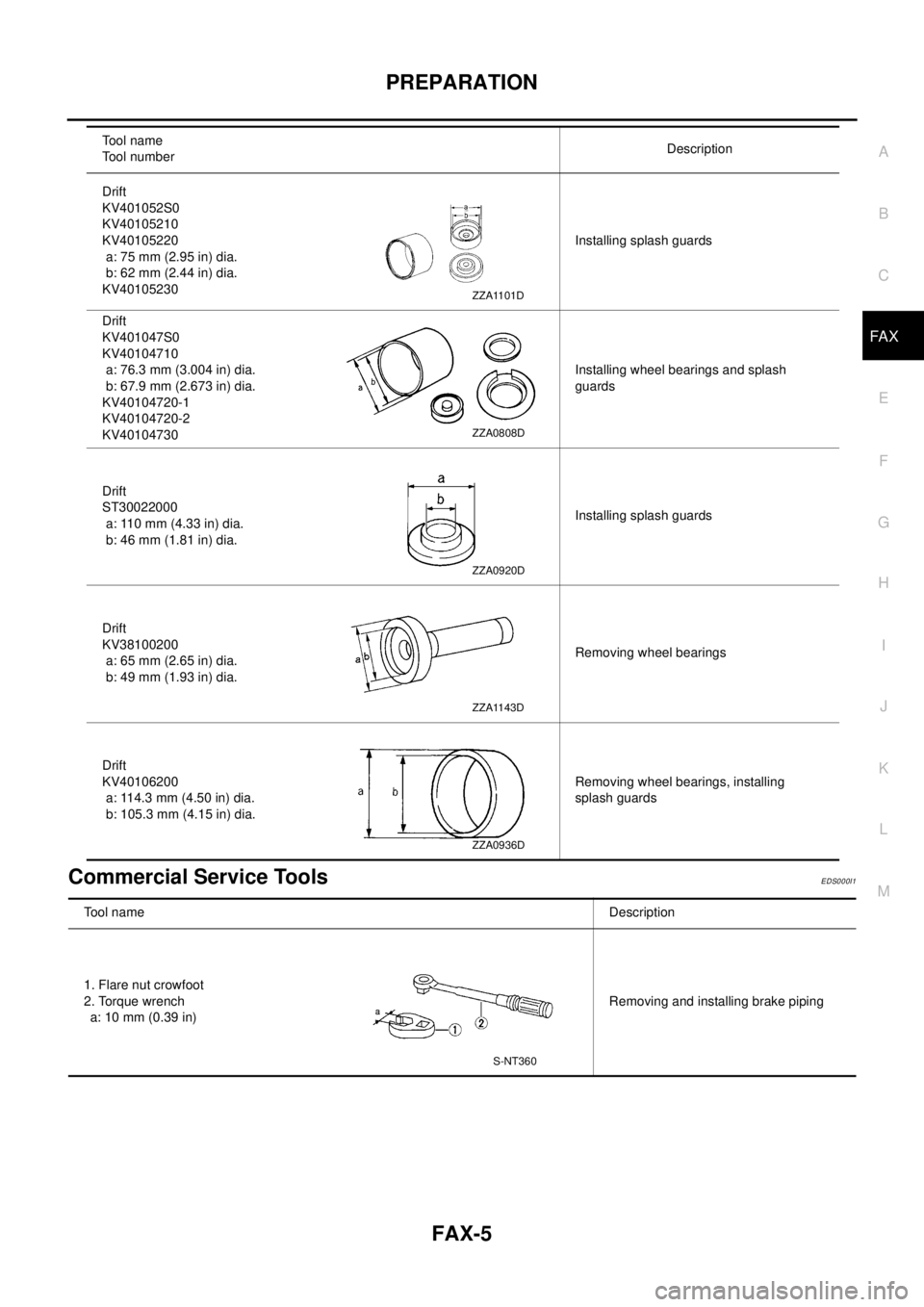

Commercial Service ToolsEDS000I1
Drift
KV401052S0
KV40105210
KV40105220
a: 75 mm (2.95 in) dia.
b: 62 mm (2.44 in) dia.
KV40105230Installing splash guards
Drift
KV401047S0
KV40104710
a: 76.3 mm (3.004 in) dia.
b: 67.9 mm (2.673 in) dia.
KV40104720-1
KV40104720-2
KV40104730Installing wheel bearings and splash
guards
Drift
ST30022000
a: 110 mm (4.33 in) dia.
b: 46 mm (1.81 in) dia.Installing splash guards
Drift
KV38100200
a: 65 mm (2.65 in) dia.
b: 49 mm (1.93 in) dia.Removing wheel bearings
Drift
KV40106200
a: 114.3 mm (4.50 in) dia.
b: 105.3 mm (4.15 in) dia.Removing wheel bearings, installing
splash guards To o l n a m e
Tool numberDescription
ZZA1101D
ZZA0808D
ZZA0920D
ZZA1143D
ZZA0936D
Tool nameDescription
1. Flare nut crowfoot
2. Torque wrench
a: 10 mm (0.39 in)Removing and installing brake piping
S-NT360

FAX-6
NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING
NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING
PFP:00003
NVH Troubleshooting ChartEDS000IF
Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.
´: Applicable Reference page
Refer toFAX -7
FAX -11
ONT WHEEL HUB AND KNUCKLE
—
Refer toFAX -7
NVH in WT section.
NVH in WT section.
NVH in PS section.
Possible cause and SUSPECTED PARTS
Improper installation, looseness
Parts interference
Wheel bearing damage
TIRES
ROAD WHEEL
STEERING
Symptom FRONT AXLENoise´´ ´´´
Shake´´ ´´´
Vibration´´´´
Shimmy´´ ´´´
Judder´ ´´´
Poor quality ride or handling´´´´´

FRONT WHEEL HUB AND KNUCKLE
FAX-7
C
E
F
G
H
I
J
K
L
MA
B
FA X
FRONT WHEEL HUB AND KNUCKLEPFP:40202

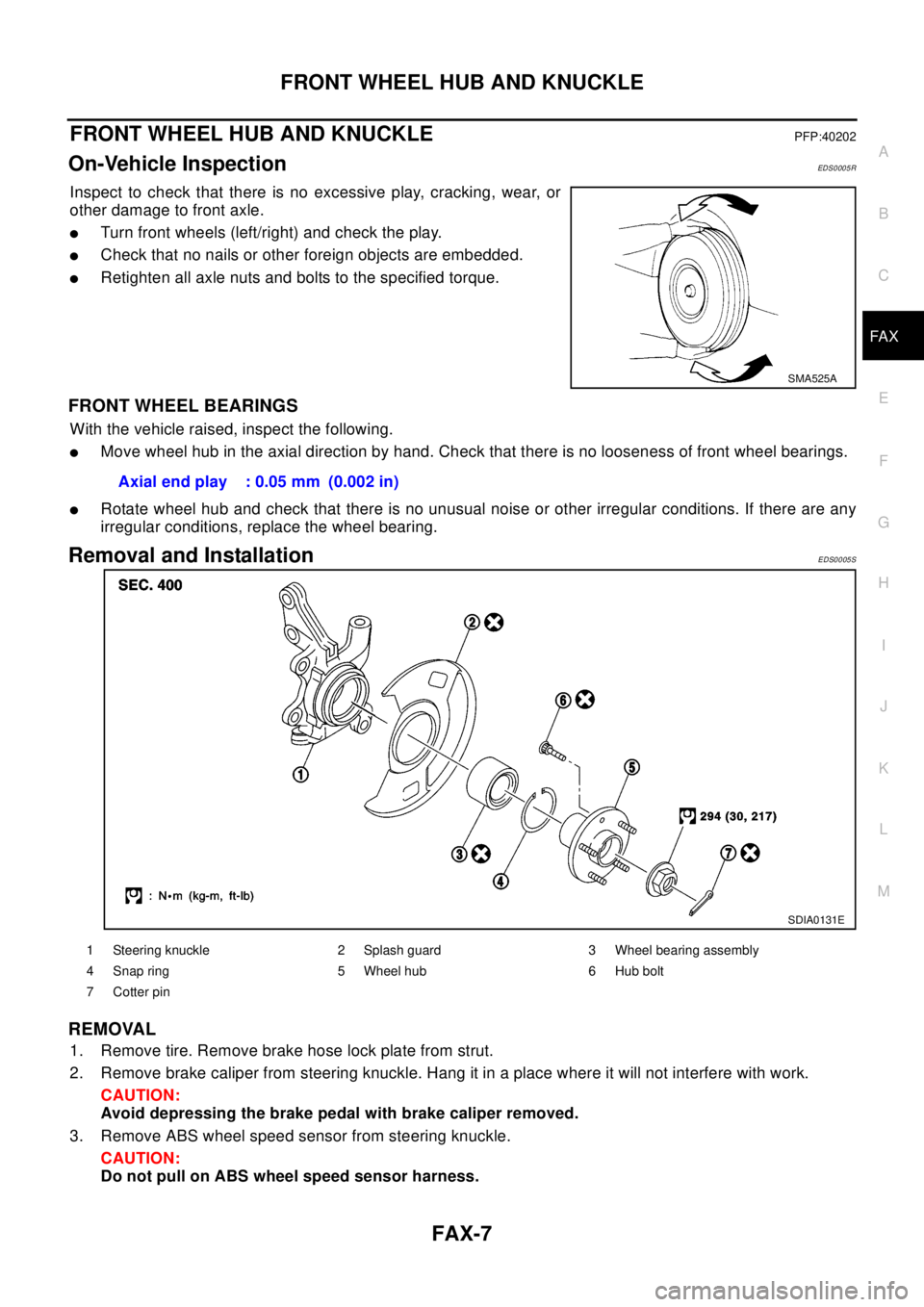

On-Vehicle InspectionEDS0005R
Inspect to check that there is no excessive play, cracking, wear, or
other damage to front axle.
lTurn front wheels (left/right) and check the play.
lCheck that no nails or other foreign objects are embedded.
lRetighten all axle nuts and bolts to the specified torque.
FRONT WHEEL BEARINGS
With the vehicle raised, inspect the following.
lMove wheel hub in the axial direction by hand. Check that there is no looseness of front wheel bearings.
lRotate wheel hub and check that there is no unusual noise or other irregular conditions. If there are any
irregular conditions, replace the wheel bearing.
Removal and InstallationEDS0005S
REMOVAL
1. Remove tire. Remove brake hose lock plate from strut.
2. Remove brake caliper from steering knuckle. Hang it in a place where it will not interfere with work.
CAUTION:
Avoid depressing the brake pedal with brake caliper removed.
3. Remove ABS wheel speed sensor from steering knuckle.
CAUTION:
Do not pull on ABS wheel speed sensor harness.
SMA525A
Axial end play : 0.05 mm (0.002 in)
SDIA0131E
1 Steering knuckle 2 Splash guard 3 Wheel bearing assembly
4 Snap ring 5 Wheel hub 6 Hub bolt
7Cotterpin

FAX-8
FRONT WHEEL HUB AND KNUCKLE

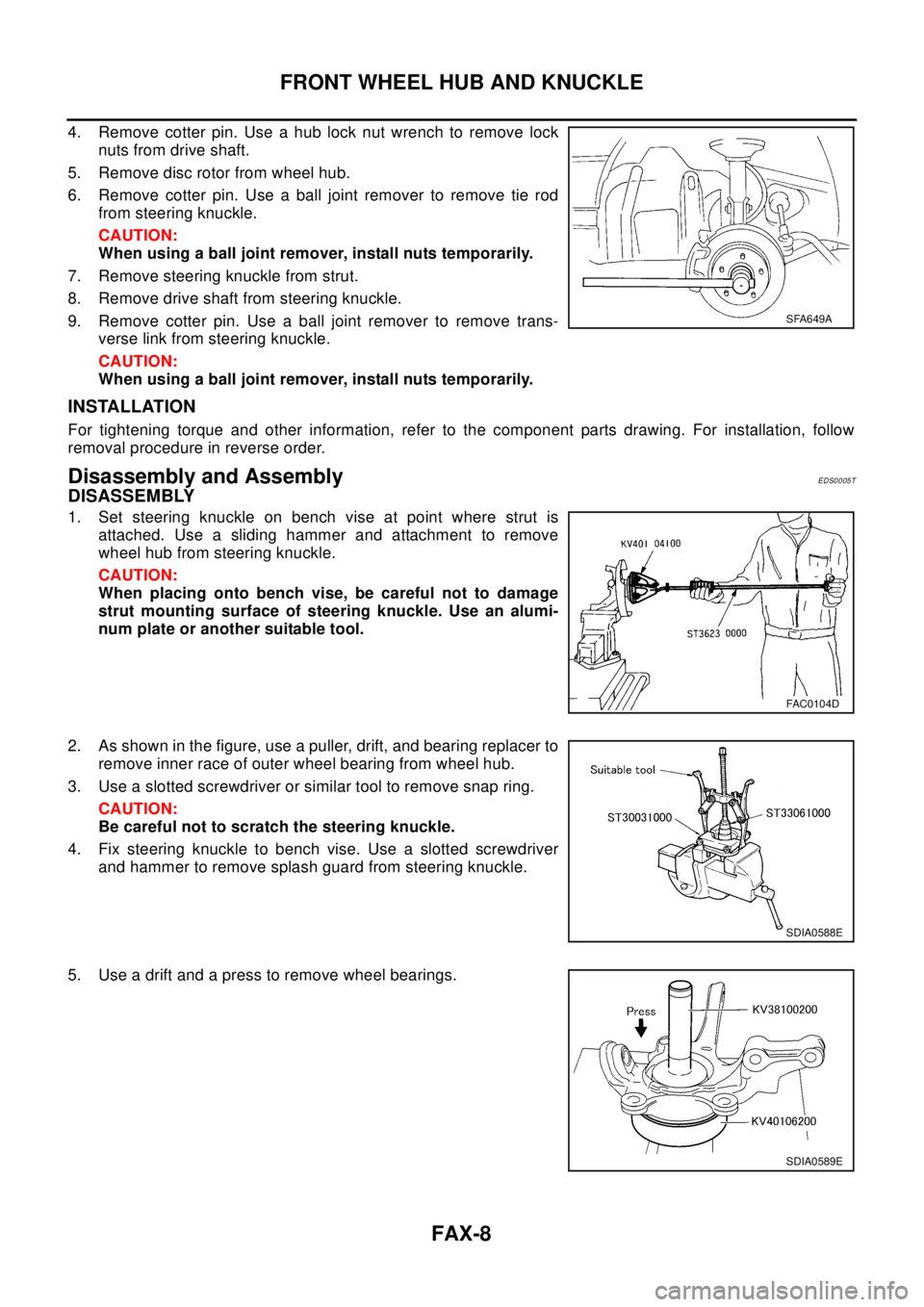

4. Remove cotter pin. Use a hub lock nut wrench to remove lock
nuts from drive shaft.
5. Remove disc rotor from wheel hub.
6. Remove cotter pin. Use a ball joint remover to remove tie rod
from steering knuckle.
CAUTION:
When using a ball joint remover, install nuts temporarily.
7. Remove steering knuckle from strut.
8. Remove drive shaft from steering knuckle.
9. Remove cotter pin. Use a ball joint remover to remove trans-
verse link from steering knuckle.
CAUTION:
When using a ball joint remover, install nuts temporarily.
INSTALLATION
For tightening torque and other information, refer to the component parts drawing. For installation, follow
removal procedure in reverse order.
Disassembly and AssemblyEDS0005T
DISASSEMBLY
1. Set steering knuckle on bench vise at point where strut is
attached. Use a sliding hammer and attachment to remove
wheel hub from steering knuckle.
CAUTION:
When placing onto bench vise, be careful not to damage
strut mounting surface of steering knuckle. Use an alumi-
num plate or another suitable tool.
2. As shown in the figure, use a puller, drift, and bearing replacer to
remove inner race of outer wheel bearing from wheel hub.
3. Use a slotted screwdriver or similar tool to remove snap ring.
CAUTION:
Be careful not to scratch the steering knuckle.
4. Fix steering knuckle to bench vise. Use a slotted screwdriver
and hammer to remove splash guard from steering knuckle.
5. Use a drift and a press to remove wheel bearings.
SFA649A
FAC0104D
SDIA0588E
SDIA0589E

FRONT WHEEL HUB AND KNUCKLE
FAX-9
C
E
F
G
H
I
J
K
L
MA
B
FA X
INSPECTION AFTER DISASSEMBLY
Wheel Hub
lCheck wheel bearings for damage, seizure, and corrosion. Also check wheel hubs for cracks (using a die
test or other method). Replace if any irregular conditions are found.
Steering Knuckle
lCheck steering knuckle for deformation, cracks, and other damage. Replace if any irregular conditions are
found.
Snap Ring
lCheck snap ring for wear or other damage. Replace if any irregular conditions are found.

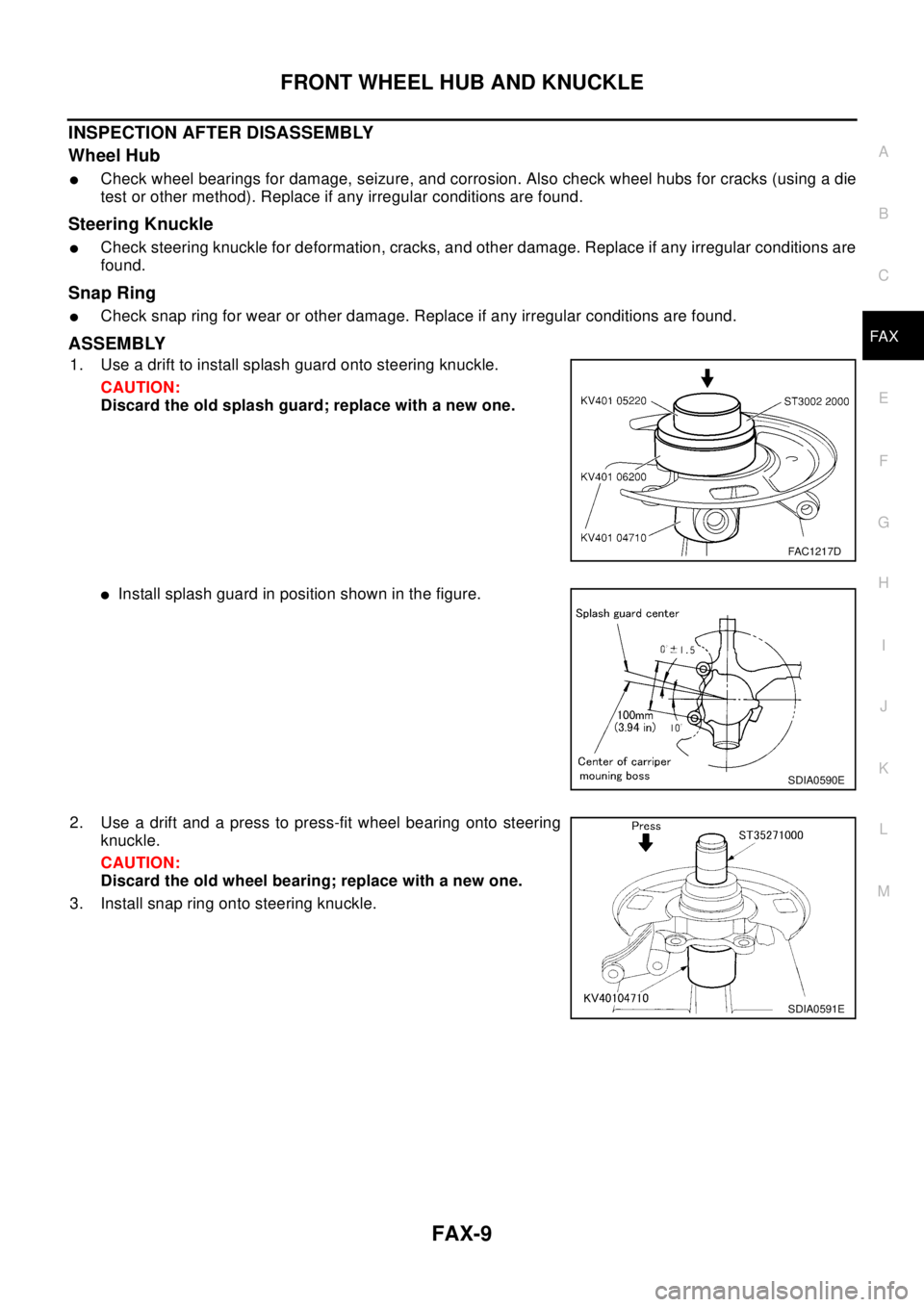

ASSEMBLY
1. Use a drift to install splash guard onto steering knuckle.
CAUTION:
Discard the old splash guard; replace with a new one.
lInstall splash guard in position shown in the figure.
2. Use a drift and a press to press-fit wheel bearing onto steering
knuckle.
CAUTION:
Discard the old wheel bearing; replace with a new one.
3. Install snap ring onto steering knuckle.
FAC1217D
SDIA0590E
SDIA0591E

FAX-10
FRONT WHEEL HUB AND KNUCKLE
4. Use a drift and a press to install wheel hub.
5. As shown in the figure, apply a load of 49030 N (5000 kg,11,025
lb). Rotate in forward and reverse directions 10 times each to
ensure a good fit.
6. At a rotation speed of 8 - 12 rpm, place a spring balance at the point where strut is joined (upper-side bolt
hole). Measure rotation torque. Refer toFAX-17, "
Wheel Bearing".
NOTE:
If a load of 49030 N (5000 kg,11,025 lb) cannot be applied, carry out the following actions.
lAssemble drive shaft and tighten wheel hub lock nuts to specified torque. Then rotate in forward and
reverse direction 10 times each to ensure a good fit.
lAt a rotation speed of 8 - 12 rpm, place a spring balance on hub bolt to measure torque.
SDIA0592E
Rotation torque : 1.645 N·m (0.168 kg-m,15 in-lb) or less
Spring balance reading : 10.6 N (1.1 kg, 2.4 lb) or less
Rotation torque : 2.125 N·m (0.217 kg-m,19 in-lb) or less
Spring balance reading : 37.2 N (3.8 kg, 8.4 lb) or less

FRONT DRIVE SHAFT
FAX-11
C
E
F
G
H
I
J
K
L
MA
B
FA X

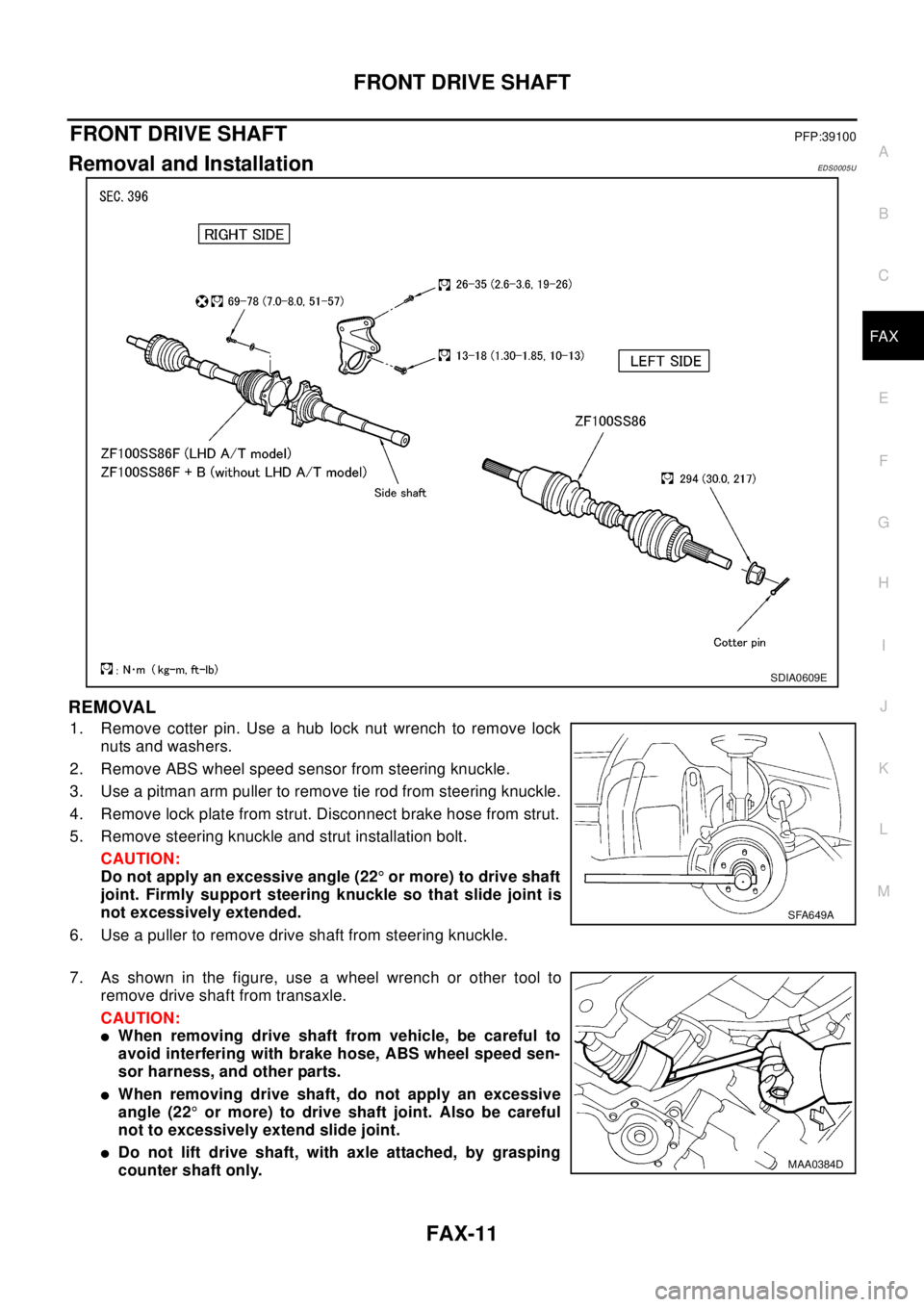

FRONT DRIVE SHAFTPFP:39100
Removal and InstallationEDS0005U
REMOVAL
1. Remove cotter pin. Use a hub lock nut wrench to remove lock
nuts and washers.
2. Remove ABS wheel speed sensor from steering knuckle.
3. Use a pitman arm puller to remove tie rod from steering knuckle.
4. Remove lock plate from strut. Disconnect brake hose from strut.
5. Remove steering knuckle and strut installation bolt.
CAUTION:
Do not apply an excessive angle (22°or more) to drive shaft
joint. Firmly support steering knuckle so that slide joint is
not excessively extended.
6. Use a puller to remove drive shaft from steering knuckle.
7. As shown in the figure, use a wheel wrench or other tool to
remove drive shaft from transaxle.
CAUTION:
lWhen removing drive shaft from vehicle, be careful to
avoid interfering with brake hose, ABS wheel speed sen-
sor harness, and other parts.
lWhen removing drive shaft, do not apply an excessive
angle (22°or more) to drive shaft joint. Also be careful
not to excessively extend slide joint.
lDo not lift drive shaft, with axle attached, by grasping
counter shaft only.
SDIA0609E
SFA649A
MAA0384D

FAX-12
FRONT DRIVE SHAFT
lDo not allow drive shaft, with transaxle inserted, to hang down without support for counter
shaft, wheel joints, and other parts.
lWhen the drive shafts listed below have been removed, check that a circular clip is attached to the end.
lRemove installation bolt from right-side drive shaft support bearing bracket. Then remove bracket from
engine.
lRemove installation bolt from right-side drive shaft and remove drive shaft from side shaft.
INSPECTION AFTER REMOVAL
lMove joint in up/down, left/right, and axial directions. Check for
motion that is not smooth and for significant looseness.
lCheck for cracking and damage of boots, and for grease leak-
age.
INSTALLATION
lInstall support bearing bracket onto engine and tighten installation bolts to specified torque.
lInstall drive shaft to side shaft and tighten installation bolts to specified torque.
1. In order to prevent damage to differential side oil seal, first fit a
protector onto oil seal before inserting drive shaft. Slide drive
shaft slide joint and tap with a hammer to install securely.
CAUTION:
Be sure to check that circular clip is securely fastened.
2. Insert drive shaft into steering knuckle. Install washers and tem-
porarily tighten lock nuts.
3. Install installation bolt for steering knuckle and strut.
4. Use lock plate to fix brake hose to strut.
5. Install tie rod to steering knuckle.
6. Install ABS wheel speed sensor.
7. Tighten lock nuts to specified torque.
8. Install cotter pin.
CAUTION:
Discard the old cotter pin; replace with a new one.
Engine typeDrive shaft with circular clip
Right Left
QR20DE —m
YD22ET —m
RAA0030D
Model type Protector SST No.
RH KV38107800
LH KV38105500
SDIA0593E
SDIA0603E

FRONT DRIVE SHAFT
FAX-13
C
E
F
G
H
I
J
K
L
MA
B
FA X

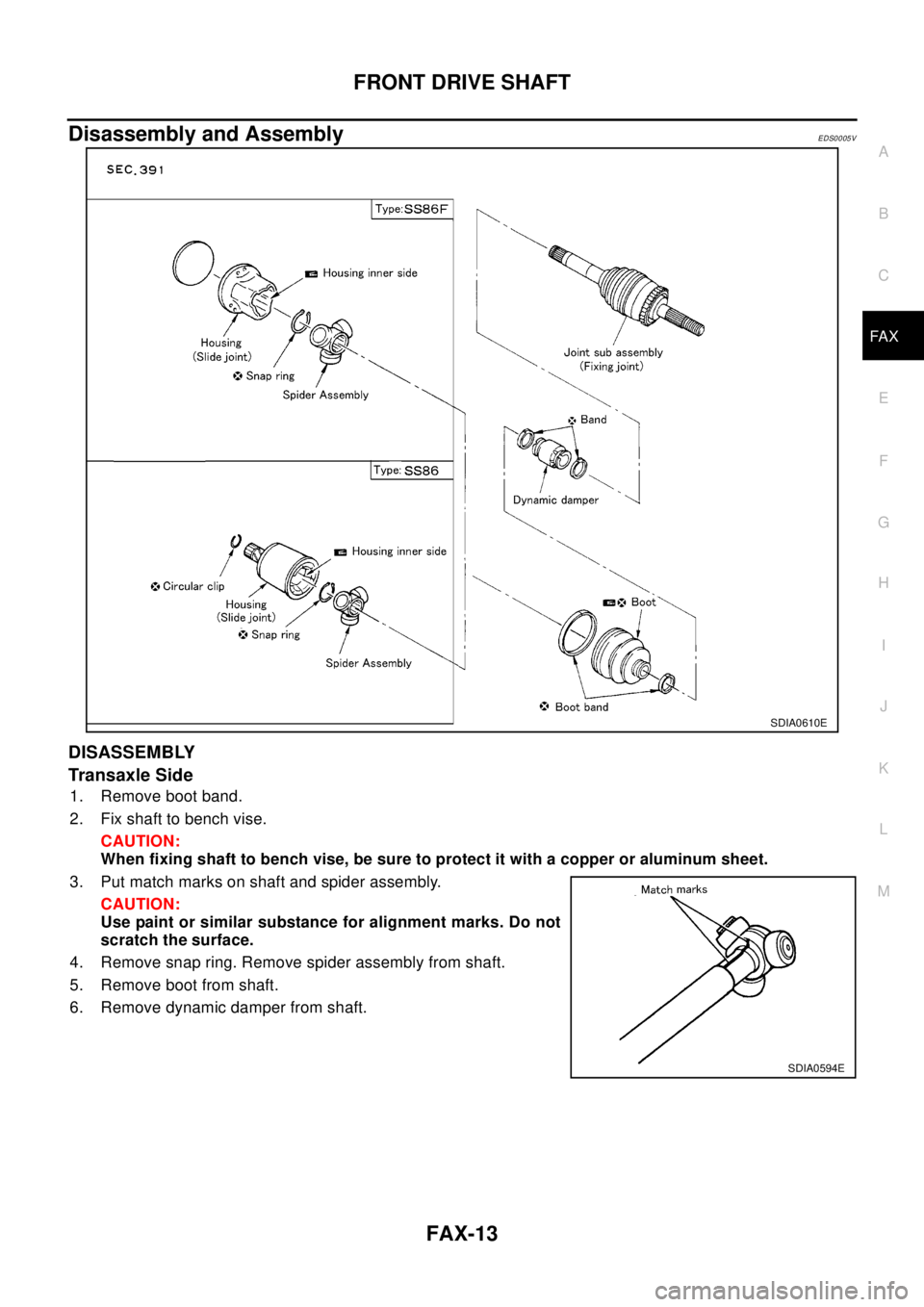

Disassembly and AssemblyEDS0005V
DISASSEMBLY
Transaxle Side
1. Remove boot band.
2. Fix shaft to bench vise.
CAUTION:
When fixing shaft to bench vise, be sure to protect it with a copper or aluminum sheet.
3. Put match marks on shaft and spider assembly.
CAUTION:
Use paint or similar substance for alignment marks. Do not
scratch the surface.
4. Remove snap ring. Remove spider assembly from shaft.
5. Remove boot from shaft.
6. Remove dynamic damper from shaft.
SDIA0610E
SDIA0594E

FAX-14
FRONT DRIVE SHAFT
Wheel Side
lAs shown in the figure, use a bearing replacer and puller to
remove sensor rotor from drive shaft.
CAUTION:
Aside from sensor rotor, this part cannot be disassembled.
Do not attempt to disassemble it.
INSPECTION AFTER DISASSEMBLY
Shaft
lReplace shaft if there is any runout, cracking or damage.
Boot and Boot Bands
lReplace boot if there are any cracks.
CAUTION:
For the wheel side, boot must be replaced together with drive shaft assembly.
lOnce removed, boot bands must be replaced with new ones.
CAUTION:
For the wheel side, boot must be replaced together with drive shaft assembly.
Joint Sub-Assembly (Fixed Joint)
CAUTION:
Joint sub-assembly cannot be disassembled. Do not attempt to disassemble it.
Joint Assembly (Transaxle Side)
T-typeandS-typeslidingjoints
lIf there is scratching or wear of housing roller contact surface or spider roller contact surface, replace
housing and spider assembly.
lIf there is circumferential looseness or rough rotation of spider roller, replace spider assembly.
lIf there are any irregular conditions of joint assembly component parts, replace the joint assembly.
lFor housing replacement, spider assembly and joint assembly are a set.
lAs shown in the figure, the spider roller has a stamped number
which corresponds to a part number. Select a suitable replace-
ment part with the same stamp number from the table below.
SDIA0595E
SDIA0596E
Stamped No. Part No. Model
0 39720 8H300
SS86, SS86F, SS86F+B 1 39720 8H301
2 39720 8H302
