PRACTICAL INFORMATION
179

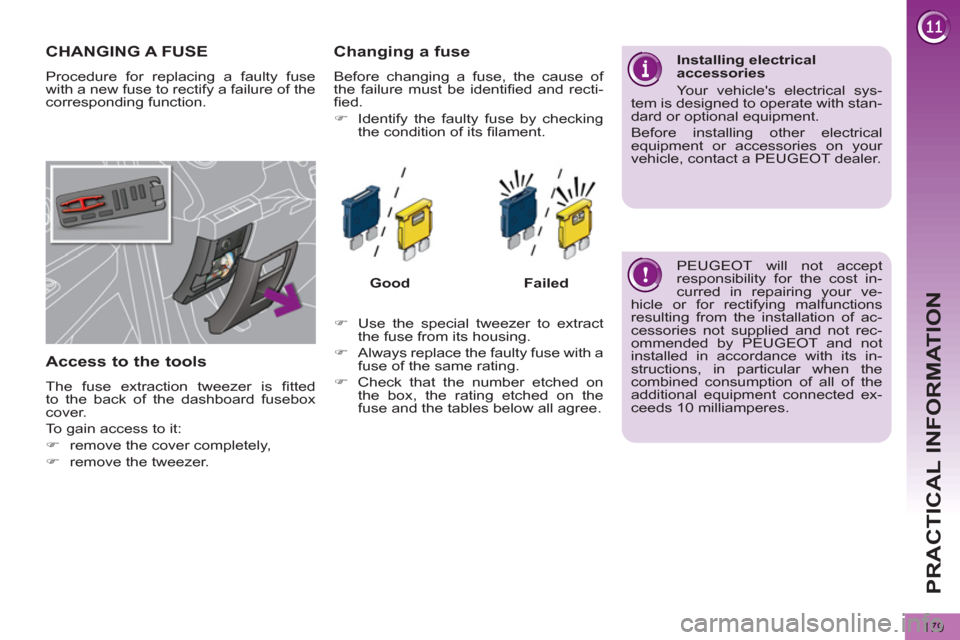

CHANGING A FUSE

Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.

Access to the tools

The fuse extraction tweezer is fi tted
to the back of the dashboard fusebox
cover.
To gain access to it:


)
remove the cover completely,

)
remove the tweezer.



Changing a fuse

Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.


)
Identify the faulty fuse by checking
the condition of its fi lament.

Good

Failed



)
Use the special tweezer to extract
the fuse from its housing.

)
Always replace the faulty fuse with a
fuse of the same rating.

)
Check that the number etched on
the box, the rating etched on the
fuse and the tables below all agree.
Installing electrical
accessories
Your vehicle's electrical sys-
tem is designed to operate with stan-
dard or optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer.
PEUGEOT will not accept
responsibility for the cost in-
curred in repairing your ve-
hicle or for rectifying malfunctions
resulting from the installation of ac-
cessories not supplied and not rec-
ommended by PEUGEOT and not
installed in accordance with its in-
structions, in particular when the
combined consumption of all of the
additional equipment connected ex-
ceeds 10 milliamperes.

PRACTICAL INFORMATION
180

Dashboard fuses

The fusebox is placed in the lower dash-
board (left-hand side).
Fuse tables

Fuse
N°

Rating
(A)


Functions




F1


15

Rear wiper.


F2


-

Not used.


F3


5

Airbag control unit.


F4


10
Electrochromatic rear view mirror, air conditioning,
switching and protection unit, rear multimedia,
traction battery control unit.


F5


30

Front one-touch electric windows.


F6


30

Rear one-touch electric windows.


F7


5
Front and rear courtesy lamps, map reading lamps,
rear reading lamps, sun visor lighting, glove box
lighting, centre armrest lighting, boot 12 V relay
control.

PRACTICAL INFORMATION
181

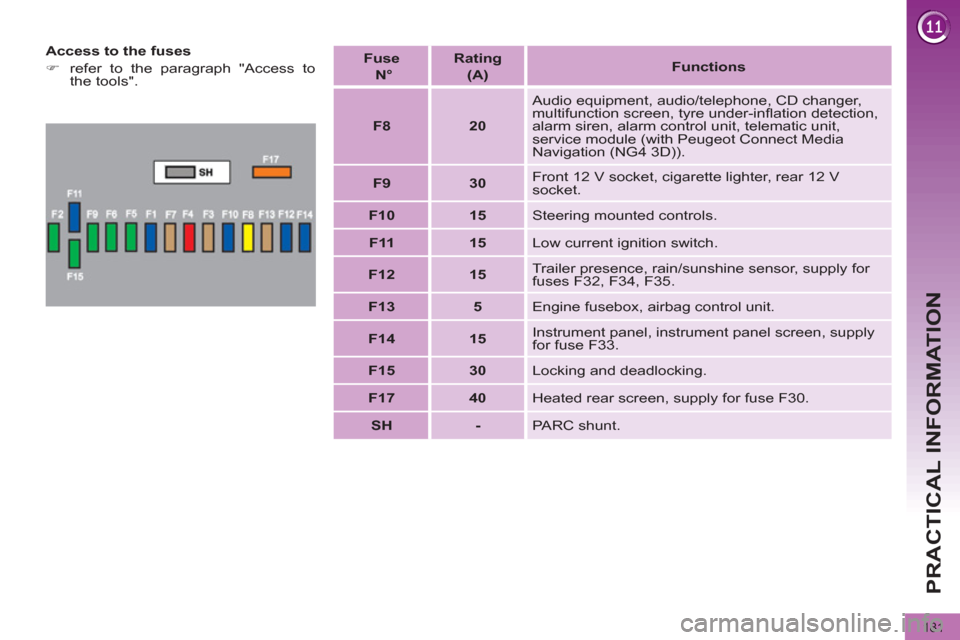

Access to the fuses


)
refer to the paragraph "Access to
the tools".

Fuse
N°

Rating
(A)

Functions




F8


20
Audio equipment, audio/telephone, CD changer,
multifunction screen, tyre under-infl ation detection,
alarm siren, alarm control unit, telematic unit,
service module (with Peugeot Connect Media
Navigation (NG4 3D)).


F9


30
Front 12 V socket, cigarette lighter, rear 12 V
socket.


F10


15

Steering mounted controls.


F11


15

Low current ignition switch.


F12


15
Trailer presence, rain/sunshine sensor, supply for
fuses F32, F34, F35.


F13


5

Engine fusebox, airbag control unit.


F14


15
Instrument panel, instrument panel screen, supply
for fuse F33.


F15


30

Locking and deadlocking.


F17


40

Heated rear screen, supply for fuse F30.


SH


-

PARC shunt.

PRACTICAL INFORMATION
182

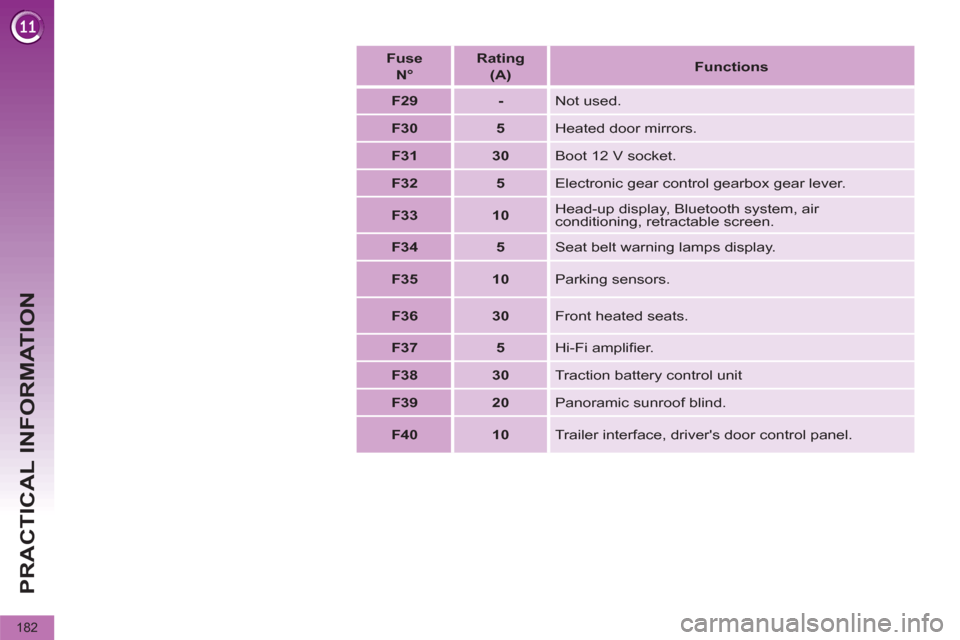

Fuse
N°



Rating
(A)



Functions




F29



-

Not used.


F30



5

Heated door mirrors.


F31



30

Boot 12 V socket.


F32



5

Electronic gear control gearbox gear lever.


F33



10

Head-up display, Bluetooth system, air
conditioning, retractable screen.


F34



5

Seat belt warning lamps display.


F35



10

Parking sensors.


F36



30

Front heated seats.


F37



5

Hi-Fi amplifi er.


F38



30

Traction battery control unit


F39



20

Panoramic sunroof blind.


F40



10

Trailer interface, driver's door control panel.

PRACTICAL INFORMATION
183

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery (left-hand
side).

Access to the fuses


)
Unclip the cover.

)
Change the fuse (see correspond-
ing paragraph).

)
When you have fi nished, close the
cover carefully to ensure correct
sealing of the fusebox.

Fuse table

Fuse
N°

Rating
(A)


Functions




F1


20
Engine control unit supply, injection pump and EGR
electrovalves, injectors.


F2


15

Horn.


F3


10

Front/rear wash-wipe.


F4


10

Daytime running lamps.


F5


15
Air fl ow sensor, wiper, sensor heater, hybrid control
unit, hybrid selector dial, electronic thermostat,
variable valve timing electrovalves, turbo pressure
regulation electrovalves (Diesel), engine coolant
level sensor (Diesel).


F6


10
Diagnostic socket, directional headlamps, particle
emission fi lter pump (Diesel), mirror adjustment
control, network interface unit, head-up display.


F7


10
Power steering control unit, directional headlamps
height adjustment motor.


F8


20

Starter motor control.


F9


10

Clutch and brake pedal switches.


F10


30

Heaters (Diesel).


F11


40

Air conditioning blower.

PRACTICAL INFORMATION
184

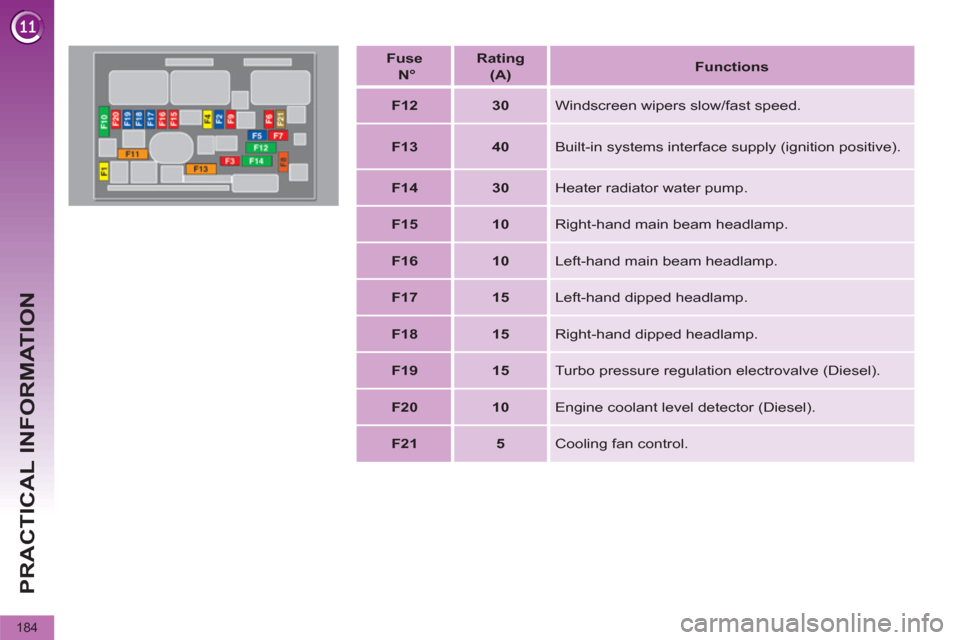

Fuse
N°

Rating
(A)

Functions




F12


30

Windscreen wipers slow/fast speed.


F13


40

Built-in systems interface supply (ignition positive).


F14


30

Heater radiator water pump.


F15


10

Right-hand main beam headlamp.


F16


10

Left-hand main beam headlamp.


F17


15

Left-hand dipped headlamp.


F18


15

Right-hand dipped headlamp.


F19


15

Turbo pressure regulation electrovalve (Diesel).


F20


10

Engine coolant level detector (Diesel).


F21


5

Cooling fan control.

PRACTICAL INFORMATION
185

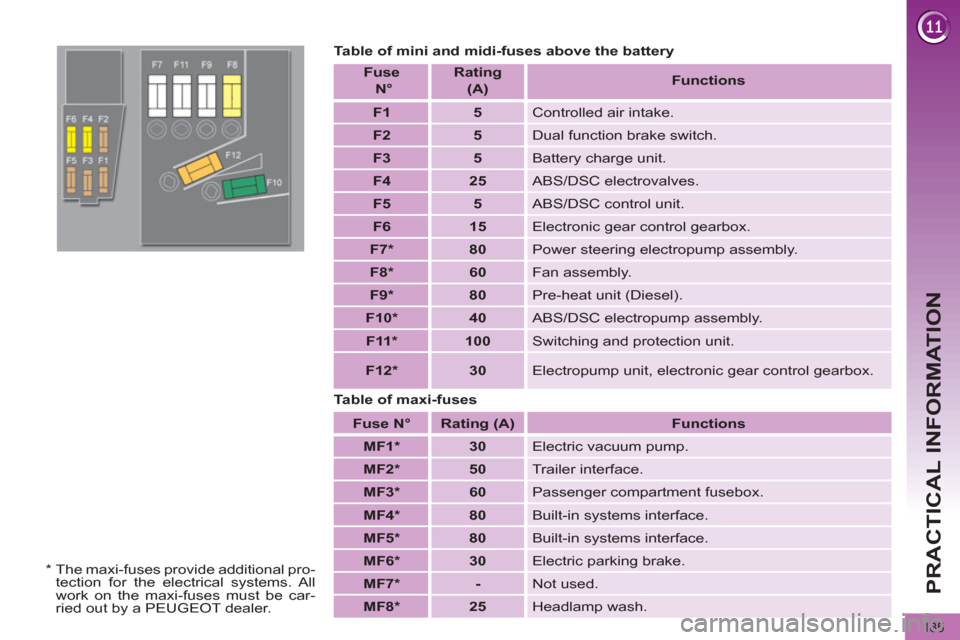

Table of mini and midi-fuses above the battery

Table of maxi-fuses
Fuse
N°

Rating
(A)

Functions




F1


5

Controlled air intake.


F2


5

Dual function brake switch.


F3


5

Battery charge unit.


F4


25

ABS/DSC electrovalves.


F5


5

ABS/DSC control unit.


F6


15

Electronic gear control gearbox.


F7 *



80

Power steering electropump assembly.


F8
*


60

Fan assembly.


F9 *



80

Pre-heat unit (Diesel).


F10 *



40

ABS/DSC electropump assembly.


F11 *



100

Switching and protection unit.


F12 *



30

Electropump unit, electronic gear control gearbox.

Fuse N°

Rating (A)



Functions




MF1 *



30

Electric vacuum pump.


MF2 *



50

Trailer interface.


MF3 *



60

Passenger compartment fusebox.


MF4 *



80

Built-in systems interface.


MF5 *



80

Built-in systems interface.


MF6 *



30

Electric parking brake.


MF7 *



-

Not used.


MF8 *



25

Headlamp wash.
*
The maxi-fuses provide additional pro-
tection for the electrical systems. All
work on the maxi-fuses must be car-
ried out by a PEUGEOT dealer.

PRACTICAL INFORMATION
186

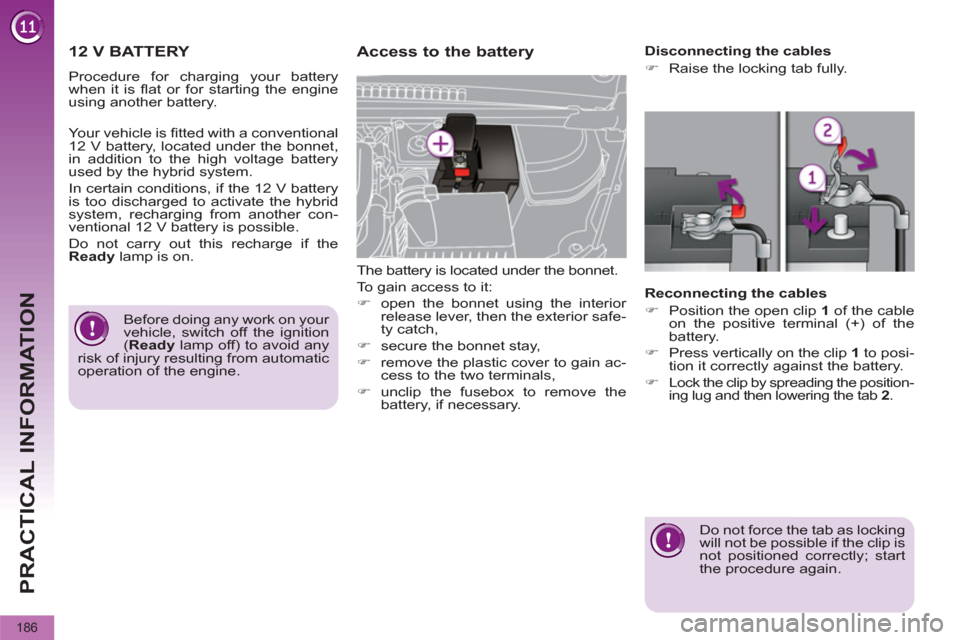

12 V BATTERY

Procedure for charging your battery
when it is fl at or for starting the engine
using another battery.

Access to the battery

The battery is located under the bonnet.
To gain access to it:


)
open the bonnet using the interior
release lever, then the exterior safe-
ty catch,

)
secure the bonnet stay,

)
remove the plastic cover to gain ac-
cess to the two terminals,

)
unclip the fusebox to remove the
battery, if necessary.


Disconnecting the cables


)
Raise the locking tab fully.


Reconnecting the cables


)
Position the open clip 1
of the cable
on the positive terminal (+) of the
battery.

)
Press vertically on the clip 1
to posi-
tion it correctly against the battery.

)
Lock the clip by spreading the position-
ing lug and then lowering the tab 2
.
Do not force the tab as locking
will not be possible if the clip is
not positioned correctly; start
the procedure again.

Before doing any work on your
vehicle, switch off the ignition
( Ready
lamp off) to avoid any
risk of injury resulting from automatic
operation of the engine.














Your vehicle is fi tted with a conventional
12 V battery, located under the bonnet,
in addition to the high voltage battery
used by the hybrid system.
In certain conditions, if the 12 V battery
is too discharged to activate the hybrid
system, recharging from another con-
ventional 12 V battery is possible.
Do not carry out this recharge if the
Ready
lamp is on.

PRACTICAL INFORMATION
187

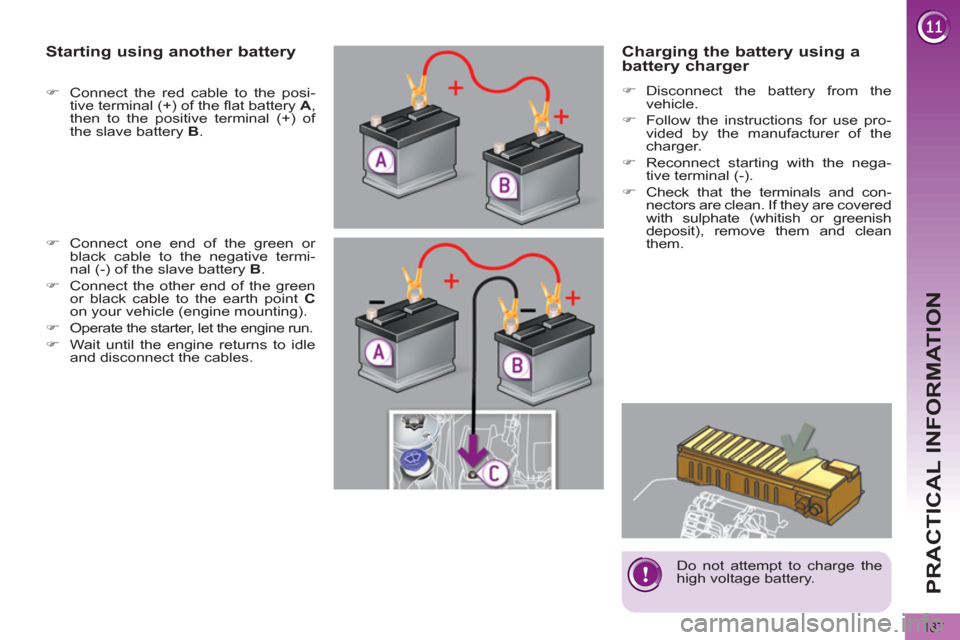

Charging the battery using a
battery charger


)
Disconnect the battery from the
vehicle.

)
Follow the instructions for use pro-
vided by the manufacturer of the
charger.

)
Reconnect starting with the nega-
tive terminal (-).

)
Check that the terminals and con-
nectors are clean. If they are covered
with sulphate (whitish or greenish
deposit), remove them and clean
them.


Starting using another battery



)
Connect the red cable to the posi-
tive terminal (+) of the fl at battery A
,
then to the positive terminal (+) of
the slave battery B
.

)
Connect one end of the green or
black cable to the negative termi-
nal (-) of the slave battery B
.

)
Connect the other end of the green
or black cable to the earth point C

on your vehicle (engine mounting).

)
Operate the starter, let the engine run.

)
Wait until the engine returns to idle
and disconnect the cables.







Do not attempt to charge the
high voltage battery.

PRACTICAL INFORMATION
188

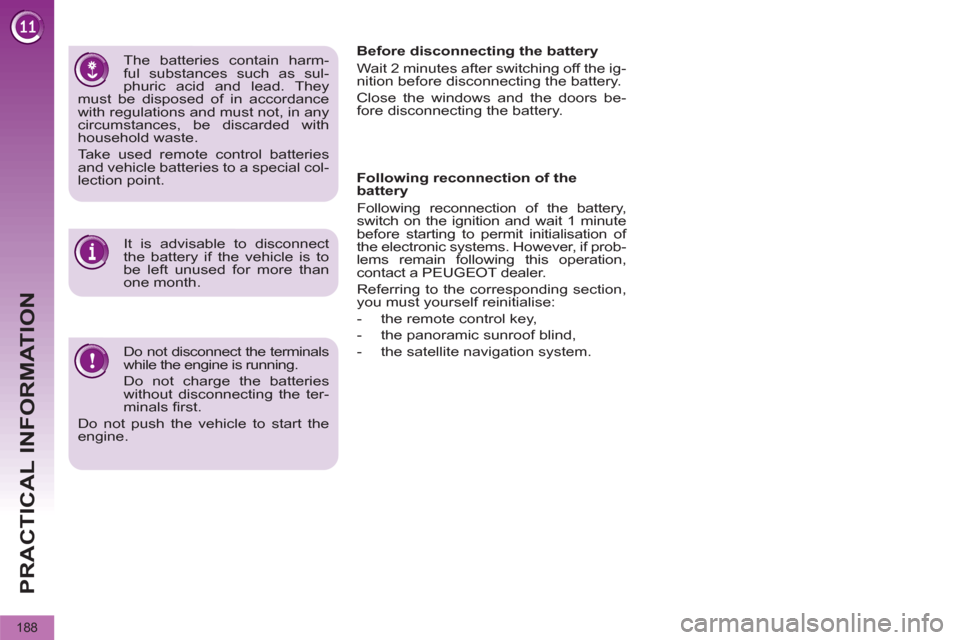

Do not disconnect the terminals
while the engine is running.
Do not charge the batteries
without disconnecting the ter-
minals fi rst.
Do not push the vehicle to start the
engine.
The batteries contain harm-
ful substances such as sul-
phuric acid and lead. They
must be disposed of in accordance
with regulations and must not, in any
circumstances, be discarded with
household waste.
Take used remote control batteries
and vehicle batteries to a special col-
lection point.


It is advisable to disconnect
the battery if the vehicle is to
be left unused for more than
one month.
Before disconnecting the battery
Wait 2 minutes after switching off the ig-
nition before disconnecting the battery.
Close the windows and the doors be-
fore disconnecting the battery.

Following reconnection of the
battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of
the electronic systems. However, if prob-
lems remain following this operation,
contact a PEUGEOT dealer.
Referring to the corresponding section,
you must yourself reinitialise:


- the remote control key,

- the panoramic sunroof blind,

- the satellite navigation system.
