PRACTICAL INFORMATION
189
Let the engine run for the
duration specifi ed to ensure
that the battery charge is suf-
fi cient.
Do not repeatedly and continuously
restart the engine in order to charge
the battery.
A fl at battery prevents the engine
from starting (refer to the "Battery"
paragraph). If the telephone is being used
at this time:


- it will be maintained for 5 min-
utes with the hands-free kit of
your Peugeot Connect Sound or
Peugeot Connect Navigation,

- it will still be possible to fi nish the
call with the Peugeot Connect
Media.



Exiting economy mode

These functions are reactivated auto-
matically next time the vehicle is driven.
To restore the use of these functions im-
mediately, start the engine and let it run
for at least 5 minutes.

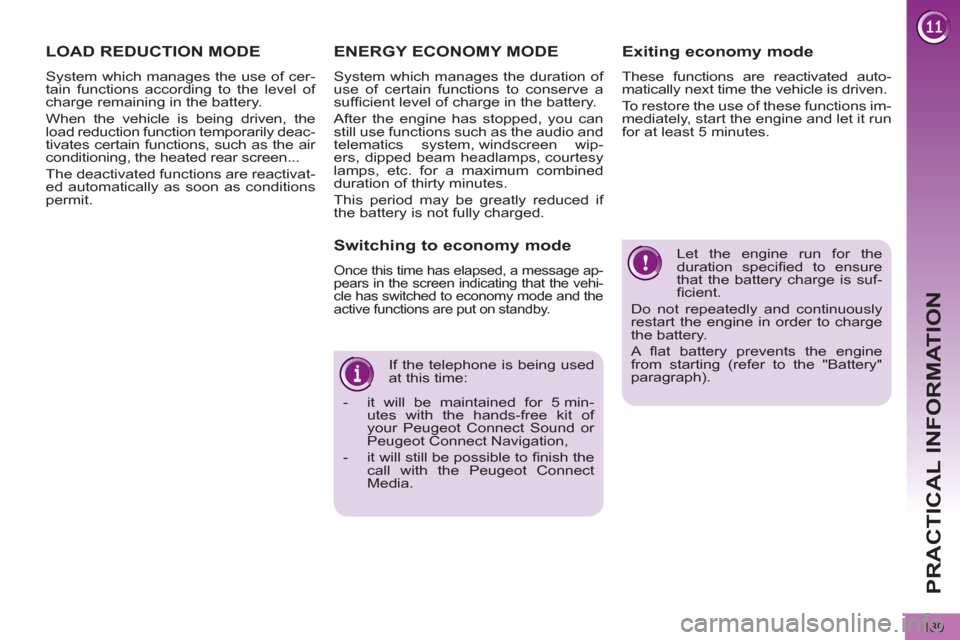

LOAD REDUCTION MODE

System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.








ENERGY ECONOMY MODE

System which manages the duration of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wip-
ers, dipped beam headlamps, courtesy
lamps, etc. for a maximum combined
duration of thirty minutes.
This period may be greatly reduced if
the battery is not fully charged.

Switching to economy mode

Once this time has elapsed, a message ap-
pears in the screen indicating that the vehi-
cle has switched to economy mode and the
active functions are put on standby.

PRACTICAL INFORMATION
190

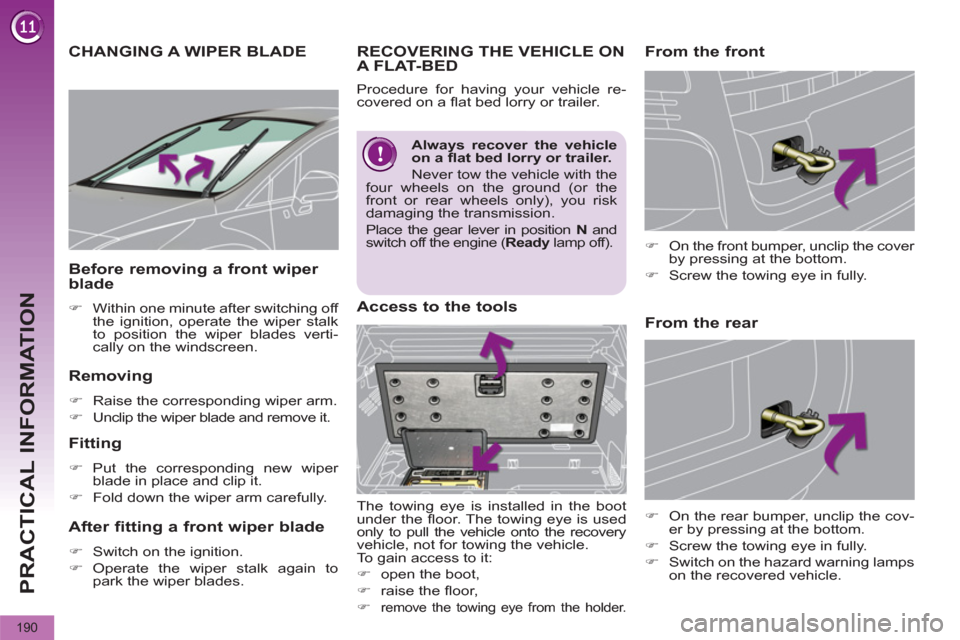

CHANGING A WIPER BLADE


Removing



)
Raise the corresponding wiper arm.

)
Unclip the wiper blade and remove it.



Fitting



)
Put the corresponding new wiper
blade in place and clip it.

)
Fold down the wiper arm carefully.



Before removing a front wiper
blade


)
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades verti-
cally on the windscreen.



After fitting a front wiper blade



)
Switch on the ignition.

)
Operate the wiper stalk again to
park the wiper blades.







From the front





Access to the tools

The towing eye is installed in the boot
under the fl oor. The towing eye is used
only to pull the vehicle onto the recovery
vehicle, not for towing the vehicle.
To gain access to it:


)
open the boot,

)
raise the fl oor,


)
remove the towing eye from the holder.



From the rear






RECOVERING THE VEHICLE ON
A FLAT-BED

Procedure for having your vehicle re-
covered on a fl at bed lorry or trailer.


Always recover the vehicle
on a fl at bed lorry or trailer.

Never tow the vehicle with the
four wheels on the ground (or the
front or rear wheels only), you risk
damaging the transmission.
Place the gear lever in position N
and
switch off the engine ( Ready
lamp off).



)
On the front bumper, unclip the cover
by pressing at the bottom.

)
Screw the towing eye in fully.



)
On the rear bumper, unclip the cov-
er by pressing at the bottom.

)
Screw the towing eye in fully.

)
Switch on the hazard warning lamps
on the recovered vehicle.

PRACTICAL INFORMATION
191

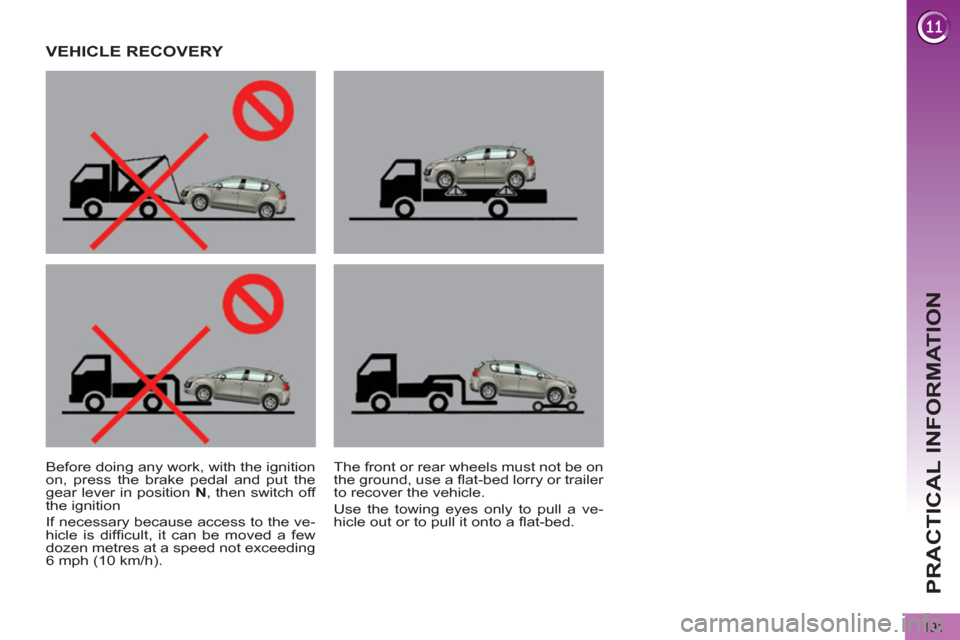

VEHICLE RECOVERY


Before doing any work, with the ignition
on, press the brake pedal and put the
gear lever in position N
, then switch off
the ignition
If necessary because access to the ve-
hicle is diffi cult, it can be moved a few
dozen metres at a speed not exceeding
6 mph (10 km/h).
The front or rear wheels must not be on
the ground, use a fl at-bed lorry or trailer
to recover the vehicle.
Use the towing eyes only to pull a ve-
hicle out or to pull it onto a fl at-bed.

PRACTICAL INFORMATION
192




TOWING A TRAILER, ...

Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.

Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.

Driving advice

The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
In all cases, keep a check on the cool-
ant temperature.

Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.


)
To lower the engine speed, reduce
your speed.
Side wind


)
Take into account the increased
sensitivity to side wind.

Tyres


)
Check the tyre pressures of the tow-
ing vehicle and of the trailer, observ-
ing the recommended pressures.

Braking
Towing a trailer increases the braking
distance.

)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.








Maximum trailer weight

You must not tow a trailer weighing
more than 500 kg.
Distribution of loads


)
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load
must be reduced by 10 % for every
1 000 metres of altitude. Driving with a trailer places greater de-
mands on the towing vehicle and the
driver must take particular care.
We recommend the use of
genuine PEUGEOT towbars
and their harnesses that have
been tested and approved from the
design stage of your vehicle, and that
the fi tting of the towbar is entrusted
to a PEUGEOT dealer or a qualifi ed
workshop.
If the trailer is not fi tted by a PEUGEOT
dealer, it is imperative that it is fi tted
using the vehicle's electrical pre-
equipment, in accordance with the
manufacturer's instructions.
Refer to the "Technical Data"
section for details of the
weights and towed loads
which apply to your vehicle.

Lighting


)
Check the electrical lighting and sig-
nalling on the trailer.
The rear parking sensors will
be deactivated automatically if
a genuine PEUGEOT towbar
is used.

PRACTICAL INFORMATION
193








VERY COLD CLIMATE SCREEN

Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.
Before fi tting or removing the screen,
ensure that the engine is off and the
cooling fan has stopped. It is recom-
mended that the screen be fi tted and
removed by a PEUGEOT dealer or a
qualifi ed workshop.












FITTING ROOF BARS

Maximum authorised weight
on the roof rack, for a loading
height not exceeding 40 cm
(with the exception of bicycle
carriers): 65
kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-
fi le of the road to avoid damaging the
roof bars and the fi xings on the roof.
Be sure to refer to national legislation
in order to comply with the regula-
tions for transporting objects that are
longer than the vehicle.


When fi tting transverse roof bars, use
the four quick-fi t fi xings provided for this
purpose:


)
lift the concealing fl aps,

)
open the fi xing covers on each bar
using the key,

)
put each fi xing in place and lock
them on the roof one by one,

)
close the fi xing covers on each bar
using the key.


Fitting



)
Offer up the screen to the front of
the lower section of the front bum-
per ( do not use the upper ventila-
tion grille position).

)
Press on the edges A
to engage its
fi xing clips.

)
Press on the middle at B
to com-
plete the engagement of the fi xing
clips.

PRACTICAL INFORMATION
194

Removal



)
Pull on the very cold climate screen
using the cut-outs 1
then 2
at the
edges of the screen.
Do not forget to remove the very cold
climate screen:


- when the ambient temperature ex-
ceeds 10° C,

- when towing,

- at speeds above 75 mph (120 km/h).







ACCESSORIES

A wide range of accessories and genu-
ine parts is available from the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.
Installation of radio
communication
transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a PEUGEOT dealer for
the specifi cation of transmitters which
can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC).



Depending on the legislation in force
in the country, it may be compulsory
to have a high visibility safety vest,
warning triangle and spare bulbs and
fuses available in the vehicle.
The fi tting of electrical equipment or
accessories which are not recom-
mended by PEUGEOT may result in
a failure of your vehicle's electronic
system and excessive electrical con-
sumption.
Please note this precaution. You are
advised to contact a PEUGEOT rep-
resentative to be shown the range
of recommended equipment and ac-
cessories.

PRACTICAL INFORMATION
195






"Transport solutions":

For leisure pursuits: roof bars, bicycle
carrier on towbar, bicycle carrier on roof
bars, ski carrier, roof box, booster seats
and child seats, side blinds, under shelf
storage.
Trailer towbar, which must be fi tted by a
PEUGEOT dealer.


"Safety and security":

anti-theft alarm, window etching, wheel
security bolts, fi rst aid kit, breathalyzer,
warning triangle, high visibility vest, sto-
len vehicle tracking system, dog guard,
snow chains.
You can also obtain cleaning
and maintenance products
(exterior and interior), products
for topping up (screenwash fl uid...)
and refi lls (sealant cartridge for the
temporary puncture repair kit...) from
PEUGEOT dealers.



*
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
and secured correctly,

- never fi t one mat on top of another.



"Style":

seat covers compatible with lateral air-
bags, leather gear lever knob, foglamps,
door defl ectors, spoiler, styling strips,
alloy wheels, trims, chrome-plated door
handle shells.


"Protection":

mats * , boot tray, luggage net, coat
hanger fi xed on head restraint, stainless
steel or carbon fi bre style door sills.


"Multimedia":

audio systems, amplifi ers, satellite navi-
gation systems, Bluetooth hands-free
system, CD changer, speakers, DVD
player, USB Box, front and rear parking
sensors, additional Bluetooth wireless
headphones, Bluetooth audio head-
phones mains charger.

TECHNICAL DATA
196

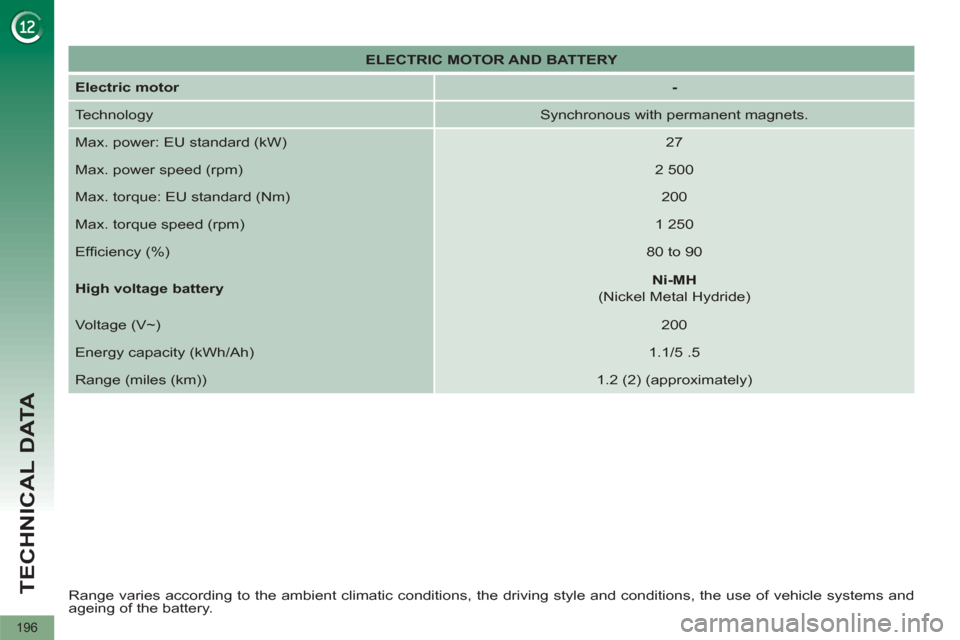

ELECTRIC MOTOR AND BATTERY



Electric motor


-


Technology
Synchronous with permanent magnets.
Max. power: EU standard (kW)
27
Max. power speed (rpm)
2 500
Max. torque: EU standard (Nm)
200
Max. torque speed (rpm)
1 250
Effi ciency (%)
80 to 90

High voltage battery


Ni-MH

(Nickel Metal Hydride)
Voltage (V~)

200
Energy capacity (kWh/Ah)
1.1/5 .5
Range (miles (km))
1.2 (2) (approximately)
Range varies according to the ambient climatic conditions, the driving style and conditions, the use of vehicle systems and
ageing of the battery.

TECHNICAL DATA
197


ENGINE AND GEARBOX



Diesel engine


2 litre Turbo HDi
163 hp



Gearbox

Electronic gear control
(6-speed)
Cubic capacity (cc)
1 997
Bore x stroke (mm)
85 x 88
Max power: EU standard (kW)
110/120
Max power engine speed (rpm)
3 750
Max torque: EU standard (Nm)
320/340
Max torque engine speed (rpm)
2 000
Fuel

Diesel
Catalytic converter
yes
Particle emission fi lter
yes

OIL CAPACITIES (in litres)



Engine (with fi lter replacement)
-
Gearbox - Final drive
-

TECHNICAL DATA
198


WEIGHTS AND TOWED LOADS (in kg)



Diesel engine


2 litre Turbo HDi
163 hp



Gearbox

Electronic gear control
(6-speed)


- Unladen weight
1 660


- Kerb weight *

1 735


- Payload

551


- Gross vehicle weight
(GVW)
2 245


- Gross train weight (GTW)
on a 12 % gradient
2 745


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
500


- Braked trailer ** (with load transfer with
the GTW limit)
770


- Unbraked trailer
500


- Recommended nose weight
70

* The kerb weight is equal to the unladen weight + driver (75 kg).
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

**
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is re-
duced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on
its road holding.
To make use of the 270 kg load transfer, the driver must be alone with no luggage in the vehicle.
