TECHNICAL DATA
199

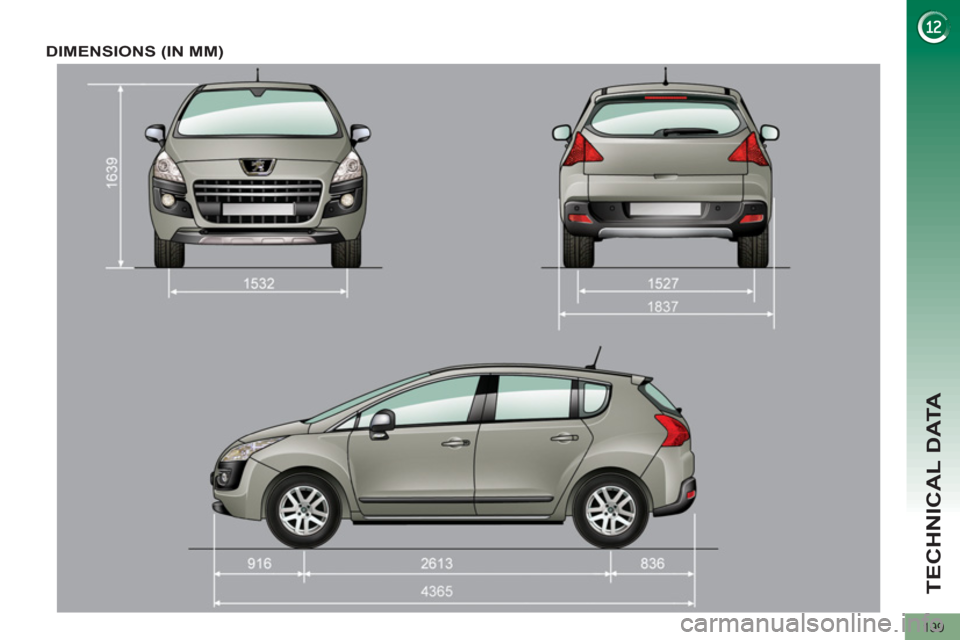

DIMENSIONS (IN MM)

TECHNICAL DATA
200

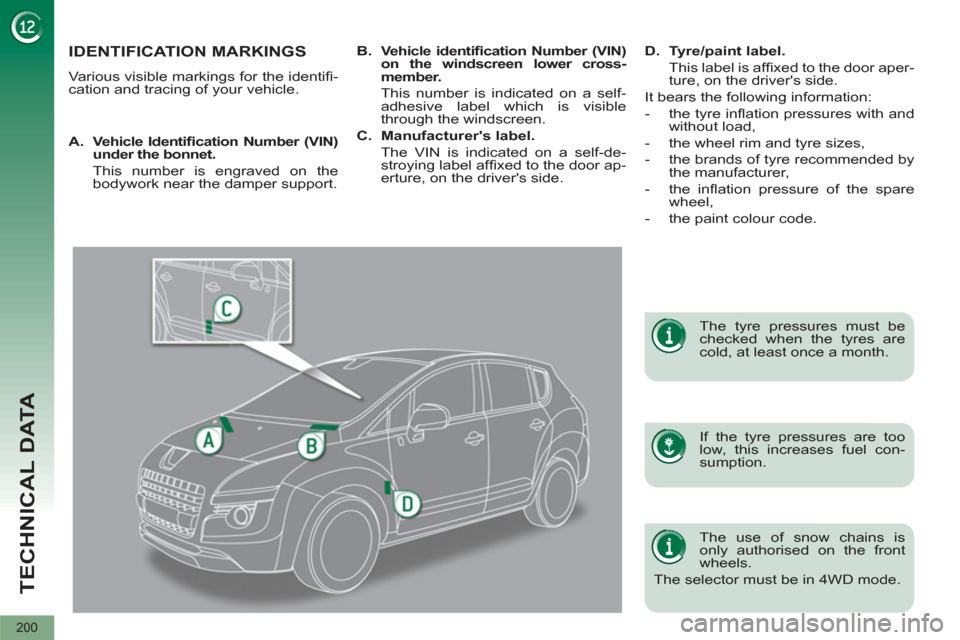

IDENTIFICATION MARKINGS

Various visible markings for the identifi -
cation and tracing of your vehicle.

If the tyre pressures are too
low, this increases fuel con-
sumption.

The tyre pressures must be
checked when the tyres are
cold, at least once a month.


A.
Vehicle Identifi cation Number (VIN)
under the bonnet.
This number is engraved on the
bodywork near the damper support.
B.
Vehicle identifi cation Number (VIN)
on the windscreen lower cross-
member.
This number is indicated on a self-
adhesive label which is visible
through the windscreen.

C.
Manufacturer's label.

The VIN is indicated on a self-de-
stroying label affi xed to the door ap-
erture, on the driver's side.
D.
Tyre/paint label.

This label is affi xed to the door aper-
ture, on the driver's side.
It bears the following information:


- the tyre infl ation pressures with and
without load,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the infl ation pressure of the spare
wheel,

- the paint colour code.


The use of snow chains is
only authorised on the front
wheels.
The selector must be in 4WD mode.

201

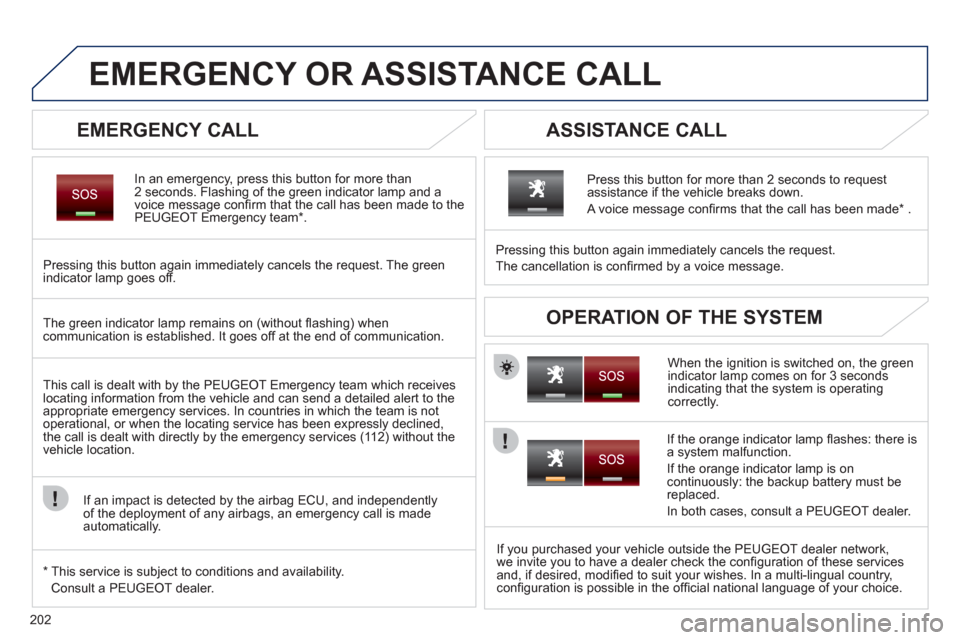

EMERGENCY OR ASSISTANCE CALL

202








EMERGENCY OR ASSISTANCE CALL


EMERGENCY CALL


In an emergency, press this button for more than
2 seconds. Flashing of the green indicator lamp and a
voice message confi rm that the call has been made to the
PEUGEOT Emergency team * .

Pressing this button again immediately cancels the request. The green
indicator lamp goes off.


ASSISTANCE CALL


If you purchased your vehicle outside the PEUGEOT dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,
confi guration is possible in the offi cial national language of your choice.

When the ignition is switched on, the green
indicator lamp comes on for 3 seconds
indicating that the system is operating
correctly.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.

Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made * .


OPERATION OF THE SYSTEM

The green indicator lamp remains on (without fl ashing) when
communication is established. It goes off at the end of communication.

This call is dealt with by the PEUGEOT Emergency team which receives
locating information from the vehicle and can send a detailed alert to the
appropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directly by the emergency services (112) without the
vehicle location.

If an impact is detected by the airbag ECU, and independently
of the deployment of any airbags, an emergency call is made
automatically.


*
This service is subject to conditions and availability.
Consult a PEUGEOT dealer.
If the orange indicator lamp fl ashes: there is
a system malfunction.
If the orange indicator lamp is on
continuously: the backup battery must be
replaced.
In both cases, consult a PEUGEOT dealer.

203
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK

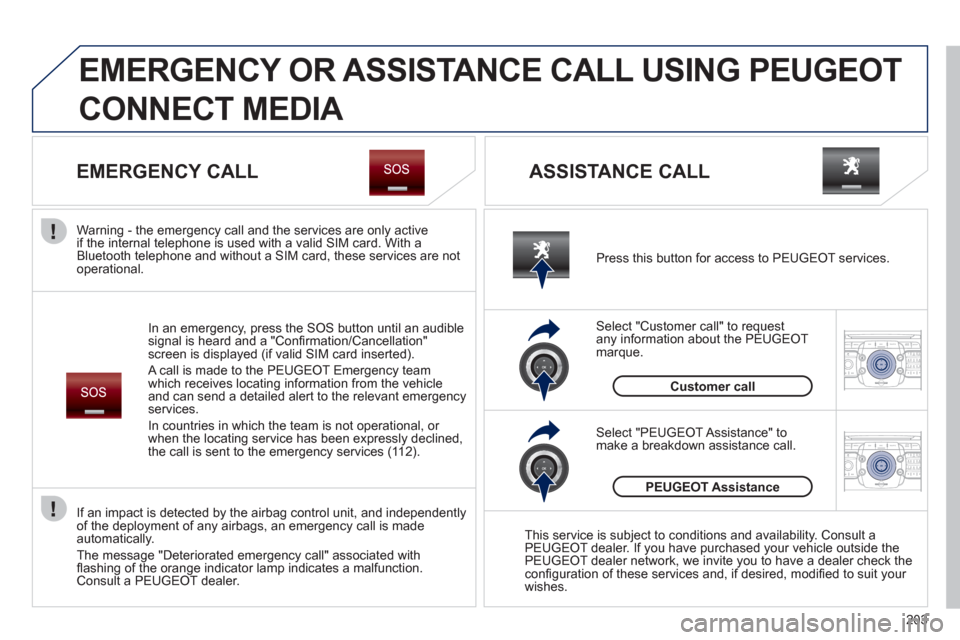

EMERGENCY OR ASSISTANCE CALL USING PEUGEOT
CONNECT MEDIA









EMERGENCY CALL


In an emergency, press the SOS button until an audible
signal is heard and a "Confi rmation/Cancellation"
screen is displayed (if valid SIM card inserted).
A call is made to the PEUGEOT Emergency team
which receives locating information from the vehicle
and can send a detailed alert to the relevant emergency
services.
In countries in which the team is not operational, or
when the locating service has been expressly declined,
the call is sent to the emergency services (112).
Warning - the emergency call and the services are only active
if the internal telephone is used with a valid SIM card. With a
Bluetooth telephone and without a SIM card, these services are not
operational.

Press this button for access to PEUGEOT services.

Customer call


If an impact is detected by the airbag control unit, and independently
of the deployment of any airbags, an emergency call is made
automatically.
The message "Deteriorated emergency call" associated with
fl ashing of the orange indicator lamp indicates a malfunction.
Consult a PEUGEOT dealer.











ASSISTANCE CALL

Select "Customer call" to request
any information about the PEUGEOT
marque.
Select "PEUGEOT Assistance" to
make a breakdown assistance call.

PEUGEOT Assistance




This service is subject to conditions and availability. Consult a
PEUGEOT dealer. If you have purchased your vehicle outside the
PEUGEOT dealer network, we invite you to have a dealer check the
confi guration of these services and, if desired, modifi ed to suit your
wishes.

204

205
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1
RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK

The Peugeot Connect Media is protected in such a
way that it will only operate in your vehicle. If it is to be
installed in another vehicle, contact a PEUGEOT dealer
for confi guration of the system.

Certain functions described in this handbook will
become available during the course of the year.

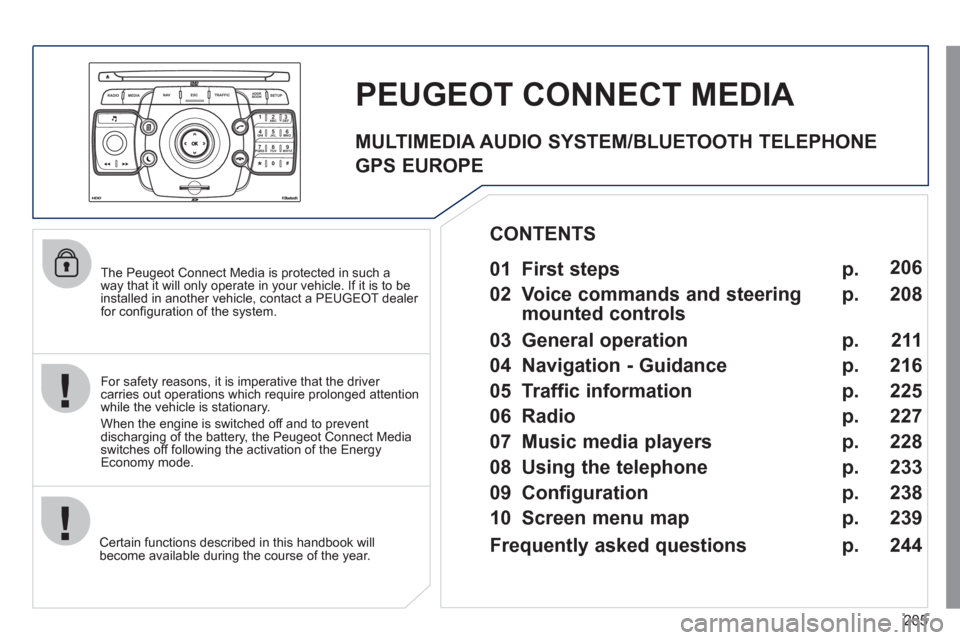

PEUGEOT CONNECT MEDIA


For safety reasons, it is imperative that the driver
carries out operations which require prolonged attention
while the vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the Peugeot Connect Media
switches off following the activation of the Energy
Economy mode.


01 First steps

02 Voice commands and steering
mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Radio

07 Music media players

08 Using the telephone

09 Configuration

10 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p. 206
208
211
216
225
227
228
233
238
239

CONTENTS

Frequently asked questions p.
244


MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE
GPS EUROPE

206
01
2ABC3DEF
5JKL4GHI6MNO
8TUV7PQRS9WXYZ
0*#
1
RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
FIRST STEPS

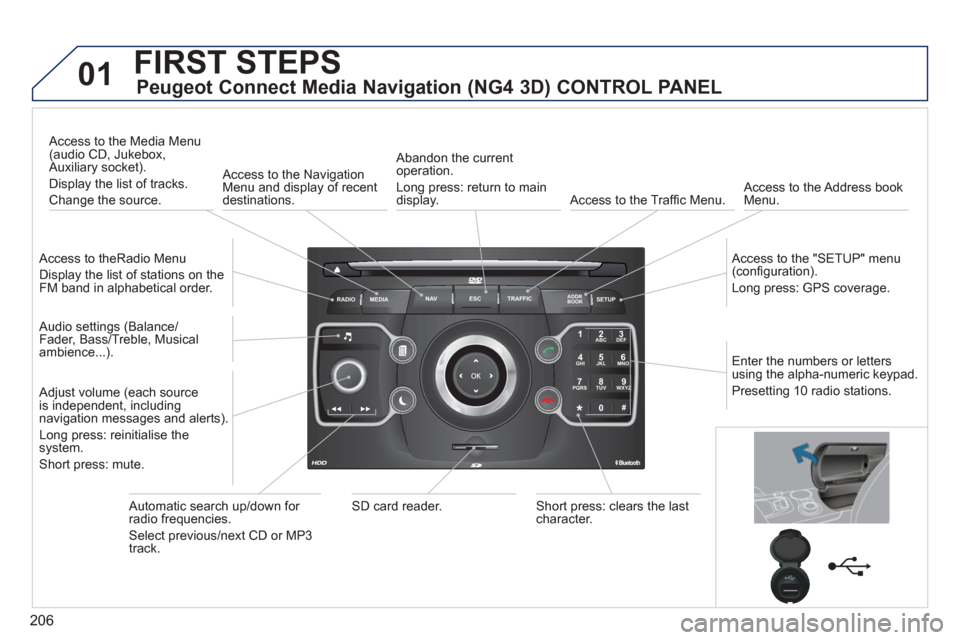

Peugeot Connect Media Navigation (NG4 3D) CONTROL PANEL


Access to theRadio Menu
Display the list of stations on the
FM band in alphabetical order.

Access to the Media Menu
(audio CD, Jukebox,
Auxiliary socket).
Display the list of tracks.
Change the source.
Access to the Navigation
Menu and display of recent
destinations.
Abandon the current
operation.
Long press: return to main
display.
Access to the Traffi c Menu.
Access to the Address book
Menu.

Access to the "SETUP" menu
(confi guration).
Long press: GPS coverage.

Audio settings (Balance/
Fader, Bass/Treble, Musical
ambience...).

Adjust volume (each source
is independent, including
navigation messages and alerts).
Long press: reinitialise the
system.
Short press: mute.

Automatic search up/down for
radio frequencies.
Select previous/next CD or MP3
track.
SD card reader.
Short press: clears the last
character.
Enter the numbers or letters
using the alpha-numeric keypad.
Presetting 10 radio stations.

207
01 FIRST STEPS

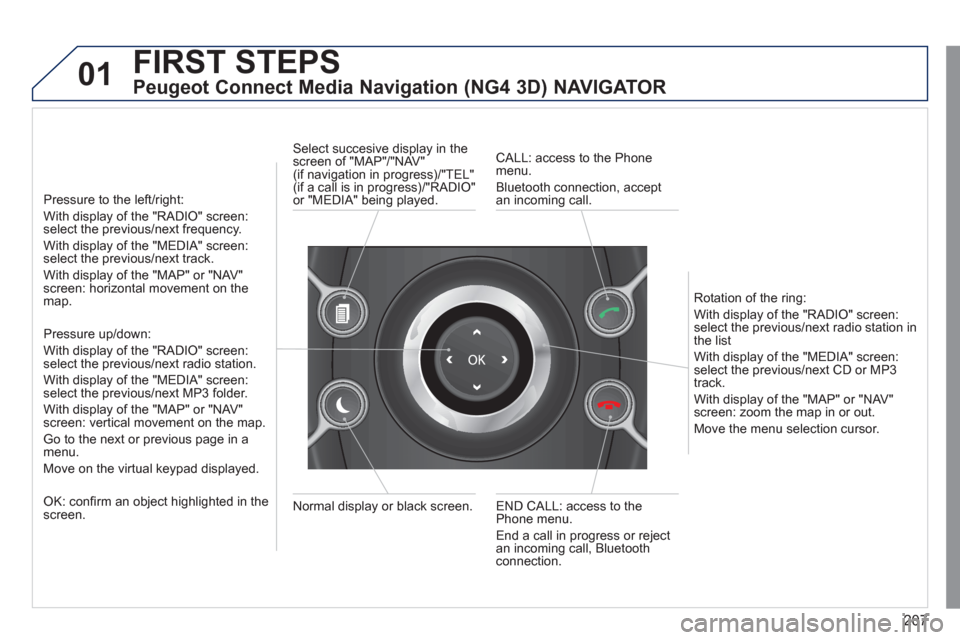

Peugeot Connect Media Navigation (NG4 3D) NAVIGATOR


Pressure to the left/right:
With display of the "RADIO" screen:
select the previous/next frequency.
With display of the "MEDIA" screen:
select the previous/next track.
With display of the "MAP" or "NAV"
screen: horizontal movement on the
map.


Pressure up/down:
With display of the "RADIO" screen:
select the previous/next radio station.
With display of the "MEDIA" screen:
select the previous/next MP3 folder.
With display of the "MAP" or "NAV"
screen: vertical movement on the map.
Go to the next or previous page in a
menu.
Move on the virtual keypad displayed.


OK: confi rm an object highlighted in the
screen.
END CALL: access to the
Phone menu.
End a call in progress or reject
an incoming call, Bluetooth
connection.
Normal display or black screen.

Select succesive display in the
screen of "MAP"/"NAV"
(if navigation in progress)/"TEL"
(if a call is in progress)/"RADIO"
or "MEDIA" being played.
CALL: access to the Phone
menu.
Bluetooth connection, accept
an incoming call.

Rotation of the ring:
With display of the "RADIO" screen:
select the previous/next radio station in
the list
With display of the "MEDIA" screen:
select the previous/next CD or MP3
track.
With display of the "MAP" or "NAV"
screen: zoom the map in or out.
Move the menu selection cursor.

208
02
2
1
SETUP2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1NAV ESC TRAFFICADDR
BOOKSETUP

Before using the system for the fi rst time, you are advised to listen
to, say and practice the tutorial.

Press the SETUP button and select
the "Language & Speech" function.
Turn the ring and select "Voice control".
Activate voice recognition.
Select "Tutorial".

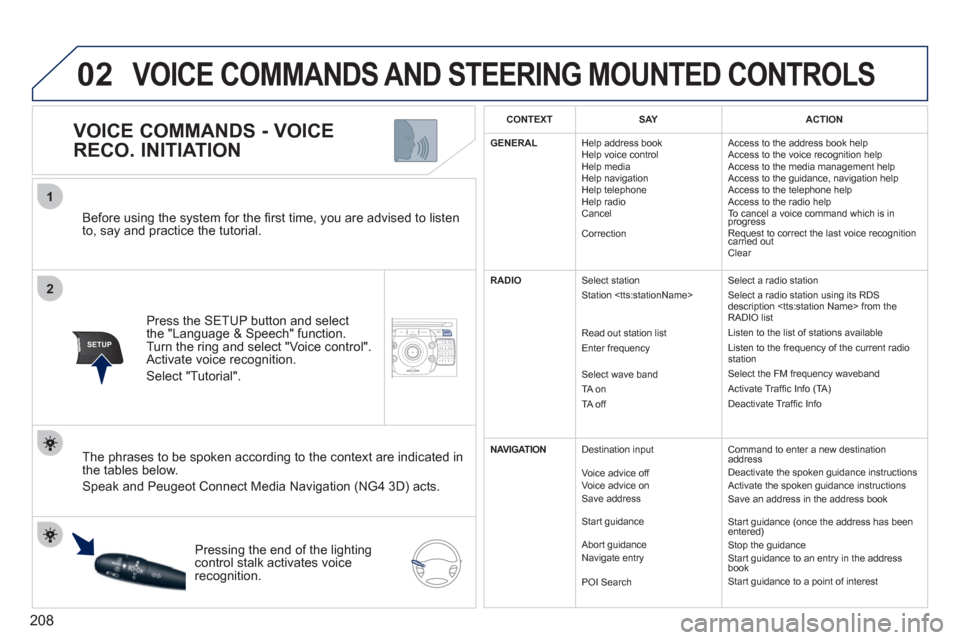

VOICE COMMANDS - VOICE
RECO. INITIATION

The phrases to be spoken according to the context are indicated in
the tables below.
Speak and Peugeot Connect Media Navigation (NG4 3D) acts.

Pressing the end of the lighting
control stalk activates voice
recognition.



CONTEXT



SAY



ACTION




GENERAL

Help address book
Help voice control
Help media
Help navigation
Help telephone
Help radio
Cancel
Correction Access to the address book help
Access to the voice recognition help
Access to the media management help
Access to the guidance, navigation help
Access to the telephone help
Access to the radio help
To cancel a voice command which is in
progress
Request to correct the last voice recognition
carried out
Clear


RADIO

Select station
Station
Read out station list
Enter frequency
Select wave band
TA on
TA off Select a radio station
Select a radio station using its RDS
description from the
RADIO list
Listen to the list of stations available
Listen to the frequency of the current radio
station
Select the FM frequency waveband
Activate Traffi c Info (TA)
Deactivate Traffi c Info


NAVIGATION
Destination input
Voice advice off
Voice advice on
Save address
Start guidance
Abort guidance
Navigate entry
POI Search Command to enter a new destination
address
Deactivate the spoken guidance instructions
Activate the spoken guidance instructions
Save an address in the address book
Start guidance (once the address has been
entered)
Stop the guidance
Start guidance to an entry in the address
book
Start guidance to a point of interest

VOICE COMMANDS AND STEERING MOUNTED CONTROLS
