Peugeot 307 CC 2003 Manual Online
Manufacturer: PEUGEOT, Model Year: 2003, Model line: 307 CC, Model: Peugeot 307 CC 2003Pages: 173, PDF Size: 2.12 MB
Page 81 of 173
22-09-2003
YOUR 307 CC IN DETAIL81
VENTILATION 1. Windscreen de-icing or demisting vents.
2. Front window de-icing or demisting vents.
3. Side vents.
4. Centre vents.
5. Air outlet to front footwells.
6. Air outlet to rear footwells.
Advice on operation Place the air flow control at a level sufficient to ensure a good renewal of air in the passenger compartment. The "OFF" position cuts off all the air circulation in the passenger compartment.
Note: only use the "OFF"position occasionally (risk of condensation).
For perfectly even air distribution, take care not to obstruct the exterior air intake grilles, the vents and the air ducts und er
the front seats, as well as the air extractor located in the boot. Check that the passenger compartment filter is in good condition.
Page 82 of 173
22-09-2003
YOUR 307 CC IN DETAIL
82
2. Automatic comfort programme
Press the AUTObutton. The sys-
tem automatically regulates the temperature level of the passen-ger compartment in line with the
temperature that you have selected. Toobtain the correct ambiance, it controls the
temperature, the air flow, the distribution andintake of air as well as the air conditioning. Note: for your comfort, the settings are
retained between two start-ups of your vehicle if the temperature in the passenger compart-ment has not changed significantly; other-wise, operation resumes in automatic mode.
3. Automatic visibility programme
In certain cases, the auto-matic comfort programmemay prove inadequate todemist or de-ice the win-
dows (because of humidity, numer-ous passengers, ice, etc.). Selectthis programme to rapidly clear thewindows.
To exit this programme and return to the automatic comfort programme,press the AUTObutton.Automatic operation
1. Temperature setting
The required temperature is displayed. Press the up and
down arrows to change it. Asetting of approximately 21allows a comfortable settingto be obtained.
AUTOMATIC AIR CONDITIONING Note:
in the cabriolet version, the effectiveness of the system may be reduced.
Page 83 of 173
22-09-2003
YOUR 307 CC IN DETAIL83
5. Air distribution
Successive presses of this button allow the air flow tobe directed alternately to:
Ð the windscreen (demisting or de-icing),
Ð the windscreen and the footwells,
Ð the footwells,
Ð the central and side vents and the footwells,
Ð the central and side vents.
7. Air intake
Press this button to recycle
the interior air. Recirculation,
shown on the display, pre-ventsthe entry of unpleasant
odours and fumes from the outside.
Avoid prolonged recirculation of the
interior air. To do this, press again toreturn the system to automatic pro-cessing of the air intake. Note: To prevent condensation on
the inside of the vehicle in cold or
wet weather, you are advised toavoid using this mode.
4. Air conditioning
Press this button to stop
cooling of the air. The"ECO"symbol lights up.
Press again to return to
automatic operation of the air condi-tioning. The "A/C"symbol is dis-
played. 8. Switching the system off
The
OFF button enables the
entire system to be switched off.
Temperature-related com-fort is no longer guaranteed
but a minimal flow of air is main-tained to prevent misting and to
renew the air. Pressing the OFF, AUTO or "visibility"
button again reactivates the system with the values set before it was
switched off.
Note: if you wish to cut off the flow of air
completely, press the air intake button 7.
9. De-icing the rear window and
the mirrors
Press this button to de-icethe rear screen and the mir-
rors. The de-icing system
switches off automatically.
It is possible to stop the de-icing
before it switches off automaticallyby pressing the button again. Note: this function is disarmed when
the roof is stored in the boot. Important precaution Operate the air conditioning system for 5 to 10 minutes, once or twice amonth, to keep it in perfect working
order. If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer.
Manual operation
If you wish you can make a different
choice from the one offered by the
system, by changing a setting. Theother functions will still be managed
automatically. Press the
AUTObut-
ton to return to completely automaticoperation.
6. Air flowThe air flow may beincreased or reducedby pressing the buttons+or Ðrespectively.
Notes The condensation created by the air conditioning causes a normal flow ofwater under the vehicle when sta-
tionary.
To prevent condensation on the inside of the vehicle in cold or wet
weather, you are advised to avoidusing the "ECO"mode.
Page 84 of 173
YOUR 307 CC IN DETAIL
84
FRONT SEATS
1 - Forwards-backwards
adjustment Lift the control and slide the seat forwards or backwards.
2 - Access to rear seats Pull the handle to fold the seatback and move the seat for-wards. On repositioning, the seatreturns to its initial position. Note: you can also use control 3.
Then adjust the angle.
Warning: no person or object
must prevent the seat slide from returning to its initial position;return to this position is neces-sary for the seat to lock in place.
3 - Seat back angle adjustment Push the handle towards the
rear.
22-09-2003
Page 85 of 173
22-09-2003
YOUR 307 CC IN DETAIL85
Never drive with the head restraints removed;they must be in placeand correctly adjusted.
4 - Driver's or passenger's seat
height adjustment Pull the handle upwards or push it downwards as many times asnecessary to obtain the requiredposition.
5 - Head restraint height and angle adjustment
To raise or lower the restraint, pull it forwards, sliding it at thesame time.
The adjustment is correctwhen the upper edge of thehead restraint is level withthe top of the head.
To remove the head restraint,place it almost in the top position,lift the lug using a coin and pull itforwards and upwards at thesame time.
To put it back in position, locate the stems of the restraint in theholes, taking care to keep themin line with the seat back. Active seat back (front seats) This possesses a device to prevent "whiplash". When there is an impact from the
rear, the action of the body on theseat back forces the head restraintforwards and upwards, preventingthe head from being thrown back-wards.
REAR HEAD RESTRAINTS The rear head restraints are fixed
and cannot be adjusted. They incor-porate safety bows which are trig-
gered if the vehicle rolls over, in boththe coupŽ and the cabriolet position,to guarantee your protection.
Do not place any cloth- ing on the rear headrestraints. Use a specialcover recommended by
your PEUGEOT dealer. Following an accident, have the roll-over hoops checked by
a PEUGEOT dealer.
Page 86 of 173
22-09-2003
YOUR 307 CC IN DETAIL85
Never drive with the head restraints removed;they must be in placeand correctly adjusted.
4 - Driver's or passenger's seat
height adjustment Pull the handle upwards or push it downwards as many times asnecessary to obtain the requiredposition.
5 - Head restraint height and angle adjustment
To raise or lower the restraint, pull it forwards, sliding it at thesame time.
The adjustment is correctwhen the upper edge of thehead restraint is level withthe top of the head.
To remove the head restraint,place it almost in the top position,lift the lug using a coin and pull itforwards and upwards at thesame time.
To put it back in position, locate the stems of the restraint in theholes, taking care to keep themin line with the seat back. Active seat back (front seats) This possesses a device to prevent "whiplash". When there is an impact from the
rear, the action of the body on theseat back forces the head restraintforwards and upwards, preventingthe head from being thrown back-wards.
REAR HEAD RESTRAINTS The rear head restraints are fixed
and cannot be adjusted. They incor-porate safety bows which are trig-
gered if the vehicle rolls over, in boththe coupŽ and the cabriolet position,to guarantee your protection.
Do not place any cloth- ing on the rear headrestraints. Use a specialcover recommended by
your PEUGEOT dealer. Following an accident, have the roll-over hoops checked by
a PEUGEOT dealer.
Page 87 of 173
22-09-2003
YOUR 307 CC IN DETAIL
86
GENERAL POINTS RELATING TO CHILD SEATS Although one of PEUGEOT's main criteria when designing your vehicle, the safe- ty of your children also depends on you.
For maximum safety, please follow these precautions:
Ð Since 1992,
all children under the age of 10 must travel in approved child
seats* suited to their weight , on seats fitted with a seat belt.
Ð A child weighing less than 9 kg must travel in the rearwards facing position
both in the front and in the rear. PEUGEOT recommends that childrenshould travel in the "rearwards facing" position up to the age of two.
Ð Statistically, the safest seats in your vehicle for the transportation ofchildren are the rear seats. PEUGEOT recommends that children travel in the rear even when a "rearwards facing" child seat is used.
Ð If a child is travelling on a booster seat, check that the lap section of the seat belt passes over the child's thighs correctly. The chest section of the seat beltmust be positioned on the child's shoulder without touching the neck.PEUGEOT recommends that you use a booster seat with a back, fitted with a
seat belt guide.
Ð Remember to fasten the seat belt or the child seat harness keeping the slack
in relation to the child's body to a minimum , even for short journeys.
Rules for transporting children on the front passenger seat** Children under the age of 10 must not travel in the forwards facing position, unless the rear seats are already occupied by other children or the rear seatscannot be used (absent or folded). In this case, adjust the front passenger seatto the intermediate position and leave the passenger air bag armed. The transportation of children in the rearwards facing position is permitted. In this position, it is essential to disarm the passenger air bag. Otherwise, the childwould risk being killed or seriously injured if the air bag were to inflate.
* According to current legislation in the country.
** Consult the relevant administration in your country for information regarding the rules for transporting children on the front passenger seat.

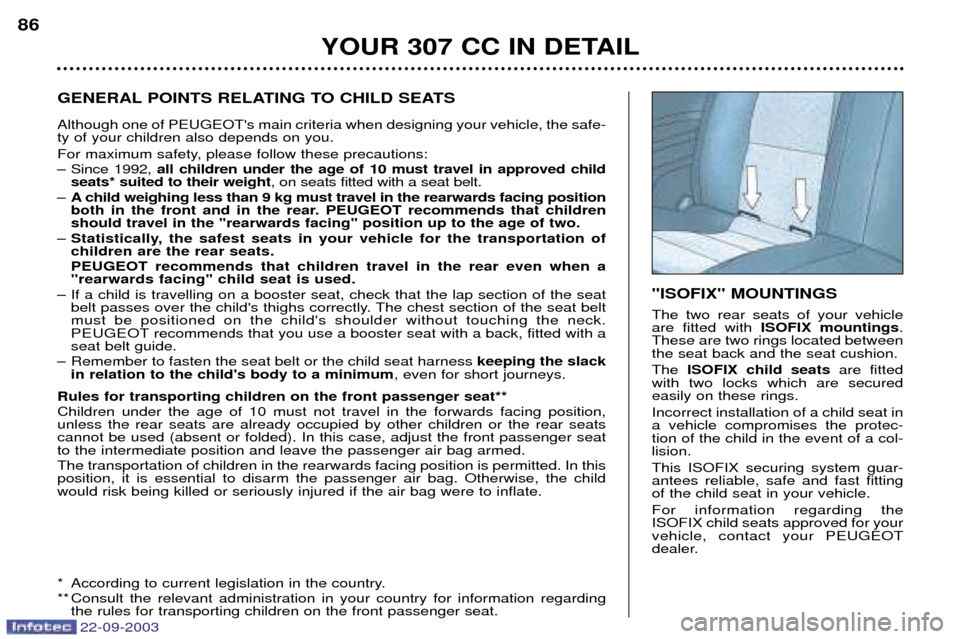

"ISOFIX" MOUNTINGS The two rear seats of your vehicle are fitted with ISOFIX mountings .
These are two rings located betweenthe seat back and the seat cushion. The ISOFIX child seats are fitted
with two locks which are secured easily on these rings. Incorrect installation of a child seat in a vehicle compromises the protec-tion of the child in the event of a col-lision. This ISOFIX securing system guar- antees reliable, safe and fast fittingof the child seat in your vehicle. For information regarding the ISOFIX child seats approved for yourvehicle, contact your PEUGEOT
dealer.
Page 88 of 173
22-09-2003
YOUR 307 CC IN DETAIL
86
GENERAL POINTS RELATING TO CHILD SEATS Although one of PEUGEOT's main criteria when designing your vehicle, the safe- ty of your children also depends on you.
For maximum safety, please follow these precautions:
Ð Since 1992,
all children under the age of 10 must travel in approved child
seats* suited to their weight , on seats fitted with a seat belt.
Ð A child weighing less than 9 kg must travel in the rearwards facing position
both in the front and in the rear. PEUGEOT recommends that childrenshould travel in the "rearwards facing" position up to the age of two.
Ð Statistically, the safest seats in your vehicle for the transportation ofchildren are the rear seats. PEUGEOT recommends that children travel in the rear even when a "rearwards facing" child seat is used.
Ð If a child is travelling on a booster seat, check that the lap section of the seat belt passes over the child's thighs correctly. The chest section of the seat beltmust be positioned on the child's shoulder without touching the neck.PEUGEOT recommends that you use a booster seat with a back, fitted with a
seat belt guide.
Ð Remember to fasten the seat belt or the child seat harness keeping the slack
in relation to the child's body to a minimum , even for short journeys.
Rules for transporting children on the front passenger seat** Children under the age of 10 must not travel in the forwards facing position, unless the rear seats are already occupied by other children or the rear seatscannot be used (absent or folded). In this case, adjust the front passenger seatto the intermediate position and leave the passenger air bag armed. The transportation of children in the rearwards facing position is permitted. In this position, it is essential to disarm the passenger air bag. Otherwise, the childwould risk being killed or seriously injured if the air bag were to inflate.
* According to current legislation in the country.
** Consult the relevant administration in your country for information regarding the rules for transporting children on the front passenger seat.
"ISOFIX" MOUNTINGS The two rear seats of your vehicle are fitted with ISOFIX mountings .
These are two rings located betweenthe seat back and the seat cushion. The ISOFIX child seats are fitted
with two locks which are secured easily on these rings. Incorrect installation of a child seat in a vehicle compromises the protec-tion of the child in the event of a col-lision. This ISOFIX securing system guar- antees reliable, safe and fast fittingof the child seat in your vehicle. For information regarding the ISOFIX child seats approved for yourvehicle, contact your PEUGEOT
dealer.
Page 89 of 173
22-09-2003
YOUR 307 CC IN DETAIL87

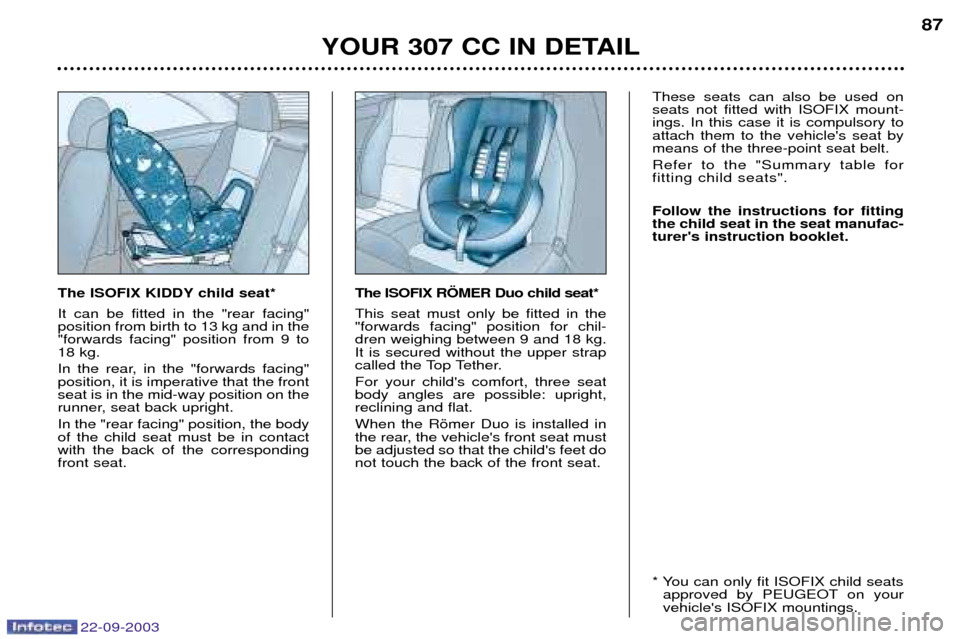

The ISOFIX KIDDY child seat* It can be fitted in the "rear facing" position from birth to 13 kg and in the"forwards facing" position from 9 to18 kg.
In the rear, in the "forwards facing" position, it is imperative that the frontseat is in the mid-way position on the
runner, seat back upright. In the "rear facing" position, the body of the child seat must be in contactwith the back of the correspondingfront seat.The ISOFIX R…MER Duo child seat* This seat must only be fitted in the "forwards facing" position for chil-dren weighing between 9 and 18 kg.It is secured without the upper strap
called the Top Tether. For your child's comfort, three seat body angles are possible: upright,reclining and flat. When the Ršmer Duo is installed in
the rear, the vehicle's front seat mustbe adjusted so that the child's feet donot touch the back of the front seat.These seats can also be used onseats not fitted with ISOFIX mount-ings. In this case it is compulsory toattach them to the vehicle's seat bymeans of the three-point seat belt. Refer to the "Summary table for fitting child seats". Follow the instructions for fitting the child seat in the seat manufac-turer's instruction booklet.
* You can only fit ISOFIX child seats
approved by PEUGEOT on your vehicle's ISOFIX mountings.
Page 90 of 173
22-09-2003
YOUR 307 CC IN DETAIL
88

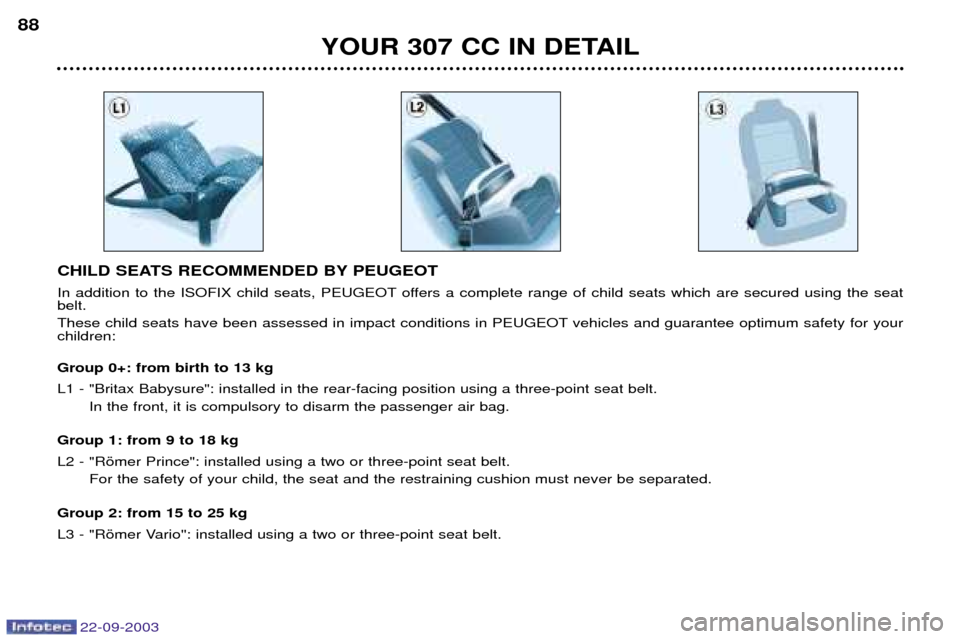

CHILD SEATS RECOMMENDED BY PEUGEOT
In addition to the ISOFIX child seats, PEUGEOT offers a complete range of child seats which are secured using the seat belt.
These child seats have been assessed in impact conditions in PEUGEOT vehicles and guarantee optimum safety for your children: Group 0+: from birth to 13 kg L1 - "Britax Babysure": installed in the rear-facing position using a three-point seat belt.
In the front, it is compulsory to disarm the passenger air bag.
Group 1: from 9 to 18 kgL2 - "Ršmer Prince": installed using a two or three-point seat belt. For the safety of your child, the seat and the restraining cushion must never be separated.
Group 2: from 15 to 25 kg
L3 - "Ršmer Vario'': installed using a two or three-point seat belt.
