YOUR 307 CC IN DETAIL
72
Select the Navigation/Guidance icon using the dial, then validate by pres-sing the dial to access the main"Navigation - Guidance"
menu.
General menu
Switch on the RT3 audio/telephone and insert the navigation CD-Rom. Press the "MENU"button to access
the general menu .
During guidance, if the navigation CD-Rom is present, the screen displays dif- ferent information depending on the manoeuvres to be carried out. 1. Current manoeuvre or compass or course (if calculation in progress or zone not mapped).
2. Next manoeuvre to be carried out.
3. Next road to be taken.
4. Current road.
5. Estimated time of arrival at destination.
6. Distance to final destination.
7. Distance to next manoeuvre.
Notes:
Ð depending on the situation of the vehicle and on the reception of GPS infor- mation, this information may disappear from the screen temporarily,
Ð during guidance, it is only possible to listen to a CD if the vehicle is fitted with a CD changer.
General notes on the display
Monochrome screen CT Colour screen DT

22-09-2003
YOUR 307 CC IN DETAIL73
The main
"Navigation - Guidance"
menu offers various options for acti- vation or management of guidance:
Ð choice of the type of destination address (entering of address, ser- vice, GPS co-ordinates, storedaddress),
Ð modification to the initial route (entering of a diversion),
Ð displaying of the chosen destination,
Ð setting of the guidance option parameters,
Ð stop or resume guidance (display- ing of the message which changes depending on the previous status).
Navigation - GuidanceThe
"Select a destination" menu
offers various options for reaching a destination:
¥ entering a postal address,
¥ selecting a service available in a town (town hall, hotel, cinema, air- port...),
¥ entering GPS details,
¥ selecting a destination stored in the directory,
¥ selecting one of the last ten desti- nations.
Selecting a destinationThe last guidance address is dis- played. Select and validate in succession the entry zones
"Town", "Street" , then
"N¡" to fill them in.
The "OK" function permits validation
of the address and access to theguidance activation function. The "Archive" function permits
recording of the address in a directory file. The "Current location" function
permits display of the current address.
Entering an address

22-09-2003
YOUR 307 CC IN DETAIL
74
To enter the name of a town, select each letter by turning the dial, thenvalidate each letter by pressing thedial. If an error is made entering the let- ters, the
"Correct" function permits
erasing of the last letter entered. Note: following the validation of a
letter, only those which could make up a name existing in the database
appear. As letters are entered, the "List"
function indicates the number of towns beginning with the same let-
ters. Activation of this function per-mits selection of a town from the list. When the list contains fewer than fivenames, these are displayed automati-
cally. Select a town then validate bypressing the dial. When the complete name of the town is displayed, select the
"OK"
function then confirm by pressing thedial. Note: once the town has been
entered, you can confirm by pressing "OK" . You will then be guided to the
centre of this town automatically. Entering the name of the street Enter the name of the street in the same way as the name of the town. When the full name of the street is displayed, select the "OK" function
then confirm by pressing the dial. Entering the town and street using the alphanumeric keypad Press the numeric key which corre- sponds to the letter required until theletter appears on the screen, thenconfirm by pressing the #key after
each letter.
Entering the name of the townEnter the number of the street pre- viously entered. Select the
"OK" function, then con-
firm by pressing the dial.Note: if the number of the street
entered is not available, it is rejected.
You can also select a street from the "Junctions" function, which avoids
having to enter the street number. Note: if the street selected does not
have a number, the list of junctions is
displayed automatically. The full destination is displayed. Select the "OK" function, thenconfirm by pressing the dial toaccess the guidance activationfunction. Follow the instructionsgiven by the system.
Entering the number of the streetor junction

YOUR 307 CC IN DETAIL75

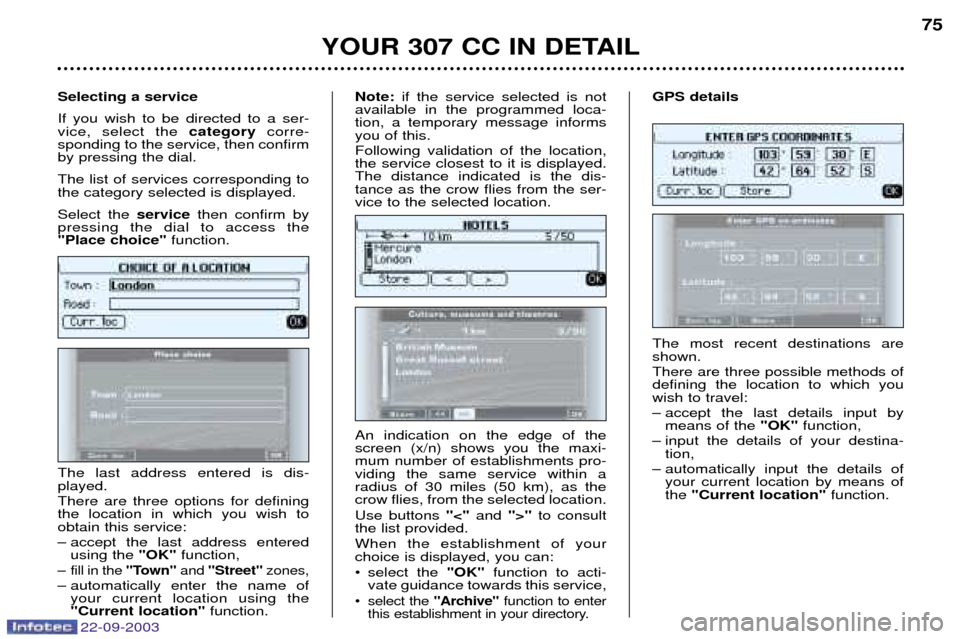

The most recent destinations are shown. There are three possible methods of defining the location to which youwish to travel:
Ð accept the last details input by
means of the "OK"function,
Ð input the details of your destina- tion,
Ð automatically input the details of your current location by means of the "Current location" function.
GPS details
The last address entered is dis- played. There are three options for defining the location in which you wish toobtain this service:
Ð accept the last address entered
using the "OK"function,
Ð fill in the "Town"and "Street" zones,Ð automatically enter the name of
your current location using the "Current location" function.
Selecting a service If you wish to be directed to a ser- vice, select the
categorycorre-
sponding to the service, then confirmby pressing the dial. The list of services corresponding to the category selected is displayed. Select the servicethen confirm by
pressing the dial to access the "Place choice" function.
An indication on the edge of the screen (x/n) shows you the maxi-mum number of establishments pro-viding the same service within aradius of 30 miles (50 km), as thecrow flies, from the selected location. Use buttons "<"and ">" to consult
the list provided.When the establishment of your choice is displayed, you can:
¥ select the "OK"function to acti-
vate guidance towards this service,
¥ select the "Archive"function to enter
this establishment in your directory.
Note: if the service selected is not
available in the programmed loca- tion, a temporary message informsyou of this. Following validation of the location, the service closest to it is displayed.The distance indicated is the dis-tance as the crow flies from the ser-vice to the selected location.
22-09-2003

22-09-2003
YOUR 307 CC IN DETAIL
76
Select the
''Directory'' function to
access the file in which the address you are looking for is archived. Select a description by scrolling down the list by means of the dial,then confirm by pressing the dial.The directory file is then displayed. Select the "OK"function, then press
the dial to access the guidance acti- vation function. Follow the directions given by the system.
Selecting a destination stored inthe directory Select the
"Most recent destina-
tions" function to access one of the
last ten addresses stored. Select a description by scrolling down the list by means of the dial,then confirm it by pressing the dial.The complete address is then dis-played. Select the "OK" function, then press
the dial to access the guidance acti- vation function. Follow the instructions given by the system.
Selection of one of the last tendestinationsActivate the function
''Changing the
route'' , then input the distance
involved in the change required. Select the ''OK''function then vali-
date by pressing the dial. The system calculates the change which is closest to the value inputand gives you the option of whetheror not to use this change. Details of the route
You can consult the destination address at any time by activating the"Chosen destination" function.
Changing the initial route

22-09-2003
YOUR 307 CC IN DETAIL77

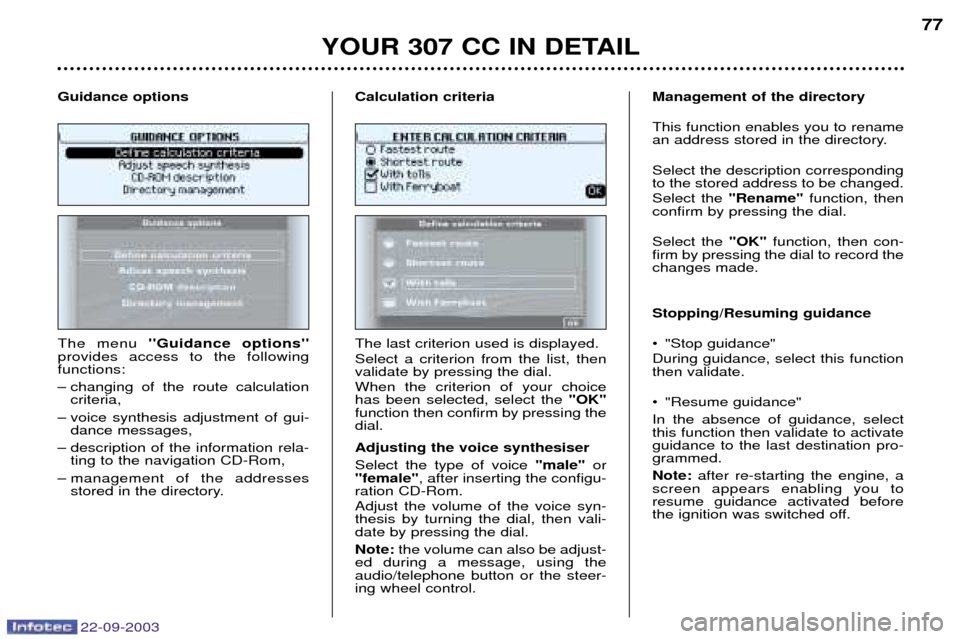

The menu
''Guidance options''
provides access to the following functions:
Ð changing of the route calculation criteria,
Ð voice synthesis adjustment of gui- dance messages,
Ð description of the information rela- ting to the navigation CD-Rom,
Ð management of the addresses stored in the directory.
Guidance optionsThe last criterion used is displayed. Select a criterion from the list, then validate by pressing the dial. When the criterion of your choice has been selected, select the
"OK"
function then confirm by pressing thedial. Adjusting the voice synthesiser Select the type of voice "male" or
"female" , after inserting the configu-
ration CD-Rom. Adjust the volume of the voice syn- thesis by turning the dial, then vali-date by pressing the dial. Note: the volume can also be adjust-
ed during a message, using the audio/telephone button or the steer-ing wheel control. Management of the directory This function enables you to rename
an address stored in the directory. Select the description corresponding to the stored address to be changed. Select the
"Rename" function, then
confirm by pressing the dial. Select the "OK" function, then con-
firm by pressing the dial to record the changes made. Stopping/Resuming guidance
¥ "Stop guidance" During guidance, select this function then validate.
¥ "Resume guidance" In the absence of guidance, select this function then validate to activateguidance to the last destination pro-grammed. Note: after re-starting the engine, a
screen appears enabling you to resume guidance activated before
the ignition was switched off.
Calculation criteria

22-09-2003
YOUR 307 CC IN DETAIL
78

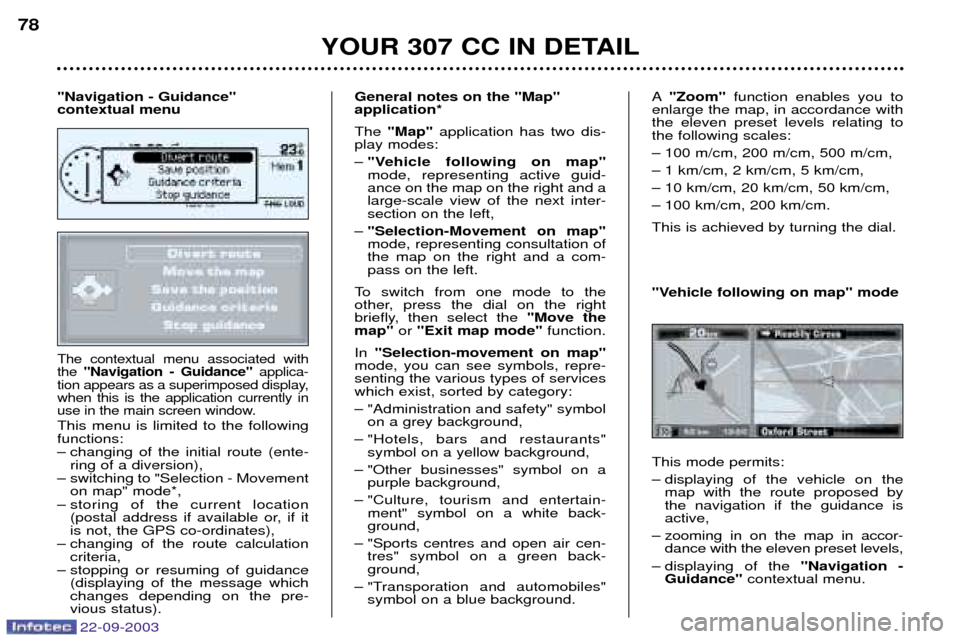

The contextual menu associated with the
"Navigation - Guidance" applica-
tion appears as a superimposed display,when this is the application currently in
use in the main screen window.
This menu is limited to the followingfunctions:
Ð changing of the initial route (ente- ring of a diversion),
Ð switching to "Selection - Movement on map" mode*,
Ð storing of the current location (postal address if available or, if it is not, the GPS co-ordinates),
Ð changing of the route calculation criteria,
Ð stopping or resuming of guidance (displaying of the message whichchanges depending on the pre-vious status). General notes on the "Map" application* The
"Map" application has two dis-
play modes: Ð "Vehicle following on map" mode, representing active guid-ance on the map on the right and alarge-scale view of the next inter-section on the left,
Ð "Selection-Movement on map"mode, representing consultation ofthe map on the right and a com-pass on the left.
To switch from one mode to the
other, press the dial on the right
briefly, then select the "Move the
map" or "Exit map mode" function.
In "Selection-movement on map"
mode, you can see symbols, repre-senting the various types of serviceswhich exist, sorted by category:
Ð "Administration and safety" symbol on a grey background,
Ð "Hotels, bars and restaurants" symbol on a yellow background,
Ð "Other businesses" symbol on a purple background,
Ð "Culture, tourism and entertain- ment" symbol on a white back- ground,
Ð "Sports centres and open air cen- tres" symbol on a green back-ground,
Ð "Transporation and automobiles" symbol on a blue background.
"Navigation - Guidance" contextual menu A
"Zoom" function enables you to
enlarge the map, in accordance withthe eleven preset levels relating tothe following scales:
Ð 100 m/cm, 200 m/cm, 500 m/cm,
Ð 1 km/cm, 2 km/cm, 5 km/cm,
Ð 10 km/cm, 20 km/cm, 50 km/cm,
Ð 100 km/cm, 200 km/cm. This is achieved by turning the dial. This mode permits:
Ð displaying of the vehicle on the map with the route proposed by the navigation if the guidance isactive,
Ð zooming in on the map in accor- dance with the eleven preset levels,
Ð displaying of the "Navigation -
Guidance" contextual menu.
"Vehicle following on map" mode

22-09-2003
YOUR 307 CC IN DETAIL
78
The contextual menu associated with the
"Navigation - Guidance" applica-
tion appears as a superimposed display,when this is the application currently in
use in the main screen window.
This menu is limited to the followingfunctions:
Ð changing of the initial route (ente- ring of a diversion),
Ð switching to "Selection - Movement on map" mode*,
Ð storing of the current location (postal address if available or, if it is not, the GPS co-ordinates),
Ð changing of the route calculation criteria,
Ð stopping or resuming of guidance (displaying of the message whichchanges depending on the pre-vious status). General notes on the "Map" application* The
"Map" application has two dis-
play modes: Ð "Vehicle following on map" mode, representing active guid-ance on the map on the right and alarge-scale view of the next inter-section on the left,
Ð "Selection-Movement on map"mode, representing consultation ofthe map on the right and a com-pass on the left.
To switch from one mode to the
other, press the dial on the right
briefly, then select the "Move the
map" or "Exit map mode" function.
In "Selection-movement on map"
mode, you can see symbols, repre-senting the various types of serviceswhich exist, sorted by category:
Ð "Administration and safety" symbol on a grey background,
Ð "Hotels, bars and restaurants" symbol on a yellow background,
Ð "Other businesses" symbol on a purple background,
Ð "Culture, tourism and entertain- ment" symbol on a white back- ground,
Ð "Sports centres and open air cen- tres" symbol on a green back-ground,
Ð "Transporation and automobiles" symbol on a blue background.
"Navigation - Guidance" contextual menu A
"Zoom" function enables you to
enlarge the map, in accordance withthe eleven preset levels relating tothe following scales:
Ð 100 m/cm, 200 m/cm, 500 m/cm,
Ð 1 km/cm, 2 km/cm, 5 km/cm,
Ð 10 km/cm, 20 km/cm, 50 km/cm,
Ð 100 km/cm, 200 km/cm. This is achieved by turning the dial. This mode permits:
Ð displaying of the vehicle on the map with the route proposed by the navigation if the guidance isactive,
Ð zooming in on the map in accor- dance with the eleven preset levels,
Ð displaying of the "Navigation -
Guidance" contextual menu.
"Vehicle following on map" mode

22-09-2003
YOUR 307 CC IN DETAIL79
This mode permits:
Ð selection of any point on the map
to obtain guidance towards it or to obtain information about it (postal
address if available or, if it is not,GPS co-ordinates),
Ð lateral movement on the map by means of the four directionalarrows, representing the four cardi-nal points (North, East, South,
West),
Ð zooming in on the map in accor- dance with the eleven preset levels,
Ð displaying of the "Map"contextual
menu.
"Selection - Movement on map"mode

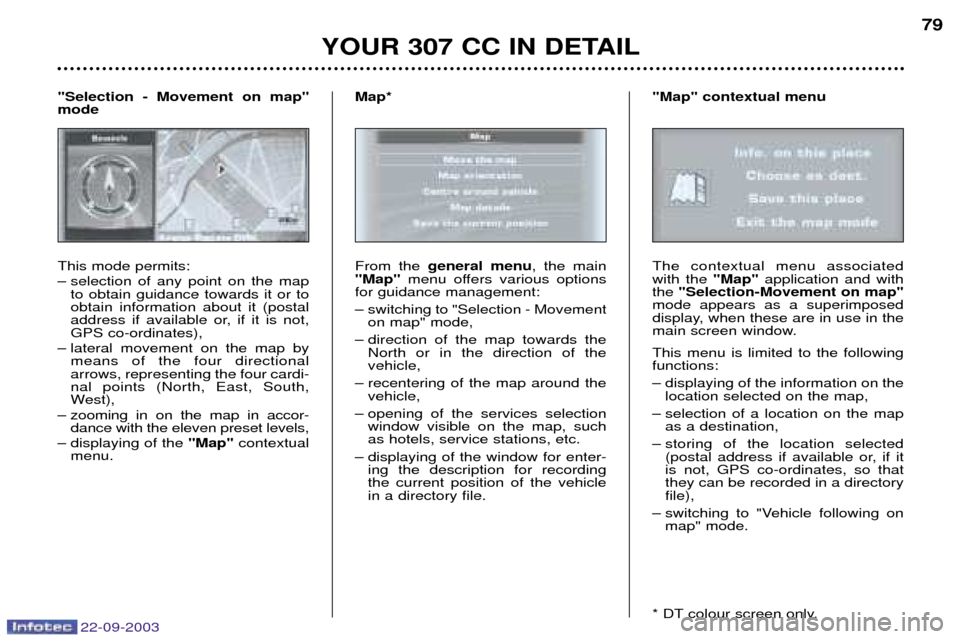

From the general menu , the main
"Map" menu offers various options
for guidance management:
Ð switching to "Selection - Movement on map" mode,
Ð direction of the map towards the North or in the direction of the vehicle,
Ð recentering of the map around the vehicle,
Ð opening of the services selection window visible on the map, suchas hotels, service stations, etc.
Ð displaying of the window for enter- ing the description for recordingthe current position of the vehiclein a directory file.
Map*The contextual menu associated with the
"Map"application and with
the "Selection-Movement on map"
mode appears as a superimposed
display, when these are in use in the
main screen window. This menu is limited to the following functions:
Ð displaying of the information on the location selected on the map,
Ð selection of a location on the map as a destination,
Ð storing of the location selected (postal address if available or, if it is not, GPS co-ordinates, so thatthey can be recorded in a directoryfile),
Ð switching to "Vehicle following on map" mode.
* DT colour screen only.
"Map" contextual menu

22-09-2003
YOUR 307 CC IN DETAIL
80
