SUBARU FORESTER 2004 Service Repair Manual

5MT-58
MANUAL TRANSMISSION AND DIFFERENTIAL
Center Differential
14.Center Differential
A: REMOVAL
1) Remove the manual transmission assembly
from vehicle. Transmission Assembly.>
2) Remove the transfer case with extension case
assembly. Case and Extension Case Assembly.>
3) Remove the extension case assembly. 5MT-50, REMOVAL, Transfer Case and Extension
Case Assembly.>
4) Remove the transfer driven gear. 56, REMOVAL, Transfer Driven Gear.>
5) Remove the center differential.
B: INSTALLATION
1) Install the center differential into transfer case.
2) Install the transfer driven gear. INSTALLATION, Transfer Driven Gear.>
3) Install the extension case assembly. 5MT-50, INSTALLATION, Transfer Case and Ex-
tension Case Assembly.>
4) Install the transfer case with extension case as-
sembly. fer Case and Extension Case Assembly.>
5) Install the back-up light switch and neutral posi-
tion switch. Switches and Harness.>
6) Install the manual transmission assembly to ve-
hicle. Transmission Assembly.>
C: DISASSEMBLY

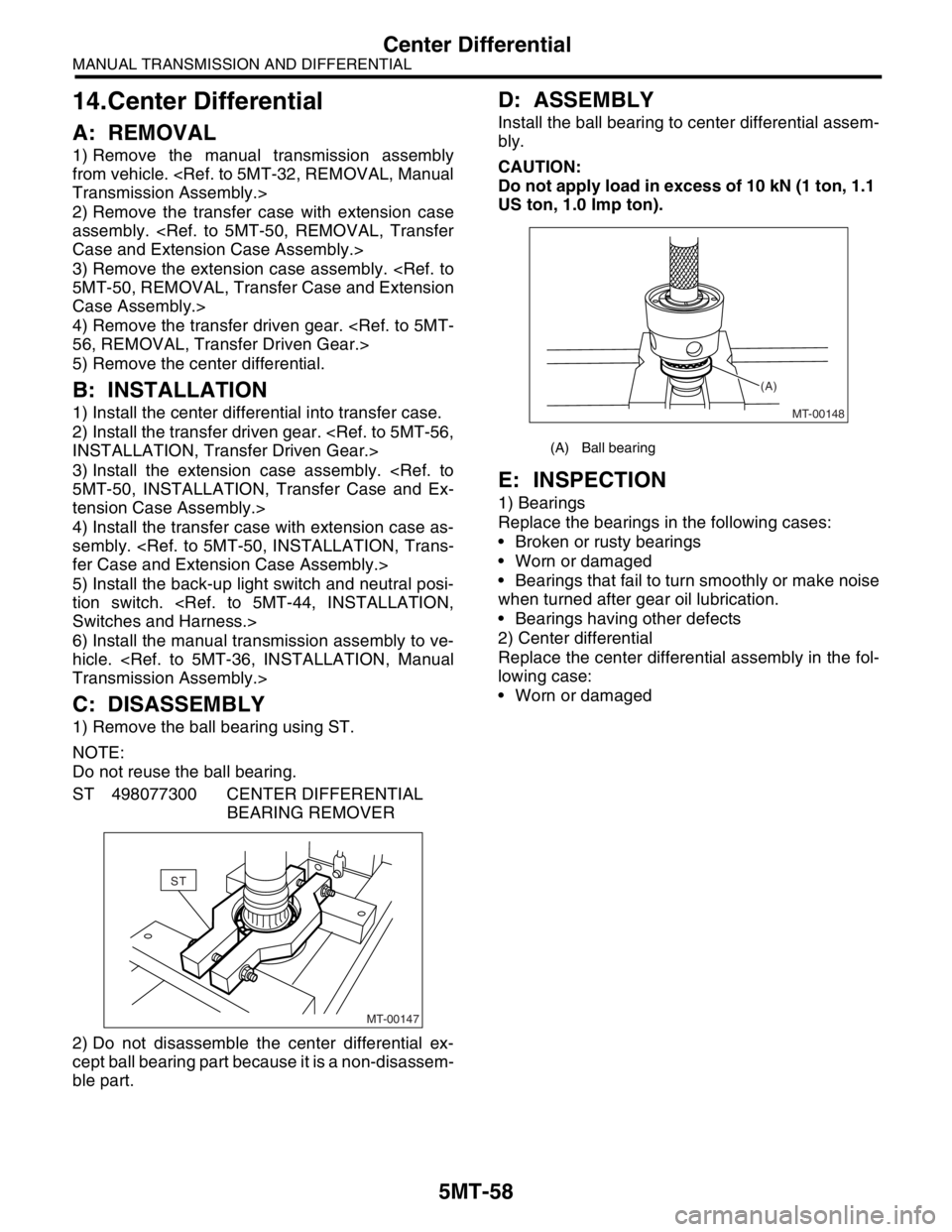

1) Remove the ball bearing using ST.
NOTE:
Do not reuse the ball bearing.
ST 498077300 CENTER DIFFERENTIAL
BEARING REMOVER
2) Do not disassemble the center differential ex-
cept ball bearing part because it is a non-disassem-
ble part.
D: ASSEMBLY
Install the ball bearing to center differential assem-
bly.
CAUTION:
Do not apply load in excess of 10 kN (1 ton, 1.1
US ton, 1.0 Imp ton).
E: INSPECTION
1) Bearings
Replace the bearings in the following cases:
 Broken or rusty bearings
 Worn or damaged
 Bearings that fail to turn smoothly or make noise
when turned after gear oil lubrication.
 Bearings having other defects
2) Center differential
Replace the center differential assembly in the fol-
lowing case:
 Worn or damaged
MT-00147
ST
(A) Ball bearing
MT-00148 (A)

5MT-59
MANUAL TRANSMISSION AND DIFFERENTIAL

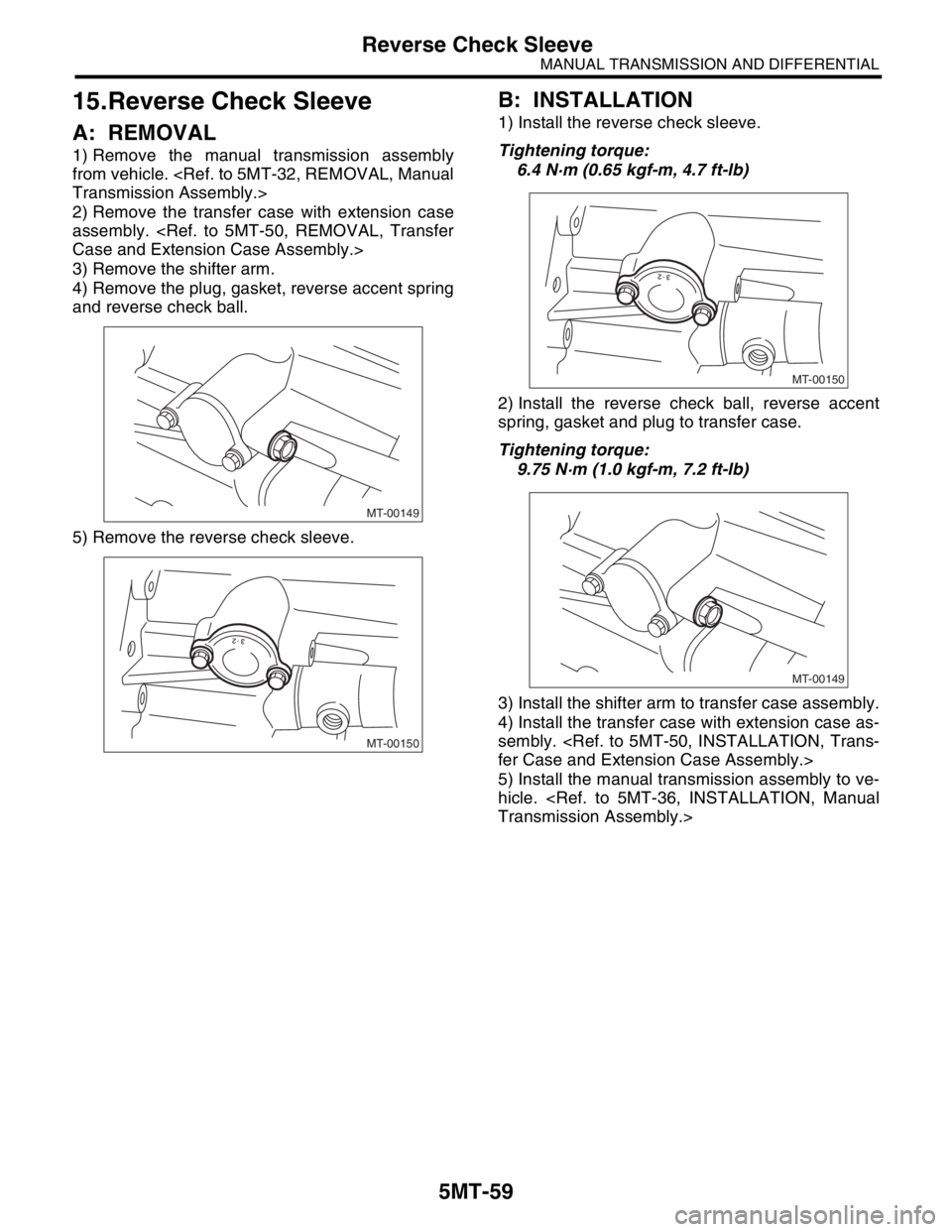

Reverse Check Sleeve
15.Reverse Check Sleeve
A: REMOVAL
1) Remove the manual transmission assembly
from vehicle. Transmission Assembly.>
2) Remove the transfer case with extension case
assembly. Case and Extension Case Assembly.>
3) Remove the shifter arm.
4) Remove the plug, gasket, reverse accent spring
and reverse check ball.
5) Remove the reverse check sleeve.
B: INSTALLATION
1) Install the reverse check sleeve.
Tightening torque:
6.4 N·m (0.65 kgf-m, 4.7 ft-lb)
2) Install the reverse check ball, reverse accent
spring, gasket and plug to transfer case.
Tightening torque:
9.75 N·m (1.0 kgf-m, 7.2 ft-lb)
3) Install the shifter arm to transfer case assembly.
4) Install the transfer case with extension case as-
sembly. fer Case and Extension Case Assembly.>
5) Install the manual transmission assembly to ve-
hicle. Transmission Assembly.>
MT-00149
MT-00150
MT-00150
MT-00149

5MT-60
MANUAL TRANSMISSION AND DIFFERENTIAL
Reverse Check Sleeve
C: DISASSEMBLY
1) Cover the reverse check sleeve with a rag, and
remove the snap ring using a screwdriver.
NOTE:
Replace the snap ring with a new one if deformed
or reactive force is weakened.
2) Remove the reverse check plate, reverse check
spring, reverse check cam, return spring (5th-Rev),
reverse accent shaft, return spring cap and return
spring (1st-2nd).
3) Remove the O-ring.
NOTE:
 Reverse check sleeve assembly uses an O-ring
which should not be scratched.
 Be careful not to break the adjustment shim
placed between reverse check sleeve assembly
and case.
D: ASSEMBLY
1) Install the return spring (1st-2nd), return spring
cap, reverse accent shaft, check cam, return spring
and check spring onto reverse check sleeve.
NOTE:
Be sure the bent section of reverse check spring is
positioned in the groove in check cam.
2) Hook the bent section of reverse check spring
over reverse check plate.
3) Rotate the cam so that the protrusion of reverse
check cam is at the opening in plate.
4) With the cam held in that position, install the
plate onto reverse check sleeve and hold with snap
ring.
5) Position a new O-ring in groove in sleeve.
(A) Snap ring
(A) Reverse check plate
(B) Reverse check spring
(C) Return spring (5th-Rev)
(D) Reverse check cam
(E) Reverse accent shaft
(F) Return spring cap
(G) Return spring (1st-2nd)
MT-00153
(A)
MT-00154
(B)(C)
(D)(E)
(F)(G) (A)
(A) Reverse check plate
(B) Reverse check spring
(C) Return spring (5th-Rev)
(D) Reverse check cam
(E) Reverse accent shaft
(F) Return spring cap
(G) Return spring (1st-2nd)
MT-00154
(B)(C)
(D)(E)
(F)(G) (A)

5MT-61
MANUAL TRANSMISSION AND DIFFERENTIAL

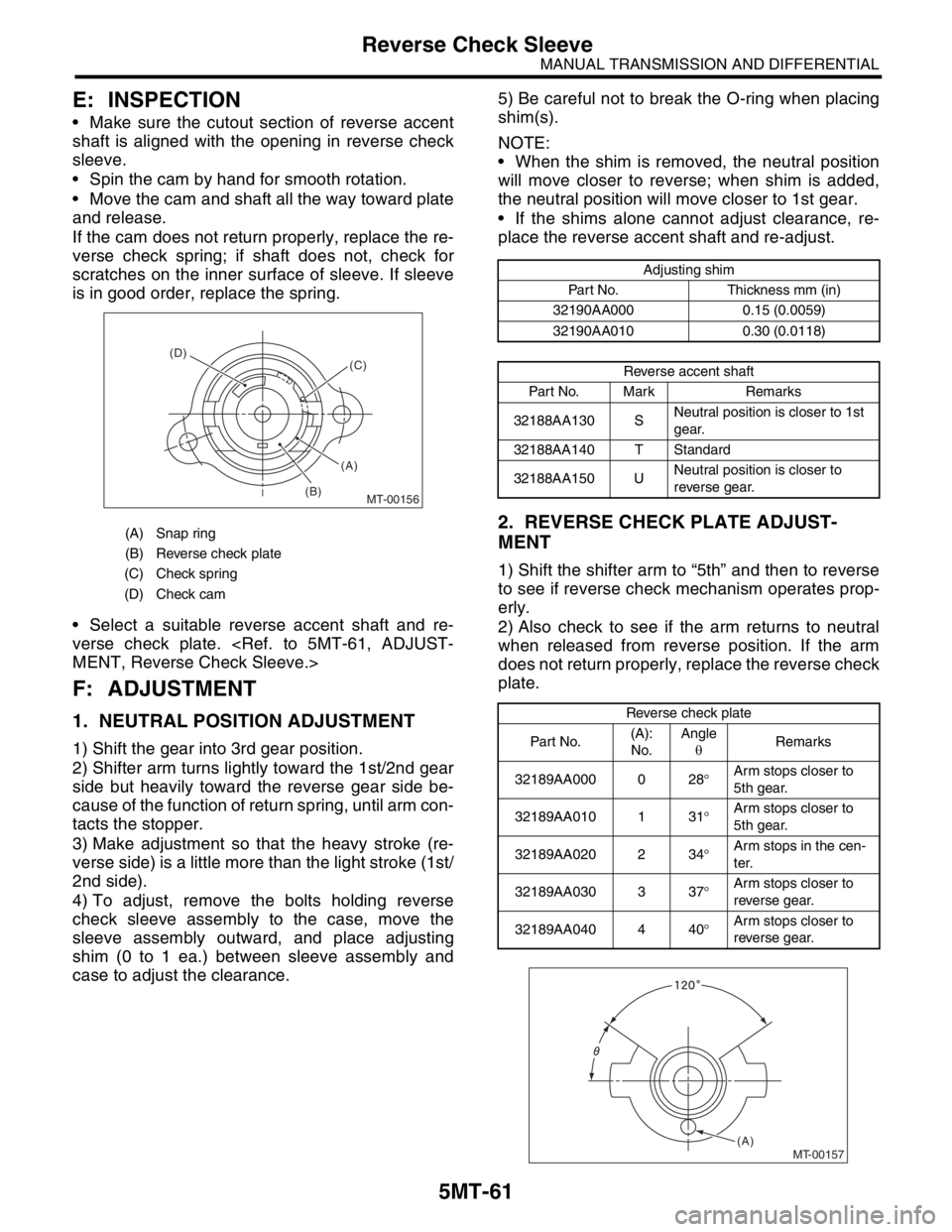

Reverse Check Sleeve
E: INSPECTION
 Make sure the cutout section of reverse accent
shaft is aligned with the opening in reverse check
sleeve.
 Spin the cam by hand for smooth rotation.
 Move the cam and shaft all the way toward plate
and release.
If the cam does not return properly, replace the re-
verse check spring; if shaft does not, check for
scratches on the inner surface of sleeve. If sleeve
is in good order, replace the spring.
 Select a suitable reverse accent shaft and re-
verse check plate. MENT, Reverse Check Sleeve.>
F: ADJUSTMENT
1. NEUTRAL POSITION ADJUSTMENT
1) Shift the gear into 3rd gear position.
2) Shifter arm turns lightly toward the 1st/2nd gear
side but heavily toward the reverse gear side be-
cause of the function of return spring, until arm con-
tacts the stopper.
3) Make adjustment so that the heavy stroke (re-
verse side) is a little more than the light stroke (1st/
2nd side).
4) To adjust, remove the bolts holding reverse
check sleeve assembly to the case, move the
sleeve assembly outward, and place adjusting
shim (0 to 1 ea.) between sleeve assembly and
case to adjust the clearance.5) Be careful not to break the O-ring when placing
shim(s).
NOTE:
 When the shim is removed, the neutral position
will move closer to reverse; when shim is added,
the neutral position will move closer to 1st gear.
 If the shims alone cannot adjust clearance, re-
place the reverse accent shaft and re-adjust.
2. REVERSE CHECK PLATE ADJUST-
MENT
1) Shift the shifter arm to “5th” and then to reverse
to see if reverse check mechanism operates prop-
erly.
2) Also check to see if the arm returns to neutral
when released from reverse position. If the arm
does not return properly, replace the reverse check
plate.
(A) Snap ring
(B) Reverse check plate
(C) Check spring
(D) Check cam
MT-00156
(A) (D)
(B)(C)
Adjusting shim
Part No. Thickness mm (in)
32190AA000 0.15 (0.0059)
32190AA010 0.30 (0.0118)
Reverse accent shaft
Part No. Mark Remarks
32188AA130 SNeutral position is closer to 1st
gear.
32188AA140 T Standard
32188AA150 UNeutral position is closer to
reverse gear.
Reverse check plate
Par t No.(A):
No.Angle
θRemarks
32189AA000 0 28°Arm stops closer to
5th gear.
32189AA010 1 31°Arm stops closer to
5th gear.
32189AA020 2 34°Arm stops in the cen-
ter.
32189AA030 3 37°Arm stops closer to
reverse gear.
32189AA040 4 40°Arm stops closer to
reverse gear.
MT-00157(A)

5MT-62
MANUAL TRANSMISSION AND DIFFERENTIAL
Transmission Case
16.Transmission Case
A: REMOVAL
1. SINGLE-RANGE
1) Remove the manual transmission assembly
from vehicle. Transmission Assembly.>
2) Remove the clutch release lever. 20, REMOVAL, Release Bearing and Lever.>
3) Remove the transfer case with extension case
assembly. Case and Extension Case Assembly.>
4) Remove the bearing mounting bolts.
5) Remove the main shaft rear plate.
6) Separate the transmission case into right and
left cases by loosening the coupling bolts and nuts.7) Remove the drive pinion shaft assembly from left
side transmission case.
NOTE:
Use a hammer handle, etc. to remove if too tight.
8) Remove the differential assembly.
NOTE:
 Be careful not to confuse the right and left roller
bearing outer races.
 Be careful not to damage the retainer oil seal.
2. DUAL-RANGE
1) Remove the manual transmission assembly
from vehicle. Transmission Assembly.>
2) Remove the clutch release lever. 20, REMOVAL, Release Bearing and Lever.>
3) Remove the transfer case with extension case
assembly. Case and Extension Case Assembly.>(A) Main shaft rear plate
MT-00158
MT-00159
(A)
MT-00160
(A) Main shaft assembly
(B) Drive pinion shaft assembly
MT-00161
(A)
(B)
MT-00162

5MT-63
MANUAL TRANSMISSION AND DIFFERENTIAL
Transmission Case
4) Remove the input shaft holder.
5) Remove the high-low switch. REMOVAL, Switches and Harness.>
6) Using the ST, drive out the straight pin, and re-
move high-low shifter lever.
ST 398791700 STRAIGHT PIN REMOVER 2
NOTE:
When driving out the straight pin, remove it in the
direction that it does not butt against transmission
case.
7) Remove the main shaft rear plate.8) Separate the transmission case into right and
left cases by loosening the seventeen coupling
bolts and nuts.
9) Using a hammer handle, etc. remove the drive
pinion shaft assembly from left side transmission
case, and then remove the main shaft assembly.
10) Removing high-low shifter fork:
Remove the high-low shifter fork together with
high-low shifter shaft and washer.
NOTE:
Be careful not to drop the two high-low shifter piec-
es.
(A) Input shaft holder
(B) Input shaft
(A) Straight pin
(B) High-low shifter lever
(A) Main shaft rear plate
MT-00163
(A)
(B)
MT-00164
(A)
(B)
ST
MT-00165
(A)
(A) Main shaft ASSY
(B) Drive pinion shaft ASSY
(A) High-low shifter fork
(B) Input shaft ASSY
MT-00160
MT-00161
(A)
(B)
MT-00169(B) (A)

5MT-64
MANUAL TRANSMISSION AND DIFFERENTIAL
Transmission Case
11) Remove the main shaft assembly and input
shaft assembly.
NOTE:
Be careful not to drop the input shaft and main shaft
as they are separable.
12) Remove the differential assembly.
NOTE:
 Be careful not to confuse the right and left roller
bearing outer races.
 Be careful not to damage the retainer oil seal.
B: INSTALLATION
1. SINGLE-RANGE
1) Wipe off grease, oil and dust on the mating sur-
faces of transmission cases with white gasoline.
2) Install the front differential assembly.
3) Install the main shaft assembly.
Install the needle bearing knock pin hole into trans-
mission case knock pin.
4) Install the drive pinion shaft assembly.
Install the roller bearing knock pin hole into trans-
mission case knock pin.
5) Apply liquid gasket, and then put the case right
side and left side together.
Liquid gasket:
THREE BOND 1215 (Part No. : 004403007) or
equivalent6) Tighten the seven teen bolts with bracket, clip,
etc. as shown in the figure.
NOTE:
 Insert the bolts from bottom and tighten the nuts
at top.
 Put the cases together so that drive pinion shim
and input shaft holder shim are not caught up in be-
tween.
 Confirm that the speedometer gear is meshed.
Tightening torque:
8 mm bolt
25 N·m (2.5 kgf-m, 18.1 ft-lb)
★ 10 mm (0.39 in) bolt
39 N·m (4.0 kgf-m, 28.9 ft-lb)
7) Tighten the bearing attachment bolts.
Tightening torque:
30 N·m (3.1 kgf-m, 22.1 ft-lb)
(A) Main shaft ASSY
(B) Input shaft ASSY
MT-00170
(A)
(B)
MT-00162
(9)(7)
(5)
(1)
(2)(16)
(17)
(11)
(3)
(4)
(12)
(8) (6) (10) (14) (15)(13)
MT-00172
MT-00158

5MT-65
MANUAL TRANSMISSION AND DIFFERENTIAL
Transmission Case
8) Backlash adjustment of hypoid gear and preload
adjustment of roller bearing:
NOTE:
Support the drive pinion assembly with ST.
ST 498427100 STOPPER
9) Place the transmission with case left side facing
downward and put ST1 on bearing outer race.
10) Screw the retainer assembly into left case from
the bottom with ST2 Fit the ST3 on transmission
main shaft. Shift the gear into 4th or 5th and turn
the shaft several times. Screw in the retainer while
turning ST3 until a slight resistance is felt on ST2.
This is the contact point of hypoid gear and drive
pinion shaft. Repeat the above sequence several
times to ensure the contact point.
ST1 399780104 WEIGHT
ST2 499787000 WRENCH ASSY
ST3 499927100 HANDLE11) Remove the weight and screw in the retainer
without O-ring on upper side and stop at the point
where slight resistance is felt.
NOTE:
At this point, the backlash between hypoid gear
and drive pinion shaft is zero.
ST 499787000 WRENCH ASSY
12) Fit the lock plate. Loosen the retainer on the
lower side by 1-1/2 notches of lock plate and turn in
the retainer on upper side by the same amount in
order to obtain the backlash.
NOTE:
The notch on the lock plate moves by 1/2 notch if
the plate is turned upside down.
13) Turn in the retainer on the upper side addition-
ally by 1 notch in order to apply preload on taper
roller bearing.
14) Tighten temporarily both the upper and lower
lock plates and mark both holder and lock plate for
later readjustment.
15) Turn the transmission main shaft several times
while tapping around the retainer lightly with plastic
hammer.
16) Inspect and adjust the backlash and tooth con-
tact of hypoid gear. TION, Front Differential Assembly.>
MT-00174ST
MT-00175
ST3ST2
ST1
MT-00176
ST

5MT-66
MANUAL TRANSMISSION AND DIFFERENTIAL
Transmission Case
17) After checking the tooth contact of hypoid
gears, remove the lock plate. Then loosen the re-
tainer until the O-ring groove appears. Fit the O-
ring into groove and tighten the retainer into the po-
sition where retainer has been tightened in.
Tighten the lock plate.
NOTE:
Carry out this job on both upper and lower retain-
ers.
Tightening torque:
T: 25 N·m (2.5 kgf-m, 18.1 ft-lb)
18) Selecting of main shaft rear plate. 5MT-76, ADJUSTMENT, Main Shaft Assembly For
Single-Range.>
19) Install the clutch release lever and bearing.
and Lever.>
20) Install the transfer case with extension case as-
sembly. fer Case and Extension Case Assembly.>
21) Install the manual transmission assembly into
the vehicle. Manual Transmission Assembly.>
2. DUAL-RANGE
1) Wipe off grease, oil and dust on the mating sur-
faces of transmission cases with white gasoline.
2) Install the front differential assembly.
3) Install the main shaft assembly and input shaft
assembly.
Connect the main shaft assembly and input the
shaft assembly, and install needle bearing knock
pin hole into transmission case knock pin.
4) Install the drive pinion shaft assembly.
Install the roller bearing knock pin hole into trans-
mission case knock pin.
5) Apply liquid gasket, and then put the case right
side and left side together.
Liquid gasket:
THREE BOND 1215 (Parts No. 004403007) or
equivalent6) Tighten the seventeen bolts with bracket, clip,
etc. as shown in the figure.
NOTE:
 Insert the bolts from bottom and tighten the nuts
at top.
 Put the cases together so that the drive pinion
shim and input shaft holder shim are not caught up
in between.
 Confirm that the speedometer gear is meshed.
Tightening torque:
8 mm bolt
25 N·m (2.5 kgf-m, 18.1 ft-lb)
★ 10 mm bolt
39 N·m (4.0 kgf-m, 28.9 ft-lb)
7) Tighten the bearing attachment bolts.
Tightening torque:
30 N·m (3.1 kgf-m, 22.1 ft-lb)
MT-00177
T
MT-00178
(9)
(7) (5)(16)
(17)
(11)
(3)
(4) (2) (1)
(12) (8) (6) (10) (14) (15) (13)
MT-00158

5MT-67
MANUAL TRANSMISSION AND DIFFERENTIAL
Transmission Case
8) Tighten the input shaft holder attaching bolts.
Tightening torque:
20 N·m (2.0 kgf-m, 14.5 ft-lb)
9) Using the ST, support the drive pinion assembly,
and then adjust the backlash of hypoid gear and
measure preload of roller bearing.
ST 498427100 STOPPER
10) Place the transmission with case left side fac-
ing downward and put ST1 on bearing cup.11) Screw the retainer assembly into left case from
the bottom with ST2. Fit the ST3 on transmission
main shaft. Shift the gear into 4th or 5th and turn
the shaft several times. Screw in the retainer while
turning ST3 until a slight resistance is felt on ST2.
This is the contact point of hypoid gear and drive
pinion shaft. Repeat the above sequence several
times to ensure the contact point.
ST1 399780104 WEIGHT
ST2 499787000 WRENCH ASSY
ST3 499927100 HANDLE
12) Remove the weight and screw in the retainer
without O-ring on upper side and stop at the point
where slight resistance is felt.
NOTE:
At this point, the backlash between hypoid gear
and drive pinion shaft is zero.
ST 499787000 WRENCH ASSY
13) Fit the lock plate. Loosen the retainer on the
lower side by 1-1/2 notches of lock plate and turn in
the retainer on upper side by the same amount in
order to obtain the backlash.
NOTE:
The notch on the lock plate moves by 1/2 notch if
the plate is turned upside down.
14) Turn in the retainer on the upper side addition-
ally by 1 notch in order to apply preload on taper
roller bearing.
15) Tighten temporarily both the upper and lower
lock plates and mark both holder and lock plate for
later readjustment.
(A) Input shaft holder
(B) Input shaft
MT-00163
(A)
(B)
MT-00174ST
MT-00175
ST3ST2
ST1
MT-00176
ST
