SUBARU LEGACY 1999 Service Repair Manual
Page 1301 of 1456
![SUBARU LEGACY 1999 Service Repair Manual MEMO:
21
[D6A2]6-3WIRING DIAGRAM
6. Wiring Diagram](/img/17/57435/w960_57435-1300.png "SUBARU LEGACY 1999 Service Repair Manual MEMO:
21
[D6A2]6-3WIRING DIAGRAM
6. Wiring Diagram")
Page 1302 of 1456

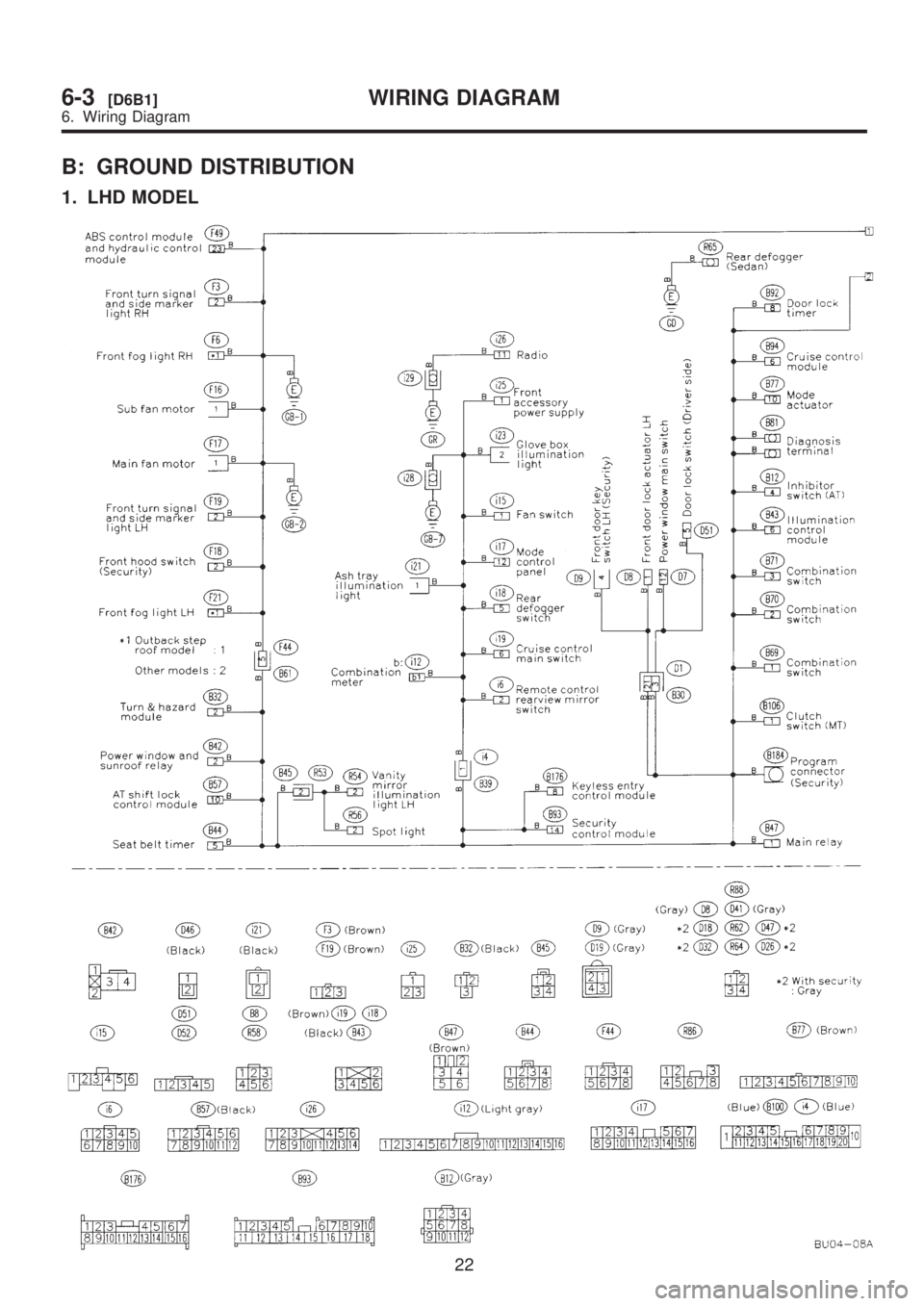

![SUBARU LEGACY 1999 Service Repair Manual B: GROUND DISTRIBUTION
1. LHD MODEL
22
6-3[D6B1]WIRING DIAGRAM
6. Wiring Diagram](/img/17/57435/w960_57435-1301.png "SUBARU LEGACY 1999 Service Repair Manual B: GROUND DISTRIBUTION
1. LHD MODEL
22
6-3[D6B1]WIRING DIAGRAM
6. Wiring Diagram")
Page 1303 of 1456

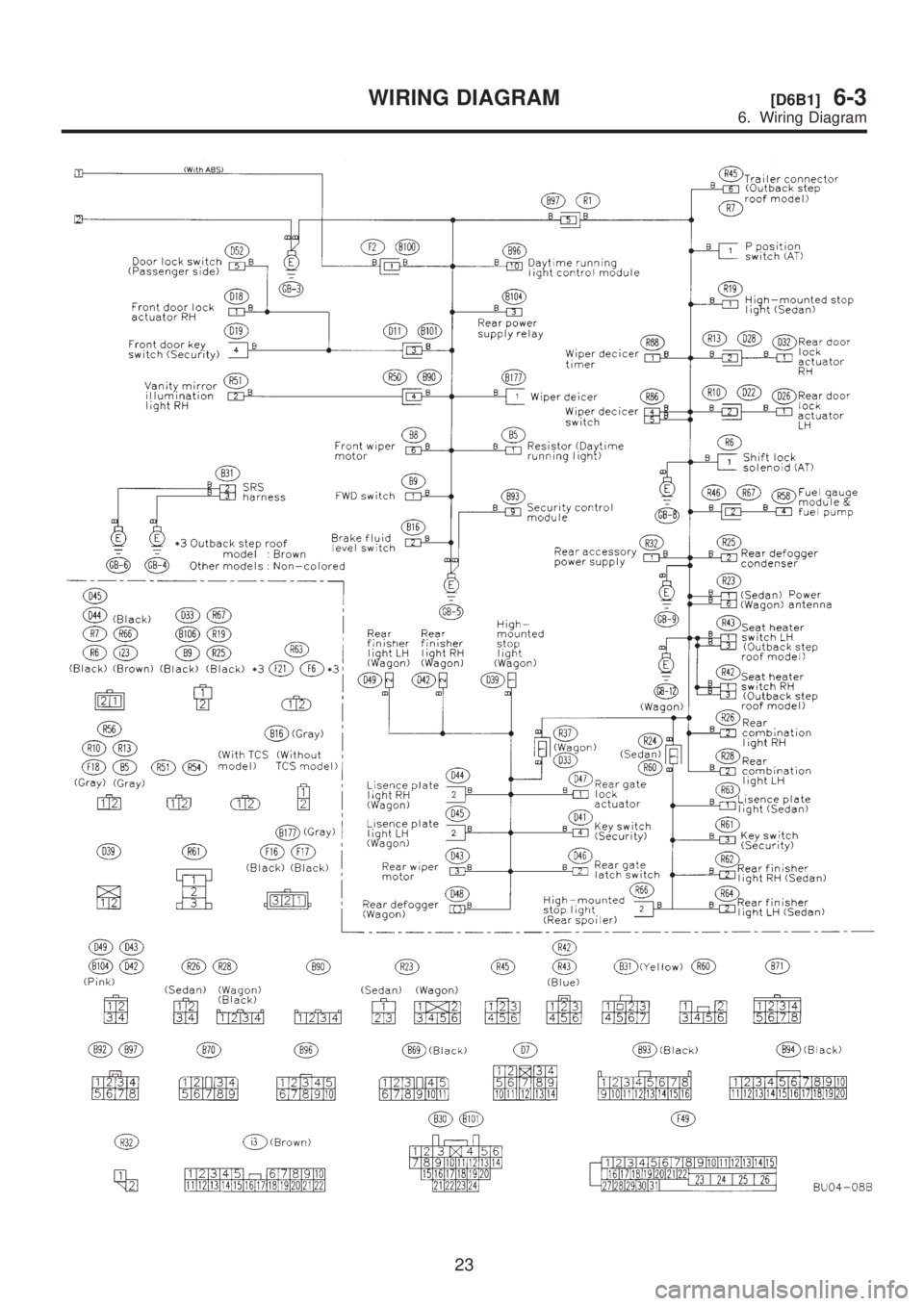

![SUBARU LEGACY 1999 Service Repair Manual 23
[D6B1]6-3WIRING DIAGRAM
6. Wiring Diagram](/img/17/57435/w960_57435-1302.png "SUBARU LEGACY 1999 Service Repair Manual 23
[D6B1]6-3WIRING DIAGRAM
6. Wiring Diagram")
Page 1304 of 1456

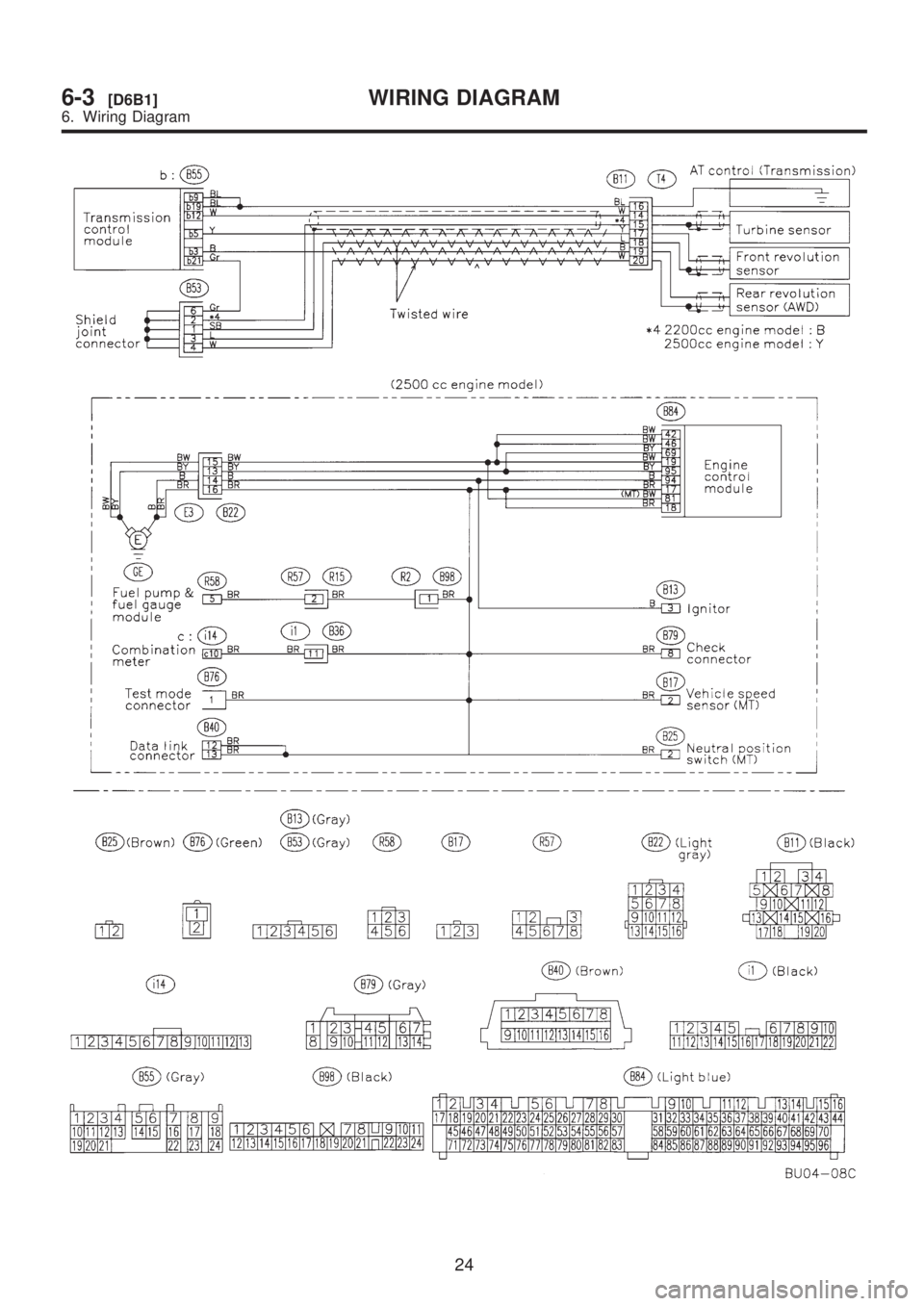

![SUBARU LEGACY 1999 Service Repair Manual 24
6-3[D6B1]WIRING DIAGRAM
6. Wiring Diagram](/img/17/57435/w960_57435-1303.png "SUBARU LEGACY 1999 Service Repair Manual 24
6-3[D6B1]WIRING DIAGRAM
6. Wiring Diagram")
Page 1305 of 1456

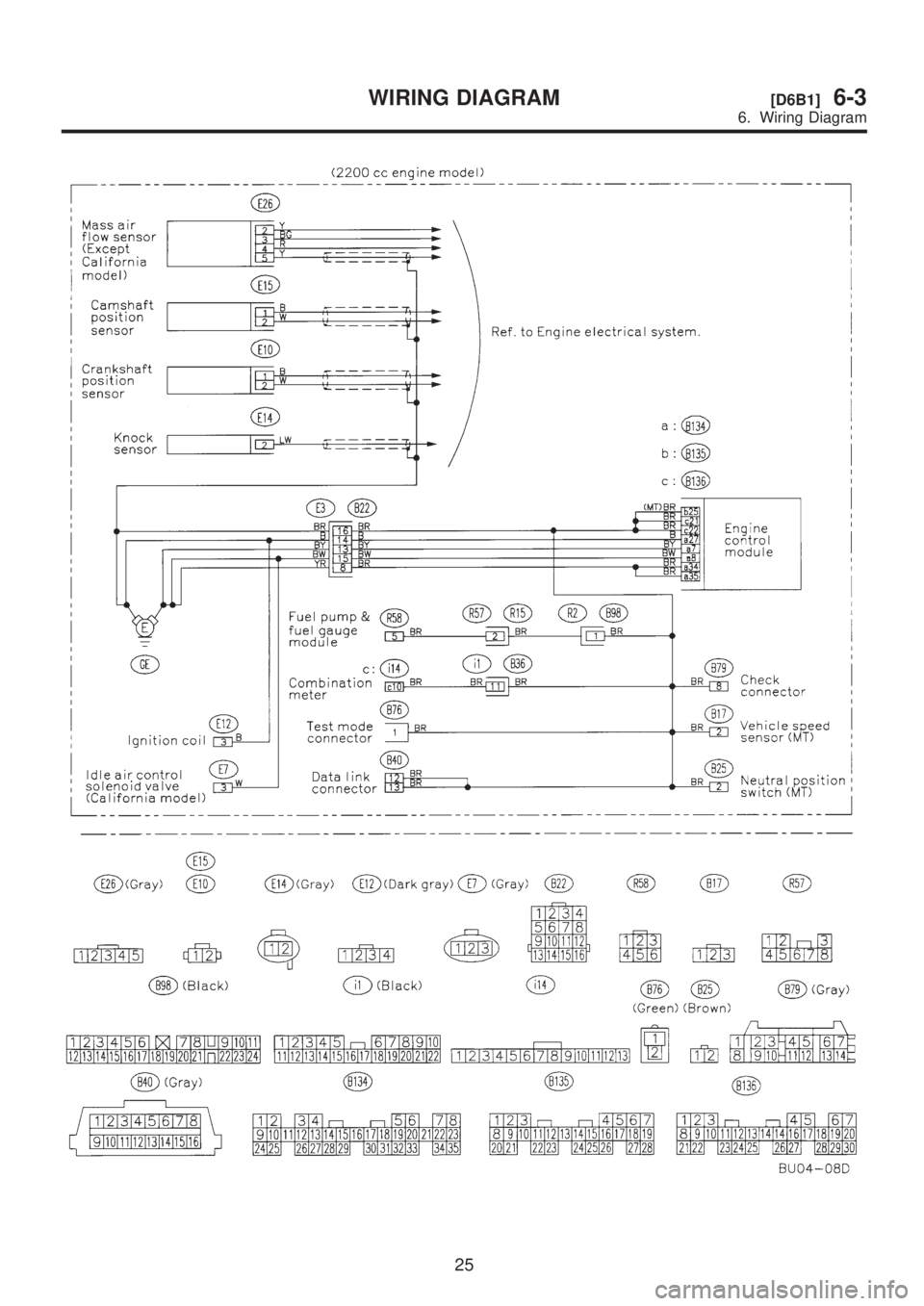

![SUBARU LEGACY 1999 Service Repair Manual 25
[D6B1]6-3WIRING DIAGRAM
6. Wiring Diagram](/img/17/57435/w960_57435-1304.png "SUBARU LEGACY 1999 Service Repair Manual 25
[D6B1]6-3WIRING DIAGRAM
6. Wiring Diagram")
Page 1306 of 1456

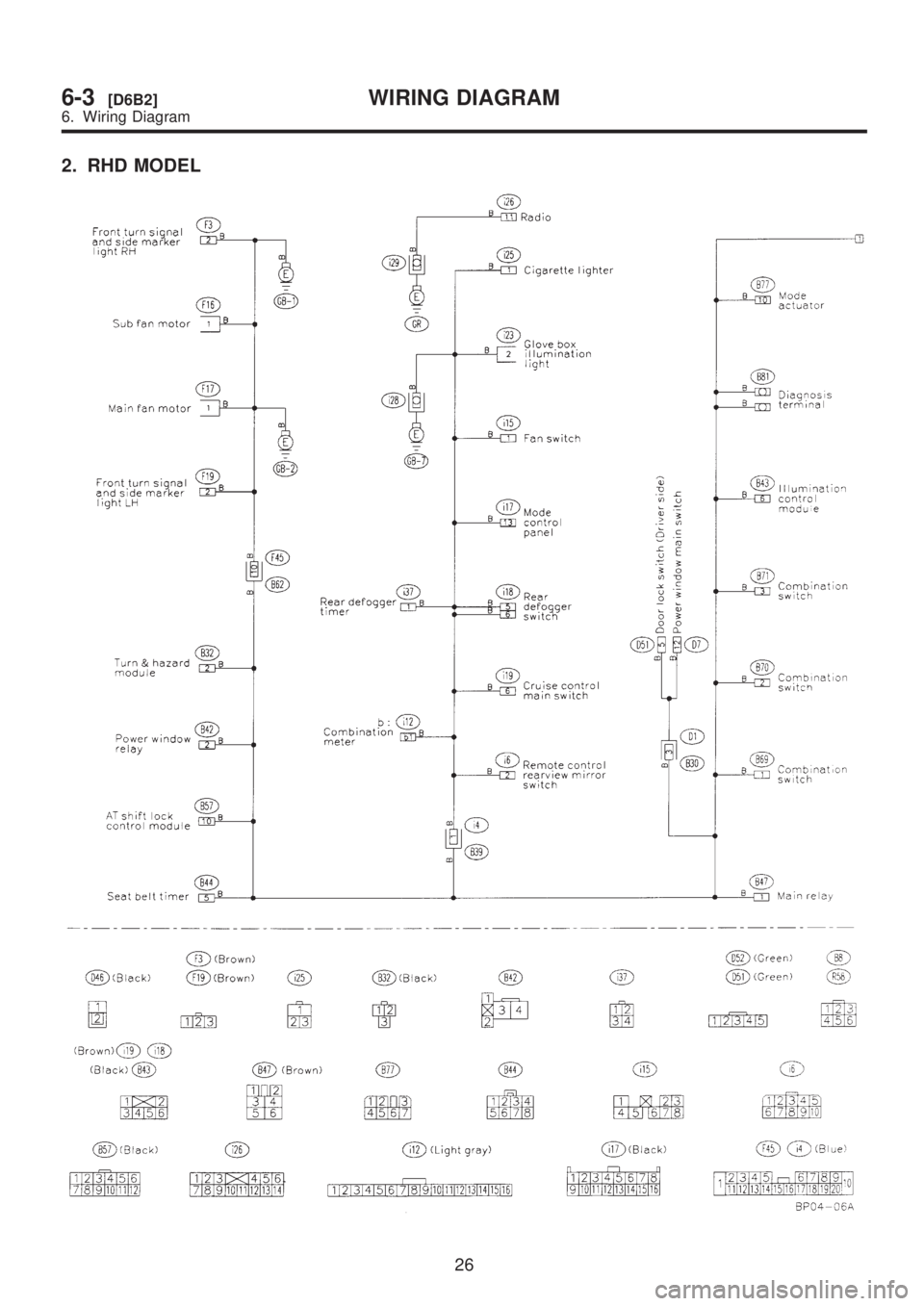

![SUBARU LEGACY 1999 Service Repair Manual 2. RHD MODEL
26
6-3[D6B2]WIRING DIAGRAM
6. Wiring Diagram](/img/17/57435/w960_57435-1305.png "SUBARU LEGACY 1999 Service Repair Manual 2. RHD MODEL
26
6-3[D6B2]WIRING DIAGRAM
6. Wiring Diagram")
Page 1307 of 1456

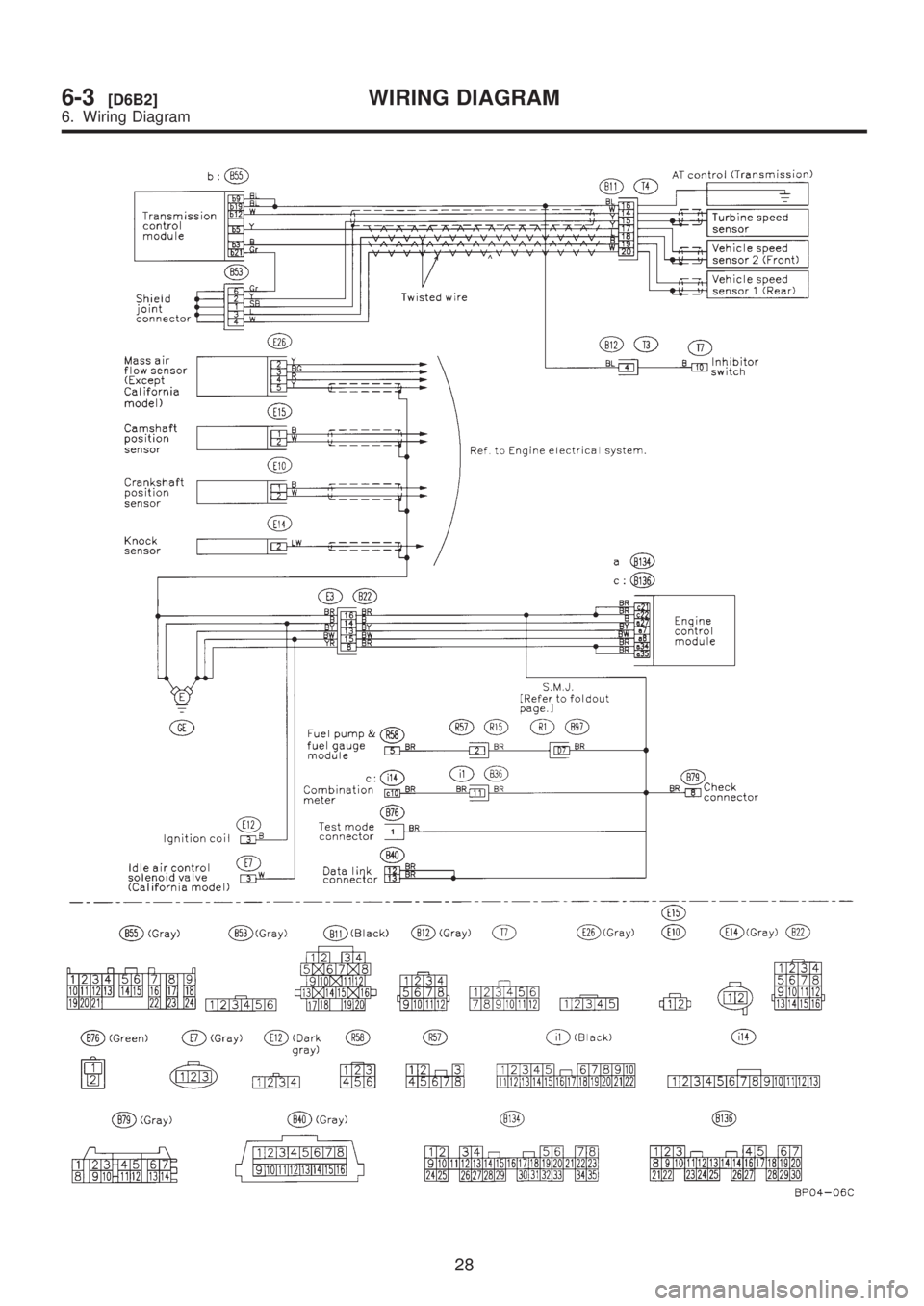

![SUBARU LEGACY 1999 Service Repair Manual 27
[D6B2]6-3WIRING DIAGRAM
6. Wiring Diagram](/img/17/57435/w960_57435-1306.png "SUBARU LEGACY 1999 Service Repair Manual 27
[D6B2]6-3WIRING DIAGRAM
6. Wiring Diagram")
Page 1308 of 1456

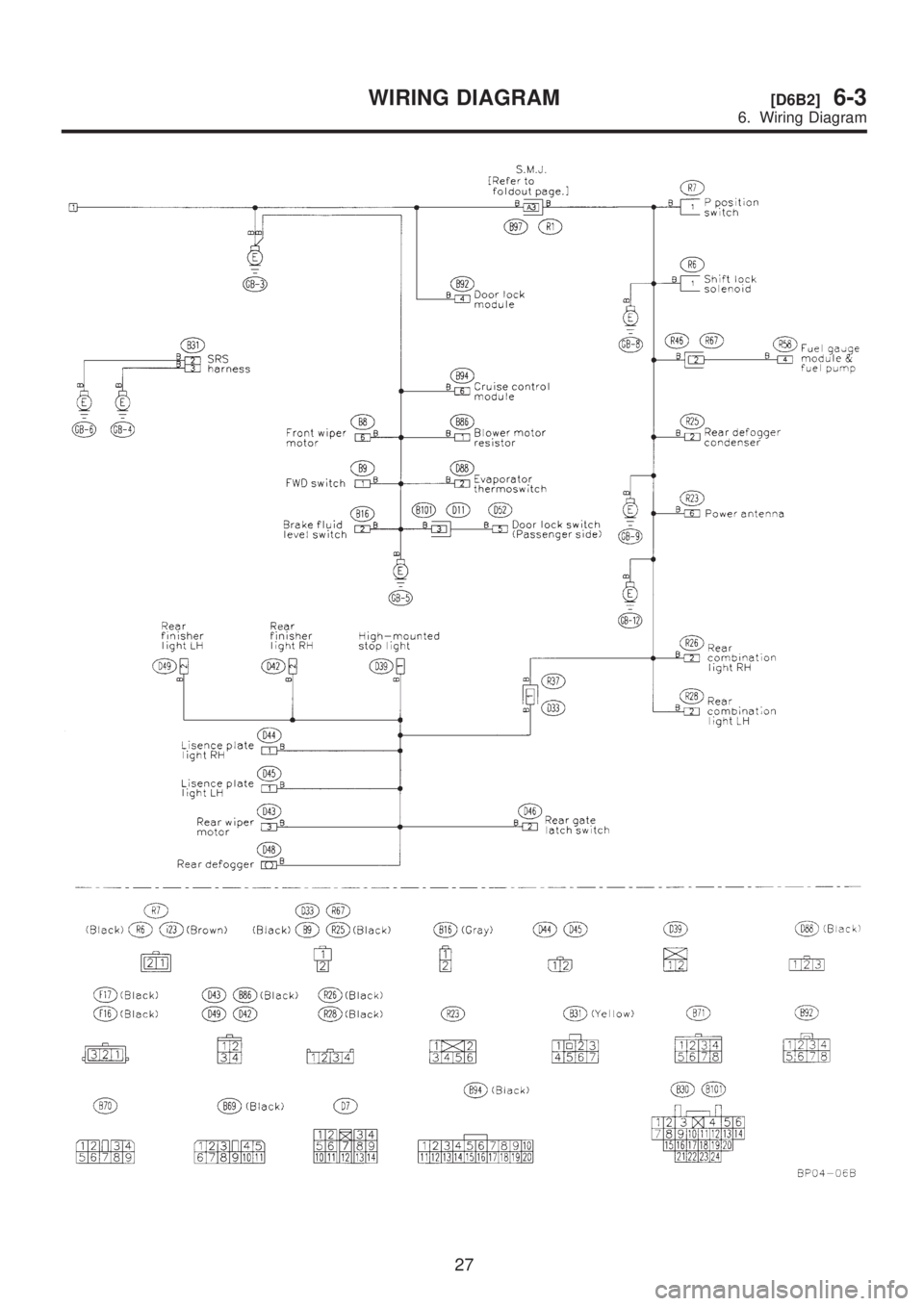

![SUBARU LEGACY 1999 Service Repair Manual 28
6-3[D6B2]WIRING DIAGRAM
6. Wiring Diagram](/img/17/57435/w960_57435-1307.png "SUBARU LEGACY 1999 Service Repair Manual 28
6-3[D6B2]WIRING DIAGRAM
6. Wiring Diagram")
Page 1309 of 1456

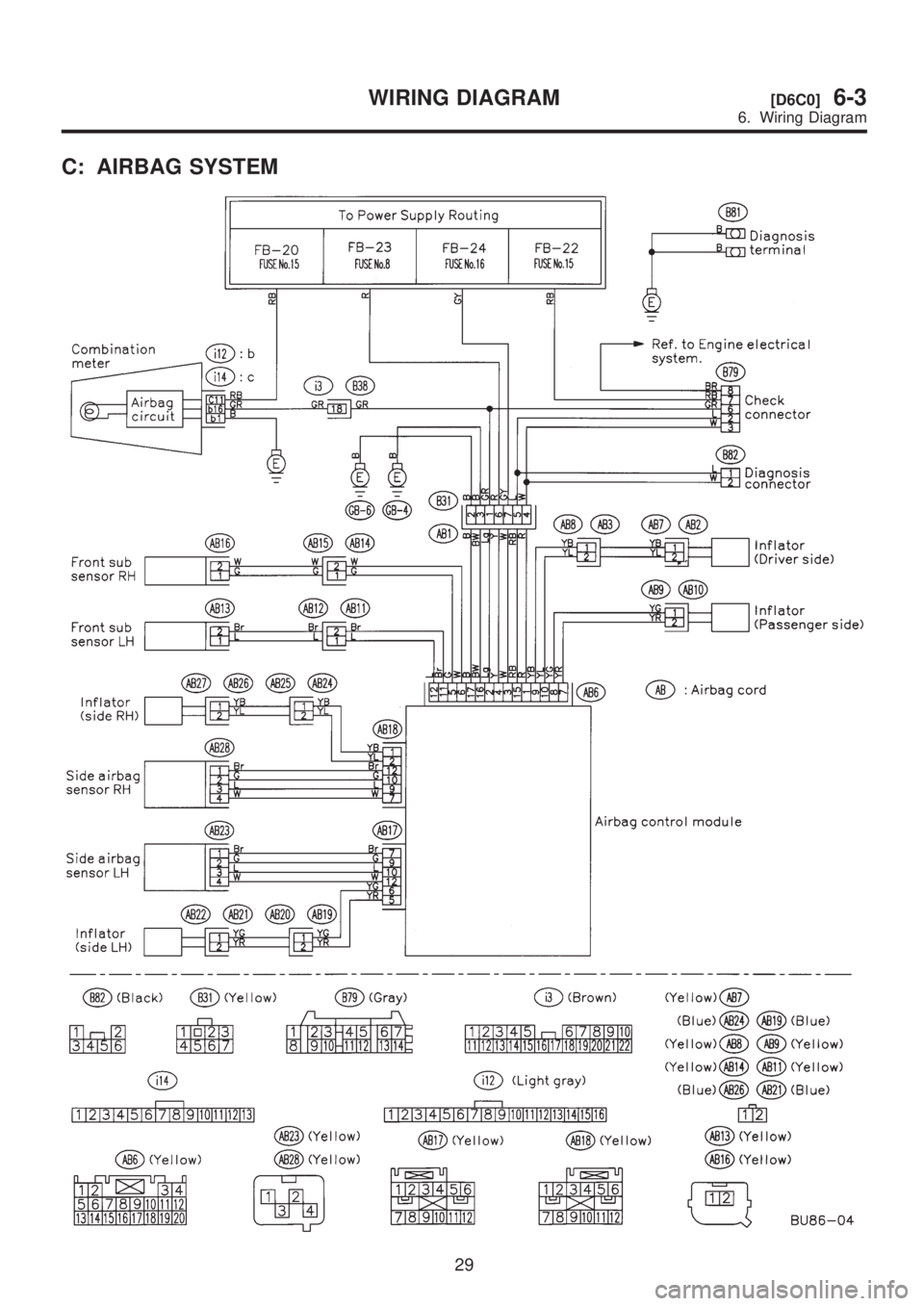

![SUBARU LEGACY 1999 Service Repair Manual C: AIRBAG SYSTEM
29
[D6C0]6-3WIRING DIAGRAM
6. Wiring Diagram](/img/17/57435/w960_57435-1308.png "SUBARU LEGACY 1999 Service Repair Manual C: AIRBAG SYSTEM
29
[D6C0]6-3WIRING DIAGRAM
6. Wiring Diagram")
Page 1310 of 1456
![SUBARU LEGACY 1999 Service Repair Manual D: AIR CONDITIONING SYSTEM
1. LHD MODEL
30
6-3[D6D1]WIRING DIAGRAM
6. Wiring Diagram](/img/17/57435/w960_57435-1309.png "SUBARU LEGACY 1999 Service Repair Manual D: AIR CONDITIONING SYSTEM
1. LHD MODEL
30
6-3[D6D1]WIRING DIAGRAM
6. Wiring Diagram")
