Page 621 of 1456

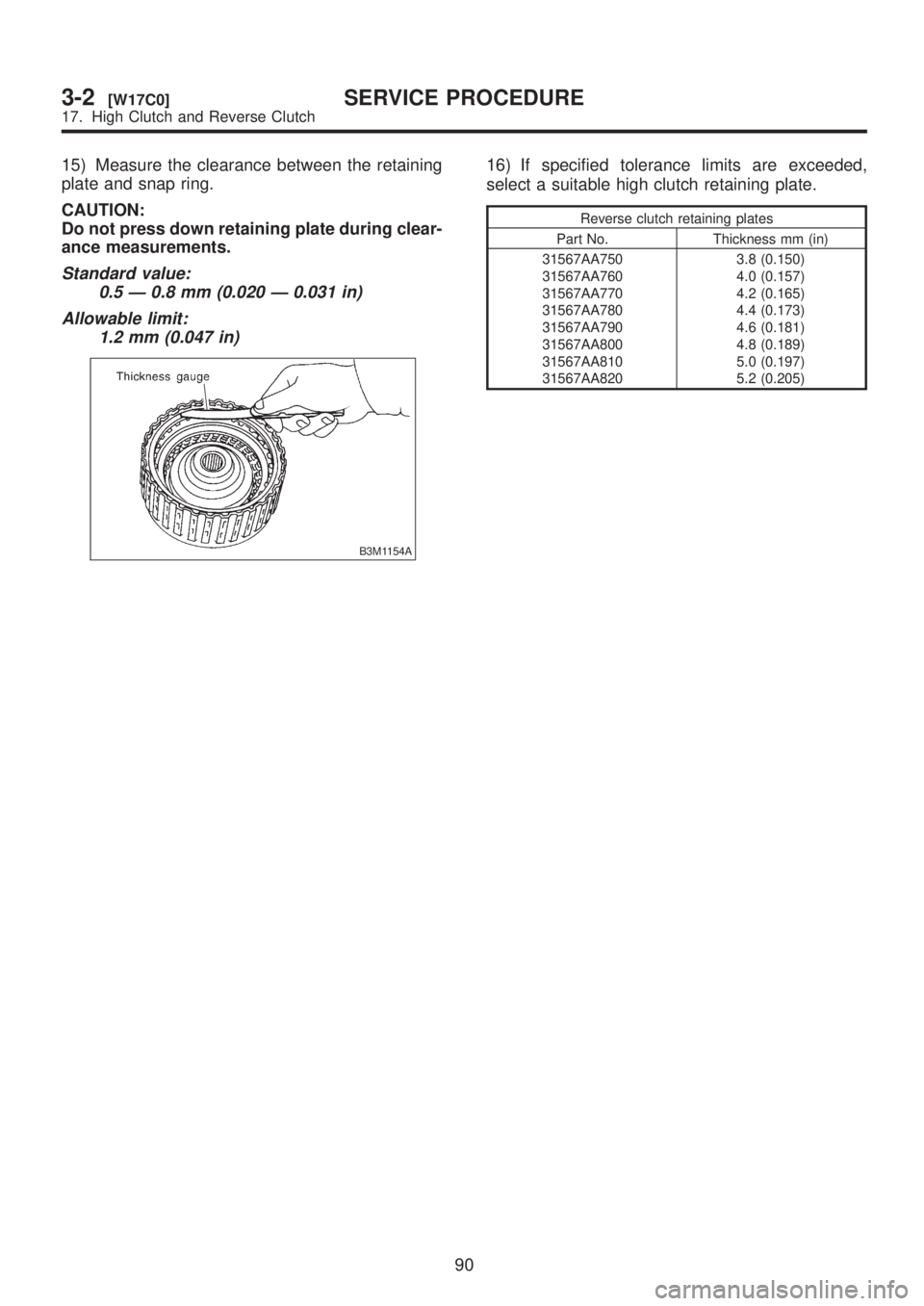

SUBARU LEGACY 1999  Service Repair Manual 15) Measure the clearance between the retaining
plate and snap ring.
CAUTION:
Do not press down retaining plate during clear-
ance measurements.
Standard value:
0.5 Ð 0.8 mm (0.020 Ð 0.031 in)
Allow

Page 622 of 1456

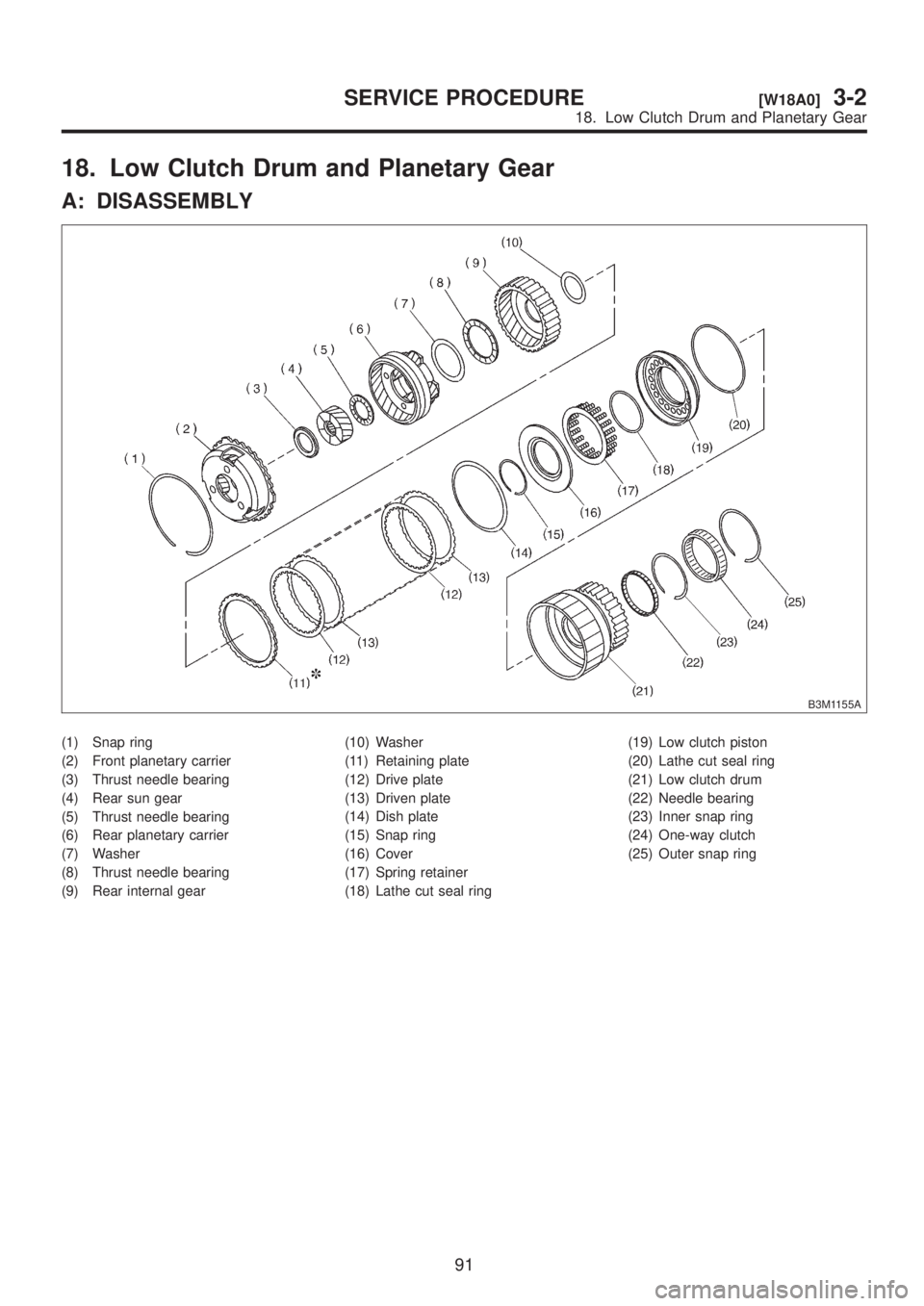

SUBARU LEGACY 1999  Service Repair Manual 18. Low Clutch Drum and Planetary Gear
A: DISASSEMBLY
B3M1155A
(1) Snap ring
(2) Front planetary carrier
(3) Thrust needle bearing
(4) Rear sun gear
(5) Thrust needle bearing
(6) Rear planetary carrie

Page 623 of 1456

SUBARU LEGACY 1999  Service Repair Manual 1) Remove snap ring from the low clutch drum.
B3M1156A
2) Take out front planetary carrier and thrust
needle bearing from low clutch drum.
B3M1157A
3) Take out rear sun gear.
B3M1158A
4) Take out rear

Page 624 of 1456

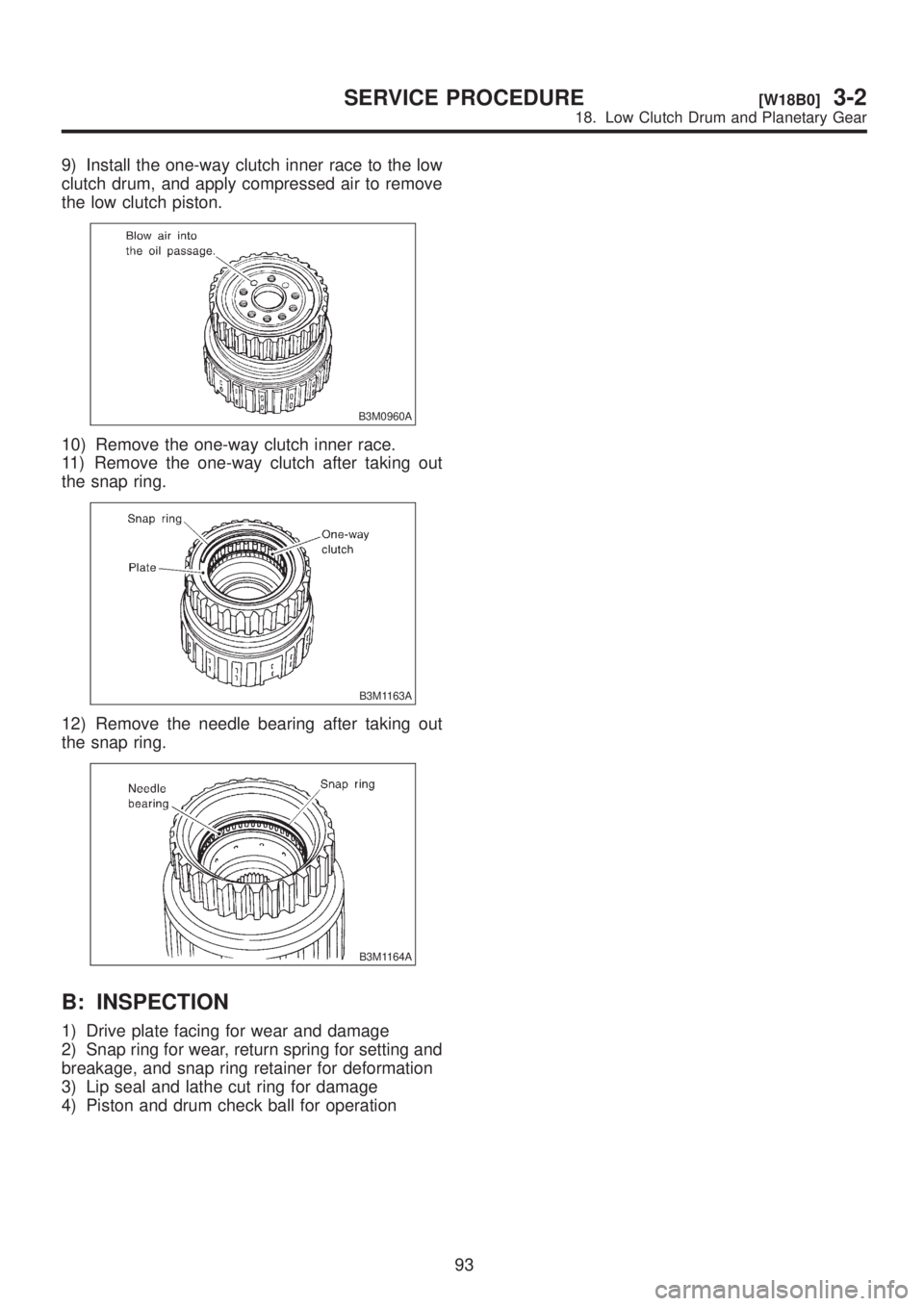

SUBARU LEGACY 1999  Service Repair Manual 9) Install the one-way clutch inner race to the low
clutch drum, and apply compressed air to remove
the low clutch piston.
B3M0960A
10) Remove the one-way clutch inner race.
11) Remove the one-way clu

Page 625 of 1456

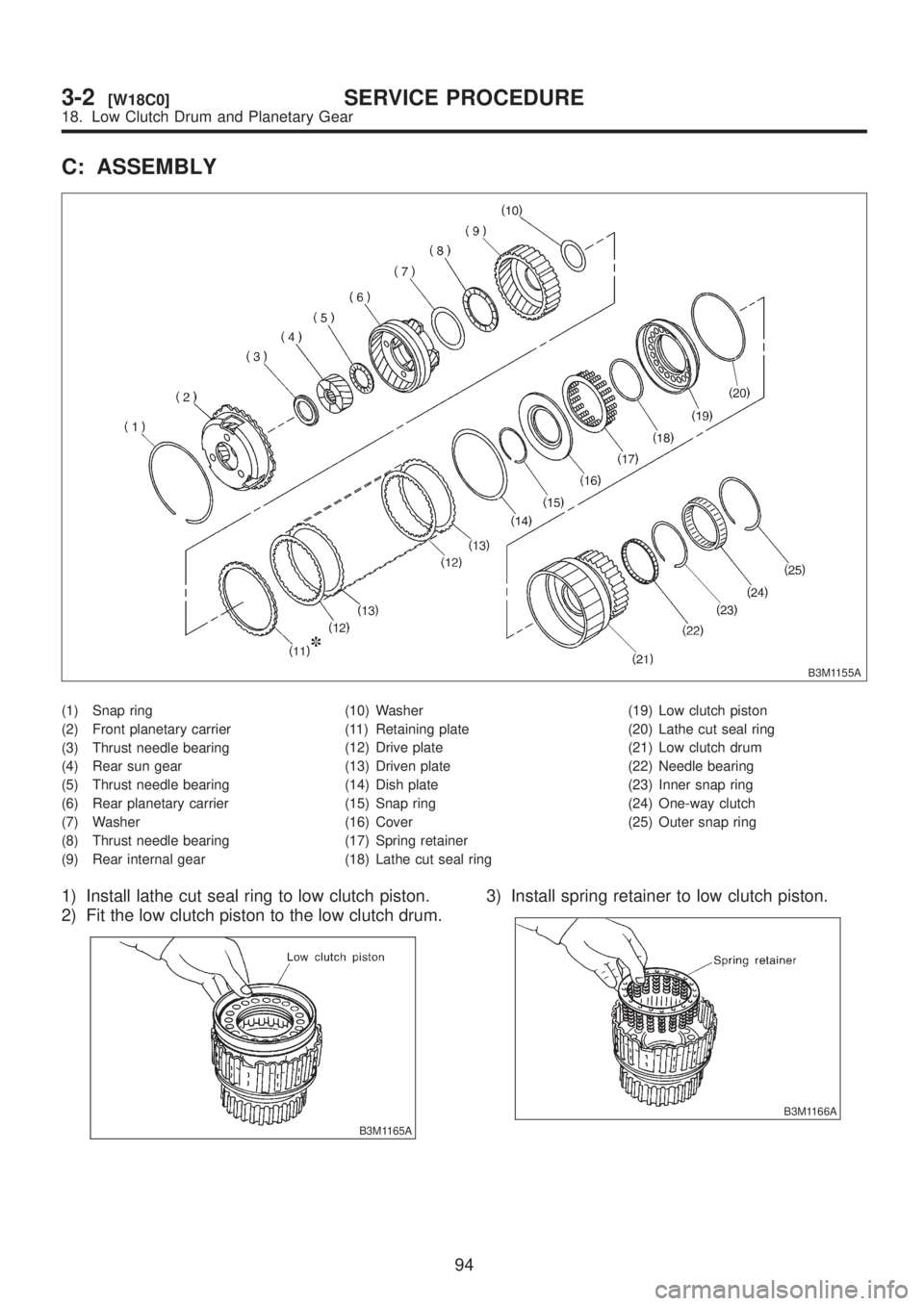

SUBARU LEGACY 1999  Service Repair Manual C: ASSEMBLY
B3M1155A
(1) Snap ring
(2) Front planetary carrier
(3) Thrust needle bearing
(4) Rear sun gear
(5) Thrust needle bearing
(6) Rear planetary carrier
(7) Washer
(8) Thrust needle bearing
(9)

Page 626 of 1456

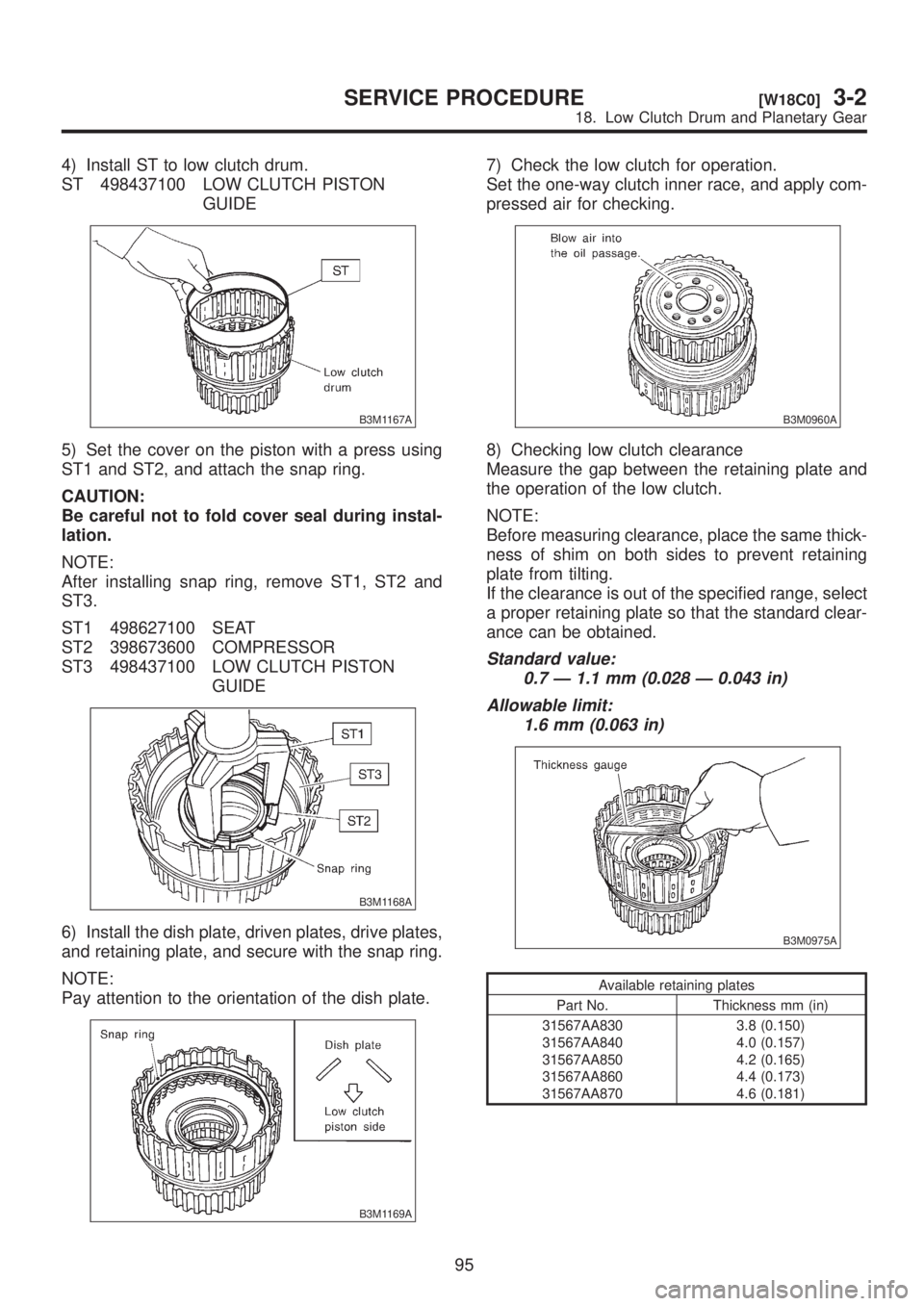

SUBARU LEGACY 1999  Service Repair Manual 4) Install ST to low clutch drum.
ST 498437100 LOW CLUTCH PISTON
GUIDE
B3M1167A
5) Set the cover on the piston with a press using
ST1 and ST2, and attach the snap ring.
CAUTION:
Be careful not to fold

Page 627 of 1456

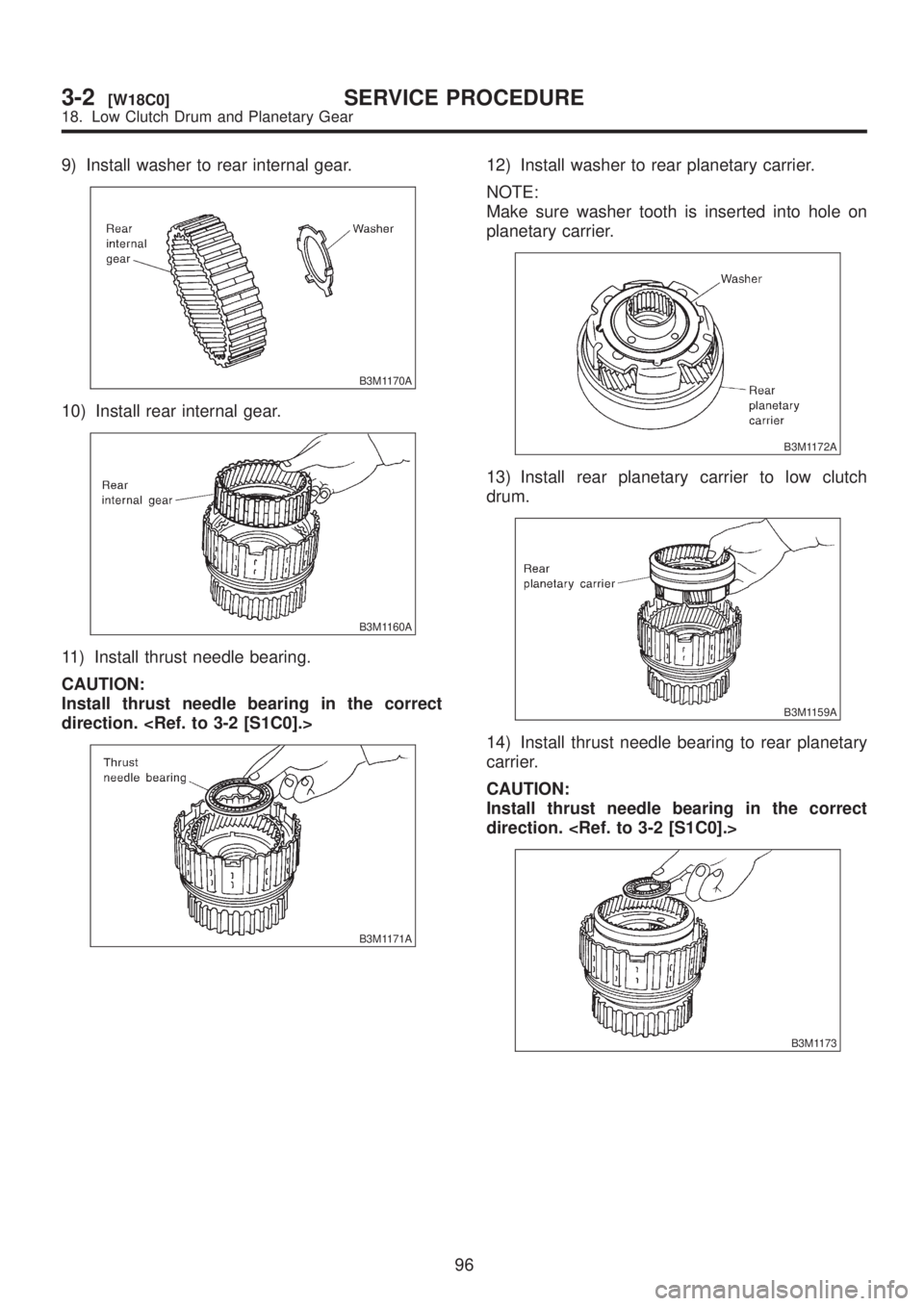

SUBARU LEGACY 1999  Service Repair Manual 9) Install washer to rear internal gear.
B3M1170A
10) Install rear internal gear.
B3M1160A
11) Install thrust needle bearing.
CAUTION:
Install thrust needle bearing in the correct
direction. <Ref. to

Page 628 of 1456

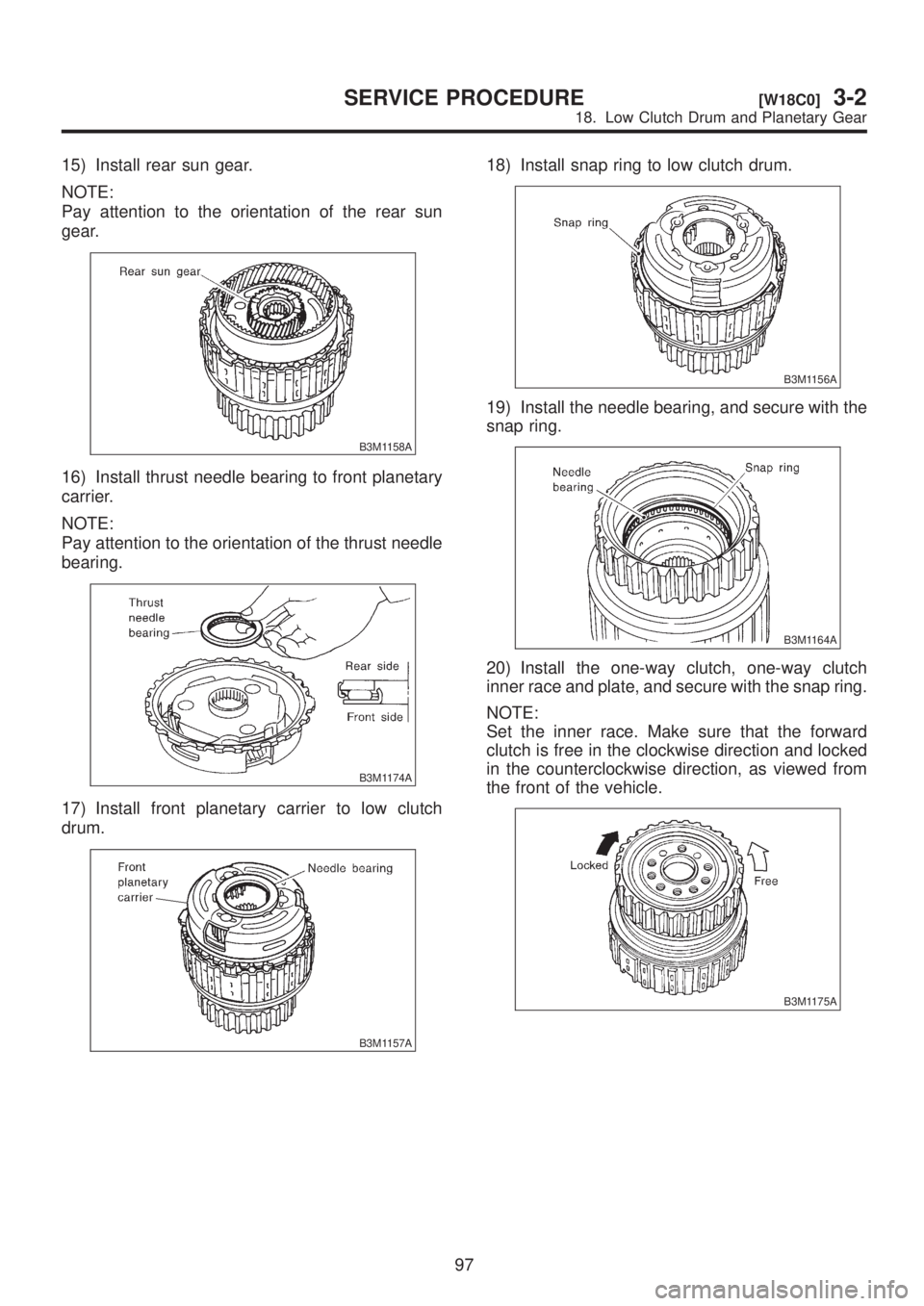

SUBARU LEGACY 1999  Service Repair Manual 15) Install rear sun gear.
NOTE:
Pay attention to the orientation of the rear sun
gear.
B3M1158A
16) Install thrust needle bearing to front planetary
carrier.
NOTE:
Pay attention to the orientation of

Page 629 of 1456

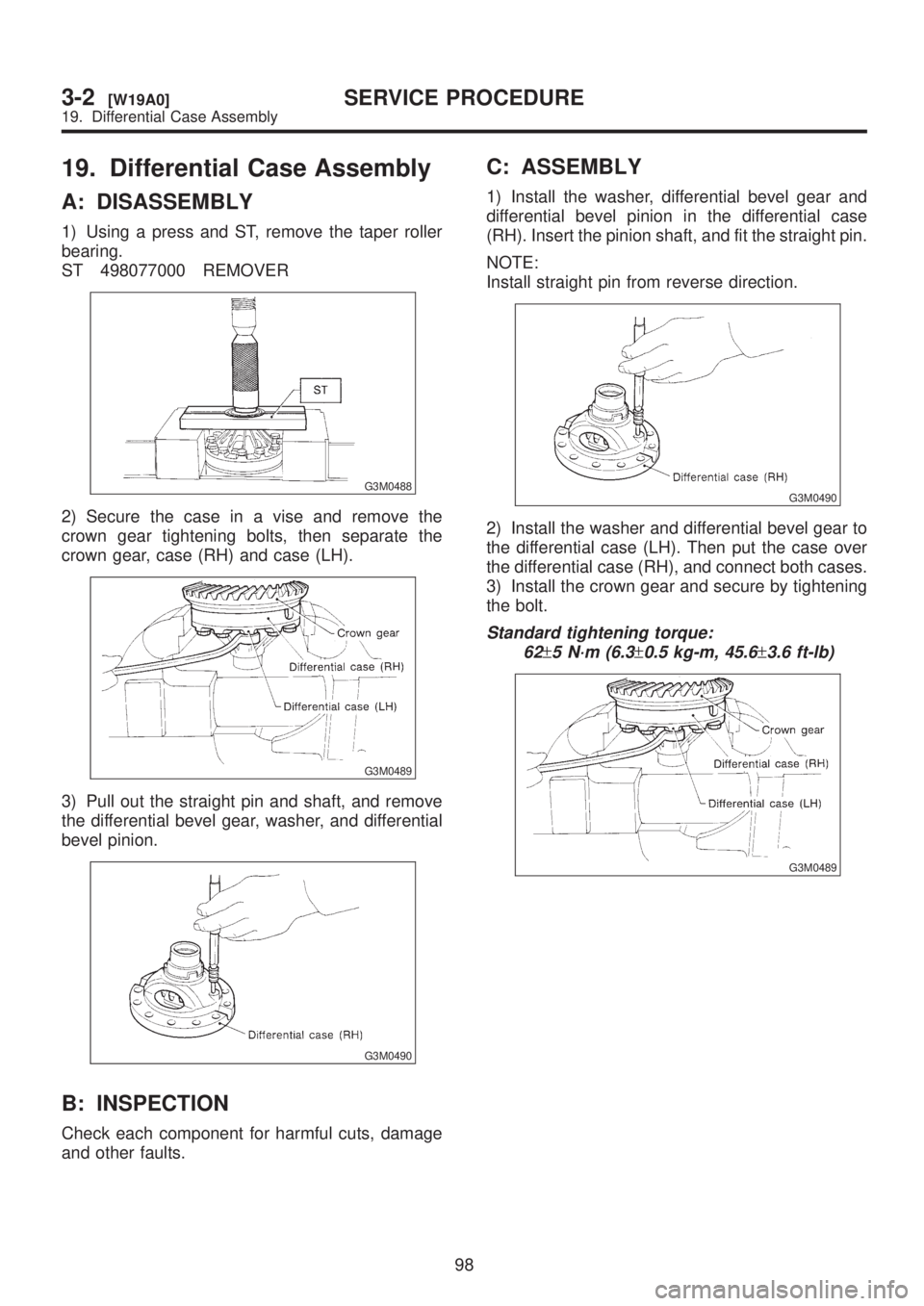

SUBARU LEGACY 1999  Service Repair Manual 19. Differential Case Assembly
A: DISASSEMBLY
1) Using a press and ST, remove the taper roller
bearing.
ST 498077000 REMOVER
G3M0488
2) Secure the case in a vise and remove the
crown gear tightening b

Page 630 of 1456

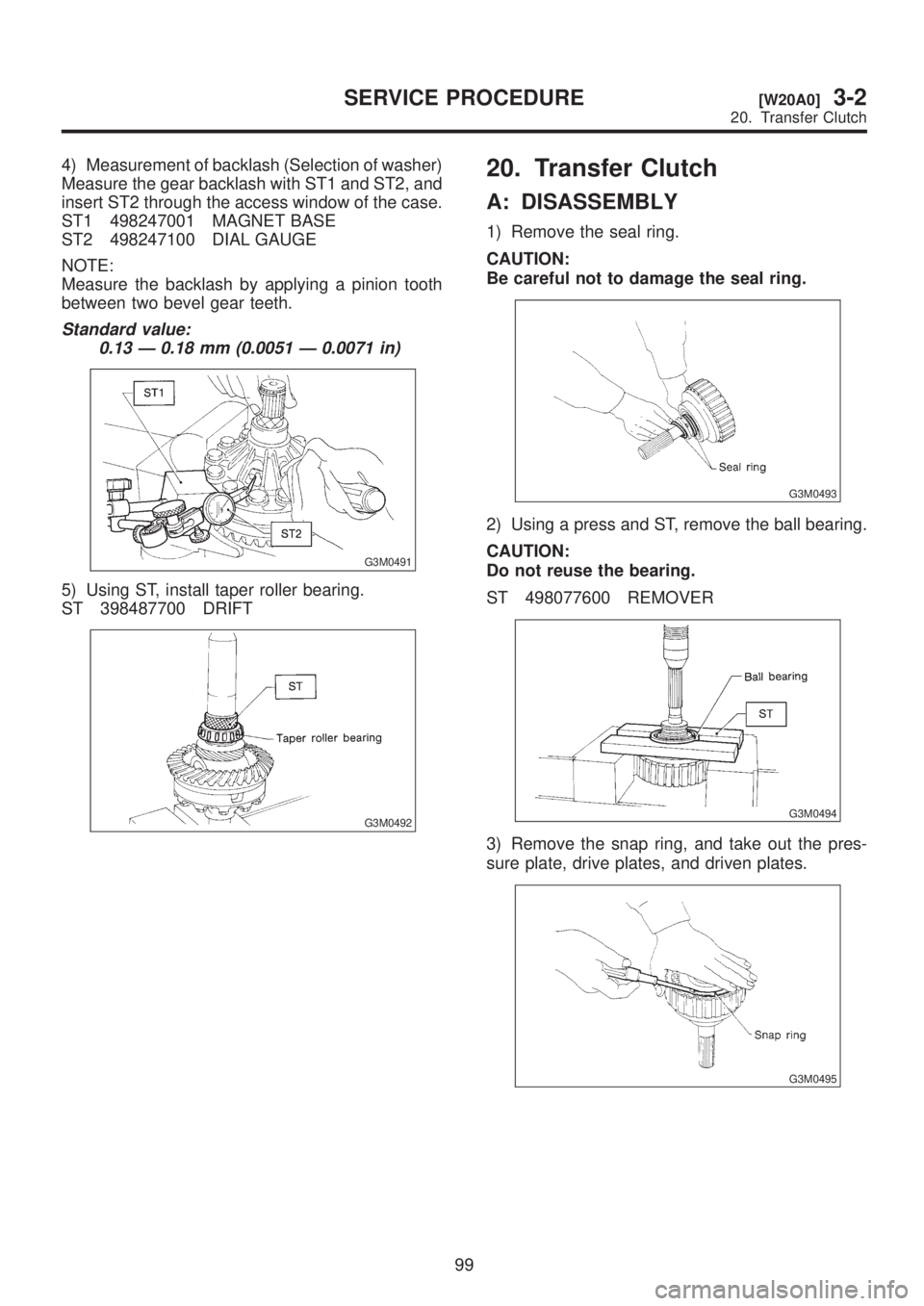

SUBARU LEGACY 1999  Service Repair Manual 4) Measurement of backlash (Selection of washer)
Measure the gear backlash with ST1 and ST2, and
insert ST2 through the access window of the case.
ST1 498247001 MAGNET BASE
ST2 498247100 DIAL GAUGE
NO
