311 3-2. Using the audio system
3
Interior features
HILUX_EE (OM0K132E)
Turning the power on
Press the “MODE” button when the audio system is turned off.
Changing the audio source
Press the “MODE” button when the audio system is turned on. The
audio source changes as follows each time the button is pressed.
AM  FM1  FM2  CD mode 
iPod or USB memory mode  AUX  AM
Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the
volume.
Hold down the button to continue increasing or decreasing the volume.
Silencing a sound
Press and hold the “MODE” button.
To cancel, press and hold the “MODE” button.

312 3-2. Using the audio system
HILUX_EE (OM0K132E)
Selecting a radio station
Press the “MODE” button to select the radio mode.
Press “” or “” on to select a radio station.
To scan for receivable stations, press and hold “” or “” on the but-
ton until you hear a beep.
Selecting a track/file or song
Press the “MODE” button to select CD, iPod or USB memory
mode.
Press “” or “” on to select the desired track/file or
song.
Selecting a folder
Press the “MODE” button to select CD or USB memory mode.
Press and hold “” or “” on until you hear a beep.
CAUTION
To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2

313
3
Interior features
HILUX_EE (OM0K132E)
3-3. Using the “touch screen”
Touch screen
By touching the screen with your finger, you can control the audio
system and hands-free system, etc.
This illustration is for left-hand drive vehicle.
ButtonFunction
“MEDIA”Audio system (P. 3 2 3 )
“”Hands-free system (P. 382)
“SETUP”Setup menu (P. 315)
“MAP NAV”
Add-on external system with
functions such as a navigation
system

314 3-3. Using the “touch screen”
HILUX_EE (OM0K132E)
To avoid damaging the touch screen
Touch the screen lightly with your finger. If there is no response, remove
your finger from the screen and try again.
Remove any dirt on the screen by wiping with a soft cloth. Do not use
detergent.
When using the touch screen
If the screen is cold, the display may be dark, or the system may seem to
be operating slightly slower than normal.
The screen may seem dark and hard to see when viewed through sun-
glasses. Change your angle of viewing, adjust the display on the “Display
settings” screen (P. 318) or remove your sunglasses.

315
3-3. Using the “touch screen”
3
Interior features
HILUX_EE (OM0K132E)
Setup menu
You can change the “touch screen” to your desired setting.
Press “SETUP” to display the “Setup” screen.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
SwitchPage
“General”P. 316
“Display”P. 318
“Bluetooth*”P. 423
“Telephone”P. 406
“Audio”P. 320

316 3-3. Using the “touch screen”
HILUX_EE (OM0K132E)
General settings
This screen is used for various settings such as language selection
and setting operation sounds.
Press “SETUP”.
Touch “General” on the “Setup” screen.
Select language (P. 317)
Beep on/off
Display captured image on/off
“On” or “Off” can be selected to
display captured image/iPod
cover art in the screen.
Animation on/off
The animation effect for audio
source selection screen can be
set to “On” or “Off”.
Personal data can be deleted.
(P. 317)
When you complete settings, touch “OK”.
STEP1
STEP2
STEP3

317 3-3. Using the “touch screen”
3
Interior features

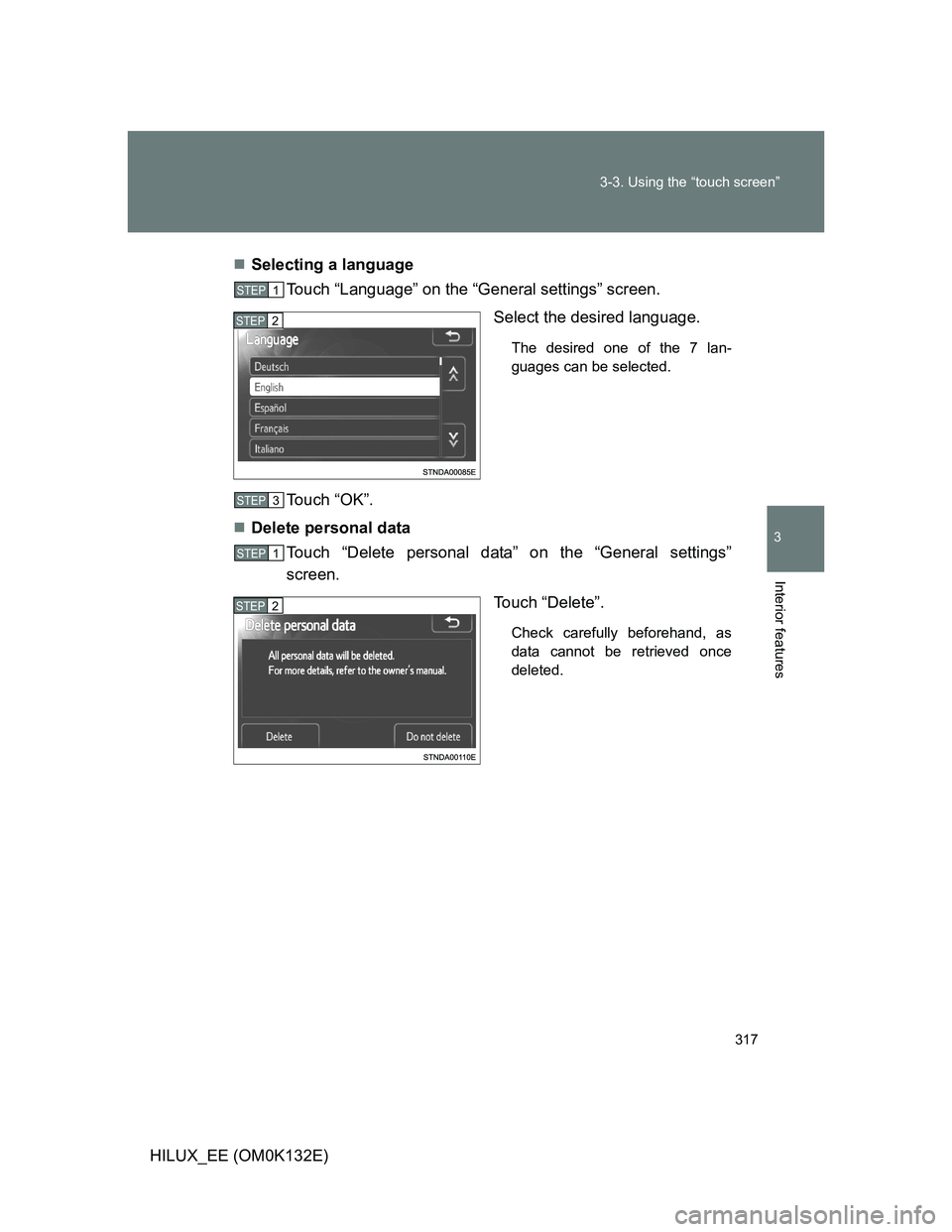

HILUX_EE (OM0K132E)Selecting a language
Touch “Language” on the “General settings” screen.
Select the desired language.
The desired one of the 7 lan-
guages can be selected.
Touch “OK”.
Delete personal data
Touch “Delete personal data” on the “General settings”
screen.
Touch “Delete”.
Check carefully beforehand, as
data cannot be retrieved once
deleted.
STEP1
STEP2
STEP3
STEP1
STEP2

318 3-3. Using the “touch screen”
HILUX_EE (OM0K132E)A confirmation screen will be displayed. Touch “Yes”.
The following personal data can be deleted or turned to their default
settings.
• Phonebook data
• Call history data
• Speed dial data
• Bluetooth
 devices data
• Phone sound settings
• Detailed Bluetooth
 settings
• Audio settings
Display settings
Press “SETUP”.
Touch “Display” on the “Setup” screen.
Turn off screen
The screen is turned off. To turn it
on, press any button such as
“MEDIA” or “SETUP”.
Changes to day mode.
(P. 319)
Adjust screen contrast/bright-
ness (P. 319)
Adjust screen contrast/bright-
ness of rear view monitor
camera (P. 319)
STEP3
STEP1
STEP2

319 3-3. Using the “touch screen”
3
Interior features
HILUX_EE (OM0K132E)Changing between day mode and night mode
When the headlights are turned on, the screen dims.
However, the screen can be switched to day mode by touching
“Day mode”.
The screen will stay in day mode when the headlights are turned on until
“Day mode” is touched again.
Adjusting the screen contrast/brightness
Touch “General” or “Camera” on the “Display settings” screen.
Adjust the display as desired
using “+” or “-”.
Select “Contrast” or “Brightness”
using the “<<” or “>>”.
Touch “OK”.
STEP1
STEP2
“-”“+”
“Contrast”WeakerStronger
“Brightness”DarkerBrighter
STEP3

320 3-3. Using the “touch screen”
HILUX_EE (OM0K132E)
Audio settings
Press “SETUP”.
Touch “Audio” on the “Setup” screen.
Adjust sound settings (P.
320)
Radio settings (P. 322)
Adjust sound settings
Touch “Sound settings” on the “Audio settings” screen.
“Sound” tab
Touch “-” or “+” to adjust
the treble, mid or bass to
a level between -5 to 5.
Touch “Front” or “Rear” to
adjust the front/rear audio
balance to a level between
Front 7 and Rear 7.
Touch “L” or “R” to adjust
the left/right audio balance
to a level between L7 and
R7.
STEP1
STEP2
STEP1
