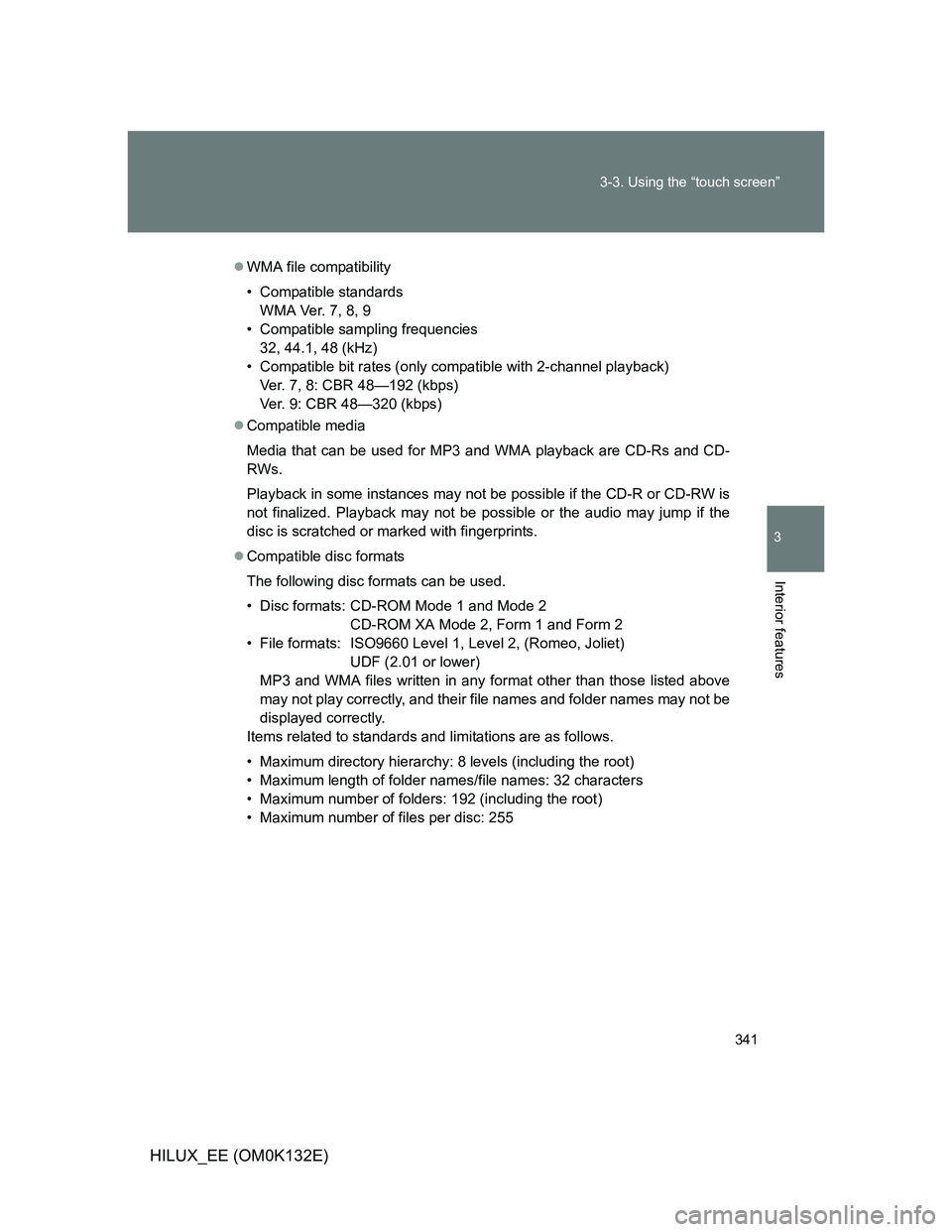

341 3-3. Using the “touch screen”
3
Interior features
HILUX_EE (OM0K132E)
WMA file compatibility
• Compatible standards
WMA Ver. 7, 8, 9
• Compatible sampling frequencies
32, 44.1, 48 (kHz)
• Compatible bit rates (only compatible with 2-channel playback)
Ver. 7, 8: CBR 48—192 (kbps)
Ver. 9: CBR 48—320 (kbps)
Compatible media
Media that can be used for MP3 and WMA playback are CD-Rs and CD-
RWs.
Playback in some instances may not be possible if the CD-R or CD-RW is
not finalized. Playback may not be possible or the audio may jump if the
disc is scratched or marked with fingerprints.
Compatible disc formats
The following disc formats can be used.
• Disc formats: CD-ROM Mode 1 and Mode 2
CD-ROM XA Mode 2, Form 1 and Form 2
• File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet)
UDF (2.01 or lower)
MP3 and WMA files written in any format other than those listed above
may not play correctly, and their file names and folder names may not be
displayed correctly.
Items related to standards and limitations are as follows.
• Maximum directory hierarchy: 8 levels (including the root)
• Maximum length of folder names/file names: 32 characters
• Maximum number of folders: 192 (including the root)
• Maximum number of files per disc: 255

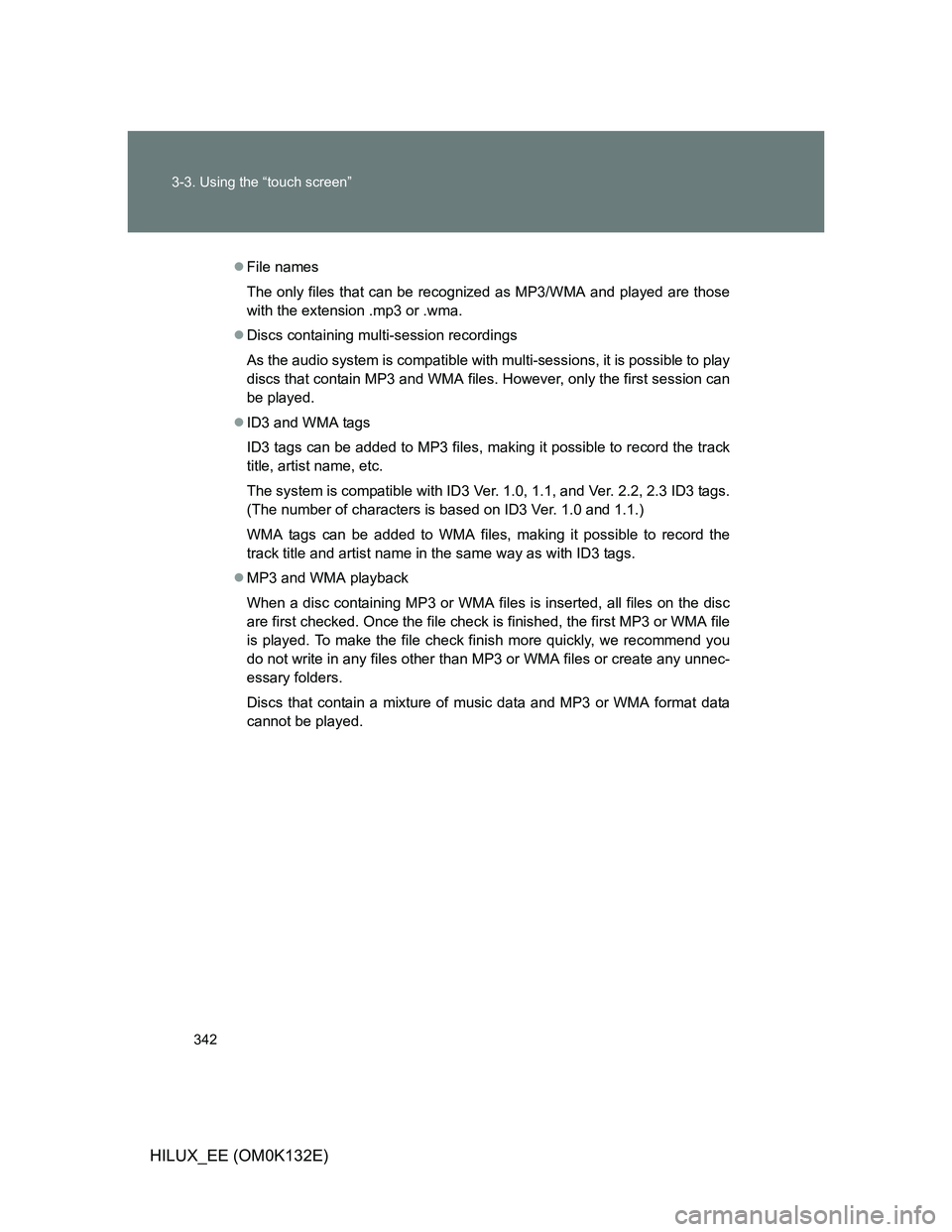

342 3-3. Using the “touch screen”
HILUX_EE (OM0K132E)
File names
The only files that can be recognized as MP3/WMA and played are those
with the extension .mp3 or .wma.
Discs containing multi-session recordings
As the audio system is compatible with multi-sessions, it is possible to play
discs that contain MP3 and WMA files. However, only the first session can
be played.
ID3 and WMA tags
ID3 tags can be added to MP3 files, making it possible to record the track
title, artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags.
(The number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the
track title and artist name in the same way as with ID3 tags.
MP3 and WMA playback
When a disc containing MP3 or WMA files is inserted, all files on the disc
are first checked. Once the file check is finished, the first MP3 or WMA file
is played. To make the file check finish more quickly, we recommend you
do not write in any files other than MP3 or WMA files or create any unnec-
essary folders.
Discs that contain a mixture of music data and MP3 or WMA format data
cannot be played.

343 3-3. Using the “touch screen”
3
Interior features
HILUX_EE (OM0K132E)
Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and
WMA files, they may be mistakenly recognized and played as MP3 and
WMA files. This may result in large amounts of interference and damage
to the speakers.
Playback
• To play MP3 files with steady sound quality, we recommend a fixed bit
rate of at least 128 kbps and a sampling frequency of 44.1 kHz.
• CD-R or CD-RW playback may not be possible in some instances,
depending on the characteristics of the disc.
• There is a wide variety of freeware and other encoding software for MP3
and WMA files on the market, and depending on the status of the encod-
ing and the file format, poor sound quality or noise at the start of play-
back may result. In some cases, playback may not be possible at all.
• When files other than MP3 or WMA files are recorded on a disc, it may
take more time to recognize the disc and in some cases, playback may
not be possible at all.
• Microsoft, Windows, and Windows Media are the registered trademarks
of Microsoft Corporation in the U.S.A. and other countries

344 3-3. Using the “touch screen”
HILUX_EE (OM0K132E)
NOTICE
Discs and adapters that cannot be used
Do not use the following types of discs, 8 cm (3 in.) disc adapters or Dual
Discs.
Doing so may damage the player and/or disc insert/eject function.
Discs that have a diameter that is not
12 cm (4.7 in.).
Low-quality or deformed discs.
Discs with a transparent or translucent
recording area.
Discs that have tape, stickers or CD-R
labels attached to them, or that have
had the label peeled off.

345 3-3. Using the “touch screen”
3
Interior features
HILUX_EE (OM0K132E)
NOTICE
Player precautions
Failure to follow the precautions below may result in damage to the discs or
the player itself.
Do not insert anything other than discs into the disc slot.
Do not apply oil to the player.
Store discs away from direct sunlight.
Never try to disassemble any part of the player.

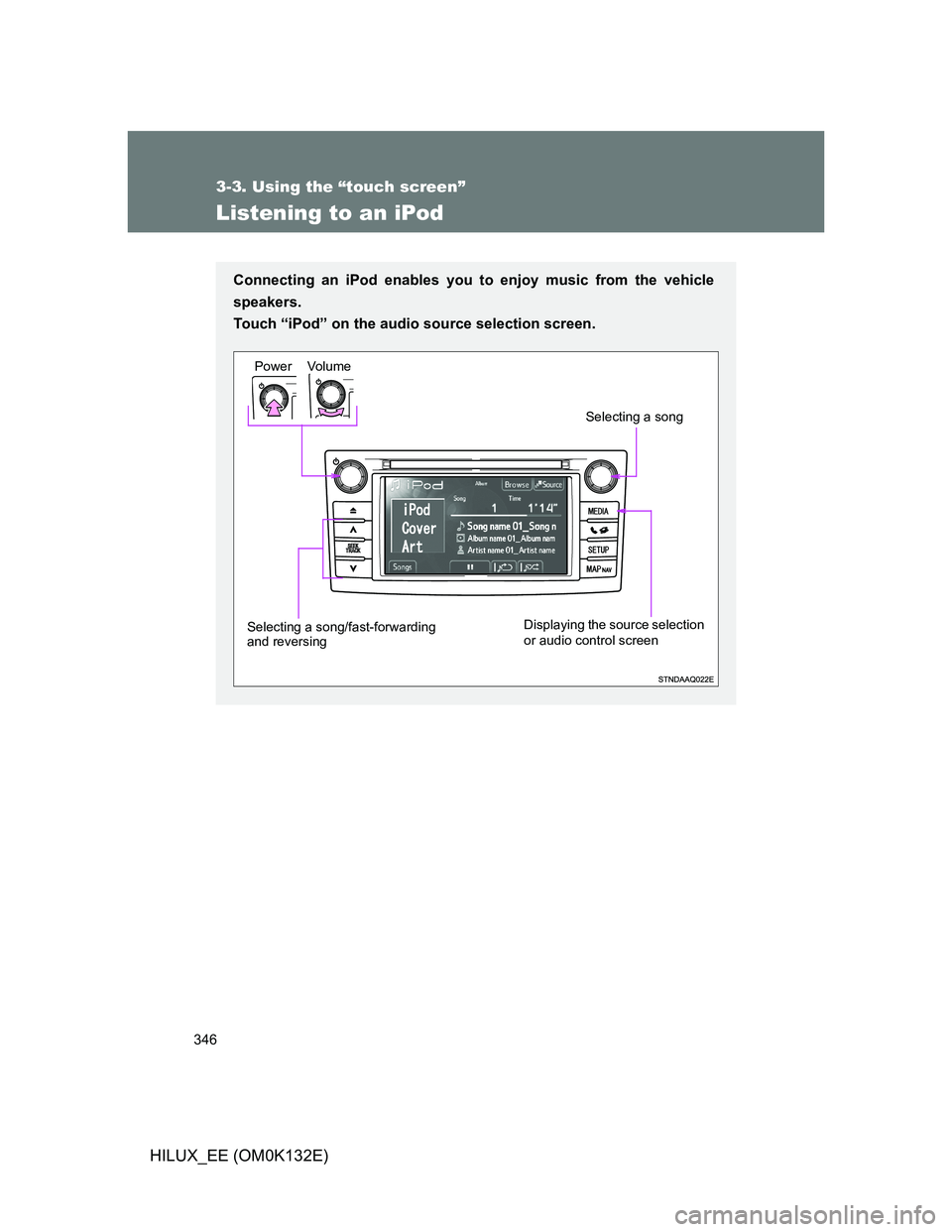

346
3-3. Using the “touch screen”
HILUX_EE (OM0K132E)
Listening to an iPod
Connecting an iPod enables you to enjoy music from the vehicle
speakers.
Touch “iPod” on the audio source selection screen.
Vo lu m e Power
Selecting a song/fast-forwarding
and reversingDisplaying the source selection
or audio control screen
Selecting a song

347 3-3. Using the “touch screen”
3
Interior features
HILUX_EE (OM0K132E)
Audio control screen
Pressing “MEDIA” displays the audio control screen from any
screens of the selected source.
Audio source selection
screen appears
Selecting the play mode
Displaying the song list
Pause
Touch to playback
Repeat play
Shuffle play

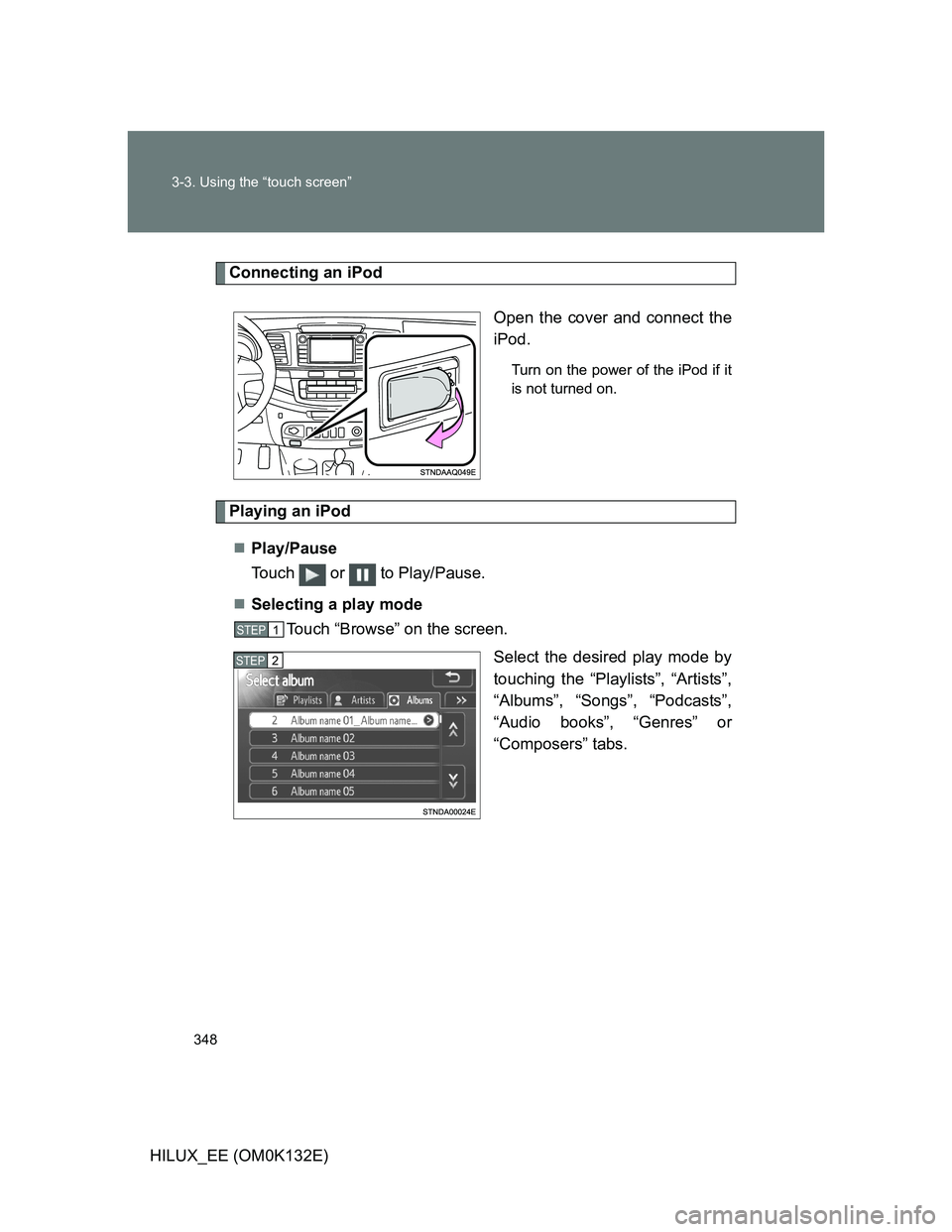

348 3-3. Using the “touch screen”
HILUX_EE (OM0K132E)
Connecting an iPod
Open the cover and connect the
iPod.
Turn on the power of the iPod if it
is not turned on.
Playing an iPod
Play/Pause
Touch or to Play/Pause.
Selecting a play mode
Touch “Browse” on the screen.
Select the desired play mode by
touching the “Playlists”, “Artists”,
“Albums”, “Songs”, “Podcasts”,
“Audio books”, “Genres” or
“Composers” tabs.
STEP1
STEP2

349 3-3. Using the “touch screen”
3
Interior features
HILUX_EE (OM0K132E)
Selecting, fast-forwarding and reversing songs
Selecting one song at a time
Press “” or “” on “SEEK/TRACK” or turn to select the
desired song.
To fast-forward or reverse, press and hold “” or “” on “SEEK/TRACK”
until you hear a beep.
Selecting a song from the list
Touch “Songs” on the screen.
Touch the desired song.
STEP1
STEP2

350 3-3. Using the “touch screen”
HILUX_EE (OM0K132E)
Shuffle play
Each time is touched, the mode changes in the following
order:
When a large number of songs is stored in an iPod, shuffle selection may
take time.
Repeat play
Each time is touched, the mode changes in the following
order:
: Playing the songs in shuffle
: Playing the albums in the iPod in shuffle
: Off
: Repeating the song
: Off
