TOYOTA HILUX 2012 Owners Manual (in English)

371 3-3. Using the “touch screen”
3
Interior features
HILUX_EE (OM0K132E)

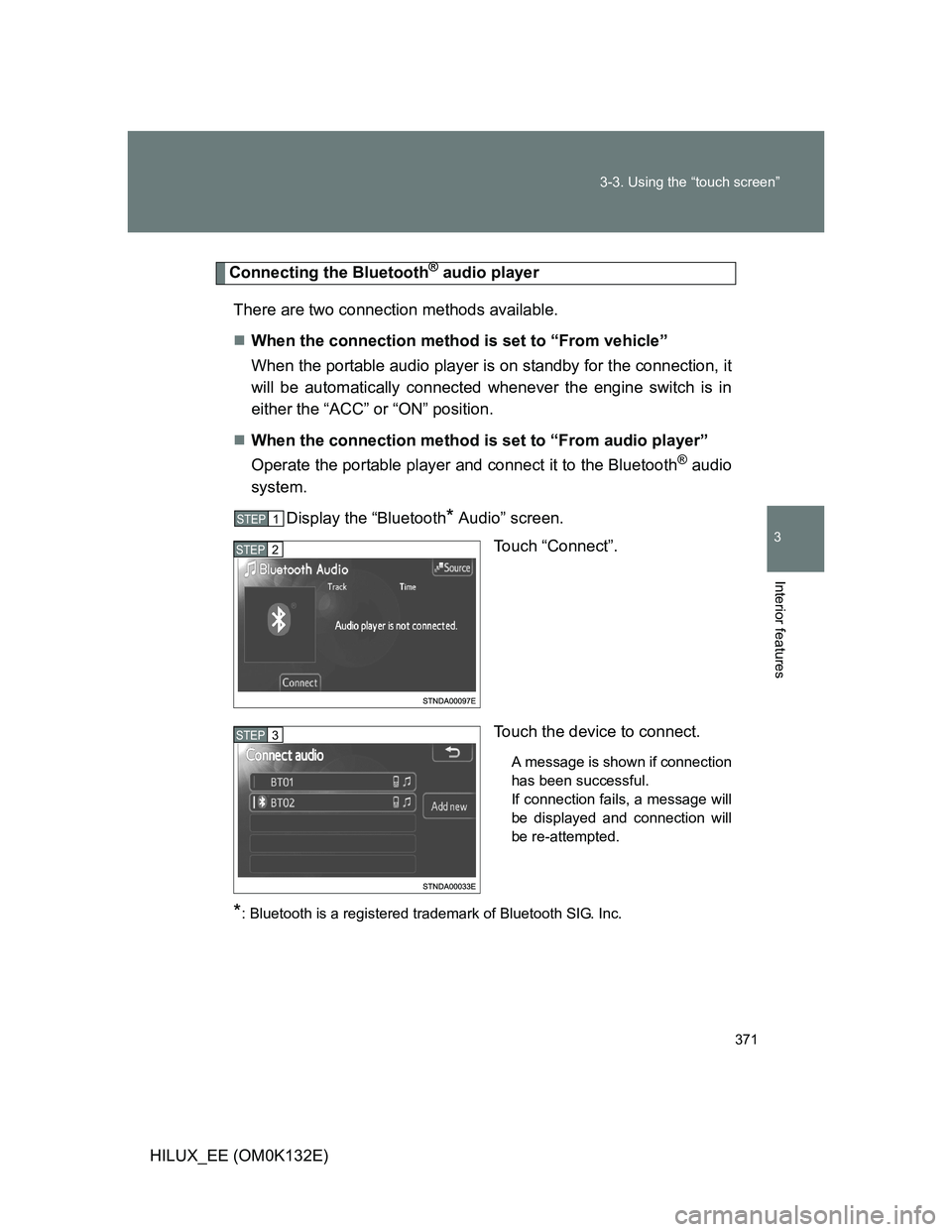

Connecting the Bluetooth® audio player
There are two connection methods available.
When the connection method is set to “From vehicle”
When the portable audio player is on standby for the connection, it
will be automatically connected whenever the engine switch is in
either the “ACC” or “ON” position.
When the connection method is set to “From audio player”
Operate the portable player and connect it to the Bluetooth
® audio
system.
Display the “Bluetooth
* Audio” screen.
Touch “Connect”.
Touch the device to connect.
A message is shown if connection
has been successful.
If connection fails, a message will
be displayed and connection will
be re-attempted.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP1
STEP2
STEP3

372 3-3. Using the “touch screen”
HILUX_EE (OM0K132E)

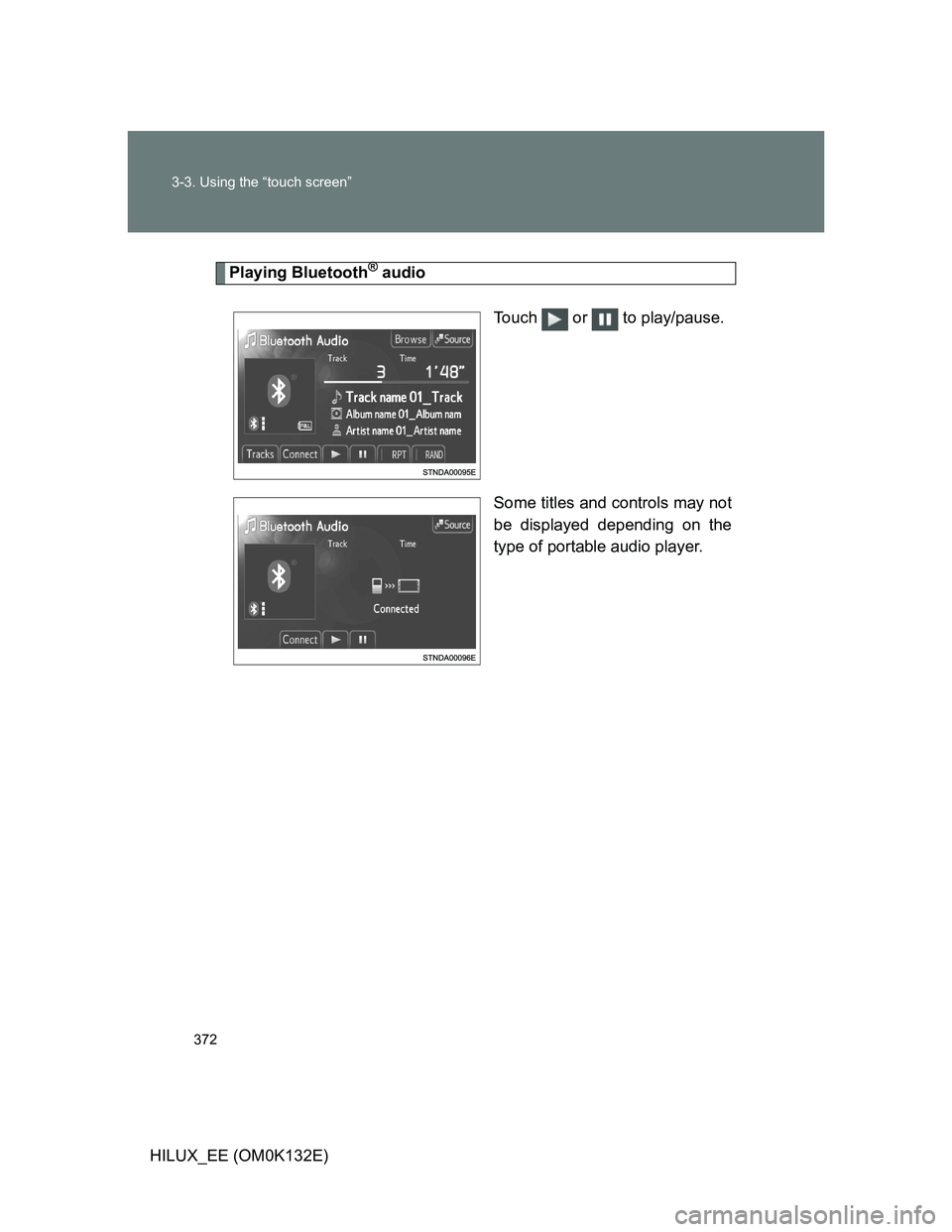

Playing Bluetooth® audio
Touch or to play/pause.
Some titles and controls may not
be displayed depending on the
type of portable audio player.

373 3-3. Using the “touch screen”
3
Interior features
HILUX_EE (OM0K132E)

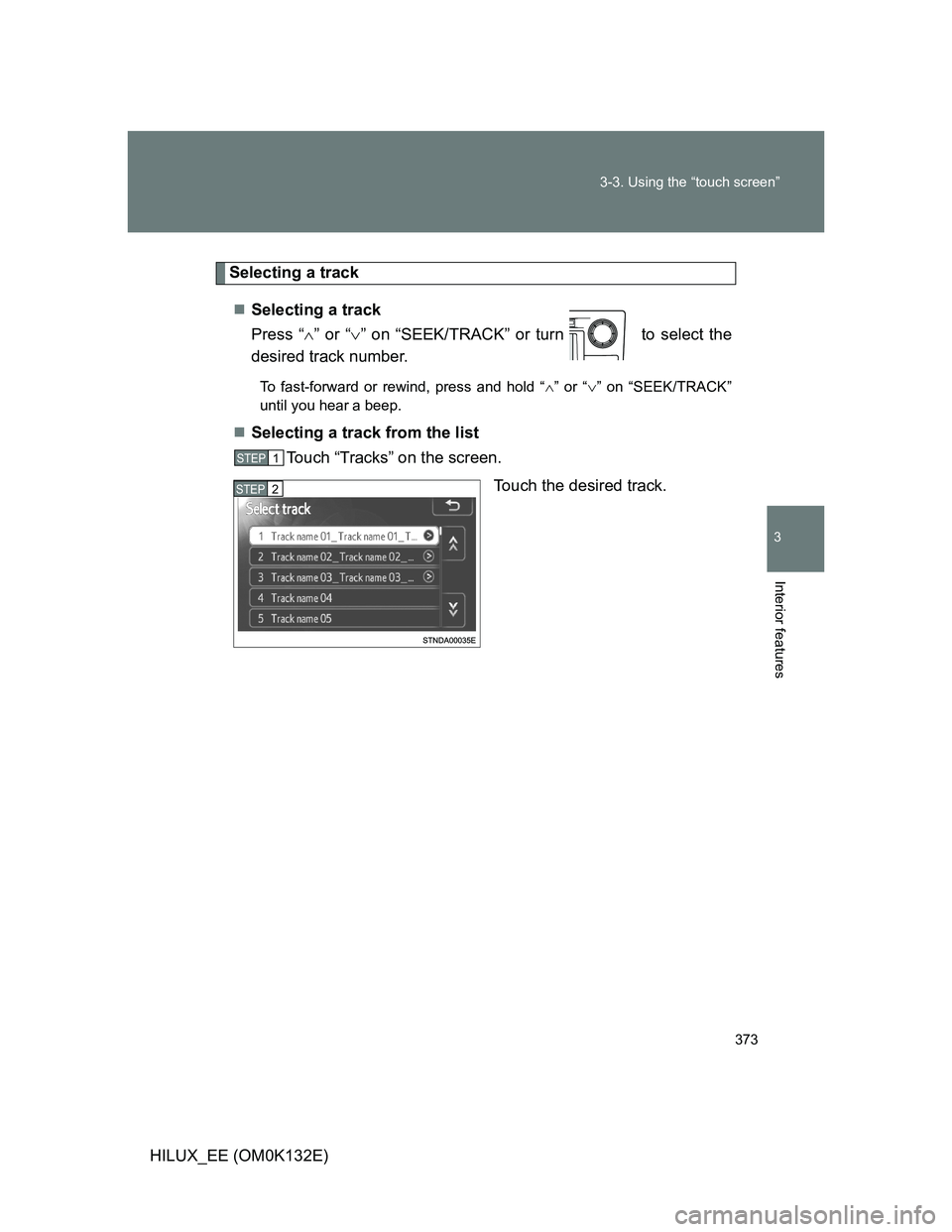

Selecting a track
Selecting a track
Press “” or “” on “SEEK/TRACK” or turn to select the
desired track number.
To fast-forward or rewind, press and hold “” or “” on “SEEK/TRACK”
until you hear a beep.
Selecting a track from the list
Touch “Tracks” on the screen.
Touch the desired track.
STEP1
STEP2

374 3-3. Using the “touch screen”
HILUX_EE (OM0K132E)

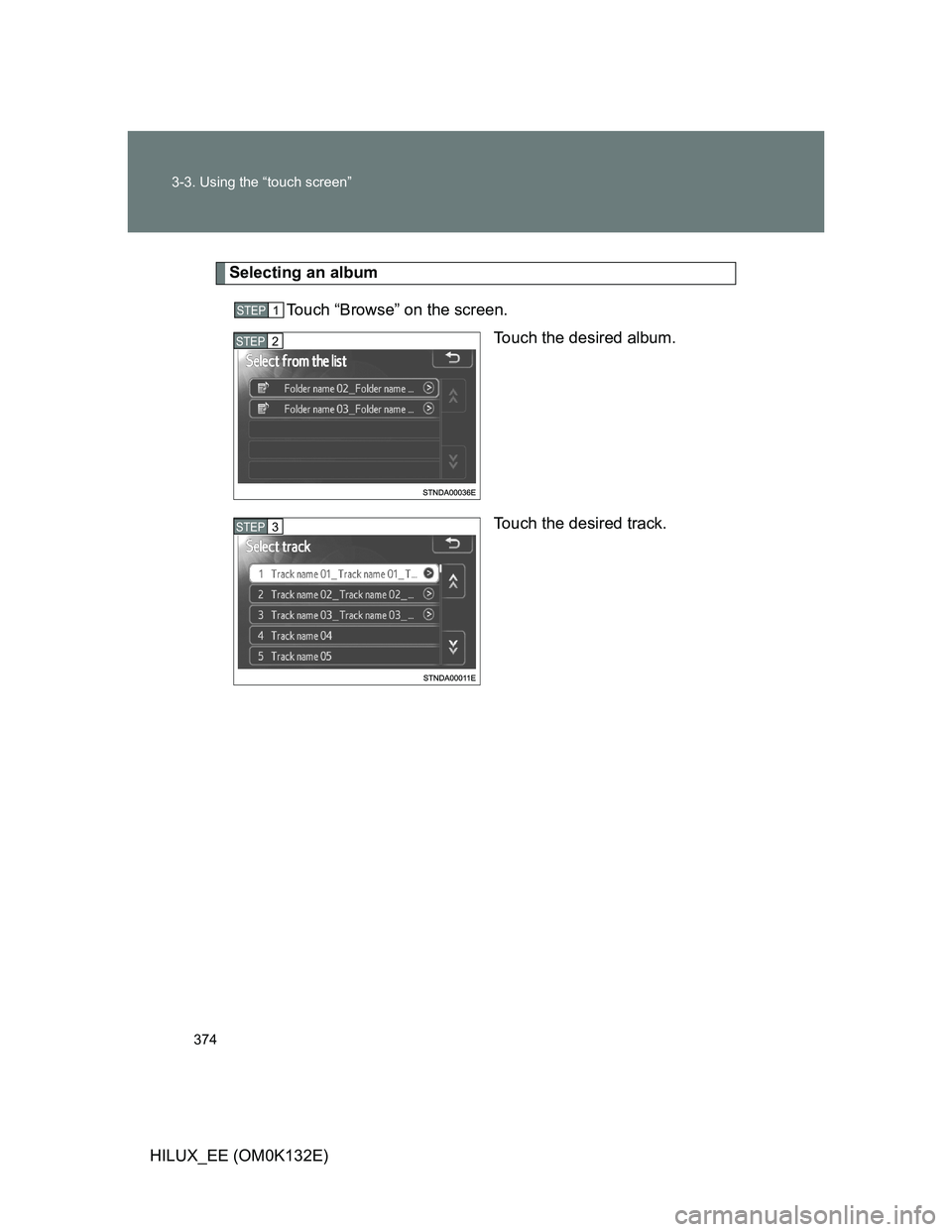

Selecting an album
Touch “Browse” on the screen.
Touch the desired album.
Touch the desired track.
STEP1
STEP2
STEP3

375 3-3. Using the “touch screen”
3
Interior features
HILUX_EE (OM0K132E)

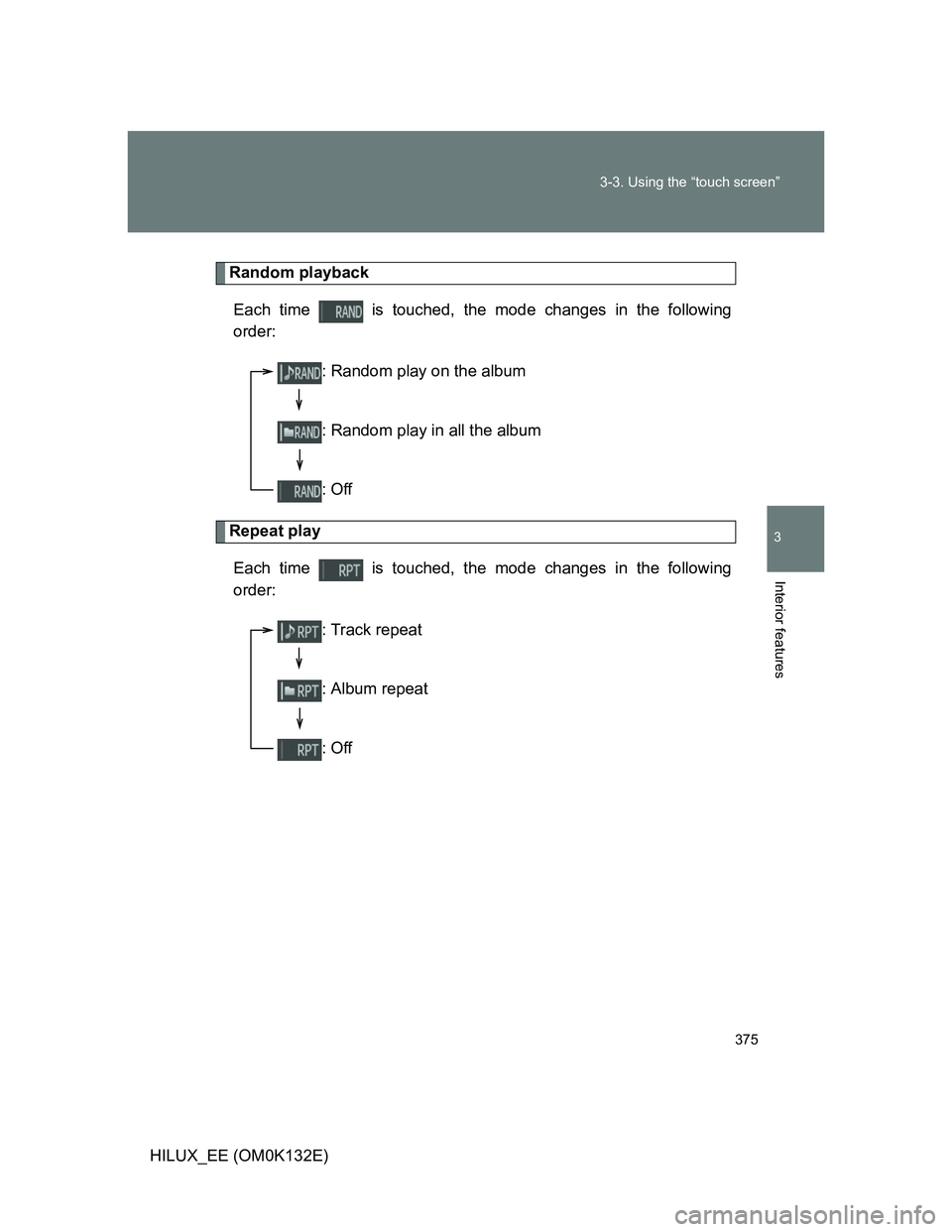

Random playback
Each time is touched, the mode changes in the following
order:
Repeat play
Each time is touched, the mode changes in the following
order:
: Random play on the album
: Random play in all the album
: Off
: Track repeat
: Album repeat
: Off

376 3-3. Using the “touch screen”
HILUX_EE (OM0K132E)
When using the Bluetooth® audio system
In the following conditions, the system may not function.
• If the portable audio player is turned off
• If the portable audio player is not connected
• If the portable audio player’s battery is low
There may be a delay if phone connection is carried out during Blue-
tooth
® audio play.
Depending on the type of portable audio player that is connected to the
system, operation may differ slightly and certain functions may not be
available.
Bluetooth
® antenna
The antenna is built into the display. If the portable audio player is behind the
seat or in the glove box or console box, or is touching or covered by metal
objects, connection status may deteriorate.
Battery charge/signal status
This display may not correspond exactly with the portable audio player, and
this system does not have a charging function.
About Bluetooth
®
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
The Bluetooth wordmark and logo are
owned by Bluetooth SIG. and permission
has been granted to use the trademark of
the licensee Panasonic Corporation.
Other trademarks and trade names are
owned by various different owners.

377 3-3. Using the “touch screen”
3
Interior features
HILUX_EE (OM0K132E)

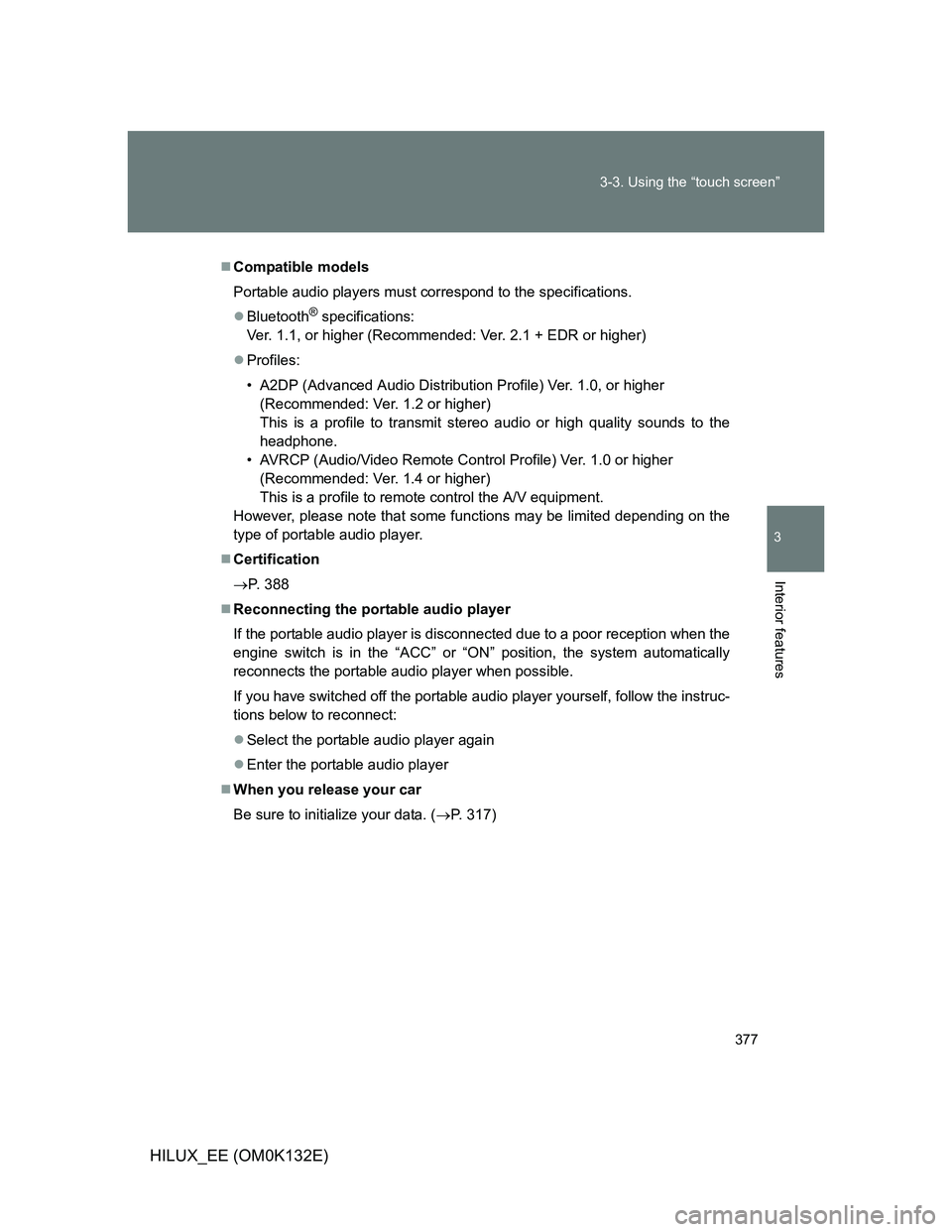

Compatible models
Portable audio players must correspond to the specifications.
Bluetooth
® specifications:
Ver. 1.1, or higher (Recommended: Ver. 2.1 + EDR or higher)
Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher
(Recommended: Ver. 1.2 or higher)
This is a profile to transmit stereo audio or high quality sounds to the
headphone.
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher
(Recommended: Ver. 1.4 or higher)
This is a profile to remote control the A/V equipment.
However, please note that some functions may be limited depending on the
type of portable audio player.
Certification
P. 388
Reconnecting the portable audio player
If the portable audio player is disconnected due to a poor reception when the
engine switch is in the “ACC” or “ON” position, the system automatically
reconnects the portable audio player when possible.
If you have switched off the portable audio player yourself, follow the instruc-
tions below to reconnect:
Select the portable audio player again
Enter the portable audio player
When you release your car
Be sure to initialize your data. (P. 317)

378 3-3. Using the “touch screen”
HILUX_EE (OM0K132E)

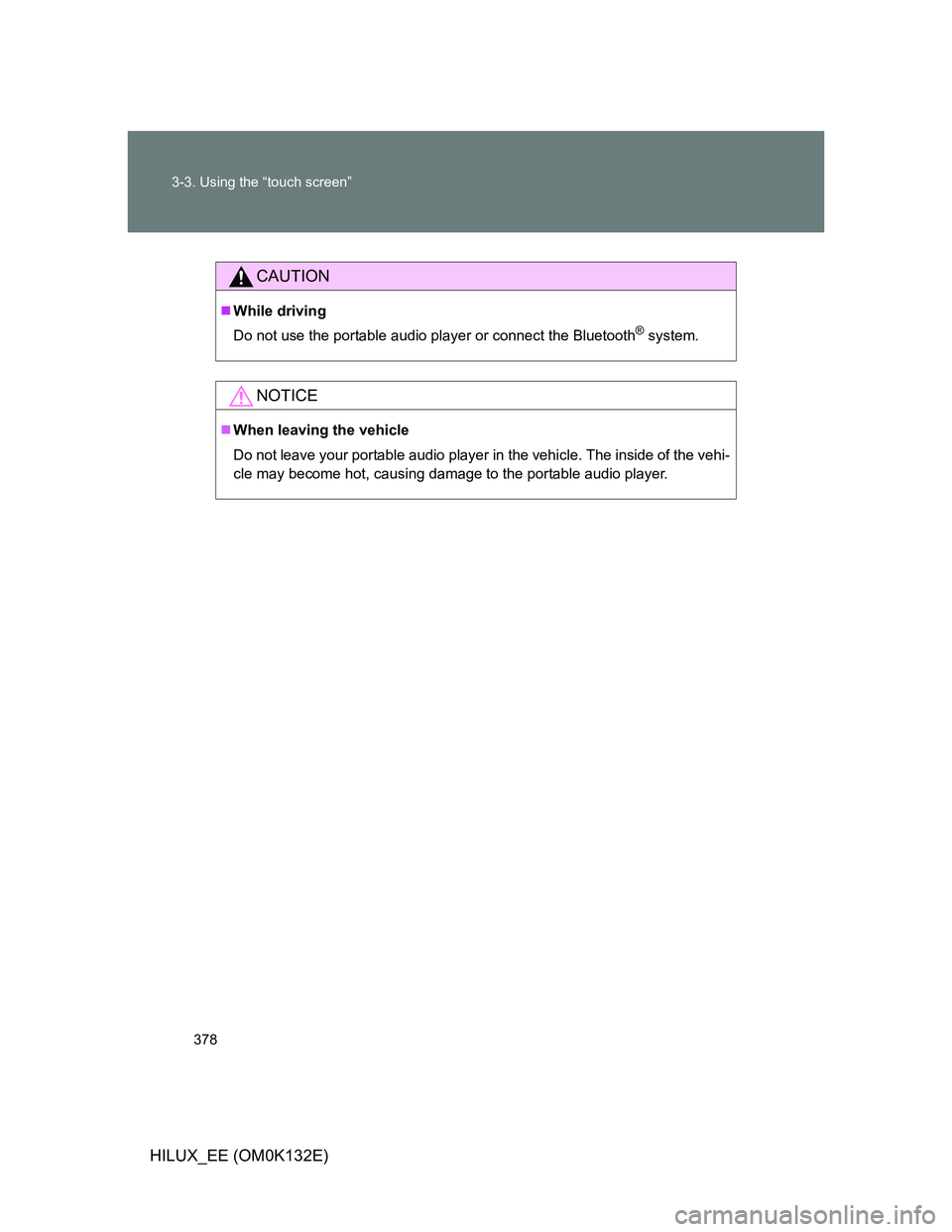

CAUTION
While driving
Do not use the portable audio player or connect the Bluetooth
® system.
NOTICE
When leaving the vehicle
Do not leave your portable audio player in the vehicle. The inside of the vehi-
cle may become hot, causing damage to the portable audio player.

379
3-3. Using the “touch screen”
3
Interior features
HILUX_EE (OM0K132E)

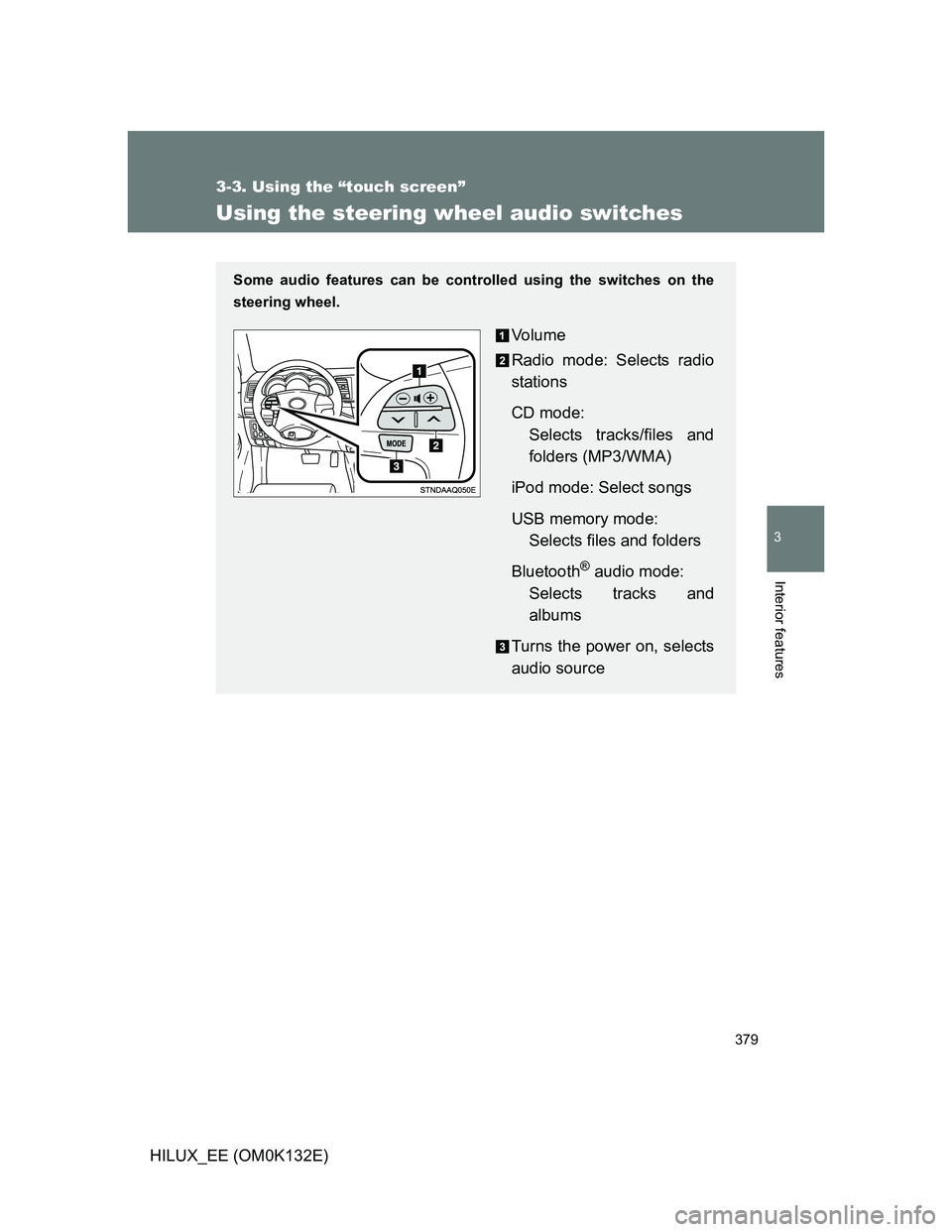

Using the steering wheel audio switches
Some audio features can be controlled using the switches on the
steering wheel.
Vo l u m e
Radio mode: Selects radio
stations
CD mode:
Selects tracks/files and
folders (MP3/WMA)
iPod mode: Select songs
USB memory mode:
Selects files and folders
Bluetooth
® audio mode:
Selects tracks and
albums
Turns the power on, selects
audio source

380 3-3. Using the “touch screen”
HILUX_EE (OM0K132E)

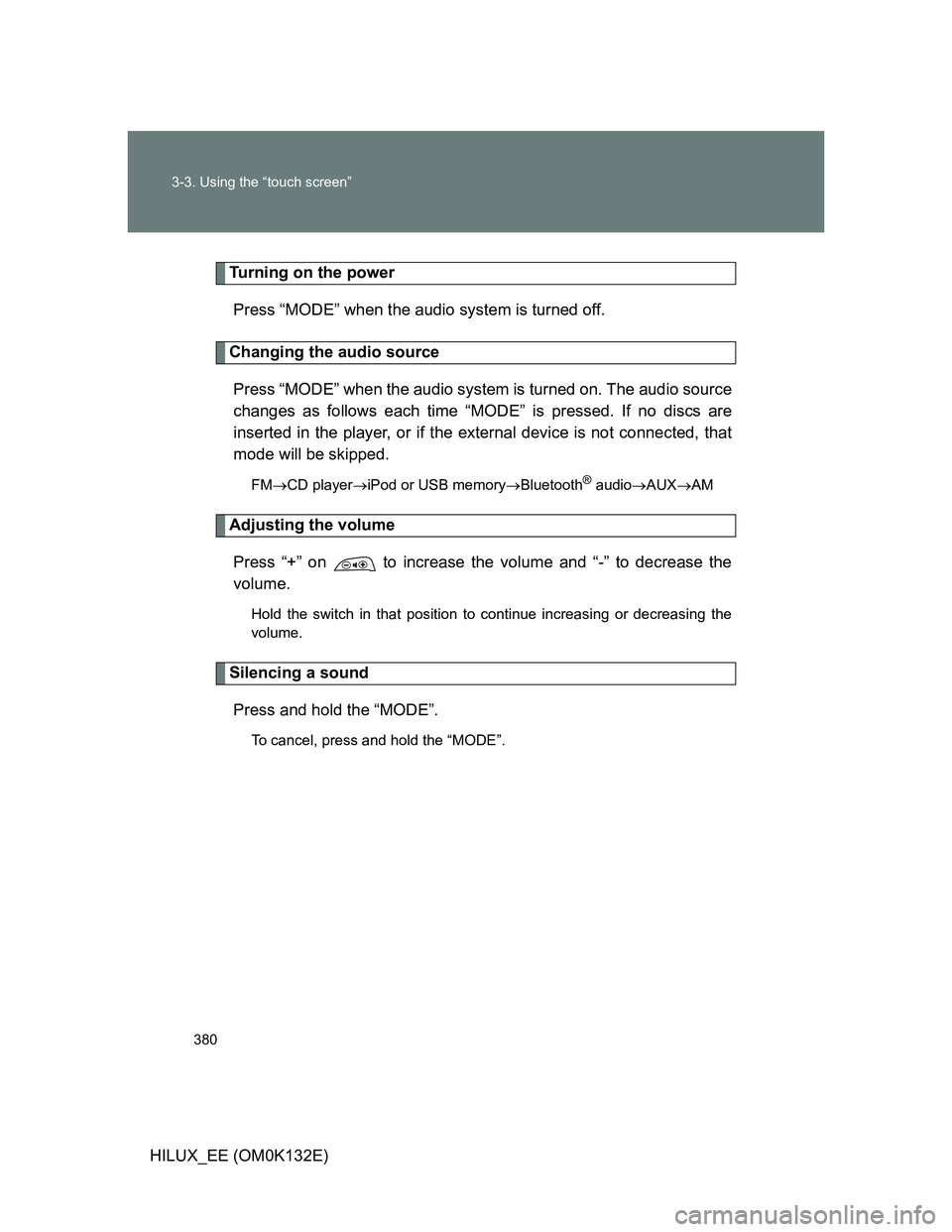

Turning on the power
Press “MODE” when the audio system is turned off.
Changing the audio source
Press “MODE” when the audio system is turned on. The audio source
changes as follows each time “MODE” is pressed. If no discs are
inserted in the player, or if the external device is not connected, that
mode will be skipped.
FMCD playeriPod or USB memoryBluetooth® audioAUXAM
Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the
volume.
Hold the switch in that position to continue increasing or decreasing the
volume.
Silencing a sound
Press and hold the “MODE”.
To cancel, press and hold the “MODE”.
