and steering wheel for installation reference. Using appropriate steering wheel puller, pull steering wheel
from shaft while guiding spiral cable wire through steering wheel opening.
Installation
1. Ensure front wheels are in straight-ahead position. Install spiral cable on combination switch body. Turn
spiral cable counterclockwise by hand until it is hard to turn. Turn spiral cable clockwise about 2 1/2-3
turns, aligning marks on spiral cable.
2. Install steering wheel, guiding spiral cable through opening in steering wheel. Align reference marks on
steering shaft and steering wheel. Tighten steering wheel nut to specification. See TORQUE
SPECIFICATIONS table.
3. Connect air bag module electrical connector. Close connector lock. Ensure air bag module Torx screws
are retracted and snug against screw case. See Fig. 11
.
4. Install air bag module, ensuring wiring is not pinched and does not interfere with other moving parts.
Tighten air bag module Torx screws to specification. See TORQUE SPECIFICATIONS
table. Install
screw covers. Connect negative battery cable.

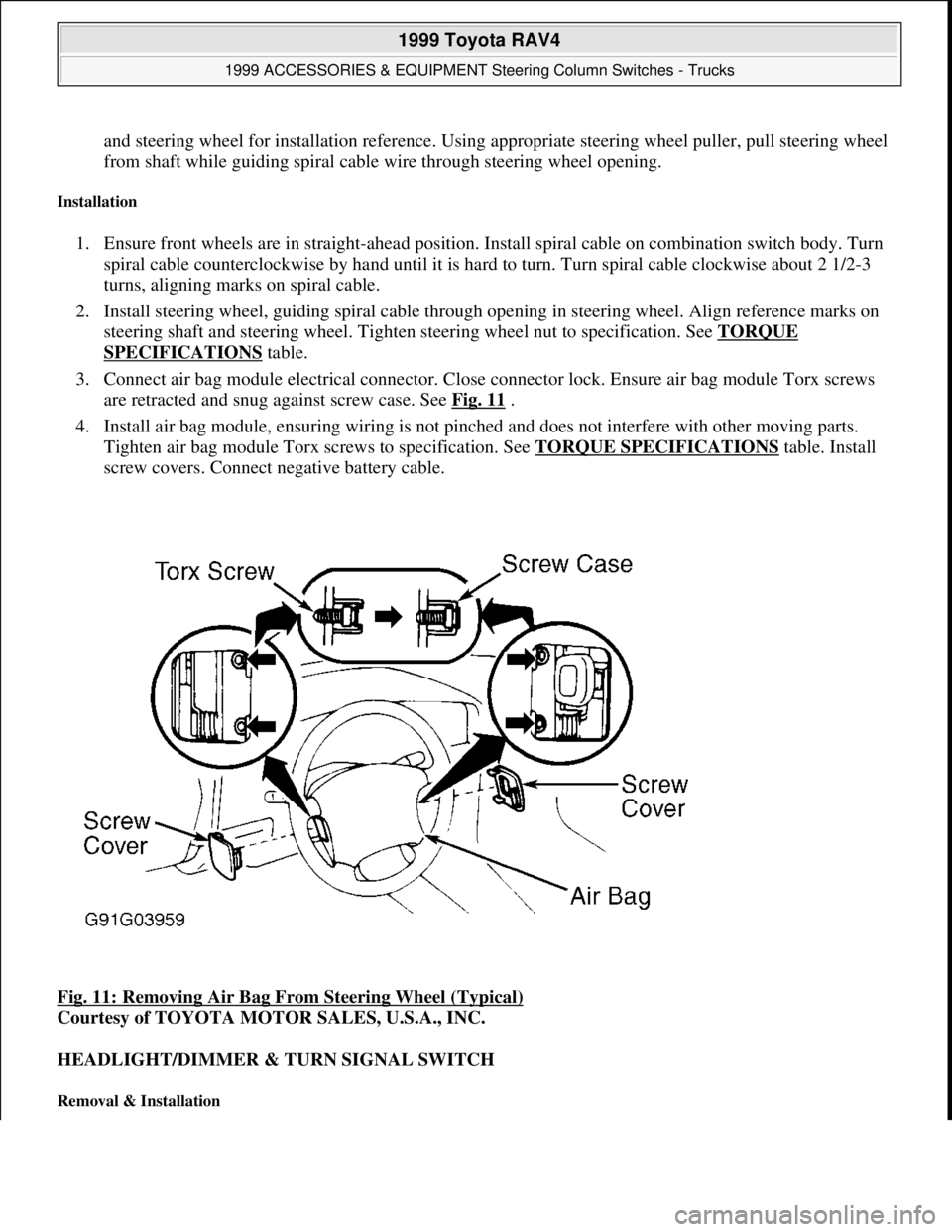

Fig. 11: Removing Air Bag From Steering Wheel (Typical)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HEADLIGHT/DIMMER & TURN SIGNAL SWITCH
Removal & Installation

1999 Toyota RAV4
1999 ACCESSORIES & EQUIPMENT Steering Column Switches - Trucks
Microsoft
Sunday, November 22, 2009 10:56:55 AMPage 13 © 2005 Mitchell Repair Information Company, LLC.

See COMBINATION SWITCH .
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
WIRING DIAGRAMS
ApplicationFt. Lbs. (N.m)
Steering Wheel Nut26 (35)
INCH Lbs. (N.m)
Air Bag Module Torx Screws78 (8.8)

1999 Toyota RAV4
1999 ACCESSORIES & EQUIPMENT Steering Column Switches - Trucks
Microsoft
Sunday, November 22, 2009 10:56:55 AMPage 14 © 2005 Mitchell Repair Information Company, LLC.

1999 Toyota RAV4
1999 ACCESSORIES & EQUIPMENT Steering Column Switches - Trucks
Microsoft
Sunday, November 22, 2009 10:56:55 AMPage 15 © 2005 Mitchell Repair Information Company, LLC.

Fig. 12: Horn System Wiring Diagram (Land Cruiser)

1999 Toyota RAV4
1999 ACCESSORIES & EQUIPMENT Steering Column Switches - Trucks
Microsoft
Sunday, November 22, 2009 10:56:55 AMPage 16 © 2005 Mitchell Repair Information Company, LLC.

1999 Toyota RAV4
1999 ACCESSORIES & EQUIPMENT Steering Column Switches - Trucks
Microsoft
Sunday, November 22, 2009 10:56:55 AMPage 17 © 2005 Mitchell Repair Information Company, LLC.

Fig. 13: Horn System Wiring Diagram (RAV4)

1999 Toyota RAV4
1999 ACCESSORIES & EQUIPMENT Steering Column Switches - Trucks
Microsoft
Sunday, November 22, 2009 10:56:55 AMPage 18 © 2005 Mitchell Repair Information Company, LLC.

1999 Toyota RAV4
1999 ACCESSORIES & EQUIPMENT Steering Column Switches - Trucks
Microsoft
Sunday, November 22, 2009 10:56:55 AMPage 19 © 2005 Mitchell Repair Information Company, LLC.

Fig. 14: Horn System Wiring Diagram (Sienna)

1999 Toyota RAV4
1999 ACCESSORIES & EQUIPMENT Steering Column Switches - Trucks
Microsoft
Sunday, November 22, 2009 10:56:55 AMPage 20 © 2005 Mitchell Repair Information Company, LLC.

1999 Toyota RAV4
1999 ACCESSORIES & EQUIPMENT Steering Column Switches - Trucks
Microsoft
Sunday, November 22, 2009 10:56:55 AMPage 21 © 2005 Mitchell Repair Information Company, LLC.

Fig. 15: Horn System Wiring Diagram (Tacoma)
