TOYOTA RAV4 1996  Service Repair Manual Fig. 2: Identifying Headlight Control Relay Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HEADLIGHT DIMMER RELAY
Except Land Cruiser & Tundra Without DRL
Remove dimmer relay located on le

Page 1232 of 1632

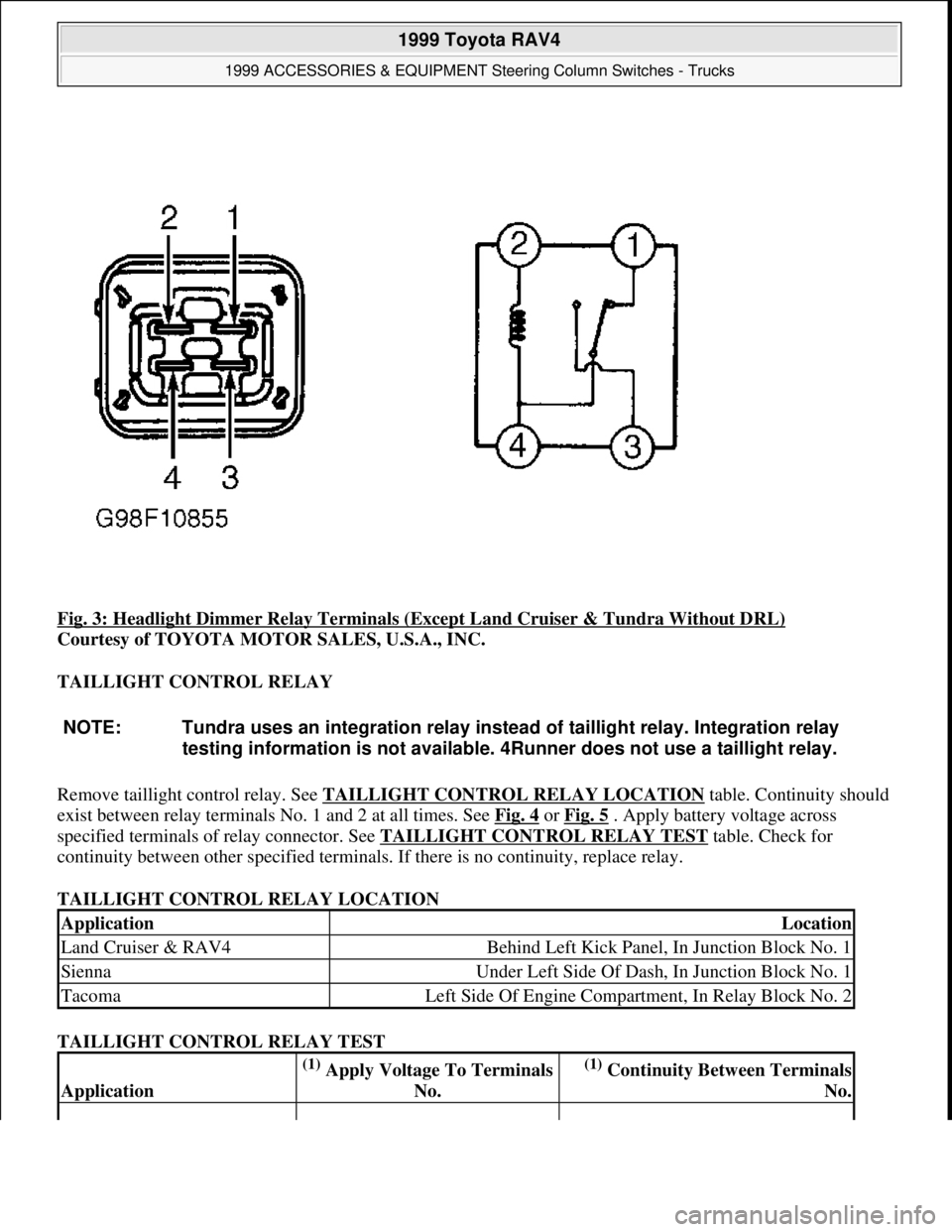

TOYOTA RAV4 1996  Service Repair Manual Fig. 3: Headlight Dimmer Relay Terminals (Except Land Cruiser & Tundra Without DRL)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
TAILLIGHT CONTROL RELAY
Remove taillight control relay. See TAILLIGH

Page 1233 of 1632

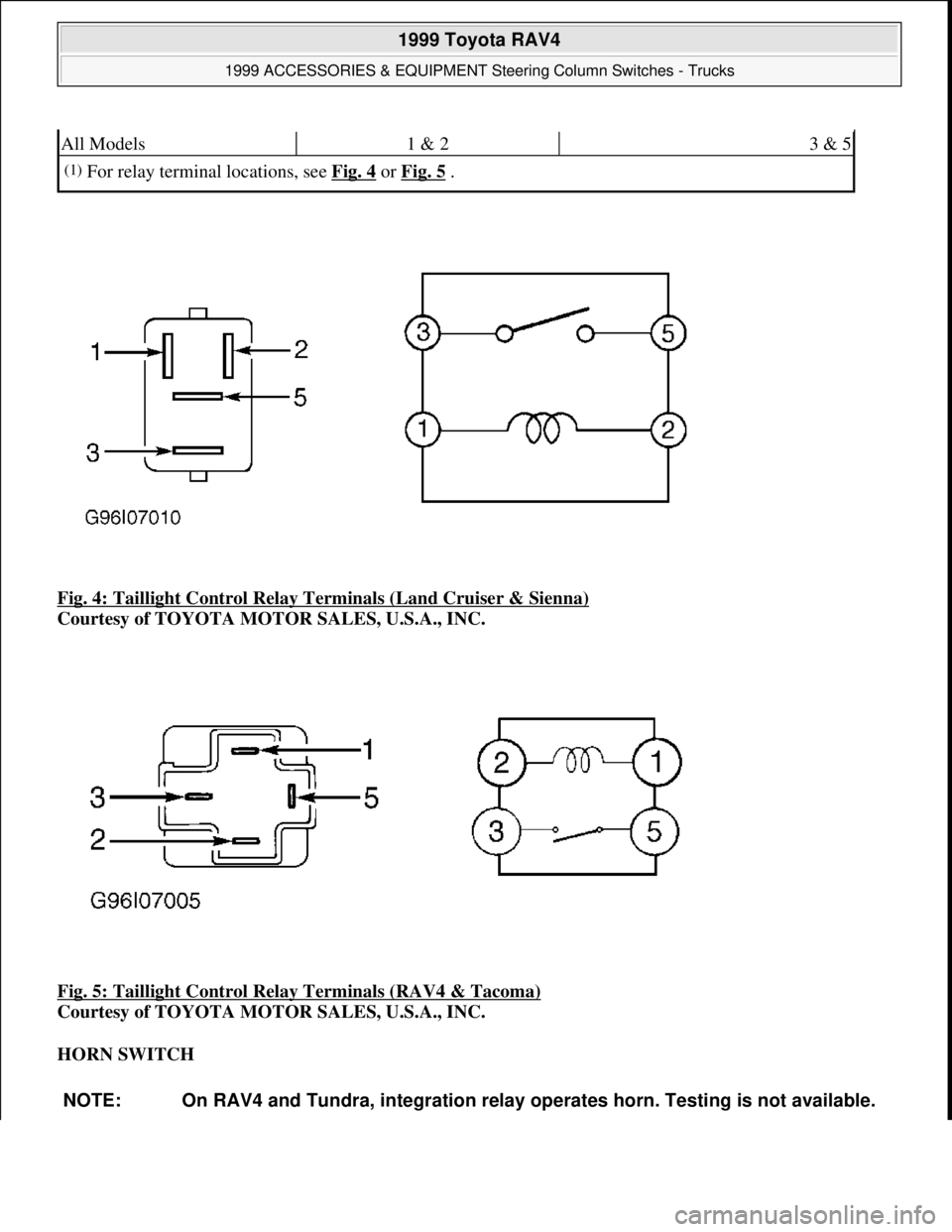

TOYOTA RAV4 1996  Service Repair Manual Fig. 4: Taillight Control Relay Terminals (Land Cruiser & Sienna)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Fig. 5: Taillight Control Relay Terminals (RAV4 & Tacoma)

Courtesy of TOYOTA MOTOR SA

Page 1234 of 1632

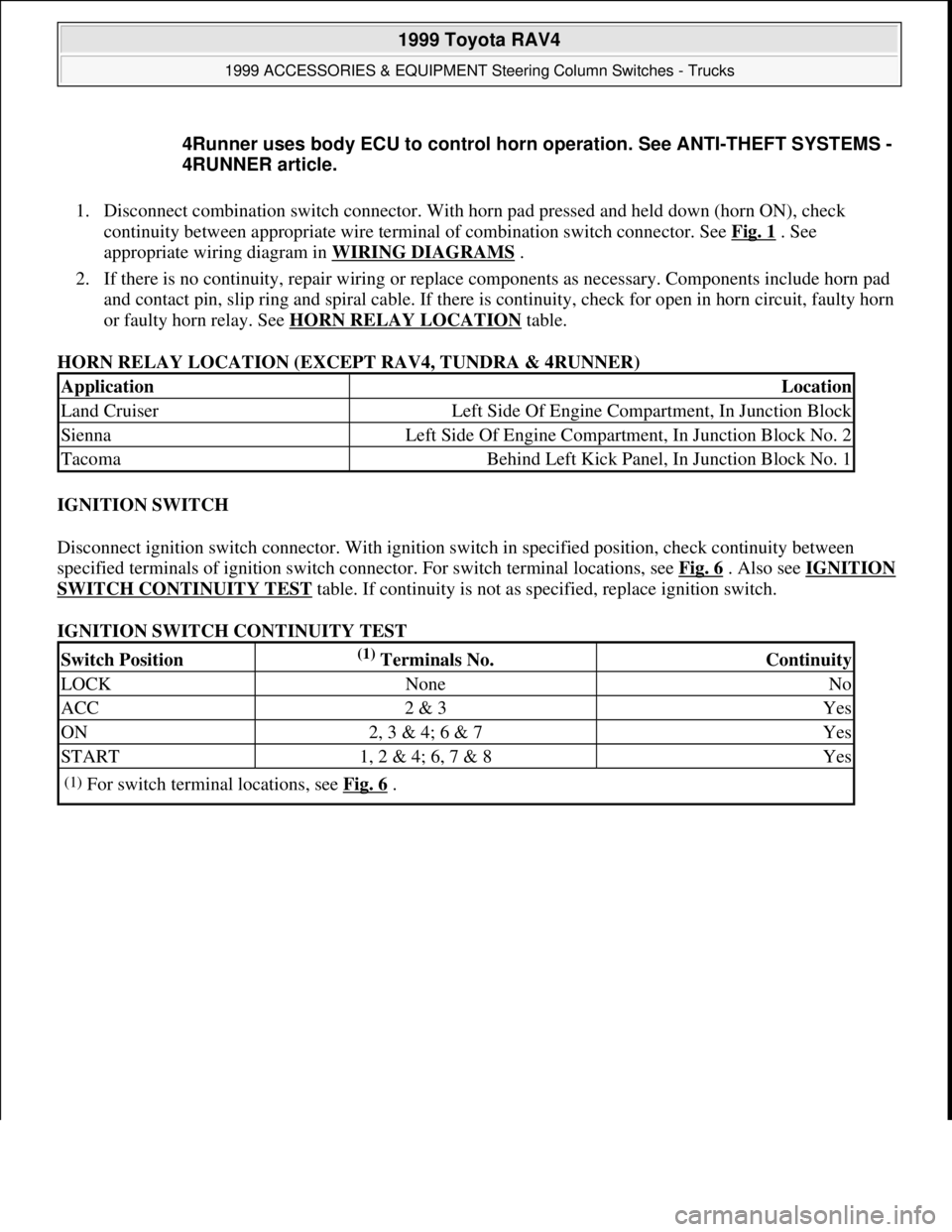

TOYOTA RAV4 1996  Service Repair Manual 1. Disconnect combination switch connector. With horn pad pressed and held down (horn ON), check
continuity between appropriate wire terminal of combination switch connector. See Fig. 1
 . See
appro

Page 1235 of 1632

TOYOTA RAV4 1996  Service Repair Manual Fig. 6: Identifying Ignition Switch Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
KEY UNLOCK WARNING SWITCH
Disconnect key unlock switch 2-pin connector. Check continuity between

Page 1236 of 1632

TOYOTA RAV4 1996  Service Repair Manual TURN SIGNAL FLASHER
Except Land Cruiser & Tundra
Remove turn signal flasher. See TURN SIGNAL FLASHER LOCATION table. At turn signal flasher
terminals, connect positive battery lead to terminal No.

Page 1237 of 1632

TOYOTA RAV4 1996  Service Repair Manual TURN SIGNAL FLASHER CIRCUIT
Land Cruiser & Tundra
Disconnect 8-pin connector from turn signal flasher. Using a DVOM, check continuity between terminal
specified and ground. See TURN SIGNAL FLASHER

Page 1238 of 1632

TOYOTA RAV4 1996  Service Repair Manual Fig. 8: Turn Signal Flasher Connector Terminals (Land Cruiser & Tundra)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WIPER/WASHER SWITCH
REMOVAL & INSTALLATION
NOTE: See appropriate WIPER/WASHER S

Page 1239 of 1632

TOYOTA RAV4 1996  Service Repair Manual COMBINATION SWITCH
Removal & Installation
Disconnect negative battery cable. Remove steering column covers (it may be necessary to first remove lower
finish panel from instrument panel). Disconnect

Page 1240 of 1632

TOYOTA RAV4 1996  Service Repair Manual Fig. 10: Exploded View Of Ignition Switch (Typical)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
STEERING WHEEL
Removal
1. Ensure front wheels are in straight-ahead position. Turn ignition switch
