4. Apply parking brake. Loosen nut for control rod at the gearshift. See Fig. 9
. Pull control rod fully
backward toward rear of vehicle to the Park position.
5. Push control rod forward 2 notches to the Neutral position. Ensure gearshift is in Neutral. Tighten nut for
control rod at gearshift.
6. Start engine. Ensure vehicle moves forward when shifting gearshift from Neutral to Drive, and in reverse
when shifting to Reverse.
T100
1. Apply parking brake. Remove control rod nut from control rod at bottom of steering column. See Fig. 8 .
Push control rod fully downward to the Park position.
2. Pull control rod upward 2 notches to the Neutral position. While holding gearshift lightly toward the
Reverse position, tighten control rod nut.
3. Start engine. Ensure vehicle moves forward when shifting gearshift from Neutral to Drive, and in reverse
when shifting to Reverse.

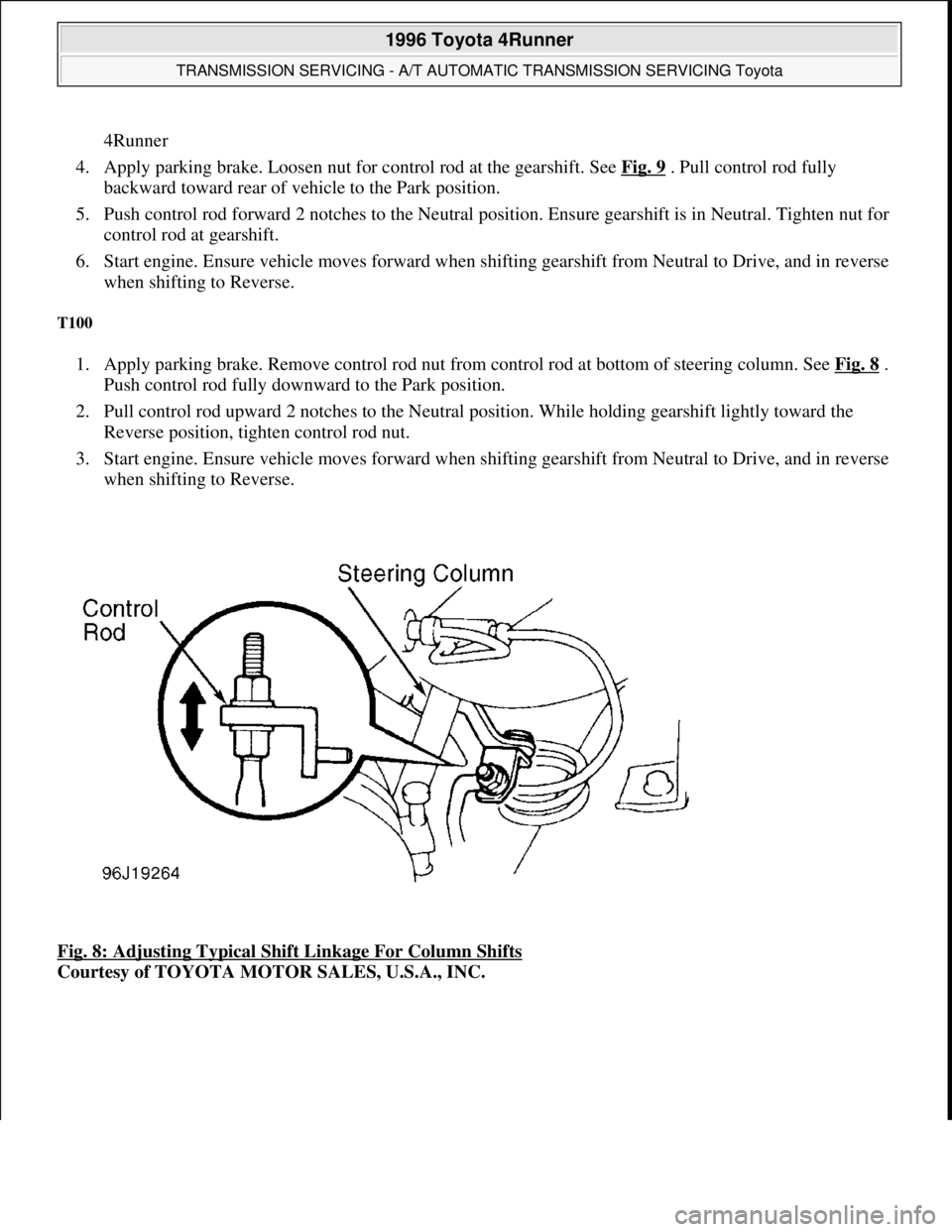

Fig. 8: Adjusting Typical Shift Linkage For Column Shifts

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

1996 Toyota 4Runner
TRANSMISSION SERVICING - A/T AUTOMATIC TRANSMISSION SERVICING Toyota
Microsoft
Tuesday, August 18, 2009 7:18:46 PMPage 15 © 2005 Mitchell Repair Information Company, LLC.

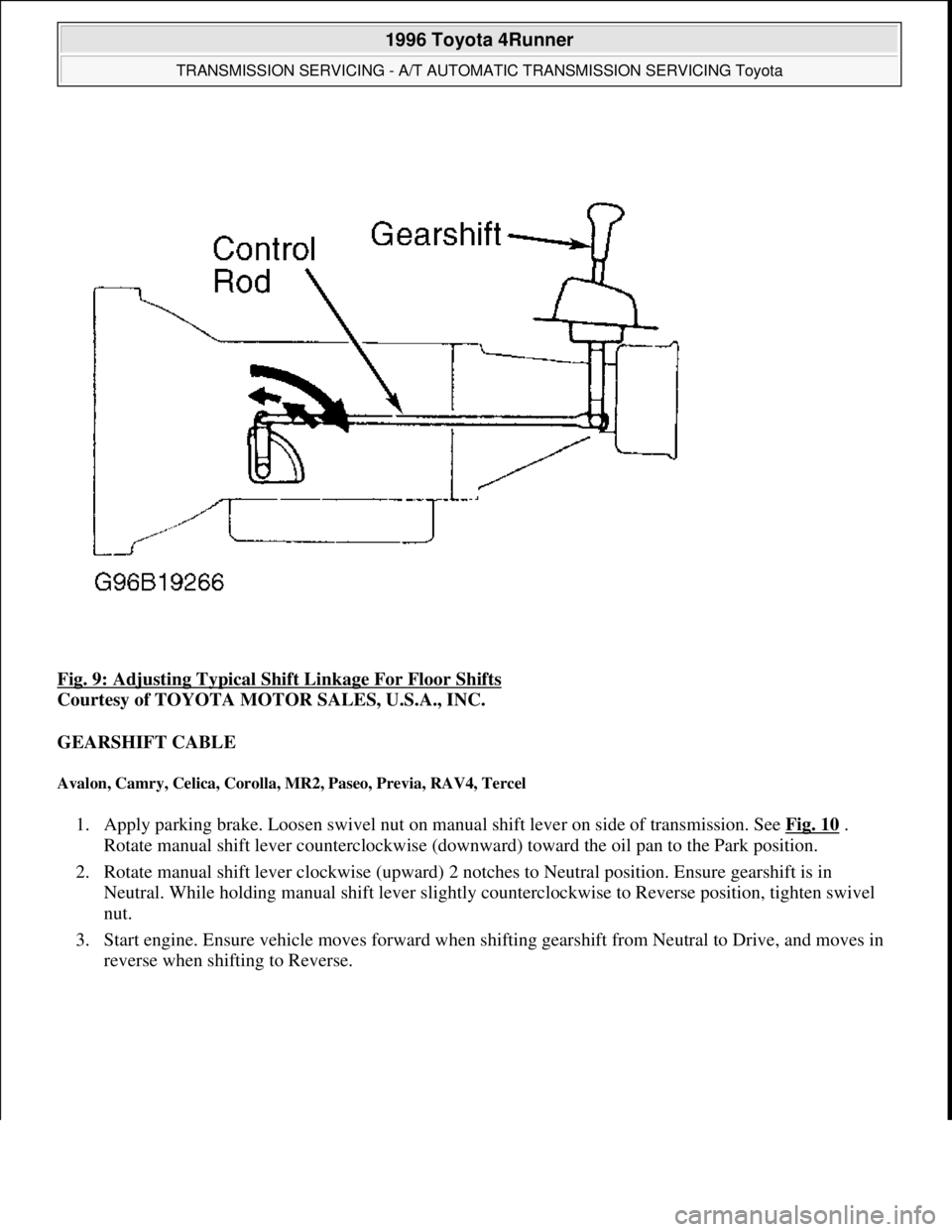

Fig. 9: Adjusting Typical Shift Linkage For Floor Shifts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
GEARSHIFT CABLE
Avalon, Camry, Celica, Corolla, MR2, Paseo, Previa, RAV4, Tercel
1. Apply parking brake. Loosen swivel nut on manual shift lever on side of transmission. See Fig. 10 .
Rotate manual shift lever counterclockwise (downward) toward the oil pan to the Park position.
2. Rotate manual shift lever clockwise (upward) 2 notches to Neutral position. Ensure gearshift is in
Neutral. While holding manual shift lever slightly counterclockwise to Reverse position, tighten swivel
nut.
3. Start engine. Ensure vehicle moves forward when shifting gearshift from Neutral to Drive, and moves in
reverse when shiftin
g to Reverse.

1996 Toyota 4Runner
TRANSMISSION SERVICING - A/T AUTOMATIC TRANSMISSION SERVICING Toyota
Microsoft
Tuesday, August 18, 2009 7:18:46 PMPage 16 © 2005 Mitchell Repair Information Company, LLC.

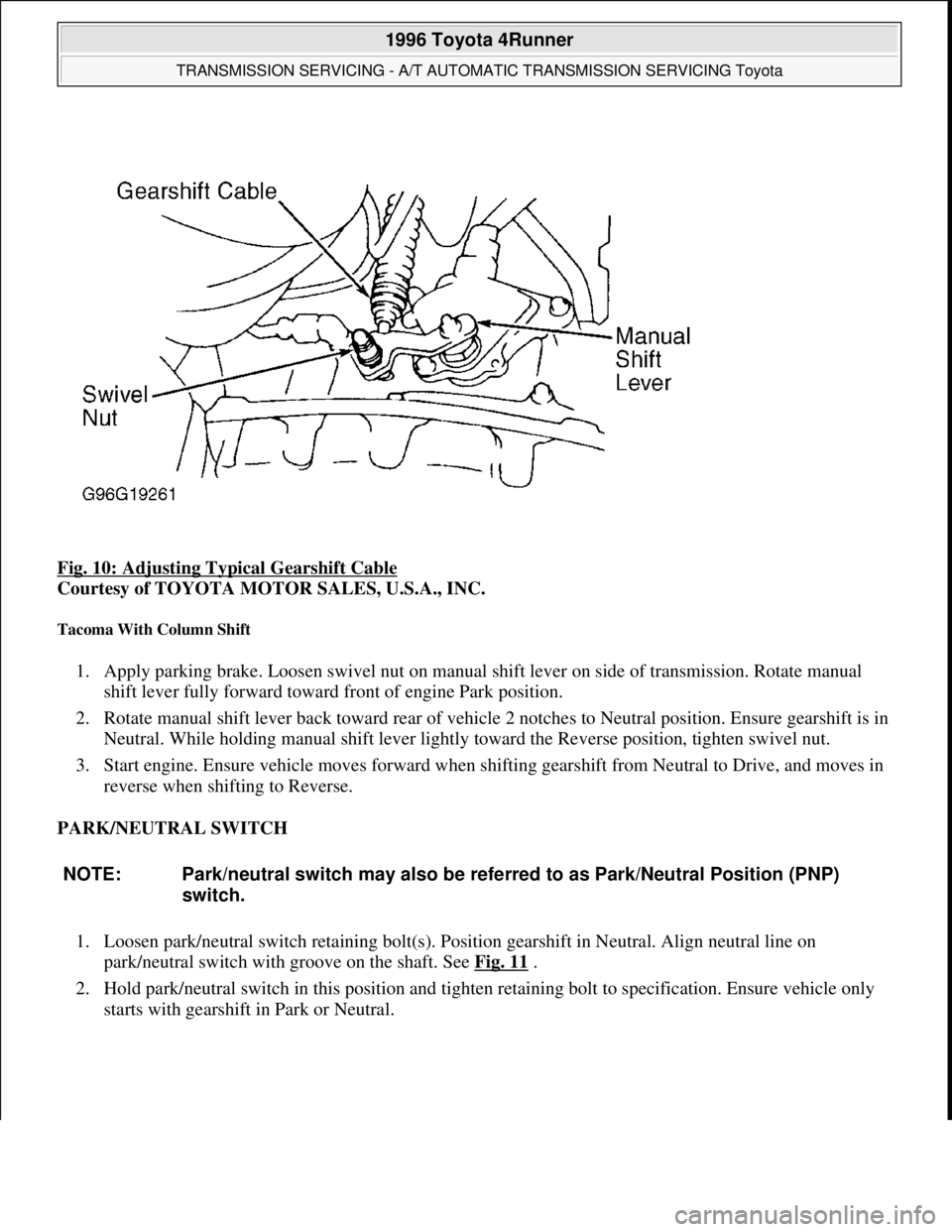

Fig. 10: Adjusting Typical Gearshift Cable
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Tacoma With Column Shift
1. Apply parking brake. Loosen swivel nut on manual shift lever on side of transmission. Rotate manual
shift lever fully forward toward front of engine Park position.
2. Rotate manual shift lever back toward rear of vehicle 2 notches to Neutral position. Ensure gearshift is in
Neutral. While holding manual shift lever lightly toward the Reverse position, tighten swivel nut.
3. Start engine. Ensure vehicle moves forward when shifting gearshift from Neutral to Drive, and moves in
reverse when shifting to Reverse.
PARK/NEUTRAL SWITCH
1. Loosen park/neutral switch retaining bolt(s). Position gearshift in Neutral. Align neutral line on
park/neutral switch with groove on the shaft. See Fig. 11
.
2. Hold park/neutral switch in this position and tighten retaining bolt to specification. Ensure vehicle only
starts with
gearshift in Park or Neutral.
NOTE: Park/neutral switch may also be referred to as Park/Neutral Position (PNP)
switch.

1996 Toyota 4Runner
TRANSMISSION SERVICING - A/T AUTOMATIC TRANSMISSION SERVICING Toyota
Microsoft
Tuesday, August 18, 2009 7:18:46 PMPage 17 © 2005 Mitchell Repair Information Company, LLC.

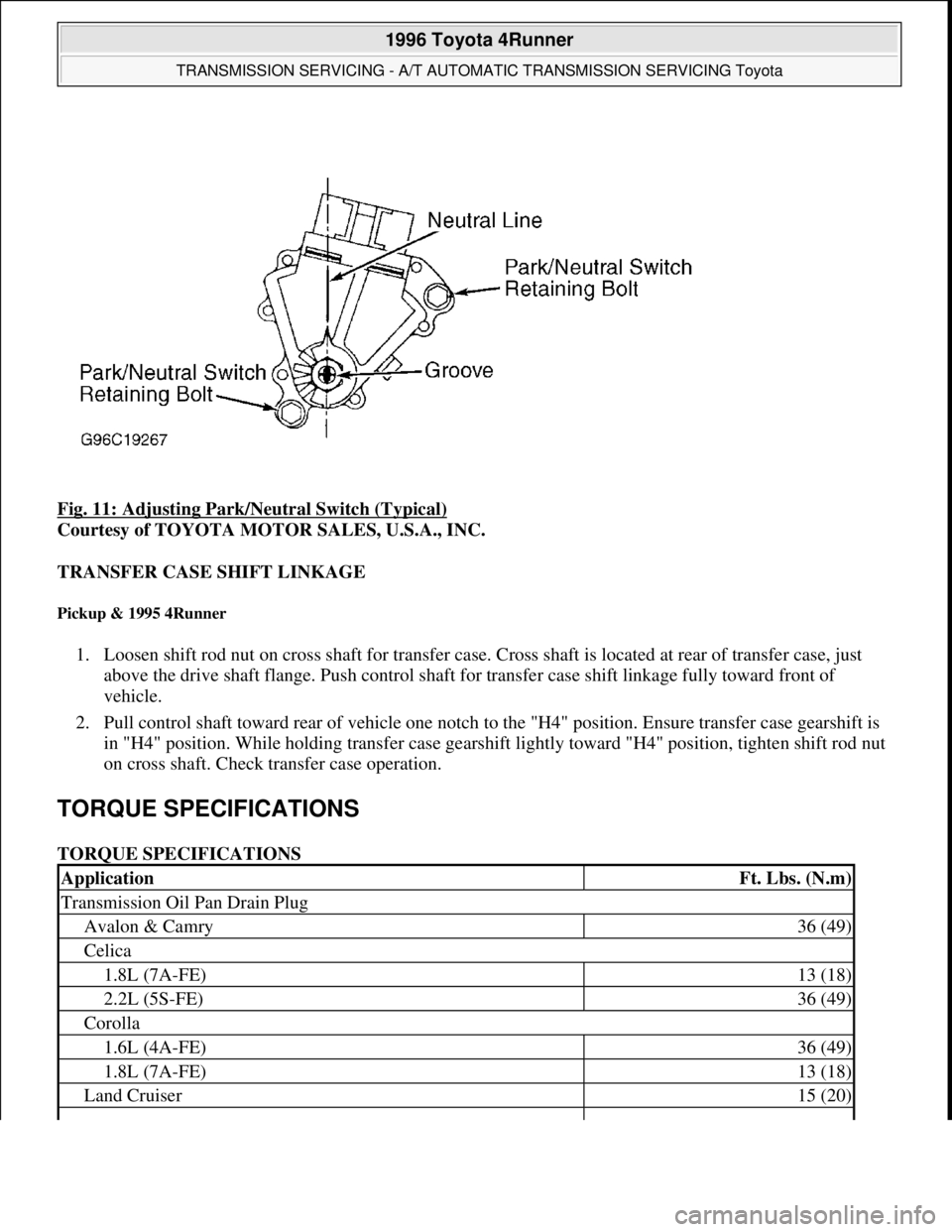

Fig. 11: Adjusting Park/Neutral Switch (Typical)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
TRANSFER CASE SHIFT LINKAGE
Pickup & 1995 4Runner
1. Loosen shift rod nut on cross shaft for transfer case. Cross shaft is located at rear of transfer case, just
above the drive shaft flange. Push control shaft for transfer case shift linkage fully toward front of
vehicle.
2. Pull control shaft toward rear of vehicle one notch to the "H4" position. Ensure transfer case gearshift is
in "H4" position. While holding transfer case gearshift lightly toward "H4" position, tighten shift rod nut
on cross shaft. Check transfer case operation.

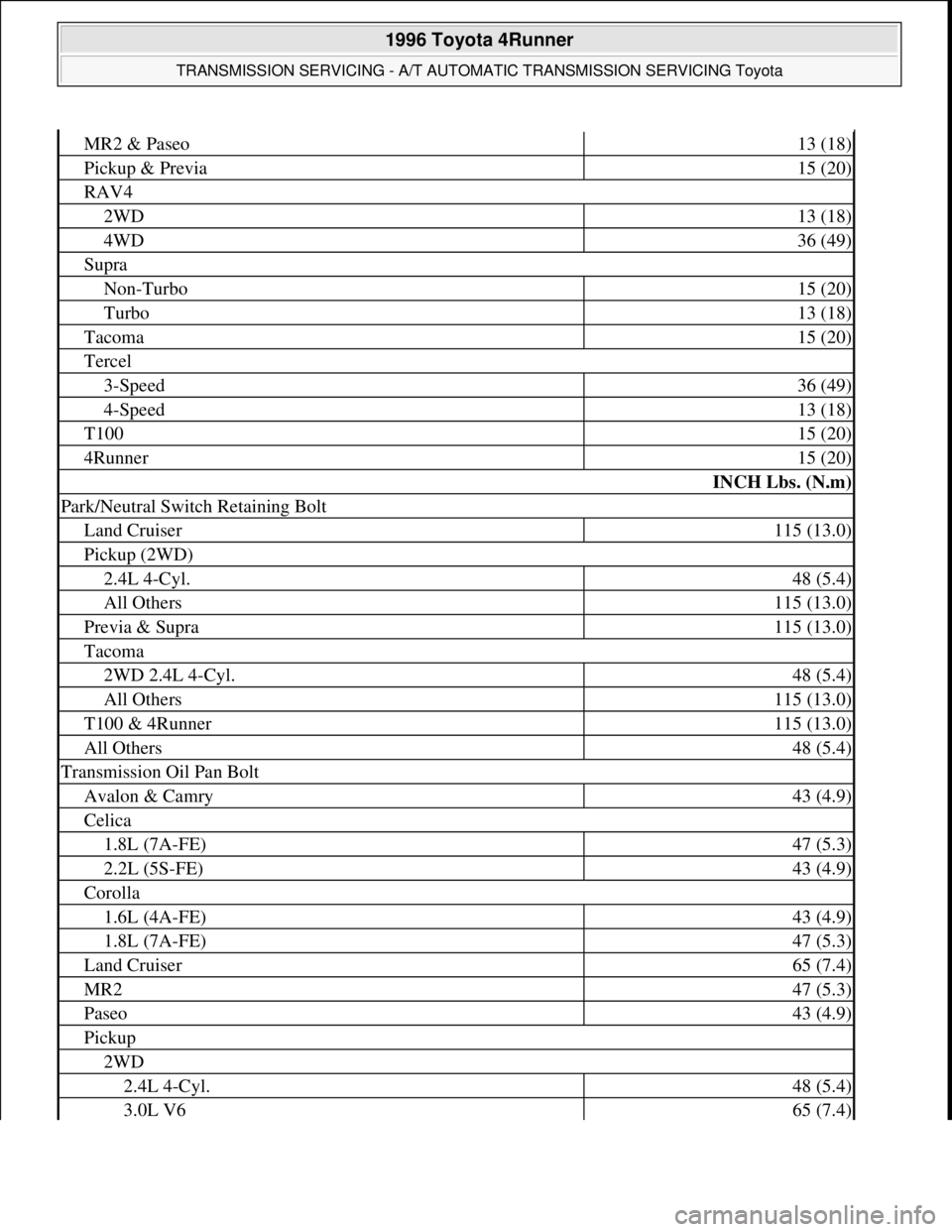

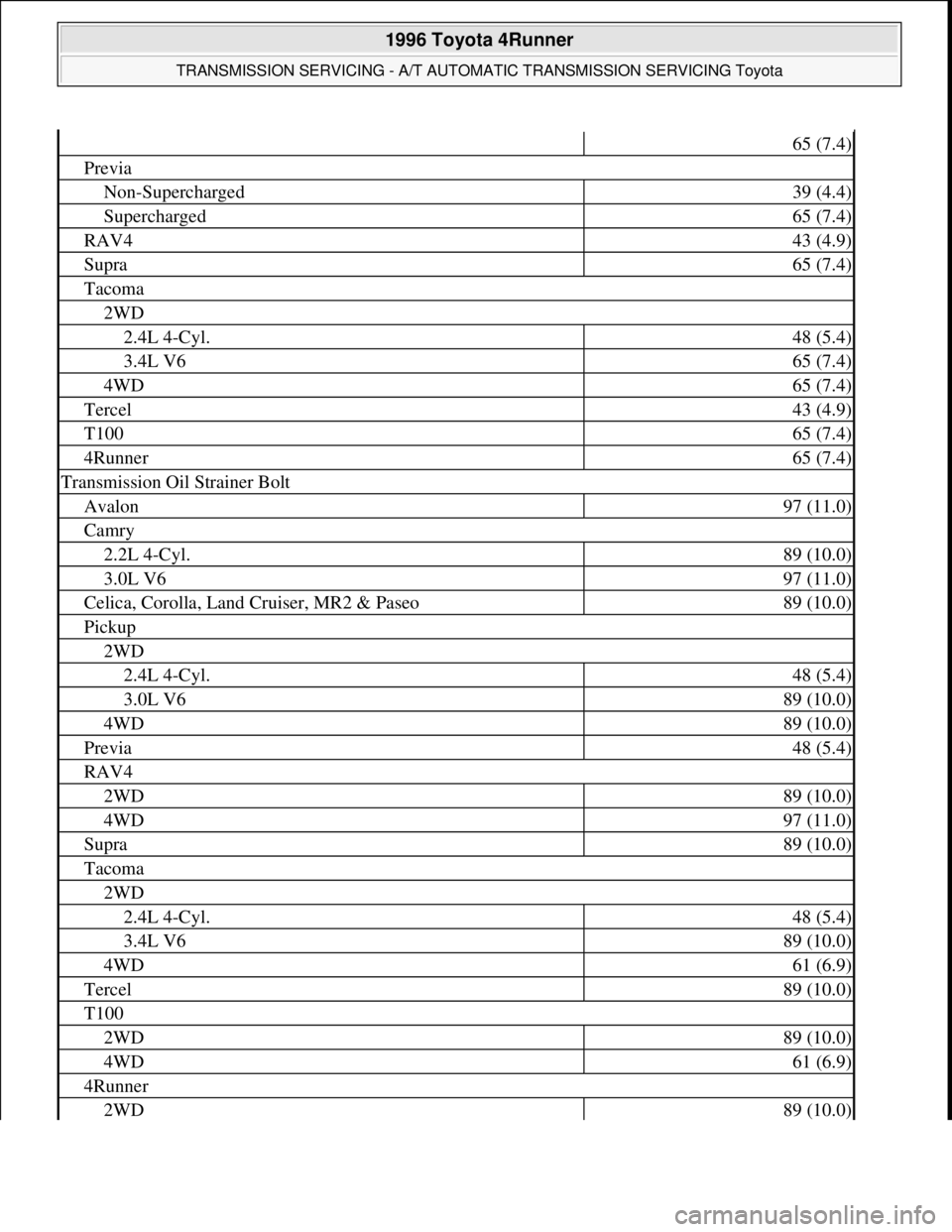

TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
ApplicationFt. Lbs. (N.m)
Transmission Oil Pan Drain Plug
Avalon & Camry36 (49)
Celica
1.8L (7A-FE)13 (18)
2.2L (5S-FE)36 (49)
Corolla
1.6L (4A-FE)36 (49)
1.8L (7A-FE)13 (18)
Land Cruiser15 (20)

1996 Toyota 4Runner
TRANSMISSION SERVICING - A/T AUTOMATIC TRANSMISSION SERVICING Toyota
Microsoft
Tuesday, August 18, 2009 7:18:46 PMPage 18 © 2005 Mitchell Repair Information Company, LLC.

MR2 & Paseo13 (18)
Pickup & Previa15 (20)
RAV4
2WD13 (18)
4WD36 (49)
Supra
Non-Turbo15 (20)
Turbo13 (18)
Tacoma15 (20)
Tercel
3-Speed36 (49)
4-Speed13 (18)
T10015 (20)
4Runner15 (20)
INCH Lbs. (N.m)
Park/Neutral Switch Retaining Bolt
Land Cruiser115 (13.0)
Pickup (2WD)
2.4L 4-Cyl.48 (5.4)
All Others115 (13.0)
Previa & Supra115 (13.0)
Tacoma
2WD 2.4L 4-Cyl.48 (5.4)
All Others115 (13.0)
T100 & 4Runner115 (13.0)
All Others48 (5.4)
Transmission Oil Pan Bolt
Avalon & Camry43 (4.9)
Celica
1.8L (7A-FE)47 (5.3)
2.2L (5S-FE)43 (4.9)
Corolla
1.6L (4A-FE)43 (4.9)
1.8L (7A-FE)47 (5.3)
Land Cruiser65 (7.4)
MR247 (5.3)
Paseo43 (4.9)
Pickup
2WD
2.4L 4-Cyl.48 (5.4)
3.0L V665 (7.4)

1996 Toyota 4Runner
TRANSMISSION SERVICING - A/T AUTOMATIC TRANSMISSION SERVICING Toyota
Microsoft
Tuesday, August 18, 2009 7:18:46 PMPage 19 © 2005 Mitchell Repair Information Company, LLC.

65 (7.4)
Previa
Non-Supercharged39 (4.4)
Supercharged65 (7.4)
RAV443 (4.9)
Supra65 (7.4)
Tacoma
2WD
2.4L 4-Cyl.48 (5.4)
3.4L V665 (7.4)
4WD65 (7.4)
Tercel43 (4.9)
T10065 (7.4)
4Runner65 (7.4)
Transmission Oil Strainer Bolt
Avalon97 (11.0)
Camry
2.2L 4-Cyl.89 (10.0)
3.0L V697 (11.0)
Celica, Corolla, Land Cruiser, MR2 & Paseo89 (10.0)
Pickup
2WD
2.4L 4-Cyl.48 (5.4)
3.0L V689 (10.0)
4WD89 (10.0)
Previa48 (5.4)
RAV4
2WD89 (10.0)
4WD97 (11.0)
Supra89 (10.0)
Tacoma
2WD
2.4L 4-Cyl.48 (5.4)
3.4L V689 (10.0)
4WD61 (6.9)
Tercel89 (10.0)
T100
2WD89 (10.0)
4WD61 (6.9)
4Runner
2WD89 (10.0)

1996 Toyota 4Runner
TRANSMISSION SERVICING - A/T AUTOMATIC TRANSMISSION SERVICING Toyota
Microsoft
Tuesday, August 18, 2009 7:18:46 PMPage 20 © 2005 Mitchell Repair Information Company, LLC.

61 (6.9)

1996 Toyota 4Runner
TRANSMISSION SERVICING - A/T AUTOMATIC TRANSMISSION SERVICING Toyota
Microsoft
Tuesday, August 18, 2009 7:18:46 PMPage 21 © 2005 Mitchell Repair Information Company, LLC.

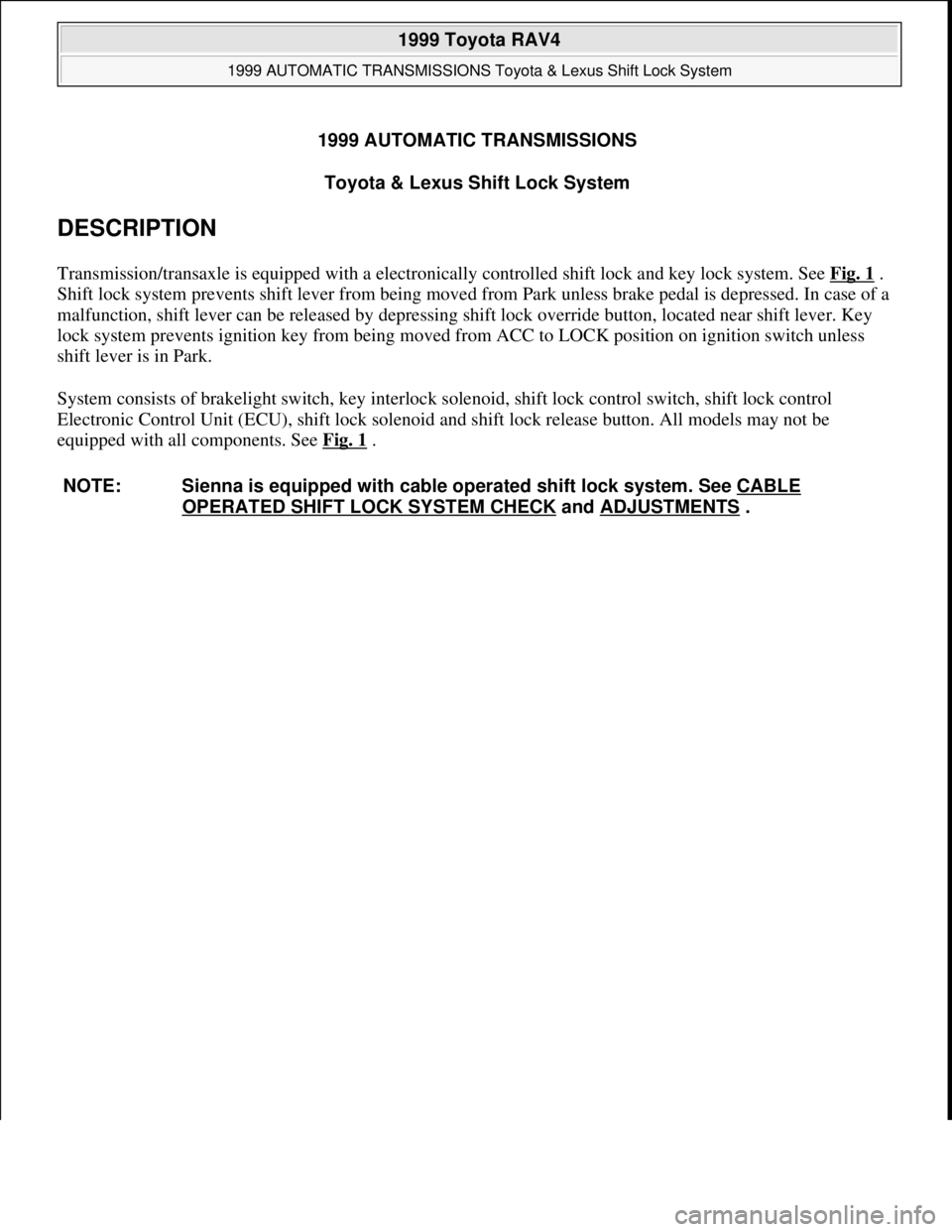

1999 AUTOMATIC TRANSMISSIONS
Toyota & Lexus Shift Lock System
DESCRIPTION
Transmission/transaxle is equipped with a electronically controlled shift lock and key lock system. See Fig. 1 .
Shift lock system prevents shift lever from being moved from Park unless brake pedal is depressed. In case of a
malfunction, shift lever can be released by depressing shift lock override button, located near shift lever. Key
lock system prevents ignition key from being moved from ACC to LOCK position on ignition switch unless
shift lever is in Park.
System consists of brakelight switch, key interlock solenoid, shift lock control switch, shift lock control
Electronic Control Unit (ECU), shift lock solenoid and shift lock release button. All models may not be
equipped with all components. See Fig. 1
.
NOTE: Sienna is equipped with cable operated shift lock system. See CABLE
OPERATED SHIFT LOCK SYSTEM CHECK and ADJUSTMENTS .

1999 Toyota RAV4
1999 AUTOMATIC TRANSMISSIONS Toyota & Lexus Shift Lock System

1999 Toyota RAV4
1999 AUTOMATIC TRANSMISSIONS Toyota & Lexus Shift Lock System
Microsoft
Sunday, November 22, 2009 10:45:59 AMPage 1 © 2005 Mitchell Repair Information Company, LLC.
Microsoft
Sunday, November 22, 2009 10:46:16 AMPage 1 © 2005 Mitchell Repair Information Company, LLC.

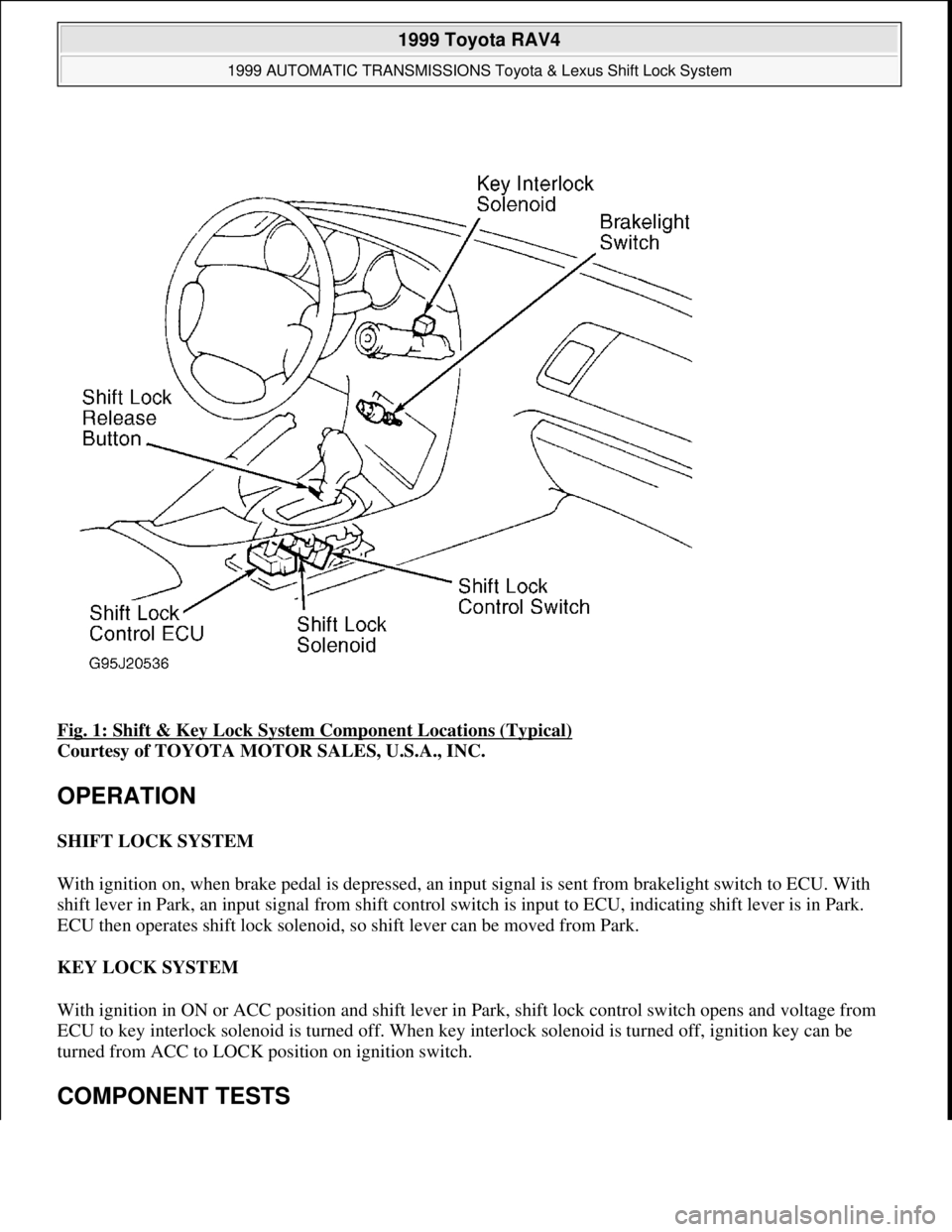

Fig. 1: Shift & Key Lock System Component Locations (Typical)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OPERATION
SHIFT LOCK SYSTEM
With ignition on, when brake pedal is depressed, an input signal is sent from brakelight switch to ECU. With
shift lever in Park, an input signal from shift control switch is input to ECU, indicating shift lever is in Park.
ECU then operates shift lock solenoid, so shift lever can be moved from Park.
KEY LOCK SYSTEM
With ignition in ON or ACC position and shift lever in Park, shift lock control switch opens and voltage from
ECU to key interlock solenoid is turned off. When key interlock solenoid is turned off, ignition key can be
turned from ACC to LOCK position on ignition switch.
COMPONENT TESTS

1999 Toyota RAV4
1999 AUTOMATIC TRANSMISSIONS Toyota & Lexus Shift Lock System
Microsoft
Sunday, November 22, 2009 10:46:00 AMPage 2 © 2005 Mitchell Repair Information Company, LLC.

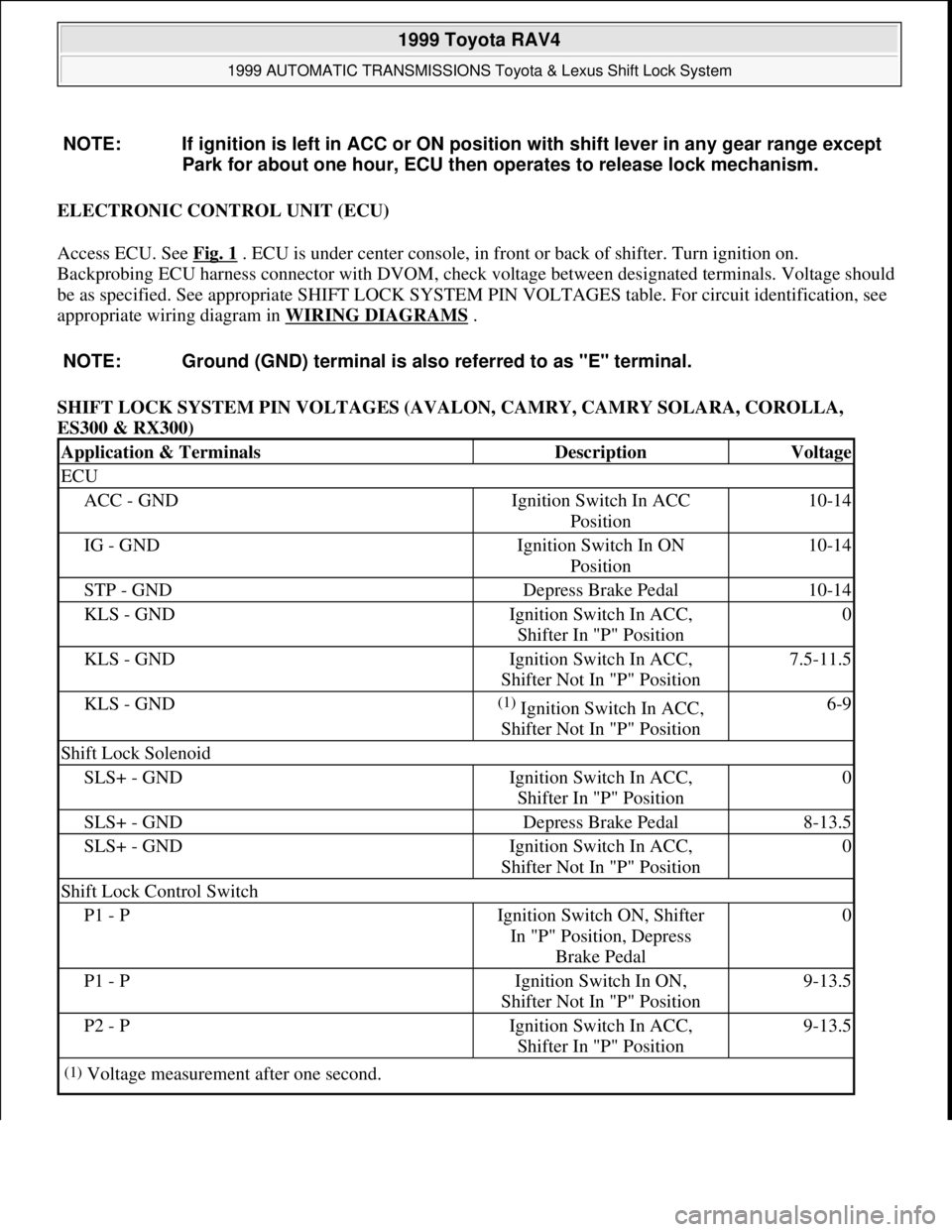

ELECTRONIC CONTROL UNIT (ECU)
Access ECU. See Fig. 1
. ECU is under center console, in front or back of shifter. Turn ignition on.
Backprobing ECU harness connector with DVOM, check voltage between designated terminals. Voltage should
be as specified. See appropriate SHIFT LOCK SYSTEM PIN VOLTAGES table. For circuit identification, see
appropriate wiring diagram in WIRING DIAGRAMS
.
SHIFT LOCK SYSTEM PIN VOLTAGES (AVALON, CAMRY, CAMRY SOLARA, COROLLA,
ES300 & RX300) NOTE: If ignition is left in ACC or ON position with shift lever in any gear range except
Park for about one hour, ECU then operates to release lock mechanism.
NOTE: Ground (GND) terminal is also referred to as "E" terminal.
Application & TerminalsDescriptionVoltage
ECU
ACC - GNDIgnition Switch In ACC
Position10-14
IG - GNDIgnition Switch In ON
Position10-14
STP - GNDDepress Brake Pedal10-14
KLS - GNDIgnition Switch In ACC,
Shifter In "P" Position0
KLS - GNDIgnition Switch In ACC,
Shifter Not In "P" Position7.5-11.5
KLS - GND(1) Ignition Switch In ACC,
Shifter Not In "P" Position6-9
Shift Lock Solenoid
SLS+ - GNDIgnition Switch In ACC,
Shifter In "P" Position0
SLS+ - GNDDepress Brake Pedal8-13.5
SLS+ - GNDIgnition Switch In ACC,
Shifter Not In "P" Position0
Shift Lock Control Switch
P1 - PIgnition Switch ON, Shifter
In "P" Position, Depress
Brake Pedal0
P1 - PIgnition Switch In ON,
Shifter Not In "P" Position9-13.5
P2 - PIgnition Switch In ACC,
Shifter In "P" Position9-13.5
(1)Voltage measurement after one second.

1999 Toyota RAV4
1999 AUTOMATIC TRANSMISSIONS Toyota & Lexus Shift Lock System
Microsoft
Sunday, November 22, 2009 10:46:00 AMPage 3 © 2005 Mitchell Repair Information Company, LLC.
