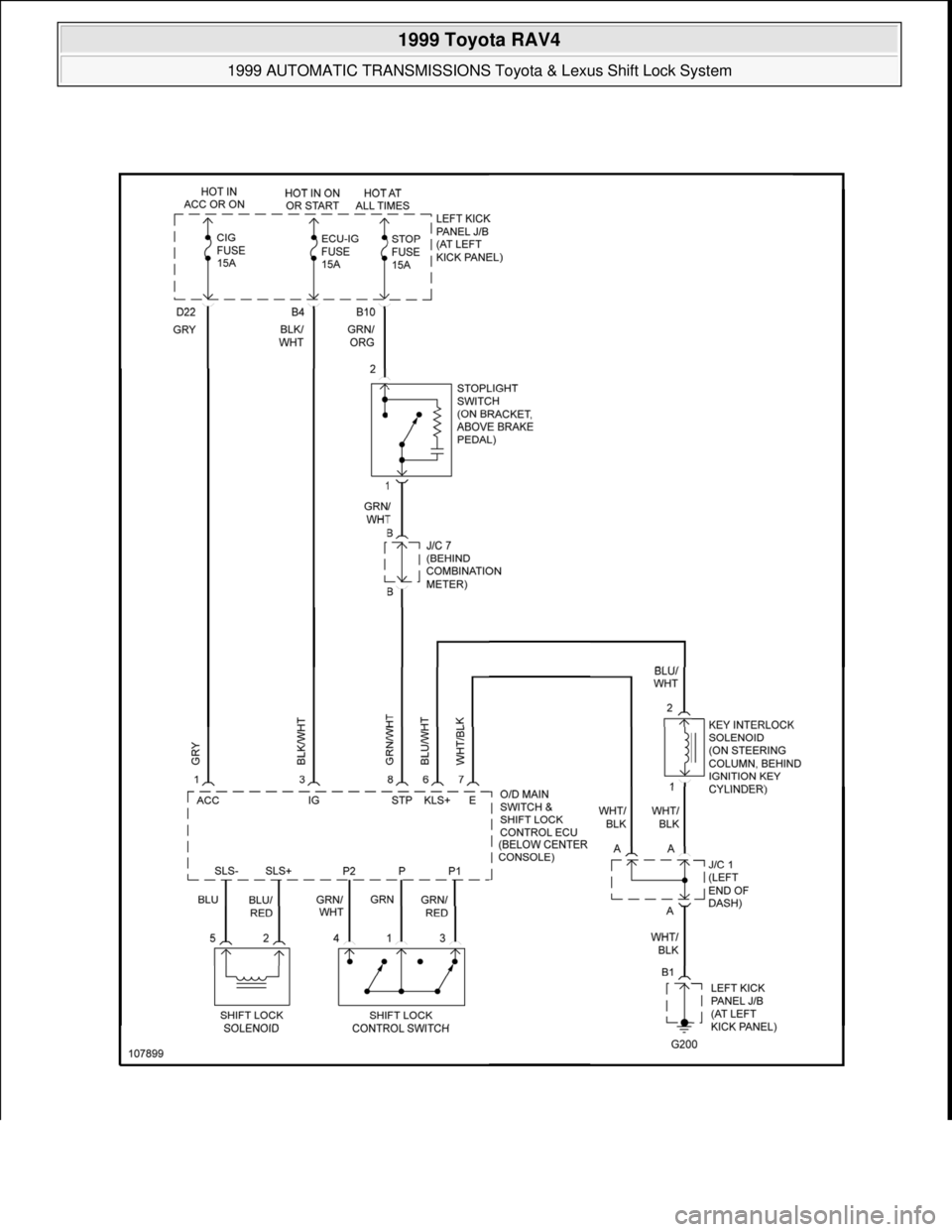

TOYOTA RAV4 1996 Service Repair Manual Fig. 13: Shift Interlock System Wiring Diagram (1999 Corolla) 1999 Toyota RAV4 1999 AUTOMATIC TRANSMISSIONS Toyota & Lexus Shift Lock System Microsoft Sunday, November 22, 2009 10:46:00 AMPage

Page 312 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 AUTOMATIC TRANSMISSIONS Toyota & Lexus Shift Lock System Microsoft Sunday, November 22, 2009 10:46:00 AMPage 35 © 2005 Mitchell Repair Information Company, LLC.

Page 313 of 1632

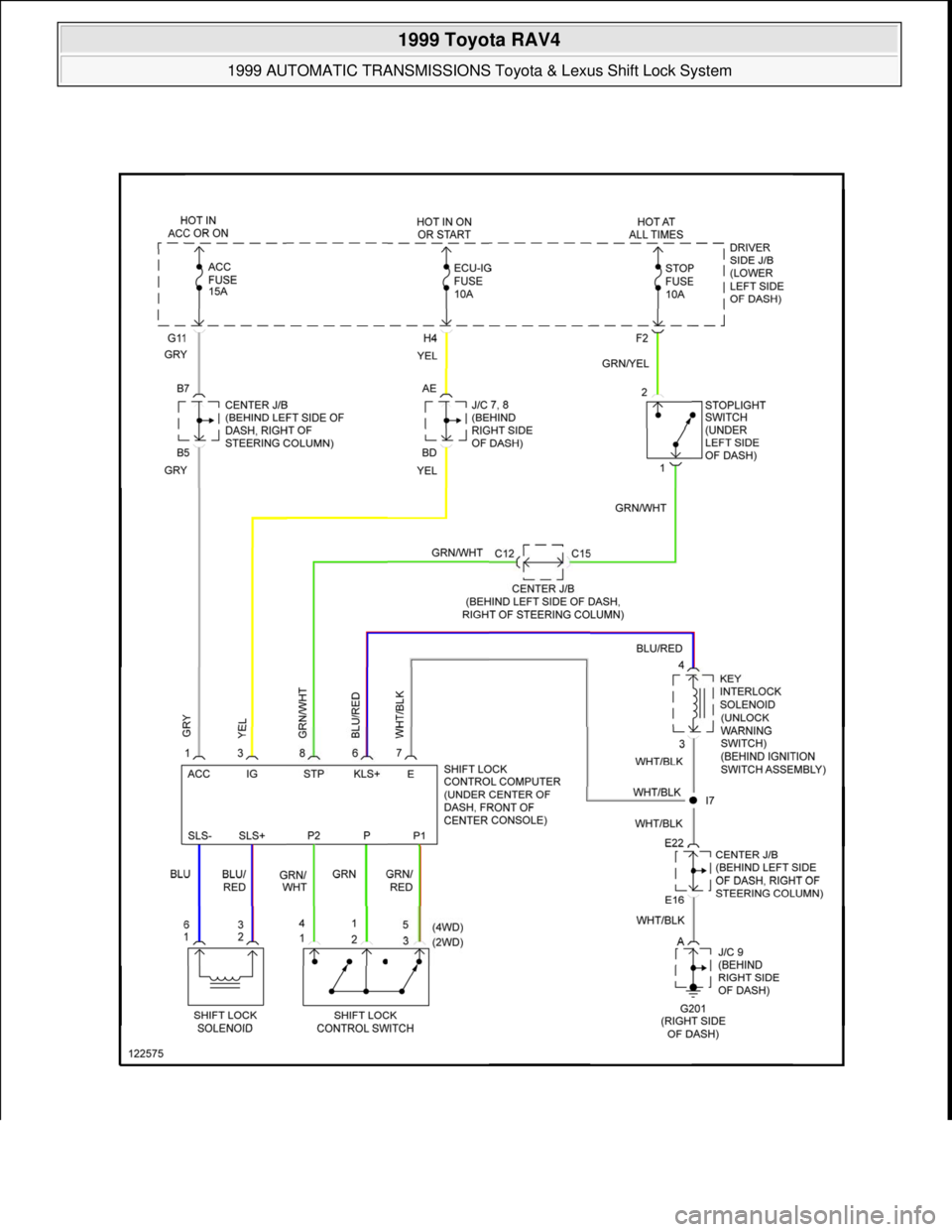

TOYOTA RAV4 1996 Service Repair Manual Fig. 14: Shift Interlock System Wiring Diagram (1999 Land Cruiser) 1999 Toyota RAV4 1999 AUTOMATIC TRANSMISSIONS Toyota & Lexus Shift Lock System Microsoft Sunday, November 22, 2009 10:46:00 AM

Page 314 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 AUTOMATIC TRANSMISSIONS Toyota & Lexus Shift Lock System Microsoft Sunday, November 22, 2009 10:46:00 AMPage 37 © 2005 Mitchell Repair Information Company, LLC.

Page 315 of 1632

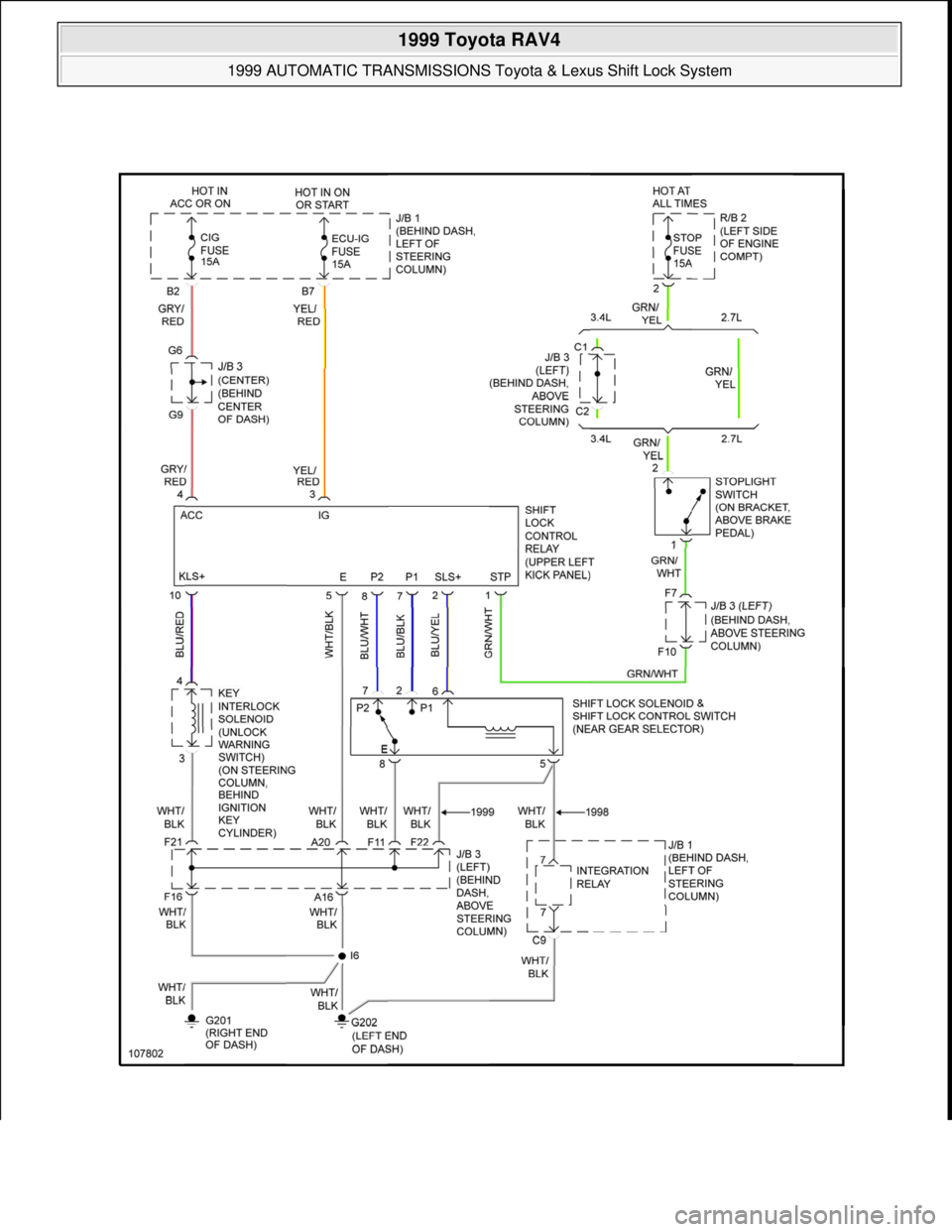

TOYOTA RAV4 1996 Service Repair Manual Fig. 15: Shift Interlock System Wiring Diagram (1999 RAV4) 1999 Toyota RAV4 1999 AUTOMATIC TRANSMISSIONS Toyota & Lexus Shift Lock System Microsoft Sunday, November 22, 2009 10:46:00 AMPage 38

Page 316 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 AUTOMATIC TRANSMISSIONS Toyota & Lexus Shift Lock System Microsoft Sunday, November 22, 2009 10:46:00 AMPage 39 © 2005 Mitchell Repair Information Company, LLC.

Page 317 of 1632

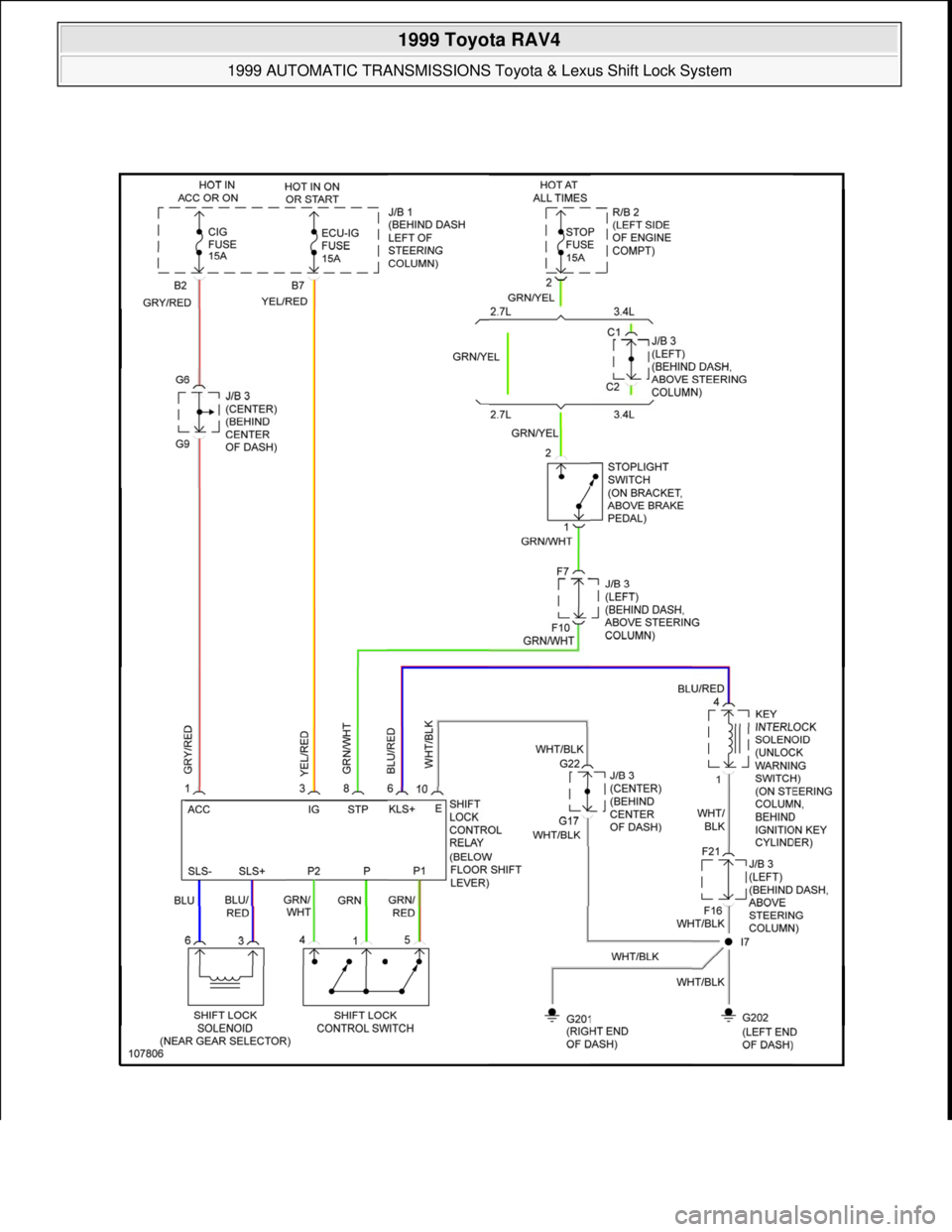

TOYOTA RAV4 1996 Service Repair Manual Fig. 16: Shift Interlock System Wiring Diagram (1999 Tacoma -With Column Shift) 1999 Toyota RAV4 1999 AUTOMATIC TRANSMISSIONS Toyota & Lexus Shift Lock System Microsoft Sunday, November 22, 20

Page 318 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 AUTOMATIC TRANSMISSIONS Toyota & Lexus Shift Lock System Microsoft Sunday, November 22, 2009 10:46:00 AMPage 41 © 2005 Mitchell Repair Information Company, LLC.

Page 319 of 1632

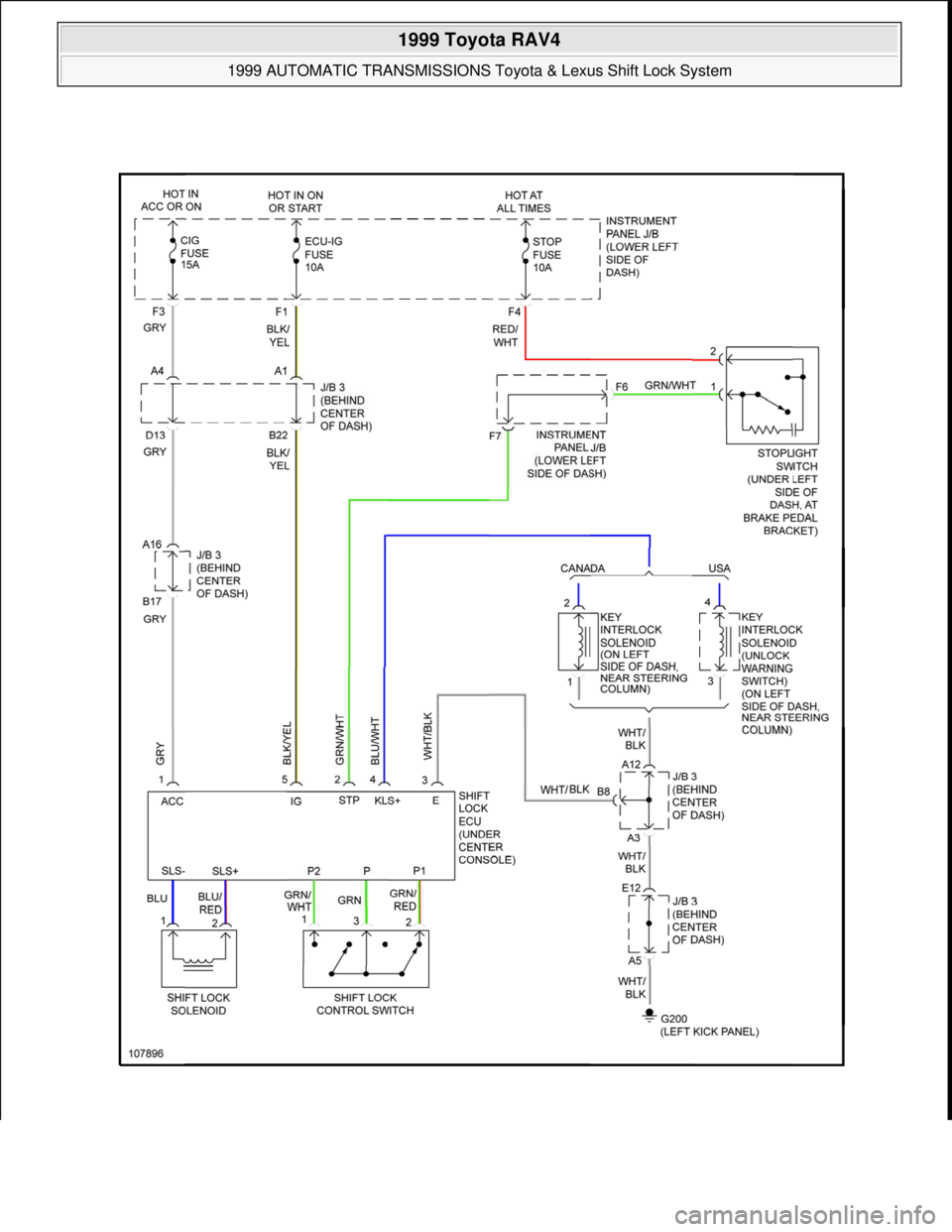

TOYOTA RAV4 1996 Service Repair Manual Fig. 17: Shift Interlock System Wiring Diagram (1999 Tacoma -With Floor Shift) 1999 Toyota RAV4 1999 AUTOMATIC TRANSMISSIONS Toyota & Lexus Shift Lock System Microsoft Sunday, November 22, 200

Page 320 of 1632

TOYOTA RAV4 1996 Service Repair Manual 1999 Toyota RAV4 1999 AUTOMATIC TRANSMISSIONS Toyota & Lexus Shift Lock System Microsoft Sunday, November 22, 2009 10:46:00 AMPage 43 © 2005 Mitchell Repair Information Company, LLC.
