2AZ-FE FUEL – FUEL PUMPFU–37
FU
6. INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY
(a) Install the fuel tube with the joint clips.
CAUTION:
• Check that there are no scratches or foreign
objects on the connecting parts.
• Check that the fuel tube joint is inserted
securely.
• Check that the fuel tube joint clip is on the
collars of the fuel tube joint.
• After installing the tube joint clip, check that
the fuel tube joint has not been pulled off.
• Be careful not to damage the clip. If the clip is
damaged, replace it.
7. INSTALL FUEL TANK ASSEMBLY
(a) Install the fuel tank (see page FU-44).
A125351
A124131E01

FU–402AZ-FE FUEL – FUEL TANK
FU
REMOVAL
1. DISCHARGE FUEL SYSTEM PRESSURE (See page
FU-9)
2. DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the
cable from the negative (-) battery terminal to
prevent airbag and seat belt pretensioner activation.
3. REMOVE FUEL TANK CAP
4. REMOVE FRONT FLOOR COVER
(a) Remove the nut, bolt, 3 clips and floor cover.
5. REMOVE NO. 1 FLOOR UNDER COVER
(a) Remove the 2 nuts, clip and floor under cover.
6. DISCONNECT NO. 2 PARKING BRAKE CABLE
ASSEMBLY
(a) Remove the 2 bolts and disconnect the parking
brake cable.
A124659
A131635

2AZ-FE FUEL – FUEL TANKFU–41
FU
7. DISCONNECT FUEL TANK MAIN TUBE SUB-
ASSEMBLY

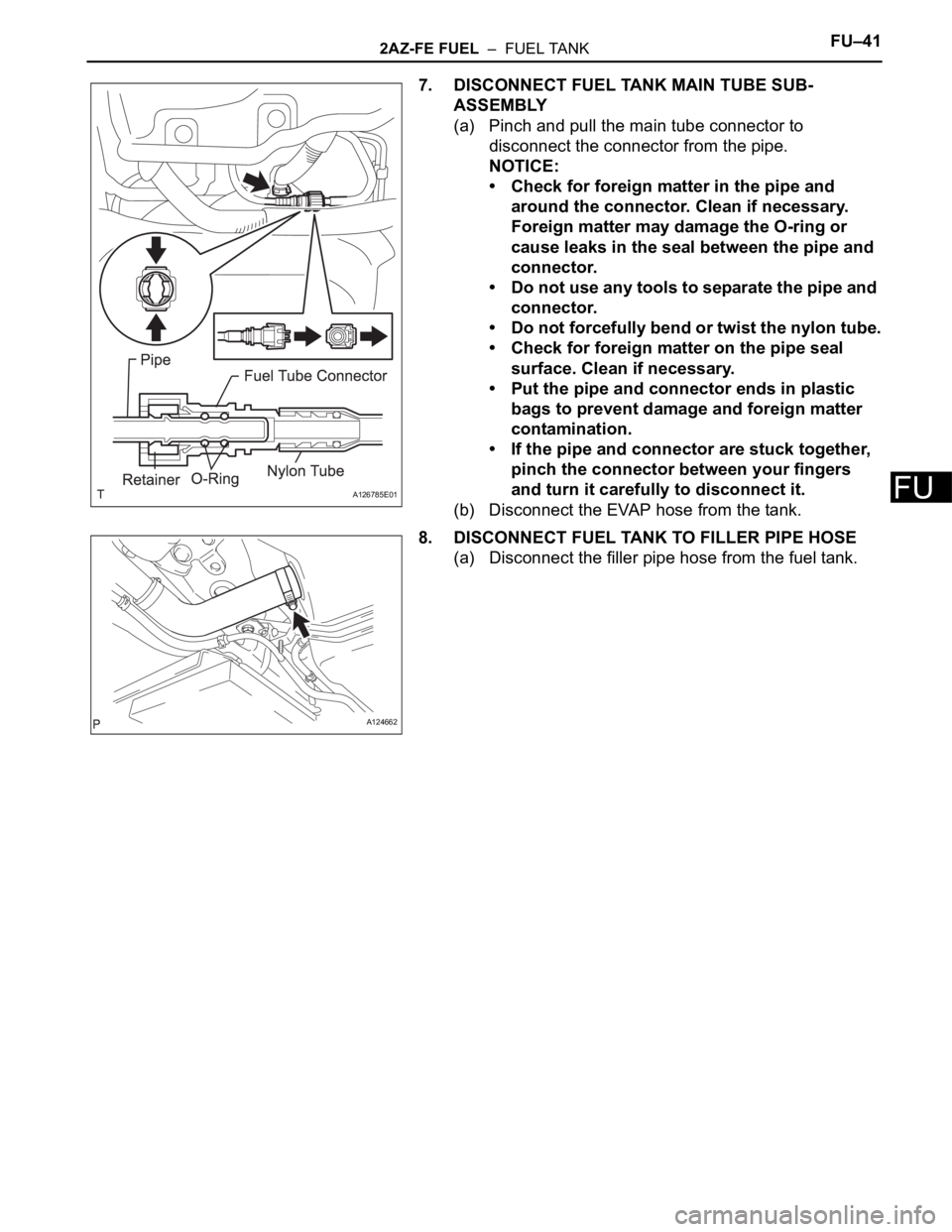

(a) Pinch and pull the main tube connector to
disconnect the connector from the pipe.
NOTICE:
• Check for foreign matter in the pipe and
around the connector. Clean if necessary.
Foreign matter may damage the O-ring or
cause leaks in the seal between the pipe and
connector.
• Do not use any tools to separate the pipe and
connector.
• Do not forcefully bend or twist the nylon tube.
• Check for foreign matter on the pipe seal
surface. Clean if necessary.
• Put the pipe and connector ends in plastic
bags to prevent damage and foreign matter
contamination.
• If the pipe and connector are stuck together,
pinch the connector between your fingers
and turn it carefully to disconnect it.
(b) Disconnect the EVAP hose from the tank.
8. DISCONNECT FUEL TANK TO FILLER PIPE HOSE
(a) Disconnect the filler pipe hose from the fuel tank.
A126785E01
A124662

FU–422AZ-FE FUEL – FUEL TANK
FU
9. DISCONNECT FUEL TANK BREATHER HOSE
(a) Disconnect the breather hose from the fuel tank.
NOTICE:
• Check for foreign matter in the pipe and
around the connector. Clean if necessary.
Foreign matter may damage the O-ring or
cause leaks in the seal between the pipe and
connector.
• Do not use any tools to separate the pipe and
connector.
• Do not forcefully bend or twist the nylon tube.
• Check for foreign matter on the pipe seal
surface. Clean if necessary.
• Put the pipe and connector ends in plastic
bags to prevent damage and foreign matter
contamination.
• If the pipe and connector are stuck together,
pinch the connector between your fingers
and turn it carefully to disconnect it.
10. REMOVE FUEL TANK FILLER PIPE
(a) Remove the 3 bolts and filler pipe protector.
(b) Remove the 2 bolts and filler pipe.
11. REMOVE FUEL TANK ASSEMBLY
(a) Set a mission jack underneath the fuel tank.
(b) Remove the 6 bolts and 3 fuel tank bands.
(c) Slightly lower the mission jack.
NOTICE:
Be careful not to cut the wirings.
A131631E01
A124665

2AZ-FE FUEL – FUEL TANKFU–43
FU

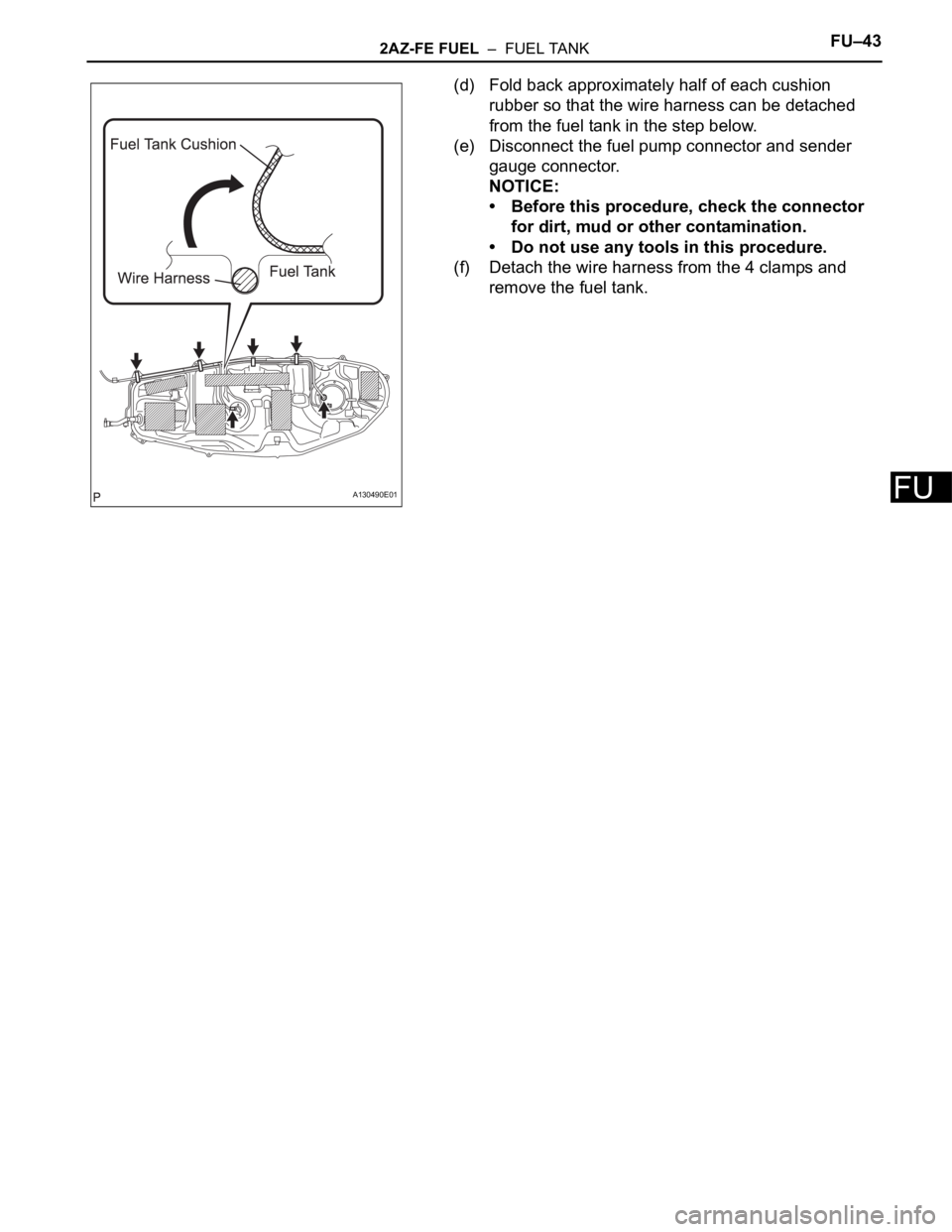

(d) Fold back approximately half of each cushion
rubber so that the wire harness can be detached
from the fuel tank in the step below.
(e) Disconnect the fuel pump connector and sender
gauge connector.
NOTICE:
• Before this procedure, check the connector
for dirt, mud or other contamination.
• Do not use any tools in this procedure.
(f) Detach the wire harness from the 4 clamps and
remove the fuel tank.
A130490E01

FU–442AZ-FE FUEL – FUEL TANK
FU
DISASSEMBLY
1. REMOVE FUEL TANK MAIN TUBE SUB-ASSEMBLY
(See page FU-30)
2. REMOVE FUEL TANK VENT TUBE SET PLATE (See
page FU-30)
3. REMOVE FUEL SUCTION WITH PUMP ASSEMBLY
(See page FU-30)
4. REMOVE FUEL TANK MAIN TUBE SUB-ASSEMBLY

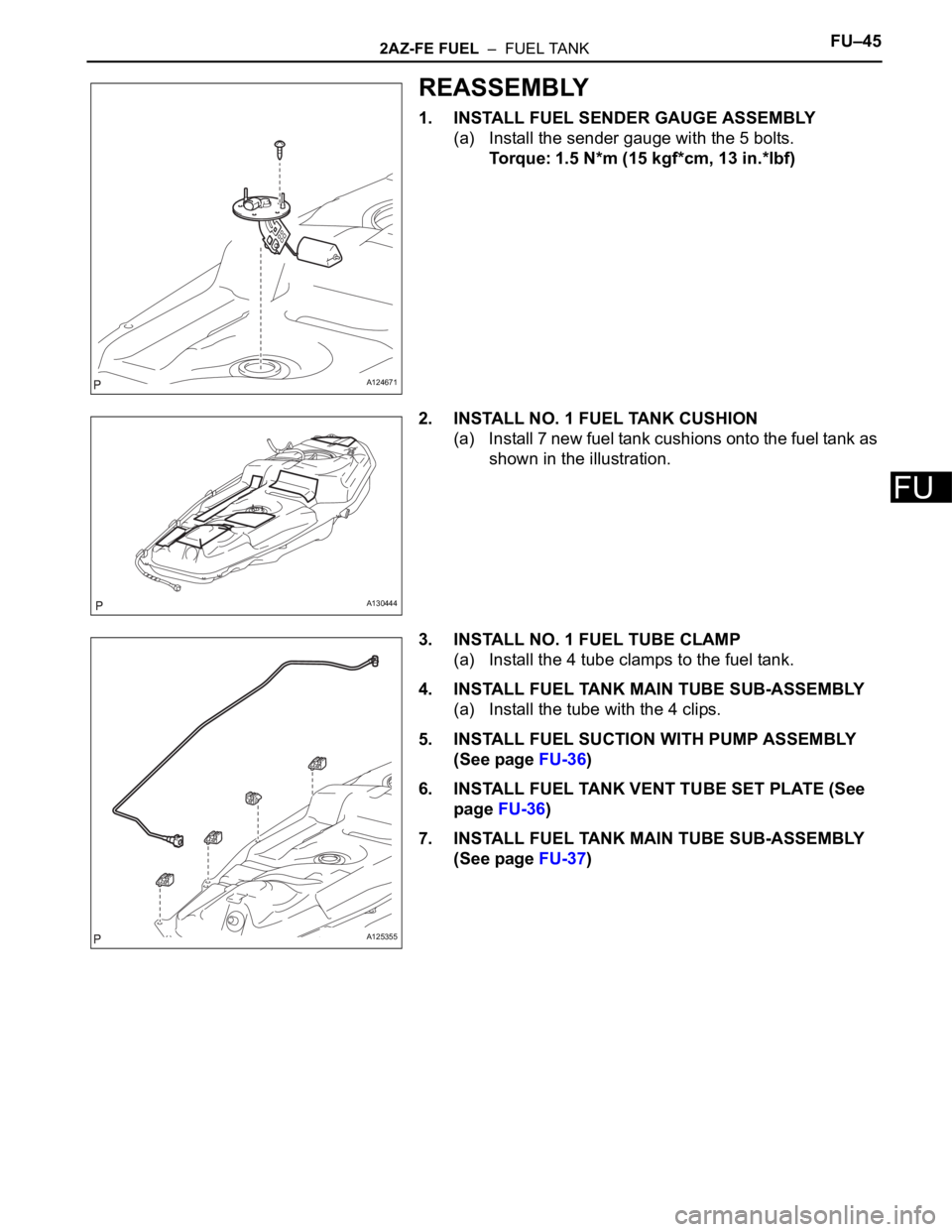

(a) Remove the tube from the fuel tube clamps.
5. REMOVE NO. 1 FUEL TUBE CLAMP
(a) Remove the 4 tube clamps from the fuel tank.
6. REMOVE NO. 1 FUEL TANK CUSHION
(a) Remove the 7 fuel tank cushions from the fuel tank.
7. REMOVE FUEL SENDER GAUGE ASSEMBLY
(a) Remove the 5 screws and sender gauge.
A125355
A130444
A124670

2AZ-FE FUEL – FUEL TANKFU–45
FU
REASSEMBLY
1. INSTALL FUEL SENDER GAUGE ASSEMBLY
(a) Install the sender gauge with the 5 bolts.
Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf)
2. INSTALL NO. 1 FUEL TANK CUSHION
(a) Install 7 new fuel tank cushions onto the fuel tank as
shown in the illustration.
3. INSTALL NO. 1 FUEL TUBE CLAMP
(a) Install the 4 tube clamps to the fuel tank.
4. INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY
(a) Install the tube with the 4 clips.
5. INSTALL FUEL SUCTION WITH PUMP ASSEMBLY
(See page FU-36)
6. INSTALL FUEL TANK VENT TUBE SET PLATE (See
page FU-36)
7. INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY
(See page FU-37)
A124671
A130444
A125355

FU–462AZ-FE FUEL – FUEL TANK
FU
INSTALLATION
1. INSTALL FUEL TANK ASSEMBLY
(a) Set the fuel tank on a mission jack.
(b) Lift up the mission jack.

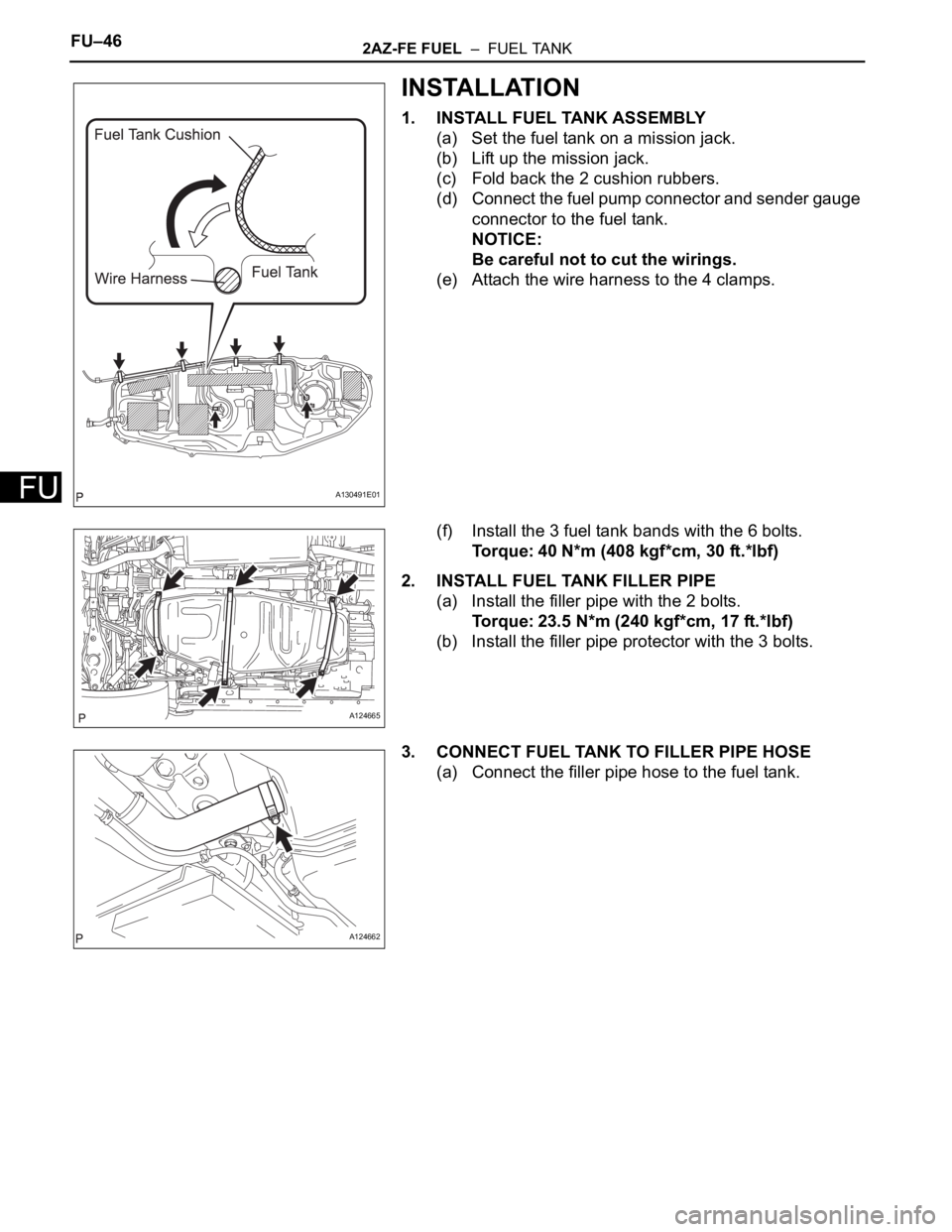

(c) Fold back the 2 cushion rubbers.
(d) Connect the fuel pump connector and sender gauge
connector to the fuel tank.
NOTICE:
Be careful not to cut the wirings.
(e) Attach the wire harness to the 4 clamps.
(f) Install the 3 fuel tank bands with the 6 bolts.
Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)
2. INSTALL FUEL TANK FILLER PIPE
(a) Install the filler pipe with the 2 bolts.
Torque: 23.5 N*m (240 kgf*cm, 17 ft.*lbf)
(b) Install the filler pipe protector with the 3 bolts.
3. CONNECT FUEL TANK TO FILLER PIPE HOSE
(a) Connect the filler pipe hose to the fuel tank.
A130491E01
A124665
A124662

2AZ-FE FUEL – FUEL TANKFU–47
FU
4. CONNECT FUEL TANK BREATHER HOSE
(a) Connect the fuel tank breather hose to the fuel tank.
NOTICE:
• Before installing the tube connector to the
pipe, check the connector for damage and
foreign matter.
• Check that the connector and pipe is securely
connected by trying to pull them apart.
5. CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
NOTICE:
Before installing the tube connector to the pipe,
check the connector for damage and foreign matter.

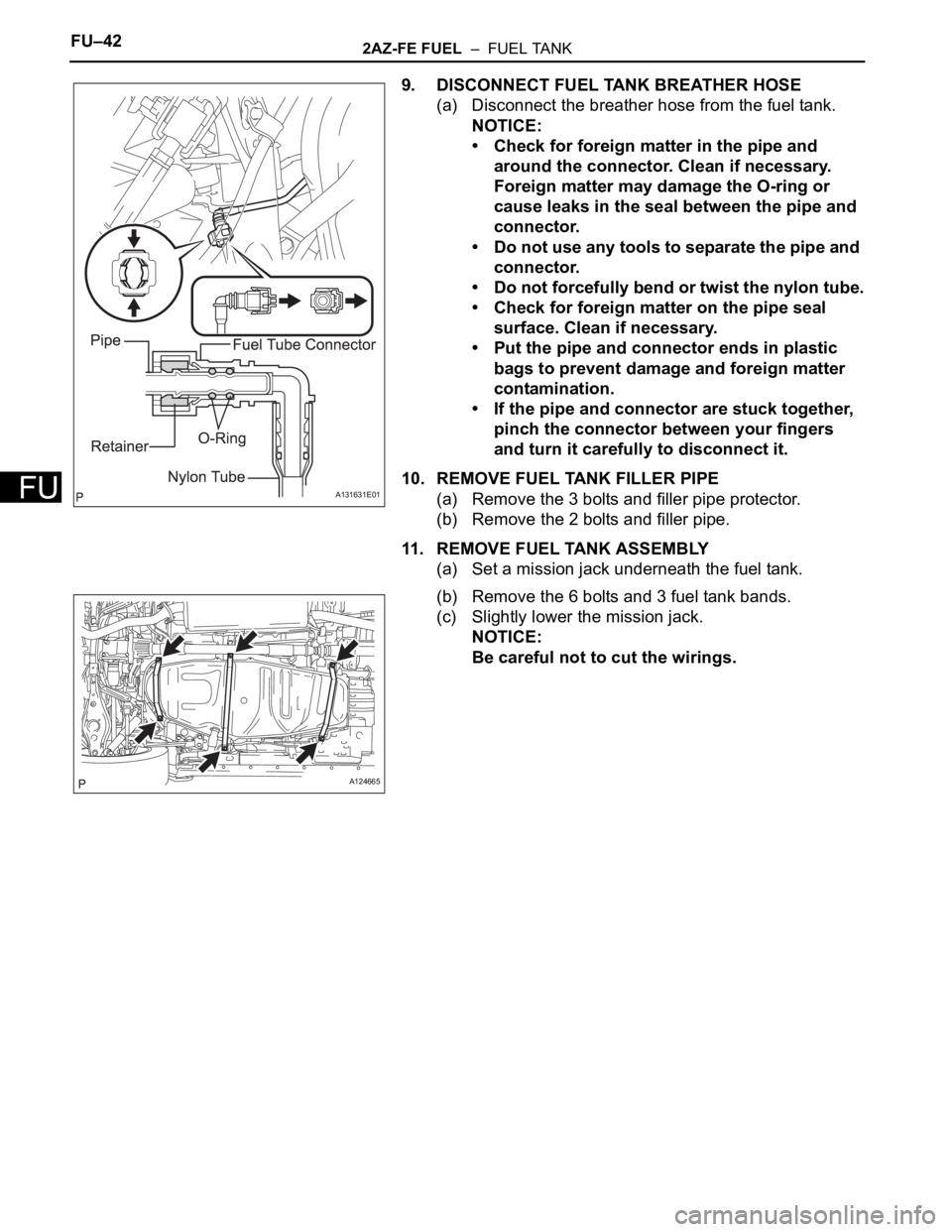

(a) Connect the main tube connector to the pipe. Push
the 2 parts together firmly until a "click" sound is
heard.
NOTICE:
Check that the connector and pipe are securely
connected by trying to pull them apart.
(b) Connect the EVAP hose to the fuel tank.
6. INSTALL NO. 1 FLOOR UNDER COVER
(a) Install the floor cover with the clip and 2 nuts.
7. INSTALL FRONT FLOOR COVER
(a) Install the floor under cover with the 3 clips, bolt and
nut.
A131632E01
A127714E01
A124659

FU–482AZ-FE FUEL – FUEL TANK
FU
8. INSTALL NO. 2 PARKING BRAKE CABLE ASSEMBLY
(a) Install the parking brake cable with the 2 bolts.
9. INSTALL FUEL TANK CAP
10. CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
11. CHECK FOR FUEL LEAKS (See page FU-14)
