130 StartinganddrivingDrivingwithatrailerTheloadcapacityisaffectedbyextraacces-
soriesmountedonthecar,suchasatowbar,
theloadonthetowball(75kgwithtrailer
hitched),loadcarriersandspacebox,aswell
asthepassengers’combinedweight.The
loadcapacityofthecarisreducedbythe
numberofpassengersandtheirweight.
Thecar’stowingbracketmustbeofan
approvedtype.
IfthetowingbracketisfittedbyVolvo,the
carisdeliveredwiththenecessary
equipmenttodrivewithatrailer.Ifretro-
fitting,checkwithyourVolvodealerto
ensurethatthecarisfullyequippedto
drivewithatrailer.
Distributetheloadonthetrailersothat
theweightonthetowingbracketfollows
thespecifiedmaximumtowballload.
Increasetyrepressuretocorrespondto
thepressureforfullload.Seethetyre
pressuretable!Cleanthetowingbracketregularlyand
greasethetowball
1andallmovingparts
topreventunnecessarywear.
Donotdrivewithaheavytrailerwhen
yourcarisbrandnew!Waituntilithas
goneatleast1000km.
Thebrakesareloadedmuchmorethan
usualonlongandsteepdownhillslopes.
Downshifttoalowergearandadjustyour
speed.
Ifthecarisdrivenwithaheavyloadina
hotclimate,theengineandgearboxmay
overheat.Thetemperaturegaugeinthe
combinedinstrumentpanelgoesintothe
redzonewhenthecaroverheats.Stop
andlettheengineidleafewminutes.
Ifthecaroverheats,theairconditioning
systemcanbetemporarilyswitchedoff.
Thegearboxreactswithabuilt-in
protectionfunctionifthecaroverheats.
Seethemessageinthedisplay!
Theengineisloadedmoreheavilythan
usualwhendrivingwithatrailer.
Forreasonsofsafety,youshouldnot
drivefasterthan80km/h,evenifthelaws
ofcertaincountriespermithigherspeeds.Themaximumpermissibletrailerweight
foratrailerwithoutbrakesis750kg.
SelectpositionP(automaticgearbox)or
engageagear(manualgearbox)when
parkingwithatrailerandalwaysapplythe
parkingbrake.Ifyouareparkingona
steepincline,placechocksbehindthe
wheels.
TrailerweightsSeepage237forpermittedtrailerweights.
NOTE!Thestatedmaximumpermittedtrailer
weightsarethosepermittedbyVolvo.
Nationalvehicleregulationscanfurtherlimit
trailerweightsandspeeds.Towbarscanbe
certifiedforhighertowingweightsthanthe
carcanactuallytow.
WARNING!
Thecar’sdrivingcharacteristicschange
dependingonhowheavilyitisloadedand
howtheloadisdistributed.
1.Doesnotapplytoballhitchwith
vibrationdamper.
WARNING!
Followthestatedrecommendationsfor
trailerweights.Otherwise,therigmaybe
difficulttocontrolduringevasive
manoeuvresandbraking.
ProCarManuals.com

131 Startinganddriving

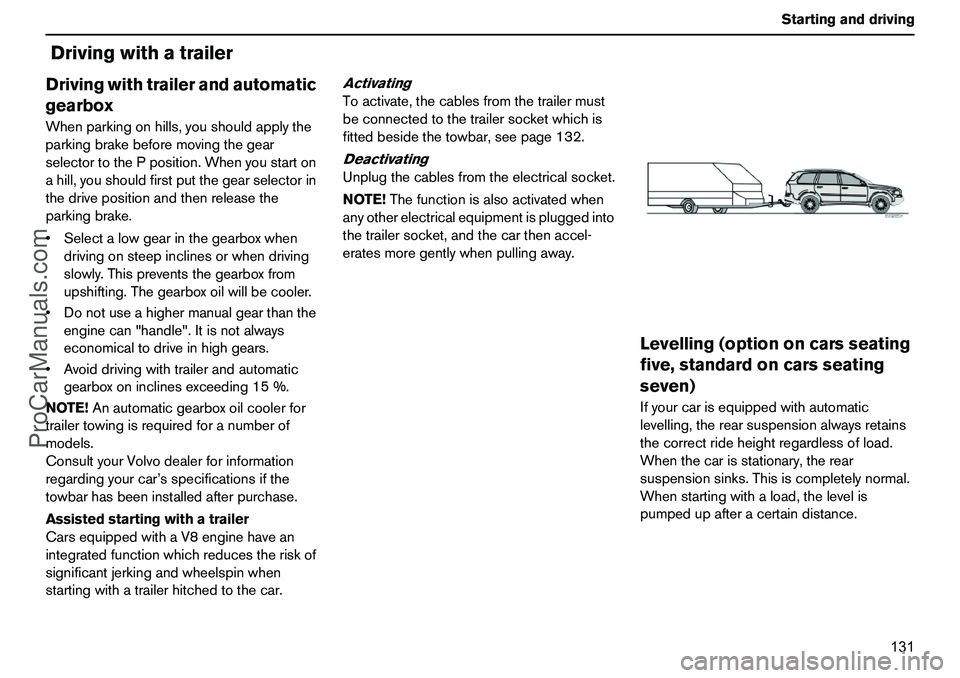

DrivingwithatrailerDrivingwithtrailerandautomatic
gearboxWhenparkingonhills,youshouldapplythe
parkingbrakebeforemovingthegear
selectortothePposition.Whenyoustarton
ahill,youshouldfirstputthegearselectorin
thedrivepositionandthenreleasethe
parkingbrake.
Selectalowgearinthegearboxwhen
drivingonsteepinclinesorwhendriving
slowly.Thispreventsthegearboxfrom
upshifting.Thegearboxoilwillbecooler.
Donotuseahighermanualgearthanthe
enginecan"handle".Itisnotalways
economicaltodriveinhighgears.
Avoiddrivingwithtrailerandautomatic
gearboxoninclinesexceeding15%.
NOTE!Anautomaticgearboxoilcoolerfor
trailertowingisrequiredforanumberof
models.
ConsultyourVolvodealerforinformation
regardingyourcar’sspecificationsifthe
towbarhasbeeninstalledafterpurchase.
Assistedstartingwithatrailer
CarsequippedwithaV8enginehavean
integratedfunctionwhichreducestheriskof
significantjerkingandwheelspinwhen
startingwithatrailerhitchedtothecar.
ActivatingToactivate,thecablesfromthetrailermust
beconnectedtothetrailersocketwhichis
fittedbesidethetowbar,seepage132.DeactivatingUnplugthecablesfromtheelectricalsocket.
NOTE!Thefunctionisalsoactivatedwhen
anyotherelectricalequipmentispluggedinto
thetrailersocket,andthecarthenaccel-
eratesmoregentlywhenpullingaway.
Levelling(optiononcarsseating
five,standardoncarsseating
seven)Ifyourcarisequippedwithautomatic
levelling,therearsuspensionalwaysretains
thecorrectrideheightregardlessofload.
Whenthecarisstationary,therear
suspensionsinks.Thisiscompletelynormal.
Whenstartingwithaload,thelevelis
pumpedupafteracertaindistance.
ProCarManuals.com

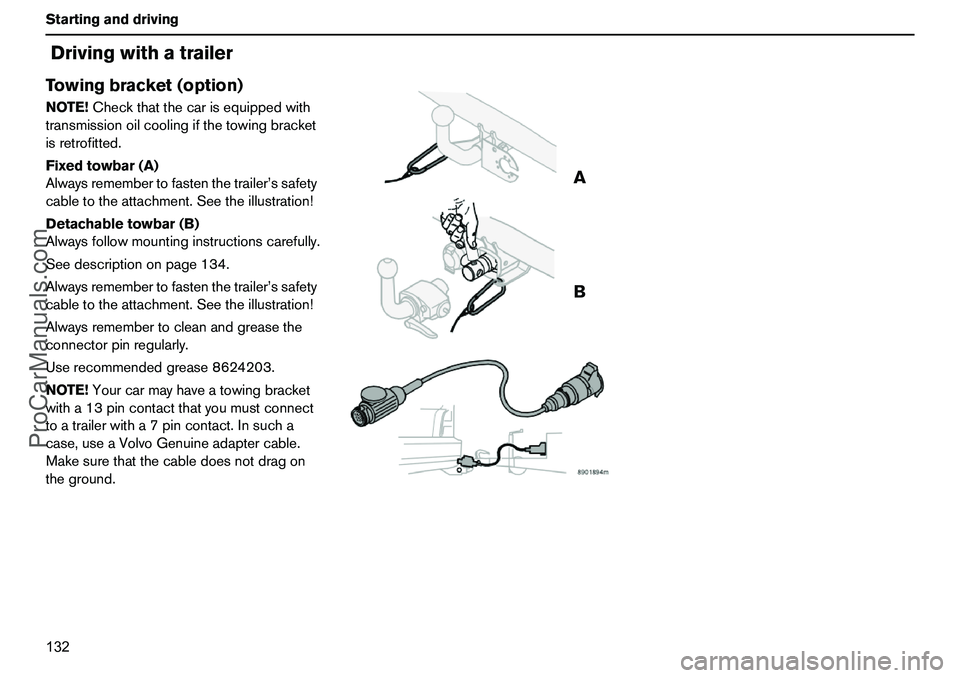

132 StartinganddrivingDrivingwithatrailerTowingbracket(option)NOTE!Checkthatthecarisequippedwith
transmissionoilcoolingifthetowingbracket
isretrofitted.
Fixedtowbar(A)
Alwaysremembertofastenthetrailer’ssafety
cabletotheattachment.Seetheillustration!
Detachabletowbar(B)
Alwaysfollowmountinginstructionscarefully.
Seedescriptiononpage134.
Alwaysremembertofastenthetrailer’ssafety
cabletotheattachment.Seetheillustration!
Alwaysremembertocleanandgreasethe
connectorpinregularly.
Userecommendedgrease8624203.
NOTE!Yourcarmayhaveatowingbracket
witha13pincontactthatyoumustconnect
toatrailerwitha7pincontact.Insucha
case,useaVolvoGenuineadaptercable.
Makesurethatthecabledoesnotdragon
theground.
A
B
ProCarManuals.com

133 Startinganddriving
DrivingwithatrailerSpecificationsDistanceAabove:
Fixedtowbar:1124mm
Detachabletowbar:1124mm
Max.permissibleballpressure:90kgDistanceBabove:
Fixedtowbar:80mm
Detachabletowbar:80mm
ProCarManuals.com

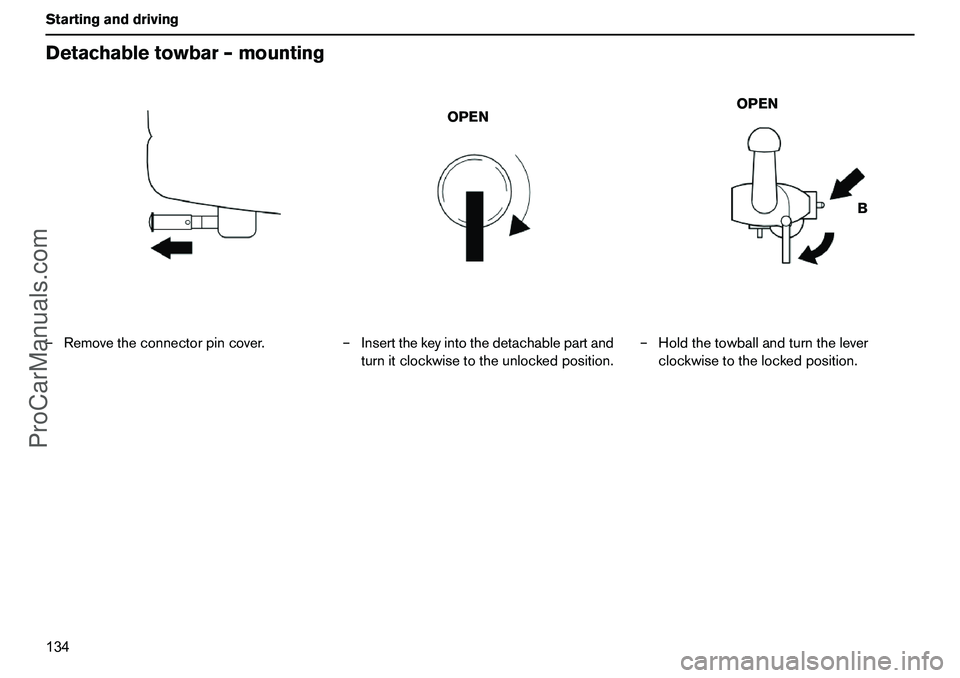

134 StartinganddrivingDetachabletowbar–mounting–Removetheconnectorpincover.–Insertthekeyintothedetachablepartand
turnitclockwisetotheunlockedposition.–Holdthetowballandturnthelever
clockwisetothelockedposition.
OPEN
OPEN
B
ProCarManuals.com

135 Startinganddriving

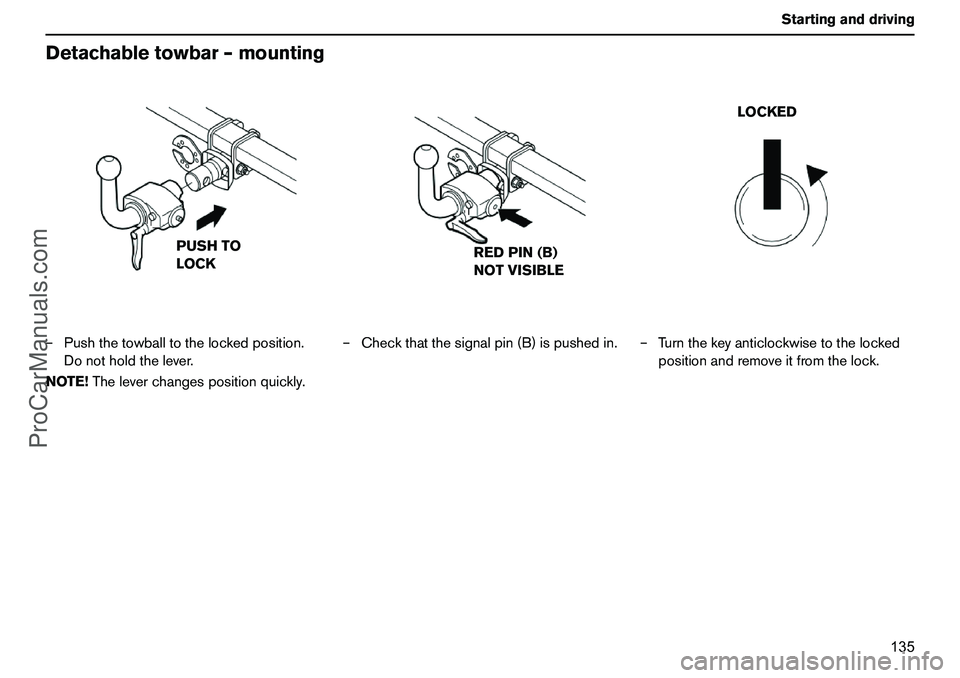

Detachabletowbar–mounting–Pushthetowballtothelockedposition.
Donotholdthelever.
NOTE!Theleverchangespositionquickly.–Checkthatthesignalpin(B)ispushedin.–Turnthekeyanticlockwisetothelocked
positionandremoveitfromthelock.
PUSHTO
LOCK
REDPIN(B)
NOTVISIBLE
LOCKED
ProCarManuals.com

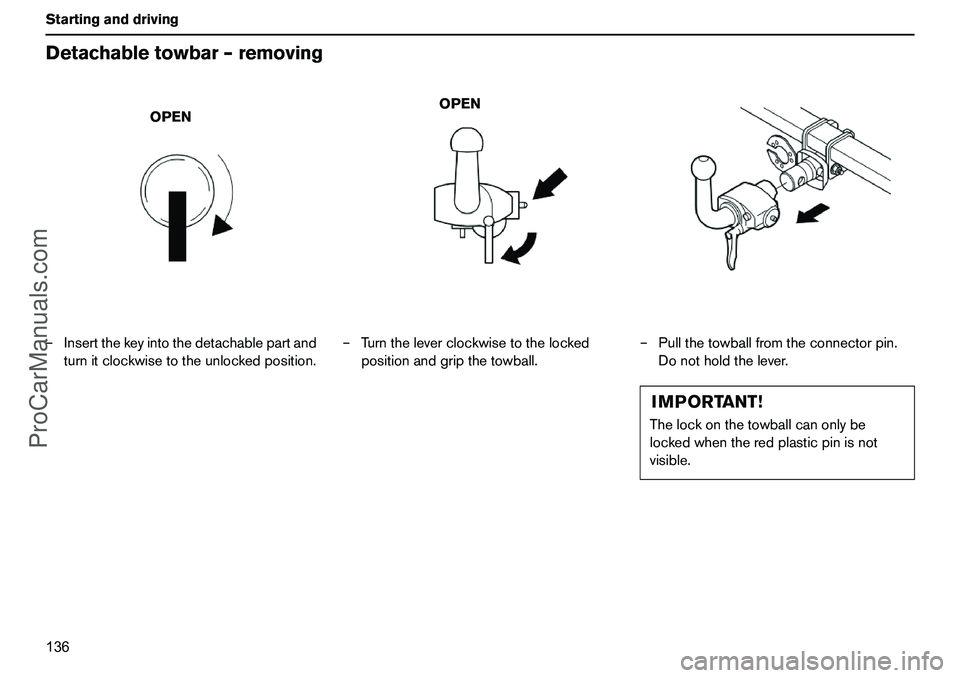

136 StartinganddrivingDetachabletowbar–removing–Insertthekeyintothedetachablepartand
turnitclockwisetotheunlockedposition.–Turntheleverclockwisetothelocked
positionandgripthetowball.–Pullthetowballfromtheconnectorpin.
Donotholdthelever.
OPEN
OPEN
IMPORTANT!Thelockonthetowballcanonlybe
lockedwhentheredplasticpinisnot
visible.
ProCarManuals.com

137 Startinganddriving

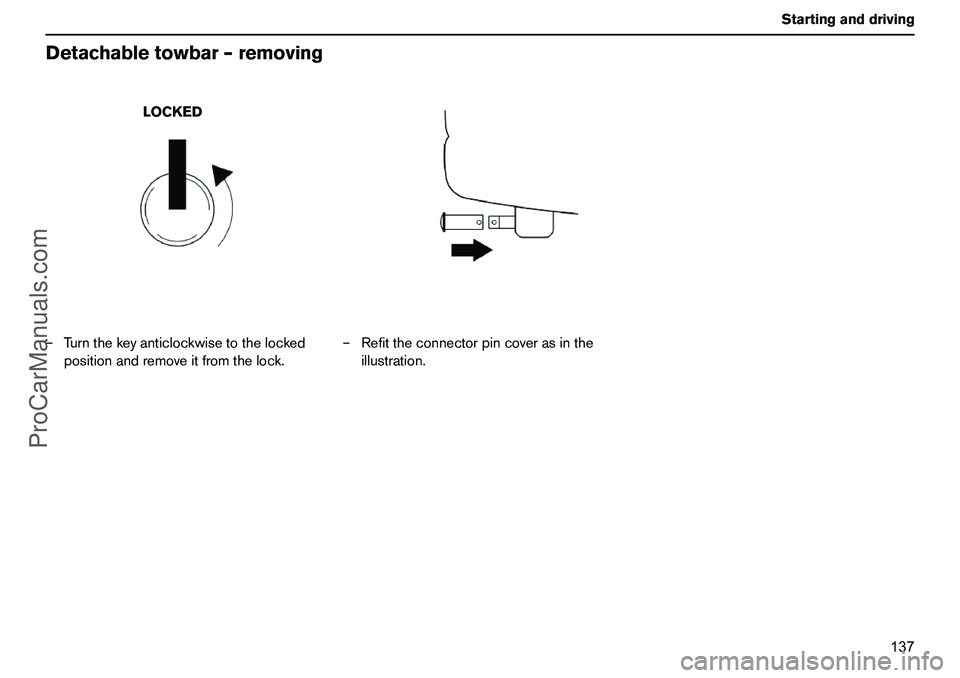

Detachabletowbar–removing–Turnthekeyanticlockwisetothelocked
positionandremoveitfromthelock.–Refittheconnectorpincoverasinthe
illustration.
LOCKED
ProCarManuals.com

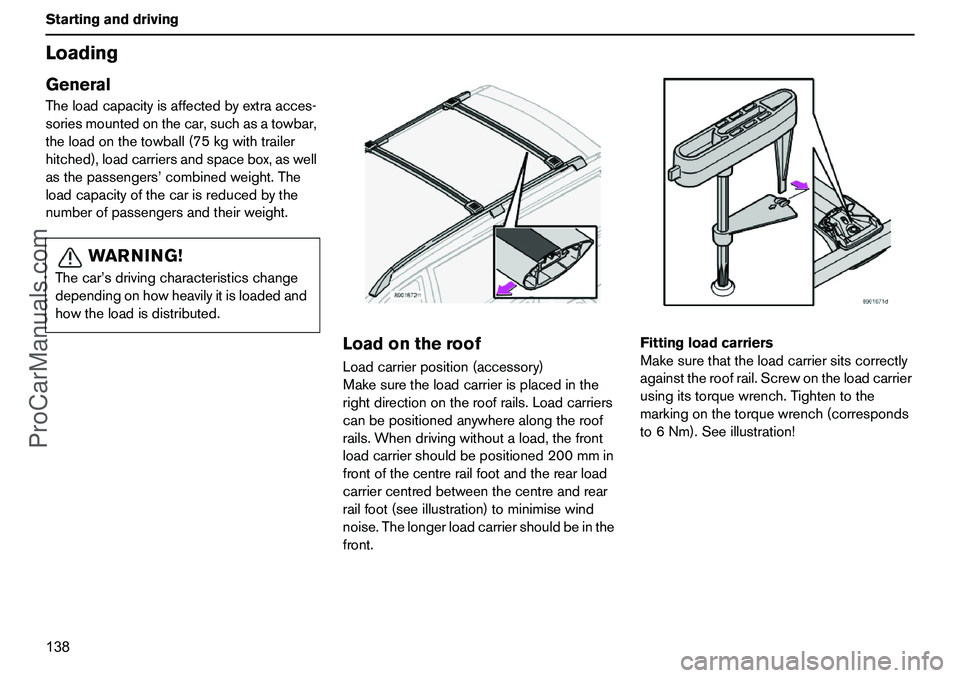

138 StartinganddrivingLoadingGeneralTheloadcapacityisaffectedbyextraacces-
soriesmountedonthecar,suchasatowbar,
theloadonthetowball(75kgwithtrailer
hitched),loadcarriersandspacebox,aswell
asthepassengers’combinedweight.The
loadcapacityofthecarisreducedbythe
numberofpassengersandtheirweight.
LoadontheroofLoadcarrierposition(accessory)
Makesuretheloadcarrierisplacedinthe
rightdirectionontheroofrails.Loadcarriers
canbepositionedanywherealongtheroof
rails.Whendrivingwithoutaload,thefront
loadcarriershouldbepositioned200mmin
frontofthecentrerailfootandtherearload
carriercentredbetweenthecentreandrear
railfoot(seeillustration)tominimisewind
noise.Thelongerloadcarriershouldbeinthe
front.Fittingloadcarriers
Makesurethattheloadcarriersitscorrectly
againsttheroofrail.Screwontheloadcarrier
usingitstorquewrench.Tightentothe
markingonthetorquewrench(corresponds
to6Nm).Seeillustration!
WARNING!
Thecar’sdrivingcharacteristicschange
dependingonhowheavilyitisloadedand
howtheloadisdistributed.
ProCarManuals.com

139 Startinganddriving

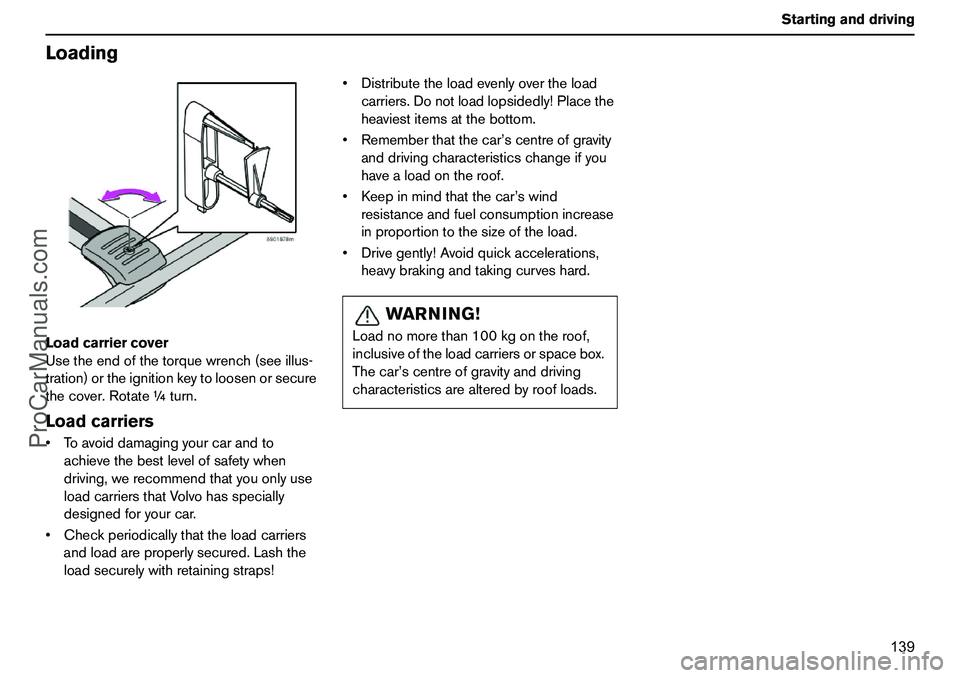

LoadingLoadcarriercover
Usetheendofthetorquewrench(seeillus-
tration)ortheignitionkeytoloosenorsecure
thecover.Rotate¼turn.LoadcarriersToavoiddamagingyourcarandto
achievethebestlevelofsafetywhen
driving,werecommendthatyouonlyuse
loadcarriersthatVolvohasspecially
designedforyourcar.
Checkperiodicallythattheloadcarriers
andloadareproperlysecured.Lashthe
loadsecurelywithretainingstraps!Distributetheloadevenlyovertheload
carriers.Donotloadlopsidedly!Placethe
heaviestitemsatthebottom.
Rememberthatthecar’scentreofgravity
anddrivingcharacteristicschangeifyou
havealoadontheroof.
Keepinmindthatthecar’swind
resistanceandfuelconsumptionincrease
inproportiontothesizeoftheload.
Drivegently!Avoidquickaccelerations,
heavybrakingandtakingcurveshard.
WARNING!
Loadnomorethan100kgontheroof,
inclusiveoftheloadcarriersorspacebox.
Thecar’scentreofgravityanddriving
characteristicsarealteredbyroofloads.
