INSTRUMENT AND CONTROL FUNCTIONS
4-15
EAUB1550

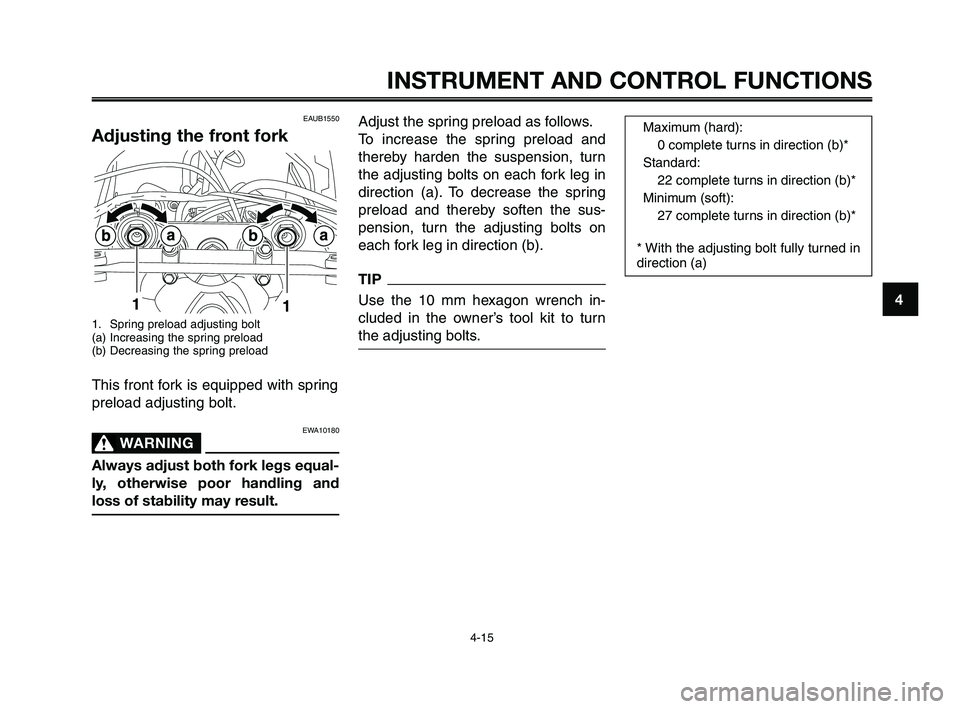

Adjusting the front fork
1. Spring preload adjusting bolt
(a) Increasing the spring preload
(b) Decreasing the spring preload
This front fork is equipped with spring
preload adjusting bolt.
EWA10180
WARNING0
Always adjust both fork legs equal-
ly, otherwise poor handling and
loss of stability may result.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting bolts on each fork leg in
direction (a). To decrease the spring
preload and thereby soften the sus-
pension, turn the adjusting bolts on
each fork leg in direction (b).Maximum (hard):
0 complete turns in direction (b)*
Standard:
22 complete turns in direction (b)*
Minimum (soft):
27 complete turns in direction (b)*
* With the adjusting bolt fully turned in
direction (a)
TIP
Use the 10 mm hexagon wrench in-
cluded in the owner’s tool kit to turn
the adjusting bolts.
XT660Z 04-04 ING-AUS:MY03 01-03 ING 11-05-2009 9:54 Pagina 4-15

INSTRUMENT AND CONTROL FUNCTIONS
4-16
1
2
3
4
5
6
7
8
9
10
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring in direction (a).
To decrease the spring preload and
thereby soften the suspension, turn
the adjusting ring in direction (b).
TIP
Align the appropriate notch in the ad-
justing ring with the position indicator
on the shock absorber.
EWAB0020
WARNING0
Never adjust the spring preload un-
til the exhaust system has cooled
down.
EWA10221
WARNING0
This shock absorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.
●Do not tamper with or attempt
to open the cylinder assembly.
●Do not subject the shock ab-
sorber assembly to an open
flame or other high heat
source. This may cause the unit
to explode due to excessive
gas pressure.
●Do not deform or damage the
cylinder in any way. Cylinder
damage will result in poor
damping performance.
●Do not dispose of a damaged
or worn-out shock absorber
assembly yourself. Take the
shock absorber assembly to a
Yamaha dealer for any service.
EAUB1461

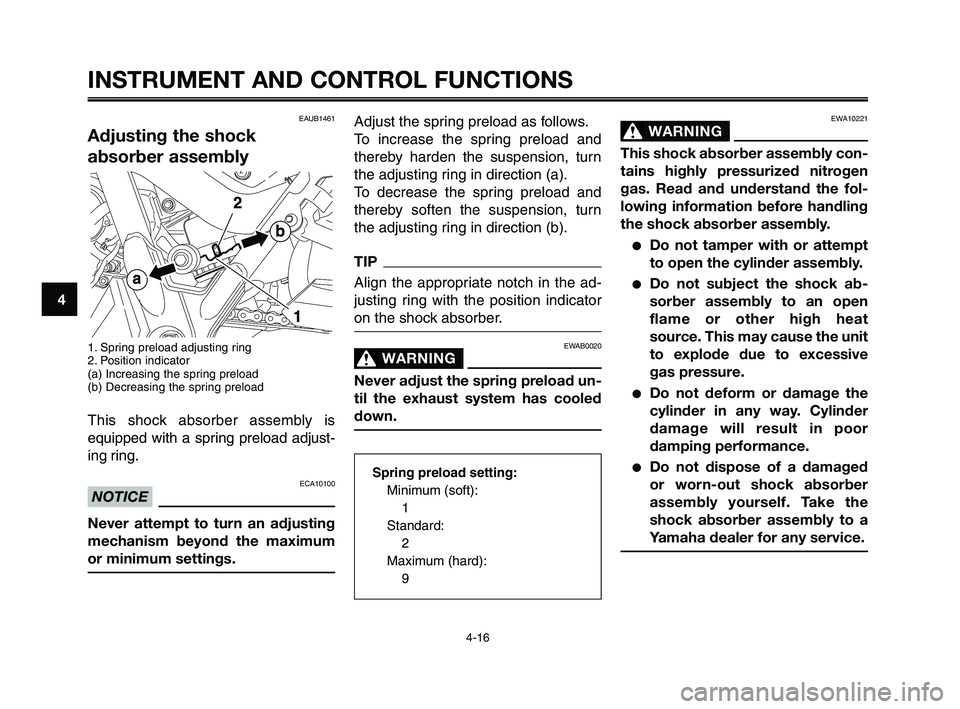

Adjusting the shock
absorber assembly
1. Spring preload adjusting ring
2. Position indicator
(a) Increasing the spring preload
(b) Decreasing the spring preload
This shock absorber assembly is
equipped with a spring preload adjust-
ing ring.
ECA10100
NOTICE
Never attempt to turn an adjusting
mechanism beyond the maximum
or minimum settings.
Spring preload setting:
Minimum (soft):
1
Standard:
2
Maximum (hard):
9
XT660Z 04-04 ING-AUS:MY03 01-03 ING 11-05-2009 9:54 Pagina 4-16

EWA10240
WARNING0
The vehicle must not be ridden
with the sidestand down, or if the
sidestand cannot be properly
moved up (or does not stay up),
otherwise the sidestand could con-
tact the ground and distract the
operator, resulting in a possible
loss of control. Yamaha’s ignition
circuit cut-off system has been de-
signed to assist the operator in ful-
filling the responsibility of raising
the sidestand before starting off.
Therefore, check this system regu-
larly as described below and have
a Yamaha dealer repair it if it does
not function properly.
EAU15301
Sidestand
1. Sidestand
The sidestand is located on the left
side of the frame. Raise the sidestand
or lower it with your foot while holding
the motorcycle upright.
TIP
The built-in sidestand switch is part of
the ignition circuit cut-off system,
which cuts the ignition in certain situa-
tions. (See further down for an expla-
nation of the ignition circuit cut-off sys-
tem.)
1
1
2
3
4
5
6
7
8
9
10
INSTRUMENT AND CONTROL FUNCTIONS
4-17
EAU15314
Ignition circuit cut-off
system
The ignition circuit cut-off system
(comprising the sidestand switch,
clutch switch and neutral switch) has
the following functions.
●It prevents starting when the
transmission is in gear and the
sidestand is up, but the clutch
lever is not pulled.
●It prevents starting when the
transmission is in gear and the
clutch lever is pulled, but the side-
stand is still down.
●It cuts the running engine when
the transmission is in gear and
the sidestand is moved down.
Periodically check the operation of the
ignition circuit cut-off system accord-
ing to the following procedure.
TIP
This check is most reliable if per-
formed with a warmed-up engine.
XT660Z 04-04 ING-AUS:MY03 01-03 ING 11-05-2009 9:55 Pagina 4-17

INSTRUMENT AND CONTROL FUNCTIONS
WARNING0
If a malfunction is noted, have a Yamaha dealer
check the system before riding.
4-18
1
2
3
4
5
6
7
8
9
10
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to
“I”.
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
The neutral switch may not be working correctly.
The motorcycle should not be riddenuntil checked by a
Yamaha dealer.
The sidestand switch may not be working correctly.
The motorcycle should not be riddenuntil checked by a
Yamaha dealer.
The clutch switch may not be working correctly.
The motorcycle should not be riddenuntil checked by a
Yamaha dealer.
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.YES NO
NO YES
NO YES
XT660Z 04-04 ING-AUS:MY03 01-03 ING 11-05-2009 9:55 Pagina 4-18

EAU15596

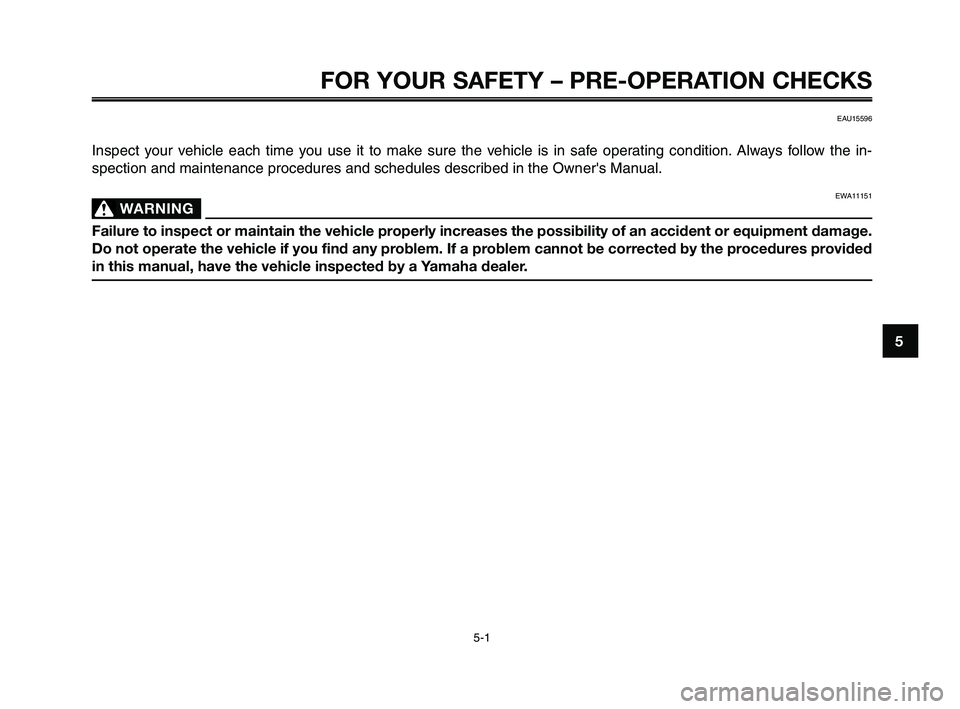

Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the in-
spection and maintenance procedures and schedules described in the Owner's Manual.
EWA11151
WARNING0
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided
in this manual, have the vehicle inspected by a Yamaha dealer.
5-1
FOR YOUR SAFETY – PRE-OPERATION CHECKS
10 9
8
7
6
5
4
3
2
1
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:09 Pagina 1

FOR YOUR SAFETY – PRE-OPERATION CHECKS
5-2
1
2
3
4
5
6
7
8
9
10
ITEM
Fuel
Engine oil
Coolant
Front brake
Rear brake
EAU15605
Before using this vehicle, check the following points:
CHECKS
Check fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.
Check oil level in oil tank.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.
Check coolant level in reservoir.
If necessary, add recommended coolant to specified level.
Check cooling system for leakage.
Check operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.
Check operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.PAGE
4-12
7-9
7-12
4-11, 7-21, 7-22, 7-26
4-11, 7-21, 7-22, 7-27
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:09 Pagina 2

1
2
3
4
5
6
7
8
9
10
FOR YOUR SAFETY – PRE-OPERATION CHECKS
5-3
ITEM
Clutch
Throttle grip
Control cables
Drive chain
Wheels and tires
Brake and shift pedals
Brake and
clutch levers
Sidestand
Chassis fastenersCHECKS
Check operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.
Make sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate
cable and grip housing.
Make sure that operation is smooth.
Lubricate if necessary.
Check chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.
Check for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.
Make sure that operation is smooth.
Lubricate pedal pivoting points if necessary.
Make sure that operation is smooth.
Lubricate lever pivoting points if necessary.
Make sure that operation is smooth.
Lubricate pivot if necessary.
Make sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.PAGE
4-10, 7-20, 7-26
7-16, 7-26
7-25
7-23, 7-24, 7-25
7-16, 7-19
7-27
7-26
7-27
–
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:09 Pagina 3

FOR YOUR SAFETY – PRE-OPERATION CHECKS
5-4
1
2
3
4
5
6
7
8
9
10

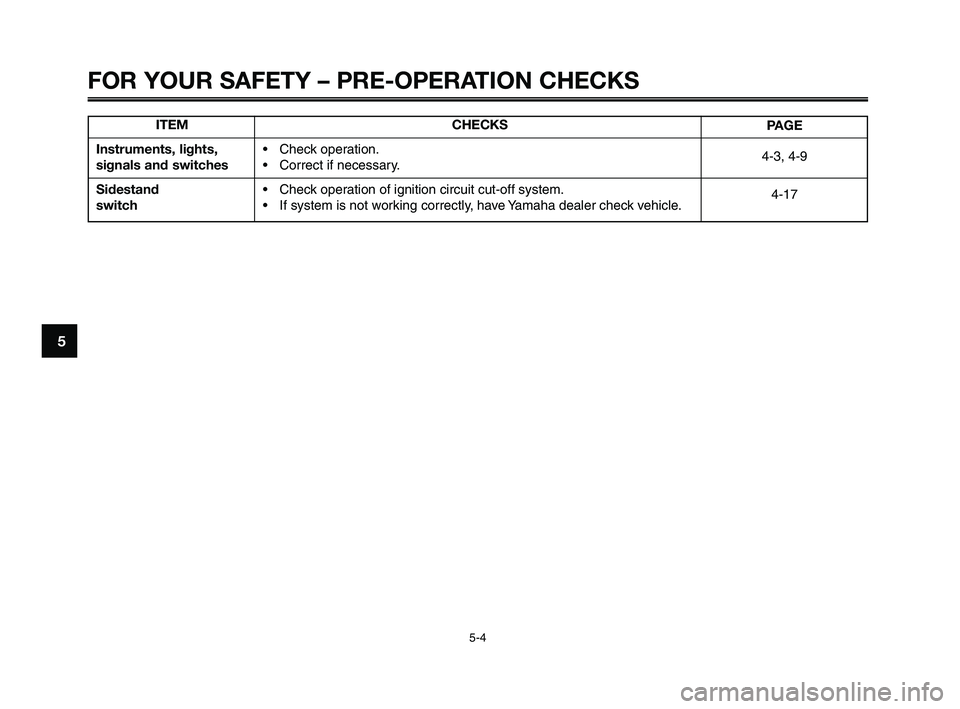

ITEM
Instruments, lights,
signals and switches
Sidestand
switchCHECKS
Check operation.
Correct if necessary.
Check operation of ignition circuit cut-off system.
If system is not working correctly, have Yamaha dealer check vehicle.PAGE
4-3, 4-9
4-17
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:09 Pagina 4

1
2
3
4
5
6
7
8
9
10
OPERATION AND IMPORTANT RIDING POINTS
EAU15951
Read the Owner's Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
EWA10271
WARNING0
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
6-1
EAU48020
TIP
This model is equipped with a lean an-
gle sensor to stop the engine in case
of a turnover. In this case, the multi-
function display indicates error code
30, but this is not a malfunction. Turn
the key to "OFF" and then to "ON" to
clear the error code. Failing to do so
will prevent the engine from starting
even though the engine will crank
when pushing the start switch.
EAUB1570
Starting the engine
In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
●The transmission is in the neutral
position.
●The transmission is in gear with
the clutch lever pulled and the
sidestand up.
EWA10290
WARNING0
●Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure de-
scribed on page 4-18.
●Never ride with the sidestand
down.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “
I”.
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:09 Pagina 5

OPERATION AND IMPORTANT RIDING POINTS
3. Start the engine by pushing the
start switch.
TIP
If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the en-
gine more than 10 seconds on any one
attempt.
ECA11040
NOTICE
For maximum engine life, never ac-
celerate hard when the engine is
cold!
TIP
The engine is warm when it quickly re-
sponds to the throttle.
EAU16671
Shifting
1. Shift pedal
N. Neutral position
Shifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing
hills, etc.
The gear positions are shown in the il-
lustration.
TIP
To shift the transmission into the neu-
tral position, press the shift pedal down
repeatedly until it reaches the end of its
travel, and then slightly raise it.
6-2
1
2
3
4
5
6
7
8
9
10
ECAB0070
NOTICE
The following warning lights and in-
dicator lights should come on for a
few seconds, then go off.
●Neutral indicator light
●Turn signal indicator light
●High beam indicator light
●Engine trouble warning light
●Coolant temperature warning
light
●Immobilizer system indicator
light
If a warning or indicator light does
not go off, see page 4-3 for the cor-
responding warning and indicator
light circuit check.
2. Shift the transmission into the
neutral position.
TIP
When the transmission is in the neu-
tral position, the neutral indicator light
should be on, otherwise have a Yama-
ha dealer check the electrical circuit.
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:09 Pagina 6
