PERIODIC MAINTENANCE AND ADJUSTMENT
7-29
EAU23283
Checking the steering
Worn or loose steering bearings may
cause danger. Therefore, the opera-
tion of the steering must be checked
as follows at the intervals specified in
the periodic maintenance and lubrica-
tion chart.
1. Place a stand under the engine to
raise the front wheel off the
ground. (See page 7-36 for more
information.) WARNING! To avoid
injury, securely support the vehi-
cle so there is no danger of it
falling over.
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.EAU23290
Checking the wheel bearings
The front and rear wheel bearings
must be checked at the intervals spec-
ified in the periodic maintenance and
lubrication chart. If there is play in the
wheel hub or if the wheel does not turn
smoothly, have a Yamaha dealer
check the wheel bearings.
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:10 Pagina 7-29

PERIODIC MAINTENANCE AND ADJUSTMENT
7-30
1
2
3
4
5
6
7
8
9
10
EWA10760
WARNING0
●Electrolyte is poisonous and
dangerous since it contains
sulfuric acid, which causes se-
vere burns. Avoid any contact
with skin, eyes or clothing and
always shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty
of water.
INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15
minutes and seek prompt
medical attention.
●Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed space.
●KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
EAUB1432

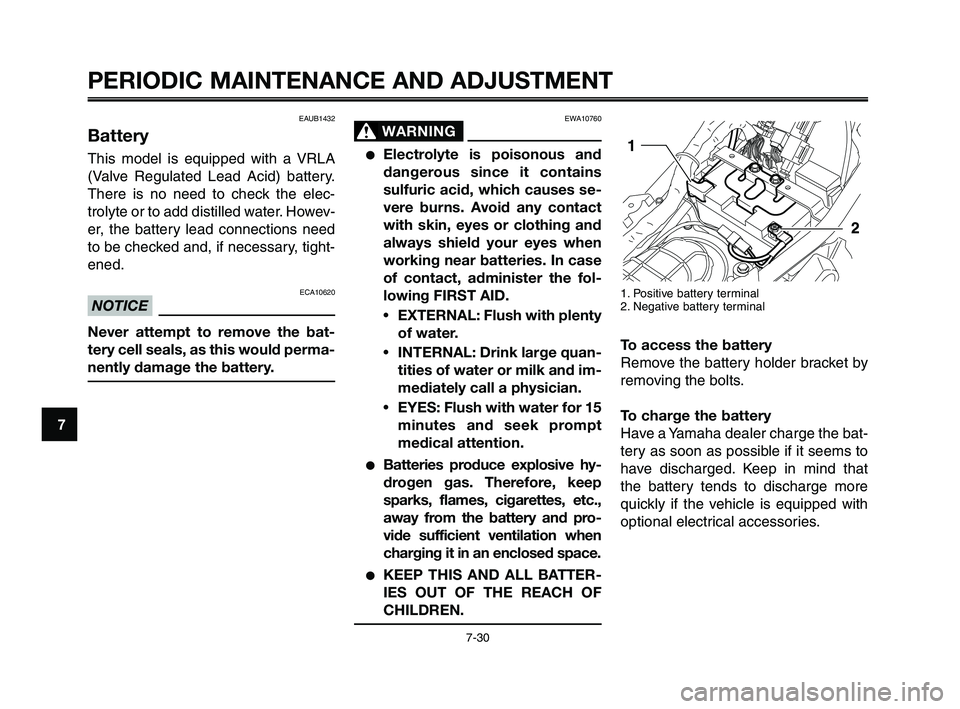

Battery
This model is equipped with a VRLA
(Valve Regulated Lead Acid) battery.
There is no need to check the elec-
trolyte or to add distilled water. Howev-
er, the battery lead connections need
to be checked and, if necessary, tight-
ened.
ECA10620
NOTICE
Never attempt to remove the bat-
tery cell seals, as this would perma-
nently damage the battery.
1. Positive battery terminal
2. Negative battery terminal
To access the battery
Remove the battery holder bracket by
removing the bolts.
To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that
the battery tends to discharge more
quickly if the vehicle is equipped with
optional electrical accessories.
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:10 Pagina 7-30

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND ADJUSTMENT
7-31
ECA16520
NOTICE

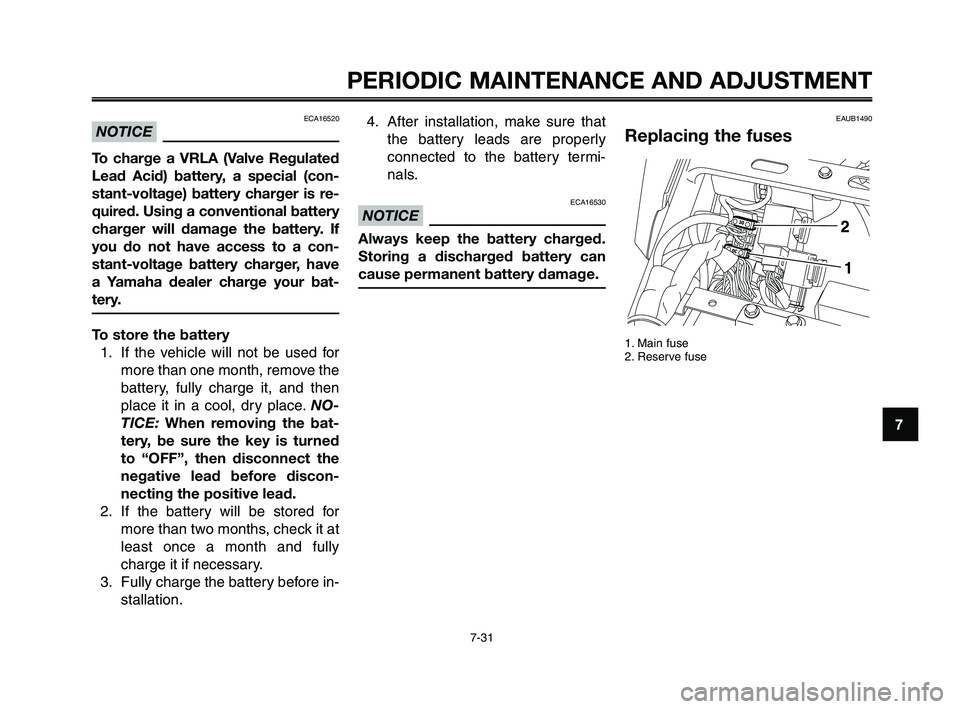

To charge a VRLA (Valve Regulated
Lead Acid) battery, a special (con-
stant-voltage) battery charger is re-
quired. Using a conventional battery
charger will damage the battery. If
you do not have access to a con-
stant-voltage battery charger, have
a Yamaha dealer charge your bat-
tery.
To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place. NO-
TICE: When removing the bat-
tery, be sure the key is turned
to “OFF”, then disconnect the
negative lead before discon-
necting the positive lead.
2. If the battery will be stored for
more than two months, check it at
least once a month and fully
charge it if necessary.
3. Fully charge the battery before in-
stallation.4. After installation, make sure that
the battery leads are properly
connected to the battery termi-
nals.
ECA16530
NOTICE
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
EAUB1490
Replacing the fuses
1. Main fuse
2. Reserve fuse
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:10 Pagina 7-31

PERIODIC MAINTENANCE AND ADJUSTMENT
7-32
1
2
3
4
5
6
7
8
9
10
ECA10640
NOTICE
Do not use a fuse of a higher am-
perage rating than recommended
to avoid causing extensive damage
to the electrical system and possi-
bly a fire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Parking lighting fuse
2. Signaling system fuse
3. Headlight fuse
4. Ignition fuse
5. Electronic fuel injection fuse
6. Radiator fan fuse
7. Backup fuse
8. Reserve fuses
The main fuse and fuse box are locat-
ed under the seat. (See page 7-31.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
7
8
654321Specified fuses:
Main fuse:
30 A
Parking lighting fuse:
10 A
Signalling system fuse:
10 A
Headlight fuse:
20 A
Ignition fuse:
10 A
Fuel injection system fuse:
10 A
Radiator fan fuse:
7.5 A
Backup fuse (for odometer,
clock and immobilizer):
10 A
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:10 Pagina 7-32

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND ADJUSTMENT
7-33
EAUB1580

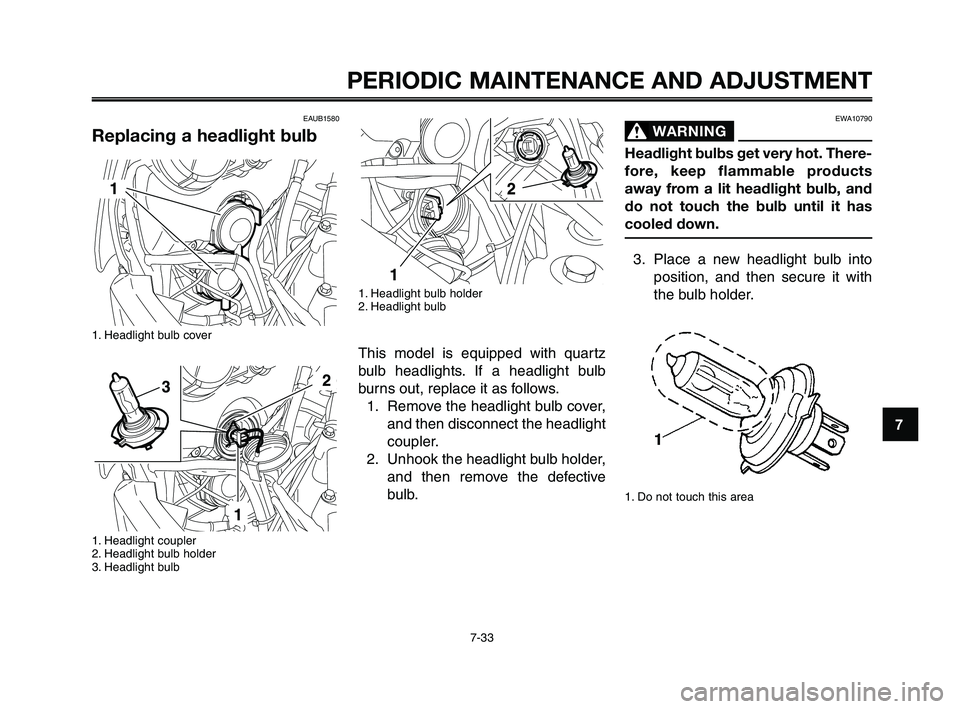

Replacing a headlight bulb
1. Headlight bulb cover
1. Headlight coupler
2. Headlight bulb holder
3. Headlight bulb
EWA10790
WARNING0
Headlight bulbs get very hot. There-
fore, keep flammable products
away from a lit headlight bulb, and
do not touch the bulb until it has
cooled down.
3. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
1. Do not touch this area
1. Headlight bulb holder
2. Headlight bulb
This model is equipped with quartz
bulb headlights. If a headlight bulb
burns out, replace it as follows.
1. Remove the headlight bulb cover,
and then disconnect the headlight
coupler.
2. Unhook the headlight bulb holder,
and then remove the defective
bulb.
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:10 Pagina 7-33

PERIODIC MAINTENANCE AND ADJUSTMENT
7-34
1
2
3
4
5
6
7
8
9
10
ECA10650
NOTICE
Take care not to damage the fol-
lowing parts:
●Headlight bulb
Do not touch the glass part
of the headlight bulb to keep
it free from oil, otherwise the
transparency of the glass,
the luminosity of the bulb,
and the bulb life will be ad-
versely affected. Thoroughly
clean off any dirt and finger-
prints on the headlight bulb
using a cloth moistened with
alcohol or thinner.
●Headlight lens
Do not affix any type of tinted
film or stickers to the head-
light lens.
Do not use a headlight bulb
of a wattage higher than
specified.4. Connect the coupler, and then in-
stall the headlight bulb cover.
5. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24204

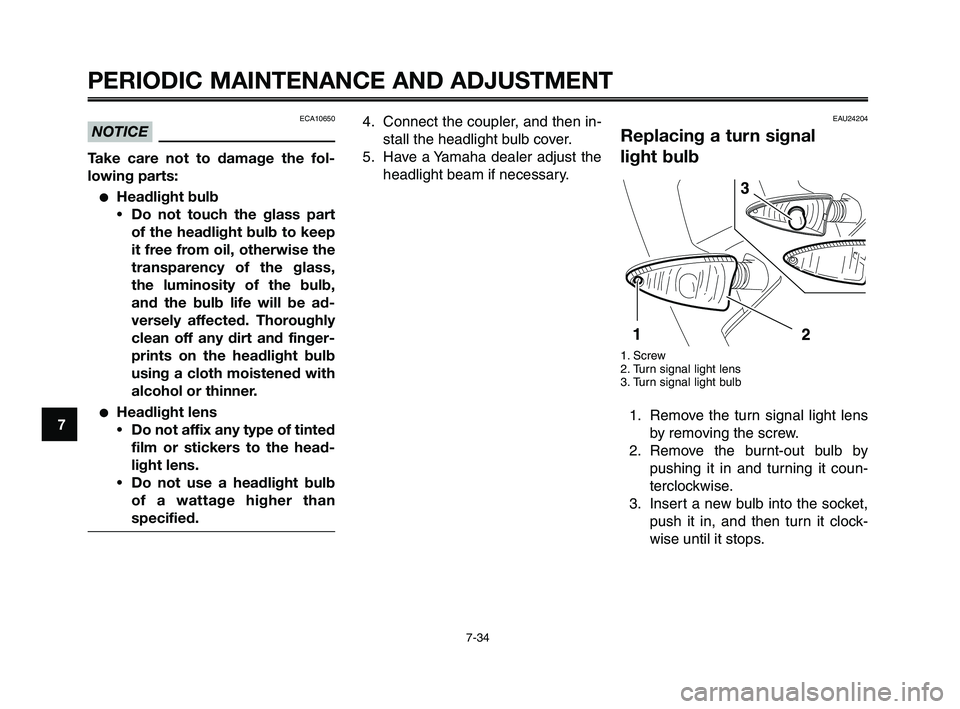

Replacing a turn signal
light bulb
1. Screw
2. Turn signal light lens
3. Turn signal light bulb
1. Remove the turn signal light lens
by removing the screw.
2. Remove the burnt-out bulb by
pushing it in and turning it coun-
terclockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:10 Pagina 7-34

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND ADJUSTMENT
7-35
EAU42652

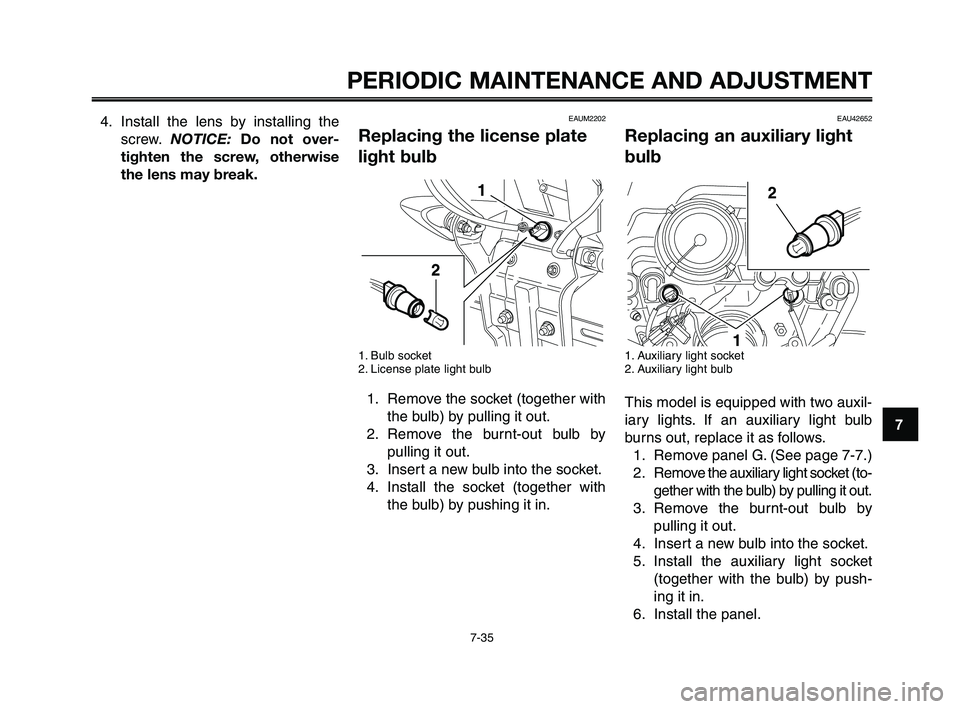

Replacing an auxiliary light
bulb
1. Auxiliary light socket
2. Auxiliary light bulb
This model is equipped with two auxil-
iary lights. If an auxiliary light bulb
burns out, replace it as follows.
1. Remove panel G. (See page 7-7.)
2. Remove the auxiliary light socket (to-
gether with the bulb) by pulling it out.
3. Remove the burnt-out bulb by
pulling it out.
4. Insert a new bulb into the socket.
5. Install the auxiliary light socket
(together with the bulb) by push-
ing it in.
6. Install the panel.
EAUM2202
Replacing the license plate
light bulb
1. Bulb socket
2. License plate light bulb
1. Remove the socket (together with
the bulb) by pulling it out.
2. Remove the burnt-out bulb by
pulling it out.
3. Insert a new bulb into the socket.
4. Install the socket (together with
the bulb) by pushing it in.
4. Install the lens by installing the
screw. NOTICE: Do not over-
tighten the screw, otherwise
the lens may break.
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:10 Pagina 7-35

PERIODIC MAINTENANCE AND ADJUSTMENT
7-36
1
2
3
4
5
6
7
8
9
10
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a mo-
torcycle stand is not available, by plac-
ing a jack either under each side of the
frame in front of the rear wheel or un-
der each side of the swingarm.EAU24360
Front wheelEAUB1440To remove the front wheel
EWA10820
WARNING0
●It is advisable to have a Yama-
ha dealer service the wheel.
●Securely support the motorcy-
cle so that there is no danger of
it falling over.
1. Wheel axle
2. Brake caliper bolts
A. Front wheel axle pinch bolt
B. Front wheel axle pinch bolt
A
2
B
1
EAU24350
Supporting the motorcycle
Since this model is not equipped with
a centerstand, follow these precau-
tions when removing the front and rear
wheel or performing other mainte-
nance requiring the motorcycle to
stand upright. Check that the motorcy-
cle is in a stable and level position be-
fore starting any maintenance. A
strong wooden box can be placed un-
der the engine for added stability.
To service the front wheel
1. Stabilize the rear of the motorcy-
cle by using a motorcycle stand
or, if an additional motorcycle
stand is not available, by placing a
jack under the frame in front of the
rear wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:10 Pagina 7-36

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND ADJUSTMENT
7-37

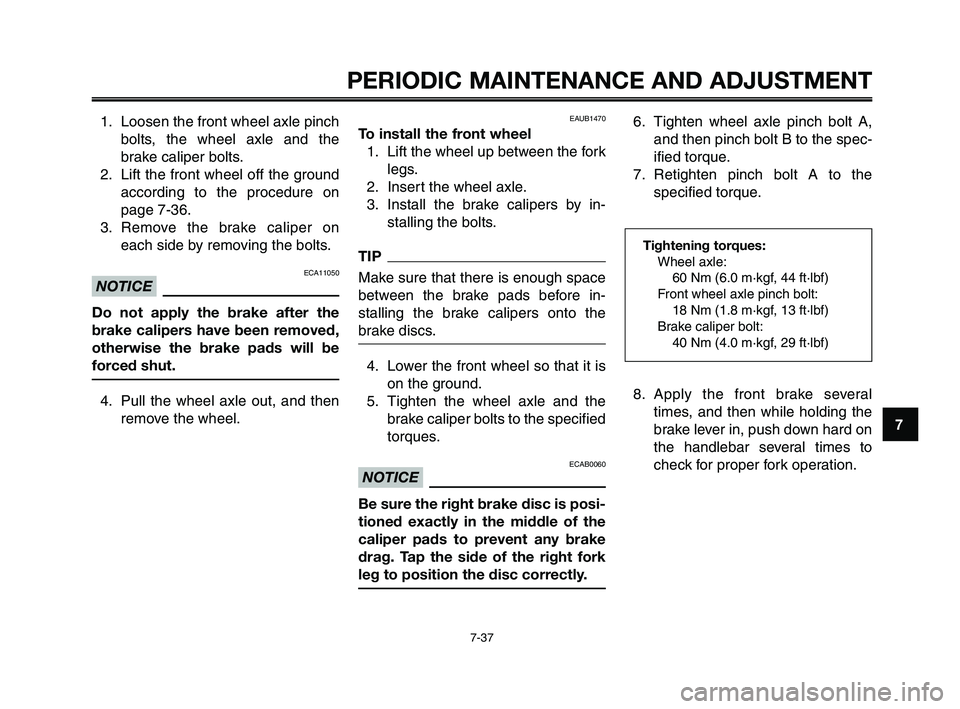

1. Loosen the front wheel axle pinch
bolts, the wheel axle and the
brake caliper bolts.
2. Lift the front wheel off the ground
according to the procedure on
page 7-36.
3. Remove the brake caliper on
each side by removing the bolts.
ECA11050
NOTICE
Do not apply the brake after the
brake calipers have been removed,
otherwise the brake pads will be
forced shut.
4. Pull the wheel axle out, and then
remove the wheel.
EAUB1470
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle.
3. Install the brake calipers by in-
stalling the bolts.
TIP
Make sure that there is enough space
between the brake pads before in-
stalling the brake calipers onto the
brake discs.
4. Lower the front wheel so that it is
on the ground.
5. Tighten the wheel axle and the
brake caliper bolts to the specified
torques.
ECAB0060
NOTICE
Be sure the right brake disc is posi-
tioned exactly in the middle of the
caliper pads to prevent any brake
drag. Tap the side of the right fork
leg to position the disc correctly.
Tightening torques:
Wheel axle:
60 Nm (6.0 m·kgf, 44 ft·lbf)
Front wheel axle pinch bolt:
18 Nm (1.8 m·kgf, 13 ft·lbf)
Brake caliper bolt:
40 Nm (4.0 m·kgf, 29 ft·lbf)
6. Tighten wheel axle pinch bolt A,
and then pinch bolt B to the spec-
ified torque.
7. Retighten pinch bolt A to the
specified torque.
8. Apply the front brake several
times, and then while holding the
brake lever in, push down hard on
the handlebar several times to
check for proper fork operation.
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:10 Pagina 7-37

PERIODIC MAINTENANCE AND ADJUSTMENT
7-38
1
2
3
4
5
6
7
8
9
10
TIP
●If the drive chain is difficult to re-
move, remove the wheel axle first,
and then lift the wheel upward
enough to remove the drive chain
from the rear sprocket.
●The drive chain cannot be disas-
sembled.
7. While supporting the brake
caliper bracket, pull the wheel
axle out, and then remove the
wheel. NOTICE: Do not apply
the brake after the wheel has
been removed together with
the brake disc, otherwise the
brake pads will be forced shut.
EAUB1450
To install the rear wheel
1. Install the wheel and the brake
caliper bracket by inserting the
wheel axle from the right-hand
side.
EAU25080

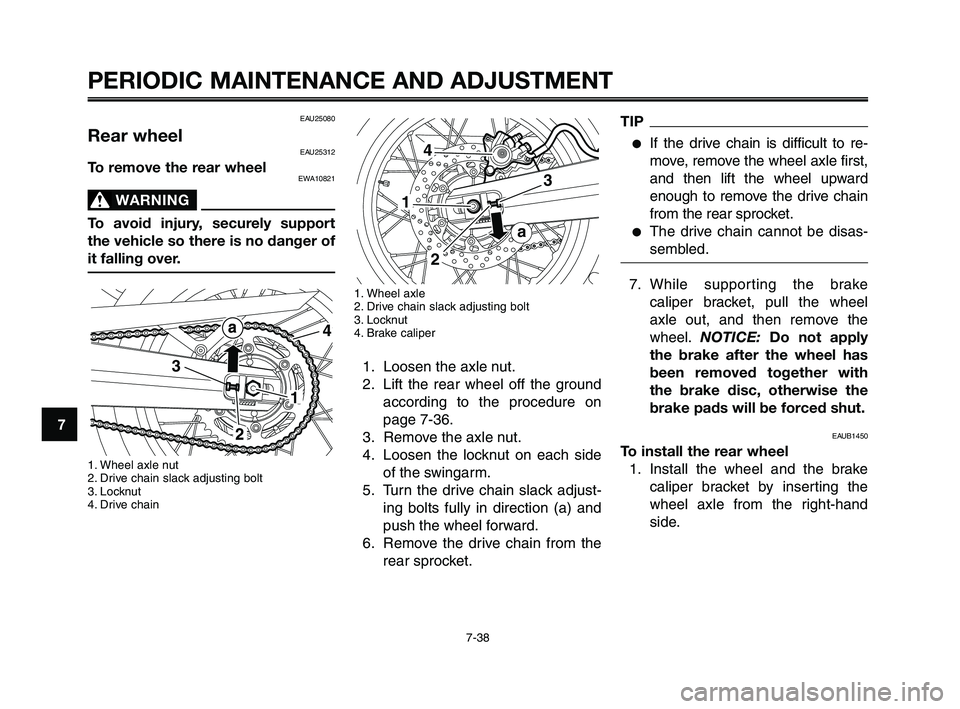

Rear wheelEAU25312
To remove the rear wheelEWA10821
WARNING0
To avoid injury, securely support
the vehicle so there is no danger of
it falling over.
1. Wheel axle nut
2. Drive chain slack adjusting bolt
3. Locknut
4. Drive chain
3
4
1
1. Wheel axle
2. Drive chain slack adjusting bolt
3. Locknut
4. Brake caliper
1. Loosen the axle nut.
2. Lift the rear wheel off the ground
according to the procedure on
page 7-36.
3. Remove the axle nut.
4. Loosen the locknut on each side
of the swingarm.
5. Turn the drive chain slack adjust-
ing bolts fully in direction (a) and
push the wheel forward.
6. Remove the drive chain from the
rear sprocket.
4
3
1
2
a
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:10 Pagina 7-38
