4. Release the hooks of the reinforceing cloth from the
seat-back frame.
HOOK
REINFORCEING
CLOTH
SEAT-BACK
FRAME
5. Remove the headrest and headrest guides.
HEADREST
GUIDE
KNOB
SEAT-BACK
6. Pull back the edge of the seat-back cover all the way
around, and release the clips, then remove the seat-
back cover.
CLIP
WIRE
(Pad side)
SEAT-BACK
COVER
(cont'd)ProCarManuals.com

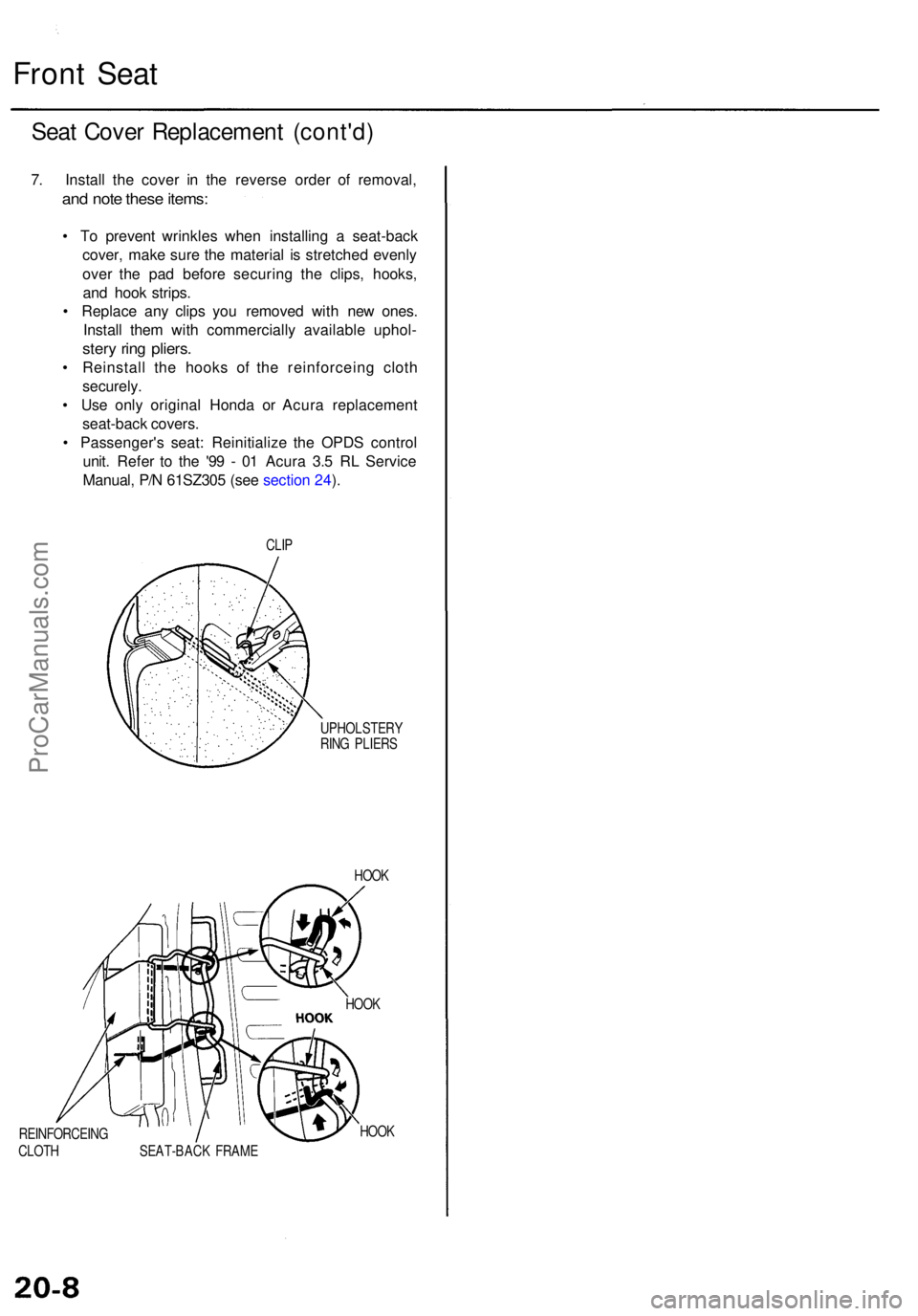

Front Sea t
Seat Cove r Replacemen t (cont'd )
7. Instal l th e cove r i n th e revers e orde r of removal ,
and not e thes e items :
• T o preven t wrinkle s whe n installin g a seat-bac k
cover , mak e sur e th e materia l i s stretche d evenl y
ove r th e pa d befor e securin g th e clips , hooks ,
an d hoo k strips .
• Replac e an y clip s yo u remove d wit h ne w ones .
Instal l the m wit h commerciall y availabl e uphol -
stery ring pliers .
• Reinstal l th e hook s o f th e reinforcein g clot h
securely .
• Us e onl y origina l Hond a o r Acur a replacemen t
seat-back covers.
• Passenger' s seat : Reinitializ e th e OPD S contro l
unit . Refe r t o th e '9 9 - 0 1 Acur a 3. 5 R L Servic e
Manual , P/ N 61SZ30 5 (se e sectio n 24 ).
CLI P
UPHOLSTER Y
RIN G PLIER S
HOO K
HOO K
REINFORCEIN G
CLOT H SEAT-BAC K FRAM E HOO
K
ProCarManuals.com

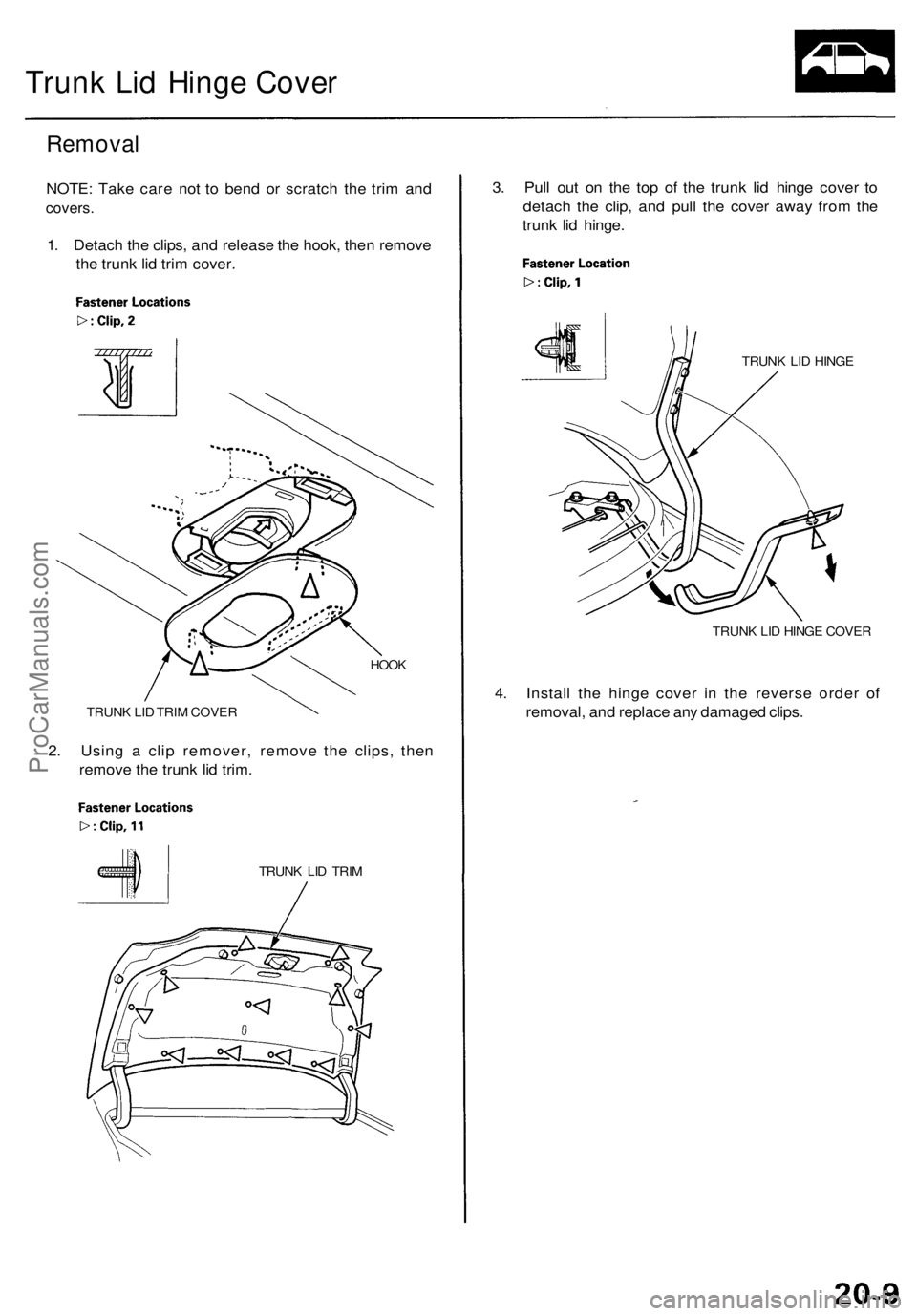

Trunk Lid Hinge Cover
Removal
NOTE: Take care not to bend or scratch the trim and
covers.
1. Detach the clips, and release the hook, then remove
the trunk lid trim cover.
HOOK
TRUNK LID TRIM COVER
2. Using a clip remover, remove the clips, then
remove the trunk lid trim.
TRUNK LID TRIM
3. Pull out on the top of the trunk lid hinge cover to
detach the clip, and pull the cover away from the
trunk lid hinge.
TRUNK LID HINGE
TRUNK LID HINGE COVER
4. Install the hinge cover in the reverse order of
removal, and replace any damaged clips.ProCarManuals.com

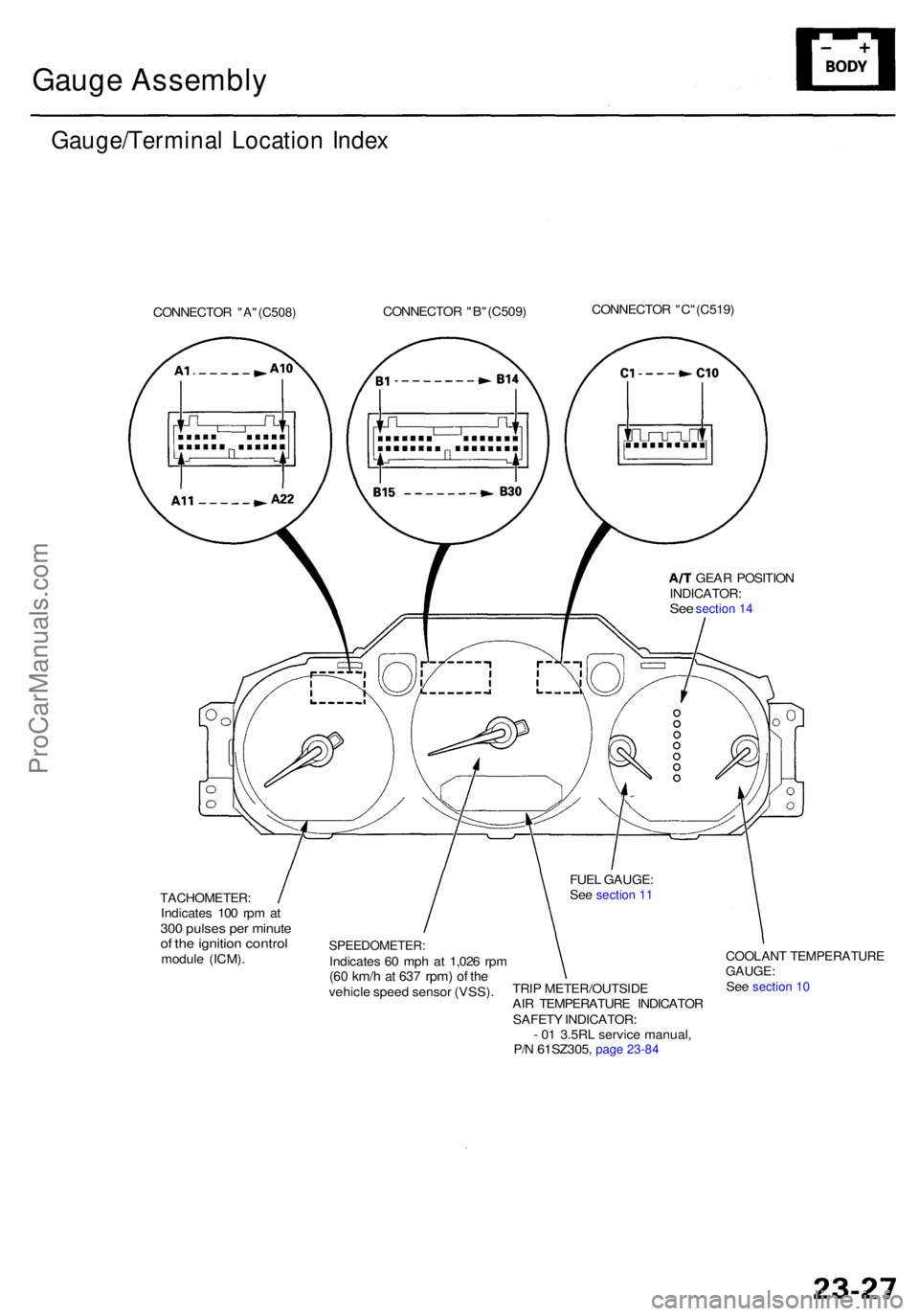

Gauge Assembl y
Gauge/Termina l Locatio n Inde x
CONNECTO R "A"(C508)CONNECTO R "B"(C509)CONNECTO R "C"(C519)
TACHOMETER :Indicates 10 0 rp m a t30 0 pulse s pe r minut eof th e ignitio n contro lmodule (ICM) .SPEEDOMETER :Indicates 6 0 mp h a t 1,02 6 rp m(60 km/ h at 63 7 rpm ) of th evehicl e spee d senso r (VSS) .TRI
P METER/OUTSID E
AI R TEMPERATUR E INDICATO R
SAFET Y INDICATOR :
'96 - 0 1 3.5R L servic e manual ,P/N 61SZ305 , page 23-84
COOLAN T TEMPERATUR EGAUGE:See section 10
FUE L GAUGE :
Se e section 11
A/T GEA R POSITIO N
INDICATOR :
See section 14
ProCarManuals.com

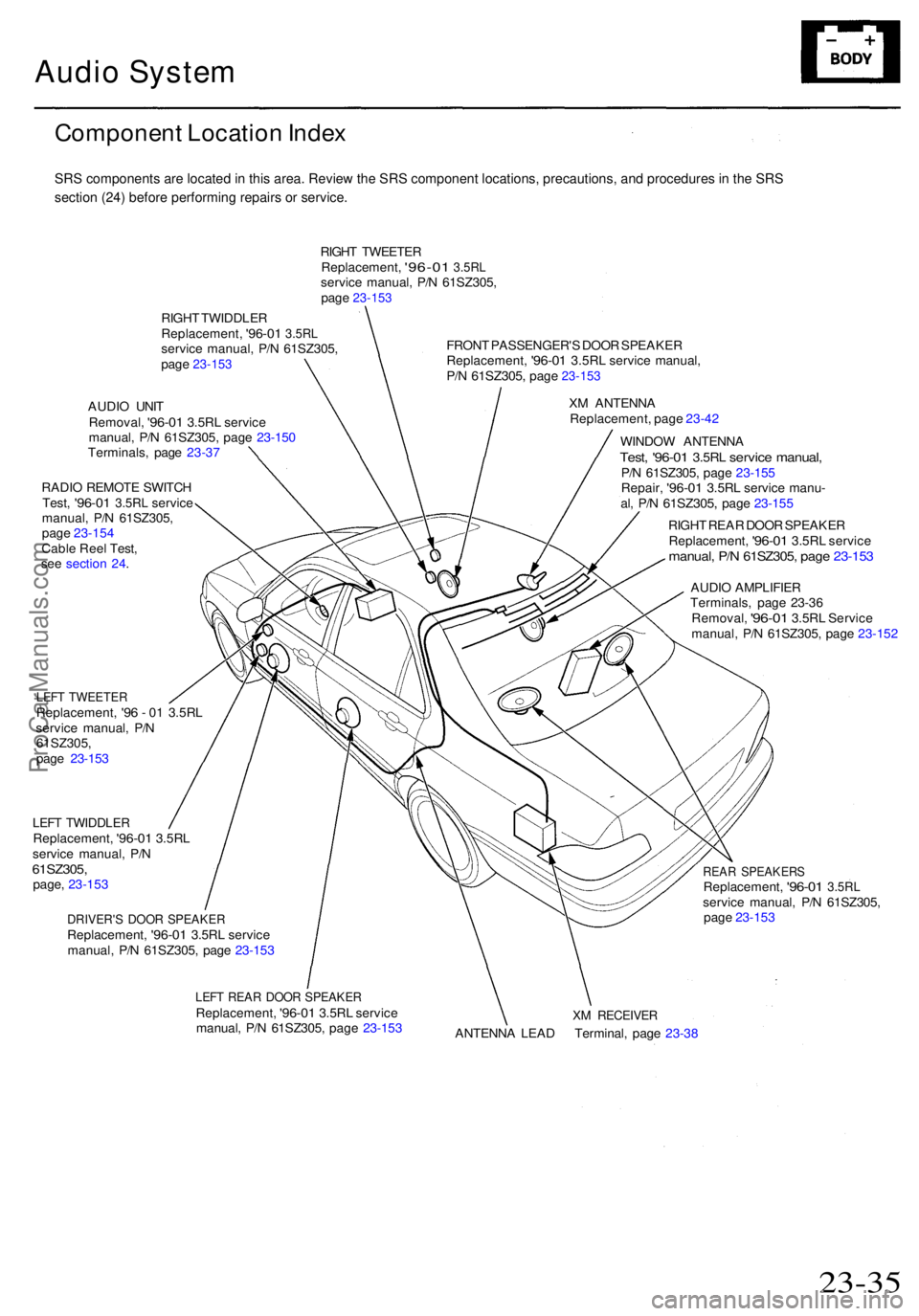

Audio System
Component Locatio n Inde x
SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRS
section (24) before performing repairs or service.
AUDI O UNI T
Removal , '96-01 3.5R L servic e
manual , P/ N 61SZ305 , pag e 23-15 0
Terminals , pag e 23-3 7
RADI O REMOT E SWITC H
Test ,
'96-0 1 3.5R L servic e
manual , P/ N 61SZ305 ,
pag e 23-15 4
Cabl e Ree l Test ,
se e sectio n 24 . X
M ANTENN A
Replacement , pag e 23-4 2
WINDO W ANTENN A
Test, '96-0 1 3.5R L servic e manual ,P/N 61SZ305 , pag e 23-15 5
Repair , '96-01 3.5R L servic e manu -
al , P/ N 61SZ305 , page 23-15 5
RIGHT REA R DOO R SPEAKE R
Replacement , '96-01 3.5R L servic emanual , P/ N 61SZ305 , pag e 23-15 3
AUDIO AMPLIFIE R
Terminals , pag e 23-3 6
Removal ,
'96-01 3.5R L Servic e
manual , P/ N 61SZ305 , pag e 23-15 2
LEFT TWEETE RReplacement , '96 - 0 1 3.5R L
servic e manual , P/ N
61SZ305 ,page 23-15 3
LEFT TWIDDLE RReplacement , '96-01 3.5R L
servic e manual , P/ N
61SZ305 ,page, 23-15 3
DRIVER' S DOO R SPEAKE RReplacement , '96-01 3.5RL servic e
manual , P/ N 61SZ305 , pag e 23-15 3
REAR SPEAKER SReplacement , '96-01 3.5R Lservic e manual , P/ N 61SZ305 ,
pag e 23-15 3
LEFT REA R DOO R SPEAKE RReplacement , '96-01 3.5RL servic e
manual , P/ N 61SZ305 , pag e 23-15 3XM RECEIVE R
ANTENNA LEA D Terminal , pag e 23-3 8
23-35
RIGH T TWEETE R
Replacement , '96-01 3.5RLservic e manual , P/ N 61SZ305 ,
pag e 23-153
FRON T PASSENGER' S DOO R SPEAKE R
Replacement , '96-01 3.5R L servic e manual ,
P/ N 61SZ305 , page 23-153
RIGH T TWIDDLE R
Replacement , '96-01 3.5R Lservic e manual , P/ N 61SZ305 ,
pag e 23-153
