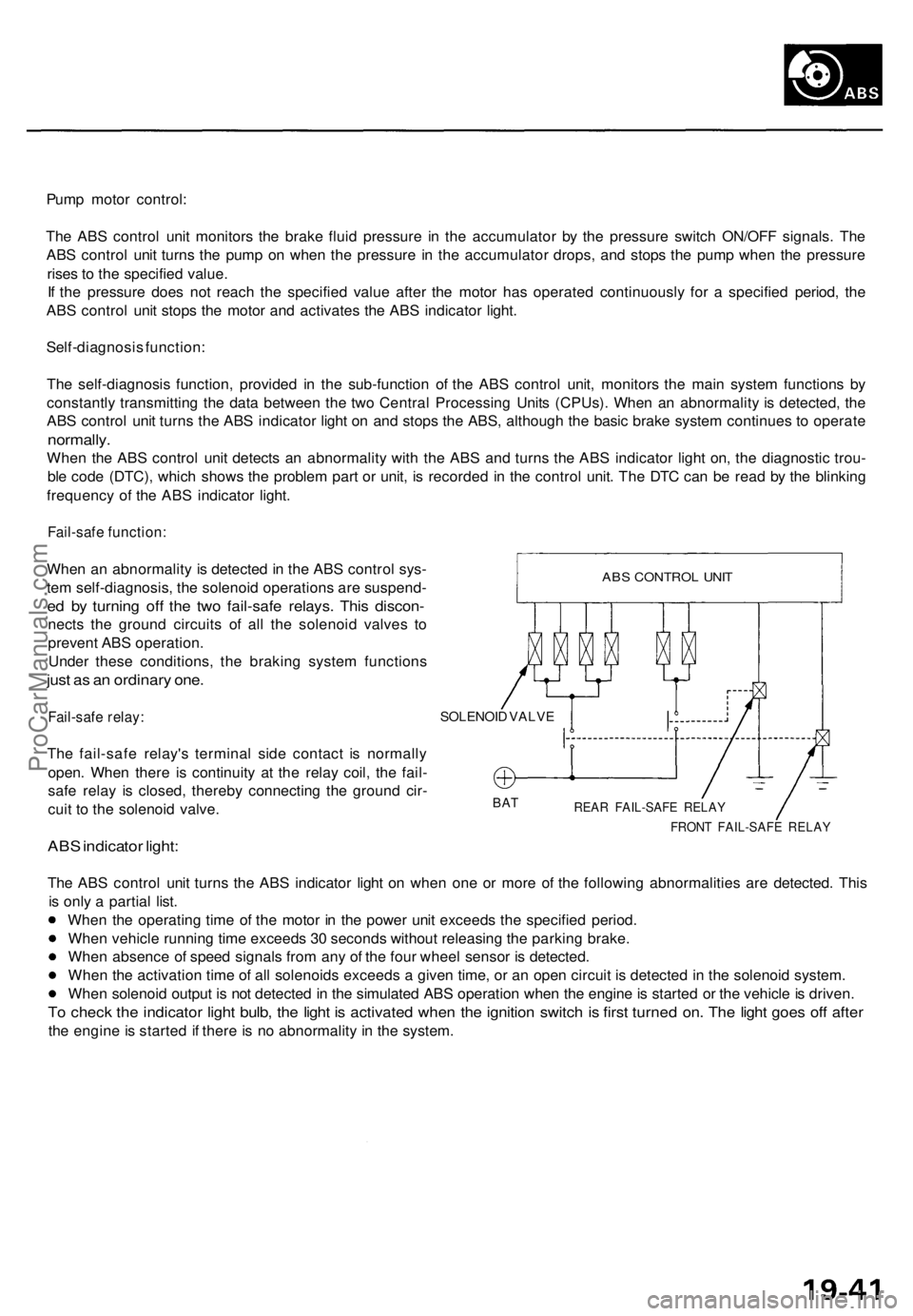

Pump motor control:

The ABS control unit monitors the brake fluid pressure in the accumulator by the pressure switch ON/OFF signals. The

ABS control unit turns the pump on when the pressure in the accumulator drops, and stops the pump when the pressure

rises to the specified value.

If the pressure does not reach the specified value after the motor has operated continuously for a specified period, the

ABS control unit stops the motor and activates the ABS indicator light.

Self-diagnosis function:

The self-diagnosis function, provided in the sub-function of the ABS control unit, monitors the main system functions by

constantly transmitting the data between the two Central Processing Units (CPUs). When an abnormality is detected, the

ABS control unit turns the ABS indicator light on and stops the ABS, although the basic brake system continues to operate

normally.

When the ABS control unit detects an abnormality with the ABS and turns the ABS indicator light on, the diagnostic trou-

ble code (DTC), which shows the problem part or unit, is recorded in the control unit. The DTC can be read by the blinking

frequency of the ABS indicator light.

Fail-safe function:

When an abnormality is detected in the ABS control sys-

tem self-diagnosis, the solenoid operations are suspend-

ed by turning off the two fail-safe relays. This discon-

nects the ground circuits of all the solenoid valves to

prevent ABS operation.

Under these conditions, the braking system functions

just as an ordinary one.

Fail-safe relay:

The fail-safe relay's terminal side contact is normally

open. When there is continuity at the relay coil, the fail-

safe relay is closed, thereby connecting the ground cir-

cuit to the solenoid valve.

ABS indicator light:
SOLENOID VALVE

BAT

REAR FAIL-SAFE RELAY

FRONT FAIL-SAFE RELAY

The ABS control unit turns the ABS indicator light on when one or more of the following abnormalities are detected. This

is only a partial list.

When the operating time of the motor in the power unit exceeds the specified period.

When vehicle running time exceeds 30 seconds without releasing the parking brake.

When absence of speed signals from any of the four wheel sensor is detected.

When the activation time of all solenoids exceeds a given time, or an open circuit is detected in the solenoid system.

When solenoid output is not detected in the simulated ABS operation when the engine is started or the vehicle is driven.

To check the indicator light bulb, the light is activated when the ignition switch is first turned on. The light goes off after

the engine is started if there is no abnormality in the system.
ABS CONTROL UNITProCarManuals.com

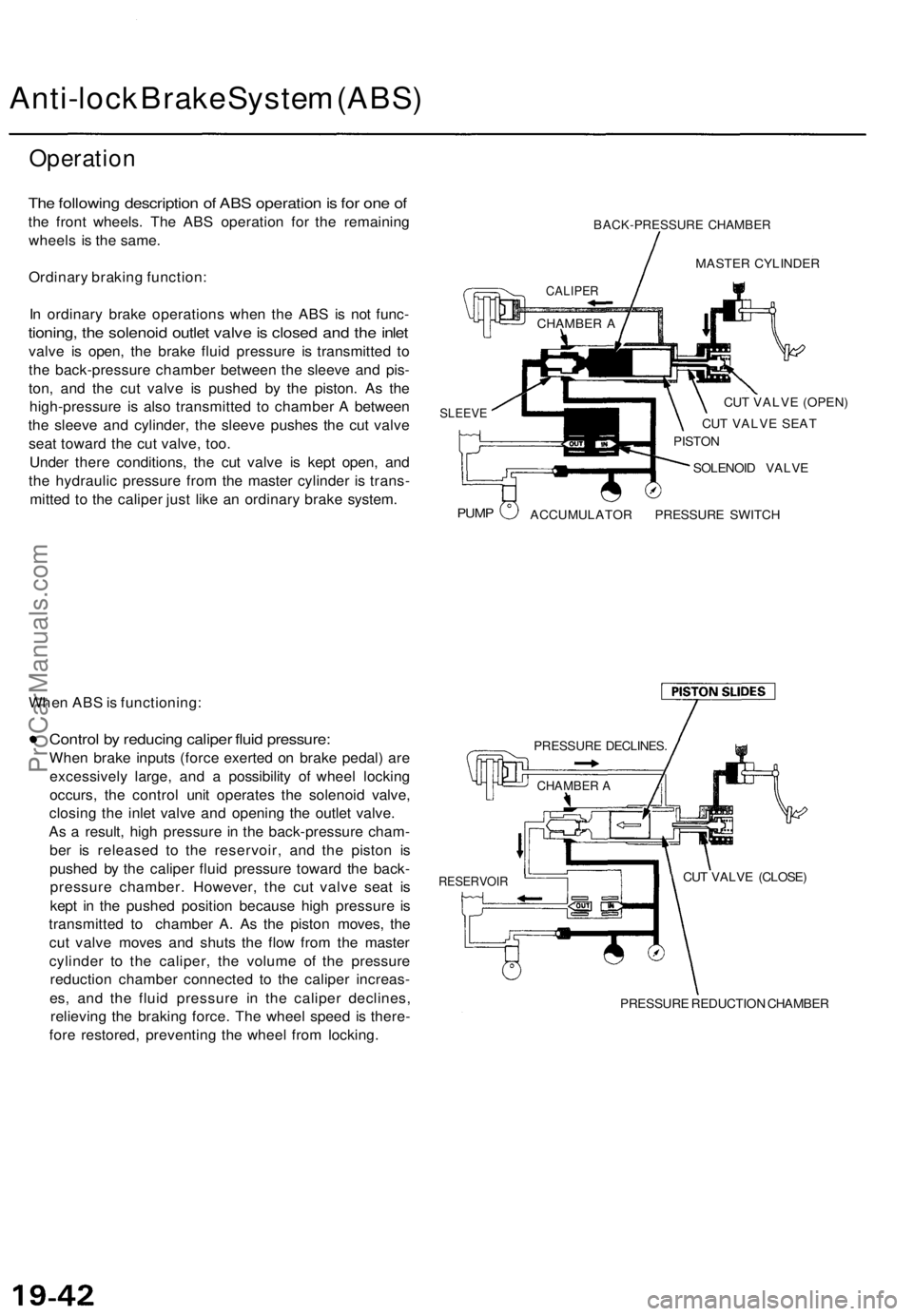

Anti-lock Brake System (ABS)

Operation

The following description of ABS operation is for one of

the front wheels. The ABS operation for the remaining

wheels is the same.

Ordinary braking function:

In ordinary brake operations when the ABS is not func-

tioning, the solenoid outlet valve is closed and the inlet

valve is open, the brake fluid pressure is transmitted to

the back-pressure chamber between the sleeve and pis-

ton, and the cut valve is pushed by the piston. As the

high-pressure is also transmitted to chamber A between

the sleeve and cylinder, the sleeve pushes the cut valve

seat toward the cut valve, too.

Under there conditions, the cut valve is kept open, and

the hydraulic pressure from the master cylinder is trans-

mitted to the caliper just like an ordinary brake system.
BACK-PRESSURE CHAMBER

MASTER CYLINDER

CUT VALVE (OPEN)

CUT VALVE SEAT

PISTON

SOLENOID VALVE

PUMP

ACCUMULATOR PRESSURE SWITCH

When ABS is functioning:

Control by reducing caliper fluid pressure:

When brake inputs (force exerted on brake pedal) are

excessively large, and a possibility of wheel locking

occurs, the control unit operates the solenoid valve,

closing the inlet valve and opening the outlet valve.

As a result, high pressure in the back-pressure cham-

ber is released to the reservoir, and the piston is

pushed by the caliper fluid pressure toward the back-

pressure chamber. However, the cut valve seat is

kept in the pushed position because high pressure is

transmitted to chamber A. As the piston moves, the

cut valve moves and shuts the flow from the master

cylinder to the caliper, the volume of the pressure

reduction chamber connected to the caliper increas-

es, and the fluid pressure in the caliper declines,

relieving the braking force. The wheel speed is there-

fore restored, preventing the wheel from locking.
RESERVOIR

PRESSURE REDUCTION CHAMBER
CALIPER

CHAMBER A

SLEEVE

PRESSURE DECLINES.

CHAMBER A

CUT VALVE (CLOSE)ProCarManuals.com

Control by increasing caliper fluid pressure:

When the ABS control unit senses that the caliper fluid

pressure declined, and the wheel speed is restored, it

signals the solenoid inlet valve to open and the

solenoid outlet valve to close.

As a result, the high-pressure brake fluid is transmitted

to the back-pressure chamber, and the piston is pushed

toward the pressure reduction chamber, increasing

the caliper fluid pressure, and thereby the braking

force again.

When the master cylinder side's fluid pressure is low,

the cut valve is slightly opened as the piston moves,

and the caliper fluid pressure is transmitted to the

master cylinder. The kickback is felt on the brake

pedal this time. When the force depressing the brake

pedal is relieved while the ABS is functioning, the cut

valve is opened and the pressure in the pressure

reduction chamber is returned to the master cylinder

side. As a result, the caliper fluid pressure is relieved.
MASTER CYLINDER

PRESSURE INCREASES

CUT VALVE

PRESSURE REDUCTION CHAMBER

SOLENOID VALVES

When high-pressure declines:

The ABS control unit monitors the pressure in the high-

pressure passage by means of the pressure switch sig-

nals. The ABS control unit turns the ABS indicator light

on, and stops the ABS when it detects an excessive drop

in pressure in the high-pressure passage.

When the pressure declined due to leakage from the pas-

sage, for example, the pressure in chamber A declines,

too, and the cut valve seat and sleeve return toward

chamber A.

As a result, the valve at the sleeve end closes, which

hydraulically locks the back-pressure chamber and

blocks the piston movement. Because the cut valve

opens as the cut valve seat moves, this connects the

brake fluid passage between the master cylinder and

caliper for ordinary brake operation.ProCarManuals.com

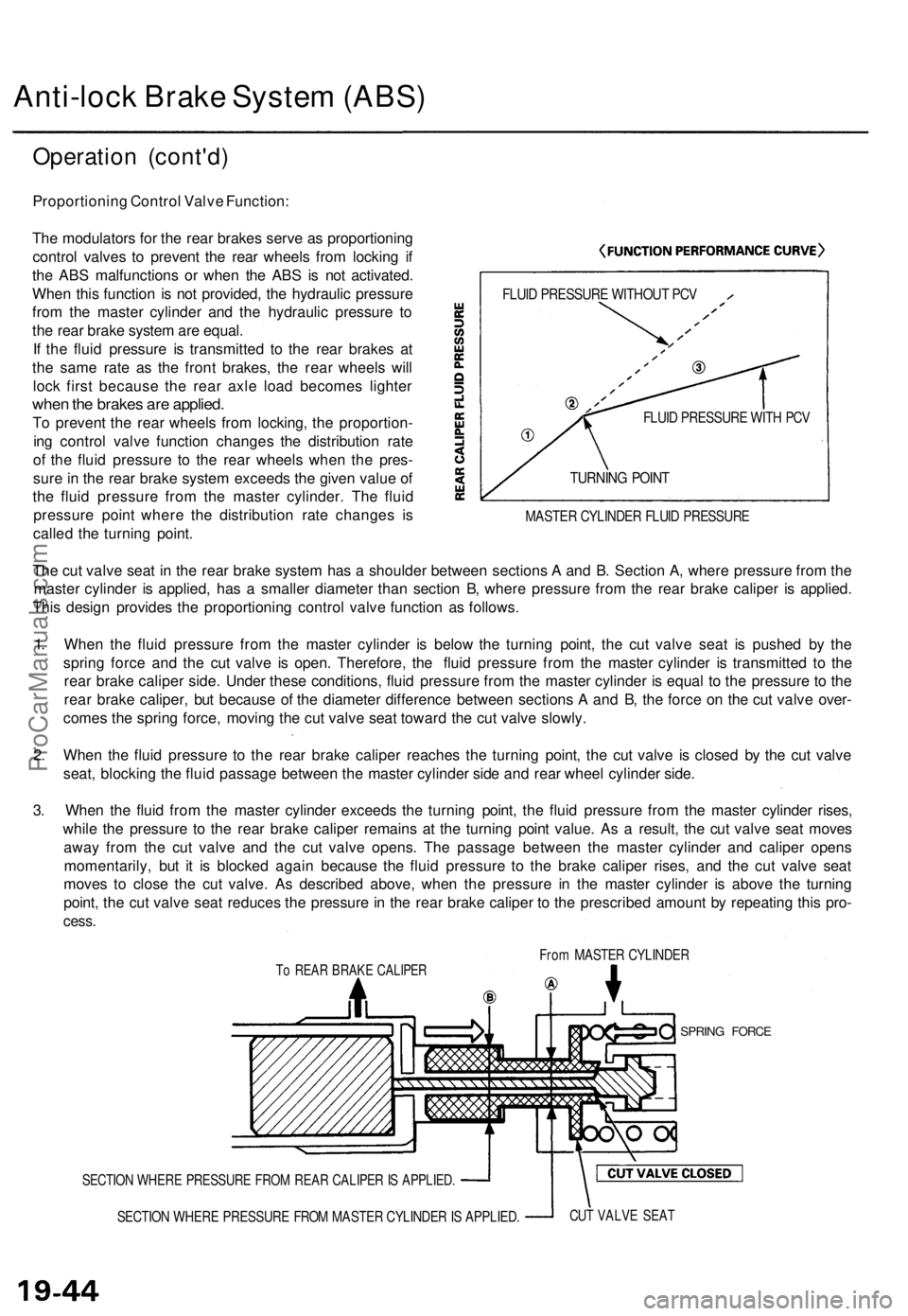

Anti-lock Brake System (ABS)

Operation (cont'd)

Proportioning Control Valve Function:

The modulators for the rear brakes serve as proportioning

control valves to prevent the rear wheels from locking if

the ABS malfunctions or when the ABS is not activated.

When this function is not provided, the hydraulic pressure

from the master cylinder and the hydraulic pressure to

the rear brake system are equal.

If the fluid pressure is transmitted to the rear brakes at

the same rate as the front brakes, the rear wheels will

lock first because the rear axle load becomes lighter

when the brakes are applied.

To prevent the rear wheels from locking, the proportion-

ing control valve function changes the distribution rate

of the fluid pressure to the rear wheels when the pres-

sure in the rear brake system exceeds the given value of

the fluid pressure from the master cylinder. The fluid

pressure point where the distribution rate changes is

called the turning point.
FLUID PRESSURE WITHOUT PCV

FLUID PRESSURE WITH PCV

TURNING POINT

MASTER CYLINDER FLUID PRESSURE

The cut valve seat in the rear brake system has a shoulder between sections A and B. Section A, where pressure from the

master cylinder is applied, has a smaller diameter than section B, where pressure from the rear brake caliper is applied.

This design provides the proportioning control valve function as follows.

1. When the fluid pressure from the master cylinder is below the turning point, the cut valve seat is pushed by the

spring force and the cut valve is open. Therefore, the fluid pressure from the master cylinder is transmitted to the

rear brake caliper side. Under these conditions, fluid pressure from the master cylinder is equal to the pressure to the

rear brake caliper, but because of the diameter difference between sections A and B, the force on the cut valve over-

comes the spring force, moving the cut valve seat toward the cut valve slowly.

2. When the fluid pressure to the rear brake caliper reaches the turning point, the cut valve is closed by the cut valve

seat, blocking the fluid passage between the master cylinder side and rear wheel cylinder side.

3. When the fluid from the master cylinder exceeds the turning point, the fluid pressure from the master cylinder rises,

while the pressure to the rear brake caliper remains at the turning point value. As a result, the cut valve seat moves

away from the cut valve and the cut valve opens. The passage between the master cylinder and caliper opens

momentarily, but it is blocked again because the fluid pressure to the brake caliper rises, and the cut valve seat

moves to close the cut valve. As described above, when the pressure in the master cylinder is above the turning

point, the cut valve seat reduces the pressure in the rear brake caliper to the prescribed amount by repeating this pro-

cess.

From MASTER CYLINDER

To REAR BRAKE CALIPER

SPRING FORCE

SECTION WHERE PRESSURE FROM REAR CALIPER IS APPLIED.

SECTION WHERE PRESSURE FROM MASTER CYLINDER IS APPLIED.
CUT VALVE SEATProCarManuals.com

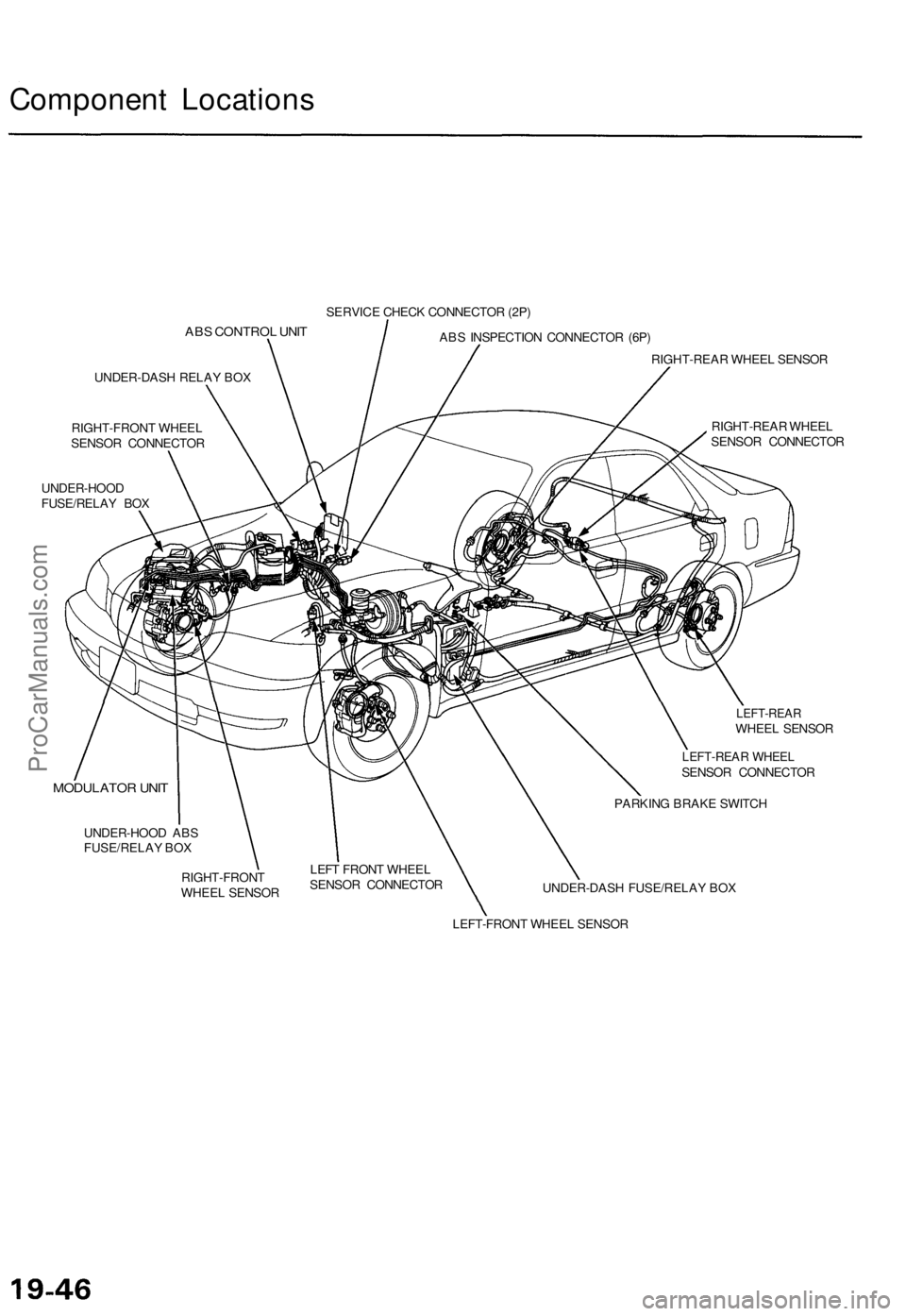

Component Locations

ABS CONTROL UNIT

UNDER-DASH RELAY BOX

RIGHT-FRONT WHEEL

SENSOR CONNECTOR

UNDER-HOOD

FUSE/RELAY BOX
SERVICE CHECK CONNECTOR (2P)

ABS INSPECTION CONNECTOR (6P)

MODULATOR UNIT

UNDER-HOOD ABS

FUSE/RELAY BOX
RIGHT-REAR WHEEL SENSOR

RIGHT-REAR WHEEL

SENSOR CONNECTOR

LEFT-REAR

WHEEL SENSOR

LEFT-REAR WHEEL

SENSOR CONNECTOR

RIGHT-FRONT

WHEEL SENSOR
LEFT FRONT WHEEL

SENSOR CONNECTOR
PARKING BRAKE SWITCH

UNDER-DASH FUSE/RELAY BOX

LEFT-FRONT WHEEL SENSORProCarManuals.com

GAUGE ASSEMBLY
UNDER-HOOD FUSE/RELAY BOX

ABS INDICATOR LIGHT
BATTERY

(100 A) FUSE

IG (50 A) FUSE

STOP/ HORN

(20 A) FUSE

UNDER-DASH FUSE/RELAY BOX

UNDER-HOOD ABS FUSE/RELAY BOX

HEATER

CONTROL RELAY

(7.5 A) FUSE

BACK-UP LIGHTS/

METER LIGHTS

(SUN ROOF)

(10 A) FUSE
ECU (ECM)/

CRUISE CONTROL/

EAT ECU

(15 A) FUSE
ABS MOTOR (40 A) FUSE

ABS B1 (20 A) FUSE

ABS B2 (15 A) FUSE
ABS PUMP MOTOR RELAY

UNDER-DASH RELAY BOX
ABS UNIT (10 A) FUSE

REAR FAIL-SAFE RELAY

FRONT FAIL-SAFE RELAYProCarManuals.com

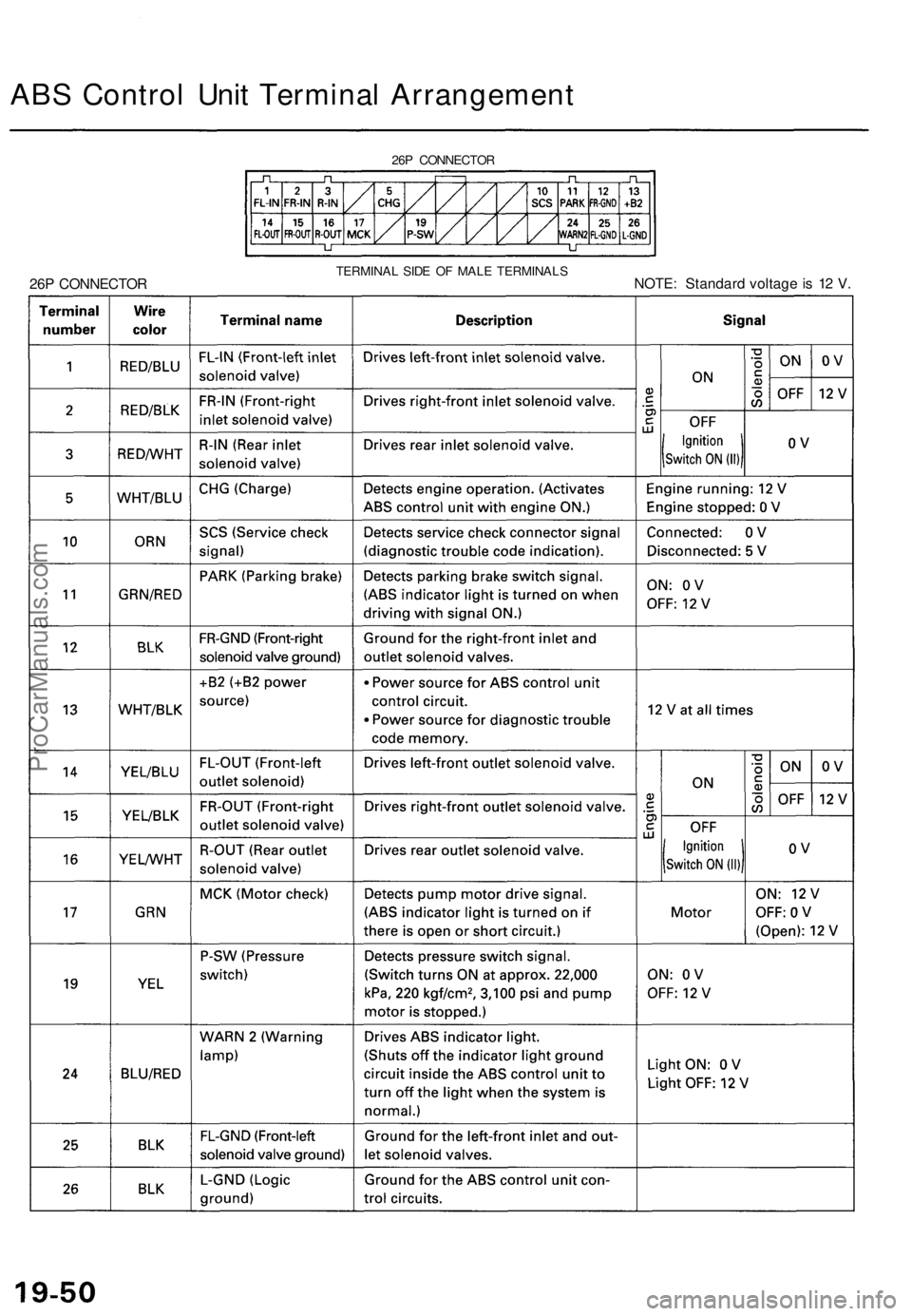

ABS Control Unit Terminal Arrangement

26P CONNECTOR
TERMINAL SIDE OF MALE TERMINALS

NOTE: Standard voltage is 12 V.
26P CONNECTORProCarManuals.com

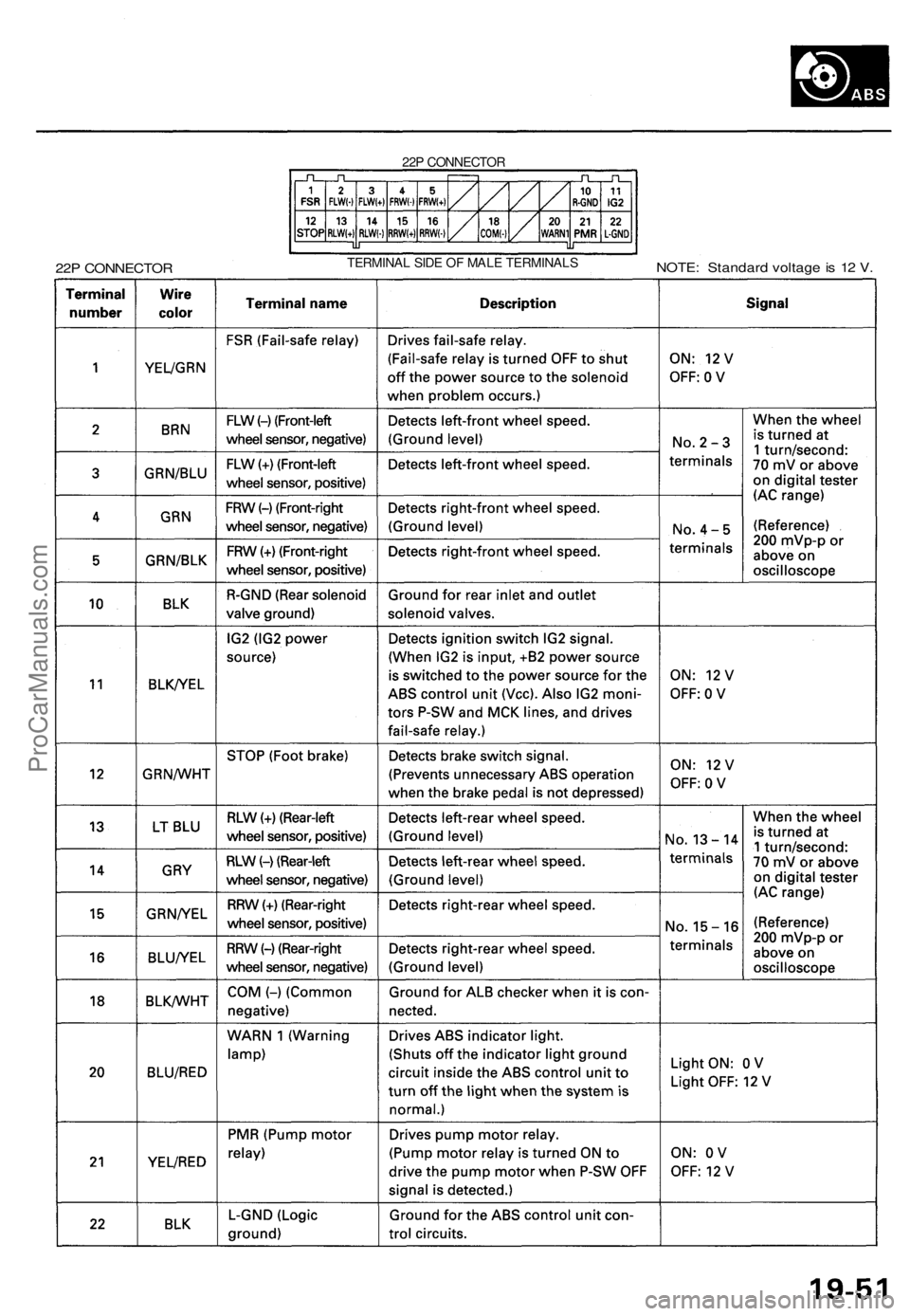

22P CONNECTOR

22P CONNECTOR
TERMINAL SIDE OF MALE TERMINALS

NOTE: Standard voltage is 12 V.ProCarManuals.com

Troubleshooting Precautions

ABS Indicator Light:

The ABS indicator light comes on for three seconds and then goes off when the control unit detects no problem during the

initial diagnosis right after the engine starts. However, the ABS indicator light can stay on for up to 40 seconds when the

control unit starts to check for pump overrun, etc. during the initial diagnosis. The ABS indicator light comes on, and the

ABS control unit memorizes the diagnostic trouble code (DTC) under certain conditions.

The parking brake is applied for more than 30 seconds while the vehicle is being driven. (DTC 2-1)

The transmission downshifted excessively. (DTC 4-1, 4-2)

The vehicle loses traction, and the front wheels spin for more than one minute when starting from a stuck condition on

a muddy, snowy, or sandy road. (DTC 4-8)

Tire adhesion is lost due to excessive cornering speed. (DTC 5, 5-4, 5-8)

The vehicle is driven on an extremely rough road. (DTC 8-1)

The vehicle is interfered by strong radio waves (noise), for example, illegal radio, etc. (DTC 8-2)

NOTE: If there is any trouble in the system, the ABS indicator light comes on during driving.

Diagnostic Trouble Code (DTC):

When the control unit detects a problem and the ABS indicator light comes on, the control unit memorizes the DTC.

The control unit has three memory registers. When a problem occurs, the control unit stores the DTC in the first memory

register. If another problem occurs, or the same problem occurs again, the control unit moves the first DTC to the next

memory register, and stores the second DTC in the first register. If there's a third problem occurrence, the two existing

DTCs are moved up one register, and the third DTC is stored in the first register. If problems continue to occur, the oldest

problem is moved out of the last register and lost, and the most recent problem is stored in the first register. When the

same problem occurs three times, the same DTC is stored in all memory registers. (Refer to the Symptom-to-System

Chart for diagnostic period.)

The most recent DTC is indicated first, and the oldest DTC is indicated last.

The DTCs are erased from the control unit when the ABS control unit +B2 power supply or connector is disconnected.

The control unit's memory can be erased by disconnecting the ABS B2 fuse for more than three seconds.

Self-diagnosis:

There are three self-diagnosises described below.

Initial diagnosis: Performed right after the engine starts until the ABS indicator light goes off.

Regular diagnosis: Continuously performed (under some conditions) after the ABS indicator light goes off until the

engine stops.

Individual part/system diagnosis: Diagnosis about a specific part/system under its operating conditions.

The CPU (central processing unit) controls the following when it detects a problem during self-diagnosis:

Turns the ABS indicator light ON.

Turns the front and rear fail-safe relays off.

Stops the ABS control.

Stops the ABS pump. (The pump may work under some conditions.)

After the DTC is stored in the control unit, the CPU stops self-diagnosis.ProCarManuals.com

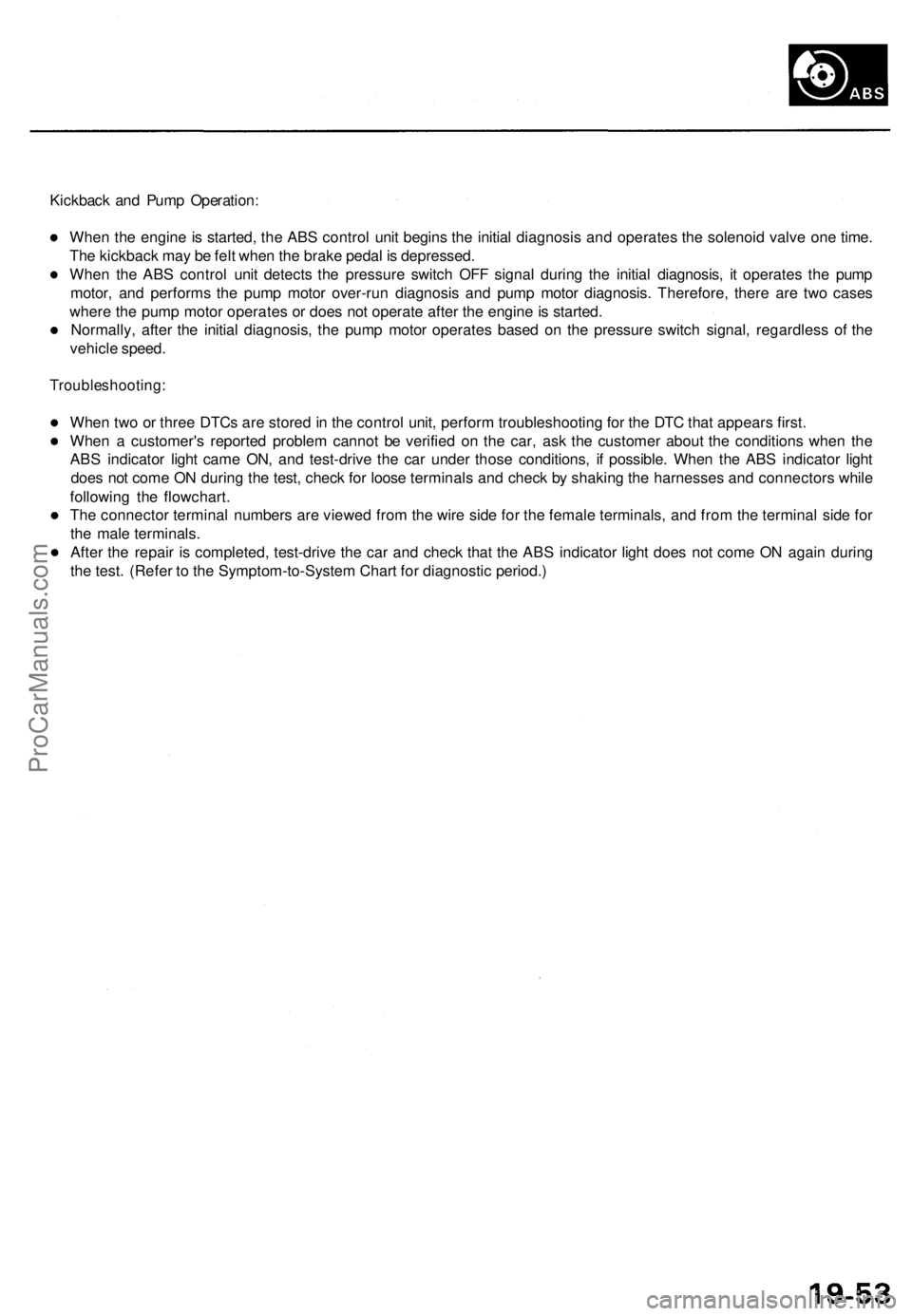

Kickback and Pump Operation:

When the engine is started, the ABS control unit begins the initial diagnosis and operates the solenoid valve one time.

The kickback may be felt when the brake pedal is depressed.

When the ABS control unit detects the pressure switch OFF signal during the initial diagnosis, it operates the pump

motor, and performs the pump motor over-run diagnosis and pump motor diagnosis. Therefore, there are two cases

where the pump motor operates or does not operate after the engine is started.

Normally, after the initial diagnosis, the pump motor operates based on the pressure switch signal, regardless of the

vehicle speed.

Troubleshooting:

When two or three DTCs are stored in the control unit, perform troubleshooting for the DTC that appears first.

When a customer's reported problem cannot be verified on the car, ask the customer about the conditions when the

ABS indicator light came ON, and test-drive the car under those conditions, if possible. When the ABS indicator light

does not come ON during the test, check for loose terminals and check by shaking the harnesses and connectors while

following the flowchart.

The connector terminal numbers are viewed from the wire side for the female terminals, and from the terminal side for

the male terminals.

After the repair is completed, test-drive the car and check that the ABS indicator light does not come ON again during

the test. (Refer to the Symptom-to-System Chart for diagnostic period.)ProCarManuals.com
