Disc Thicknes s an d Parallelis m
Inspectio n
1. Loose n th e rea r whee l nut s slightly , the n rais e th e
vehicl e an d suppor t i t o n safet y stands . Remov e th e
rea r wheels .
2 . Remov e th e brak e pad s (se e pag e 19-18 ).
3 . Usin g a micrometer , measur e dis c thicknes s a t
eigh t points , approximatel y 45 ° apar t an d 1 0 m m
(0.4 in ) i n fro m th e oute r edg e o f th e disc .
MICROMETE R
Brake Dis c Thickness :
Standard: 8. 9 - 9. 1 m m (0.35 0 - 0.35 8 in )
Max . Refinishin g Limit : 7. 5 m m (0.3 0 in )
NOTE : Replac e th e brak e dis c i f th e smalles t mea -
suremen t i s les s tha n th e max . refinishin g limit .
Brak e Dis c Parallelism : 0.01 5 m m
(0.000 6 in ) max .
NOTE : Thi s i s th e maximu m allowabl e differenc e
between th e thicknes s measurements .
4. I f th e dis c i s beyon d th e servic e limi t fo r parallelism,
refinis h th e brak e disc .
NOTE : Se e pag e 18-2 7 fo r brak e dis c replacement .
ProCarManuals.com

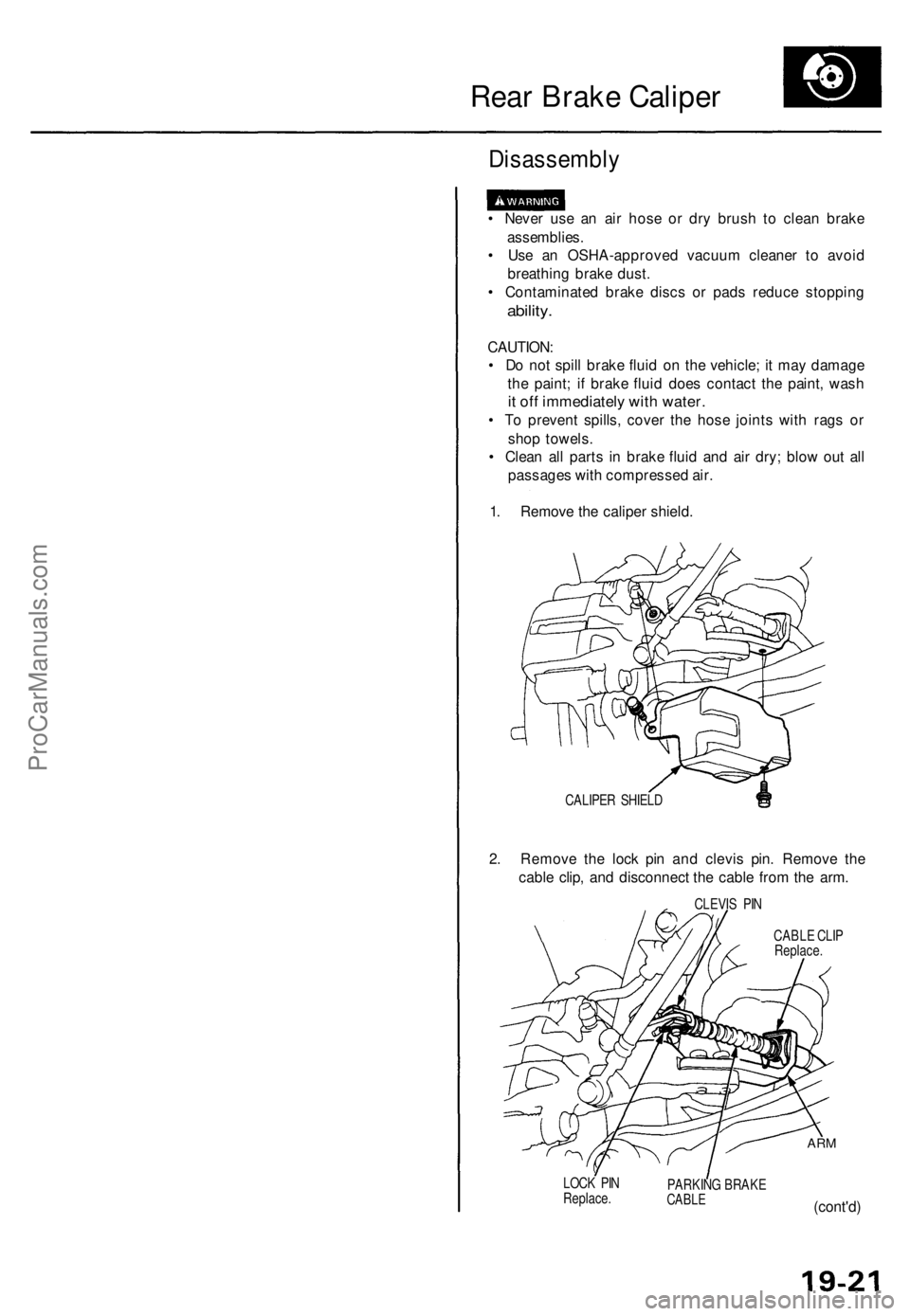

Rear Brake Caliper

Disassembly

• Never use an air hose or dry brush to clean brake

assemblies.

• Use an OSHA-approved vacuum cleaner to avoid

breathing brake dust.

• Contaminated brake discs or pads reduce stopping

ability.

CAUTION:

• Do not spill brake fluid on the vehicle; it may damage

the paint; if brake fluid does contact the paint, wash

it off immediately with water.

• To prevent spills, cover the hose joints with rags or

shop towels.

• Clean all parts in brake fluid and air dry; blow out all

passages with compressed air.

1. Remove the caliper shield.

CALIPER SHIELD

2. Remove the lock pin and clevis pin. Remove the

cable clip, and disconnect the cable from the arm.

CLEVIS PIN

CABLE CLIP

Replace.

LOCK PIN

Replace.
PARKING BRAKE

CABLE
ARM

(cont'd)ProCarManuals.com

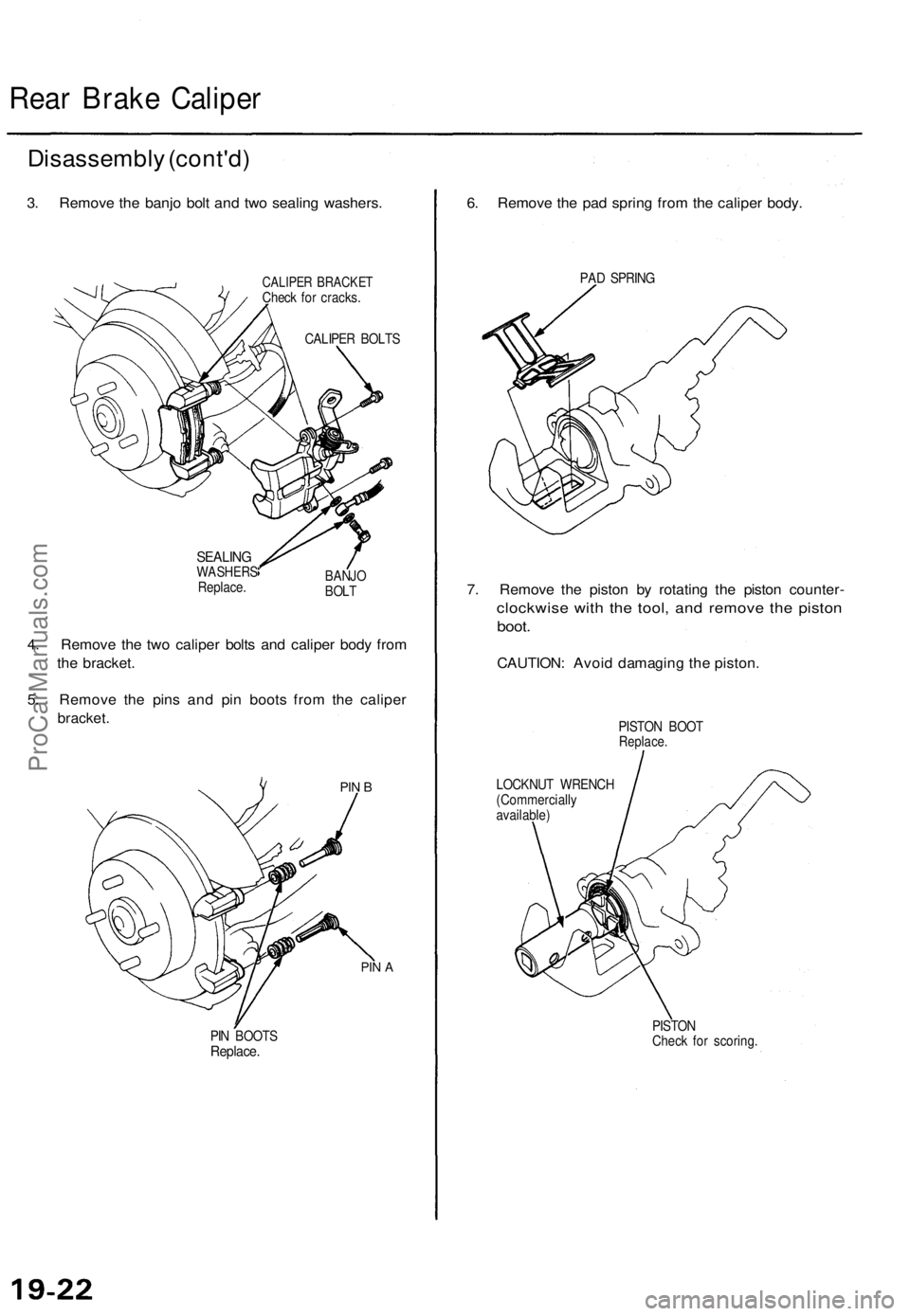

Rear Brake Caliper

Disassembly (cont'd)

3. Remove the banjo bolt and two sealing washers.

CALIPER BRACKET

Check for cracks.

CALIPER BOLTS

SEALING

WASHERS

Replace.
BANJO

BOLT

4. Remove the two caliper bolts and caliper body from

the bracket.

5. Remove the pins and pin boots from the caliper

bracket.

PIN B

PIN A

PIN BOOTS

Replace.
6. Remove the pad spring from the caliper body.

PAD SPRING

7. Remove the piston by rotating the piston counter-

clockwise with the tool, and remove the piston

boot.

CAUTION: Avoid damaging the piston.

PISTON BOOT

Replace.

LOCKNUT WRENCH

(Commercially

available)

PISTON

Check for scoring.ProCarManuals.com

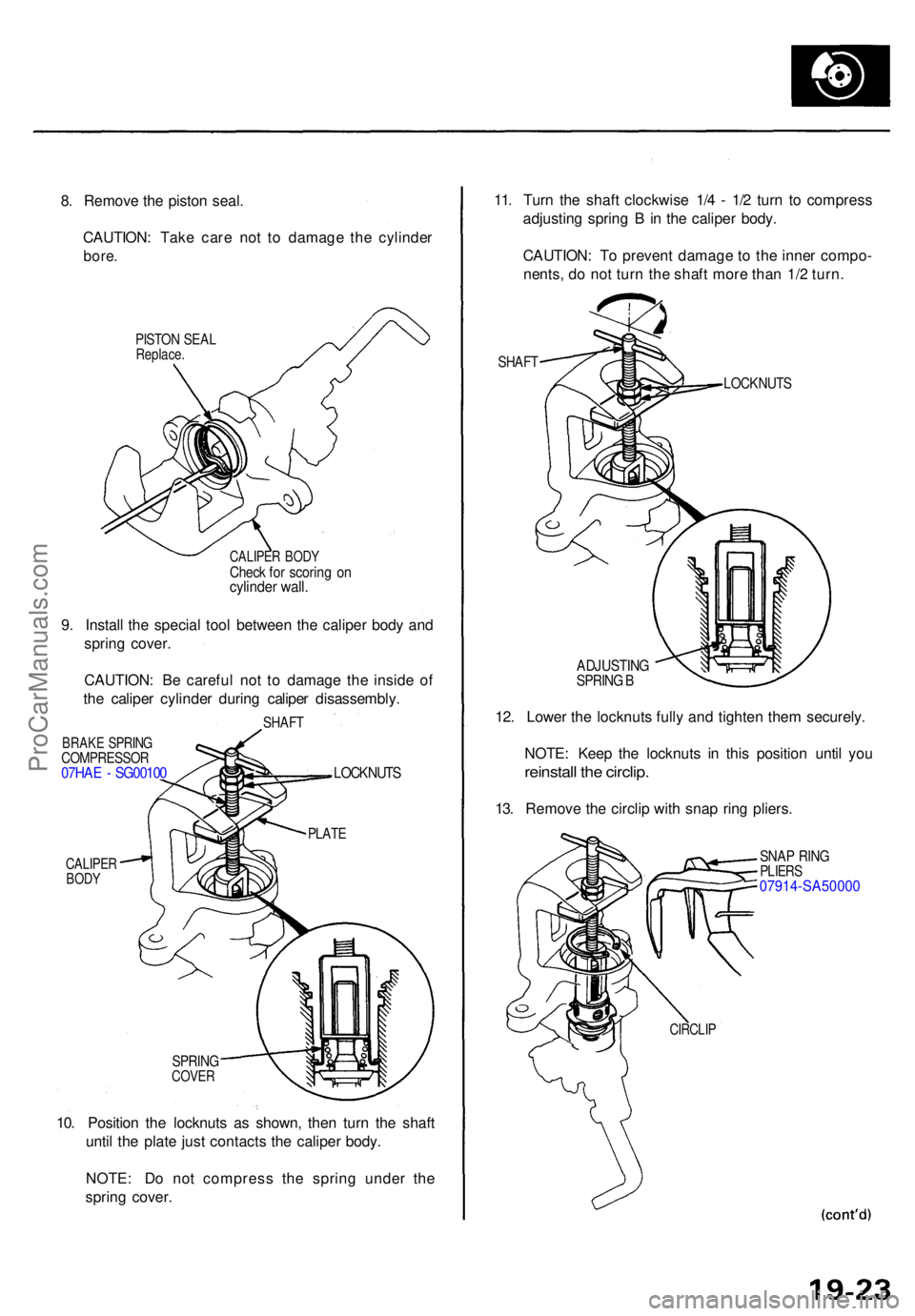

8. Remov e th e pisto n seal .
CAUTION : Tak e car e no t t o damag e th e cylinde r
bore.
PISTO N SEA LReplace .
CALIPER BOD YCheck fo r scorin g o ncylinde r wall .
9. Instal l th e specia l too l betwee n th e calipe r bod y an d
sprin g cover .
CAUTION : B e carefu l no t t o damag e th e insid e o f
th e calipe r cylinde r durin g calipe r disassembly .
SHAFT
BRAK E SPRIN GCOMPRESSO R07HAE - SG0010 0
CALIPERBODY
LOCKNUT S
SPRINGCOVER
10. Positio n th e locknut s a s shown , the n tur n th e shaf t
unti l th e plat e jus t contact s th e calipe r body .
NOTE : D o no t compres s th e sprin g unde r th e
sprin g cover . 11
. Tur n th e shaf t clockwis e 1/ 4 - 1/ 2 tur n t o compres s
adjustin g sprin g B in th e calipe r body .
CAUTION : T o preven t damag e t o th e inne r compo -
nents , d o no t tur n th e shaf t mor e tha n 1/ 2 turn .
SHAF T
LOCKNUT S
ADJUSTIN GSPRING B
12 . Lowe r th e locknut s full y an d tighte n the m securely .
NOTE : Kee p th e locknut s i n thi s positio n unti l yo u
reinstal l th e circlip .
13. Remov e th e circli p wit h sna p rin g pliers .
SNAP RIN GPLIER S07914-SA5000 0
CIRCLIP
PLATE
ProCarManuals.com

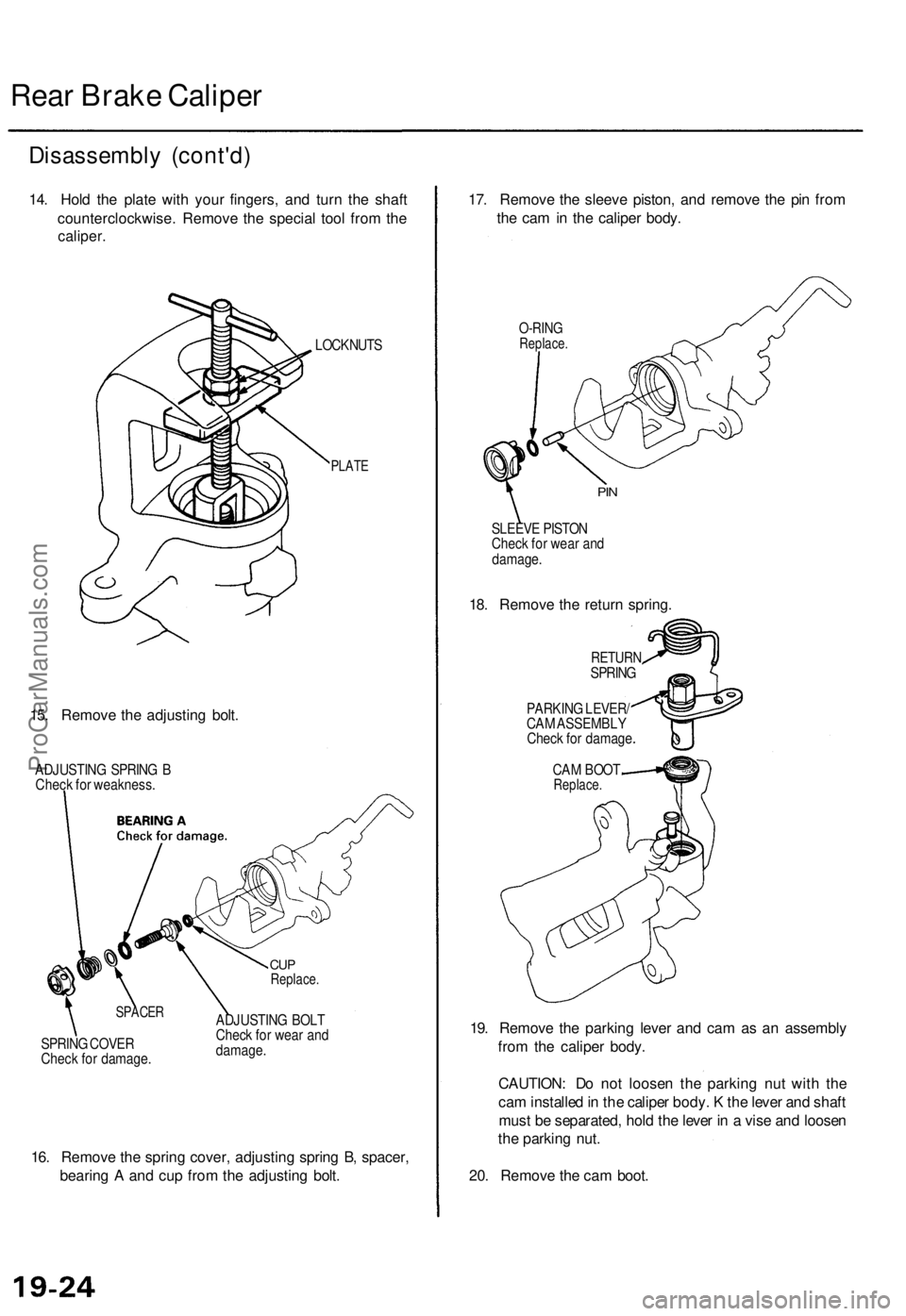

Rear Brake Caliper

Disassembly (cont'd)

14. Hold the plate with your fingers, and turn the shaft

counterclockwise. Remove the special tool from the

caliper.

LOCKNUTS

PLATE

15. Remove the adjusting bolt.

ADJUSTING SPRING B

Check for weakness.

SPACER

SPRING COVER

Check for damage.
CUP

Replace.

ADJUSTING BOLT

Check for wear and

damage.

16. Remove the spring cover, adjusting spring B, spacer,

bearing A and cup from the adjusting bolt.
17. Remove the sleeve piston, and remove the pin from

the cam in the caliper body.

O-RING

Replace.

PIN

SLEEVE PISTON

Check for wear and

damage.

18. Remove the return spring.

RETURN

SPRING

PARKING LEVER/

CAM ASSEMBLY

Check for damage

CAM BOOT

Replace.

19. Remove the parking lever and cam as an assembly

from the caliper body.

CAUTION: Do not loosen the parking nut with the

cam installed in the caliper body. K the lever and shaft

must be separated, hold the lever in a vise and loosen

the parking nut.

20. Remove the cam boot.ProCarManuals.com

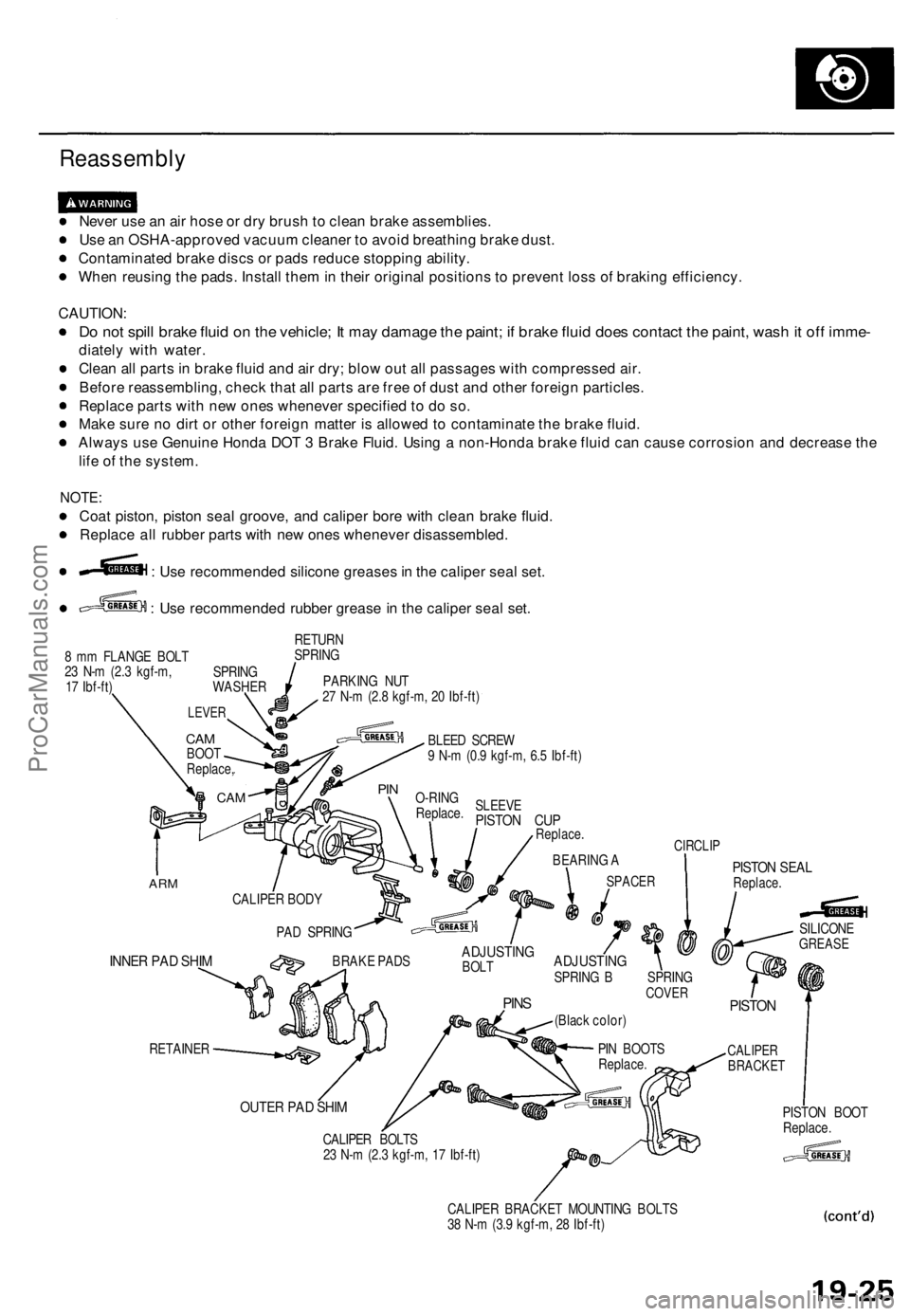

Reassembly

Never use an air hose or dry brush to clean brake assemblies.

Use an OSHA-approved vacuum cleaner to avoid breathing brake dust.

Contaminated brake discs or pads reduce stopping ability.

When reusing the pads. Install them in their original positions to prevent loss of braking efficiency.

CAUTION:

Do not spill brake fluid on the vehicle; It may damage the paint; if brake fluid does contact the paint, wash it off imme-

diately with water.

Clean all parts in brake fluid and air dry; blow out all passages with compressed air.

Before reassembling, check that all parts are free of dust and other foreign particles.

Replace parts with new ones whenever specified to do so.

Make sure no dirt or other foreign matter is allowed to contaminate the brake fluid.

Always use Genuine Honda DOT 3 Brake Fluid. Using a non-Honda brake fluid can cause corrosion and decrease the

life of the system.

NOTE:

Coat piston, piston seal groove, and caliper bore with clean brake fluid.

Replace all rubber parts with new ones whenever disassembled.

: Use recommended silicone greases in the caliper seal set.

: Use recommended rubber grease in the caliper seal set.

8 mm FLANGE BOLT

23 N-m (2.3 kgf-m,

17 Ibf-ft)
RETURN

SPRING

PARKING NUT

27 N-m (2.8 kgf-m, 20 Ibf-ft)

BLEED SCREW

9 N-m (0.9 kgf-m, 6.5 Ibf-ft)

SLEEVE

PISTON CUP

Replace.

ARM

INNER PAD SHIM

RETAINER
CALIPER BODY

PAD SPRING
CIRCLIP

BEARING A

SPACER
PISTON SEAL

Replace.

BRAKE PADS
ADJUSTING

BOLT

PINS
ADJUSTING

SPRING B SPRING

COVER

(Black color)
PISTON

CALIPER

BRACKET

OUTER PAD SHIM

CALIPER BOLTS

23 N-m (2.3 kgf-m, 17 Ibf-ft)

CALIPER BRACKET MOUNTING BOLTS

38 N-m (3.9 kgf-m, 28 Ibf-ft)
PISTON BOOT

Replace.
SILICONE

GREASE
O-RING

Replace.
PIN

CAM
LEVER

CAM

BOOT

Replace,
SPRING

WASHER

PIN BOOTS

Replace.ProCarManuals.com

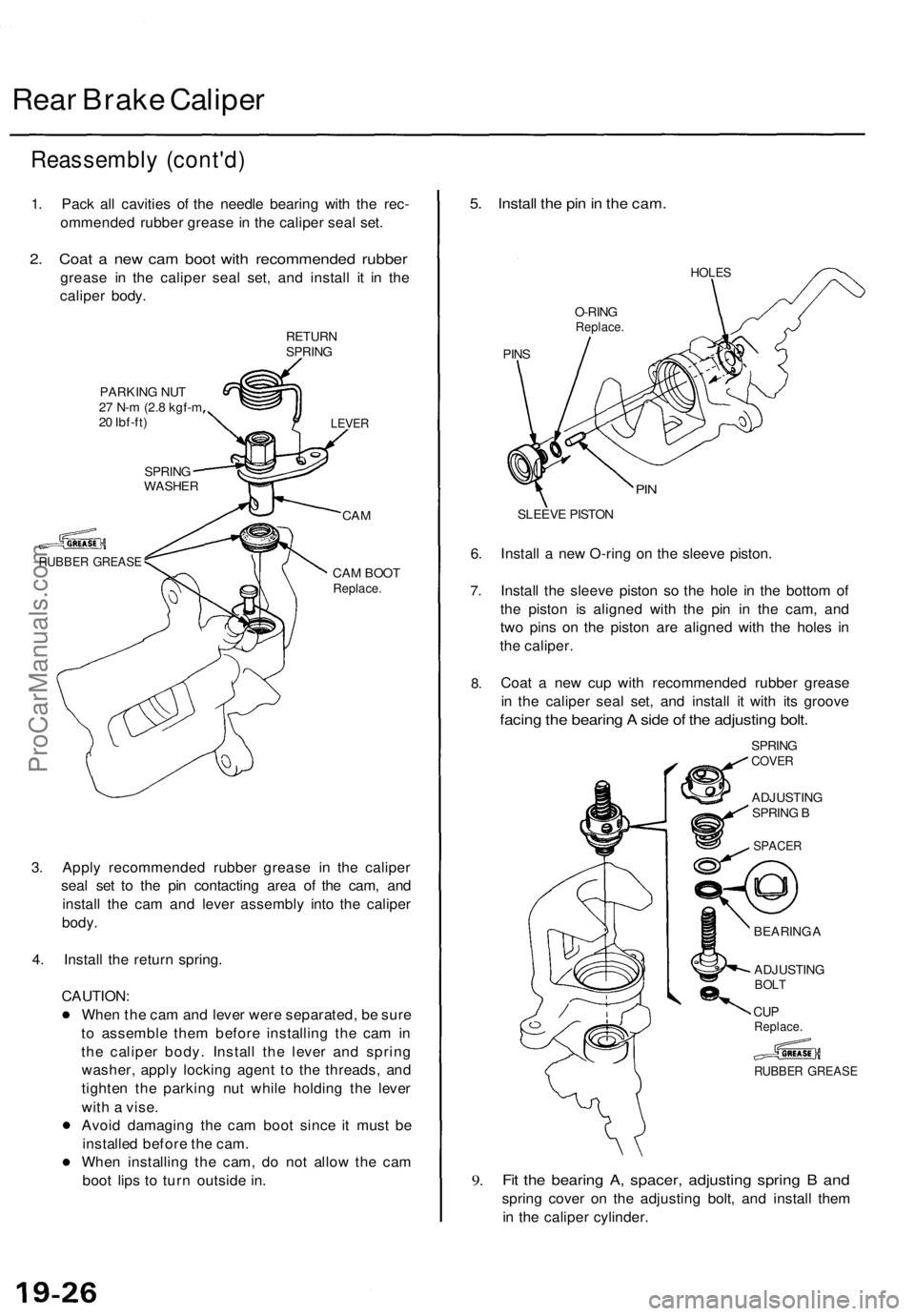

Rear Brake Caliper

Reassembly (cont'd)

1. Pack all cavities of the needle bearing with the rec-

ommended rubber grease in the caliper seal set.

2. Coat a new cam boot with recommended rubber

grease in the caliper seal set, and install it in the

caliper body.

RETURN

SPRING

PARKING NUT

27 N-m (2.8 kgf-m

20 Ibf-ft)

SPRING

WASHER

RUBBER GREASE
LEVER

CAM

CAM BOOT

Replace.

3. Apply recommended rubber grease in the caliper

seal set to the pin contacting area of the cam, and

install the cam and lever assembly into the caliper

body.

4. Install the return spring.

CAUTION:

When the cam and lever were separated, be sure

to assemble them before installing the cam in

the caliper body. Install the lever and spring

washer, apply locking agent to the threads, and

tighten the parking nut while holding the lever

with a vise.

Avoid damaging the cam boot since it must be

installed before the cam.

When installing the cam, do not allow the cam

boot lips to turn outside in.
5. Install the pin in the cam.

HOLES

O-RING

Replace.

PINS

PIN

SLEEVE PISTON

6. Install a new O-ring on the sleeve piston.

7.

8.
Install the sleeve piston so the hole in the bottom of

the piston is aligned with the pin in the cam, and

two pins on the piston are aligned with the holes in

the caliper.

Coat a new cup with recommended rubber grease

in the caliper seal set, and install it with its groove

facing the bearing A side of the adjusting bolt.

SPRING

COVER

ADJUSTING

SPRING B

RUBBER GREASE

9.
Fit the bearing A, spacer, adjusting spring B and

spring cover on the adjusting bolt, and install them

in the caliper cylinder.
BEARING A

ADJUSTING

BOLT

CUP

Replace.
SPACERProCarManuals.com

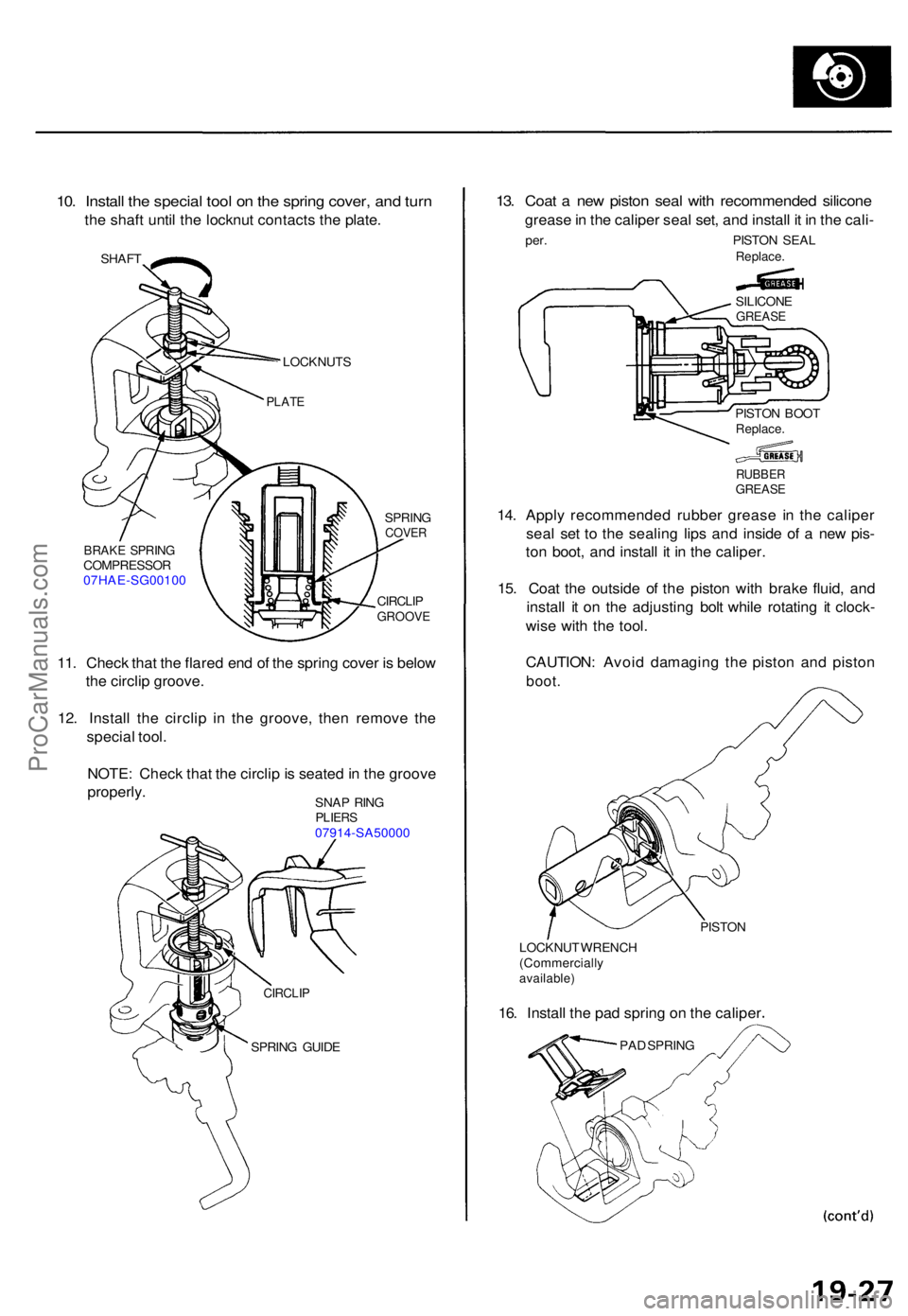

10. Instal l th e specia l too l o n th e sprin g cover , an d tur n
the shaf t unti l th e locknu t contact s th e plate .
SHAF T
LOCKNUT S
BRAKE SPRIN GCOMPRESSO R07HAE-SG0010 0 SPRIN
G
COVER
CIRCLI PGROOV E
11. Chec k tha t th e flare d en d o f th e sprin g cove r i s belo w
th e circli p groove .
12 . Instal l th e circli p i n th e groove , the n remov e th e
specia l tool .
NOTE : Chec k tha t th e circli p is seated in th e groov e
properly .
13. Coa t a ne w pisto n sea l wit h recommende d silicon e
grease in th e calipe r sea l set , an d instal l i t i n th e cali -
per. PISTO N SEA LReplace .
RUBBERGREAS E
14. Appl y recommende d rubbe r greas e i n th e calipe r
sea l se t t o th e sealin g lip s an d insid e o f a ne w pis -
to n boot , an d instal l i t i n th e caliper .
15 . Coa t th e outsid e o f th e pisto n wit h brak e fluid , an d
instal l i t o n th e adjustin g bol t whil e rotatin g i t clock -
wis e wit h th e tool .
CAUTION : Avoi d damagin g th e pisto n an d pisto n
boot.
PISTO N
LOCKNU T WRENC H
(Commerciall y
available)
16. Instal l th e pa d sprin g o n th e calipe r
PAD SPRIN G
PLATE
SILICON EGREASE
PISTON BOO TReplace .
CIRCLIP
SPRING GUID E
SNA
P RIN G
PLIER S07914-SA5000 0
ProCarManuals.com

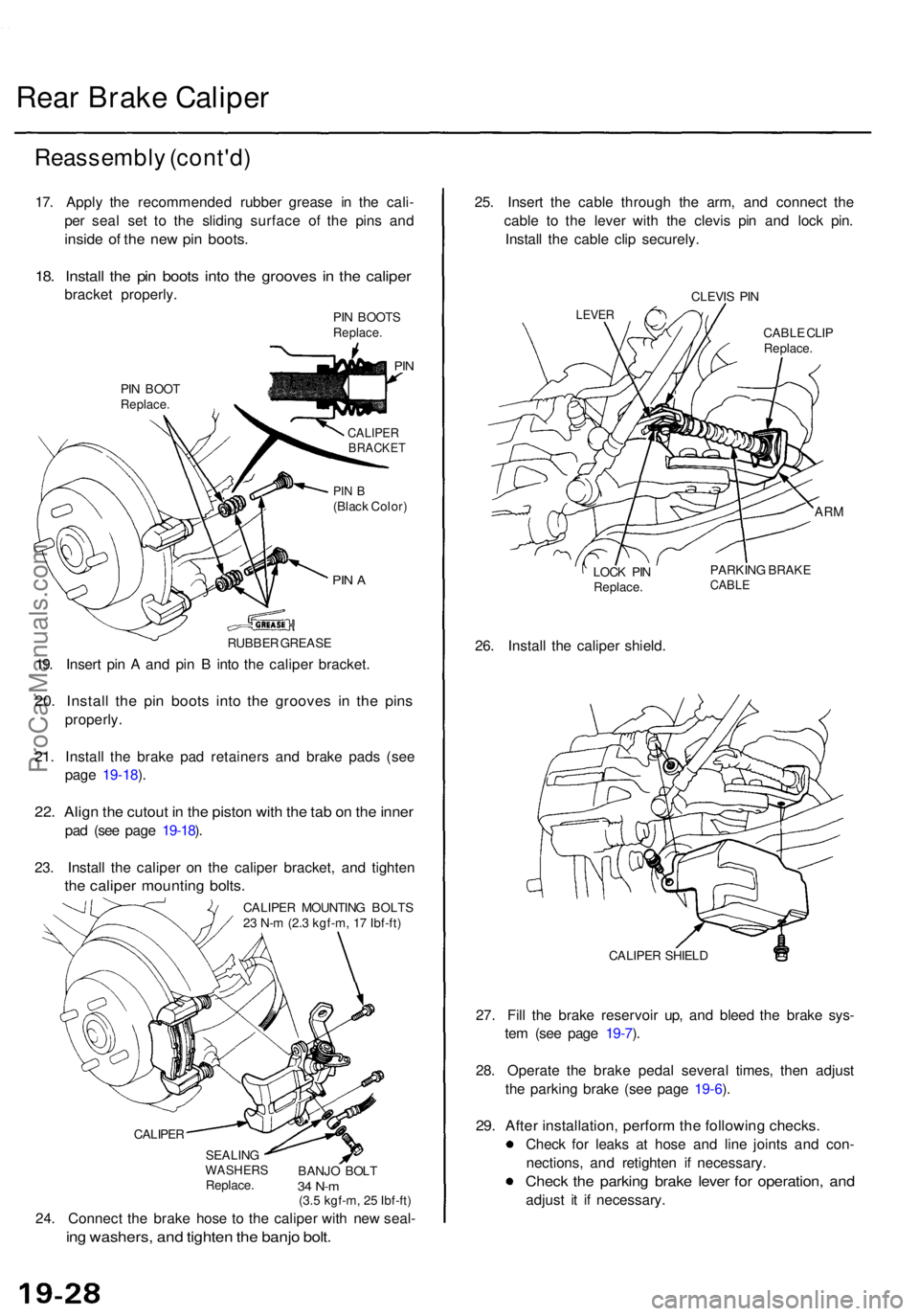

Rear Brak e Calipe r
Reassembl y (cont'd )
17. Appl y th e recommende d rubbe r greas e i n th e cali -
pe r sea l se t t o th e slidin g surfac e o f th e pin s an d
insid e o f th e ne w pi n boots .
18. Instal l th e pi n boot s int o th e groove s i n th e calipe r
bracke t properly .
PIN BOOT SReplace .
PIN
PI N A
RUBBE R GREAS E
19. Inser t pi n A an d pi n B int o th e calipe r bracket .
20. Instal l th e pi n boot s int o th e groove s i n th e pin s
properly .
21 . Instal l th e brak e pa d retainer s an d brak e pad s (se e
pag e 19-18 ).
22 . Alig n th e cutou t i n th e pisto n wit h th e ta b o n th e inne r
pad (se e pag e 19-18 ).
23 . Instal l th e calipe r o n th e calipe r bracket , an d tighte n
the calipe r mountin g bolts .
CALIPE R MOUNTIN G BOLT S
2 3 N- m (2. 3 kgf-m , 1 7 Ibf-ft )
CALIPE R
SEALIN G
WASHER SReplace. BANJ
O BOL T34 N- m(3.5 kgf-m , 2 5 Ibf-ft )
24. Connec t th e brak e hos e t o th e calipe r wit h ne w seal -
ing washers , an d tighte n th e banj o bolt .
25. Inser t th e cabl e throug h th e arm , an d connec t th e
cabl e t o th e leve r wit h th e clevi s pi n an d loc k pin .
Instal l th e cabl e cli p securely .
CLEVIS PI N
LEVE R
CABL E CLI P
Replace .
ARM
LOC K PI N
Replace .
26. Instal l th e calipe r shield .
PARKIN G BRAK ECABLE
CALIPE R SHIEL D
27. Fil l th e brak e reservoi r up , an d blee d th e brak e sys -
te m (se e pag e 19-7 ).
28 . Operat e th e brak e peda l severa l times , the n adjus t
th e parkin g brak e (se e pag e 19-6 ).
29 . Afte r installation , perfor m th e followin g checks .
Check fo r leak s a t hos e an d lin e joint s an d con -
nections , an d retighte n i f necessary .
Check th e parkin g brak e leve r fo r operation , an d
adjus t i t i f necessary .
PIN BOO TReplace .
CALIPERBRACKE T
PIN B(Blac k Color )
ProCarManuals.com

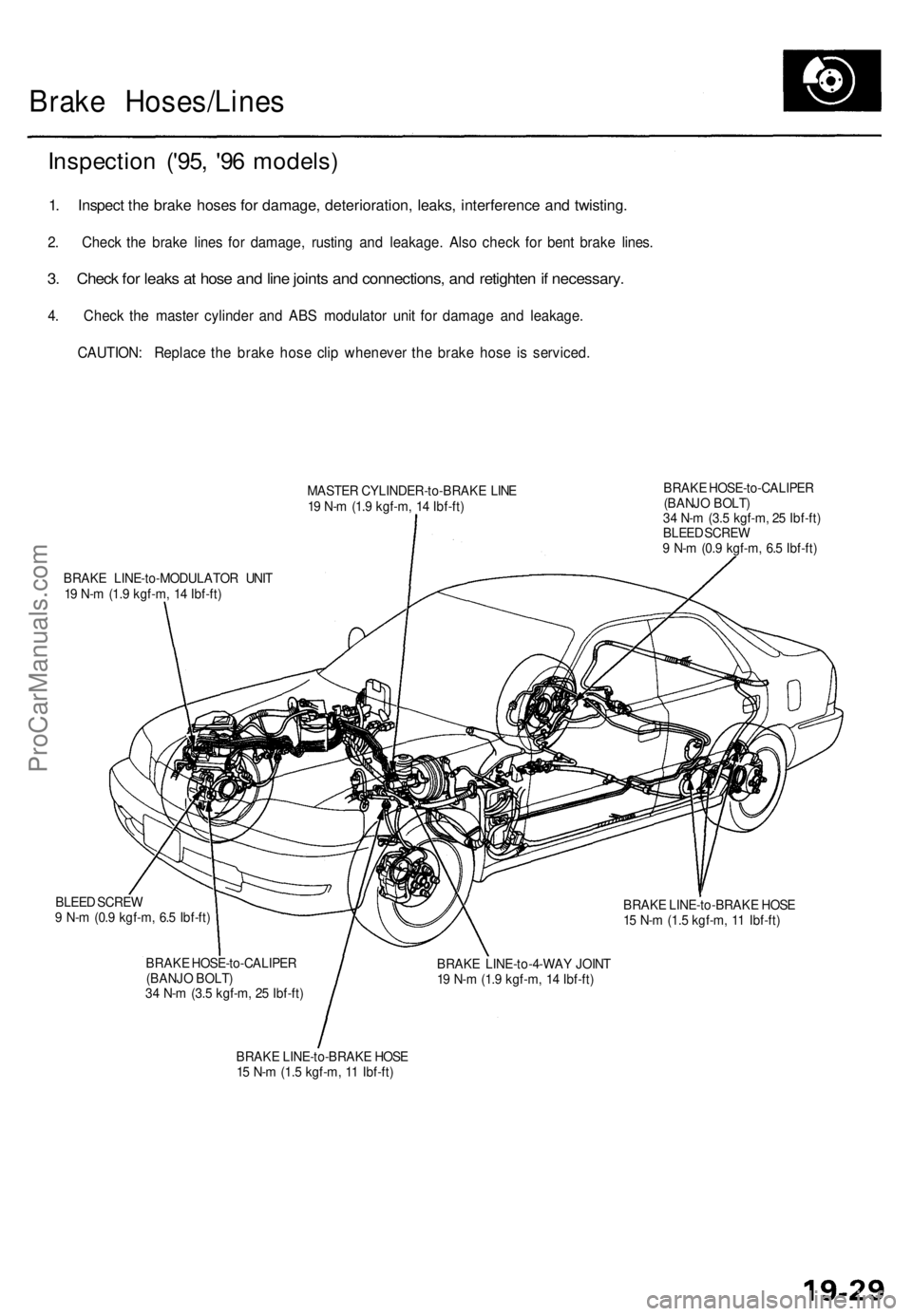

Brake Hoses/Lines

Inspection ('95, '96 models)

1. Inspect the brake hoses for damage, deterioration, leaks, interference and twisting.

2. Check the brake lines for damage, rusting and leakage. Also check for bent brake lines.

3. Check for leaks at hose and line joints and connections, and retighten if necessary.

4. Check the master cylinder and ABS modulator unit for damage and leakage.

CAUTION: Replace the brake hose clip whenever the brake hose is serviced.

MASTER CYLINDER-to-BRAKE LINE

19 N-m (1.9 kgf-m, 14 Ibf-ft)

BRAKE LINE-to-MODULATOR UNIT

19 N-m (1.9 kgf-m, 14 Ibf-ft)

BLEED SCREW

9 N-m (0.9 kgf-m, 6.5 Ibf-ft)

BRAKE HOSE-to-CALIPER

(BANJO BOLT)

34 N-m (3.5 kgf-m, 25 Ibf-ft)
BRAKE HOSE-to-CALIPER

(BANJO BOLT)

34 N-m (3.5 kgf-m, 25 Ibf-ft)

BLEED SCREW

9 N-m (0.9 kgf-m, 6.5 Ibf-ft)

BRAKE LINE-to-BRAKE HOSE

15 N-m (1.5 kgf-m, 11 Ibf-ft)

BRAKE LINE-to-4-WAY JOINT

19 N-m (1.9 kgf-m, 14 Ibf-ft)

BRAKE LINE-to-BRAKE HOSE

15 N-m (1.5 kgf-m, 11 Ibf-ft)ProCarManuals.com
