CHEVROLET CAMARO 1982 Repair Guide

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 671

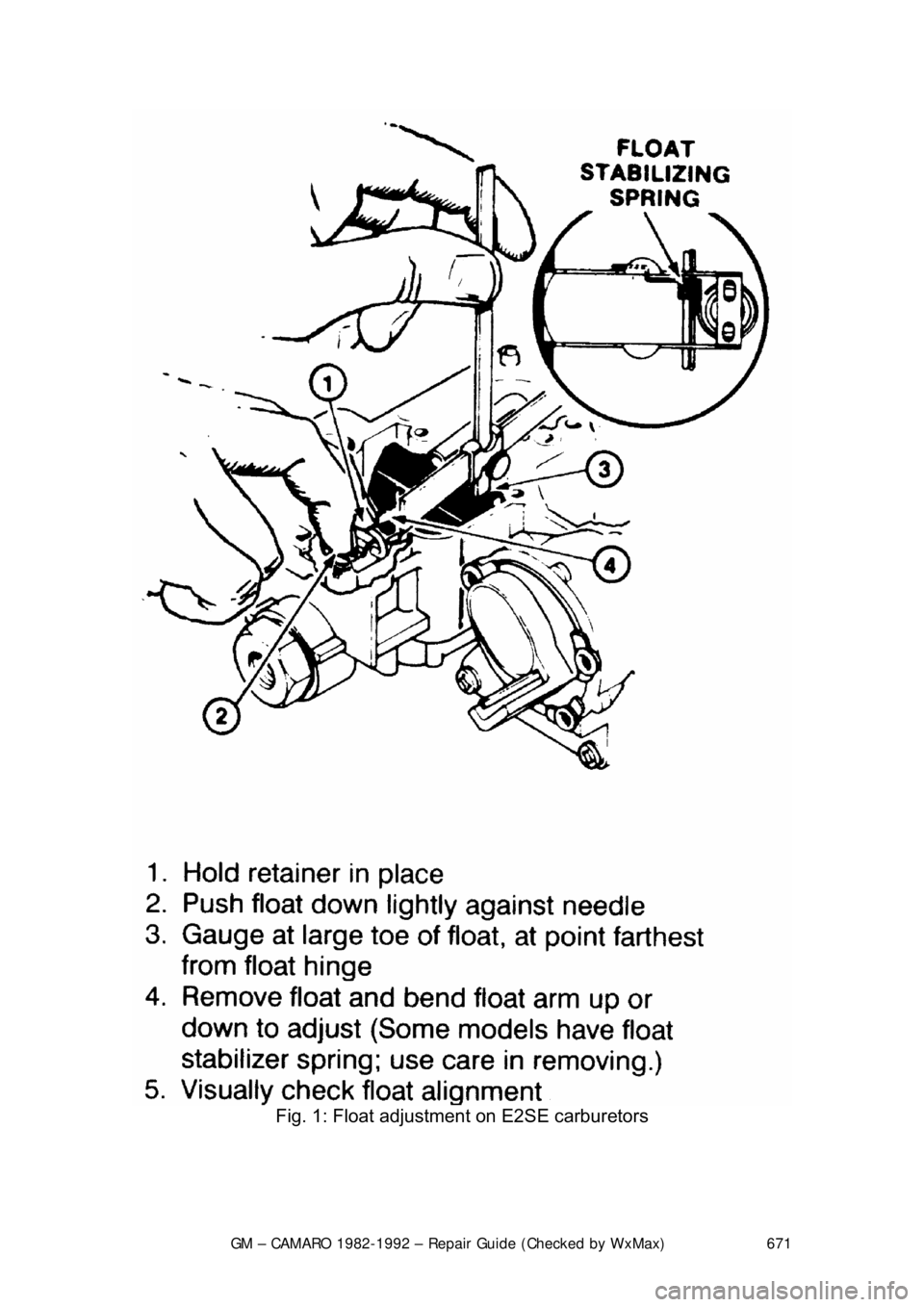

Fig. 1: Float adjustment on E2SE carburetors

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 672
ROCHESTER E4ME AND E4MC
1. Remove the air horn and gasket from the float bowl. Hold the float retainer down firmly. Push the float down (lightly) against the needle.
2. Position a T-scale ov er the toe of the float
1/16 in. (1.6mm) from the end
of the float toe.
3. If the float level varies more than
1/16 in. (1.6mm) from the specified
setting, it must be reset.

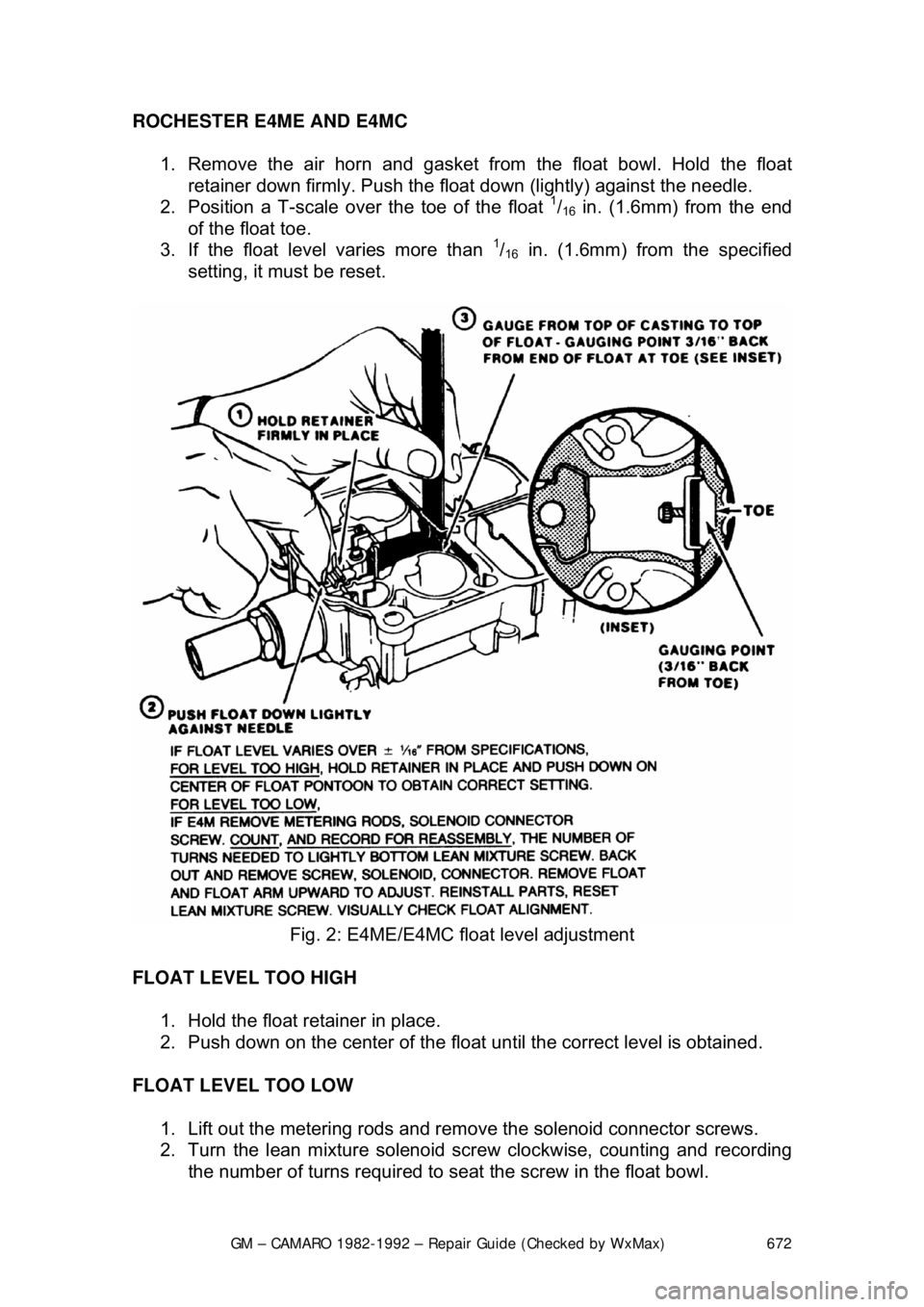

Fig. 2: E4ME/E4MC float level adjustment
FLOAT LEVEL TOO HIGH 1. Hold the float retainer in place.
2. Push down on the center of the float until the correct level is obtained.
FLOAT LEVEL TOO LOW 1. Lift out the metering rods and remo ve the solenoid connector screws.
2. Turn the lean mixture solenoid screw clockwise, counting and recording
the number of turns required to seat the screw in the float bowl.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 673
3. Turn the screw counterclockwise and
remove it. Lift the solenoid and the
connector from the float bowl.
4. Remove the float and bend the arm up to adjust. The float must be
correctly aligned after adjustment.
5. To install the components, reverse the order of removal. Back out the
solenoid mixture screw t he number of turns that wa s recorded earlier.
THROTTLE LINKAGE
ROCHESTER E2SE
No adjustment of the thro ttle cable can be made.
ROCHESTER E4ME AND E4MC
Due to the design of the throttle cable, no adjustments of the throttle linkage can
be made.
CHOKE UNLOADER (PRIMARY)
ROCHESTER E2SE
1. Connect a rubber band to the in termediate choke lever and open the
throttle to allow the choke valve to close.
2. Set up the angle gauge and set the gauge to specifications.
3. Using a vacuum source, retract the vacuum break plunger. Make sure
that the air valve rod does not interf ere with the retraction of the vacuum
break plunger.
4. Support the vacuum br eak rod and make the adjustment by bending the
rod.

Fig. 3: Primary vacuum break adjustment on E2SE carburetors

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 674
ROCHESTER E4ME AND E4MC
1. Connect a rubber band to the green tang of the intermediate choke shaft.
2. Open the throttle to allow the choke valve to close.
3. Set up the angle gauge and set to specifications.
4. Using a vacuum source, retract t he vacuum break plunger. The air valve
rod must not restrict the breaker plunger from fully retracting.
5. With the vacuum applied, turn the adjusting screw until the centering
bubble of the angle gauge is level.

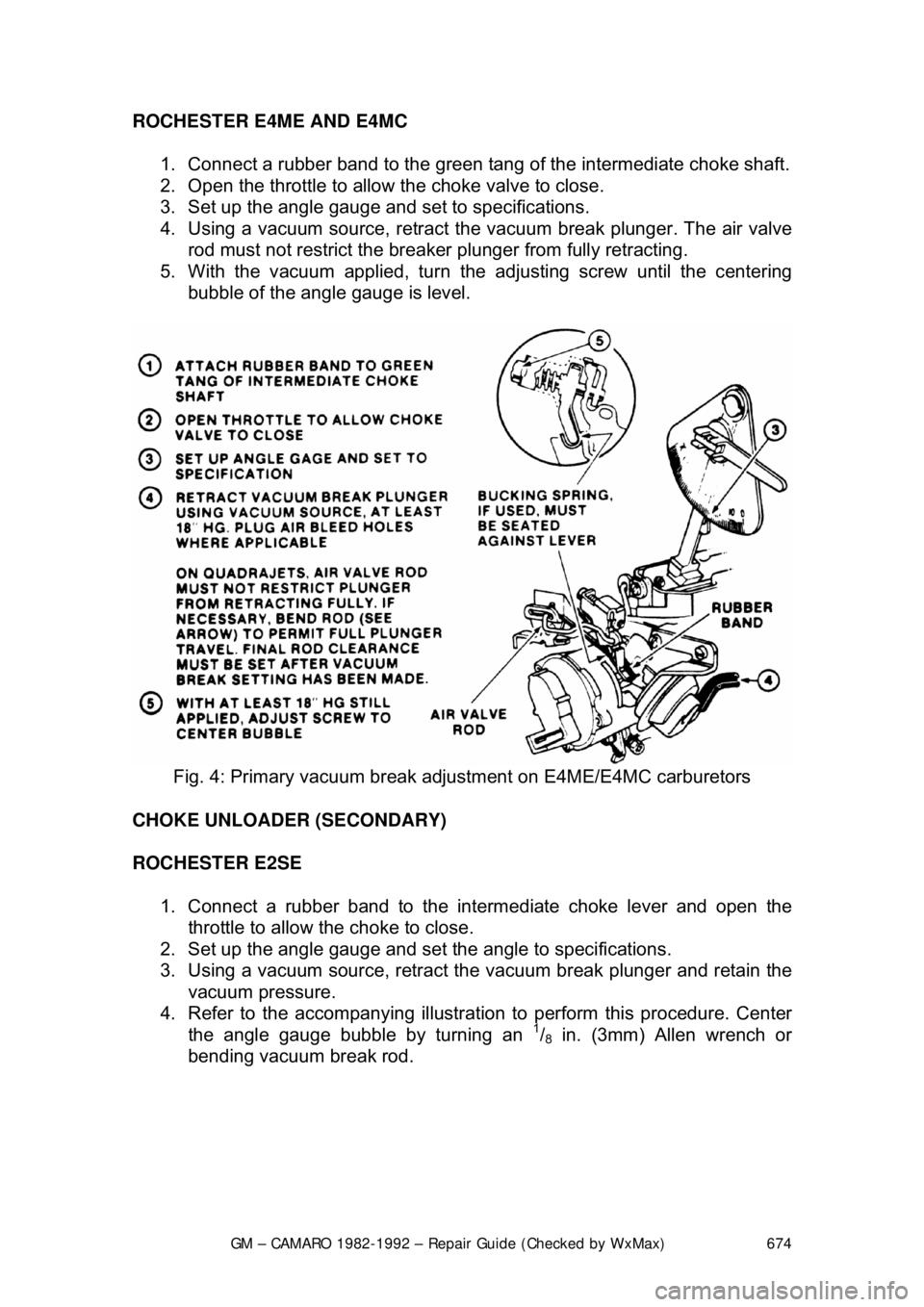

Fig. 4: Primary vacuum break ad justment on E4ME/E4MC carburetors
CHOKE UNLOADER (SECONDARY)
ROCHESTER E2SE 1. Connect a rubber band to the in termediate choke lever and open the
throttle to allow the choke to close.
2. Set up the angle gauge and set the angle to specifications.
3. Using a vacuum source, retract the vacuum break plunger and retain the
vacuum pressure.
4. Refer to the accompanying illustrati on to perform this procedure. Center
the angle gauge bubble by turning an
1/8 in. (3mm) Allen wrench or
bending vacuum break rod.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 675

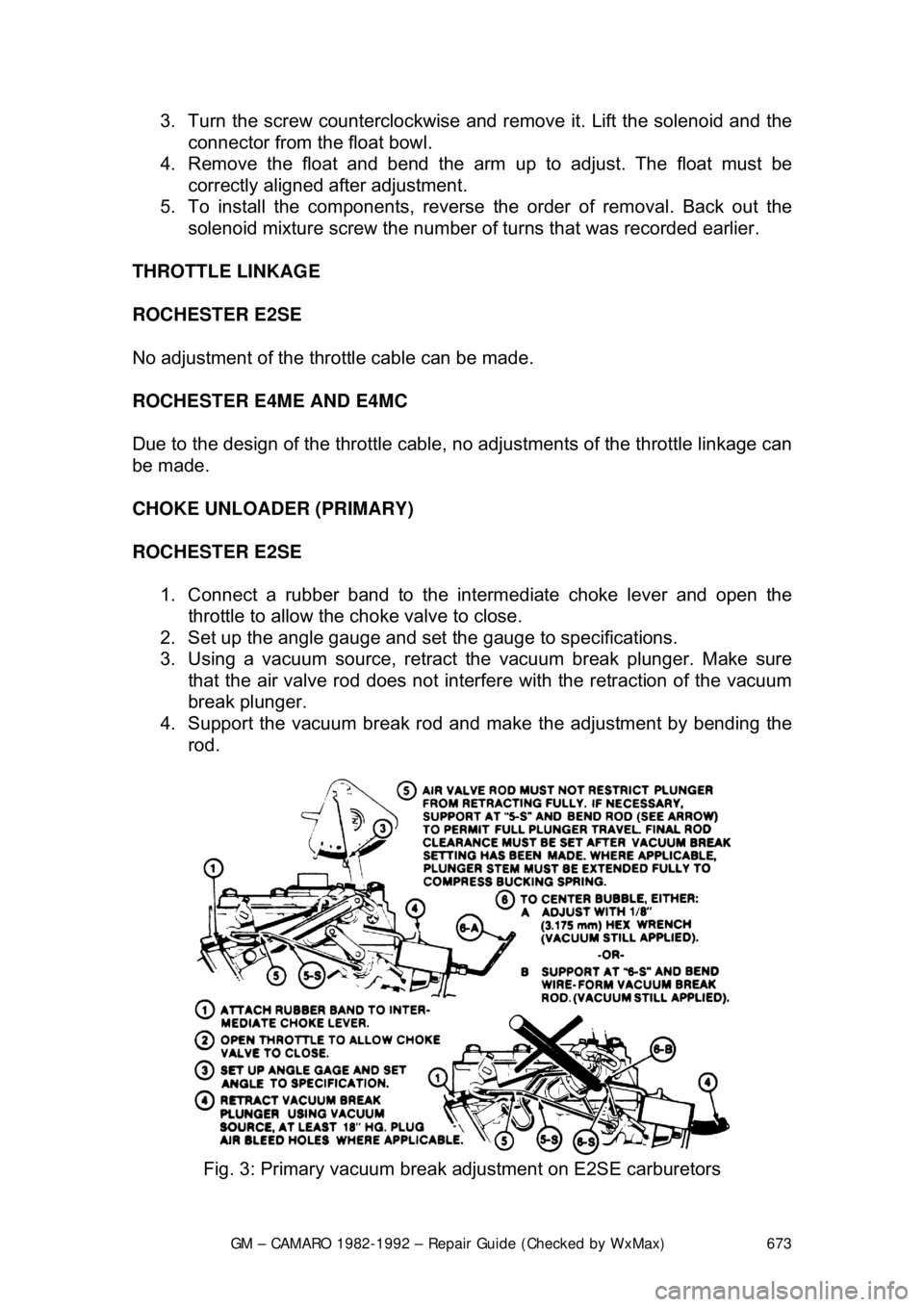

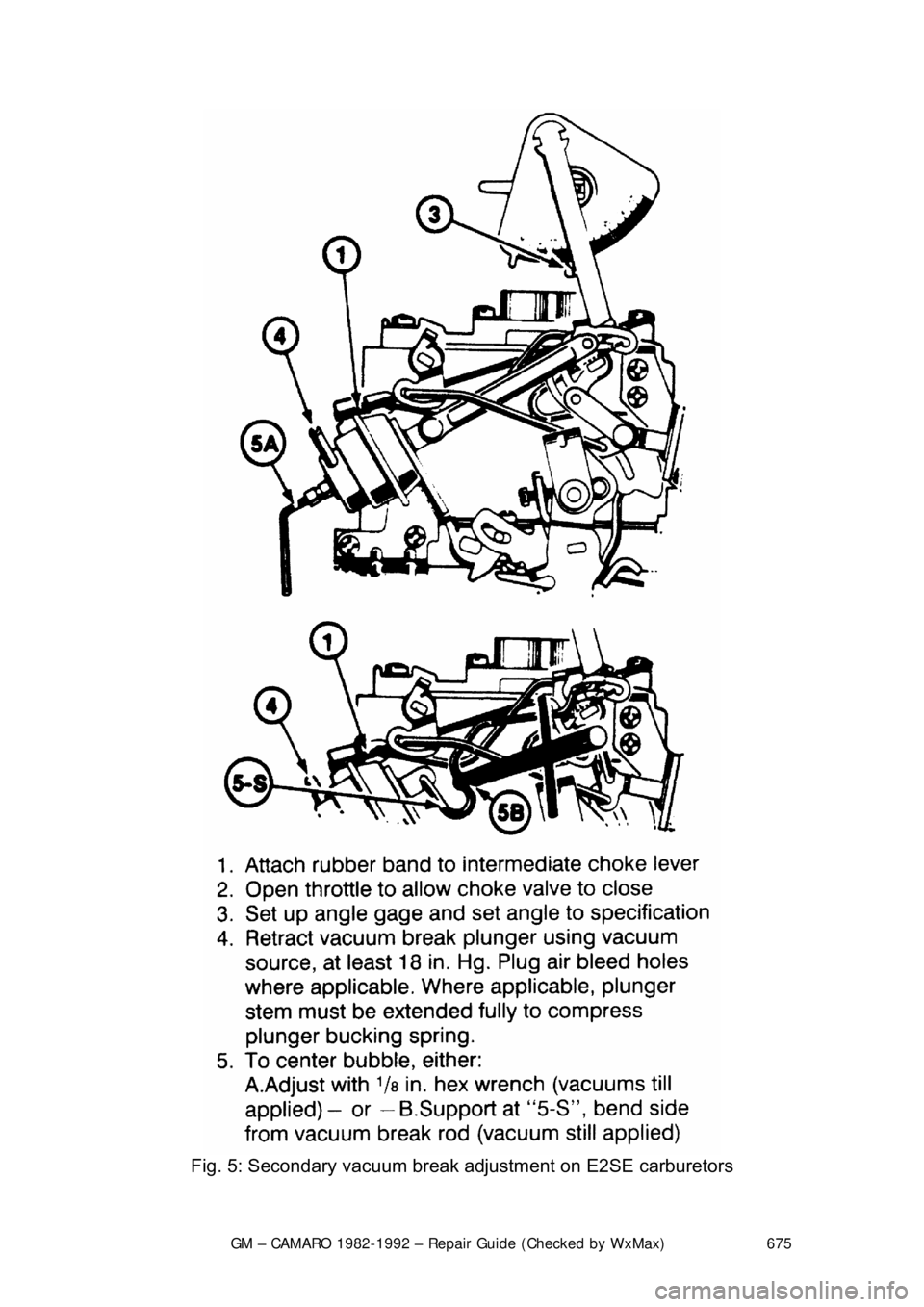

Fig. 5: Secondary vacuum break adjustment on E2SE carburetors

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 676
ROCHESTER E4ME AND E4MC
1. Connect a rubber band to the green tang of the intermediate choke shaft.
2. Open the throttle to allow the choke valve to close.
3. Set up the angle gauge and set the angle to specification.
4. Using a vacuum source, retr act the vacuum break plunger.
The air valve rod must not restrict the vacuum break plunger from fully
retracting.
5. With the vacuum applied, turn t he adjusting screw or bend the vacuum
break rod until the bubble of t he angle gauge is centered.

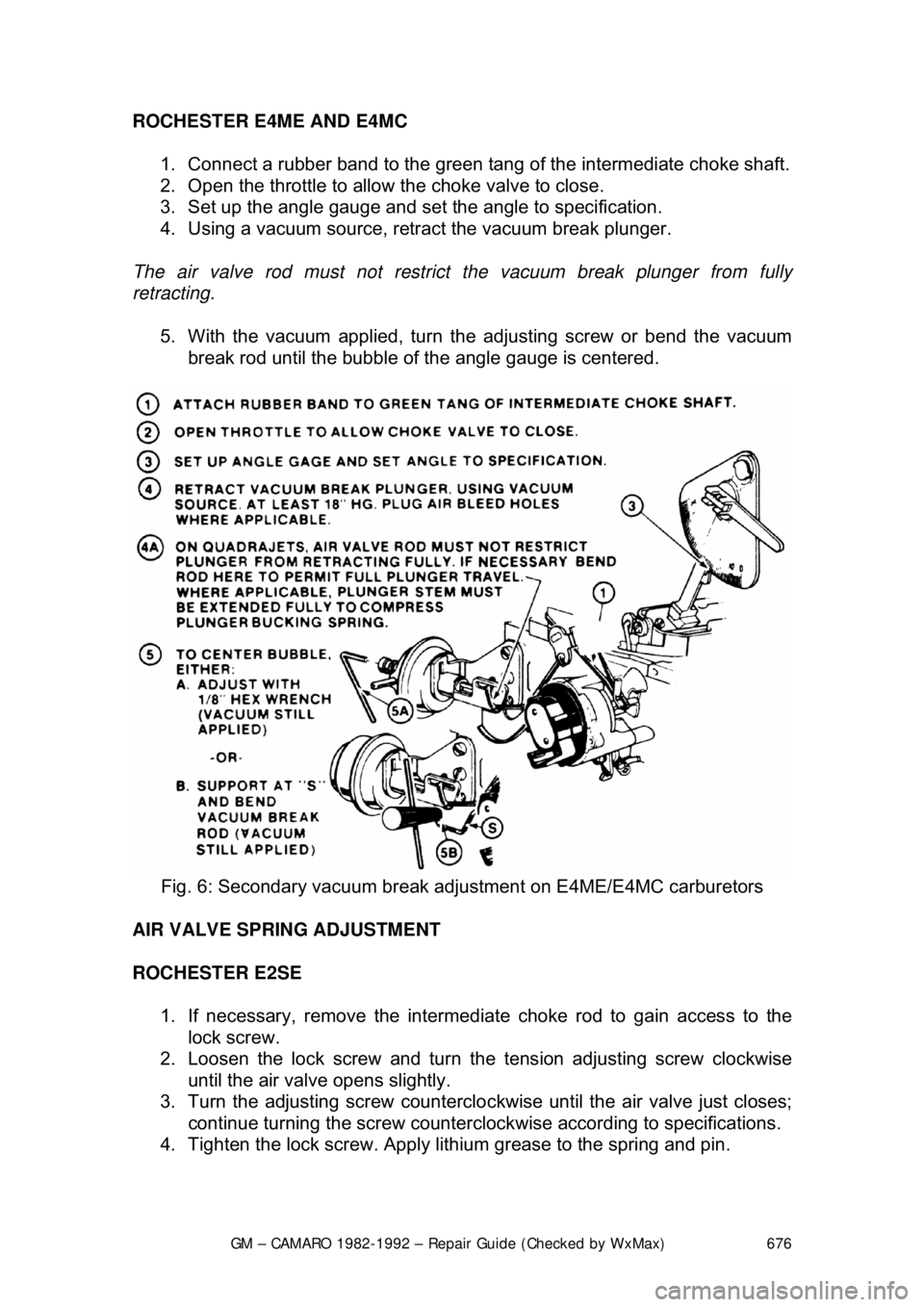

Fig. 6: Secondary vacuum break adj ustment on E4ME/E4MC carburetors
AIR VALVE SPRING ADJUSTMENT
ROCHESTER E2SE 1. If necessary, remove the intermediat e choke rod to gain access to the
lock screw.
2. Loosen the lock screw and turn t he tension adjusting screw clockwise
until the air valve opens slightly.
3. Turn the adjusting screw counterclo ckwise until the air valve just closes;
continue turning the screw counterclock wise according to specifications.
4. Tighten the lock screw. Apply lithium grease to the spring and pin.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 677

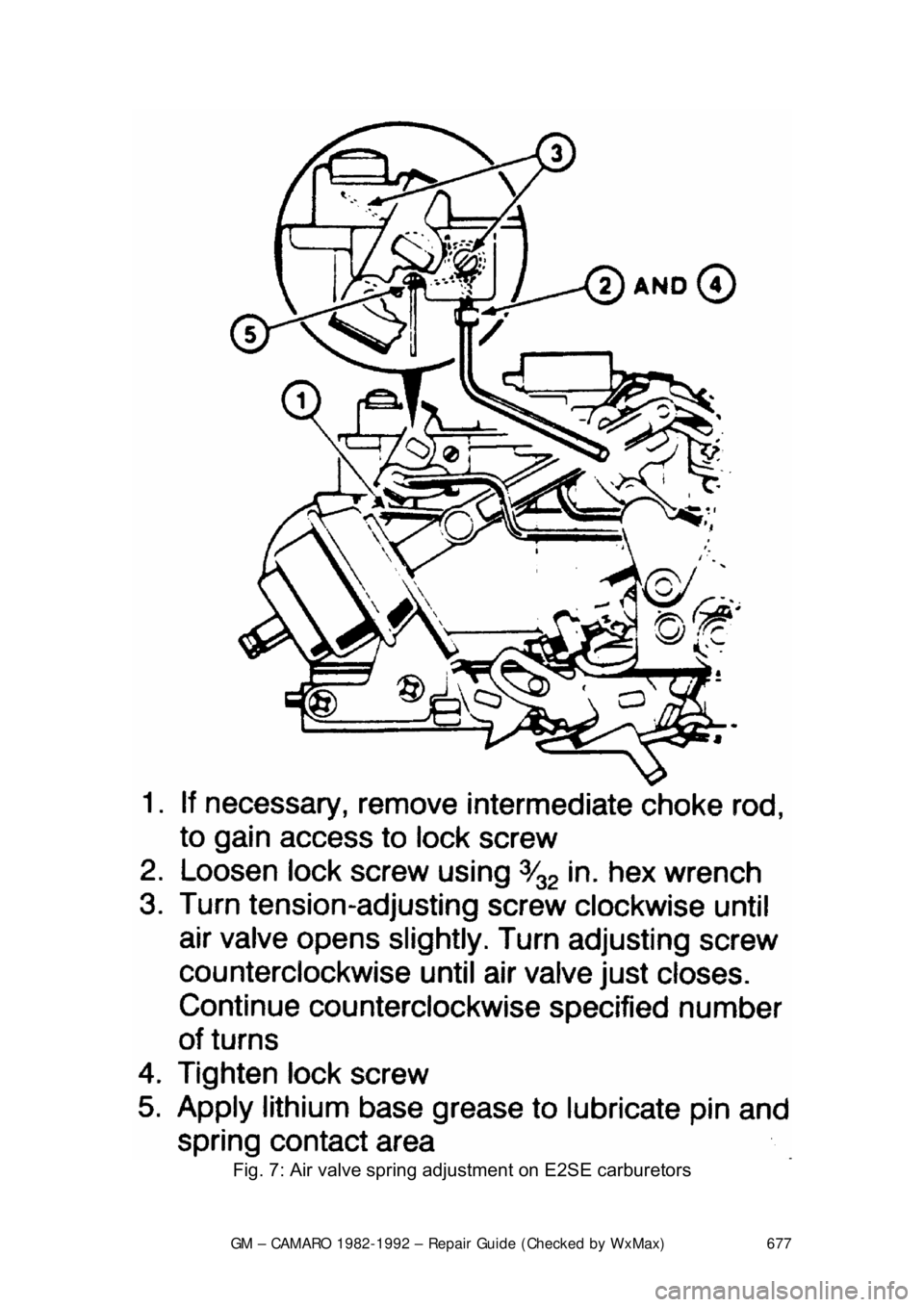

Fig. 7: Air valve spring adj ustment on E2SE carburetors

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 678
ROCHESTER E4ME AND E4MC
1. Loosen the lock screw and turn the tension adjusting screw counterclockwise until the air valve partly opens.
2. Turn the tension adjus ting screw clockwise until t he air valve just closes,
then turn the screw clockwise a specified number of turns.
3. Tighten the lock screw and apply lithium grease to the spring contact
area.

Fig. 8: Air valve spring adjus tment on E4ME/E4MC carburetors
AIR VALVE ROD ADJUSTMENT
ROCHESTER E2SE 1. Set up the angle g auge on the air valve and set the angle to
specification.
2. Use a vacuum source to s eat the vacuum break plunger.
3. By applying light pressure to the ai r valve lever, rotate it in the opening
direction.
4. Support the air valve rod and bend it to make the adjustment.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 679

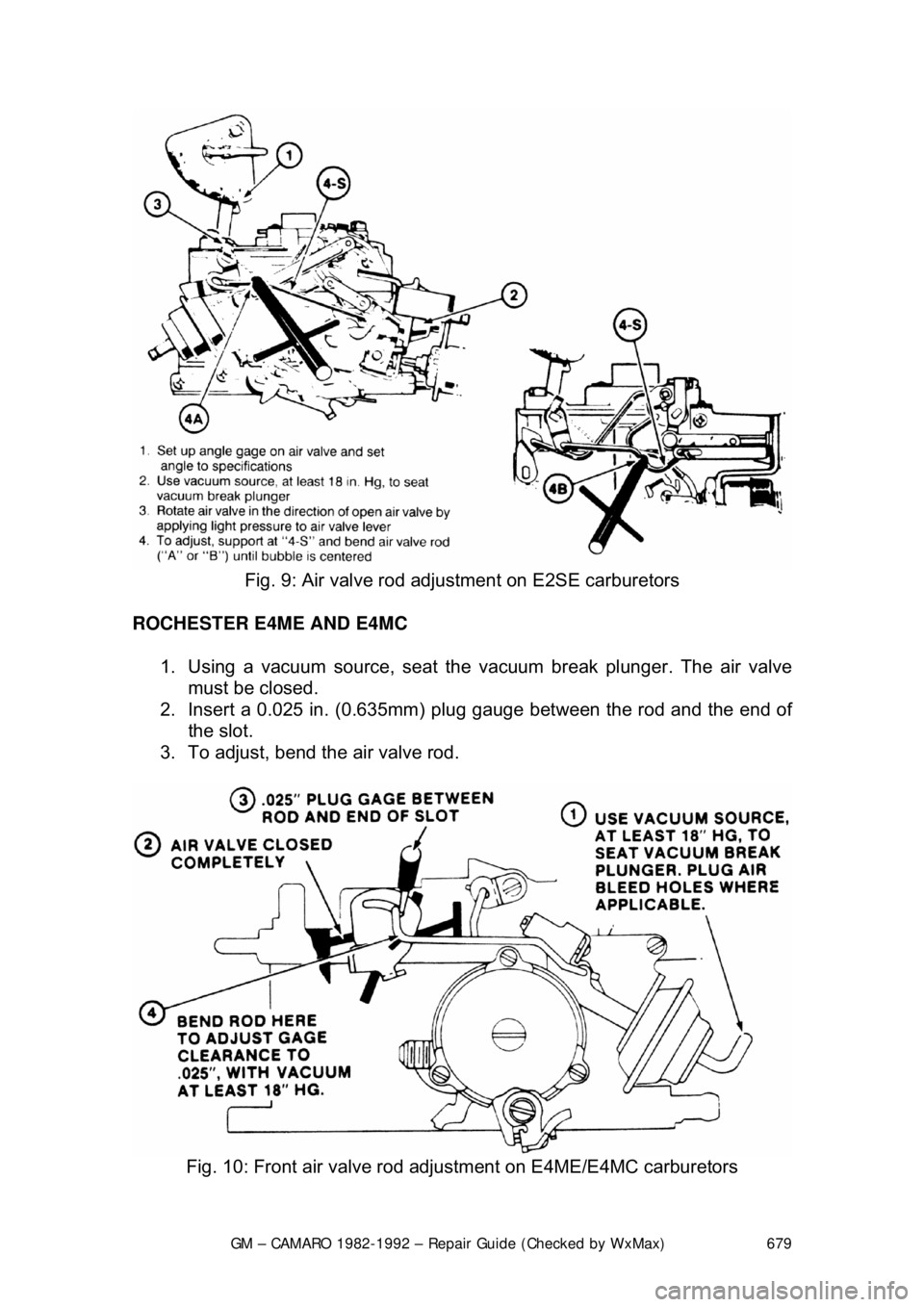

Fig. 9: Air valve rod adju stment on E2SE carburetors
ROCHESTER E4ME AND E4MC 1. Using a vacuum source, seat the vacuum break plunger. The air valve
must be closed.
2. Insert a 0.025 in. (0.635mm) pl ug gauge between the rod and the end of
the slot.
3. To adjust, bend the air valve rod.

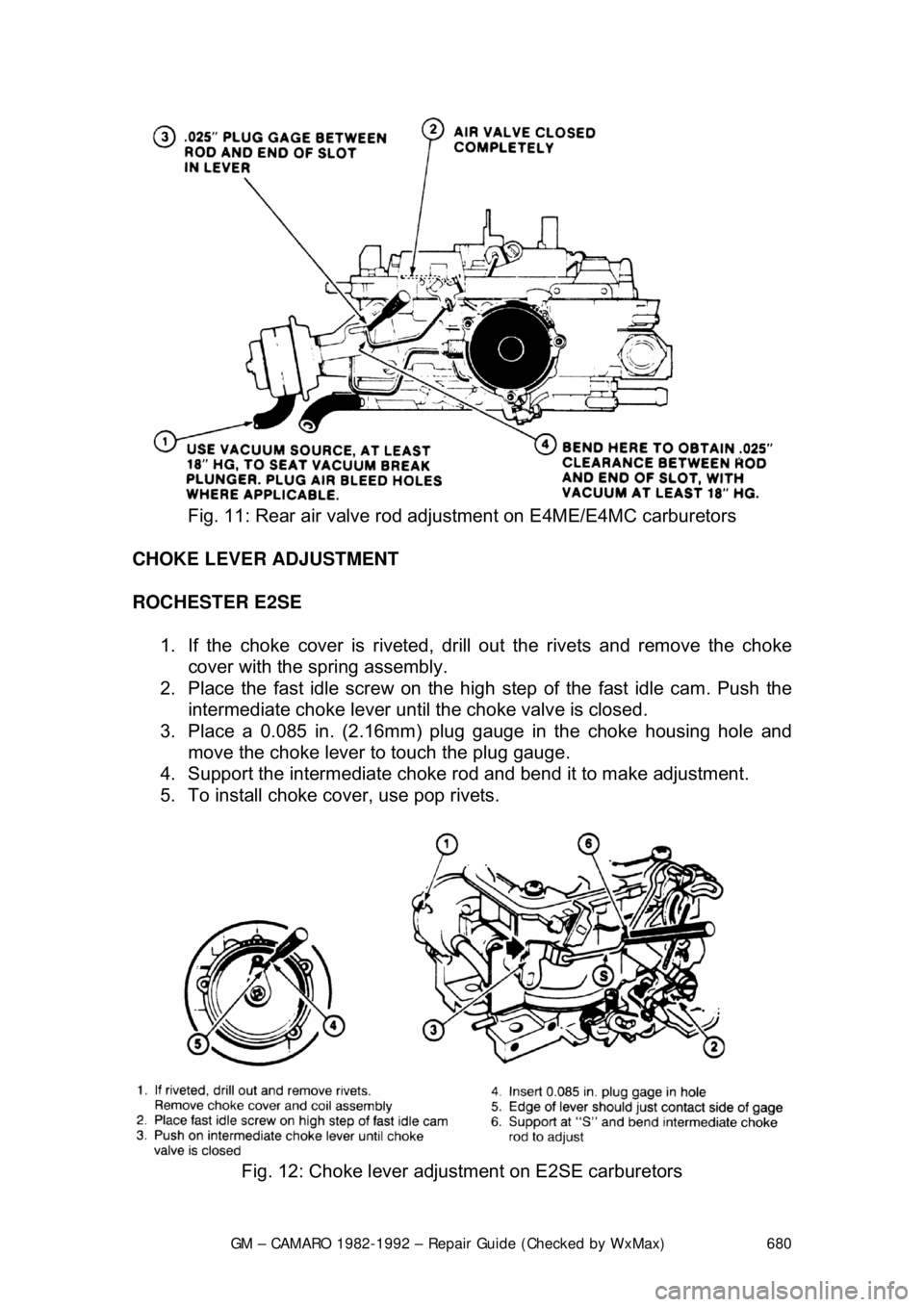

Fig. 10: Front air valve rod adj ustment on E4ME/E4MC carburetors

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 680

Fig. 11: Rear air valve rod adj ustment on E4ME/E4MC carburetors
CHOKE LEVER ADJUSTMENT
ROCHESTER E2SE 1. If the choke cover is riveted, dr ill out the rivets and remove the choke
cover with the spring assembly.
2. Place the fast idle screw on the high step of the fast idle cam. Push the
intermediate choke lever until t he choke valve is closed.
3. Place a 0.085 in. (2.16mm) plug gauge in the choke housing hole and move the choke lever to touch the plug gauge.
4. Support the intermediate choke r od and bend it to make adjustment.
5. To install choke cover, use pop rivets.

Fig. 12: Choke lever adjus tment on E2SE carburetors
