When the function is enabled, the LED on the
button turns on.
FOLDAWAY PASSENGER SEAT
(for versions/markets, where provided)The passenger seat can be folded away on some
versions.
IMPORTANT Move the seat only when there are no
rear passengers.
Folding the seat
To fold the seat, proceed as follows:
open the passenger door;
pull lever A fig. 25 and fold the backrest forwards
in the direction indicated by the arrow;
then push the backrest B fig. 26 down: the seat is
now completely folded over on itself into the
"table" position;
pull flap C fig. 26 and push the backrest down
further: the seat is now completely folded away.
fig. 24F0T0205
fig. 25F0T0235fig. 26F0T0457
37
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

Repositioning the seat
To return the seat back to its normal position,
proceed as follows:
take tab C fig. 26 and lift the backrest up;
operate levers B fig. 27 and further lift the seat
upwards.
WARNING
When the passenger seat is folded away,
the space created cannot be used for
loading.When the vehicle is in motion, you are
therefore advised to remove or secure any
objects that might interfere with the driver. If
there is no partition between the cab and
the load compartment , tall objects or packages
may take up par t of the passenger area. Make
sure that these items are well secured by using
the available hooks and that they cannot
interfere with the driver.
WARNING
If there is no partition between the cab
and the load compartment , tall objects
or packages may take up par t of the passenger
area. Make sure that these items are well
secured by using the available hooks and that
they cannot interfere with the driver.
ACCESSING REAR SEATS (Combi versions)
Open one of the two sliding side doors to access the
rear seats (see "Doors" in this section).
fig. 27F0T0237
38
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

PARTITIONS
(for versions/markets, where provided)
CARGO VERSIONS
Fixed partition
Separates the passenger area from the load
compartment.
Glazed fixed partitionfig. 29
This has a central glass section so that you can keep
an eye on your load.
Fixed mesh partition
Separates the passenger area from the load
compartment. It has metallic mesh so that you can
keep an eye on your load.Pivoting split partition
If you need to transport bulky items, you can open
the partition as follows:
lay the foldaway passenger seat flat (see previous
pages);
fig. 28F0T0179
fig. 29F0T0167
fig. 30F0T0059
39
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

from inside the load compartment, unhook the
coupling A fig. 32 on the back of the partition
and insert it in seat B on the backrest of the
folded seat.
To reposition the partition, follow the procedure
described previously in reverse.
DRIVER PROTECTION LADDER
(for versions/markets, where provided)
On some versions, a fixed ladder fig. 33 is provided
to protect the driver from unstable loads and allow
greater loading capacity from the passenger side.
COMBI VERSIONS
(for versions/markets, where provided)
Fixed partition
This is located behind the backrest of the rear seats.
fig. 31F0T0196fig. 32F0T0210
40
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

HEADREST
FRONT
These are height-adjustable and lock into place
automatically fig. 35.
Upward adjustment: lift the headrest until it locks.
Downward adjustment: press button A fig. 35and
lower the headrest.
WARNING
All adjustments must be carried out only
with the vehicle stationary and the
engine off. Headrests must be adjusted so that
the head, rather than the neck, rests on them.
Only in this case they can protect your head
correctly.To maximise the protective action
provided by the headrest , adjust the seat back
so that your trunk is upright and keep your
head as close to the headrest as possible.
REAR
(for versions/markets, where provided)
Lift up to use.
fig. 33F0T0177
fig. 34F0T0195fig. 35F0T0053
41
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

To put the headrests away, press buttons A
fig. 36fig. 37 and push them down into the backrest.
To extract the headrests, raise them until you hear
the click (which indicates they are in "all extracted"
position).IMPORTANT The headrests must always be in the
"all extracted" position when the rear seats are
in use.
fig. 36F0T0054
fig. 37 - N1 versions (4 seats)F0T0341
42
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

STEERING WHEEL
The height and axial position of the steering wheel
can be adjusted on some versions.
To carry out the adjustment, proceed as follows:
release lever A fig. 38 by pushing it forwards
(position 1);
adjust the steering wheel;
lock lever A by pulling it towards the steering
wheel (position 2).
WARNING
All adjustments must be carried out only
with the vehicle stationary and the
engine off.
WARNING
It is absolutely forbidden to carr y out
any after-market operation involving
steering system or steering column
modifications (e.g. installation of anti-theft
device) that could badly affect performance and
safety, invalidate the warranty and also result
in the vehicle failing to comply with regulations.
fig. 38F0T0040
43
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

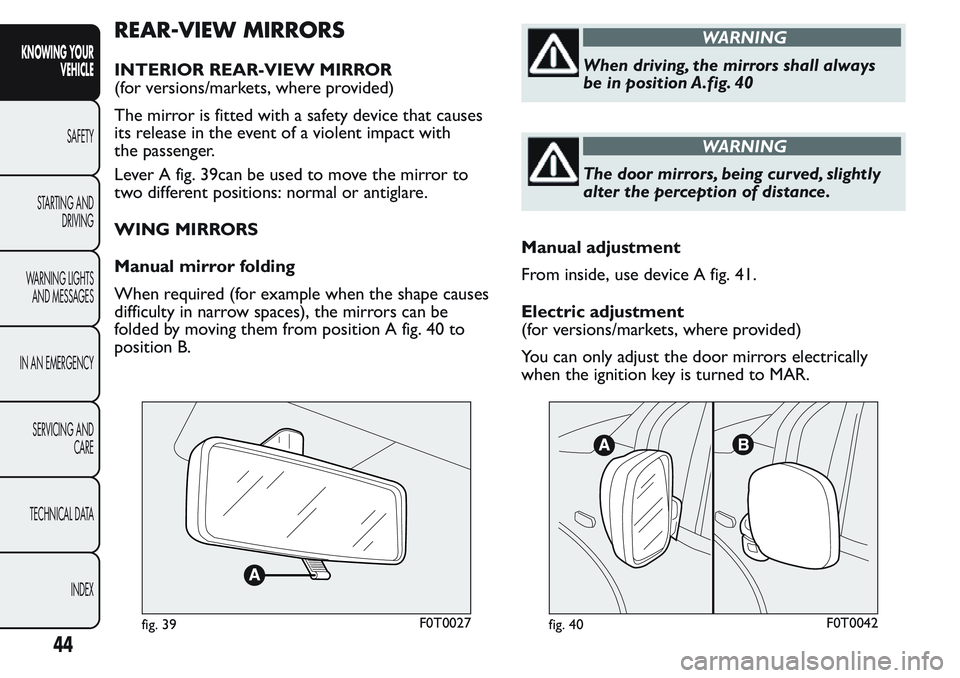

REAR-VIEW MIRRORS
INTERIOR REAR-VIEW MIRROR
(for versions/markets, where provided)
The mirror is fitted with a safety device that causes
its release in the event of a violent impact with
the passenger.
Lever A fig. 39can be used to move the mirror to
two different positions: normal or antiglare.
WING MIRRORS
Manual mirror folding
When required (for example when the shape causes
difficulty in narrow spaces), the mirrors can be
folded by moving them from position A fig. 40 to
position B.
WARNING
When driving, the mirrors shall always
be in position A.fig. 40
WARNING
The door mirrors, being curved, slightly
alter the perception of distance.
Manual adjustment
From inside, use device A fig. 41.
Electric adjustment
(for versions/markets, where provided)
You can only adjust the door mirrors electrically
when the ignition key is turned to MAR.
fig. 39F0T0027fig. 40F0T0042
44
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

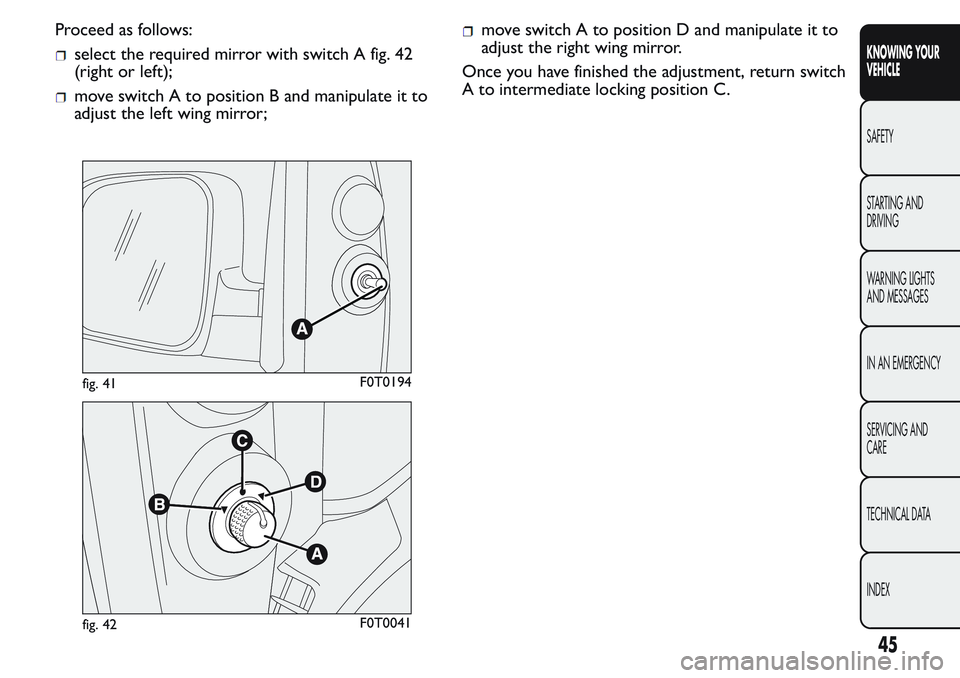

Proceed as follows:
select the required mirror with switch A fig. 42
(right or left);
move switch A to position B and manipulate it to
adjust the left wing mirror;
move switch A to position D and manipulate it to
adjust the right wing mirror.
Once you have finished the adjustment, return switch
A to intermediate locking position C.
fig. 41F0T0194
fig. 42F0T0041
45
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

HEATING AND VENTILATION
SYSTEM
AIR VENTS

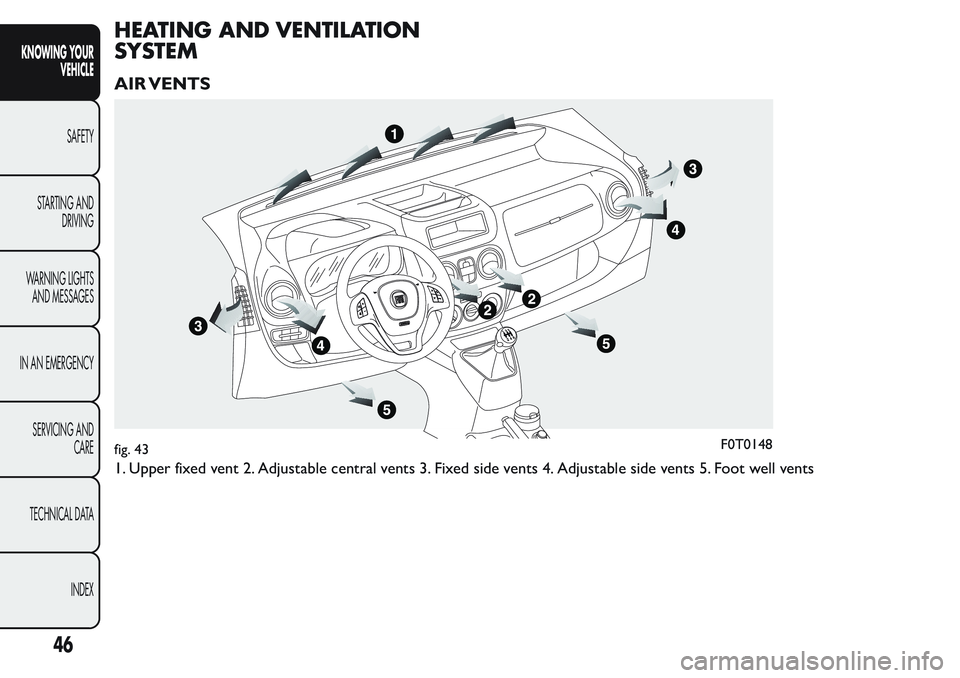

1. Upper fixed vent 2. Adjustable central vents 3. Fixed side vents 4. Adjustable side vents 5. Foot well vents
